5-Port PoE+ Gigabit Ethernet Switch User’s Manual
Provides four PoE+ ports and one uplink port.
Each port can use a power supply up to 30 W, and the total PoE budget
is 62 W.
LPB130 5A
Customer
Support
Information
Order toll-free in the U.S. : Call 877-877-BBOX (outside U.S. call 724-746-550 0)
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax
724-746-0746 • Mailing address: Black Box Corporation , 1000 Park Drive, L awrence,
PA 15055-1018 • Web site: www.blackbox.com • E-mail: info@blackbox.com
Trademarks Used in this Manual/Disclaimer
Trademarks Used in this Manual
Black Box and the Double Diamond logo are registered trademarks of
BB Technologies, Inc.
Any other trademarks mentioned in this manual are acknowledged to be
the property of the trademark owners.
Disclaimer
Black Box Network Services shall not be liable for damages of any kind, including,
but not limited to, punitive, consequential or cost of cover damages, resulting
from any errors in the product information or specifications set forth in this
document and Black Box Network Services may revise this document at any time
without notice.
Page 2
724-746-5500 | blackbox.com
FCC and IC RFI Statements/NOM Statement
FEDERAL COMMUNICATIONS COMMISSION AND
INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS
This equipment generates, uses, and can radiate radio-frequency energy,
and if not installed and used properly, that is, in strict accordance with the
manufacturer’s instructions, may cause inter ference to radio communication.
It has been tested and found to comply with the limits for a Class A computing
device in accordance with the specifications in Subpart B of Part 15 of FCC rules,
which are designed to provide reasonable protection against such interference
when the equipment is operated in a commercial environment. Operation of
this equipment in a residential area is likely to cause interference, in which case
the user at his own expense will be required to take whatever measures may be
necessary to correct the interference.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This digital apparatus does not exceed the Class A limits for radio noise
emis sion from digital apparatus set out in the Radio Interference Regulation
of Industry Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les
limites applicables aux appareils numériques de la classe A prescrites dans le
Règlement sur le brouillage radioélectrique publié par Industrie Canada.
Normas Oficiales Mexicanas (NOM)
Electrical Safety Statement
INSTRUCCIONES DE SEGURIDAD
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes
de que el aparato eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas para
referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de
operación deben ser respetadas.
4. Todas las instrucciones de operación y uso deben ser seguidas.
724-746-5500 | blackbox.com
Page 3
NOM Statement
5. El aparato eléctrico no deberá ser usado cerca del agua — por ejemplo,
cerca de la tina de baño, lavabo, sótano mojado o cerca de una alberca,
etc.
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales
que sean recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea
recomendado por el fabricante.
8. Servicio — El usuario no debe intentar dar servicio al equipo eléctrico más allá
lo descrito en las instrucciones de operación. Todo otro servicio deberá ser
referido a personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no
interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,
alfombra o superficie similar puede bloquea la ventilación, no se debe
colocar en libreros o gabinetes que impidan el flujo de aire por los orificios
de ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor
como radiadores, registros de calor, estufas u otros aparatos (incluyendo
amplificadores) que producen calor.
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo
del tipo descrito en el instructivo de operación, o como se indique en el
aparato.
12. Precaución debe ser tomada de tal manera que la tierra fisica y la
polarización del equipo no sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que no
sean pisados ni pellizcados por objetos colocados sobre o contra ellos,
poniendo particular atención a los contactos y receptáculos donde salen
del aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las
recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las
lineas de energia.
16. El cable de corriente deberá ser desconectado del cuando el equipo no sea
usado por un largo periodo de tiempo.
Page 4
724-746-5500 | blackbox.com
NOM Statement
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean
derramados sobre la cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del aparato; o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en su
desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada.
724-746-5500 | blackbox.com
Page 5
Table of Contents
Table of Contents
1. Specifications ......................................................................................... 7
2. Overview ............................................................................................... 8
2.1 Introduction ................................................................................ 8
2.2 What’s Included .......................................................................... 8
2.3 Hardware Description .................................................................. 8
3. Installation ............................................................................................10
4. Operation .............................................................................................11
Page 6
724-746-5500 | blackbox.com
1. Specifications
Approvals FCC, CE
Buffer Memory 104K bits
Chapter 1: Specifications
Filtering/
Forwarding
Rates
MAC Address 1 K
Power over
Ethernet
Standards IEEE 802.3: 10BASE-T;
Transmission
Media
Transmission
Method
Connectors (4) RJ-45 PoE+ ports;
Indicators (10) LEDs:
Environment Temperature: Operating: 32 to 122° F (0 to 50° C);
Power 100–240 VAC, 50/60 Hz internal power module
Dimensions 1.5"H x 4.5"W x 7.1"D (3.7 x 11.3 x 18 cm)
Weight 1.8 lb. (0.8 kg)
1000 Mbps port: 1,488,000 pps;
100 Mbps port: 148,800 pps;
10 Mbps port: 14,880 pps
Supports up to 30 W for each PoE port;
PoE power budget: 62 W;
PD classification identify;
PoE overcurrent protection,
PoE circuit sorting protection,
PoE power on RJ-45 pins 3, 6 for power +, pins 1, 2 for power -
IEEE 802.3u: 100BASE-TX;
IEEE 802.3ab:1000BASE-TX;
IEEE 802.3at/af: Power Over Ethernet
10BASE-T CAT3, 4, 5 UTP/STP;
100BASE-TX CAT 5 UTP/STP;
1000BASE-TX: CAT5e/6/7 UTP/STP
Store and Forward
(1) RJ-45 uplink port;
Power connector
(1) Power,
(1) Uplink,
(4) LAN port,
(4) PoE port
Humidity: 10 to 90% relative, noncondensing
724-746-5500 | blackbox.com
Page 7
Chapter 2: Overview
2. Overview
2.1 Introduction
The 5-Port PoE+ Gigabit Ethernet Switch (LPB1305A) has four PoE+ ports and one uplink
port. With PoE+, each port can use a power supply up to 30 W, and the total PoE budget
is 62 W.
2.2 What’s Included
Your package should include the following items. If anything is missing or damaged,
contact Black Box Technical Support at 724-746-5500 or info@blackbox.com.
• (1) PoE+ Switch
• (1) power cord
• A printed Quick Start Guide
NOTE: To download the user manual (the document you are reading now), go to
ftp://ftp.blackbox.com/manuals/L/LPB1305A_USER_rev1.pdf or visit the
Black Box Web site (www.blackbox.com) and enter L P B13 0 5 A in the
se arch bar.
2.3 Hardware Description
1 2 3
Page 8
4
Figure 2-1. Front panel.
5 6 7
Figure 2-2. Back panel.
724-746-5500 | blackbox.com
Chapter 2: Overview
Table 2-1. PoE+ switch components.
Number in
Figure 2-1
or 2-2
1 (1) Power LED Lights green when power is on and normal.
2 (1) LAN LED Lights green/orange on when the 10/100/1000
3 (4)
4 (4) PoE+
5 (1) 3-prong
6 (1) RJ-45
7 (4) RJ-45
Component Description
Ethernet uplink port is connected.
Flashes orange when the port is transferring data
10/100/1000
LEDs
LEDs
connector
connector
connectors
at 1000 Mbps.
Flashes green when the port is transferring data at
100 Mbps.
Off when the port is transferring data at 10 Mbps.
Lights orange when the Power over Ethernet (PoE)
function on port x (where x=1–4) is active.
Off when PoE on the port 1–4 is disabled.
Links to 110–240 VAC power cord.
Link Port 1: Connects to a network via CAT5e/6/7
cable.
Ports 2–5: Link to Powered Devices (PD) for Power
over Ethernet (PoE).
724-746-5500 | blackbox.com
Page 9
Chapter 3: Installation
3. Installation
STEP 1: Connect the AC power cord to the PoE+ switch, and the Power LED will
light.
STEP 2: Link Port 1 on the PoE+ switch to a network connection via CAT5e/6/7
cable.
STEP 3: Attach the four PoE+ ports on up to four Powered Devices (PDs) to the
four PoE+ ports on the PoE+ switch.

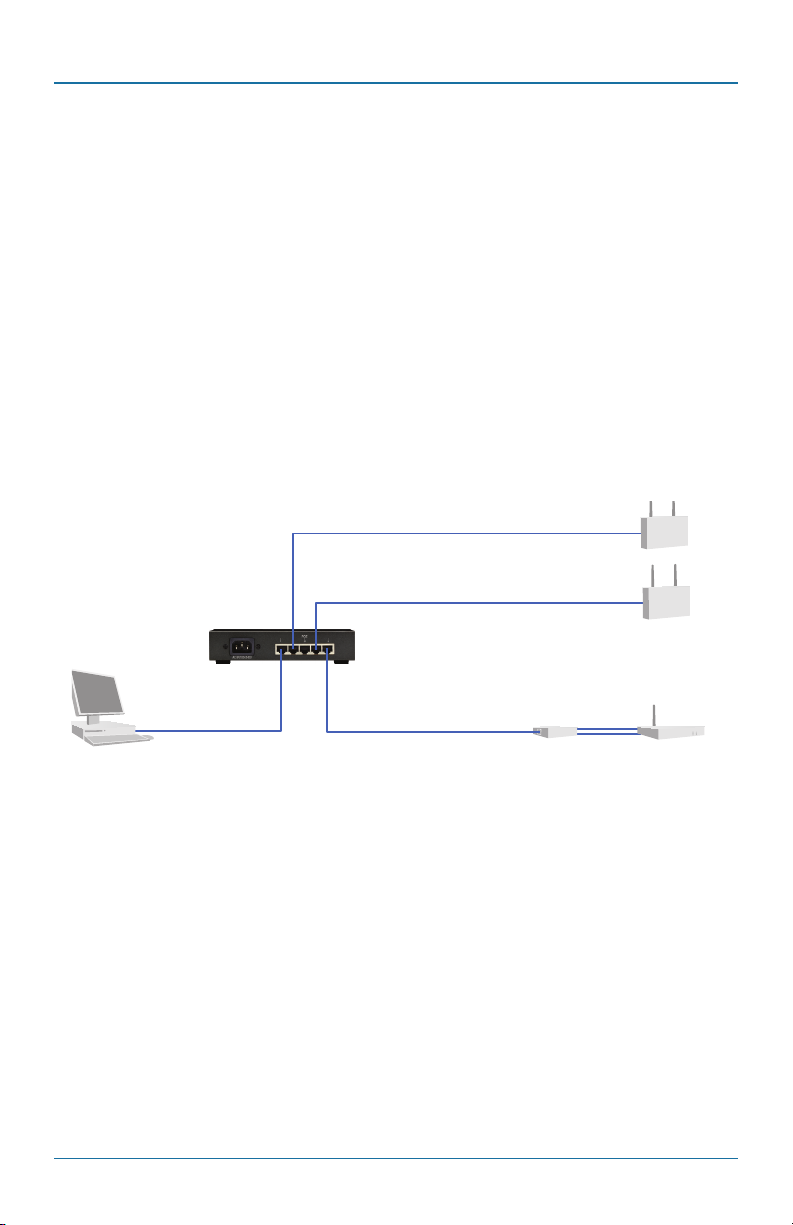

Figure 3-1 shows an application diagram.
Gigabit Ethernet
Access Point
Up to 328 feet (100 m)
of CAT5e /6 /7 cable
PoE
5-Port PoE+ Gigabit
Ethernet Switch
(LP B1305 A)
Up to 328 feet (100 m)
PC
of CAT5e /6 /7 cable
Up to 328 feet (100 m)
of CAT5e /6 /7 cable
PoE
Up to 328 feet (100 m)
of CAT5e /6 /7 cable
Gigabit Ethernet
Figure 3-1. Typical installation.
PoE splitter
PoE
Gigabit Ethernet
Access Point
Gigabit Ethernet
Access Point
Page 10
724-746-5500 | blackbox.com
Chapter 4: Operation
4. Operation
Once installed, the switch operates automatically. LED indicators function as
described in Table 4-1.
Table 4-1. LED indicators on the LPB1305A PoE+ Switch.
Indicator Function
(1) Power LED Lights green when power is on and normal.
(1) LAN LED Lights green/orange on when the 10/100/1000 Ethernet
uplink port is connected.
(4 ) 10 /100 /100 0
LEDs
(4) PoE+ LEDs Lights orange when the Power over Ethernet (PoE)
Flashes orange when the port is transferring data at 1000
Mbps.
Flashes green when the port is transferring data at 100
Mbps.
Off when the port is transferring data at 10 Mbps.
function on port x (where x=1–4) is active.
Off when PoE on the port 1–4 is disabled.
724-746-5500 | blackbox.com
Page 11
Black Box Tech Support: FREE! Live. 24/7.
Tech support the
way it should be.
Great tech support is just 30 seconds away at
724-746-5500 or blackbox.com.
About Black Box
Black Box provides an extensive range of networking and infrastructure products.
You’ll find everything from cabinets and racks and power and surge protection
products to media converters and Ethernet switches all supported by free, live 24/7
Tech support available in 30 seconds or less.
© Copyright 2013. Black Box Corporation. All rights reserved. Black Box® and the Double Diamond logo
are registered trademarks of BB Technologies, Inc. Any third-party trademarks appearing in this manual
are acknowledged to be the property of their respective owners.
LPB1305A user manual, version 1
724-746-5500 | blackbox.com
Loading...
