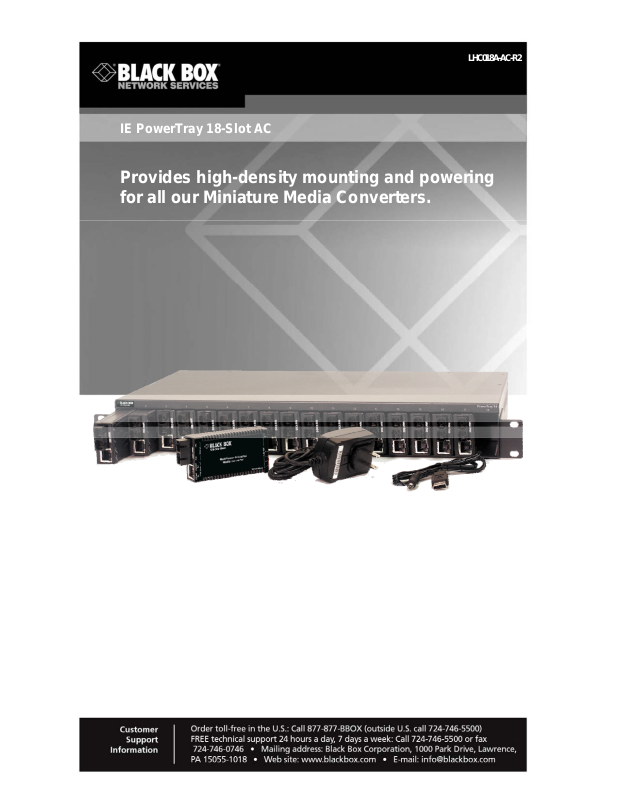

Page 1
LHC018A-AC-R2
IE PowerTray 18-Slot AC
Provides high-density mounting and powering
for all our Miniature Media Converters.
Page 2
TRADEMARKS USED IN THIS MANUAL
Black Box and the Double Diamond logo are registered trademarks of BB
Technologies, Inc.
Any other trademarks mentioned in this manual are acknowledged to be the
property of the trademark owners.
Page 2 724-746-5500 | blackbox.com LHC018A-AC-R2
Page 3
FCC and IC RFI Statements
FCC and Industry Canada RF Interference Statements
This equipment generates, uses, and can radiate radio-frequency energy, and if not
installed and used properly, that is, in strict accordance with the manufacturer’s
instructions, may cause interference to radio communication. It has been tested
and found to comply with the limits for a Class A computing device in accordance
with the specifications in Subpart B of Part 15 of FCC rules, which are designed to
provide reasonable protection against such interference when the equipment is
operated in a commercial environment. Operation of this equipment in a residential
area is likely to cause interference, in which case the user at his own expen se will
be required to take whatever measures may be necessary to cor rect the
interference.
Changes or modifications not expressly approved by the party responsible for
compliance could void the us er’s authority to opera te the equipment.
This digital apparatus does not exceed the Class A limits for radio noise emission
from digital apparatus set out in the Radio Interference Regulation of Industry
Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les
limites applicables aux appareils numériques de la classe A prescrites dans le
Règlement sur le brouillage radioélectrique publié par le Industrie Canada.
LHC018A-AC-R2 724-746-5500 | blackbox.com Page 3
Page 4
Certifications
Certifications
UL/CUL: Listed to Safety of Information Technology Equipment, including
Electrical Business Equipment.
Class 1 Laser product, Luokan 1 Laserlaite,
Laser Klasse 1, Appareil A’Laser de Classe
European Directive 2002/96/EC (WEE E) requires that any equipment that
bears this symbol on product or packaging must not be disposed of with
unsorted municipal waste. This symbol indicates that the equipment should be
disposed of separately from regular household waste. It is the consumer’s
responsibility to dispose of this and all equipment so marked through
designated collection facilities appointed by government or local authorities.
Following these steps through proper disposal and recycling will help prevent
potential negative consequences to the environment and human health. For
more detailed information about proper disposal, please contact local
authorities, waste disposal services, or the point of purchase for this equipment.
Page 4 724-746-5500 | blackbox.com LHC018A-AC-R2
Page 5
Table of Contents
Table of Contents
Part Numbers ......................................................................................................6
1. Specifications .........................................................................................7
2. Overview: About the IE PowerTray 18-Slot AC.....................................8
3. Install the IE PowerTray 18-Slot AC and and IE Miniature Media
Converters..............................................................................................9
4. Contacting Black Box...........................................................................10
5. Electrostatic Discharge Precautions ....................................................11
LHC018A-AC-R2 724-746-5500 | blackbox.com Page 5
Page 6
Part Numbers
Part Numbers
Part Number Description
LHC018A-AC-R2 IE PowerTray 18-Slot AC
Page 6 724-746-5500 | blackbox.com LHC018A-AC-R2
Page 7
Chapter 1: Specifications
1. Specifications
AC Input Load 100 to 240 ±10% VAC, 50/60Hz, 1.5 to 0.75A
Operating Temperature -4°F to +158°F (-20°C to +70°C)
Storage Temperature -40°F to +185°F (-40°C to +85°C)
Humidity 5% to 95% (non-condensing); 0 to 10,000 ft.
altitude
Dimensions 2.30”H x 16.97"W x 9.25”D
(5.80cm x 43.10cm x 23.5cm)
LHC018A-AC-R2 724-746-5500 | blackbox.com Page 7
Page 8
Chapter 2: Overview
2. Overview: About the IE PowerTray 18-Slot AC
The IE PowerTray 18-Slot AC is a modular enclosure for installing up to 18
Black Box Compact Converter Form Factor miniature media converters. The IE
PowerTray 18-Slot AC features an internal AC power supply.
• Miniature Media Converter 10/100
• Miniature Media Converter 10/100/1000
• Gigabit Miniature Media Converters
• Multi-Power Miniature Media Converter 10/100/1000
• MultiPower Industrial Media Converters
• Industrial SFP/SFP Multi-Power Mode Converter
NOTE
All the above will be referred to as Compact Converter Form Factor throughout this
manual.
Page 8 724-746-5500 | blackbox.com LHC018A-AC-R2
Page 9
Chapter 3: Install the IE PowerTray 18-Slot AC
3. Install the IE PowerTray 18-Slot AC and and IE Miniature Media
Converters
The IE PowerTray 18-Slot AC mounts into an equipment rack. Black Box
recommends turning OFF the power to the chassis before proceeding.
To install a Compact Converter Form Factor, make sure the data connectors
are facing the front of the tray. Slide the Compact Converter Form Factor into
the IE PowerTray 18-Slot AC, using the guides, until the Compact Conve rter
Form Factor is firmly seated in the backplane. Attach the network cables
between the Compact Converter Form Factor and other devices that will be
interconnected. Plug the chassis into a power source and turn the chassis
power switch to ON. There is a green LED located on the back of the unit that
indicates when the unit has power.
Compact Converter Form Factor units are hot-swappable when installing in the
IE PowerTray 18-Slot AC. Refer to the installation guide shipped with Compact
Converter Form Factor for information on its operation.
LHC018A-AC-R2 724-746-5500 | blackbox.com Page 9
Page 10
Chapter 4: Contacting Black Box
4. Contacting Black Box
Black Box Customer Service
Order toll-free in the U.S.: Call 877-877-BBOX
(outside U.S. call 724-746-5500)
Free technical support, 24 hours a day, 7 days a week.
Call: 724-746-5500 or Fax: 724-746-0746
Mail order: Black Box Corporation
1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com
E-mail: info@blackbox.com
Page 10 724-746-5500 | blackbox.com LHC018A-AC-R2
Page 11
Chapter 5: Electrostatic Discharge Precautions
5. Electrostatic Discharge Precautions
Electrostatic discharge (ESD) can cause damage to any product, add-in
modules or stand alone units, containing electronic components. Always
observe the following precautions when installing or handling these kinds of
products.
1. Do not remove unit from its protective packaging until ready to install.
2. Wear an ESD wrist grounding strap before handling any module or component.
If the wrist strap is not available, maintain grounded contact with the system unit
throughout any procedure requiring ESD protection.
3. Hold the units by the edges; do not touch the electronic components or gold
connectors.
4. After removal, always place the boards on a grounded, static-free surface, ESD
pad or in a proper ESD bag. Do not slide the modules or stand alone units over
any surface.
WARNING! Integrated circuits and fiber optic components
are extremely susceptible to electrostatic discharge damage.
Do not handle these components directly unless you are a
qualified service technician and use tools and techniques that
conform to accepted industry practices.
LHC018A-AC-R2 724-746-5500 | blackbox.com Page 11
Page 12
LHC018A-AC-R2 Rev. 1 50-80086BB Rev. A3
