LH1350C-xx-R3
USER’S GUIDE
LH1350C-ST-R3
LH1350C-SC-R3

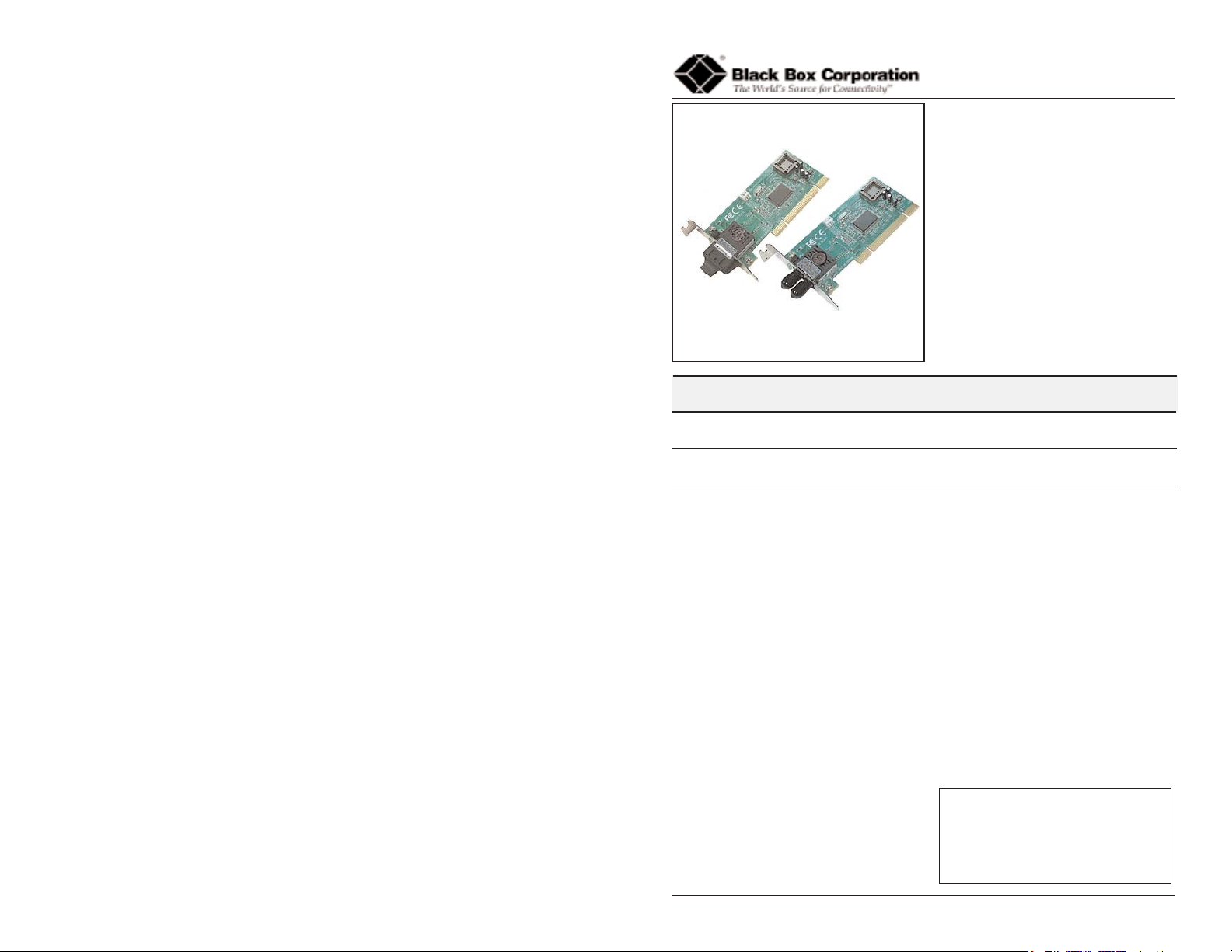

100Base-FX, Fast Ethernet Fiber NICs
The Black Box LH1350C series of fast
Ethernet NICs (Network Interface
Cards) provide a 100Base-FX fiber port
to deliver low-cost fiber optic
connectivity to the desktop in fiber-rich
LAN environments. With driver support
for most operating systems and PCI 2.2
plug-and-play capability, these fast
Ethernet NICs can be installed in
virtually any PC on the network.
Part Number
LH1350C-ST-R3
LH1350C-SC-R3
*Typical maximum cable distance. Actual distance is dependent upon the physical
characteristics of the network installation.
Port One - Duplex Fiber-Optic 100Base-FX
ST, 1300 nm multimode, 2 km (1.2 miles)*
SC, 1300 nm multimode, 2 km (1.2 miles)*
Installation . . . . . . . . . . . . . . . . . . .2
Cable Specifications . . . . . . . . . . .4
Technical Specifications . . . . . . . .5
Troubleshooting . . . . . . . . . . . . . . .6
Contact Us . . . . . . . . . . . . . . . . . . .7
LH1350C Serial Fast Ethernet NICs
Installation
Description
The LH1350C module has a bootable ROM socket. The two LED indicators,
LINK/ACT and FDX located on the bracket, show network/board link, activities,
collision, and full-duplex statuses. See Figure 1.
LH1350C module installation
CAUTION: Wear a grounding strap and observe electrostatic discharge
precautions when installing the LH1350C module. Failure to observe this caution
could result in damage or failure of the LH1350C module.
To install the LH1350C module, do the following:
Important: Install the LH1350C module in a “master slot” only.

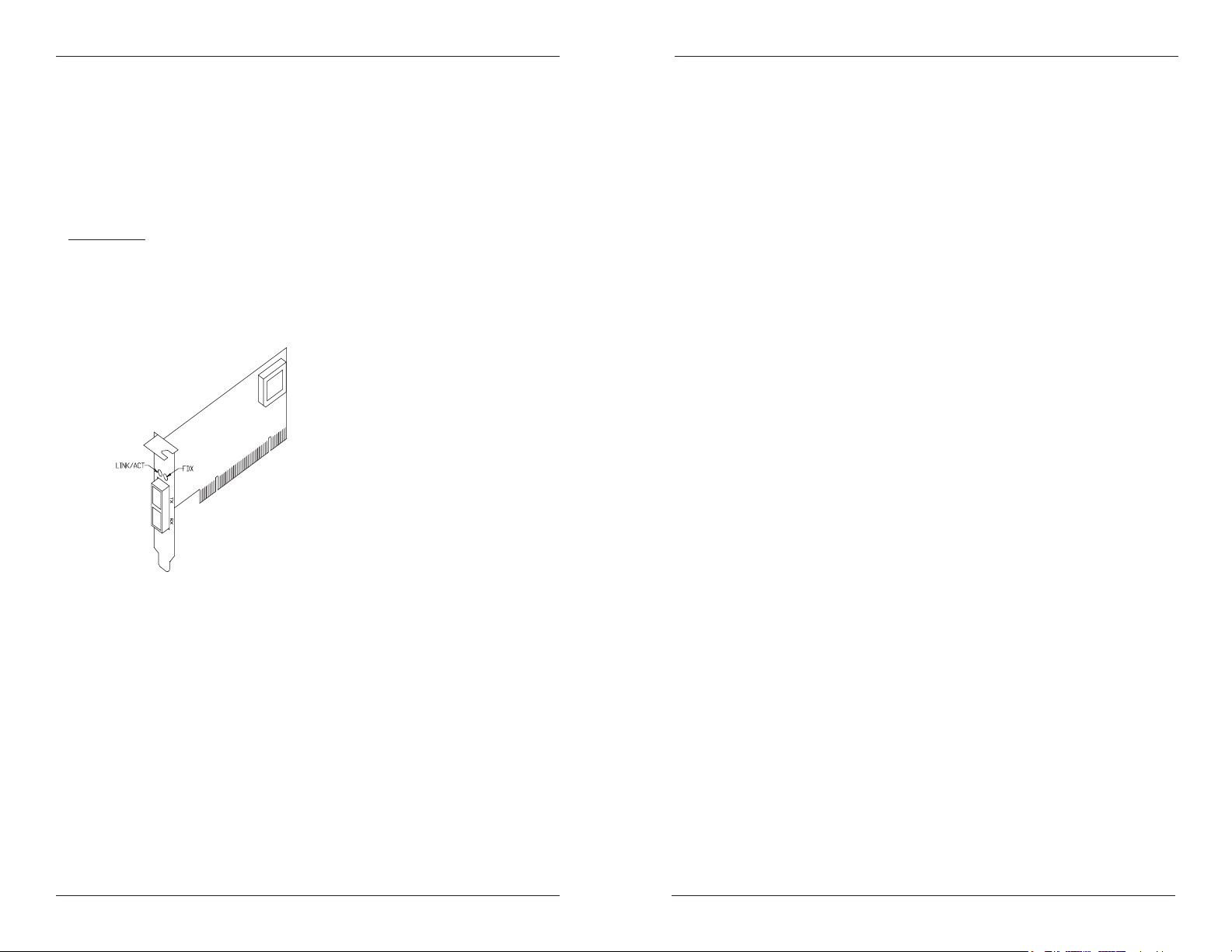

Figure 1: LEDs and Boot ROM Socket
1. Locate a master slot on the PC workstation or file server.
2. Remove the cover from the PC workstation or file server—keep all screws.
3. Remove and keep the screws holding the cover over the installation slot.
4. Carefully slide the LH1350C module into the “master slot,” aligning the
module with the slot guides.
Install the LH1350C module -- continued
5. Ensure that the module is firmly seated in the slot.
6. Use the screws from step “3” to secure the module to the workstation or
file server housing.
LH1350C module configuration
For motherboards with automatic PCI configuration:
• No specific setup is needed.
• You can enter the system BIOS setup menu to view or specify the interrupt
(INT) line of the PCI slots.
For motherboards with bus master and interrupt jumpers:
• Enable bus master operation in a selected PCI slot and select an INT
request line (IRQ) level, using the appropriate motherboard jumper.
• Enable I/O on the LH350C slot.
PCI bus system and configuration
• Ensure that the PCI machine supports master slots, and INT multiple
sharing and timing compatibility.
• DO NOT install LH1350C in PCI slave slots. Please refer to your PC
system manual and select the appropriate configuration settings.
• When installing multiple LH1350C modules in a server station, you should
correctly configure the IRQ settings of the PCI slot.
• Up to four LH1350C modules can be installed in a PCI file server running
NetWare operating system.
• LH1350C server modules share the same INT line with the driver
supporting multiple INT services at a time. The IRQ of each LH1350C
module should not conflict with other boards.
• Operation in full or half-duplex (default) mode is configured by LAN
driver options. The operating mode should match the working status of the
remote link device.
• Use EMM386 version 4.49 or higher, and install both DOS and EMM386
from the same DOS package to avoid software problems.
2
24-hour Technical Support: 1-724-746-5500
24-hour Technical Support: 1-724-746-5500
3
LH1350C Serial Fast Ethernet NICs
Cable Specifications
Fiber cable
Bit error rate: <10-9
Single mode fiber (recommended): 9 µm
Multimode fiber (recommended): 62.5/125 µm
Multimode fiber (optional): 100/140, 85/140, 50/125 µm
LH1350C-ST-R3, LH1350C-SC-R3 1300 nm multimode
Fiber optic transmitter power: min: -19.0 dBm max: -14.0 dBm
Fiber optic receiver sensitivity: min: -31.0 dBm max: -17.0 dBm
Link budget: 12.0 dBThe fiber optic transmitters
The fiber-optic transmitters on the device meet Class I Laser safety requirements
per IEC-825/CDRH standard and compy with 21CRF1040.10 and 21CRF1040.11.
Technical Specifications
For models LH1350C-ST-R3, LH1350C-SC-R3
Standards: IEEE 802.3
Expansion bus standard: PCI 2.1, 2.2
Data rate 100Mbps fiber media
LED: LINK/ACT (on the bracket)
ON = communication link; FLASHING = activity
on link
FDX (full duplex link); ON = full duplex link
Drivers: • NetWare Server 3.12, 4.x, 5.x; 6.x
• Netware DOS Client ODI
• Windows 95, 98, 2000, 2003, NT4.0, XP
• Linux
Boot server support: Novell RPL Boot ROM; PXE Boot ROM
Dimensions: 3.2”W x 5.4”D x 0.9”H (80 mm x 138 mm x 23
mm)
Weight: 3 oz. (91g) approximate
Power consumption: 1.0A @ +5VDC
MTBF 184,743 hours (Bellcore7 V5.0)
Opearting temp: 0°C to 50°C (32°F to 122°F)
Storage temp: -25°C to 85°C (-13°C to 185°F)
Humidity: 5% to 90%, non-condensing
Altitude: 0 to 10,000 feet
Warranty: Lifetime
WARNING:
the beam or view directly with optical instruments. Failure to observe this warning
could result in damage to your vision or blindness.
CAUTION:
than those specified herein may result in hazardous radiation exposure.
The information in this manual is subject to change without further notice.
4
24-hour Technical Support: 1-724-746-5500
24-hour Technical Support: 1-724-746-5500
Visible and invisible laser radiation when open: DO NOT stare into
Use of controls, adjustments, or the performance of procedures other
5
LH1350C Serial Fast Ethernet NICs
Troubleshooting
Diagnostics LEDs and Boot ROM
LEDS
The LINK/ACT LED lights when a fiber cable or twisted pair cable connection
is good. It blinks to indicate activity.
The collision and full-duplex LED report board operating status.
Boot ROM
To add the remote boot feature to a workstation, insert the Boot ROM into the
ROM socket. See Figure 1 on page 2.
After power UP, the LINK/ACT LED should light; if not, check the following:
1 Confirm that the LH1350C module is properly inserted into the master
slot.
2 Confirm that the PC is properly connected to a power source and with the
power source turned ON.
3 Check the fiber cable for proper connection.
4 Contact Tech Support: 1-724 746-5500 if those steps fail to produce the
desired result.
Note: To connect this device to a router, bridge, or switch, please refer to the
corresponding technical manual for the device.
Declaration of Conformity
Name of Mfg: Black Box Corp,1000 Park Dr., Lawrence, PA 15505 U.S.A.
Model: LH1350C-xx-R3, Network Interface Cards
Part Number: LH1350C-ST-R3, LH1350C-SC-R3
Regulation: EMC Directive 89/336/EEC
Purpose: To declare that the LH1350C-ST-R3 and LH1350C-SC-R3, to
which this declaration refers, is in conformity with the following
standards:
CISPR 22:1997+A1:2000; EN 55022:1998+A1:2000 Class A; FCC Part 15 Subpart B;
21CFR subpart J
I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s)
and Standard(s).
Contact Us
Technical support
Technical support is available at techsupport@transition.com
• US and Canada: 1-724-746-5500 (24 hours)
Email
Ask a question anytime by sending an email: info@blackbox.com.
Address
Black Box Corporation
1000 Park Drive
Lawrence, PA 15055
Telephone: 724-746-5500
Fax: 724-746-0476
Stephen Anderson, Vice-President of Engineering Date
6
July 5, 2005
24-hour Technical Support: 1-724-746-5500
24-hour Technical Support: 1-724-746-5500
7
Compliance Information
CISPR22/EN55022 Class A, CE Mark, CISPR22/EN55022 Class A + EN55024, CE Mark
FCC regulations
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference, in which
case the user will be required to correct the interference at the user's own expense.
Canadian regulations
This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out
on the radio interference regulations of the Canadian Department of Communications.
Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables
aux appareils numériques de la Class A prescrites dans le Règlement sur le brouillage
radioélectrique édicté par le ministère des Communications du Canada.
European regulations
Caution: This is a Class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
Achtung! Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen können bei
Betrieb dieses Gerätes Rundfunkstörungen auftreten. In diesem Fäll ist der Benutzer für
Gegenmaßnahmen verantwortlich.
Attention! Ceci est un produit de Classe A. Dans un environment domestique, ce produit risque de
créer des interférences radioélectriques, il appartiendra alors à l'utilsateur de prende les measures
spécifiques appropriées.
CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE
PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in
damage to the public telephone network.
Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EGMitgliedstaaten verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der
Richtlinie 91/263/EWG zur Angleichung der Rechtsvorschriften der Mitgliedstaaten über
Telekommunikationsendeinrichtungen einschliesslich der gegenseitigen Anerkennung ihrer
Konformität.
Trademark notice
All registered trademarks and trademarks are the property of their respective owners.
Copyright restrictions
© 2004-2005 Black Box Corporation. All rights reserved. No part of this work may be reproduced
or used in any form or by any means—graphic, electronic or mechanical—without written
permission from Transition Networks
Printed in the U.S.A. Manual Part Number and Rev.
33340.A
