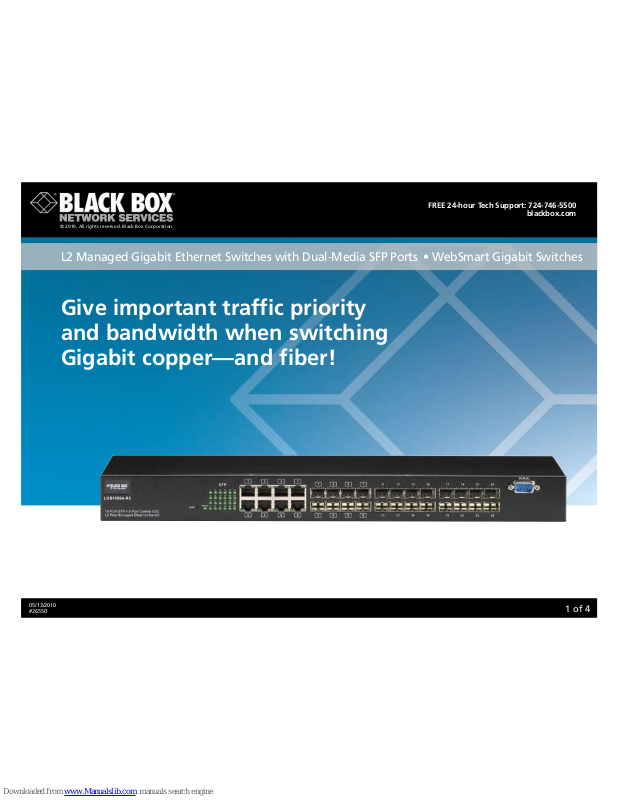

L2 Managed Gigabit Ethernet Switches with Dual-Media SFP Ports • WebSmart Gigabit Switches
Give important traffic priority
and bandwidth when switching
Gigabit copper—and fiber!
Page 2
724-746-5500 blackbox.com
2 of 4
05/13/2010
#26550
Migrate to copper and fiber Gigabit Ethernet with these managed switches.
L2 Managed Gigabit Ethernet Switches:
»
Support all IEEE 802.3 /u /x /z Ethernet, Fast
Ethernet, and Gigabit Ethernet specifications.
Great for mixed-speed environments!
»
Also use in workgroups, office L ANs, and larger
metropolitan networks that carry higherpriority traffic for powerful applications.
»
Bundle multiple por ts to create a single high-
bandwidth port using 802.3ad Link Aggregate
Control Protocol (LACP) aggregation.
»
Programmable higher layer classification
and prioritization for reliable Quality
of Service (QoS).
»
Ideal for use in VoIP real-time applications
where info moves from Layer 2 to Layer 4.
»
Robust security with VL AN capabilities,
as well as port security and IGMP snooping.
»
Easy to manage and configure. Suppor t
SNMP and Web-based management.
»
Spanning Tree (802.1w) algorithms prevent
network switching loops.
»
RoHS compliant.
Web Smart Gigabit Switches:
»
Features 8 or 48 autosensing 10-/100- / 1000 Mbps ports plus two slots for SFPs.
»
Use any standard Web browser to monitor
and control the switches.
FE ATU RES
For flexible, manageable port s witching with bandwidth aggregation,
choose BL ACK BOX
®
L2 Managed Gigabit Ethernet Switches with
Dual-Media SFP Por ts.
Available with 8, 16, 24, or 4 8 10- /100- /1000 -Mbps copper por ts,
these Layer 2 manageable switches offer advantages in mixed-speed
and legacy-integration environments b ecause all LAN ports support
10BASE-T, Fast Ethernet, and Gigabit Ethernet. The ports automatically
sense the speed of each connected device, so when you upgrade to
high-speed network devices, the switch automatically keeps pace.
The 8-port switch is an excellent choice for connecting branch office
machines to a larger MAN or WAN. Because it has a noise-free, fanless
design and a compact chassis, it’s tailor-made for cramped SO HOs.
The 16-, 24-, and 48 -port models are ideal for use in workgroups or
WANs and are enclosed in a fan-cooled 1U rackmount chassis.
Dual-media SFP ports for extra versatility
Two or four ports on each switch are dual-media port s with t wo
connectors each —one RJ -45 Ethernet and one SFP. You can use a dual media port as an ordinary 10-/100 -/100 0-Mbps copper Ethernet port or
you can use it to plug in an SFP in order to create a single- or multimode
fiber link that support s distances of up to 20 kilometers (12.4 miles).
The 1250-Mbps SFPs support Gigabit Ethernet and report basic link
characteristic s such as SFP type, length of fiber link, wavelength, and bit
rate. Models with extended diagnostics also report information such as
temperature, TX and RX power, voltage, and bias current. The hotpluggable inter face enables you to change SFPs on the fly when your
network requirements change
OVERVIE W
Double up for bandwidth
Port trunking enables you to provide more bandwidth to a specific
application or segment. 802.3ad Link Aggregate Control Protocol (L ACP)
bandwidth aggregation lets you combine Gigabit ports to create a
multilink trunk for load sharing.
The 8-port model supports up to 4 Gigabit ports per trunk
for a bandwidth up to 8 Gbps. The 16-por t model can be set up with
up to 8 Gigabit ports per trunk for bandwidth of up to 16 Gbps. The
24-port model supports up to 12 Gigabit ports per a trunk for up to
24-Gbps bandwidth. The 48 -port model supports up to 24 Gigabit ports
per trunk for up to 48-Gbps bandwidth.
LACP not only increases link capacit y, it also creates higher availability.
And because the switches aggregate all traffic based on MAC addresses,
they balance traffic loads efficiently.
Manage traffic flow
Along with Layer 2 802.1p Priorit y Queue control, the switches offer
Quality of Service (QoS) support, so you can program a higher layer
classification and ensure that traffic in real-time applications, such as
Voice over IP (VoIP) , receives higher priority.
Broadcast /multicast storm suppression enables you to restrict excess
traffic on your network. You can also control the rate limit for each
switch por t and set threshold values for the size of discarded packets.
Jumbo frame support helps to ensure reliable data transmission, too.
With this, you can set the switches to forward packets up to 9K in size
before discarding them.

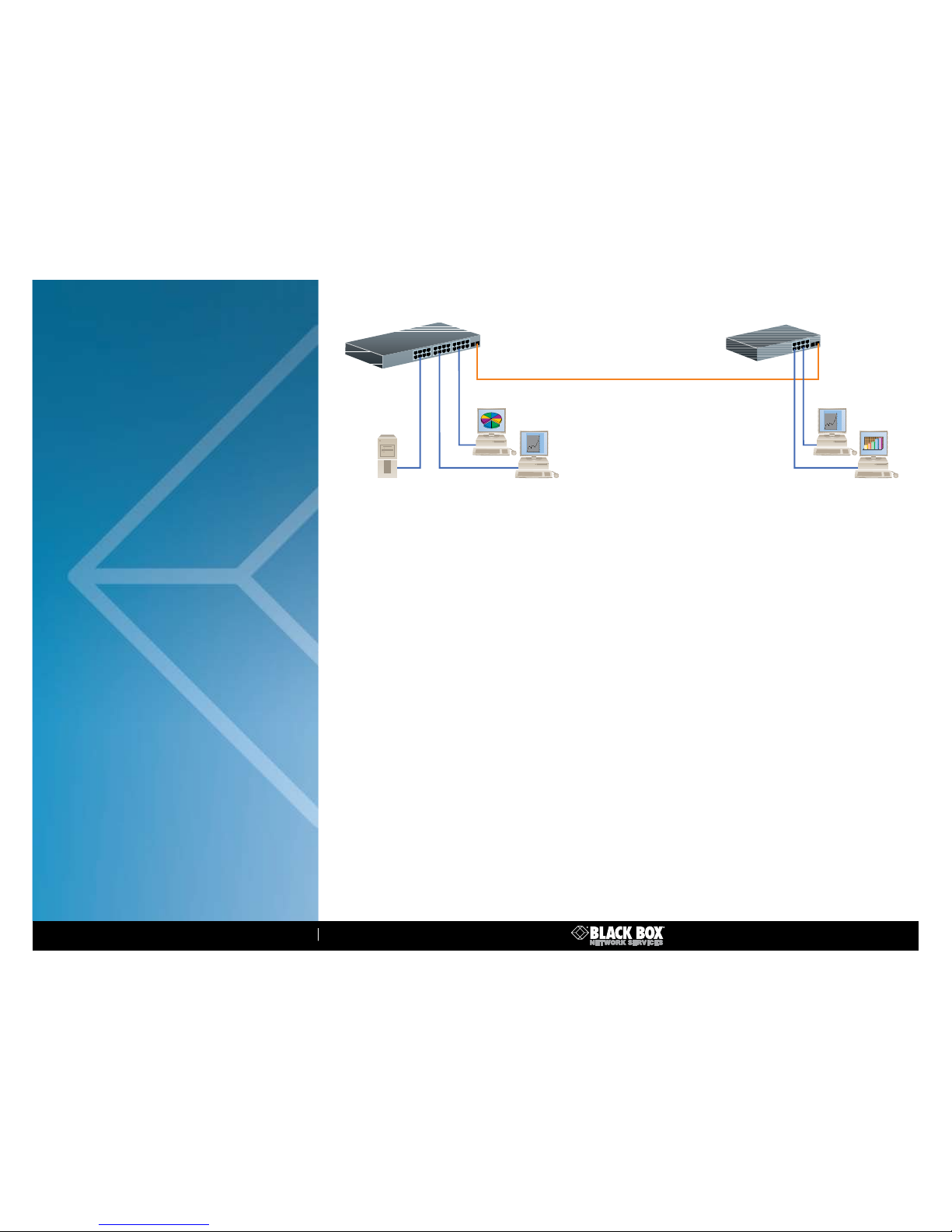

Fiber Opt ic Cable
GigaBase
®
350 CAT5e
350-MHz P atch Cable
(EVNSL85)
L2 Manag ed Gigabit Eth ernet
Switch with (2) Du al-Media
SFP Ports and (8 ) 10/100 /1000
Copper P orts (LGB1001A- R2)
L2 Manag ed Gigabit Eth ernet
Switch with (2) Du al-Media
SFP Port s and (24) 10/ 100/1000
Copper P orts (LGB1003 A-R2)
PCs
Server
PCs
Page 3
724-746-5500 blackbox.com
3 of 4
05/13/2010
#26550
Highly secure
The switches also contain a number of securit y capabilities,
including a Q -in-Q VLAN feature to isolate traffic between different
users, and 802.1x user authentication, which prevents unauthorized
access over the network.
In addition, with VL AN support for advanced 802.1Q, the switch
enables you to limit broadcast traffic to within the same VLAN broadcast
domain. And because the switches support Generic Attribute
Registration Protocol (GARP) and Generic V LAN Registration Protocol
(GVRP) , they allow for a more efficient exchange of VLAN configuration
data with other users and devices.
You can also limit the number of MAC addresses assigned to each
port, which, in turn, enables you to control the number of access stations
for each por t. This way, you not only establish an access mechanism
by user and machine, you also control the number of access stations
on your net work.
Highly manageable
Monitor, configure, and control ports with ease. The s witches support
SNMP, Web-based management, and CLI management interfaces.
You can also stack up to 16 of the switches and, using Virtual Stacking
Management ( VSM), manage them all via one IP address. In this
configuration, the switches are seen as part of a logically segmented
VLAN —an expanded network that doesn’t require the expense or
configuration of additional hardware to implement.
Error resistant
L2 Managed Gigabit Ethernet Switches with Dual- Media SFP Ports
also feature ex tensive error-tracking capabilities. Port mirroring, for
instance, helps you track errors or abnormal packet transmission—all
without inter rupting data flow in your networked switched environment.
For mission-critical applications, use multiple switches and configure
each with a redundant backup bridge path. Then, if a failure occur s on
one switch, you’ll still be able to guarantee the transmission and
reception of packets via a secondar y link on your network. For proper
load balancing in VL AN appli cations, the 1000BASE-TX L2 Managed
Ethernet Switch with Dual- Media SFP Ports uses an 802.1w Rapid
Spanning Tree (R ST) algorithm for creating a loop-free L ayer 2 topology.
Web Smart Gigabit Switches
Web Smart Switches make migrating to Gigabit Ethernet
easy and af fordable.
Setup is easy. Just use any Web browser to log onto the built-in
CLI interface to configure or monitor the switch.
All 10-/100-/1000- Mbps copper ports are autosensing for speed
and autonegotiating for duplex. The switches also feature Auto MDI/
MDI-X, which means you never need a crossover cable. Plus, you can
populate the SFP slot with a wide range of Gigabit and WDM uplink
modules.
Tagged and port-based VLAN provides precise control over
network traffic segmentation and broadcast domains with up to four
trunk groups. You also get support for IEEE 802.x flow control for fullduplex mode and collision-based backpressure for half-duplex mode,
plus Quality of Service (QoS) with a two-level priority queue.
SNMP trap management alerts you instantly when something
goes wrong. Port mirroring helps to track network errors or abnormal
packet transmission.
Page 4
724-746-5500 blackbox.com
4 of 4
05/13/2010
#26550
Item Code
L2 Managed Gigabit Ethernet Switches
with (16) Small Form-Factor Pluggable ( SFP) Ports +
(8) Dual -Media Ports
LGB1005A-R2
with (2) Dual-Media SFP Por ts +
(8) 10BASE-T/100BASE-TX/1000BASE-T Ports
LGB1001A- R2
with (4) Dual -Media SFP Ports +
(12) 10BASE-T/100BASE-TX /1000BA SE-T Ports
LGB1002 A-R 2
(20) 10BASE-T/100BASE-TX /1000BA SE-T Ports
LGB1003A-R2
(44) 10BA SE-T/100BASE-T X/100 0BASE-T Por ts
LGB1048A
To connect to fiber-based Gigabit Ethernet, order…
SFP Optical Transceivers
Multimode, 850-nm, 550 m
LGB200C-MLC
Single-Mode, 1310-nm, 10 km
LGB200C-SLC10
Single-Mode, 1550-nm, 30 km
LGB200C-SLC30
Add an SFP to convert an SFP port to a fiber port…
SFPs, 155-Mbps
850-nm Multimode, LC, 2 km
LFP104
1300-nm Multimode, LC, 2 km
LFP105
1310-nm Single-Mode, LC, 20 km
LFP106
with Extended Diagnostic s
850-nm Multimode, LC, 2 km
LFP100
1300-nm Single -Mode, LC, 2 km
LFP101
1310-nm Single-Mode, LC, 20 km
LFP102
1310-nm Single-Mode, LC, 20 km
SFPs, 1250-Mbps
850-nm Multimode, LC, 500 m
LFP204
1310-nm Single-Mode, LC, 15 km
LFP205
1310-nm Single-Mode, LC, 40 km
LFP206
Fiber with Ex tended Diagnostics
850-nm Multimode, LC, 500 m
LFP200
1310-nm Single-Mode, LC, 15 km
LFP201
1310-nm Single-Mode, LC, 40 km
LFP202
Copper
10 BASE-T/10 0BAS E-TX /1000 BASE-T
LFP300
1000BASE-T
LFP301
…or to choose a Web Smart Switch…
Web Smart Gigabit Switches 8-Por t
LGB2008A
48-Port
LGB2048A

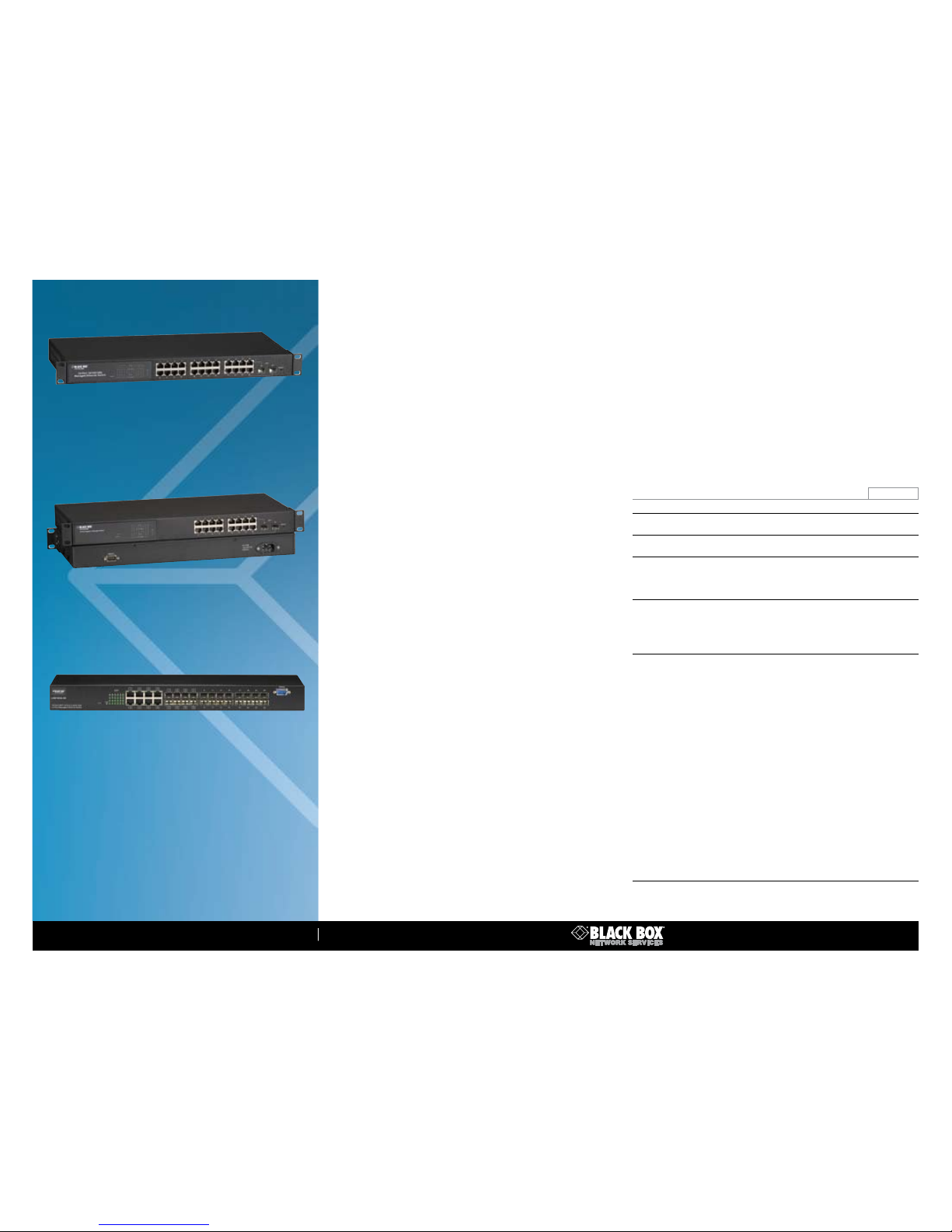

LGB1003A-R2
LGB1002A-R2: top: front view;
bottom: rear view
LGB1005A-R2
T E CH S PE C S FO R L2 M A NA G E D
GIGABIT ETHERNET SWITCHES
Access Control — 802.1x; Management Acces s Policy Control ; SNMP v1, v2c
network mana gement
Bandwidt h Control — Supp orts ingress and egress bandwidth rat ing
management wit h a resolution of 1 Mbps
Frame Buff er — LGB1001A-R2: 144 KB on-chip;
LGB1002A-R2: 272 KB on -chip;
LGB1003A-R2: 400 KB on-chip
LGB1048A: 768 KB on- chip
MAC Addres ses — 8K
MIB Files — Interface MIB , Address Translation M IB, IP MIB, ICMP MIB, TCP
MIB, UDP M IB, SNMP MIB, RFC 1213 MIB (MI B-II ), RFC 1757 RMON MIB,
Statistics Group 1, History Group 2, Alarm Group 3, Event Group 9, RFC
1493 Bridge MIB, RF C 1643 Ethernet MI B, Enterprise MI B
Protocols — L ACP: LGB1001A-R2: Port trunking with 4 trunking groups,
up to 8 ports for each gro up;
LGB1002A-R2: Port trunking with 8 trunking groups, up to 12 ports
for each group;
LGB1003A-R2, LGB1048A: Por t trunking with 8 trunking groups ,
up to 12 ports for each group;
GVRP/G ARP: All: 802.1q;
Multicasting : IGMP snooping including ac tive and passive mode;
STP/RSTP: 802.1d/1w
QoS Suppo rted — Layer 4 TCP/UDP port and ToS classification; 802.1p QoS
with two -level prio rity queue ; priority in a Q-in- Q tag
Switching C apacity — Non-blocking, wire-speed performance; jumbo frame
support up to 9 K; broadcast/multicast sto rm suppressi on; port mirroring
VLAN C apabilities — Port-bas ed VLA Ns; IEEE 802.1q tag-b ased VL ANs,
up to 256 active V LANs ; Q-in- Q for enabling subscriber aggr egation
CE Approval — Yes
Connectors — Twisted-pair ports: ( 8), (16), (24), or 48 R J-45;
SFP fiber slots : (2) SFP for plugging in optional SFP m odules (for details
on SFP compatibilit y, contact our F REE Tech Support)
Indicato rs — LEDs: Sy stem: (1) Power;
Each twisted- pair port: (1) LINK /ACT, (1) 10/100 /1000 Mbps ;
SFP fiber slots: (1) LI NK/ACT
Power — Input : 100–240 VAC, 50 –60 Hz, autosensing;
Consumption: 30 W
Size — LGB1001A-R2: 1.7"H x 8.5"W x 5.2"D (4.3 x 22 x 13.2 cm);
LGB1002A-R2–LGB1003A-R2: 1.7"H x 17.4"W x 8.2"D (4.3 x 44.2 x 20.8
cm);
LGB1048A: 1.7"H x 17.4"W x 9.82"D (4.3 x 44.2 x 24.9 cm);
Weight — With unp opulated SFP fiber slots: LGB1001A-R2: 2.2 lb. (1 kg);
LGB1002A-R2–LGB1003A-R2: 6.4 lb. (2.9 kg);
LGB1048A: 7.5 lb. (3.4 kg)
T E CH S PE C S FO R
WEBSMART GIGABIT SWITCHES
Buffer — LGB20 08A: 144 KB;
LGB2048A: 768 K B
MAC Addres ses — 8K
Operatin g Environmen t —
Temperature: LGB200 8A: 41 to 104° F (5 to 4 0° C),
LGB2048A: 32 to 104° F ( 0 to 40°C) ;
Humidity: 10 to 90 % noncondensin g
Standard s — IEEE 802.3, 802.3u, 8 02.1ab, 802.3z, 802.3x , ANSI /IEEE 802.3
autonegotiati on, IEEE 802.1q VLAN
System Co nfiguratio n — Web
CE Approval — Yes
Connectors — LGB2008A: ( 8) RJ-45, (2) S FPs (Shared )
LGB2048A: (48) R J-45, (2 ) SFPs (Share d);
Power — 100 –240 VAC, 50– 60 Hz, autosensing
Size — LGB2008A : 1.75"H (1U) x 5.2"W x 8.5"D (4.4 x 13.2 x 21.7 cm);
LGB2048A: 1.75"H (1U) x 17.4"W x 9.8"D (4.4 x 44.2 x 24.9 cm)
Loading...
