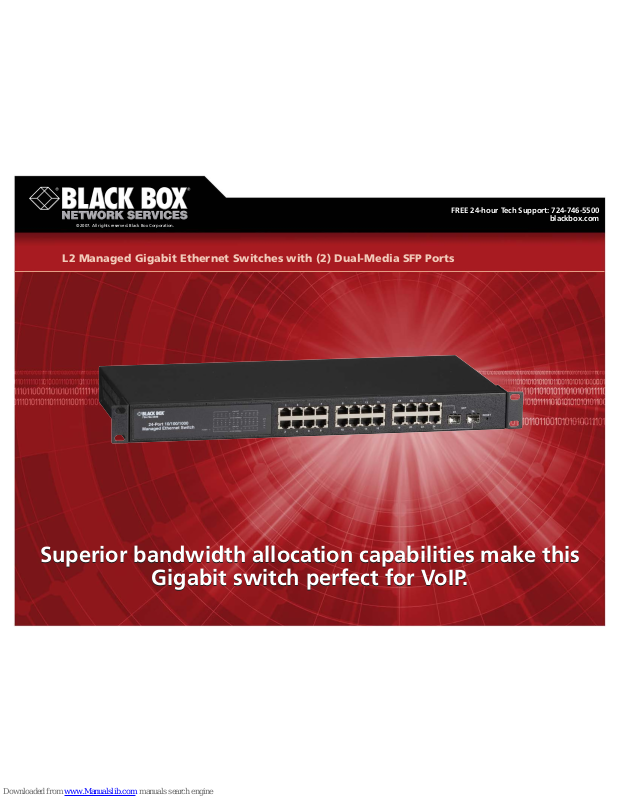

Black Box LGB1001A-R2, LGB1002A, LGB1003A Specifications

Superior bandwidth allocation capabilities make this

Gigabit switch perfect for VoIP.

Superior bandwidth allocation capabilities make this

Gigabit switch perfect for VoIP.

L2 Managed Gigabit Ethernet Switches with (2) Dual-Media SFP Ports

© 2007. All rights reserved. Black Box Corporation.

FREE 24-hour Tech Support: 724-746-5500

blackbox.com

2 of 3

FEATURES

• Include 8, 16, or 24 10-/100-/1000-Mbps
copper ports.

• Two Small Form-Factor Pluggable (SFP)
ports enable you to add fiber SFP
modules for fiber uplinks. Or you can
use the SFP ports as additional copper
Ethernet ports.

• Autosensing 10-/100-/1000-Mbps ports
make this switch perfect for mixed­speed environments!

• Ideal for use in any network that carries
speed-sensitive applications such as
video or VoIP.

• Port trunking enables you to bundle
multiple ports to create a single high­bandwidth port. The switch supports
up to four trunking groups with up
to eight ports for each group.

• Extensive QoS options for Layer 4
TCP/UDP port and ToS classifications.
Supports 2-level priority queue as
well as Q in Q tag.

• Robust security with VLAN capabilities,
as well as port security and IGMP
snooping.

• Easy to manage and configure. Support
SNMP and Web-based management.

• Spanning Tree (802.1w) algorithms
prevent network switching loops.

• RoHS compliant.

OVERVIEW

For flexible, manageable port switching with bandwidth

aggregation, choose BLACK BOX

®

L2 Managed Gigabit Ethernet

Switches with (2) Dual-Media SFP Ports.

Available with 8, 16, or 24 10-/100-/1000-Mbps copper ports,
these Layer 2 manageable switches offer advantages in mixed­speed and legacy-integration environments because all LAN
ports support 10BASE-T, Fast Ethernet, and Gigabit Ethernet.
The ports automatically sense the speed of each connected
device, so when you upgrade to high-speed network devices,
the switch automatically keeps pace.

The 8-port switch is an excellent choice for connecting branch
office machines to a larger MAN or WAN. Because it has a noise­free, fanless design and a compact chassis, it’s tailor-made for
cramped SOHOs.

The 16- and 24-port models are ideal for use in workgroups
or WANs and are enclosed in a fan-cooled 1U rackmount chassis.

Dual-media SFP ports for extra versatility

Two ports on each switch are dual-media ports with two
connectors each—one RJ-45 Ethernet and one SFP. You can use
a dual-media port as an ordinary 10-/100-/1000-Mbps copper
Ethernet port or you can use it to plug in an SFP in order to
create a single- or multimode fiber link that supports distances
of up to 20 kilometers (12.4 miles).

Choose 1250-Mbps SFPs for Gigabit Ethernet; use 155-Mbps
SFPs for 10- or 100-Mbps Ethernet. All SFPs report basic link
characteristics such as SFP type, length of fiber link, wavelength,
and bit rate. Models with extended diagnostics also report
information such as temperature, TX and RX power, voltage,
and bias current. The hot-pluggable interface enables you to
change SFPs on the fly when your network requirements
change.

Double up for bandwidth

Port trunking enables you to provide more bandwidth to
a specific application or segment. 802.3ad Link Aggregate
Control Protocol (LACP) bandwidth aggregation lets you
combine Gigabit ports to create a multilink trunk for load
sharing.

The 8-port model supports up to 4 Gigabit ports per trunk
for a bandwidth up to 8 Gbps. The 16-port model can be set
up with up to 8 Gigabit ports per trunk for bandwidth
of up to 16 Gbps. The 24-port model supports up to 12
Gigabit ports per a trunk for up to 24-Gbps bandwidth.

LACP not only increases link capacity, it also creates
higher availability. And because the switches aggregate all
traffic based on MAC addresses, they balance traffic loads
efficiently.

Manage traffic flow

Along with Layer 2 802.1p Priority Queue control, the
switches offer Quality of Service (QoS) support, so you can
program a higher layer classification and ensure that traffic
in real-time applications, such as Voice over IP (VoIP),
receives higher priority.

Broadcast/multicast storm suppression enables you to
restrict excess traffic on your network. You can also control
the rate limit for each switch port and set threshold values
for the size of discarded packets. Jumbo frame support helps
to ensure reliable data transmission, too. With this, you can
set the switches to forward packets up to 9K in size before
discarding them.

21,620

Financial Report

June July

14,000

15,000

16,000

17,000

18,000

19,000

20,000

21,000

21,620

Financial Report

June July

14,000

15,000

16,000

17,000

18,000

19,000

20,000

21,000

L2 Managed Gigabit

Ethernet Switch with

(2) Dual-Media SFP Ports,

(8) 10/100/1000 Copper

Ports (LGB1001A) with

installed SFP

L2 Managed Gigabit

Ethernet Switch with
(2) Dual-Media SFP Ports,
(24) 10/100/1000 Copper

Ports (LGB1003A) with

installed SFP

PCs

Server

PCs

Fiber Optic Cable

GigaBase

®

350 CAT5e

350-MHz Patch Cable

(EVNSL85)

Add SFPs to extend your network over fiber optic cable.

1/19/2007
#26550

724-746-5500 blackbox.com

3 of 3

TECH SPECS

Access Control — 802.1x; Management Access Policy Control; SNMP v1, v2c

network management

Bandwidth Control — Supports ingress and egress bandwidth rating

management with a resolution of 1 Mbps

Frame Buffer — LGB1001A: 144 KB on-chip;

LGB1002A: 272 KB on-chip;
LGB1003A: 400 KB on-chip

MAC Addresses — 8K
MIB Files — Interface MIB, Address Translation MIB, IP MIB, ICMP MIB, TCP

MIB, UDP MIB, SNMP MIB, RFC 1213 MIB (MIB-II), RFC 1757 RMON MIB,
Statistics Group 1, History Group 2, Alarm Group 3, Event Group 9, RFC
1493 Bridge MIB, RFC 1643 Ethernet MIB, Enterprise MIB

Protocols — LACP: LGB1001A: Port trunking with 4 trunking groups, up to

8 ports for each group;

LGB1002A: Port trunking with 8 trunking groups, up to 8 ports for

each group;

LGB1003A: Port trunking with 8 trunking groups, up to 12 ports for

each group;
GVRP/GARP: All: 802.1q;
Multicasting: IGMP snooping including active and passive mode;
STP/RSTP: 802.1d/1w

QoS Supported — Layer 4 TCP/UDP port and ToS classification; 802.1p QoS

with two-level priority queue; priority in a Q-in-Q tag

Switching Capacity — Non-blocking, wire-speed performance; jumbo frame

support up to 9K; broadcast/multicast storm suppression; port mirroring

VLAN Capabilities — Port-based VLANs; IEEE 802.1q tag-based VLANs, up to

256 active VLANs; Q-in-Q for enabling subscriber aggregation

CE Approval — Yes
Connectors — Twisted-pair ports: (8), (16), or (24) RJ-45;

SFP fiber ports: (2) SFP for plugging in optional SFP modules

Indicators — LEDs: System: (1) Power;

Each twisted-pair port: (1) LINK/ACT, (1) 10/100/1000 Mbps;
SFP fiber ports: (1) LINK/ACT

Power — Input: 100–240 VAC, 50–60 Hz, autosensing;

Consumption: LGB1001A: 13 W; LGB1002A–LGB1003A: 30 W

Size — LGB1001A: 1.7"H x 8.5"W x 5.2"D (4.3 x 21.6 x 13.2 cm);

LGB1002A–LGB1003A: 1.7"H x 17.4"W x 8.2"D (4.3 x 44.2 x 20.8 cm)

Weight — With unpopulated SFP fiber ports: LGB1001A: 2.2 lb (1 kg);

LGB1002A–LGB1003A: 6.4 lb (2.9 kg)

1/19/2007
#26550

724-746-5500 blackbox.com

Item Code

L2 Managed Gigabit Ethernet Switches
with (2) Dual-Media SFP Ports

(8) 10/100/1000 Copper Ports LGB1001A
(16) 10/100/1000 Copper Ports LGB1002A
(24) 10/100/1000 Copper Ports LGB1003A

Add an SFP to convert an SFP port to a fiber port…

SFPs

155-Mbps

850-nm Multimode, LC, 300 m LFP104
1300-nm Multimode, LC, 2 km LFP105
1310-nm Single-Mode, LC, 20 km LFP106

155-Mbps with Extended Diagnostics

850-nm Multimode, LC, 300 m LFP100
1300-nm Multimode, LC, 2 km LFP101
1310-nm Single-Mode, LC, 20 km LFP102

1250-Mbps

850-nm Multimode, LC, 300 m LFP204
1300-nm Multimode, LC, 2 km LFP205
1310-nm Single-Mode, LC, 20 km LFP206

1250-Mbps with Extended Diagnostics

850-nm Multimode, LC, 300 m LFP200
1300-nm Multimode, LC, 2 km LFP201
1310-nm Single-Mode, LC, 20 km LFP202

Highly secure

The switches also contain a number of security capabilities,
including a Q-in-Q VLAN feature to isolate traffic between
different users, and 802.1x user authentication, which prevents
unauthorized access over the network.

In addition, with VLAN support for advanced 802.1Q,
the switch enables you to limit broadcast traffic to within
the same VLAN broadcast domain. And because the switches
support Generic Attribute Registration Protocol (GARP) and
Generic VLAN Registration Protocol (GVRP), they allow for a
more efficient exchange of VLAN configuration data with
other users and devices.

You can also limit the number of MAC addresses assigned
to each port, which, in turn, enables you to control the number
of access stations for each port. This way, you not only establish

an access mechanism by user and machine, you also control
the number of access stations on your network.

Highly manageable

Monitor, configure, and control ports with ease.
The switches support SNMP, Web-based management,
and CLI management interfaces. You can also stack up to
16 of the switches and, using Virtual Stacking Management
(VSM), manage them all via one IP address. In this
configuration, the switches are seen as part of a logically
segmented VLAN—an expanded network that doesn’t
require the expense or configuration of additional hardware
to implement.

Error resistant

L2 Managed Gigabit Ethernet Switches with (2) Dual­Media SFP Ports also feature extensive error-tracking
capabilities. Port mirroring, for instance, helps you track
errors or abnormal packet transmission—all without inter­rupting data flow in your networked switched environment.

For mission-critical applications, use multiple switches and
configure each with a redundant backup bridge path. Then,
if a failure occurs on one switch, you’ll still be able to
guarantee the transmission and reception of packets via a
secondary link on your network. For proper load balancing in
VLAN applications, the 1000BASE-TX L2 Managed Ethernet
Switch with Dual-Media SFP Ports uses an 802.1w Rapid
Spanning Tree (RST) algorithm for creating a loop-free Layer 2
topology.
