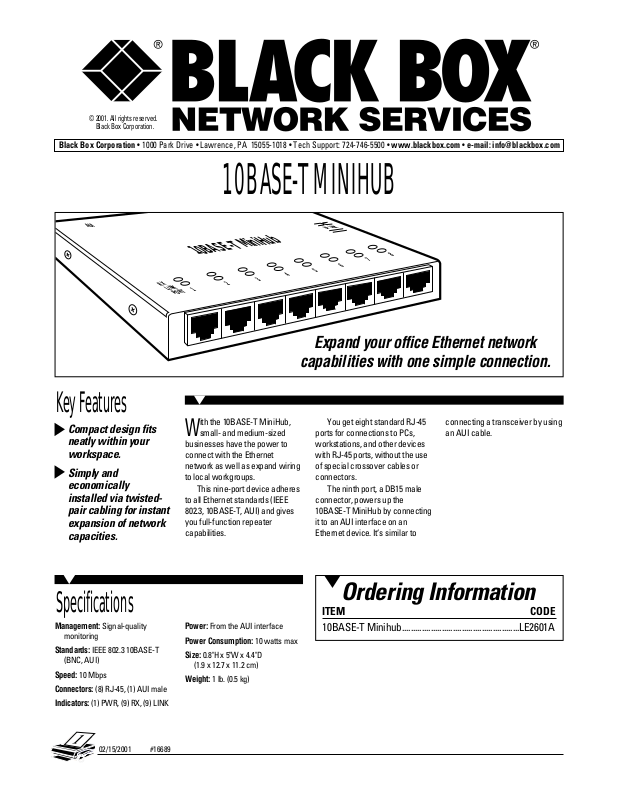

Black Box LE2601A User Manual
Black Box Corporation • 1000 Park Drive • Lawrence, PA 15055-1018 • Tech Support: 724-746-5500 • www.blackbox.com • e-mail: info@blackbox.com
Compact design fits
neatly within your
workspace.
Simply and
economically
installed via twistedpair cabling for instant
expansion of network
capacities.
W
ith the 10BASE-T MiniHub,
small- and medium-sized
businesses have the power to
connect with the Ethernet
network as well as expand wiring
to local workgroups.
This nine-port device adheres
to all Ethernet standards (IEEE
802.3, 10BASE-T, AUI) and gives
you full-function repeater
capabilities.
RX
LINK
PORT
10BASE-T MiniHub
1
2
3
4
AUI
5
6
7
8
UP LINK
Expand your office Ethernet network
capabilities with one simple connection.
Key Features
10BASE-T MINIHUB
02/15/2001 #16689
Ordering Information
ITEM CODE
10BASE-T Minihub.....................................................LE2601A
You get eight standard RJ-45
ports for connections to PCs,
workstations, and other devices
with RJ-45 ports, without the use
of special crossover cables or
connectors.
The ninth port, a DB15 male
connector, powers up the
10BASE-T MiniHub by connecting
it to an AUI interface on an
Ethernet device. It‘s similar to
connecting a transceiver by using
an AUI cable.
Management: Signal-quality
monitoring
Standards: IEEE 802.3 10BASE-T
(BNC, AUI)
Speed: 10 Mbps
Connectors: (8) RJ-45, (1) AUI male
Indicators: (1) PWR, (9) RX, (9) LINK
Power: From the AUI interface
Power Consumption: 10 watts max
Size: 0.8"H x 5"W x 4.4"D
(1.9 x 12.7 x 11.2 cm)
Weight: 1 lb. (0.5 kg)
Specifications
© 2001. All rights reserved.
Black Box Corporation.
