You can configure the BLACK BOX

Managed Fiber Switch Base Unit with any combination of 10-, 100-, and 1000-Mbps copper and fiber modules for up to 25 ports. The switch features wire speed, filtering and forwarding across all ports,

802.3x flow control, 802.1p priority packet processing, and a self-learning 4K-node address table plus 240 KB packet buffers for 10-/100-Mbps modules and 120 KB packet buffers for 1000-Mbps modules. 19" rackmounting brackets are included.

724-746-5500 • blackbox.com Page 1 of 1

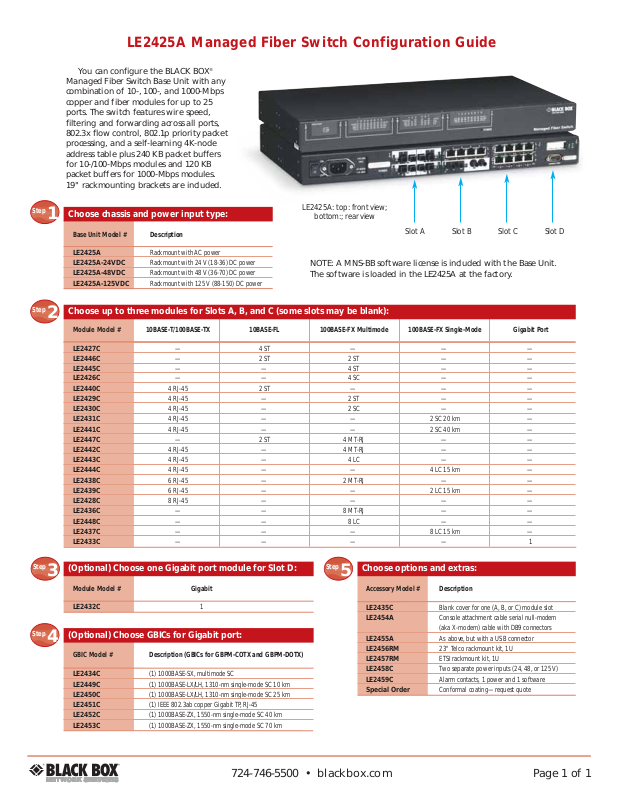

LE2425A Managed Fiber Switch Configuration Guide

Step

Base Unit Model # Description

LE2425A Rackmount with AC power LE2425A-24VDC Rackmount with 24 V (18-36) DC power LE2425A-48VDC Rackmount with 48 V (36-70) DC power LE2425A-125VDC Rackmount with 125 V (88-150) DC power

Choose chassis and power input type:

LE2425A: top: front view;

bottom:; rear view

Slot A Slot B Slot C Slot D

Step

Module Model # 10BASE-T/100BASE-TX 10BASE-FL 100BASE-FX Multimode 100BASE-FX Single-Mode Gigabit Port

LE2427C —4 ST — — — LE2446C — 2 ST 2 ST — — LE2445C — — 4 ST — —

LE2426C — — 4 SC — — LE2440C 4 RJ-45 2 ST — — — LE2429C 4 RJ-45 — 2 ST — — LE2430C 4 RJ-45 — 2 SC — — LE2431C 4 RJ-45 — — 2 SC 20 km — LE2441C 4 RJ-45 — — 2 SC 40 km — LE2447C — 2 ST 4 MT-RJ — — LE2442C 4 RJ-45 — 4 MT-RJ — — LE2443C 4 RJ-45 — 4 LC — — LE2444C 4 RJ-45 — — 4 LC 15 km — LE2438C 6 RJ-45 — 2 MT-RJ — — LE2439C 6 RJ-45 — — 2 LC 15 km — LE2428C 8 RJ-45 — — — — LE2436C — — 8 MT-RJ — — LE2448C — — 8 LC — — LE2437C — — — 8 LC 15 km — LE2433C —— — — 1

Choose up to three modules for Slots A, B, and C (some slots may be blank):

Module Model # Gigabit

LE2432C 1

(Optional) Choose one Gigabit port module for Slot D:

Step

GBIC Model # Description (GBICs for GBPM-COTX and GBPM-DOTX)

LE2434C (1) 1000BASE-SX,multimode SC LE2449C (1) 1000BASE-LX/LH,1310-nm single-mode SC 10 km LE2450C (1) 1000BASE-LX/LH,1310-nm single-mode SC 25 km LE2451C (1) IEEE 802.3ab copper Gigabit TP,RJ-45 LE2452C (1) 1000BASE-ZX,1550-nm single-mode SC 40 km LE2453C (1) 1000BASE-ZX,1550-nm single-mode SC 70 km

(Optional) Choose GBICs for Gigabit port:

Accessory Model # Description

LE2435C Blank cover for one (A, B,or C) module slot LE2454A Console attachment cable serial null-modem

(aka X-modem) cable with DB9 connectors

LE2455A As above,but with a USB connector LE2456RM 23" Telco rackmount kit,1U LE2457RM ETSI rackmount kit, 1U LE2458C Two separate power inputs (24,48, or 125 V) LE2459C Alarm contacts,1 power and 1 software Special Order Conformal coating—request quote

Choose options and extras:

NOTE: A MNS-BB software license is included with the Base Unit. The software is loaded in the LE2425A at the factory.
