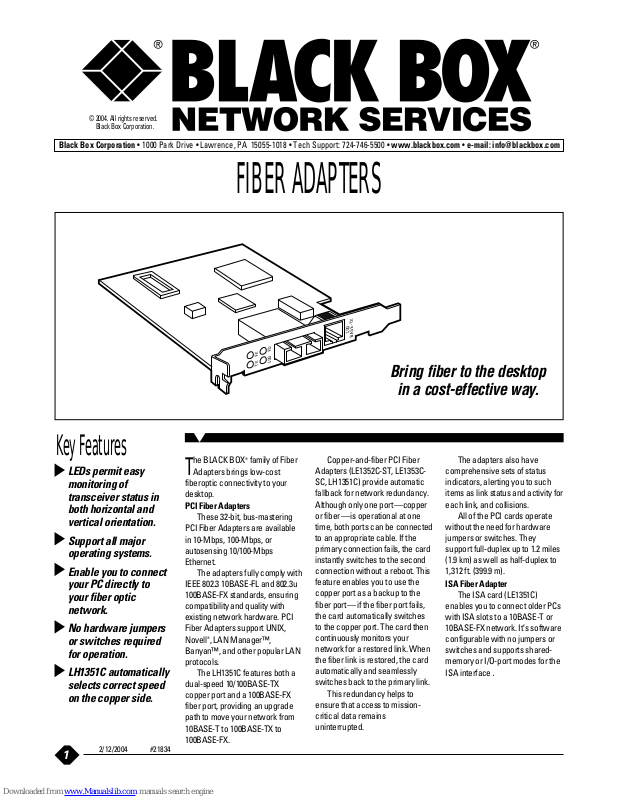

Black Box LE1352C-ST Specifications

1

LEDs permit easy
monitoring of
transceiver status in
both horizontal and
vertical orientation.

Support all major
operating systems.

Enable you to connect
your PC directly to
your fiber optic
network.

No hardware jumpers
or switches required
for operation.

LH1351C automatically
selects correct speed
on the copper side.

T

he BLACK BOX®family of Fiber

Adapters brings low-cost
fiberoptic connectivity to your
desktop.

PCI Fiber Adapters

These 32-bit, bus-mastering
PCI Fiber Adapters are available
in 10-Mbps, 100-Mbps, or
autosensing 10/100-Mbps
Ethernet.

The adapters fully comply with
IEEE 802.3 10BASE-FL and 802.3u
100BASE-FX standards, ensuring
compatibility and quality with
existing network hardware. PCI
Fiber Adapters support UNIX,
Novell

®

, LAN Manager™,
Banyan™, and other popular LAN
protocols.

The LH1351C features both a
dual-speed 10/100BASE-TX
copper port and a 100BASE-FX
fiber port, providing an upgrade
path to move your network from
10BASE-T to 100BASE-TX to
100BASE-FX.

100

BASE-TX

100 FD

TX FX

Bring fiber to the desktop

in a cost-effective way.

Key Features

FIBER ADAPTERS

Copper-and-fiber PCI Fiber
Adapters (LE1352C-ST, LE1353C­SC, LH1351C) provide automatic
fallback for network redundancy.
Although only one port—copper
or fiber—is operational at one
time, both ports can be connected
to an appropriate cable. If the
primary connection fails, the card
instantly switches to the second
connection without a reboot. This
feature enables you to use the
copper port as a backup to the
fiber port—if the fiber port fails,
the card automatically switches
to the copper port. The card then
continuously monitors your
network for a restored link. When
the fiber link is restored, the card
automatically and seamlessly
switches back to the primary link.

This redundancy helps to
ensure that access to mission­critical data remains
uninterrupted.

The adapters also have
comprehensive sets of status
indicators, alerting you to such
items as link status and activity for
each link, and collisions.

All of the PCI cards operate
without the need for hardware
jumpers or switches. They
support full-duplex up to 1.2 miles
(1.9 km) as well as half-duplex to
1,312 ft. (399.9 m).

ISA Fiber Adapter

The ISA card (LE1351C)
enables you to connect older PCs
with ISA slots to a 10BASE-T or
10BASE-FX network. It’s software
configurable with no jumpers or
switches and supports shared­memory or I/O-port modes for the
ISA interface

.

Black Box Corporation • 1000 Park Drive • Lawrence, PA 15055-1018 • Tech Support: 724-746-5500 • www.blackbox.com • e-mail: [e-mail]

© 2004. All rights reserved.

Black Box Corporation.

2/12/2004 #21834

2

• PCI or ISA card.

• Release notes.

• Registration card.

• Three driver disks, which contain software drivers for popular
network operating systems, diagnostic utilities, and an electronic
copy of all documentation.

• Users’ manual.

Compliance: Emissions: FCC Class

A, Part 15, VCCI Class 1, EN55022,
Class 1

User Control: Software

Connectors: ST or SC

Indicators: All: Full-Duplex, plus

Status and Activity for each
link;

LH1350C-ST-R2, LH1350C-SC-R2

also have Collision:

LE1351C also has Copper and

Fiber Link Status

Operating Temperature:

32 to 122°F (0 to 50°C)

Humidity: 5 to 95%, non-condensing

(relative)

Power: From the Interface

Size:

LE1352C-ST, LE1353C-SC,
LH1351C: 5.3"H x 4"W x 0.5"D

(13.5 x 10.2 x 1.3 cm);

LH1350C-ST-R2, LH1350C-SC-R2:

5.5"H x 3.8"W x 0.5"D
(14 x 9.7 x 1.3 cm);

LE1351C: 7.3"H x 4"W x 0.5"D

(18.5 x 10.2 x 1.3 cm)

Weight:

LE1352C-ST, LE1353C-SC,
LH1351C, LE1351C: 0.4 lb. (0.2 kg);
LH1350C-ST-R2, LH1350C-SC-R2:

0.7 lb. (0.3 kg)

The Complete Package

Specifications

Ordering Information

PRODUCT NAME ORDER CODE

PCI Fiber Adapters

10BASE-T (RJ-45)/10-BASE-FL

ST.....................................................................LE1352C-ST

SC ....................................................................LE1353C-SC

100BASE-FX PCI

ST ..............................................................LH1350C-ST-R2

SC .............................................................LH1350C-SC-R2

10BASE-T/100BASE-TX (RJ-45)/

100BASE-FX (SC) ...............................................LH1351C

ISA Fiber Adapter

10BASE-T (RJ-45)/10-BASE-FL (ST)...................LE1351C

Y

ou may also need…

Premium Ceramic, Multimode Duplex,

62.5-Micron Fiber Cables, PVC,

ST– ST, 3-m (9.8-ft.)...........................EFN110-003M-STST
