Support VLAN tagging
and spanning tree
passthrough.
Suitable for office
environments.
Provide one 100-Mbps
fiber port and two
10-/100-Mbps UTP
switch ports.
RJ-45 ports support
autonegotiation, so
you can easily attach
any 10- or 100-Mbps
device.
M
edia Converter Switches from
Black Box are the versatile
way to extend your network.
They’re easy to use—literally
plug-and-play—and offer many
choices of fiber types, power
types, and mounting options.
It’s a media converter and a
switch!
Media Converter Switches do
more than just adapt from one
cable type to another. They’re
true Ethernet switches and
behave like switches within your
Ethernet network. This means you
can connect them together
indefinitely without worrying
about interrepeater links. Each
Media Converter Switch features
non-blocking switching architecture with a 2K MAC address
table. The 128K buffer memory
makes it easy to interconnect
10-and 100-Mbps devices.
Media Converter Switches
for the office environment.
Key Features
STANDARD MEDIA CONVER TER SWITCHES
Use them in your office;
extend them to the factory floor.
Standard Media Converter
Switches are for use in clean,
temperature-controlled environments such as offices and wiring
closets.
Media Converter Switches are
also available in hardened
versions for industrial environments and extreme versions for
outdoor environments. Because
all three types work together
seamlessly, you can use inexpensive Standard Media Converter
Switches in the protection of the
wiring closet and choose the
more robust Hardened or Extreme
Media Converter Switches for
harsh locations at your network’s
edge.
Distance isn’t a problem.
Because they’re switches as
well as media converters, Media
Converter Switches provide more
options in network topology,
overcoming the distance
limitations inherent with simple
media converters—to add extra
distance, just daisychain another
Media Converter Switch. If you
need more ports at your remote
location, just add a Convenient
Switch.
Multimode models support up
to 2 kilometers (1.2 miles) between Media Converter Switches.
For longer distances, choose
single-mode models for up to
20 kilometers (12.4 miles).
The features you’re looking for.
Media Converter Switches are
simple to set up and use—just
plug and go!
Both copper ports are autosensing for speed and duplex,
adjusting to the connected device
automatically.
2
Plus, the UTP ports feature
auto-MDI/MDI-X, eliminating the
need for crossover cables.
Media Converter Switches
each have two full sets of LED
indicators: one set on the front for
viewing convenience when the
Media Converter is DIN rail or
wallmounted, and one set
mounted in the end next to the
media ports for easy viewing
when units are in a rackmount
tray.
115-VAC or 240-VAC power.
Standard Media Converter
Switches come with 115-VAC
power supplies for use in the
United States or with 240-VAC
power supplies for overseas use.
The 240-VAC versions feature IEC
power connectors for use with
any IEC standard power cord,
making them adaptable to most
international locations.
Mounting options galore.
Media Converter Switches fit
in where you need them. They
come with neat, removable
rubber feet so you can use them
as standalone units. Or you can
easily panelmount them with the
included brackets and screws.
To use Standard Media
Converter Switches with DIN
rails, order the optional DIN Rail
Mounting Bracket. This handy
bracket features springmounting,
enabling you to easily pop your
Media Converter Switches on and
off the DIN rail without using a
screwdriver or tightening set
screws. DIN-rail-ready Media
Converter Switches are also
available—for details, contact
Tech Support.
For rackmounting in a central
location, choose the Rackmount
Tray or the Powered Rackmount
Tray. The powered tray provides
power for up to eight units.
The Media
Converter Switch
mounts on a DIN
rail with the
optional DIN Rail
Mounting Bracket.
Distance (Maximum): Multimode
models: 2 km (1.2 mi.);
Single-mode SC models: 20 km
(12.4 mi.)
Single-mode LC models: 15 km
(9.3 mi.)
MAC Addresses: 2K
Standards: IEEE 802.3, IEEE 802.3u,
IEEE 802.1p/q
Connectors:
LBH100A-ST, LBH100AE-ST:
(2) RJ-45, (1) pair of ST
®
;
LBH100A-SC, LBH100AE-SC,
LBH100A-SSC, LBH100AE-SSC,
LBH100A-SSCL, LBH100AE-SSCL:
(2) RJ-45, (1) pair of SC;
LBH100A-MT, LBH100AE-MT:
(2) RJ-45, (1) pair of MT-RJ;
LBH100A-SLC, LBH100AE-SLC:
(2) RJ-45, (1) pair of LC
Indicators: (14) LEDs: (2) Power,
(4) 10/100, (6) LK/ACT, (2) 100
Temperature Tolerance:
Storage: -40 to +185°F (-40 to
+85°C);
Operating: 32 to 104°F (0 to 40°C)
Humidity: 5 to 95%, noncondensing
Altitude: -200 to 13,000 ft. (-60.9 to
3962.4 m)
Enclosure: Steel
Power: 115-VAC models: 115-VAC,
60-Hz external power supply;
240-VAC models: 240-VAC, 50-Hz
external power supply with
IEC power connector
Size: 3.5"H x 3"W x 1"D (8.9 x 7.6 x
2.5 cm)
Weight: Media Converter Switch:
0.3 lb. (0.1 kg);
Power Supply: 0.4 lb. (0.2 kg)
Specifications
3
Ordering Information
ITEM CODE
Standard Media Converter Switches, 10-/100-Mbps Copper to 100-Mbps Fiber
115-VAC, Multimode, ST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-ST
240-VAC, Multimode, ST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100AE-ST
115-VAC, Multimode, SC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-SC
240-VAC, Multimode, SC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100AE-SC
115-VAC, Multimode, MT-RJ. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-MT
240-VAC, Multimode, MT-RJ. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100AE-MT
115-VAC, Single-Mode, SC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-SSC
240-VAC, Single-Mode, SC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100AE-SSC
115-VAC, Single-Mode, Long-Distance, SC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-SSCL
240-VAC, Single-Mode, Long-Distance, SC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100AE-SSCL
115-VAC, Single-Mode, SLC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-SLC
240-VAC, Single-Mode, SLC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100AE-SLC
Spare AC Power Supply for Standard Media Converter Switches, 115-VAC. . . . . . . . . . . . . . . . . . . LBH100A-115-VAC
Spare AC Power Supply for Standard Media Converter Switches, 240-VAC . . . . . . . . . . . . . . . . . LBH100AE-240-VAC
DIN Rail Mounting Bracket. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DIN-RAIL MC2
Rackmount Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LE1505-RACK
Powered Rackmount Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LH1505P-RACK
4
Function as both a
media converter and
a switch.
Suitable for dusty or
dirty environments
with a temperature
range between -13
and +140°F (-25 to
+60°C).
Provide one 100-Mbps
fiber port and two
10-/100-Mbps UTP
switch ports.
RJ-45 ports support
autonegotiation, so
you can easily attach
any 10- or 100-Mbps
device.
Media Converter Switches for
industrial environments.
Key Features
HARDENED MEDIA CONVERTER SWITCHES
M
edia Converter Switches are
the versatile way to extend
your network. They’re easy to
use—literally plug-and-play—
and offer many choices of fiber
types, power types, and mounting
options.
It’s a media converter and a
switch!
Media Converter Switches do
more than just adapt from one
cable type to another. They’re
true Ethernet switches and
behave like switches within your
Ethernet network. This means you
can connect them together
indefinitely without worrying
about interrepeater links. Each
Media Converter Switch features
non-blocking switching architecture with a 2K MAC address
table. The 128K buffer memory
makes it easy to interconnect
10- and 100-Mbps devices.
Tough enough for the factory
floor.
Hardened Media Converter
Switches are for dusty or dirty
environments with temperatures
that range between -13 and
+140°F (-25 to +60°C). They use
the metal case as a heat sink so
no internal airflow is needed for
cooling. The case is sealed to
resist environmental contaminants such as dust, dirt, moisture,
smoke, and insects. They’re an
ideal choice for demanding
industrial applications such as
factory floors.
Media Converter Switches are
also available in standard versions
for office or wiring closet environments and extreme versions for
outdoor environments. Because
all three types work together
seamlessly, you can use
inexpensive Standard Media
Converter Switches in the
protection of the wiring closet and
choose the more robust Hardened
or Extreme Media Converter
Switches for harsh locations at
your network’s edge.
Distance isn’t a problem.
Because they’re switches as
well as media converters, Media
Converter Switches provide more
options in network topology,
overcoming the distance limitations inherent with simple media
converters —to add extra
distance, just daisychain another
Media Converter Switch. If you
need more ports at your remote
location, just add a Convenient
Switch.
Multimode models support up
to 2 kilometers (1.2 miles)
between Media Converter
Switches. For longer distances,
choose single-mode models for
up to 20 kilometers (12.4 miles) or
single-mode, long-distance
models for an incredible 40
kilometers (24.9 miles) between
links.
The features you’re looking for
.
Media Converter Switches are
simple to set up and use—just
plug and go!
Both copper ports are autosensing for speed and duplex,
adjusting to the connected device
automatically. Plus, the UTP ports
feature auto-MDI/MDI-X, eliminating the need for crossover
cables.
Media Converter Switches
each have two full sets of LED
indicators: one set on the front for
viewing convenience when the
Media Converter is DIN rail or
wallmounted, and one set
mounted in the end next to the
media ports for easy viewing
when units are in a rackmount
tray.
5
AC or DC power
Hardened Media Converter
Switches have the power options
to support harsh environments,
too. Models with AC power
supplies support 100–240-VAC
power. The power supplies with
recessed IEC power connectors
work with any IEC standard
power cord, making them adaptable to most international
locations.
DC-powered units have
internal screw terminals for
connecting DC power in addition
toan AC power jack. Because
these models have dual power
connections, you can use them
simultaneously with both your DC
power supply and an AC power
adapter (sold separately) to
provide redundant power input.
Mounting options galore.
Media Converter Switches fit
in where you need them. They
come with neat, removable
rubber feet so you can use them
as standalone units. Or you can
easily panelmount them with the
included brackets and screws.
For use with DIN rails, order
the optional DIN Rail Mounting
Bracket. This handy bracket
features springmounting, enabling
you to easily pop your Media
Converter Switches on and off the
DIN rail without using a screwdriver or tightening set screws.
DIN-rail-ready Media Converter
Switches are also available.
For rackmounting in a central
location, choose the Rackmount
Tray or the Powered Rackmount
Tray. The powered tray provides
power for up to eight units.
Distance (Maximum): Multimode
models: 2 km (1.2 mi.);
Single-mode SC models: 20 km
(12.4 mi.);
Single-mode LC models: 15 km
(9.3 mi.);
Single-mode, long-distance SC
models: 40 km (24.9 mi.)
MAC Addresses: 2K
Standards: IEEE 802.3, IEEE 802.3u,
IEEE 802.1p/q
Connectors: LBH100A-H-ST,
LBH100AE-H-ST, LBH100A-H-ST12, LBH100A-H-ST-24, LBH100AHD-ST-24, LBH100A-H-ST-48:
(2) RJ-45, (1) pair of ST
®
;
LBH100A-H-MT, LBH100AE-HMT, LBH100A-H-MT-12,
Connectors (continued):
LBH100A-H-MT-24, LBH100AHD-MT-24, LBH100A-H-MT-48:
(2) RJ-45, (1) pair of MT-RJ;
LBH100A-H-SC, LBH100AE-H-SC,
LBH100A-H-SC-12, LBH100A-HSC-24, LBH100A-HD-SC-24,
LBH100A-H-SC-48, LBH100A-HSSC, LBH100AE-H-SSC,
LBH100A-H-SSC-12, LBH100A-HSSC-24, LBH100A-HD-SSC-24,
LBH100A-H-SSC-48, LBH100A-HSSCL, LBH100AE-H-SSCL,
LBH100A-H-SSCL-12, LBH100AH-SSCL-24, LBH100A-HD-SSCL24, LBH100A-H-SSCL-48:
(2) RJ-45, (1) pair of SC;
LBH100A-H-SLC, LBH100AE-HSLC, LBH100A-H-SLC-12,
LBH100A-H-SLC-24, LBH100AHD-SLC-24, LBH100A-H-SLC-48:
(2) RJ-45, (1) pair of LC
Indicators: (1) Power LED; Per port
LEDs: 10/100, full/half-duplex,
Link/Act
Power: AC models:
100–240-VAC, 47–63-Hz
external power supply;
12-VDC models: Internal terminal
block for 12-VDC power plus
jack for AC power supply (not
included);
24-VDC models: Internal terminal
block for 24-VDC power plus
jack for AC power supply (not
included);
-48-VDC models: Internal
terminal block for -48-VDC
power plus jack for AC power
supply (not included)
Temperature Tolerance:
Storage: -40 to +185°F (-40 to
+85°C);
Long-term operating: -13 to
+140°F (-25 to +60°C);
Short-term operating: -40 to
+185°F (-40 to 85°C);
Cold start to -4°F (-20°C)
Humidity: 5 to 95%, noncondensing
Altitude: -200 to 13,000 ft. (-60.9 to
3962.4 m)
Enclosure: Steel
Size: 3.5"H x 3"W x 1"D (8.9 x 7.6 x
2.5 cm)
Weight: Media Converter Switches:
0.3 lb. (0.1 kg);
Power Supplies: 0.4 lb. (0.2 kg)
Specifications
Typical application.
PLC
PLC
PLC
Ethernet video
surveillance camera
Server
Distribution-Style Fiber
Optic
Bulk Cable (EXN2002A)
Single-Mode Duplex Fiber
Optic Cable
(EFN5010)
Media Converter
Switch
(LBH100A-H-SSCL)
Media Converter
Switch
(LBH100A-ST)
Media Converter
Switch
(LBH100A-ST)
Media Converter
Switch
(LBH100A-H-SSCL)
6
Ordering Information
ITEM CODE
Hardened Media Converter Switches, 10-/100-Mbps Copper to 100-Mbps Multimode Fiber
100–240-VAC, SC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-H-SC
100–240-VAC, ST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-H-ST
100–240-VAC, MT-RJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-H-MT
100–240-VAC with IEC, SC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100AE-H-SC
100–240-VAC with IEC, ST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100AE-H-ST
100–240-VAC with IEC, MT-RJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100AE-H-MT
12-VDC, SC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-H-SC-12
12-VDC, ST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-H-ST-12
12-VDC, MT-RJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-H-MT-12
24-VDC, SC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-H-SC-24
24-VDC, SC, DIN Rail Mountable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-HD-SC-24
24-VDC, ST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-H-ST-24
24-VDC, ST, DIN Rail Mountable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-HD-ST-24
24-VDC, MT-RJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-H-MT-24
24-VDC, MT-RJ, DIN Rail Mountable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-HD-MT-24
48-VDC, SC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-H-SC-48
48-VDC, ST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-H-ST-48
48-VDC, MT-RJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-H-MT-48
Hardened Media Converter Switches, 10-/100-Mbps Copper to 100-Mbps Single-Mode Fiber
100–240-VAC, SC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-H-SSC
100–240-VAC, LC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-H-SLC
100–240-VAC with IEC, SC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100AE-H-SSC
100–240-VAC with IEC, LC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100AE-H-SLC
12-VDC, SC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-H-SSC-12
12-VDC, LC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-H-SLC-12
24-VDC, SC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-H-SSC-24
24-VDC, SC, DIN Rail Mountable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-HD-SSC-24
24-VDC, LC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-H-SLC-24
24-VDC, LC, DIN Rail Mountable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-HD-SLC-24
48-VDC, SC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-H-SSC-48
48-VDC, LC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-H-SLC-48
100–240-VAC, Long-Distance, SC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-H-SSCL
100–240-VAC with IEC, SC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100AE-H-SSCL
12-VDC, Long-Distance, SC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-H-SSCL-12
24-VDC, Long-Distance, SC, DIN Rail Mountable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-HD-SSCL-24
24-VDC, Long-Distance, SC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-H-SSCL-24
48-VDC, Long-Distance, SC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-H-SSCL-48
AC Power Supply for Hardened Media Converter Switches, 100–240-VAC, 47–63-Hz . . . . . . . . . . . . . LBH100A-H-PS
AC Power Supply for Hardened Media Converter Switches, 100–240-VAC,
47–63-Hz with IEC Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100AE-H-PS
DIN Rail Mounting Bracket. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DIN-RAIL MC2
Rackmount Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LE1505-RACK
Powered Rackmount Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LH1505P-RACK
7
Suitable for harsh
outdoor environments.
Provide one 100-Mbps
fiber port and two
10-/100-Mbps UTP
switch ports.
RJ-45 ports support
autonegotiation, so
you can easily attach
any 10- or 100-Mbps
device.
Available with many
choices of AC and DC
power supplies.
M
edia Converter Switches are
the versatile way to extend
your network. They’re easy to
use—literally plug-and-play—
and offer many choices of fiber
types, power types, and mounting
options.
It’s a media converter and a switch!
Media Converter Switches do
more than just adapt from one
cable type to another. They’re
true Ethernet switches and
behave like switches within your
Ethernet network. This means you
can connect them together
indefinitely without worrying
about interrepeater links. Each
Media Converter Switch features
non-blocking switching architecture with a 2K MAC address
table. The 128K buffer memory
makes it easy to interconnect
10- and 100-Mbps devices.
Tough enough for outdoor use.
Choose Extreme Media
Converter Switches for outdoor
use in exposed locations with
temperature ranges of -40 to
+167°F (-40 to +75°C)—all they
need in the way of protection is
shelter from direct rainfall. Like
our hardened models, Extreme
Media Converter Switches
feature a sealed case that uses its
Media Converter Switches
for harsh outdoor environments.
Key Features
EXTREME MEDIA CONVERTER SWITCHES
own metal shell as a heat sink.
Choose them for applications such
as traffic signal control or for
sensors or surveillance cameras
in outdoor plants. Extreme Media
Converter Switches are rated for
above-the-ceiling plenum
installation.
Media Converter Switches are
also available in standard versions
for office or wiring closet environments and hardened versions for
demanding indoor environments
such as factory floors. Because
all three types work together
seamlessly, you can use inexpensive Standard Media Converter
Switches in the protection of the
wiring closet and choose the
more robust Hardened or Extreme
Media Converter Switches for
harsh locations at your network’s
edge.
Distance isn’t a problem.
Because they’re switches as
well as media converters, Media
Converter Switches provide more
options in network topology, overcoming the distance limitations
inherent with simple media
converters —to add extra distance,
just daisychain another Media
Converter Switch. If you need
more ports at your remote location, just add a Convenient Switch.
Multimode models support up
to 2 kilometers (1.2 miles)
between Media Converter
Switches. For longer distances,
choose single-mode models for
up to 20 kilometers (12.4 miles) or
single-mode, long-distance
models for an incredible 40 kilometers (24.9 miles) between links.
The features you’re looking for
.
Media Converter Switches are
simple to set up and use—just
plug and go!
Both copper ports are autosensing for speed and duplex,
adjusting to the connected device
automatically. Plus, the UTP ports
feature auto-MDI/MDI-X, eliminating the need for crossover
cables.
Media Converter Switches
each have two full sets of LED
indicators: one set on the front for
viewing convenience when the
Media Converter is DIN rail or
wallmounted, and one set
mounted in the end next to the
media ports for easy viewing
when units are in a rackmount
tray.
AC or DC power.
Extreme Media Converter
Switches have the power options
to support harsh environments,
8
too. Models with AC power
supplies support 100–240-VAC
power. The power supplies with
recessed IEC power connectors
work with any IEC standard
power cord, making them adaptable to most international locations.
DC-powered units have
internal screw terminals for
connecting DC power in addition
to an AC power jack. Because
these models have dual power
connections, you can use them
simultaneously with both your DC
power supply and an AC power
adapter (sold separately) to
provide redundant power input.
Mounting options galore.
Media Converter Switches fit
in where you need them. They
come with neat, removable
rubber feet so you can use them
as standalone units. Or you can
easily panelmount them with the
included brackets and screws.
For use with DIN rails, order
the optional DIN Rail Mounting
Bracket. This handy bracket
features springmounting, enabling
you to easily pop your Media
Converter Switches on and off the
DIN rail without using a screwdriver or tightening set screws.
DIN-rail-ready Media Converter
Switches are also available.
For rackmounting in a central
location, choose the Rackmount
Tray or the Powered Rackmount
Tray. The powered tray provides
power for up to eight units.

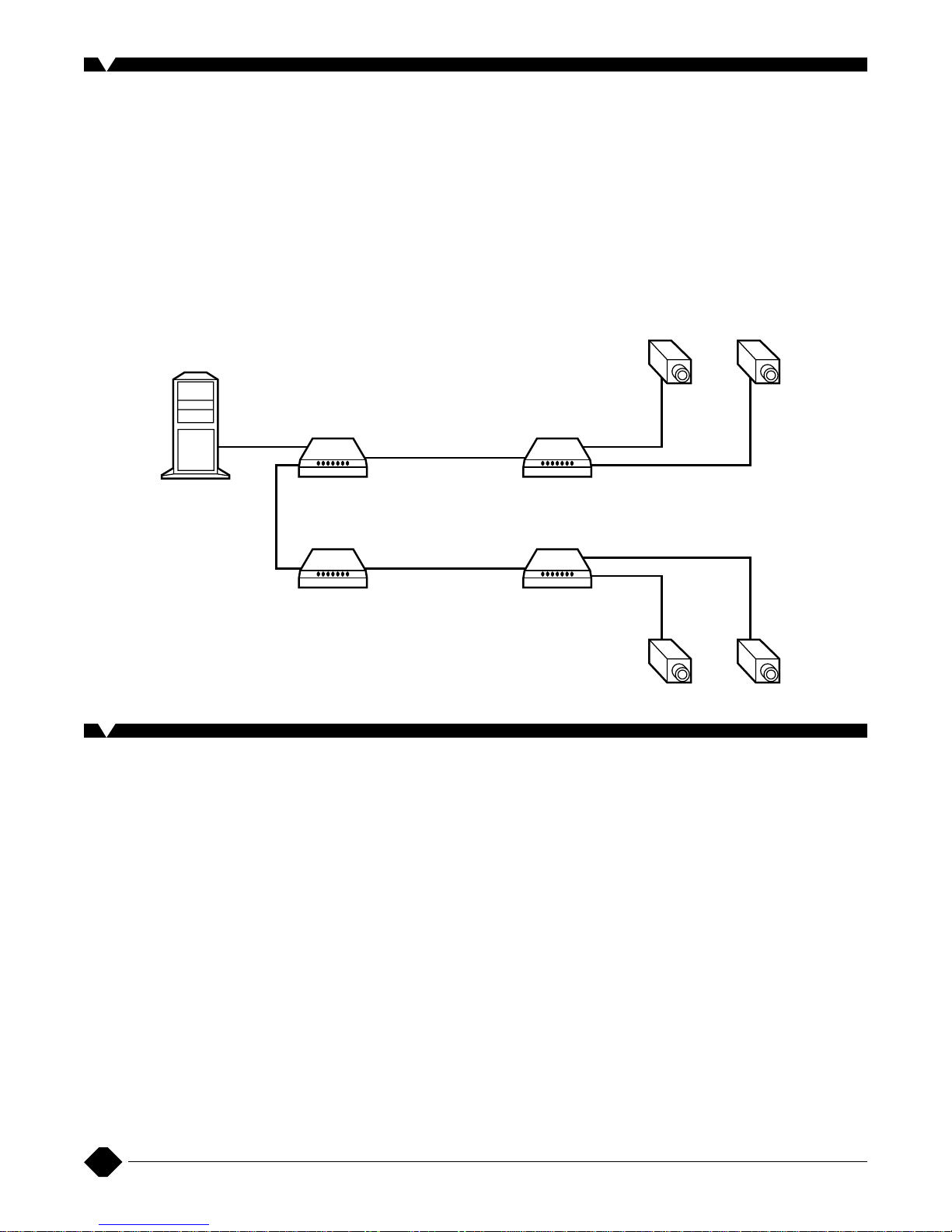

Ethernet-
compatible video
surveillance
cameras for
outdoor use.
Ethernet-
compatible video
surveillance
cameras for
outdoor use.
Server
Distribution-Style Fiber
Optic
Bulk Cable (EXN2002A)
Single-Mode Duplex Fiber
Optic Cable
(EFN5010)
Media Converter
Switch
(LBH100A-P-SSCL)
Media Converter
Switch
(LBH100A-P-SSCL)
Media Converter
Switch
(LBH100A-ST)
Media Converter
Switch
(LBH100A-H-SSCL)
Distance (Maximum): Multimode
models: 2 km (1.2 mi.);
Single-mode SC models: 20 km
(12.4 mi.);
Single-mode LC models: 15 km
(9.3 mi.);
Single-mode, long-distance SC
models: 40 km (24.9 mi.)
MAC Addresses: 2K
Standards: IEEE 802.3, IEEE 802.3u,
IEEE 802.1p/q
Connectors: LBH100A-P-ST,
LBH100AE-P-ST, LBH100A-PDSC, LBH100A-P-ST-12, LBH100AP-ST-24, LBH100A-PD-ST-24,
LBH100A-P-ST-48:
(2) RJ-45, (1) pair of ST
®
;
Connectors (continued):
LBH100A-P-MT, LBH100AE-PMT, LBH100A-P-MT-12,
LBH100A-P-MT-24, LBH100A-PDMT-24, LBH100A-P-MT-48:
(2) RJ-45, (1) pair of MT-RJ;
LBH100A-P-SC, LBH100AE-P-SC,
LBH100A-P-SC-12, LBH100A-PSC-24, LBH100A-PD-SC-24,
LBH100A-P-SC-48, LBH100A-PSSC, LBH100AE-P-SSC,
LBH100A-P-SSC-12, LBH100A-PSSC-24, LBH100A-PD-SSC-24,
LBH100A-P-SSC-48, LBH100A-PSSCL, LBH100AE-P-SSCL,
LBH100A-P-SSCL-24, LBH100APD-SSCL-24, LBH100A-P-SSCL48: (2) RJ-45, (1) pair of SC;
Connectors (continued):
LBH100A-P-SLC, LBH100A-PSLC, LBH100AE-P-SLC, LBH100AP-SLC-12, LBH100A-P-SLC-24,
LBH100A-PD-SLC-24, LBH100AP-SLC-48:
(2) RJ-45, (1) pair of LC
Temperature Tolerance:
Storage: -40 to +185°F (-40 to
+85°C);
Long-term operating: -40 to
+167°F (-40 to +75°C);
Short-term operating: -58 to
+212°F (-50 to +100°C);
Cold start to -40°F (-40°C)
Humidity: 5 to 95%, noncondensing
Altitude: -200 to 13,000 ft. (-60.9 to
3962.4 m)
Enclosure: Steel
Power: AC models: 100–240-VAC,
47–63-Hz external power
supply;
12-VDC models: Internal terminal
block for 12-VDC power plus
jack for AC power supply
(not included);
24-VDC models: Internal terminal
block for 24-VDC power plus
jack for AC power supply
(not included);
-48-VDC models: Internal
terminal block for -48-VDC
power plus jack for AC power
supply (not included)
Size: 3.5"H x 3"W x 1"D (8.9 x 7.6 x
2.5 cm)
Weight: Media Converter Switches:
0.3 lb. (0.1 kg);
Power Supplies: 0.5 lb. (0.2 kg)
Specifications
9
Ordering Information
ITEM CODE
Extreme Media Converter Switches, 10-/100-Mbps Copper to 100-Mbps Multimode Fiber
100–240-VAC, SC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-P-SC
100–240-VAC, SC, DIN Rail Mountable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-PD-SC
100–240-VAC, ST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-P-ST
100–240-VAC, MT-RJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-P-MT
100–240-VAC with IEC, SC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100AE-P-SC
100–240-VAC with IEC, ST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100AE-P-ST
100–240-VAC with IEC, MT-RJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100AE-P-MT
12-VDC, SC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-P-SC-12
12-VDC, ST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-P-ST-12
12-VDC, MT-RJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-P-MT-12
24-VDC, SC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-P-SC-24
24-VDC, SC, DIN Rail Mountable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-PD-SC-24
24-VDC, ST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-P-ST-24
24-VDC, ST, DIN Rail Mountable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-PD-ST-24
24-VDC, MT-RJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-P-MT-24
24-VDC, MT-RJ, DIN Rail Mountable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-PD-MT-24
48-VDC, SC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-P-SC-48
48-VDC, ST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-P-ST-48
48-VDC, MT-RJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-P-MT-48
Extreme Media Converter Switches, 10-/100-Mbps Copper to 100-Mbps Single-Mode Fiber
100–240-VAC, SC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-P-SSC
100–240-VAC, LC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-P-SLC
100–240-VAC with IEC, SC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100AE-P-SSC
100–240-VAC with IEC, LC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100AE-P-SLC
12-VDC, SC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-P-SSC-12
12-VDC, LC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-P-SLC-12
24-VDC, SC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-P-SSC-24
24-VDC, SC, DIN Rail Mountable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-PD-SSC-24
24-VDC, LC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-P-SLC-24
24-VDC, LC, DIN Rail Mountable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-PD-SLC-24
48-VDC, SC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-P-SSC-48
48-VDC, LC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-P-SLC-48
100–240-VAC, Long-Distance, SC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-P-SSCL
100–240-VAC with IEC, SC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100AE-P-SSCL
12-VDC, Long-Distance, SC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-P-SSCL-12
24-VDC, Long-Distance, SC, DIN Rail Mountable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-PD-SSCL-24
24-VDC, Long-Distance, SC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-P-SSCL-24
48-VDC, Long-Distance, SC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-P-SSCL-48
AC Power Supply for Hardened Media Converter Switches, 100–240-VAC, 47–63 Hz. . . . . . . . . . . . . . LBH100A-P-PS
AC Power Supply for Hardened Media Converter Switches, 100–240-VAC, 47–63 Hz
with IEC Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100AE-P-PS
DIN Rail Mounting Bracket. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DIN-RAIL MC2
Rackmount Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LE1505-RACK
Powered Rackmount Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LH1505P-RACK
10
Use this handy fourport switch to quickly
add additional ports
anywhere in your
network.
Models available to
stand up to environments ranging from the
friendly wiring closet
to harsh outdoor
applications.
Provide four 10-/
100-Mbps UTP switch
ports.
All ports support
autonegotiation, so
you can easily attach
any 10- or 100-Mbps
device.
C
onvenient Switches are
versatile, autosensing, fourport switches that enable you to
quickly add ports anywhere on
your Ethernet network. They’re
designed as a part of our Media
Converter Switch family and are
available in the same chassis
choices to fit environments
ranging from comfortable offices
to demanding outdoor installations. You can also choose from
a wide range of power supplies
and mounting options.
Although Convenient
Switches were designed to match
our Media Converter Switches,
you can also use them just like
any other 10-/100-Mbps Ethernet
switch to add ports anywhere on
your network or even to build a
small freestanding network.
Adapt to nearly any environment.
Convenient Switches come in
three versions to adapt to nearly
any environment. Because all
three types work together
seamlessly with each other and
also with our family of Media
Converter Switches, you can use
inexpensive switches in the
protection of the wiring closet and
choose the more robust Hardened
or Extreme Convenience
Quickly add Ethernet ports anywhere in your
network—even in harsh outdoor environments.
Key Features
CONVENIENT SWITCHES
Switches for harsh locations at
your network’s edge.
Standard—These are our
basic Convenient Switches for
use in clean, temperaturecontrolled environments such as
offices and wiring closets. Even
though these models are
designed for use in controlled
environments, you’ll find that they
feature the same heavyweight
metal case as our more robust
models.
Hardened—These Convenient
Switches are for dusty or dirty
environments with temperatures
that range between -13 and
+140°F (-25 to +60°C). They use
the metal case as a heat sink so
no internal airflow is needed for
cooling. The case is sealed to
resist environmental contaminants such as dust, dirt, moisture,
smoke, and insects. They’re an
ideal choice for demanding
industrial applications such as
factory floors.
Extreme—Choose these
robust units for outdoor use in
exposed locations with temperature ranges of -40 to +167°F (-40
to +75°C)—all they need in the
way of protection is shelter from
direct rainfall. Like our hardened
models, Extreme Convenient
Switches feature a sealed case
that uses its own metal shell as a
heat sink. Choose them for applications such as traffic signal
control or for sensors or
surveillance cameras in outdoor
plants. Extreme Convenient
Switches are rated for above-theceiling plenum installation.
The features you’re looking for.
Convenient Switches are
literally plug-and-play.
All four UTP ports are
autosensing for speed and
duplex, adjusting to the
connected device automatically.
Plus, all ports feature auto-MDI/
MDI-X, eliminating the need for
crossover cables.
Each switch features nonblocking switching architecture
with a 2K MAC address table. The
128K buffer memory makes it easy
to interconnect 10- and 100-Mbps
devices.
The switches each have two
full sets of LED indicators: one set
on the front for viewing convenience when the switch is DIN rail
or wallmounted, and one set
mounted in the end next to the
media ports for easy viewing
when units are in a rackmount
tray.
11
AC and DC power.
Like our Media Converter
Switches, Convenient Switches
have the power options to support
harsh environments. Standard
models are available with AC
power adapters only, in a choice
of 115 or 240 VAC. Hardened and
Extreme Convenient Switches
with AC power supplies feature
100–240-VAC power supplies built
to the same tough standards.
The power supplies with
recessed IEC power connectors
work with any IEC standard
power cord, making them
adaptable to most international
locations.
DC-powered Hardened and
Extreme units have internal screw
terminals for connecting DC
power in addition to an AC power
jack. Because these models have
dual power connections, you can
use them simultaneously with
both your DC power supply and
an AC power adapter (sold
separately) to provide redundant
power input.
Mounting options galore.
Convenient Switches fit in
where you need them. The
switches come with neat,
removable rubber feet so you can
use them as standalone units. Or
you can easily panelmount them
with the included brackets and
screws.
For use with DIN rails, order
the optional DIN Rail Mounting
Bracket. This handy bracket
features springmounting, enabling
you to easily pop your Convenient
Switches on and off the DIN rail
without using a screwdriver or
tightening set screws. DIN-railready Media Converter Switches
are also available—for details,
contact Tech Support.
For rackmounting in a central
location, choose the Rackmount
Tray or the Powered Rackmount
Tray. The powered tray provides
power for up to eight units.
MAC Addresses: 2K
Standards: IEEE 802.3, IEEE 802.3u,
IEEE 802.1p/q
Connectors: (4) RJ-45
Indicators: (2) Power, (8) 10/100,
(8) LK/ACT
Temperature Tolerance:
All models: Storage: -40 to +185°F
(-40 to +85°C);
Standard models: Operating:
32 to 104°F (0 to 40°C);
Hardened models: Long-term
operating: -13 to +140°F (-25 to
+60°C);
Short-term operating: -40 to
+185°F (-40 to +85°C);
Temperature Tolerance
(continued):
Cold start to -4°F (-20°C);
Extreme models: Long-term
operating: -40 to +167°F
(-40 to +75°C);
Short-term operating: -58 to
+212°F (-50 to +100°C);
Cold start to -40°F (-40°C)
Humidity: 5 to 95%, noncondensing
Altitude: -200 to 13,000 ft. (-60.9 to
3962.4 m)
Enclosure: Steel
Power: Standard 115-VAC models:
115-VAC, 60-Hz external
power supply;
Power (continued):
Standard 240-VAC models:
240-VAC, 50-Hz external
power supply with IEC power
connector;
Hardened and Extreme AC
models: 100–240-VAC, 47–63-Hz
external power supply;
12-VDC models: Internal
terminal block for 12-VDC
power plus jack for AC
power supply (not
included);
24-VDC models: Internal
terminal block for 24-VDC
power plus jack for AC
power supply (not
included);
Power (continued):
-48-VDC models: Internal
terminal block for -48-VDC
power plus jack for AC
power supply (not included)
Size: 3.5"H x 3"W x 1"D (8.9 x 7.6 x
2.5 cm)
Weight: Switch: 0.3 lb. (0.1 kg);
Standard and Hardened Power
Supplies: 0.4 lb. (0.2 kg);
Extreme Power Supplies: 0.5 lb.
(0.2 kg)
Specifications
12
Ordering Information
ITEM CODE
Convenient Switches
Standard
115-VAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH101A
240-VAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH101AE
Hardened
100–240-VAC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH101A-H
100–240-VAC with IEC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH101AE-H
12-VDC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH101A-H-12
24-VDC with DIN Rail Mountable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH101A-HD-24
24-VDC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH101A-H-24
48-VDC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH101A-H-48
Extreme
100–240-VAC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH101A-P
100–240-VAC with IEC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH101AE-P
12-VDC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH101A-P-12
24-VDC with DIN Rail Mountable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH101A-PD-24
24-VDC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH101A-P-24
48-VDC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH101A-P-48
AC Power Supplies for Convenient Switches
Standard
115-VAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-115VAC
240-VAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100AE-240VAC
Hardened
100–240-VAC, 47–63-Hz. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-H-PS
100–240-VAC, 47–63-Hz with IEC Connector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100AE-H-PS
Extreme
100–240-VAC, 47–63-Hz. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100A-P-PS
100–240-VAC, 47–63-Hz with IEC Connector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LBH100AE-P-PS
DIN Rail Mounting Bracket. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DIN-RAIL MC2
Rackmount Tray. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LE1505-RACK
Powered Rackmount Tray. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LH1505P-RACK
Loading...
