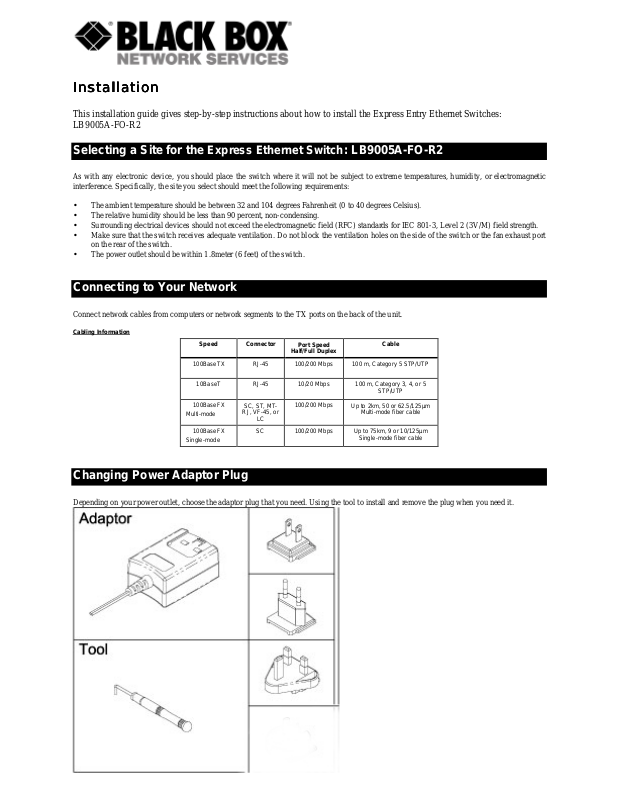

Installation
Installation
InstallationInstallation
This installation guide gives step-by-step instructions about how to install the Express Entry Ethernet Switches:
LB9005A-FO-R2
Selecting a Site for the Express Ethernet Switch: LB9005A-FO-R2
As with any electr onic devic e, you should p lace the swit ch where it will not be su bject to extreme temp eratures, humidity, or electromagnetic
interference. Specifically, the site you select should meet the following requirements:
• The ambient temperature should be between 32 and 104 degrees Fahrenheit (0 to 40 degrees Celsius).
The relative humidity should be less than 90 percent, non-condensing.
•
Surrounding electrical devices should not exceed the electromagnetic field (RFC) standards for IEC 801-3, Level 2 (3V/M) field strength.
•
Make sure that the switch receives adequate ventilation. Do not block the ventilation holes on the side of the switch or the fan exhaust port
•
on the rear of the switch.
The power outlet should be wit hin 1.8 meter (6 feet) of the switch.
•
Connecting to Your Network
Connect network cables from computers or network segments to the TX ports on the back of the unit.
Cabling Information
Speed Connector
100BaseTX RJ-45 100/200 Mbps 100 m, Category 5 STP/UTP
Port Speed
Half/Full Duplex
Cable
10BaseT RJ-45 10/20 Mbps
100BaseFX
Multi-mode
100BaseFX
Single-mode
SC, ST, MT-
RJ, VF-45, or
LC
SC 100/200 Mbps
100/200 Mbps
100 m, Category 3, 4, or 5
STP/UTP
Up to 2km, 50 or 62.5/125µm
Multi-mode fiber cable
Up to 75km, 9 or 10/125µm
Single-mode fiber cable
Changing Power Adaptor Plug
Depending on your power outlet, choose the adaptor plug that you need. Using the tool to install and remove the plug when you need it.
Page 2
Connecting to Power
External power:
Connect the supplied AC power cord to the receptacle on the back of the switch, and then plug it into a
standard AC outlet with a voltage range from 100 to 260 VAC.
Figure 1: Rear view
