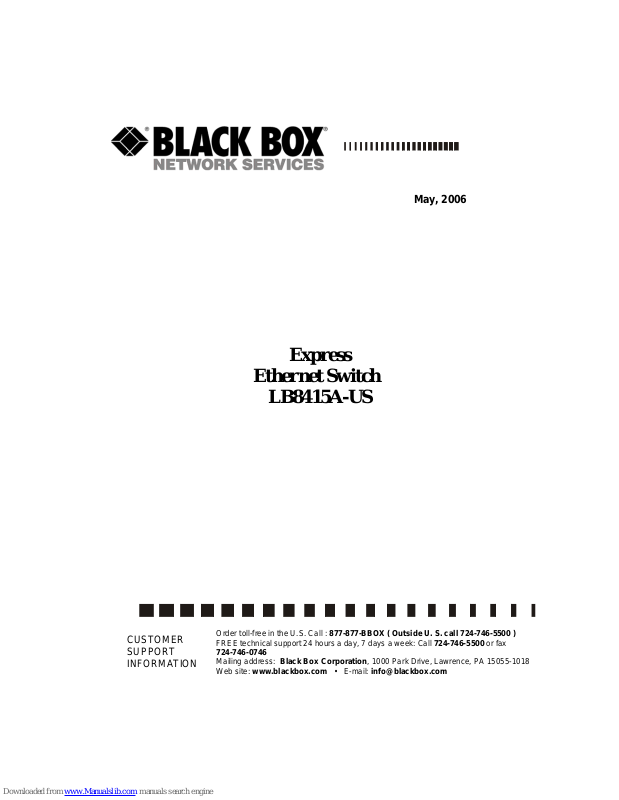

Express
May, 2006
Ethernet Switch
LB8415A-US
CUSTOMER
SUPPORT
INFORMATION
Order toll-free in the U.S. Call : 877-877-BBOX ( Outside U. S. call 724-746-5500 )
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax
724-746-0746
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: info@blackbox.com
Page 2
Express Ethernet Switch LB8415A-US
FEDERAL COMMUNICATIONS COMMISSION AND
CANADIAN DEPARTMENT OF COMMUNICATIONS
RADIO FREQUENCY INTERFERENCE STATEMENT
Class B Digital Device. This equipment has been tested and found to comply
with the limits for a Class B computing device pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. However, there is no guarantee
that interference will not occur in a particular installation. This equipment
generates, uses, and can radiate radio frequency energy, and, if not installed
and used in accordance with the instructions, may cause harmful interference
to radio communications. If this equipment does cause harmful interference to
radio or telephone reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference
by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult an experienced radio/TV technician for help.
Caution:
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
To meet FCC requirements, shielded cables and power cords are required to
connect this device to a personal computer or other Class B certified device.
This digital apparatus does not exceed the Class B limits for radio noise
emission from digital apparatus set out in the Radio Interference Regulation of
the Canadian Department of Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriqu es dépassant
les limites applicables aux appareils numériques de la classe B prescrites dans
le Règlement sur le brouillage radioélectrique publié par le ministère de s
Communications du Canada.
Normas Oficiales Mexicanas (NOM)
INSTRUCCIONES DE SEGURIDAD
1. Todas las instrucciones de seguridad y operación deberán ser leídas
antes de que el aparato eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas para
referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instru cciones de
operación deben ser respetadas.
2
Page 3
Express Ethernet Switch LB8415A-US
4. Todas las instrucciones de operación y uso deben ser seguida s.
5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo,
cerca de la tina de baño, lavabo, sótano mojado o cerca de una alberca,
etc.
6. El aparato eléctrico debe ser usado únicamente con carritos o
pedestales que sean recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como
sea recomendado por el fabricante.
8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más
allá a lo descrito en las instrucciones de operación. Todo otro servicio
deberá ser referido a personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no
interfiera su uso. La colocación del aparato eléctrico sobre una cama,
sofá, alfombra o superficie similar puede bloquea la ventilación, no se
debe colocar en libreros o gabinetes que impidan el flujo de aire por los
orificios de ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de
calor como radiadores, registros de calor, estufas u otros aparato s
(incluyendo amplificadores) que producen calor.
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo
del tipo descrito en el instructivo de operación, o como se indique en el
aparato.
12. Precaución debe ser tomada de tal manera que la tierra fisica y la
polarización del equipo no sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal mane ra que
no sean pisados ni pellizcados por objetos colocados sobre o contra
ellos, poniendo particular atención a los contactos y receptáculos donde
salen del aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las
recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las
lineas de energia.
16. El cable de corriente deberá ser desconectado del cuando el equipo no
sea usado por un largo periodo de tiempo.
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean
derramados sobre la cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del aparato; o
3
Page 4
Express Ethernet Switch LB8415A-US
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en su
desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada.
4
Page 5
Express Ethernet Switch LB8415A-US
Table of Contents
Table of Contents ............................................................................................. 5
About This Manual............................................................................................ 6
Packing List....................................................................................................... 6
Introduction....................................................................................................... 7
Product Features ............................................................................................ 7
Front & Back Panel......................................................................................... 8
LEDs ............................................................................................................... 8
Installation......................................................................................................... 9
Selecting a Site for the Switch........................................................................ 9
Connecting to Your Network........................................................................... 9
Specifications ................................................................................................. 10
5
Page 6
Express Ethernet Switch LB8415A-US
About This Manual
This manual describes the Black Box Express Ethernet Switch in these basic
sections:
• FCC Statement
• Introduction
• Product Features
• Installation
Packing List
Please inspect the contents and report any apparent damage or missing items
immediately to Black Box.
• The switch
• User’s Manual
• External AC to DC power Linear Power Supply
6
Page 7
Express Ethernet Switch LB8415A-US
Introduction
LB8415A-US is an 8-port Fast Ethernet switch, integrating 10/100BaseTX
networks in a cost-effective desktop package. The TX ports are auto MDIX and
capable of auto negotiate speed and half/full duplex modes.
Product Features
• 7-port 10/100BaseTX. & 1-port 100Base FX
• Equipped with US Linear Power Supply (110VAC, 12V, 0.6A)
• Auto MDIX on all TX ports to eliminate the need for crossed over cable
• TX ports are capable of auto negotiate 10/100Mbps speed & full/half
duplex mode
• Broadcast storming filter function.
• True non-blocking architecture.
• Full wire-speed forwarding rate.
• Store-and-forward mechanism.
• Back pressure and IEEE802.3x compliant flow control.
• Supports 2K MAC addresses.
• Supports 1M bits buffer memory.
• Front panel power and port status LEDs.
• Wall-mountable pocket size.
7
Page 8
Express Ethernet Switch LB8415A-US
Front & Back Panel
LB8415A-US is a space saving pocket size 8-port TX/FX Ethernet switch designed for wallmount or desktop. LED indicators and TX/FX ports are located on front and back panels
respectively. Back panel is equipped with seven TX ports, one FX port, and a DC receptacle.
The front panel displays arrays of LEDs indicating power & individual port activity.

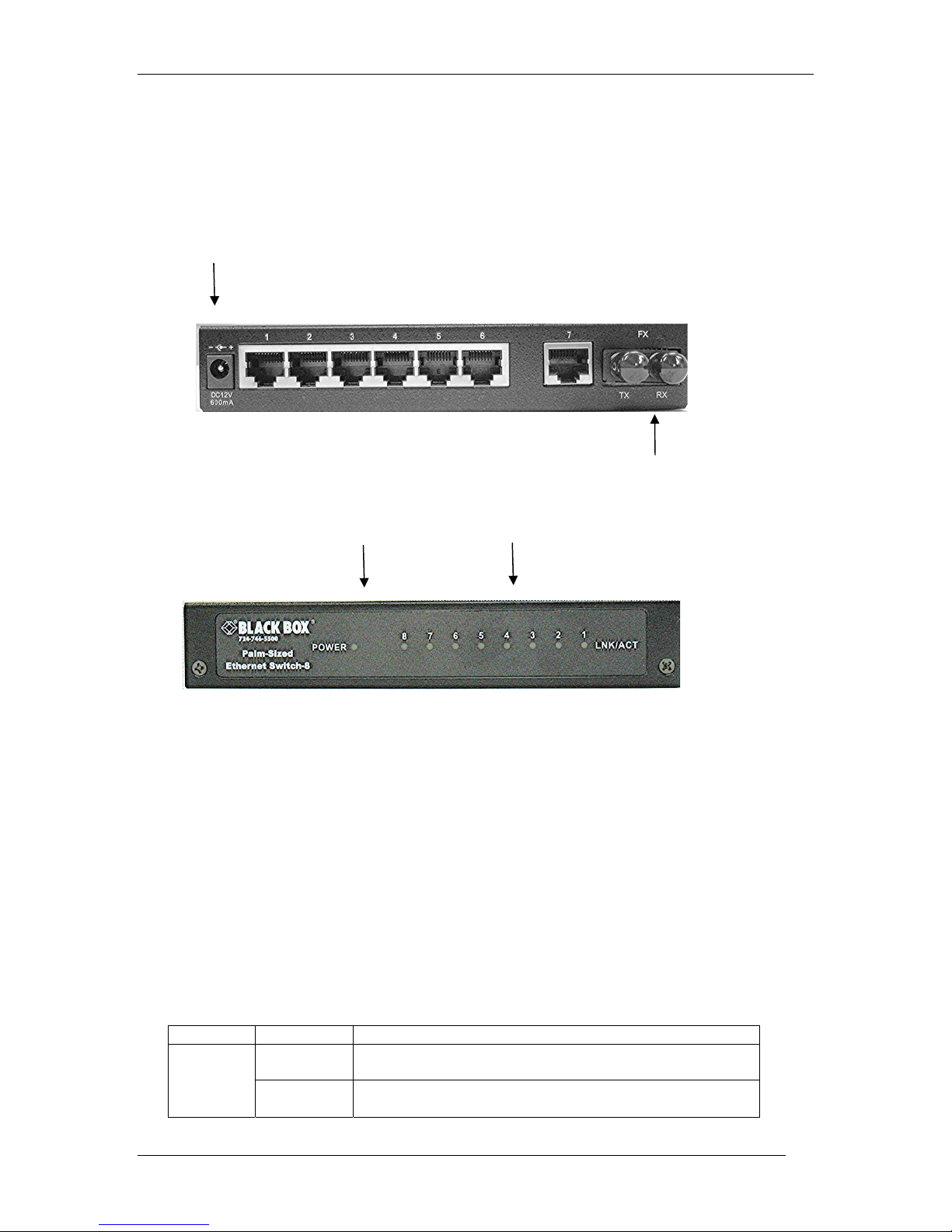

Back Panel
Power Receptacle: Connect the supplied universal power adaptor to the receptacle on back
panel and then plug the cord into standard AC outlet with a voltage range
from 100 to 240
Fiber Port
Front Panel
Power Port Status
LEDs
LED indicators on the front panel convey status information to help you monitor and
troubleshoot the switch.
Power
This LED comes on when the switch is connected to the power adapter.
Port Status
Each port has a matching LED showing the port status. When port LED is on, it
indicates the corresponding port is connected with another switch/hub or
computer. When port LED blinks, it indicates exchanging data or packets
within the network is proceeding.
The table below provides detailed information on LEDs.
LED State Indication
Steady
LNK/ACT
Flashing
The port has established a valid network connection.
LNK stands for LINK.
The port is transmitting or receiving data.
ACT stands for ACTIVITY.
8
Page 9
Express Ethernet Switch LB8415A-US
Installation
Selecting a Site for the Switch
As with any electronic device, you should place the switch where it will not be subject
to extreme temperatures, humidity, or electromagnetic interference. Specifically, the
site you select should meet the following requirements:
• The ambient temperature should be between 32 and 104 degrees Fahrenheit (0 to
40 degrees Celsius).
• The relative humidity should be less than 90 percent, non-condensing.
• Surrounding electrical devices should not exceed the electromagnetic field (RFC)
standards for IEC 801-3, Level 2 (3V/M) field strength.
• Make sure that the switch receives adequate ventilation. Do not block the
ventilation holes on the side of the switch or the fan exhaust port on the rear of the
switch.
• The power outlet should be within 1.8meter (6 feet) of the switch.
Connecting to Your Network
Connect network cables from computers or network segments to the TX ports on the
back panel.
Table 2: Cabling Information
Speed Connector Port Speed
Cable
Half/Full Duplex
100BaseTX RJ-45 100/200 Mbps 100 m, Category 5 STP/UTP
10BaseT RJ-45 10/20 Mbps 100 m, Category 3, 4, or 5 STP/UTP
100BaseFX
Multi-mode
100BaseFX
Single-mode
SC, ST, MT-RJ,
VF-45, or LC
100/200 Mbps Up to 2km, 50 or 62.5/125µm
Multi-mode fiber cable
SC 100/200 Mbps Up to 75km, 9 or 10/125µm
Single-mode fiber cable
9
Page 10
Specifications
Express Ethernet Switch LB8415A-US
Applicable
Standards
LED Indicators
Cable
Switching
Methods
Forwarding
Rate
AC Input
Power
consumption
Operating
Temperature
Storage
Temperature
Humidity
IEEE 802.3, 10BaseT,
IEEE 802.3u, 100BaseTX/FX
Per unit – Power Status
Per Port – LNK/ACT
10BaseT 2-pair UTP/STP Cat. 3,4,5, up to 100m
100BaseTX 2-pair UTP/STP Cat.5, up to 100m
100BaseFX 50 or 62.5/125µm Multi-mode fiber optic cable, up to 2km
100BaseFX 9 or 10/125µm Single-mode fiber optic cable, up to 75km
Store-and-Forward
14,880pps for 10Mbps,
148,800pps for 100Mbps
110VAC, 50-60Hz, external linear power supply
110VAC, 12V, 0.6A
0°C~40°C (32°F~104°F)
-25°C~70°C (-13F°~158°F)
10%~90%, non-condensing
Emissions
Dimensions
Weight
FCC part 15 Class B, CE Mark-B,
W160 x D81 x H28mm palm size
0.42kg (0.92lb.)
10
