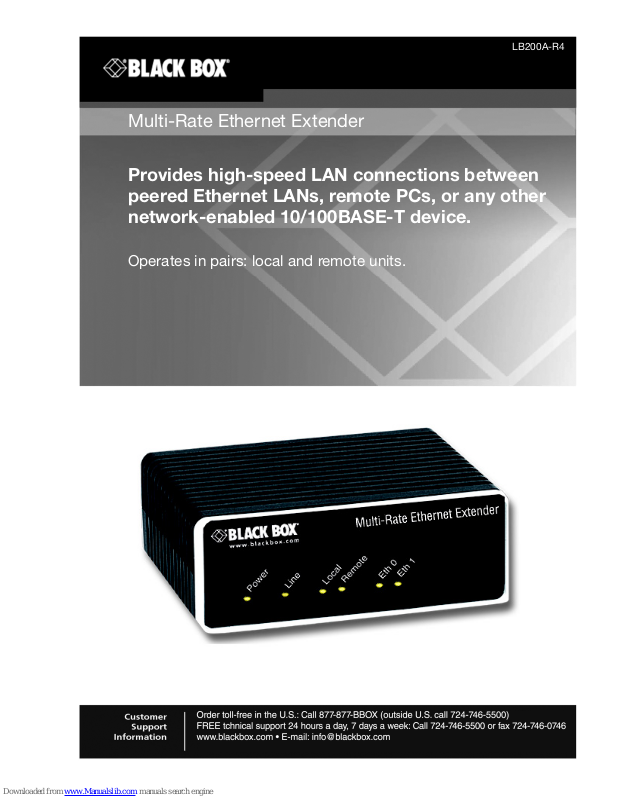

Page 1
Multi-Rate Ethernet Extender
Provides high-speed LAN connections between
peered Ethernet LANs, remote PCs, or any other
network-enabled 10/100BASE-T device.
Operates in pairs: local and remote units.
LB200A-R4
Page 2
Black Box LB200A-R4 User Manual
Summary Table of Contents
1. About This Guide ............................................................................................................................. 7
2. General information ....................................................................................................................... 11
3. Installation ...................................................................................................................................... 13
4. Configuration..................................................................................................................................17
5. Operation ........................................................................................................................................ 21
A. Compliance Information ..............................................................................................................23
B. Specifications ............................................................................................................................... 25
C. Interface Pin Assignment ............................................................................................................ 27
D. Line Rate & Reach Chart ............................................................................................................. 29
724-746-5500 | blackbox.com
Page 2
Page 3
Black Box LB200A-R4 User Manual
Table of Contents
1. About This Guide ............................................................................................................................. 7
1.1 Structure............................................................................................................................................. 7
1.2 Precautions ........................................................................................................................................7
1.3 Safety When Working With Electricity................................................................................................ 9
2. General information ....................................................................................................................... 11
2.1 Description ....................................................................................................................................... 12
3. Installation ...................................................................................................................................... 13
3.1 Connecting the Line Interface .......................................................................................................... 14
3.2 Connecting the Line Interface for LB200A-R4 ................................................................................. 15
3.3 Connecting the 10/100Base-T Ethernet Interface............................................................................ 15
3.4 Connecting Power ............................................................................................................................16
4. Configuration..................................................................................................................................17
4.1 Accessing the DIP Switches ............................................................................................................ 18
4.2 Configuring DIP Switch S1 ............................................................................................................... 19
Switch S1-1: Local/Remote Configuration ...................................................................................... 19
Switches S1-2 and S1-3: Symmetric/Asymmetric Operation .......................................................... 19
Switch S1-5: General Protection (Signal to Noise Ratio) ................................................................ 20
5. Operation ........................................................................................................................................ 21
5.1 Front Panel LED Status Monitors..................................................................................................... 22
A. Compliance Information ..............................................................................................................23
A.1 Regulatory Information .................................................................................................................... 24
EMC Directive ................................................................................................................................. 24
Low-Voltage Directive (Safety) ........................................................................................................ 24
PSTN ............................................................................................................................................... 24
A.2 Radio and TV Interference (FCC Part 15) .......................................................................................24
A.3 CE Declaration of Conformity .......................................................................................................... 24
B. Specifications ............................................................................................................................... 25
B.1 Line Connector ................................................................................................................................ 26
B.2 LAN Connectors .............................................................................................................................. 26
B.3 Transmission Line ........................................................................................................................... 26
B.4 LED Status Indicators ..................................................................................................................... 26
B.5 Power Supply .................................................................................................................................. 26
External AC option .......................................................................................................................... 26
B.6 Physical ........................................................................................................................................... 26
Operating Temperature Range ....................................................................................................... 26
Humidity ..........................................................................................................................................26
Dimensions ..................................................................................................................................... 26
C. Interface Pin Assignment ............................................................................................................ 27
C.1 10/100Base-T Interface ................................................................................................................... 28
RJ-45 ...............................................................................................................................................28
C.2 Line Interface .................................................................................................................................. 28
RJ-45 ...............................................................................................................................................28
724-746-5500 | blackbox.com
Page 3
Page 4
Black Box LB200A-R4 User Manual
D. Line Rate & Reach Chart ............................................................................................................. 29
D.1 Line Rate & Reach Chart Based on 24 AWG (0.5 mm) .................................................................. 30
724-746-5500 | blackbox.com
Page 4
Page 5
Black Box LB200A-R4 User Manual
List of Figures
1 Typical applications .........................................................................................................................12
2 LB200A-R4 rear panel .................................................................................................................... 14
3 LB200A-R4(RJ-45) twisted pair line interface. ................................................................................ 15
4 LB200A-R410/100Base-T RJ-45 Connector Pin-out. .....................................................................15
5 Removing protective cover .............................................................................................................. 18
6 DIP switch orientation ..................................................................................................................... 18
7 LB200A-R4 front panel ....................................................................................................................22
8 LB200A-R410/100Base-T RJ-45 Connector Pin-out. .....................................................................28
9 LB200A-R4 RJ-45 Twisted-Pair Line Interface Connector Pin-out ................................................. 28
724-746-5500 | blackbox.com
Page 5
Page 6
Black Box LB200A-R4 User Manual
List of Tables
1 S1 Summary ................................................................................................................................... 19
2 Local/Remote Unit Configuration .................................................................................................... 19
3 Symmetric/Asymmetric Selection Chart .......................................................................................... 19
4 Signal to Noise Ratio ....................................................................................................................... 20
5 Front panel LED description ............................................................................................................22
6 Line Rate & Reach Chart Using Twisted-Pair (Long Range) ..........................................................30
7 Line Rate & Reach Chart Using Twisted-Pair (High Speed) ...........................................................30
724-746-5500 | blackbox.com
Page 6
Page 7
About This Guide
T
CAUTION
1. ABOUT THIS GUIDE
This guide describes the Black Box Model LB200A-R4 hardware, installation, and basic configuration.
1.1 AUDIENCE
This guide is intended for the following users:
• Operators
• Installers
• Maintenance technicians
1.2 STRUCTURE
This guide contains the following chapters and appendices:
• Chapter 2. on page 11 provides information about LB200A-R4 features and capabilities
• Chapter 3. on page 13 provides information about installing the LB200A-R4 interfaces
• Chapter 4. on page 17 provides information about the LB200A-R4 configuration
• Chapter 5. on page 21 provides information about the LB200A-R4 operation
• Appendix A. on page 23 provides compliance information for the LB200A-R4
• Appendix B. on page 25 provides specifications for the LB200A-R4
• Appendix C. on page 27 provides diagrams of detailed pin assignments
• Appendix D. on page 29 provides a line range and reach chart for the LB200A-R4
For best results, read the contents of this guide be
fore you install the Black Box LB200A-R4.
1.3 PRECAUTIONS
Notes and cautions, which have the following meanings, are used throughout this guide to help you
become aware of potential Router modem problems. Warni n g s relate to personal injury issues, and Cau-
efer to potential property damage.
tions r
A note presents additional information or interesting sidelights.
The alert symbol and IMPORTANT heading calls attention to
important information.
IMPORTAN
The alert symbol and CAUTION heading indicate a potential
hazard. Strictly follow the instructions to avoid property damage.
724-746-5500 | blackbox.com
Page 7
Page 8
CAUTION
Black Box LB200A-R4 User Manual
The shock hazard symbol and CAUTION heading indicate a
potential electric shock hazard. Strictly follow the instructions to
avoid property damage caused by electric shock.
The alert symbol and WARNING heading indicate a potential safety hazard. Strictly follow the warning instructions
o avoid personal injury.
t
WARNING
The shock hazard symbol and WARNING heading indicate
a potential electric shock hazard. Strictly follow the warn-
WARNING
ing instructions to avoid injury caused by electric shock.
Page 8
724-746-5500 | blackbox.com
Page 9
1.4 SAFETY WHEN WORKING WITH ELECTRICITY
• This device contains no user serviceable parts. This
device can only be repaired by qualified service person-
WARNING
nel.
• Do not open the device when the power cord is con-
nected. For systems without a power switch and without
xternal power adapter, line voltages are present
an e
within the device when the power cord is connected.
• For devices with an external power adapter, the power
adapter shall be a listed Limited Power Source. The
mains outlet that is utilized to power the device shall be
within 10 feet (3 meters) of the device, shall be easily
accessible, and protected by a circuit breaker in compliance with local regulatory requirements.
• For AC powered devices, ensure that the power cable
used meets all applicable standards for the country in
which it is to be installed.
• For AC powered devices which have 3 conductor power
plugs (L1, L2 & GND or Hot, Neutral & Safety/Protective
Ground), the wall outlet (or socket) must have an earth
ground.
About This Guide
• For DC powered devices, ensure that the interconnecting
cables are rated for proper voltage, current, anticipated
temperature, flammability, and mechanical serviceability.
• WAN, LAN & PSTN ports (connections) may have hazard-
ous voltages present regardless of whether the device is
wered ON or OFF. PSTN relates to interfaces such as
po
telephone lines, FXS, FXO, DSL, xDSL, T1, E1, ISDN,
Voice, etc. These are known as “hazardous network voltages” and to avoid electric shock use caution when
orking near these ports. When disconnecting cables for
w
these ports, detach the far end connection first.
• Do not work on the device or connect or disconnect
cables during periods of lightning activity.
In accordance with the requirements of council directive 2002/
96/EC on Waste of Electrical and Electronic Equipment
(WEEE), ensure that at end-of-life you separate this product
from other waste and scrap and deliver to the WEEE collection
system in your country for recycling.
This device contains no user serviceable parts. This
device can only be repaired by qualified service personnel.
WARNING
724-746-5500 | blackbox.com
Page 9
Page 10
Black Box LB200A-R4 User Manual
This device is NOT intended nor approved for connection
to the PSTN. It is intended only for connection to customer
WARNING
CAUTION
premise equipment.
Electrostatic Discharge (ESD) can damage equipment and
impair electrical circuitry. It occurs when electronic printed circuit cards are improperly handled and can result in complete or
ermittent failures. Do the following to prevent ESD:
int
• Always follow ESD prevention procedures when removing
and replacing cards.
• Wear an ESD-preventive wrist strap, ensuring that it makes
good skin contact. Connect the clip to an unpainted surface of
the chassis frame to safely channel unwanted ESD voltages
to ground.
• To properly guard against ESD damage and shocks, the wrist
strap and cord must operate effectively. If no wrist strap is
available, ground yourself by touching the metal part of the
chassis.
Page 10
724-746-5500 | blackbox.com
Page 11
2. GENERAL INFORMATION
Chapter contents
2. General information.......................................................................................................................... 11
2.1 Features .......................................................................................................................................... 12
2.2 Description ....................................................................................................................................... 12
724-746-5500 | blackbox.com
Page 11
Page 12
Black Box LB200A-R4 User Manual
2.1 FEATURES
• Variable rate Black Box Ethernet extender—Easy to configure
• Auto-MDIX Ethernet
• Configurable 10/100, Full/Half, and Auto-Negotiating Ethernet
• Extends up to 1 or 2 10/100Base-TX Ethernet beyond 328-foot (100-meter) limitation over a single
twisted-pair, Cat 5e/6/7, or coaxial cable
• Variable line rate settings via DIP switch
• Transparent operation
• LED indicators for Power, Line, Local, Remote, Ethernet 0 and 1 (Eth 0 and Eth 1), and Ethernet Link/
Activity
2.2 DESCRIPTION
BlackBox LB200A-R4 Ethernet extenders provide high-speed LAN connections between peered Ethernet
LANs, remote PCs, or any other network-enabled 10/100Base-T device.
Operating in pairs, one LB200A-R4 is configured as the (L) Local unit located at one end of the LAN extension and the other LB200A-R4 is configured as the (R) Remote unit at the other end. The LB200A-R4 is
configured as an L or R via the switch on the bottom of the unit. These units can automatically forward LAN
broadcasts, multicasts, and frames across a 2-wire voice-grade twisted-pair or BNC link. The data is
passed transparently (unmodified) through the LB200A-R4. The LB200A-R4s automatically add and delete
MAC addresses, only passing packets across the Line link that are meant for the remote peered LAN.
The pair of LB200A-R4 models work together to create a transparent extension between two peered Ethernet LANs using twisted pair (2-wire) or Cat5+. Figure 1 shows typical applications.
Page 12
Figure 1. Typical applications
724-746-5500 | blackbox.com
Page 13
3. INSTALLATION
Chapter Contents
3. Installation ........................................................................................................................................ 13
3.1 Planning the Installation .................................................................................................................. 14
3.2 Connecting the Line Interface .......................................................................................................... 14
3.3 Connecting the Line Interface for LB200A-R4 ................................................................................. 15
3.4 Connecting the 10/100Base-T Ethernet Interface............................................................................ 15
3.5 Connecting Power ............................................................................................................................16
724-746-5500 | blackbox.com
Page 13
Page 14
Black Box LB200A-R4 User Manual
CAUTION
CAUTION
3.1 PLANNING THE INSTALLATION
The Interconnecting cables shall be acceptable for external use
and shall be rated for the proper application with respect to voltage, current, anticipated temperature, flammability, and
mechanical serviceability.
To install the LB200A-R4 Ethernet Extender, do the following:
1. Connect the line interface between the units (refer to “C
onnecting the Line Interface” on page 14)
Note See Figure 2 for the LB200A-R4’s rear panel.
2. Connect the Ethernet interface (refer to “Connecting the 10/100Base-T Ethernet Interface” on
page 15).
3. Connect the power plug (refer to “Connecting Power” o
S
ine
L
n page 16).
a
M
Po
t 0
rne
he
t
et 1 E
rn
e
Eth
LB200A-R4
A
S
U
e
h
t
in
e
d
r
e
w
(Line: RJ-45)
Figure 2 LB200A-R4 rear panel
3.2 CONNECTING THE LINE INTERFACE
The interconnecting cables shall be acceptable for external use
and shall be rated for the proper application with respect to voltage, current, anticipated temper
mechanical serviceability.
The LB200A-R4 supports communication between two peer Ethernet LAN sites over a distance of up to
0,000 ft (3 km) over 24 AWG (0.5 mm) twisted-pair wire, Cat5+, or 75-ohm BNC.
1
Note Actual distance and link performance may vary depending on the environment and type/
gauge of wire used.
Follow the steps below to connect the LB200A-R4 interfaces.
Note The LB200A-R4 units work in pairs. One of the units must be configured as a (L) Local unit,
and the other unit must be configured as a (R) Remote unit.
Page 14
ature, flammability, and
724-746-5500 | blackbox.com
Page 15
Installation
1 (no connection)
2 (no connection)
3 (no connection)
4 (RING)
5 (TIP)
6 (no connection)
7 (no connection)
8 (no connection)
1
2
3
4
5
6
7
8
CAUTION
1 TX+/RX+
2 TX-/RX-
3 RX+/TX+
4 (no connection)
5 (no connection)
6 RX-/TX-
7 (no connection)
8 (no connection)
1
2
3
4
5
6
7
8
3.3 CONNECTING THE LINE INTERFACE FOR LB200A-R4
1. To function properly, the two LB200A-R4s must be connected together using twisted-pair, uncondi-
tioned, dry, metal wire, between 19 (0.9mm) and 26 AWG (0.4mm). Leased circuits that run through
signal equalization equipment are not acceptable.
2. The LB200A-R4 is equipped with an RJ-45 interface jack (Fi
gure 3)
The RJ-45 connector on the LB200A-R4’s twisted pair interface is polarity insensitive and is wired for a twow
ire interface. The signal/pin relationship is shown in Figure 3.
Figure 3 LB200A-R4(RJ-45) twisted pair line interface.
3.4 CONNECTING THE 10/100BASE-T ETHERNET INTERFACE
The interconnecting cables shall be acceptable for external use
and shall be rated for the proper application with respect to voltage, current, anticipated temper
mechanical serviceability.
ature, flammability, and
The RJ-45 ports labeled Et
h 0 and Eth 1 are Auto-MDIX 10/100Base-T interfaces. These ports are
designed to connect directly to a 10/100Base-T device or network. Figure 4 shows the signal/pin relationships on this interface. You may connect this port to a hub or PC using a straight through or crossover cable
at is up to 328 ft long.
th
Figure 4 LB200A-R410/100Base-T RJ-45 Connector Pin-out.
724-746-5500 | blackbox.com
Page 15
Page 16
Black Box LB200A-R4 User Manual
CAUTION
3.5 CONNECTING POWER
The interconnecting cables shall be acceptable for external use
and shall be rated for the proper application with respect to voltage, current, anticipated temper
mechanical serviceability.
The LB200A-R4 does not have a power switch, so it powers up as soon as it is plugged in.
ature, flammability, and
An external AC or DC power supply is available separat
the rear panel of the LB200A-R4. No configuration is necessary for the power supply.
DC power (supplied via the power supply jack to the LB200A-R4) must meet the following requirements;
DC
power supplied must be regulated 5 VDC ±5%, 1.0A minimum. Center pin is +5 V. The barrel type plug
has 2.5/5.5/10mm I.D./O.D./Shaft Length dimensions.
ely. This connection is made via the barrel jack on
Page 16
724-746-5500 | blackbox.com
Page 17
4. CONFIGURATION
Chapter contents
4. Configuration.................................................................................................................................... 17
4.1 Introduction ..................................................................................................................................... 18
4.2 Accessing the DIP Switches ............................................................................................................ 18
4.3 Configuring DIP Switch S1 ............................................................................................................... 19
Switch S1-1: Local/Remote Configuration ...................................................................................... 19
Switches S1-2 and S1-3: Symmetric/Asymmetric Operation .......................................................... 19
Switch S1-5: General Protection (Signal to Noise Ratio) ................................................................ 20
724-746-5500 | blackbox.com
Page 17
Page 18
Black Box LB200A-R4 User Manual
ON
Push toggle up
for ON position
Switch toggle
Push toggle
down for
OFF position
123
4
O
N
S1
S1
S1
567
1234
ON
S1
567
12345678
8
4.1 INTRODUCTION
The LB200A-R4 has eight DIP switches (S1) for configuring the unit for a wide variety of applications. This
section describes switch locations and explains the different configurations.
4.2 ACCESSING THE DIP SWITCHES
1. Using a small flat-tip screwdriver, remove the protective cover located on the underside of the LB200A-
R4 (see
Figure 5).
Figure 5. Removing protective cover
2. The DIP switches are externally accessible from the underside of the LB200A-R4. Figure 6 shows the
orientation of the DIP switches in the On and Off positions.
Figure 6. DIP switch orientation
Page 18
724-746-5500 | blackbox.com
Page 19
Configuration
4.3 CONFIGURING DIP SWITCH S1
DIP switch S1 is where you configure the Line interface. The following tables describe the configuration for
the LB200A-R4.
Table 1. S1 Summary
Position Description
S1-1 Local/Remote Configuration
S1-2 Line Rate/Symmetry
S1-3 Line Rate/Symmetry
S1-4 Reserved
S1-5 SNR Margin
S1-6 Reserved
S1-7 Reserved
S1-8 Reserved
Switch S1-1: Local/Remote Configuration
Use switch S1-1 to configure the unit as Remote or Local in the LB200A-R4pair.
Table 2. Local/Remote Unit Configuration
S1-1 Setting
ON CPE/Remote
OFF CO/Local
Switches S1-2 and S1-3: Symmetric/Asymmetric Operation
Use switches S1-2 and S1-3 to configure the line rate type and operation.
Table 3. Symmetric/Asymmetric Selection Chart
S1-2 S1-3 Setting
OFF OFF High-Speed “Symmetric”
OFF ON High-Speed “Asymmetric”
ON OFF FastPath High-Speed “Asymmetric”
ON ON Long-Range “Asymmetric”
Note
See “Line Rate & Reach Chart Based on 24 AWG (0.5 mm)” on page 30 for line rate distances.
724-746-5500 | blackbox.com
Page 19
Page 20
Black Box LB200A-R4 User Manual
Switch S1-5: General Protection (Signal to Noise Ratio)
Use switch S1-5 to configure line noise protection.
Table 4. Signal to Noise Ratio
S1-5 Setting
ON 6dB
OFF 9dB
6dB: Original line noise protection with 6dB SNR
•
• 9dB: Better line noise protection with SNR up to 9dB
Page 20
724-746-5500 | blackbox.com
Page 21
5. OPERATION
Chapter contents
5. Operation .........................................................................................................................................21
5.1 Introduction ..................................................................................................................................... 22
5.2 Front Panel LED Status Monitors..................................................................................................... 22
724-746-5500 | blackbox.com
Page 21
Page 22
Black Box LB200A-R4 User Manual
Line
Local
Remote
Power
Eth 0
Eth 1
5.1 INTRODUCTION
Once the LB200A-R4s are properly installed, they should operate transparently. No user settings required.
This section describes reading the LED status monitors.
Before applying power to the LB200A-R4, please review
“Connecting Power” on page 16 to verify that the unit
is connected to the appropriate power source.
5.2 FRONT PANEL LED STATUS MONITORS
The LB200A-R4 features six front panel LEDs that monitor power, the Ethernet signals, the Line connection, and the remote/local setting.
describes the LED functions.
Figure 7 shows the front panel location of each LED. Ta bl e 5 on page 22
Figure 7 LB200A-R4 front pan
el
LED Status Description
Power
Line
Eth 0 and Eth 1
Local
Remote
a. Once the unit connects to a power source, the LED will
blink as the LB200A-R4 automatically looks for the other
unit in the pair.
Page 22
Table 5. Front panel LED description
Green The device is powered on.
Off The device is powered off.
Green The port is connected.
Blinking Green Data transceiving.
Off No valid link on this port.
Green The port is connected.
a
Blinking Green
Green The device acts in Local mode.
Off Local mode is off.
Green The device acts in Remote mode.
Off Remote mode is off.
Data transceiving.
724-746-5500 | blackbox.com
Page 23
A. Compliance Information
Chapter contents
A. Compliance Information ..............................................................................................................................23
A.1 Regulatory Information .................................................................................................................... 24
EMC Directive ................................................................................................................................. 24
Low-Voltage Directive (Safety) ........................................................................................................ 24
PSTN ............................................................................................................................................... 24
A.2 Radio and TV Interference (FCC Part 15) .......................................................................................24
A.3 CE Declaration of Conformity .......................................................................................................... 24
724-746-5500 | blackbox.com
Page 23
Page 24
Black Box LB200A-R4 User Manual
A.1 REGULATORY INFORMATION
EMC DIRECTIVE
• FCC Part 15, Class A
• EN55022, Class A
• EN55024
• EN50581
LOW-VOLTAGE DIRECTIVE (SAFETY)
• IEC/EN60950-1, 2nd Edition
• UL60950-1/CSA C22.2 No. 60950-1
PSTN
• This device is not intended nor approved for connection to the PSTN
A.2 RADIO AND TV INTERFERENCE (FCC PART 15)
This device generates and uses radio frequency energy, and if not installed and used properly-that is, in
strict accordance with the manufacturer’s instructions-may cause interference to radio and television recep
tion. The device has been tested and found to comply with the limits for a Class A computing device in
accordance with specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reason
able protection from such interference in a commercial installation. However, there is no guarantee that
interference will not occur in a particular installation. If the device does cause interference to radio or televi
sion reception, which can be determined by disconnecting the unit, the user is encouraged to try to correct
the interference by one or more of the following measures: moving the computing equipment away from the
receiver, re-orienting the receiving antenna and/or plugging the receiving equipment into a different AC out
let (such that the computing equipment and receiver are on different branches).
-
-
-
-
A.3 CE DECLARATION OF CONFORMITY
This device is in compliance with the essential requirements and other relevant provisions of Directive
2004/108/EC relating to electromagnetic compatibility and Directive 2006/95/EC relating to electrical equip
ment designed for use within certain voltage limits. The Declaration of Conformity may be obtained from
ROHS@blackbox.com.
The safety advice in the documentation accompanying this device shall be obeyed. The conformity to the
above directive is indicated by CE mark on the device.
Page 24
-
724-746-5500 | blackbox.com
Page 25
B. Specifications
Chapter contents
B. Specifications ................................................................................................................................. 25
B.4 LAN Connectors .............................................................................................................................. 26
B.5 Transmission Line ........................................................................................................................... 26
B.6 LED Status Indicators ..................................................................................................................... 26
B.7 Power Supply .................................................................................................................................. 26
External AC option .......................................................................................................................... 26
B.8 Physical ........................................................................................................................................... 26
Operating Temperature Range ....................................................................................................... 26
Humidity ..........................................................................................................................................26
Dimensions ..................................................................................................................................... 26
724-746-5500 | blackbox.com
Page 25
Page 26
Black Box LB200A-R4 User Manual
B.1 LINE CONNECTOR
• RJ-45
B.2 LAN CONNECTORS
• 2 RJ-45, 10/100Base-T, IEEE 802.3 Ethernet
B.3 TRANSMISSION LINE
• Two-wire unconditioned twisted pair
B.4 LED STATUS INDICATORS
• Power (Green)
• Line (Green)
• Local (Green)
• Remote (Green)
• Ethernet (Green when linked; flashing green when transceiving data)
B.5 POWER SUPPLY
External AC option
• UI (120–240 VAC)
• Power consumption: 1 A at 5 VDC
B.6 PHYSICAL
Operating Temperature Range
• 32 to 122°F (0 to 50°C)
Humidity
• Up to 90% non-condensing.
Dimensions
• 4.13 W x 1.5 H x 3.75 D in. (105 W x 38.1 H x 95.3 D mm)
Page 26
724-746-5500 | blackbox.com
Page 27
C. Interface Pin Assignment
Chapter contents
C. Interface Pin Assignment .............................................................................................................. 27
C.1 10/100Base-T Interface .................................................................................................................. 28
RJ-45 ...............................................................................................................................................28
C.2 Line Interface ..................................................................................................................................28
RJ-45 ...............................................................................................................................................28
724-746-5500 | blackbox.com
Page 27
Page 28
Black Box LB200A-R4 User Manual
1 (no connection)
2 (no connection)
3 (no connection)
4 (RING)
5 (TIP)
6 (no connection)
7 (no connection)
8 (no connection)
1
2
3
4
5
6
7
8
1 TX+/RX+
2 TX-/RX-
3 RX+/TX+
4 (no connection)
5 (no connection)
6 RX-/TX-
7 (no connection)
8 (no connection)
1
2
3
4
5
6
7
8
C.1 10/100BASE-T INTERFACE
RJ-45
Figure 8. LB200A-R410/100Base-T RJ-45 Connector Pin-out.
C.2 LINE INTERFACE
RJ-45
Figure 9. LB200A-R4 RJ-45 Twisted-Pair Line Interface Connector Pin-out
Page 28
724-746-5500 | blackbox.com
Page 29
D. Line Rate & Reach Chart
Chapter contents
D. Line Rate & Reach Chart ................................................................................................................ 29
D.1 Line Rate & Reach Chart Based on 24 AWG (0.5 mm) ................................................................... 30
724-746-5500 | blackbox.com
Page 29
Page 30
Black Box LB200A-R4 User Manual
D.1
LINE RATE & REACH CHART BASED ON 24 AWG (0.5 MM)
Table 6. Line Rate & Reach Chart Using Twisted-Pair (Long Range)
Mode
(Long Range)
Asymmetric
S1-2 ON
S1-3 ON
Note The actual distance and link performance may vary depending on the environment and type/
Distance in Feet Mbps
ft m/km DS US
250 ft 76 m 67 16
1000 ft 305 m 59 16
2,000 ft 610 m 45 11
3,000 ft 914 m 31 5
5,000 ft 1. 5 k m 17 682 kbps
10,000 ft 3 km 4 263 kbps
gauge of wire used.
Note DS = downstream, US = upstream
Table 7. Line Rate & Reach Chart Using Twisted-Pair (High Speed)
Mode
(High Speed)
Symmetric
S1-2 OFF
S1-3 OFF
Distance in Feet Mbps
ft m/km DS US
250 ft 76 m 121 144
1000 ft 305 m 73 103
2,000 ft 610 m 45 37
3,000 ft 914 m 46 10
3,500 ft 1 km 30 4
Asymmetric
S1-2 OFF
S1-3 ON
S1-2 ON
S1-3 OFF
Note The actual distance and link performance may vary depending on the environment and type/
Standard
FastPath
250 ft 76 m 168 95
1000 ft 305 m 126 54
2,000 ft 610 m 60 21
3,000 ft 914 m 42 6
3,500 ft 1 km 35 1
gauge of wire used.
Note DS = downstream, US = upstream
Page 30
724-746-5500 | blackbox.com
Page 31
Loading...
