Black Box LB1350A, LB1351A User Manual
LB1350A
LB1351A
October 2002
Unmanaged ( LB1350A ) and Managed
(LB1351A ) MultiLink Media Converter
User and Installation Guide
CUSTOMER
SUPPORT
INFORMATION
Order toll-free in the U.S. 24 hours, 7 A.M. Monday to midnight Friday: 877-877-BBOX
FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500
or fax 724-746-0746
Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: info@blackbox.com
1
FCC STATEMENT
FEDERAL COMMUNICATIONS COMMISSION
AND
CANADIAN DEPARTMENT OF COMMUNICATIONS
RADIO FREQUENCY INTERFERENCE STATEMENTS
This equipment generates, uses, and can radiate radio frequency energy and if
not installed and used properly, that is, in strict accordance with the
manufacturer’s instructions, may cause interference to radio communication. It
has been tested and found to comply with the limits for a Class A computing
device in accordance with the specifications in Subpart B of Part 15 of FCC
rules, which are designed to provide reasonable protection against such
interference when the equipment is operated in a commercial environment.
Operation of this equipment in a residential area is likely to cause interference,
in which case the user at his own expense will be required to take whatever
measures may be necessary to correct the interference.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This digital apparatus does not exceed the Class A limits for radio noise
emission from digital apparatus set out in the Radio Interference Regulation of
the Canadian Department of Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques
dépassant les limites applicables aux appareils numériques de la classe A
prescrites dans le Règlement sur le brouillage radioélectrique publié par le
ministère des Communications du Canada.
2
NOM STATEMENT
Normas Oficiales Mexicanas (NOM)
Electrical Safety Statement
INSTRUCCIONES DE SEGURIDAD
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de operación deben ser respetadas.
4. Todas las instrucciones de operación y uso deben ser seguidas.
5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca de la tina de baño, lavabo, sótano mojado o cerca
de una alberca, etc.
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que sean recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea recomendado por el fabricante.
8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá a lo descrito en las instrucciones de operación.
Todo otro servicio deberá ser referido a personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no interfiera su uso. La colocación del aparato eléctrico
sobre una cama, sofá, alfombra o superficie similar puede bloquea la ventilación, no se debe colocar en libreros o gabinetes
que impidan el flujo de aire por los orificios de ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor como radiadores, registros de calor, estufas u otros
aparatos (incluyendo amplificadores) que producen calor.
11.El aparato eléctrico deberá ser connectado a una fuente de poder sólo del tipo descrito en el instructivo de operación, o como se
indique en el aparato.
12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización del equipo no sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que no sean pisados ni pellizcados por objetos colocados
sobre o contra ellos, poniendo particular atención a los contactos y receptáculos donde salen del aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas de energia.
16. El cable de corriente deberá ser desconectado del cuando el equipo no sea usado por un largo periodo de tiempo.
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean derramados sobre la cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del aparato; o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en su desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada
3
Black Box®LB1350A/LB1351A
Table of contents
1. Overview page 5
2. Planning the network with Black Box®
LB1350A/LB1351A page 5
3. Content of the shipping container page 7
4 Product general description page 8 5 Preferred Port page 9
6. Far-End-Fault ( FEF ) page 10
7 Parts identification page 11
8 Installation page 12
9 Power connection page 12
10 F/O cabling connection page 13
11 Twisted Pair cable connection page 13
12 Configuration switches page 14
13 Management Black Box® LB1351A page 14
14 Advanced Features page 15
15 Troubleshooting page 16
16 Specifications page 18
Appendix-A: Managing the Black Box® LB1351A page 19-37
Back Cover page page 40
Thank you for purchasing this Black Box®
LB1350A/LB1351A quality converter. We hope
that this guide will help you to obtain the best
results from the device while minimizing
installation time.
If you still need help installing or troubleshooting the Black Box®
LB1350A/LB1351A converter after reading the detailed information in this
guide, please call Black Box Technical Support at 724-746-5500
Note: unless where indicated otherw i se, in this guide, Black Box®LB1350A/LB1351A
applies also to Black Box®LB1350A/LB1351A/SC, Bl ack Box®LB1350A/LB1351A/ST,
BlackBox®LB1350A/LB1351A/SM15 and Black Box®LB1350A/LB1351A/SM40
TRADEMARKS
HP and OpenView are registered trademarks of Hewlett-Packard.
UL is a registered trademark of Underwriters Laboratories Incorporated.Any other trademarks mentioned
in this manual are acknowledged to be the property of the trademark owners.
4
Black Box®LB1350A/LB1351A
1 - OVERVIEW
A media-converter may be defined as a device connecting two active network
components point-to-point over a media that is different from the ports of at least one of
these devices.
An ideal media-converter should be a transparent element in the network, and its ports
may be considered as integral parts of the devices interconnected by it.The IEE802.3u
standard defines network span in terms of distances and bit times.
Conventional 100Base-TX/100Base-FX media-converters are based on repeater
technology, and they form a part of the collision domain created by the interconnected
devices. Therefore, the delay they introduce in the network severely affects the allowed
distances. Furthermore, if two class II repeaters (i.e., 2 hubs) are already present in the
same collision domain, then the use of a conventional converter is not allowed as the
repeater count may - in such case - exceed the limits. In all other cases, meticulous
PDV (Path Delay Value) must be performed prior to establishing the possible distances
for both the fiber optic (F/O) and copper segments.
The Black Box®LB1350A/LB1351A family implements a non-repeater, full re-timing
approach. It creates a Buffered Media Domain (BMD) over the F/O link, thereby
eliminating all the above mentioned limitations.
The BMD created by two Black Box®LB1350A/LB1351A devices always operates at
maximum performance - 100Mbps/Full Duplex - while interconnected devices may
operate at different rates and modes. This provides full flexibility when planning a
network.
The Black Box®LB1350A/LB1351A provides 4 (3) TP ports sharing conversion to one
FO port, with the TP ports buffered and VLAN protected between themselves, making
the device an ideal and most economical solution for both FTTH (Fiber-To-The-Home)
and FTTD (Fiber-To-The-Desk) applications.
2- Planning your Network with Black Box®LB1350A/LB1351A
Below you will find a FTTD co nfiguration. The drawing demo nstrates the versatility of
the device in terms of interconnecting – trouble-free – other devices.
Black Box
LB1350A/LB1351A
SERVER
10/100 SWITCH
HUB (100)
HUB (10)
In a typical Fiber –to –the - Home ( FTTH ) application
A Black Box®LB1350A/LB1351A will be deployed in a home or building and connected
by fiber to axxess switch.
It may be deployed on a floor of an apartment (office) building and 4(3) apartments
(offices) may be connected to it’s copper ports without the need to verify the type of the
network (device) within the apartment (office).Also a HUB or Switch can be connected
to any TP port according to the required network configuration.
F/O TO
ENTERPRISE
SWITCH
5
Black Box®LB1350A/LB1351A
Note: RJ-45 port No. 4 is a preferred port with enhanced functionality – see section 5.
As each of the Black Box®LB1350A/LB1351A RJ-45 port 4(3) supports: full autonegotiation, auto-polarity and auto-cross, you can simply connect any device to any port
by using a standard straight or crossed cable. In particular, you can connect 10Mbps or
100Mbps devices as well as HDX/FDX devices.
6
Black Box®LB1350A/LB1351A
The Black Box®LB1350A/LB1351A will not only convert signals from copper to fiber
but also from 10 to 100Mbs and HDX to FDX, thus ensuring maximal distance over the
optical link.
All you need to take care of is the Speed and Duplex mode balance across the network:
if one of the local devices is HDX only capable you should force the corresponding
remote device to HDX as well to avoid buffer overflow. Same applies to devices with
10Mbps capability only.
Disregarding the interconnected device F/O link will always operate at 100Mpbs and
FDX (you may force it to HDX as well, if needed )
3 - CONTENTS OF THE SHIPPING CONTAINER
The contents of the Black Box®LB1350A/LB1351A shipping container are as follows:
• One converter Black Box®LB1350A or Black Box® LB1351A
• One AC power cord (excluding shipment to certain countries)
• Four plastic “feet”
• Management serial cable for Black Box® ( LB1351A only)
7
Black Box®LB1350A/LB1351A
4. PRODUCT GENERAL DESCRIPTION
The Black Box®LB1350A/LB1351A may be offered in the following pre-configured
versions :
LB1350A-SC
LB1350A-ST
LB1350A-SM15
LB1350A-SM40
LB1351A-SC
LB1351A-ST
LB1351A-SM15
LB1351A-SM40
Multiple 100Base-TX to single 100Base-FX Local Traffic Aggregator with four RJ-45 (switched,
VLAN) ports and duplex SC connectors, Multi-mode - 2km,internal PS
Multiple 100Base-TX to single 100Base-FX Local Traffic Aggregator with four RJ-45 (switched,
VLAN) ports and duplex ST connectors, Multi-mode - 2km, internal PS
Multiple 100Base-TX to single 100Base-FX Local Traffic Aggregator with four RJ-45 (switched,
VLAN) ports and duplex SC connectors, SINGLE-mode - 15km,internal PS
Multiple 100Base-TX to single 100Base-FX Local Traffic Aggregator with four RJ-45 (switched,
VLAN) ports and duplex SC connectors, SINGLE-mode - 40km,internal PS
Multiple 100Base-TX to single 100Base-FX Local Traffic Aggregator with 3 RJ-45 (switched,
VLAN) ports and duplex SC connectors, Multi-mode - 2km, internal PS, SNMP Managed
Multiple 100Base-TX to single 100Base-FX Local Traffic Aggregator with 3 RJ-45 (switched, VLAN) ports
and duplex SC connectors, Multi -mode - 2km, internal PS, SNMP Managed
Multiple 100Base-TX to single 100Base-FX Local Traffic Aggregator with 3 RJ-45 (switched, VLAN) ports
and duplex SC connectors, SINGLE-mode - 15km, internal PS, SNMP Managed
Multiple 100Base-TX to single 100Base-FX Local Traffic Aggregator with 3 RJ-45 (switched, VLAN) ports
and duplex SC connectors, SINGLE-mode - 40km, internal PS, SNMP Managed
Feature Summary
•
10Base-T, 100Base-TX and 100Base-FX modes of operation
•
Supports FEF feature ( Far-End-Fault ) to test Link integrity.
•
Comprehensive LED support :Indicators for Link, Activity ( Tx, Rx ) , FDX,
100M, Power status and Link Test
•
Hardware based 10/100, Full/Half, Flow control ,Auto-Negotiation, Autocross.
•
Wire speed reception and transmission
•
Supports 1K Mac addresses
•
Automatic address learning and address aging ( aging period is 300s)
•
Frame length range : 64 ÷ 1536 bytes
Vlan tag frames are thus supported and can pass thru the converter
•
Desktop , shelf ,wall mount installation, or directly in a half 19” rack.
•
Port based VLAN
•
VLAN Tagging support and Per port based priority, 802.1p and TOS
port based priority schemes (
Black Box® LB1351A) only
•
Extensive in-band SNMP management (
Black Box® LB1351A)
8
Black Box®LB1350A/LB1351A
General Description
The Black Box®LB1350A/LB1351A is a shared and buffered media converter. It
converts 100Base-FX signals received on its F/O interface in 10/100Base-TX signals
and distributes them to 4(3) copper (shielded RJ-45) ports. Each of these ports is
buffered; furthermore, factory set VLAN forms groups each including one copper port
and the common F/O port, providing the users with basic security (no connection
between the users). This architecture allows 4(3) users to share one F/O link with
dramatic (up to 75%) savings.
The copper ports are auto-negotiating and will automatically adapt themselves to the
capacity of the users for highest performance (will negotiate 10/100 and FDX/HDX).
Nevertheless, in some cases it may be necessary to force certain operating modes.
For this purpose, all copper ports may be (individually) forced to 10Mbps/FDX
operation and port #4(3) (the preferred port) may be forced to any desired combination
(altogether 4 combinations) of HDX/FDX and 10/100.
Full front panel diagnostics provide information on the operation mode of every port.
The F/O port is configured by default to FDX but if desired may be set to HDX as well.
However it is essential to remember that when in HDX, the F/O link maximal distance
drops to 412m or less.
The Black Box®LB1350A/LB1351A is available with a variety of multi-mode and singlemode interfaces with distance ranging from 2km to 40km.
The Black Box®LB1350A/LB1351A is packaged in a rugged “half rack” enclosure
allowing elegant and safe deployment in a variety of environments: desktop, 2 units on
a 19” rack-shelf or within a standard “half 19” rack (optional brackets required).
Its internal, high-power auto- range switching power supply ensures easy, safe and
error-free deployment and enhanced MTBF.

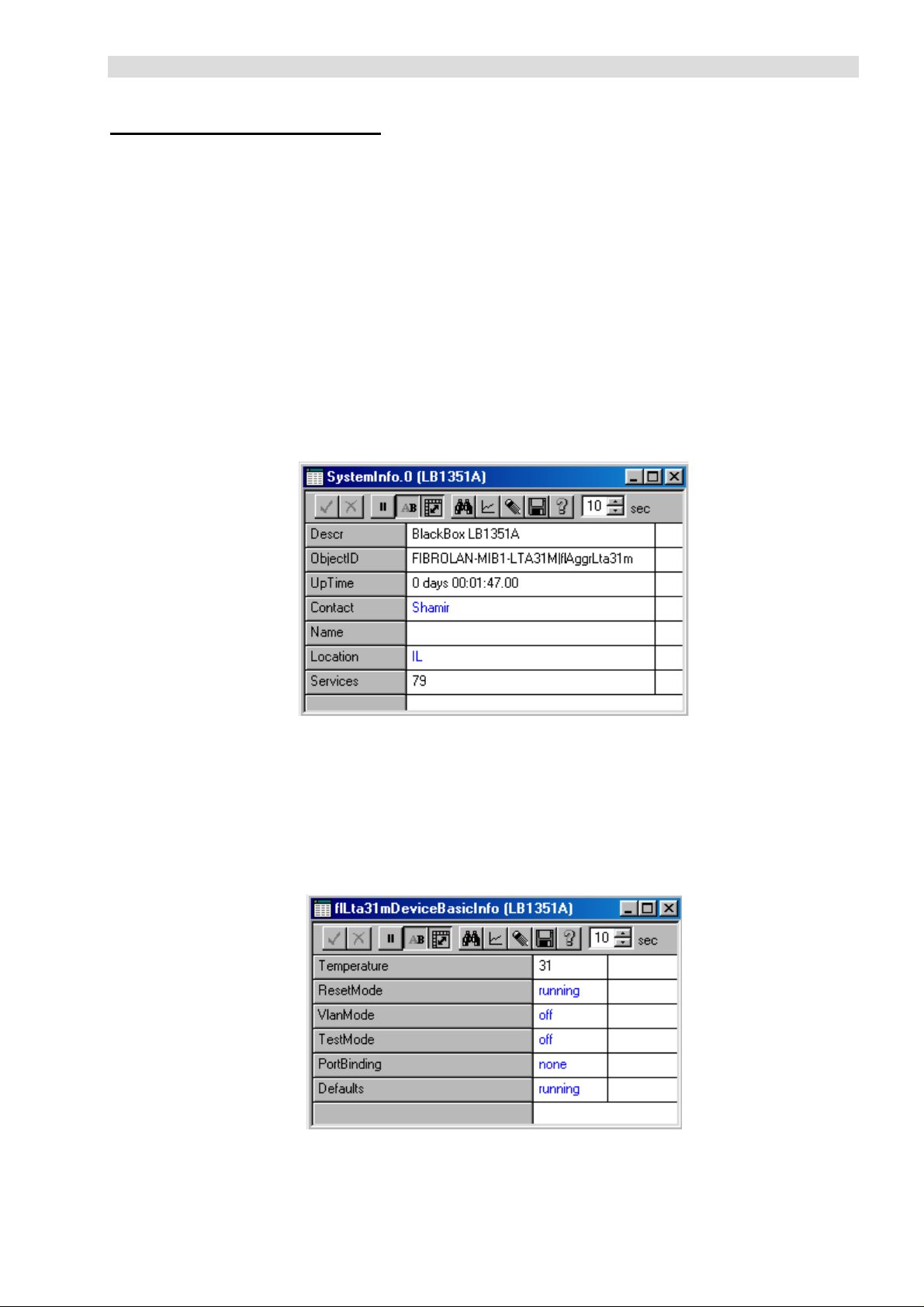

The managed version – Black Box® LB1351A – provides full in-band SNMP
manageability (both monitoring and control) - see Appendix A ( pages 19-37 )
Port priority schemes are also a part of the management.
5. PREFERRED PORT
TP port #4 of the Black Box®LB1350A (or #3 of the Black Box® LB1351A) provides
additional functionalities comparing to the other copper ports.
Full operation mode selection
While all the T P ports provide auto-negotiation and forced 10Mbps/FDX operation, this
preferred port may be set via the front panel DIP switches to force all possible operation
mode options: 10/HDX, 10/FDX, 100HDX and 100FDX. See section 12 for detailed
Dip switches setting ( page 14 ).
Recommendation: use the preferred port for connection of the most critical or
heavy traffic user of the four, even if you do not implement the special features
described above
6. Far End Fault Signaling ( FEF ) feature
When the device detects F/O Link Loss (receive side) it automatically sends a Far End
Fault signal to the remote device. If such device is another Black
Box®LB1350A/LB1351A or any device which supports such feature – then it will
indicate F/O Link Loss as well. By activating TEST mode (by TEST switch - #8 MODE
SETUP Dip switches on the front panel ) this function may be disabled .The picture
below depicts this functionality.
9
Black Box®LB1350A/LB1351A
If there is a fault in the outgoing path and the remote device is FEF compliant (see
below) then the F/O LINK LED will go OFF on both the local and remote devices. In this
way we avoid the possibility of having a FX Link ON indication at one end while, in
reality one of the data path is disrupted.
10
Black Box®LB1350A/LB1351A
7 - PARTS IDENTIFICATION
Black Box®LB1350A Black Box®LB1351A COMMENTS
1 Power ON LED Power ON LED
2 TEST mode LED TEST mode LED Linked to DIP switch #8
3 Duplex SC connector Duplex SC connector
4 F/O FDX mode LED F/O FDX mode LED
5 F/O Link/Activity F/O Link/Activity Lit steady – LINK ON;
6 Mode Setup (DIP)
switches
7 N/A Mini DIN RS-232
8 N/A Receive LED Management activity
9 N/A Ready LED Management module OK
10 RJ-45 ports 1 to 4 N/A
11 N/A RJ-45 ports 1 to 3
12 Link/Activity ports 1- 4
LED
13 Full Duplex ports 1-4
LED
14 100Mbps ports 1-4
LED
NOTE: All Duplex mode LEDs – blinking indicates collisions on respective port (in HDX
mode only)
Mode Setup (DIP)
switches
connector
Link/Activity ports 13 LED
Full Duplex ports 1-3
LED
100Mbps ports 1-3
LED
blinking - receive
See section 12 for details
( page 16 )
Lit steady – LINK ON;
blinking - receive
Lit when FDX detected or
forced
Lit when 100Mbps
detected or forced
11
Black Box®LB1350A/LB1351A
8 - INSTALLATION
For Half-Rack Mount installation:
Use the optional bracket kit, affix it to the unit. Then use 4 standard bolts and nuts (not
supplied), and fasten well to the rack.
Make sure to leave a gap of at least 2-3cm above the unit.
For wall mount installation
Three suitable holes on the back of the Black Box® LB1350A/LB1351A permit wall
mount Installation either horizontally (preferred) or vertically.
Two holes are 188mm apart for horizontal wall mount installation, for vertical wall mount
installation the two holes are 107mm apart.
Use two suitable screws having heads diameter less than 8mm
For Desktop use:
protecting sheet) to the bottom of the devices, with each “foot” approximately 1 cm from
each edge.
Place the device horizontally on a hard, clean surface (desk, shelf, etc.), leaving free
space around it for natural ventilation. Avoid putting the device on other active, heat
generating equipment and avoid putting such devices on the Black
Box®LB1350A/LB1351A
Affix the supplied plastic “feet” (after peeling off the adhesive
19” Rack installation
Use a standard flat shelf, install it in the rack and place one or two Black
Box®LB1350A/LB1351A side by side on the shelf. Make sure to leave a gap of at least
2-3cm above the unit.
9 - POWER CONNECTION
CAUTION: When connecting a device to an AC) power outlet,
always first connect the cord to the device, and ensure that it
is securely fastened. Only afterward connect the cord to the
wall outlet .Make sure to use grounded ( 3 way ) outlets.
For each country Black Box provides with the product an appropriate power
supply cord which is safety approved in accordance with such country’s
National Electric Code
Black Box®LB1350A/LB1351A
Connect AC line voltage at the rear of the converter, using the included power cord. The
Black Box®LB1350A/LB1351A will accept any line voltage from 100 to 240 VAC, 50-60
Hz.
There is no ON/OFF switch on the device. When the power is connected to the device,
the device is ON. This will be indicated by the POWER LED ON.
Important: following any connection or setup change (sections10,11,12
below) you must reset the device by either using S9 or by disconnecting
power and reconnecting it after few seconds
12
Loading...
