QUICK INSTALL GUIDE AND USER MANUAL
KVXLC-100-R2, KVXLCF-100-R2, KVXLC-200-R2, KVXLCF-200-R2
KVX SERIES
DVI KVM
EXTENDER
24/7 TECHNICAL SUPPORT AT 1.877.877.2269 OR VISIT BLACKBOX.COM
DVI KVM Extender Transmitter
Serial over IP
PWR
PWR
DVI KVM Extender Receiver
Serial over IP
Page 2
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TABLE OF CONTENTS
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
QUICK INSTALLATION GUIDE .......................................................................................................................................................... 3
1. SPECIFICATIONS ........................................................................................................................................................................... 4
2. OV ERVIE W ...................................................................................................................................................................................... 6
2.1 Introduction ...............................................................................................................................................................................................6
2.2 Features .................................................................................................................................................................................................... 6
2.3 What’s Included ........................................................................................................................................................................................6
2.4 Hardware Description ..............................................................................................................................................................................7
2.4.1 Transmitter ..........................................................................................................................................................................................................7
2.4.2 Receiver..............................................................................................................................................................................................................10
3. CONNECTION DIAGRAM ............................................................................................................................................................ 13
4. I N S TA LL ATION ............................................................................................................................................................................ 14
4.1 Factory Default Settings ........................................................................................................................................................................ 14
APPENDIX A. REGULATORY INFORMATION ................................................................................................................................ 15
A.1 FCC Statement ....................................................................................................................................................................................... 15
A.2 NOM Statement ..................................................................................................................................................................................... 16
APPENDIX B. DISCLAIMER/TRADEMARKS ................................................................................................................................. 17
B.1 Disclaimer ............................................................................................................................................................................................... 17
B.2 Trademarks ............................................................................................................................................................................................. 17
2
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 3
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
QUICK INSTALLATION GUIDE
Follow these steps to install the extender:
1. If you have the fiber models, install the SFPs in the transmitter and receiver. Compatible SFPs from Black Box are listed in the table
below.
COMPATIBLE SFP MODULES
PART NUMBER DESCRIPTION DISTANCE
1-GBPS CONNECTIONS
LFP441 SFP 1.25-Gb, 850 -nm Multimode Fiber, LC 550 m
LFP442 SFP 1.25- Gb, 1310-nm Single-mode Fiber, LC 20 km
LFP412 SFP with Extended Diagnostics - 1250 -Mbps Multimode Fiber, 1310-nm 2 km
LFP413 SFP with Extended Diagnostics - 1250 -Mbps Single-Mode Fiber, 1310-nm 10 km
LFP414 SFP with Extended Diagnostics - 1250 -Mbps, Singlemode Fiber, 1310-nm 30 km
LFP416 SFP 1250 -Mbps, Extended Diagnostics, 10/100/1000BASE-T, SGMII Interface, RJ-45 100 m
NOTE: Other SFPs may work but have not been validated by Black Box, we recommend you use the suggested SFPs to avoid
technical incompatibilities.
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
NOTE: SFP is not included, must be ordered separately.
2. Connect the video source(s) to the Transmitter (Computer Unit).
3. Connect the monitor(s) to the Receiver unit.
4. Use CATx cables (EIA/TIA 568B industry standard compliant) or fiber cables for connection between Transmitter/Receiver.
5. Apply the proper power to all connecting devices.
NOTES:
a. We recommend using the highest quality materials (cables, SFP, etc.) to ensure optimal transmission quality.
b. If the screen does not display when you connect the computer:
1. Make sure the device cables are correctly and firmly attached.
2. Set your display device’s (TV, monitor, etc.) input source as DVI.
3. Check the PC BIOS configuration of the video output setting.
4. Connect your video source to the Display DIRECTLY to check if the video signal gets through.
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
3
Page 4
CHAPTER 1: SPECIFICATIONS
TABLE 1-1. TRANSMITTER SPECIFICATIONS
Console Connection
Video Output N/A
Serial Control Port N/A
Host Connection
Video Input
Local Out Video Connection
Local Out
Link Port
RJ-45
SFP
USB Interface
Host (1) USB Type B female
Device N/A
Audio
2-way analog audio (1) Line In, (1) Line Out
General
LED indicator Power: White LED
DDC Supported DDC, DDC2, DDC2B
Max. Video Resolution 1920 x 1200 @ 60 Hz
OS Compatibility OS Independent
Housing material Chassis Metal
Operating Temperature 32 to 122° F (0 to 50° C)
Storage Temperature -4 to +140° F (-20 to +60° C)
Relative Humidity 0 to 80%
Power Supply External 5-VDC, 2-A power supply
Dimensions
Weight
KVXLC-100-R2, K VXLCF-100-R2: (1) DVI-D female;
KVXLC-200-R2, KVXLCF-200-R2: (2) DVI-D female
KVXLC-100-R2, K VXLCF-100-R2: (1) DVI-D female;
KVXLC-200-R2, KVXLCF-200-R2: (2) DVI-D female
KVXLC-100-R2: (1) RJ-45 using CATx cable – max. length: 330 feet (100 meters);
KVXLC-200-R2: (2) RJ-45 using CATx cable – max. length: 330 feet (100 meters)
KVXLCF-100-R2: (1) SFP cage using Fiberoptic cable – max. length: 18.6 miles (30 km), depending on SFP;
KVXLCF-200-R2: (2) SFP cages using Fiberoptic cable – max. length: 18.6 miles (30 km), depending on SFP
NOTE: SFP is not included. Must be ordered separately.
KVXLC-100-R2, K VXLCF-100-R2 transmitters: 1.06" H x 7.09" W x 3.27" D (2.7 x 18.0 x 8.3 cm);
KVXLC-200-R2, KVXLCF-200-R2 transmitters: 1.71" H x 7.09" W x 3.27" D (4.4 x 18.0 x 8.3 cm)
KVXLC-100-R2 transmitter: 0.79 lb. (0.36 kg);
KVXLCF-100-R2 transmitter: 0.77 lb. (0.35 kg);
KVXLC-200-R2, KVXLCF-200-R2 transmitter: 1.12 lb. (0.51 kg)
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
4
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 5
CHAPTER 1: SPECIFICATIONS
TABLE 1-2. RECEIVER SPECIFICATIONS
Console Connection
Video Output
Serial Control Port (1) DB9 male
Host Connection
Video Input N/A
Link Port
RJ-45
SFP
USB Interface
Host N/A
Device
Audio
2-way analog audio (1) MIC In, (1) Speaker Out
General
LED indicator Power: White LED
DDC Supported DDC, DDC2, DDC2B
Max. Video Resolution 1920 x 1200 @ 60 Hz
OS Compatibility OS Independent
Housing material Chassis Metal
Operating Temperature 32 to 122° F (0 to 50° C)
Storage Temperature -4 to +140° F (-20 to +60° C)
Relative Humidity 0 to 80%
Power Supply External 5-VDC, 2-A power supply
Dimensions
Weight
KVXLC-100-R2, K VXLCF-100-R2: (1) DVI-D female;
KVXLC-200-R2, KVXLCF-200-R2: (2) DVI-D female
KVXLC-100-R2: (1) RJ-45 using CATx cable – max. length: 330 feet (100 meters);
KVXLC-200-R2: (2) RJ-45 using CATx cable – max. length: 330 feet (100 meters)
KVXLCF-100-R2: (1) SFP cage using Fiberoptic cable – max. length: 18.6 miles (30 km), depending on SFP;
KVXLCF-200:-R2 (2) SFP cages using Fiberoptic cable – max. length: 18.6 miles (30 km), depending on SFP
NOTE: SFP is not included. Must be ordered separately.
(2) USB 2.0 Type A female for USB device extension;
(2) USB HID ports for keyboard and mouse
KVXLC-100-R2, K VXLCF-100-R2 receivers: 1.06” H x 7.09” W x 3.27” D (2.7 x 18.0 x 8.3 cm);
KVXLC-200-R2, KVXLCF-200-R2 receivers: 1.71” H x 7.09” W x 3.27” D (4.4 x 18.0 x 8.3 cm)
KVXLC-100-R2 receiver: 0.84 lb. (0.38 kg);
KVXLCF-100-R2 receiver: 0.81 lb. (0.37 kg);
KVXLC-200-R2, KVXLCF-200-R2 receiver: 1.12 lb. (0.51 kg)
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
5
Page 6
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 2: OVERVIEW
2.1 INTRODUCTION
The KVX Series DVI KVM Extender enables you to locally use one or two DVI monitors, USB keyboard/mouse/other devices, speaker,
and microphone to operate a remote computer, server or other IT device. There are four models of the KVX Series DVI KVM Extender:
a single-head KVXLC-100-R2 and dual-head KVXLC-200-R2 version via a CATx link, and a single-head KVXLCF-100-R2 and dual-head
KVXLCF-200-R2 version via a fiberoptic link. Each extender consists of a transmitter (TX) and a receiver (RX).
2.2 FEATURES
Supports DVI input/output video quality up to 1920 x 1200 @ 60 Hz.
Provides remote access for video/USB/RS-232/audio extension distance up to 330 feet (100 meters) over CATx cable for model
KVXLC-100-R2 or KVXLC-200-R2; up to 18.6 miles (30 km) over fiberoptic cable for model KVXLCF-100-R2 or KVXLCF-200-R2,
depending on the SFP used.
The DVI KVM Console Extender lets you control a server, or computer over single-mode or multimode fiber optic cable at distances
of up to 30 km (depending on the SFP used, fiber type, and fiber bandwidth*).
Single-head models with (1) DVI connector and dual-head models with (2) DVI connectors are available.
Offers transparent USB 2.0/1.1 extension.
Uses analog audio LINE-IN/LINE-OUT extension.
Supports bi-directional RS-232 control communication.
Firmware upgradable.
*NOTE: Reference the supported SFP chart on page 3.
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
2.3 WHAT’S INCLUDED
KVXLC-100 - R 2:
(1) Transmitter (TX)
(1) Receiver (RX)
(2) 5V, 2A Power Supplies (includes US, EU, and UK plug types)
(1) DVI-D cable 1.8m (6 ft.)
(1) 3.5mm audio cable 1.8m (6 ft.)
(1) USB-B to USB-A cable 1.8m (6 ft.)
(2) Deskmount Kits with Screws (KVXLC-DMK)
KVXLCF-100-R2:
(1) Transmitter (TX)
(1) Receiver (RX)
(2) 5V, 2A Power Supplies (includes US, EU, and UK plug types)
(1) DVI-D cable , M/M 1.8m (6 ft.)
(1) USB Type A to B cable, M/M 1.8m (6 ft.)
(1) 3.5mm Dual Audio/Mic cable, M/M 1.8m (6 ft.)
(2) Deskmount Kits with Screws (KVXLC-DMK)
6
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 7
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 2: OVERVIEW
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
2.4 HARDWARE DESCRIPTION
2.4.1 TRANSMITTER
FRONT PANEL

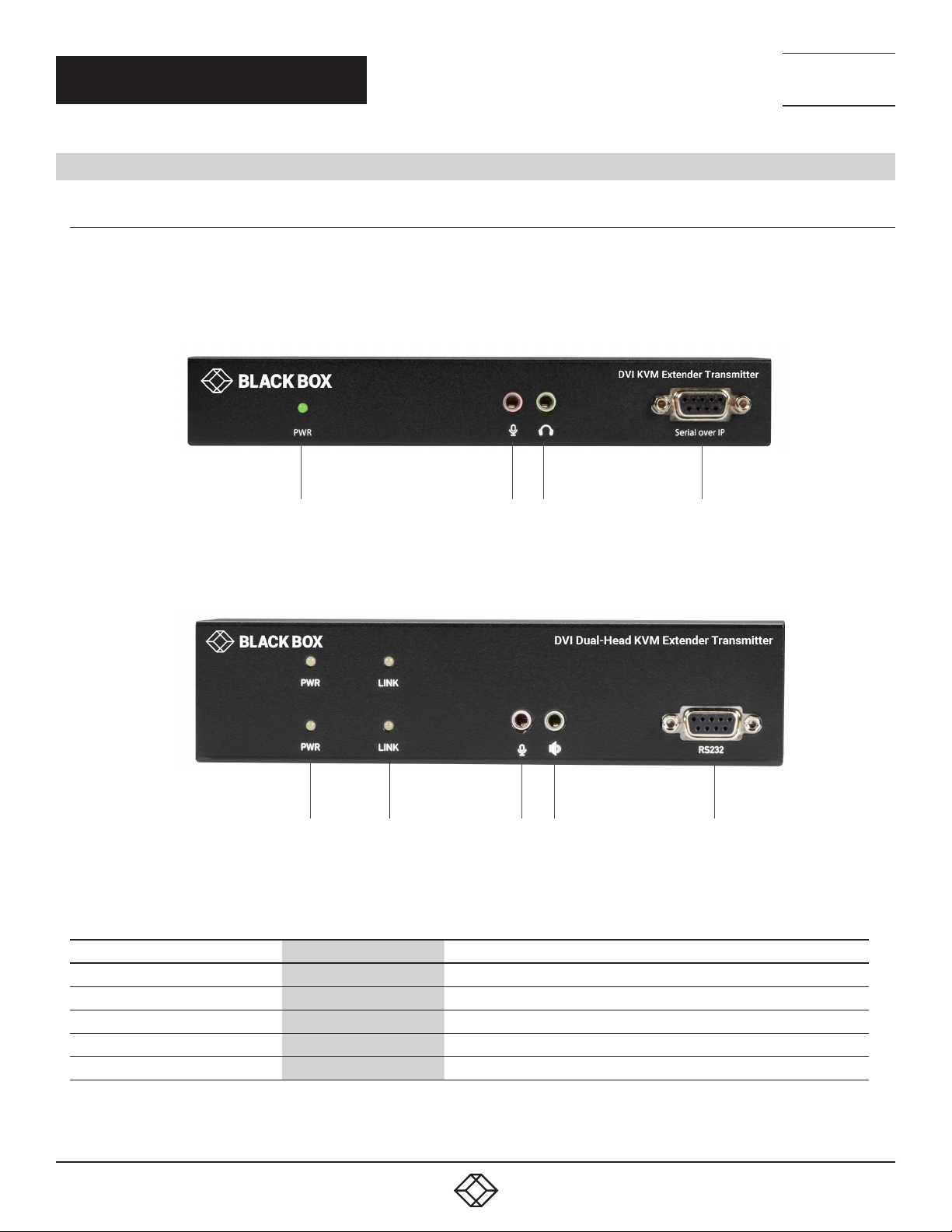

Figure 2-1 shows the front panel that is common to the single-head CATx and fiber transmitters. Table 2-1 describes its components.
1 2 3 4
FIGURE 2-1. TRANSMITTER FRONT PANEL
Figure 2-2 shows the front panel that is common to the dual-head CATx and fiber transmitters. Table 2-1 describes its components.
1 5 2 3 4
FIGURE 2-2. DUAL-HEAD TRANSMITTER FRONT PANEL
TABLE 2-1. TRANSMITTER FRONT-PANEL COMPONENTS
NUMBE R IN FIGU RE 2-1 OR 2-2 COMPONENT DESCRIPTION
1 PWR LED Lights when power to the transmitter is ON
2 Audio jack Connects to analog audio input for audio extension
3 Audio jack Connects to analog audio output for audio extension
4 DB9 female connector Connects to source device’s RS-232 port for serial extension
5 Link LED Lights when the TX/RX link is active
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
7
Page 8
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 2: OVERVIEW
BACK PANEL

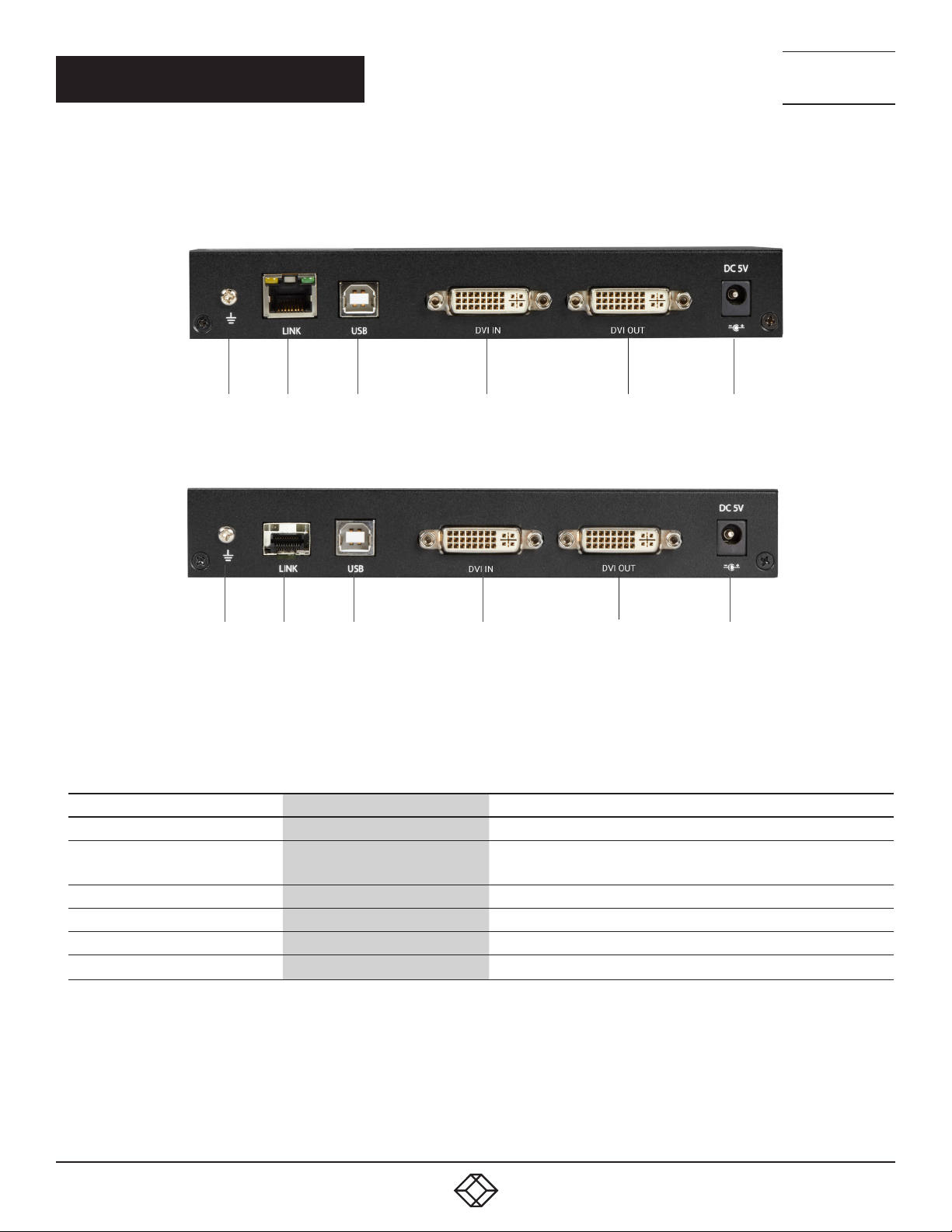

Figures 2-3 and 2-4 show the back panels of the single-head CATx and fiber transmitters. Table 2-2 describes their components.
1 2 3 4 5 6
FIGURE 2-3. SINGLE-HEAD CATX TR ANSMITTER BACK PANEL
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
1 2 3 4 5 6
FIGURE 2-4. SINGLE-HE AD FIBER TR ANSMITTER BACK PANEL
TABLE 2-2. SINGLE-HEAD TRANSMITTER BACK-PANEL COMPONENTS
NUMBE R IN FIGU RE 2-3 OR 2-4 COMPONENT DESCRIPTION
1 Ground screw Links to ground
2
3 USB Type B connector Connects to source device’s USB port
4 DVI In port Connects to source device’s signal for DVI extension
5 DVI Out port Connects to local out
6 Power connector Links to 5-VDC power supply
For CATx model: RJ-45 connector
For Fiber model: SFP cage
For CATx Model: CATx link
For Fiber model: Install fiber SFP module here
8
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 9
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 2: OVERVIEW
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69

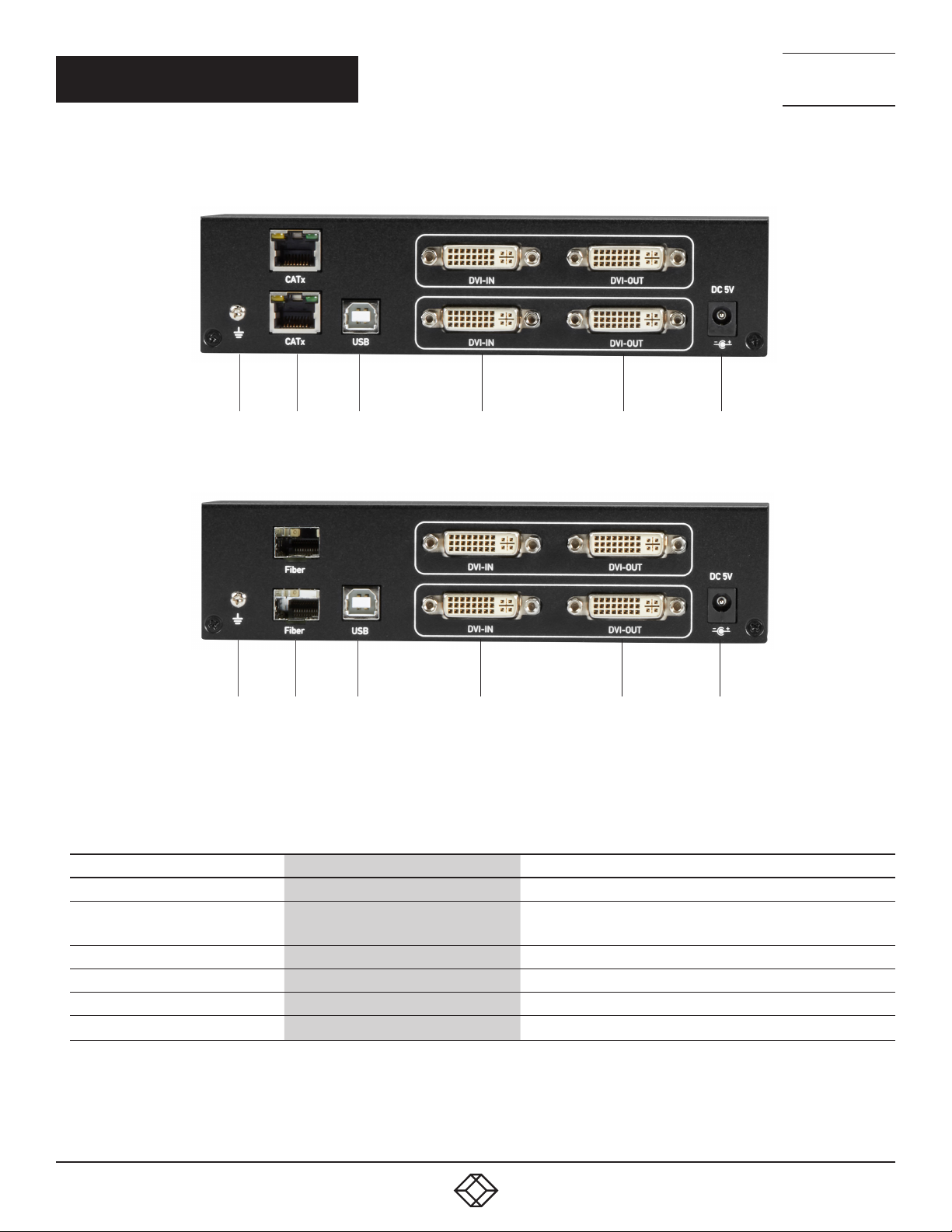

Figures 2-5 and 2-6 show the back panels of the dual-head CATx and fiber transmitters. Table 2-3 describes their components.
1 2 3 4 5 6
FIGURE 2-5. DUAL-HE AD CATX TRANSMIT TER BACK PANEL
1 2 3 4 5 6
FIGURE 2-6. DUAL-HEAD FIBER TR ANSMITTER BACK PANEL
TABLE 2-3. DUAL-HEAD TRANSMITTER BACK-PANEL COMPONENTS
NUMBE R IN FIGU RE 2-5 OR 2-6 COMPONENT DESCRIPTION
1 Ground screw Links to ground
2
3 USB Type B connector Connects to source device’s USB port
4 (2) DVI In ports Connect to source devices’ signals for DVI extension
5 (2) DVI Out ports Connect to local out
6 Power connector Links to 5-VDC power supply
For CATx model: (2) RJ-45 connectors
For Fiber model: (2) SFP cages
For CATx Model: CATx links
For Fiber model: Install fiber SFP modules here
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
9
Page 10
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 2: OVERVIEW
2.4.2 RECEIVER
FRONT PANEL

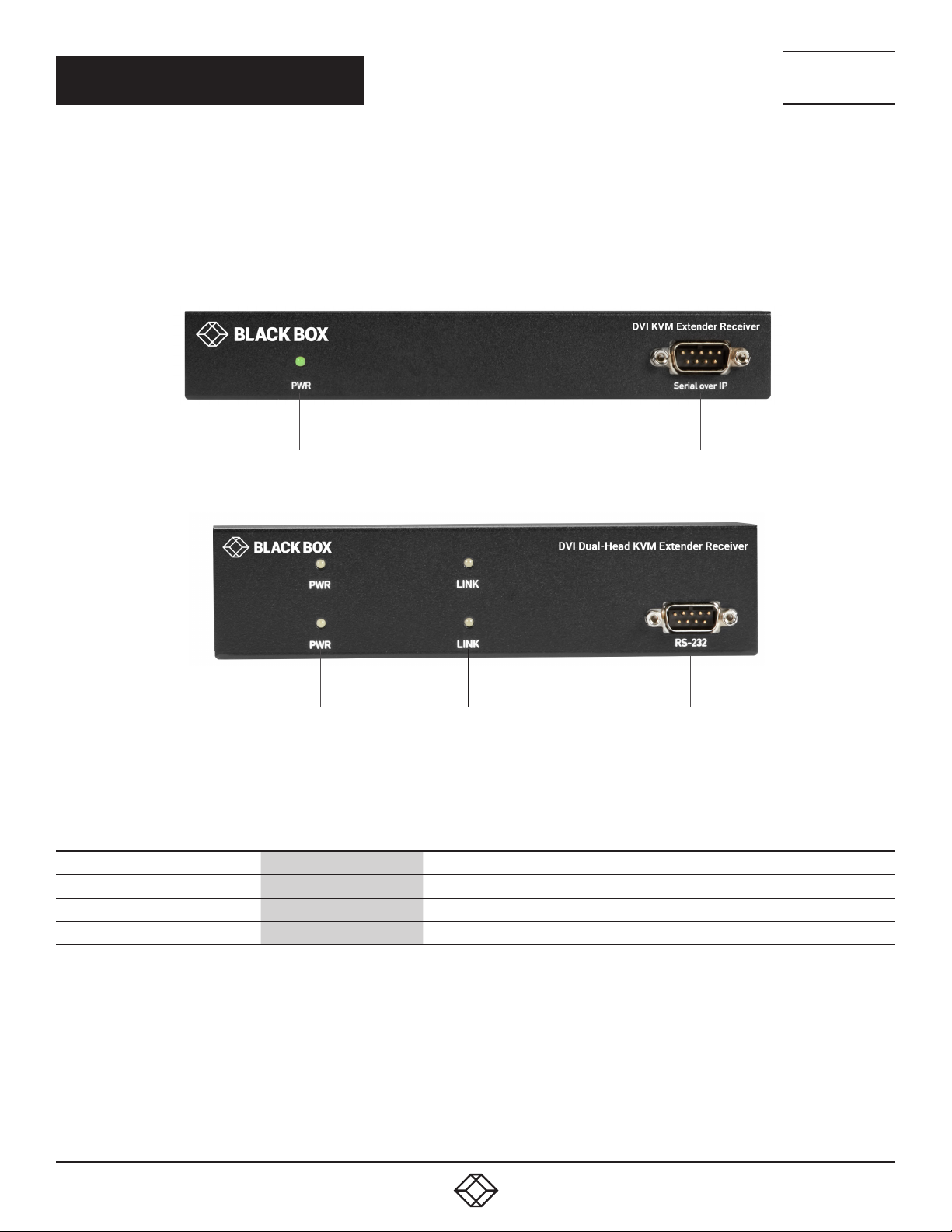

Figure 2-7 shows the front panel that is common to the single-head CATx and fiber receivers. Figure 2-8 shows the front panel that is
common to the dual-head CATx and fiber receivers. Table 2-4 describes the components.
1 2
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
FIGURE 2-7. SINGLE-HEAD RECEIVER FRONT PANEL
1 3 2
FIGURE 2-8. DUAL-HEAD RECEIVER FRONT PANEL
TABLE 2-4. RECEIVER FRONT-PANEL COMPONENTS
NUMBE R IN FIGU RE 2-7 OR 2-8 COMPONENT DESCRIPTION
1 PWR LED Lights when power to the receiver is ON
2 DB9 male connector Connects to sink device’s RS-232 port for serial extension
3 Link LED Lights when the TX/RX link is active
10
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 11
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 2: OVERVIEW
BACK PANEL

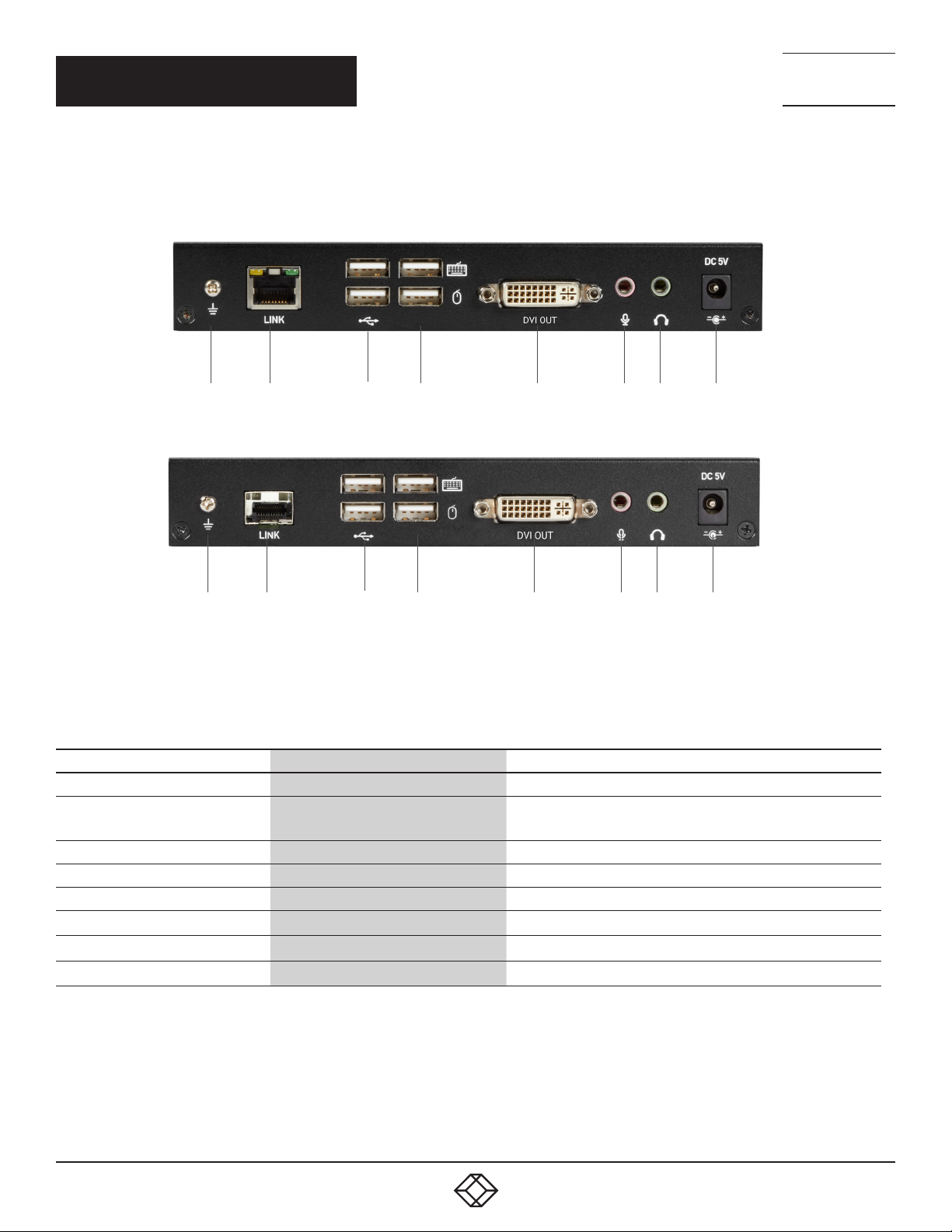

Figures 2-9 and 2-10 show the back panels of the single-head CATx and fiber receivers. Table 2-5 describes their components.
1 2 3 4 5 6 7 8
FIGURE 2-9. SINGLE-HEAD CATX RECEIVER BACK PANEL
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
1 2 3 4 5 6 7 8
FIGURE 2-10. SINGLE-HEAD FIBER RECEIVER BACK PANEL
TABLE 2-5. SINGLE-HEAD RECEIVER BACK-PANEL COMPONENTS
NUMBE R IN FIGU RE 2-9 OR 2-10 COMPONENT DESCRIPTION
1 Ground screw Links to ground
2
3 (2) USB 2.0 ports Connects to USB device’s ports for extension
4 (2) USB HID ports Connects to USB keyboard and mouse
5 DVI Out port Connects to sink device’s signal for DVI extension
6 Audio jack Links to analog audio input for audio extension
7 Audio jack Links to analog audio output for audio extension
8 Power connector Links to 5-VDC power supply
For CATx model: (1) RJ-45 connector
For Fiber model: (1) SFP cage
For CATx Model: CATx link
For Fiber model: Install fiber SFP module here
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
11
Page 12
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 2: OVERVIEW

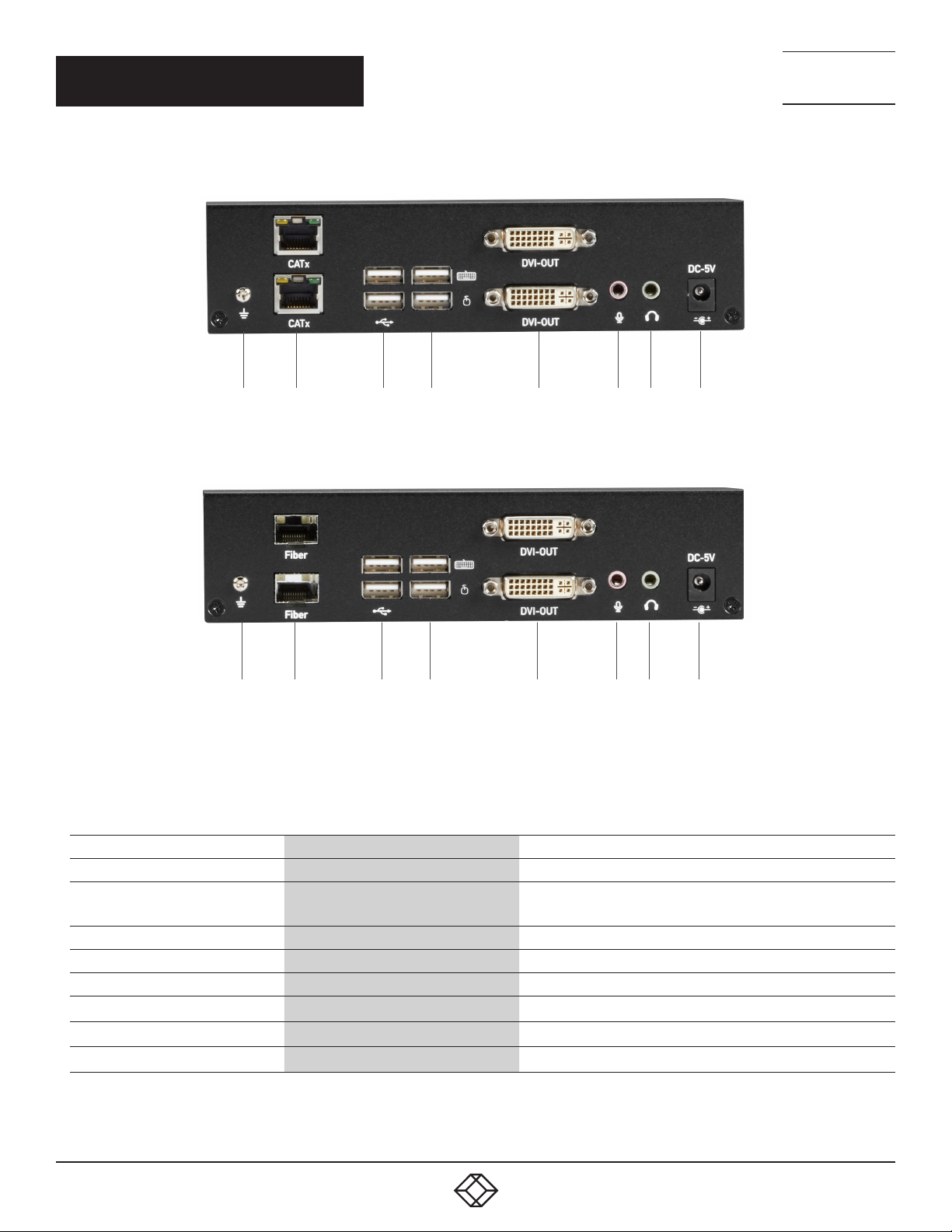

Figures 2-11 and 2-12 show the back panels of the dual-head CATx and fiber receivers. Table 2-6 describes their components.
1 2 3 4 5 6 7 8
FIGURE 2-11. DUAL-HEAD CATX RECEIVER BACK PANEL
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
1 2 3 4 5 6 7 8
FIGURE 2-12. DUAL-HEAD FIBER RECEIVER BACK PANEL
TABLE 2-6. DUAL-HEAD RECEIVER BACK-PANEL COMPONENTS
NUMBE R IN FIGU RE 2-11 OR 2-12 COMPONENT DESCRIPTION
1 Ground screw Links to ground
2
3 (2) USB 2.0 ports Connects to USB device’s ports for extension
4 (2) USB HID ports Connects to USB keyboard and mouse
5 (2) DVI Out ports Connect to sink devices’ signals for DVI extension
6 Audio jack Links to analog audio input for audio extension
7 Audio jack Links to analog audio output for audio extension
8 Power connector Links to 5-VDC power supply
For CATx model: (2) RJ-45 connectors
For Fiber model: (2) SFP cages
For CATx Model: CATx links
For Fiber model: Install fiber SFP modules here
12
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 13
CHAPTER 3: CONNECTION DIAGRAM
Figures 3-1 and 3-2 show a typical connection.
CATx UTP/STP Cable
OR
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
TX
Source Console
Fiberoptic Cable
RX
FIGURE 3-1. SINGLE-HEAD CONNECTION DIAGRAM
CATx UTP/STP Cables
OR
Fiberoptic Cables
FIGURE 3-2. DUAL-HEAD CONNECTION DIAGRAM
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
13
Page 14
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 3: CONNECTION DIAGRAM

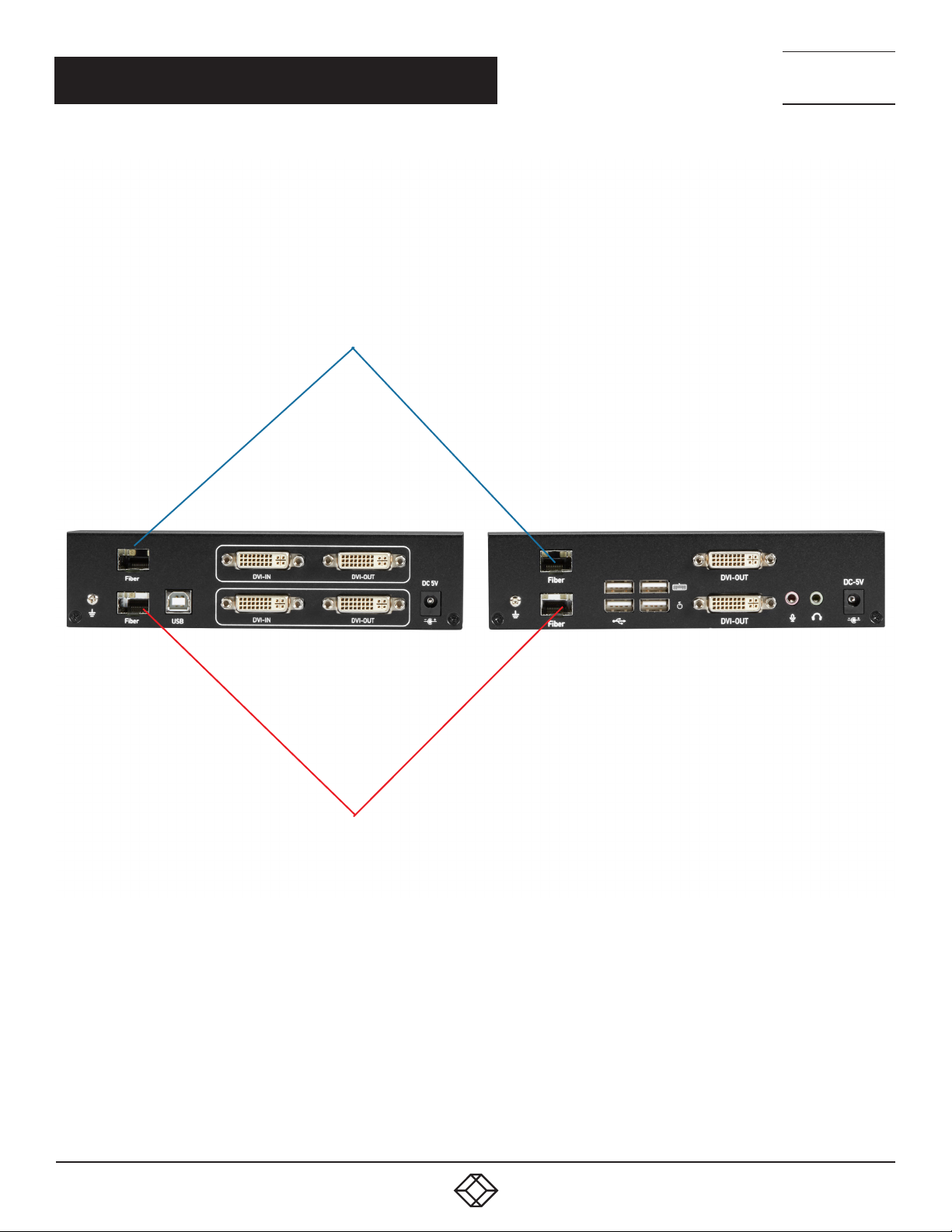

For dual-head fiber setups, two SFPs are required per unit (4 totals SFPs) to support both heads. Refer to Figure 3-3 for proper connection.
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
14
FIGURE 3-3. DUAL-HEAD FIBER SFP CONNECTION DIAGRAM
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 15
CHAPTER 1: HEADLINE
CHAPTER 4: INSTALLATION
4.1 FACTORY DEFAULT SETTINGS
Below are the factory default baud rate settings for the DVI KVM Extender’s serial ports.
Baud rate: 115,200 bps
Data bits: 8
Parity: None
Stop bits: 1
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
1. 87 7.8 7 7. 2 26 9 BLACKBOX.COM
15
Page 16
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 1: HEADLINE
APPENDIX A: REGULATORY INFORMATION
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
A.1 FCC CLASS A STATEMENT
This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict
accordance with the manufacturer’s instructions, may cause interference to radio communication. It has been tested and found to
comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules,
which are designed to provide reasonable protection against such interference when the equipment is operated in a commercial
environment. Operation of this equipment in a residential area is likely to cause interference, in which case the user at his own
expense will be required to take whatever measures may be necessary to correct the interference.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate
the equipment.
This digital apparatus does not exceed the Class A limits for radio noise emission from digital apparatus set out in the Radio
Interference Regulation of Industry Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de
la classe A prescrites dans le Règlement sur le brouillage radioélectrique publié par Industrie Canada.
16
1. 87 7.8 7 7. 2 26 9 BLACKBOX.COM
Page 17
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 1: HEADLINE
APPENDIX A: REGULATORY INFORMATION
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
A.2 NOM STATEMENT
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de operación deben ser respetadas.
4. Todas las instrucciones de operación y uso deben ser seguidas.
5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca de la tina de baño, lavabo, sótano mojado o cerca de
una alberca, etc.
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que sean recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea recomendado por el fabricante.
8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá a lo descrito en las instrucciones de operación.
Todo otro servicio deberá ser referido a personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no interfiera su uso. La colocación del aparato eléctrico
sobre una cama, sofá, alfombra o superficie similar puede bloquea la ventilación, no se debe colocar en libreros o gabinetes que
impidan el flujo de aire por los orificios de ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor como radiadores, registros de calor, estufas u otros
aparatos (incluyendo amplificadores) que producen calor.
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del tipo descrito en el instructivo de operación, o como
se indique en el aparato.
12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización del equipo no sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que no sean pisados ni pellizcados por objetos colocados
sobre o contra ellos, poniendo particular atención a los contactos y receptáculos donde salen del aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas de energia.
16. El cable de corriente deberá ser desconectado del cuando el equipo no sea usado por un largo periodo de tiempo.
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean derramados sobre la cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del aparato;o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en su desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada.
1. 87 7.8 7 7. 2 26 9 BLACKBOX.COM
17
Page 18
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 1: HEADLINE
APPENDIX B: DISCLAIMER/TRADEMARKS
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
B.1 DISCLAIMER
Black Box Corporation shall not be liable for damages of any kind, including, but not limited to, punitive, consequential or cost of cover
damages, resulting from any errors in the product information or specifications set forth in this document and Black Box Corporation
may revise this document at any time without notice.
B.2 TRADEMARKS USED IN THIS MANUAL
Black Box and the Black Box logo type and mark are registered trademarks of Black Box Corporation.
Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.
18
1. 87 7.8 7 7. 2 26 9 BLACKBOX.COM
Page 19
NOTES
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
19
Page 20
NEED HELP?
LEAVE THE TECH TO US
LIVE 24/7
TECHNICAL
SUPPORT
1.877.87 7.226 9
© COPYRIGHT 2022. BLACK BOX CORPORATION. ALL RIGHTS RESERVED.
KVXLC-100-R2_200-R2_QIG-USER_REV1.PDF
Loading...
