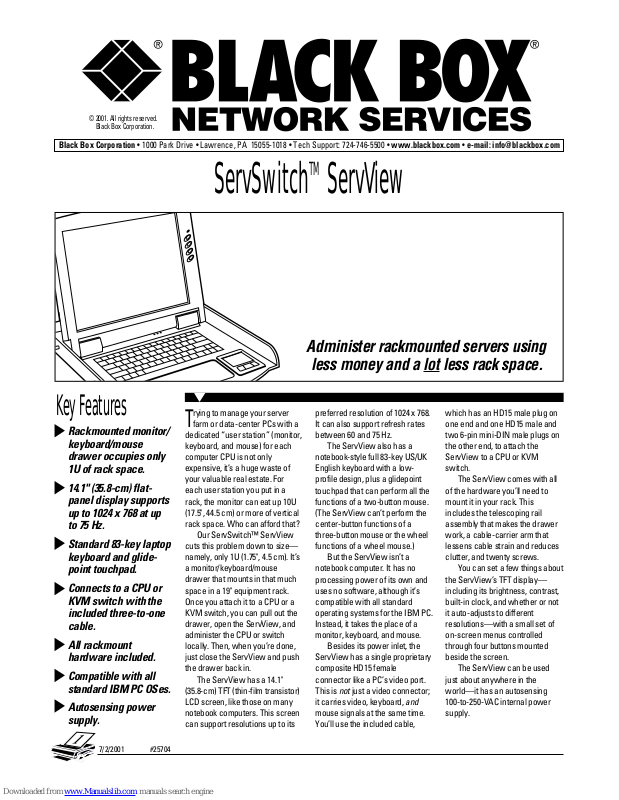

Black Box KVT109A Specifications

Rackmounted monitor/
keyboard/mouse
drawer occupies only
1U of rack space.

14.1" (35.8-cm) flat­panel display supports
up to 1024 x 768 at up
to 75 Hz.

Standard 83-key laptop
keyboard and glide­point touchpad.

Connects to a CPU or
KVM switch with the
included three-to-one
cable.

All rackmount
hardware included.

Compatible with all
standard IBM PC OSes.

Autosensing power
supply.

T

rying to manage your server

farm or data-center PCs with a
dedicated “user station” (monitor,
keyboard, and mouse) for each
computer CPU is not only
expensive, it’s a huge waste of
your valuable real estate. For
each user station you put in a
rack, the monitor can eat up 10U
(17.5", 44.5 cm) or more of vertical
rack space. Who can afford that?

Our ServSwitch™ ServView
cuts this problem down to size—
namely, only 1U (1.75", 4.5 cm). It’s
a monitor/keyboard/mouse
drawer that mounts in that much
space in a 19" equipment rack.
Once you attach it to a CPU or a
KVM switch, you can pull out the
drawer, open the ServView, and
administer the CPU or switch
locally. Then, when you’re done,
just close the ServView and push
the drawer back in.

The ServView has a 14.1"
(35.8-cm) TFT (thin-film transistor)
LCD screen, like those on many
notebook computers. This screen
can support resolutions up to its

Administer rackmounted servers using

less money and a lot less rack space.

Key Features

ServSwitch

TM

ServView

preferred resolution of 1024 x 768.
It can also support refresh rates
between 60 and 75 Hz.

The ServView also has a
notebook-style full 83-key US/UK
English keyboard with a low­profile design, plus a glidepoint
touchpad that can perform all the
functions of a two-button mouse.
(The ServView can’t perform the
center-button functions of a
three-button mouse or the wheel
functions of a wheel mouse.)

But the ServView isn’t a
notebook computer. It has no
processing power of its own and
uses no software, although it’s
compatible with all standard
operating systems for the IBM PC.
Instead, it takes the place of a
monitor, keyboard, and mouse.

Besides its power inlet, the
ServView has a single proprietary
composite HD15 female
connector like a PC’s video port.
This is not just a video connector;
it carries video, keyboard, and
mouse signals at the same time.
You’ll use the included cable,

which has an HD15 male plug on
one end and one HD15 male and
two 6-pin mini-DIN male plugs on
the other end, to attach the
ServView to a CPU or KVM
switch.

The ServView comes with all
of the hardware you’ll need to
mount it in your rack. This
includes the telescoping rail
assembly that makes the drawer
work, a cable-carrier arm that
lessens cable strain and reduces
clutter, and twenty screws.

You can set a few things about
the ServView’s TFT display—
including its brightness, contrast,
built-in clock, and whether or not
it auto-adjusts to different
resolutions—with a small set of
on-screen menus controlled
through four buttons mounted
beside the screen.

The ServView can be used
just about anywhere in the
world—it has an autosensing
100-to-250-VAC internal power
supply.

Black Box Corporation • 1000 Park Drive • Lawrence, PA 15055-1018 • Tech Support: 724-746-5500 • www.blackbox.com • e-mail: [e-mail]

© 2001. All rights reserved.

Black Box Corporation.

7/2/2001 #25704

• The ServSwitch™ ServView.

• A telescoping rackmount­rail assembly.

• A cable-carrier arm.

• Assorted screws.

• A power cord.

• A three-to-one ServView
cable.

• A manual.

Compliance: CE (EN 55022 Class A,

EN 55024, EN 60950); CISPR 22
Class A, CISPR 24, IEC 950;
FCC Part 15 Subpart B Class A,
IC Class/classe A

Interface: Proprietary composite of

VGA compatible video and
IBM PS/2 compatible keyboard
and two-button mouse

Resolution: Up to 1024 x 768

noninterlaced

Refresh Rate: Up to 75 Hz

Maximum Distance: Up to 25 ft.

(7.6 m) to the attached CPU or
KVM switch depending on cable
quality

User Controls:

Standard 83-key notebook

keyboard;

Glidepoint touchpad;
On-screen menus;
(4) Pushbuttons mounted beside

the screen for menu
navigation;

Rear-mounted ON/OFF rocker

switch

Indicators:

On-screen display;
Num Lock, Caps Lock, and Scroll

Lock LEDs on keyboard;

Power/video LED mounted

beside screen

Connectors: Both rear-mounted;

(1) HD15 female for composite

I/O;

(1) IEC 320 male power inlet

Maximum Altitude:

Operating: 10,000 ft. (3048 m);
Storage: 30,000 ft. (9144 m)

Temperature Tolerance:

Operating: 32 to 104˚F (0 to 40˚C);
Storage: –4 to +140˚F (–20 to

+60˚C)

Humidity Tolerance:

Operating: 10 to 90%

noncondensing;

Storage: 5 to 95% noncondensing

Audible Noise: Less than 60 dBA

Thermal Dissipation: Up to

25,000 BTU/hr. maximum

Enclosure: Steel and high-impact

plastic (rackmount rails are steel)

Grounding: Chassis-grounded

Fuse: 250 V, 2.0 A maximum

Power: From utility-power (mains)

outlet, through detachable power
cord and IEC 320 male inlet, to
internal transformer:
Input voltage: 100 to 250 VAC;
Input frequency: 50 to 60 Hz,

single-phase;

Input current: From 0.5 amps at

250 VAC to 0.7 amps at
100 VAC;

Consumption: 24 watts maximum

Size:

Chassis only: 1.65"H x 16.5"W x

17.5"D (4.2 x 41.9 x 44.5 cm);

Chassis with mounting-rail

assembly attached: 1.65"H x

17.5"W x 24"D (4.2 x 44.5 x
61 cm)

Weight: 12.5 lb. (5.7 kg)

The complete package

ServView for

local user

(Duo user #2)

Monitor, keyboard, and

mouse for remote user

(Duo user #1)

ServSwitch Duo

(KV6104SA-R2)

Rackmounted

PC CPUs

attached to

Duo

ServSwitch Duo

Extender

(KV6EXT-R2)

ServView

cable

Data center

Office

Specifications

Ordering Information

ITEM CODE

ServSwitch™ ServView..........................................KVT109A

Y

ou might also need…

Premium KVM CPU Cable, 10 ft. (3 m)..........EHN408-0010

Keyboard-port adapter for PC/AT CPU......................FA212

Adapter for CPU with serial mouse port ...................FA314

PS/2 keyboard/mouse surge protector ...........SP519A-R2

Call Black Box Tech Support for help determining your

best options for AC-power protection.

The ServView
makes the perfect
local user station
for rackmounted
KVM switches.
