Page 1
USER GUIDE
ADVANCED 1-PORT
SECURE KVM ISOLATOR
USM-2S0-MM1 REV: 3.0B
CONSOLE
CAC
MODELS:
• KVS4-8001DX 1-Port SH Secure DVI-I KVM w/audio and CAC
• KVS4-8001HX 1-Port SH Secure HDMI KVM w/audio and CAC
• KVS4-8001VX 1-Port SH Secure DP KVM w/audio and CAC
K/M
AUDIO
09/20/2022
DP OUT
1
Page 2
USER GUIDE
TABLE OF CONTENTS
TECHNICAL SPECIFICATIONS
WHAT’S IN THE BOX?
SECURITY FEATURES
FRONT AND REAR
INSTALLATION
CAC INSTALLATION: COMMON ACCESS CARD, SMART CARD READER
CAC PORT CONFIGURATION
AUDITING: Dumping the Event Log via User Menu Options
RESET: Restore Factory Default
LED’s BEHAVIOR
SYSTEM OPERATION
TROUBLESHOOTING
TECHNICAL SUPPORT
3
4
4
4
5
10
10
11
11
12
13
13
13
LIMITED WARRANTY STATEMENT
14
2
Page 3
USER GUIDE
TECHNICAL SPECIFICATIONS
VIDEO
Format DisplayPort™, HDMI, DVI-I Dual Link
KVS4-8001DX (1) DVI-I 23-pin (female)
Host Interface
User Console Interface
Max Resolution
DDC 5 volts p-p (TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.
USB
Signal Type USB 1.1 and 1.0 Keyboard and Mouse only. USB 2.0 for CAC connection (Only in models with CAC)
Type B (2) USB Type B
User Console Interface
AUDIO
Input (1) Connector Stereo 3.5mm Female
Output (1) Connector Stereo 3.5mm Female
POWER
Power Requirements 12V DC, 3A (minimum) power adapter with center-pin positive polarity.
ENVIRONMENT
Operating Temp 32° to 104° F (0° to 40° C)
Storage Temp -4° to 140° F (-20° to 60° C)
Humidity 0-80% RH, non-condensing
CERTIFICATIONS
Security Accreditation Common Criteria Validated To NIAP, Protection Prole PSS Ver. 4.0
OTHER
Emulation Keyboard, Mouse and Video
Control Front Panel Buttons
KVS4-8001HX (1) HDMI 19-pin (female)
KVS4-8001VX
KVS4-8001DX (1) DVI-I 23-pin (female)
KVS4-8001HX
KVS4-8001VX
DVI-I: Resolution up to 2560x1600 @ 60Hz (or 3840x2160 @ 30 Hz using HDMI/DVI Adapter);
HDMI/DP: Resolution up to 3840x2160 @ 30Hz
(2) USB Type-A for keyboard and mouse connection only
(1) USB Type-A for CAC connection (only in models with CAC)
(1) DisplayPort 20-pin (female)
(1) HDMI 19-pin (female)
(1) DisplayPort 20-pin (female)
3
Page 4
USER GUIDE
CONSOLE
AUDIO
K/M
CAC
DVI-I OUT
WHAT’S IN THE BOX?
Secure KVM Isolator Unit 1-Port Single-Head Secure KVM Isolator
Power Supply
Desktop power supply 100-240V, 12VDC 3A
SECURITY FEATURES
ANTI-TAMPER SWITCHES
Each model is equipped with internal Anti-Tamper switches, which sense attempts to open the device enclosure. Once the
system identies such an attempt, all the front panel LEDs will ash rapidly and the unit will become useless by shutting off
connection with all attached PCs and peripherals disabling any functionality.
TAMPER-EVIDENT SEAL
The enclosure of the unit is protected with a tamper-evident seal to provide a visual evidence if the unit has been opened.
PROTECTED FIRMWARE
The controller of the unit has a special protection feature that prevents reprogramming or reading the rmware.
HIGH ISOLATION ON USB CHANNELS
Opto-isolators are used in the unit to keep USB data paths electrically isolated from each other, providing high isolation and
preventing data leakage between ports.
SECURE EDID EMULATION
The unit prevents unwanted and unsecure data to be transmitted through the DDC lines by means of secure
EDID learning and emulation.
SELF-TEST
A self-test is performed each times the KVM is powered on as part of its boot-up sequence. If the KVM starts up correctly
and is functional, the self-test has passed. However, if all LEDs are on and not ashing, the power up self-test has failed and
all functions are disabled. Check if the button is jammed. In this case, release the jammed button and recycle the power.
Video LED
CONSOLE
K/M
CAC
AUDIO
DVI-I OUT
CAC LED

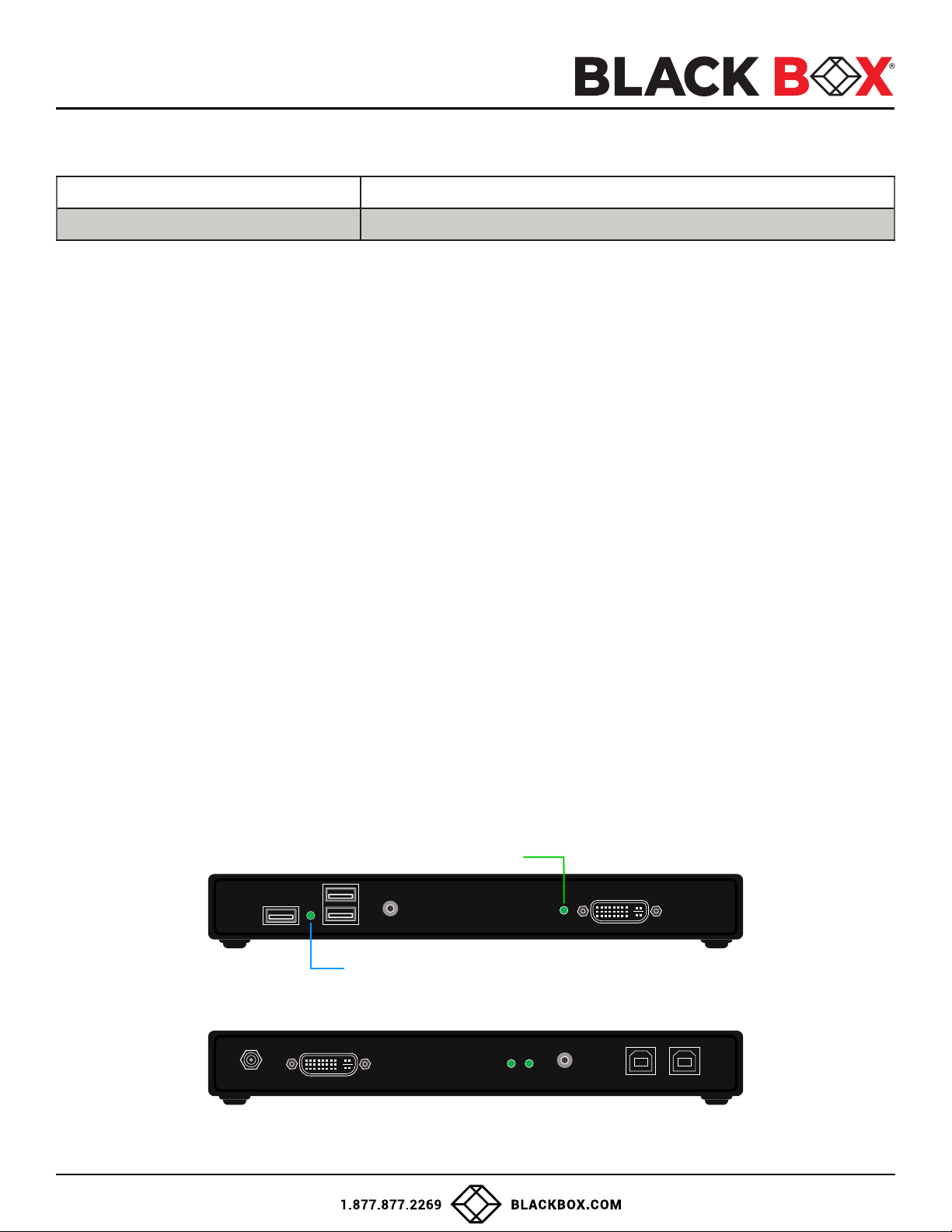

Figure 1-1: KVS4-8001DX Front panel
K/M CAC
INPUT
12VDC
DVI IN
PW SL
AUDIO
Figure 1-2: KVS4-8001DX Rear panel
4
Page 5
USER GUIDE
INSTALLATION
SYSTEM REQUIREMENTS
1. Black Box Secure PSS is compatible with standard personal/portable computers, servers or thin-clients, running
operating systems such as Windows® or Linux.
2. The peripheral devices that are supported by the Secure KVM Isolator are listed in the following table:
Console Port Authorized Devices
Keyboard
Display
Audio out Analog amplied speakers, Analog headphones.
Mouse / Pointing Device Any wired mouse or trackball without internal USB hub or composite device functions.
User Authentication Device
Wired keyboard and keypad without internal USB hub or composite device functions, unless
the connected device has at least one endpoint which is a keyboard or mouse HID class.
Display device (e.g. monitor, projector) that uses an interface that is physically and logically
compatible with the product ports (DisplayPort™, HDMI or DVI-I, depends on model).
USB devices identied as user authentication (base class 0Bh, e.g. Smart-card reader, PIV/
CAC reader, Token, or Biometric reader)
Table 1-1
5
Page 6
USER GUIDE
INSTALLATION

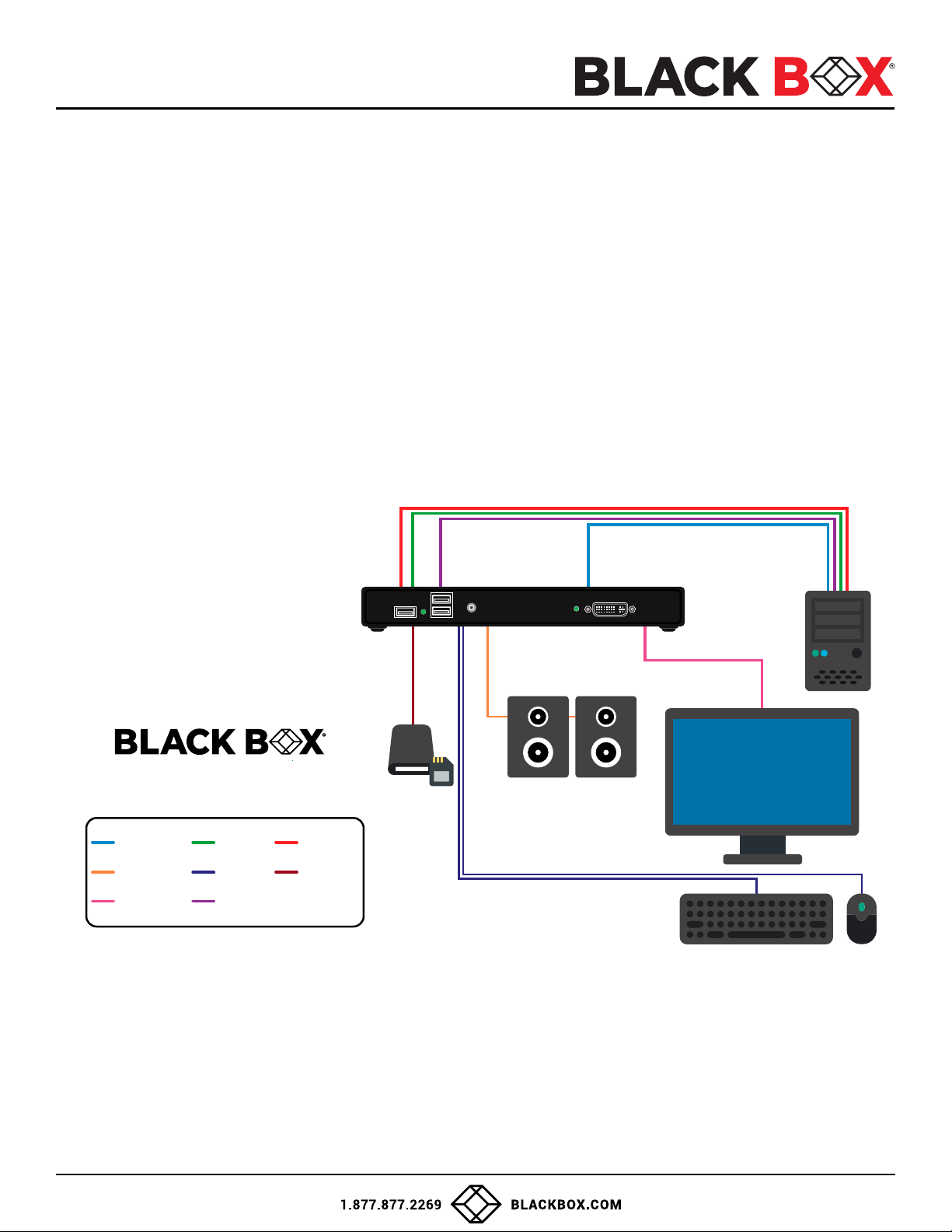

KVS4-8001DX:
1. Ensure that power is turned off or disconnected from the unit and the computer.
2. Use a DVI cable to connect the DVI output port from the computer to the corresponding DVI-I IN port of the unit.
3. Use a USB cable (Type-A to Type-B) to connect a USB port on the computer to the respective USB port of the unit.
4. Optionally connect a stereo audio cable (3.5mm to 3.5mm) to connect the audio output of the computer to
the AUDIO IN ports of the unit.
5. Connect a monitor to the DVI-I OUT console port of the unit using a DVI cable.
6. Connect a USB keyboard and mouse to the two USB console ports.
7. Optionally connect stereo speakers to the AUDIO OUT port of the unit.
8. Optionally connect CAC (COMMON ACCESS CARD, SMART CARD READER) to the CAC port in the user console
interface.
9. Finally, power on the Secure KVM Isolator by connecting a 12VDC power supply to the power connector, and then
turn on the computer.
Note: You can connect 1 computer to the 1-port Secure KVM Isolator.
CONSOLE
SA-DVN-1S-P
K/M
CAC
AUDIO
KVS4-8001DX
DVI-D IN
AUDIO OUT
DVI-I OUT
IMPORTANT WARNINGS - FOR SECURITY REASONS:
USB IN
USB OUT
AUDIO IN
CAC IN
CAC OUT
Figure 1-3: KVS4-8001DX
DVI-I OUT
• This product does not support wireless devices. Do not attempt to use a wireless keyboard or a wireless mouse with
this product.
• This product does not support keyboards with integrated USB hubs or USB ports. Only use standard (HID) USB
keyboards with this device.
• This product does not support microphone audio input or line input. Do not connect any microphones or headsets
with microphones to this device.
• Connection of authentication devices (CAC) with external power sources is prohibited.
6
Page 7
USER GUIDE
INSTALLATION (Continued)
KVS4-8001HX:
1. Ensure that power is turned off or disconnected from the unit and the computer.
2. Use a HDMI cable to connect the HDMI output port from the computer to the corresponding HDMI IN port of
the unit.
3. Use a USB cable (Type-A to Type-B) to connect a USB port on the computer to the respective USB port of the unit.
4. Optionally connect a stereo audio cable (3.5mm to 3.5mm) to connect the audio output of the computer to
the AUDIO IN ports of the unit.
5. Connect a monitor to the HDMI OUT console port of the unit using a HDMI cable.
6. Connect a USB keyboard and mouse to the two USB console ports.
7. Optionally connect stereo speakers to the AUDIO OUT port of the unit.
8. Optionally connect CAC (COMMON ACCESS CARD, SMART CARD READER) to the CAC port in the user console
interface.
9. Finally, power on the Secure KVM Isolator by connecting a 12VDC power supply to the power connector, and then
turn on the computer.
Note: You can connect 1 computer to the 1-port Secure KVM Isolator.
KVS4-8001HX
HDMI IN
AUDIO OUT
HDMI OUT
USB IN
USB OUT
AUDIO IN
CAC IN
CAC OUT
CONSOLE
SA-UHN-1S-P
K/M
CAC
AUDIO
Figure 1-4: KVS4-8001HX
HDMI OUT
7
Page 8
USER GUIDE
INSTALLATION (Continued)

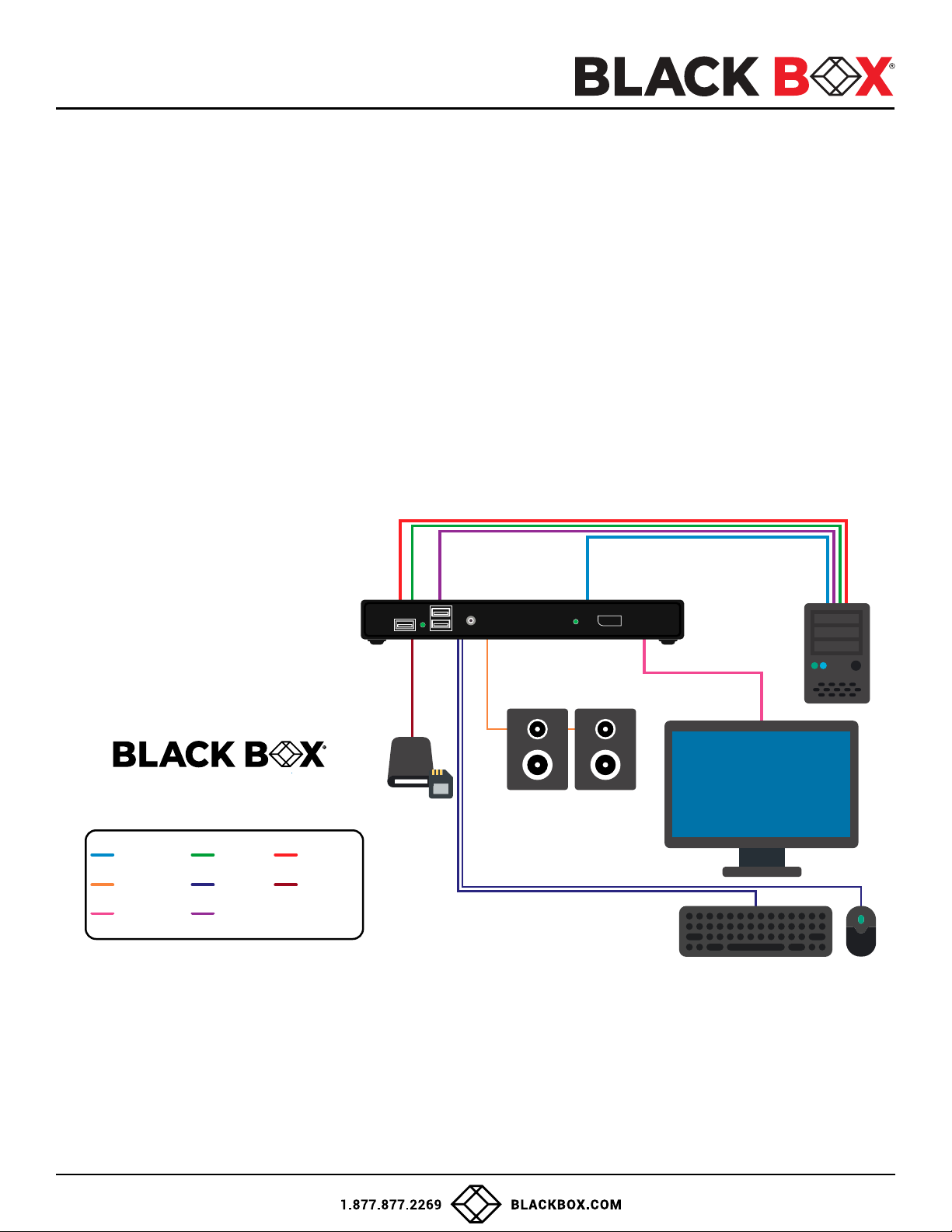

KVS4-8001VX:
1. Ensure that power is turned off or disconnected from the unit and the computer.
2. Use a DisplayPort™ cable to connect the DisplayPort output port from the computer to the corresponding DP IN port
of the unit.
3. Use a USB cable (Type-A to Type-B) to connect a USB port on the computer to the respective USB port of the unit.
4. Optionally connect a stereo audio cable (3.5mm to 3.5mm) to connect the audio output of the computer to
the AUDIO IN ports of the unit.
5. Connect a monitor to the DP OUT console port of the unit using a DP cable.
6. Connect a USB keyboard and mouse to the two USB console ports.
7. Optionally connect stereo speakers to the AUDIO OUT port of the unit.
8. Optionally connect CAC (COMMON ACCESS CARD, SMART CARD READER) to the CAC port in the user console
interface.
9. Finally, power on the Secure KVM Isolator by connecting a 12VDC power supply to the power connector, and then
turn on the computer.
Note: You can connect 1 computer to the 1-port Secure KVM Isolator.
KVS4-8001VX
DP IN
AUDIO OUT
DP OUT
USB IN
USB OUT
AUDIO IN
CAC IN
CAC OUT
CONSOLE
SA-DPN-1S-P
K/M
CAC
AUDIO
Figure 1-5: KVS4-8001VX
DP OUT
8
Page 9
USER GUIDE
INSTALLATION (Continued)
EDID Learn:
Factory default video EDID is set to HP (1080P max resolution) to allow initial operation with most of the DP display brands. For
security reasons, EDID learn of most DP displays’ brands can be achieved only by Authenticated Administrator.
Use the following steps to properly set up your EDID learning:
1. Ensure power is disconnected or turned off from both the unit and the computer.
2. Using a USB cable (Type-A to Type-B), connect the PC to the Secure KVM Isolator host’s K/M.
3. Connect a USB keyboard & mouse to the two USB console ports.
4. Connect a video cable betwen the PC and the Secure KVM Isolator host’s video.
5. Connect a display to the Secure KVM Isolator console’s output port.
6. Power up the PC and the Secure KVM Isolator.
7. Download the Administration and Security Management Tool to your PC from this link:
|https://www.blackbox.com/NIAP4/documentation.
8. Run the Administration and Security Management Tool executable le.

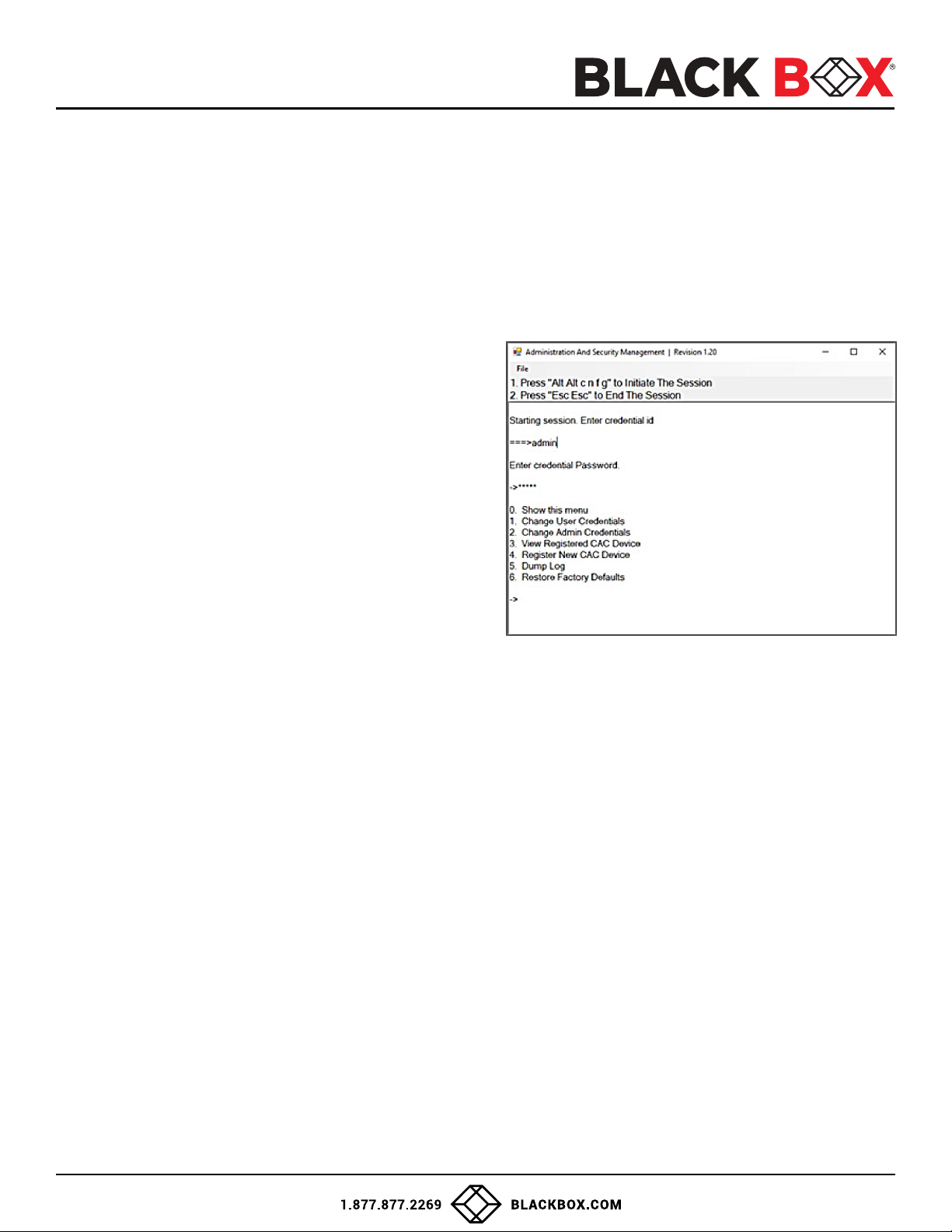

Initiate the session using the following steps in the Administration and Security Management Tool:
1. Type “alt alt c n f g” on your keyboard.
2. The mouse connected to the Secure KVM Isolator will stop functioning and you will be prompted to “Enter credential id."
3. Login in as the administrator by entering the default username “admin”, and pressing Enter.
4. Enter the default password “1 2 3 4 5” and press Enter.
5. Seven options will appear in a numerical menu: select "Select Mode" and press Enter.
6. A menu will appear prompting you to Select Mode; instead, type “local” and press Enter.
The Administration and Security Management Tool will now automatically learn and store the display’s EDID, then the device will reset
and reboot. At the end of the boot-up, ensure all computers are connected to the Secure KVM Isolator through each port to verify that
all are properly presenting video on the connected display.
9
Page 10
USER GUIDE
CAC (COMMON ACCESS CARD, SMART CARD READER) INSTALLATION
INSTALLATION
The following steps are intended for the system administrator or IT manager only.
CAC connection to the computer requires a USB cable connection separate from the keyboard and mouse. This allows the
CAC to be connected independently from the keyboard and mouse.
1. Ensure that power is turned off or disconnected from the unit and the computer.
2. Use a USB cable (Type-A to Type-B) to connect a USB port on the computer to its respective CAC USB port on
the Secure KVM Isolator. Do not connect the USB cable if CAC functionality is not needed for that computer.
3. Connect a CAC (smart card reader) to the CAC port in the user console interface.
4. Power on the Secure KVM Isolator by connecting a 12VDC power supply to the power connector, and then turn on all
the computers.
Note: The open session will be immediately terminated upon the removal of the registered CAC device.
CAC PORT CONFIGURATION
The following steps are intended for the system administrator and operators (users).
CAC port Conguration is an optional feature, allowing registration of any USB peripheral to operate with the Secure KVM
Isolator. Only one peripheral can be registered and only the registered peripheral will operate with the Secure KVM Isolator.
By default, when no peripheral is registered, the Secure KVM Isolator will operate with any Smart Card Reader.

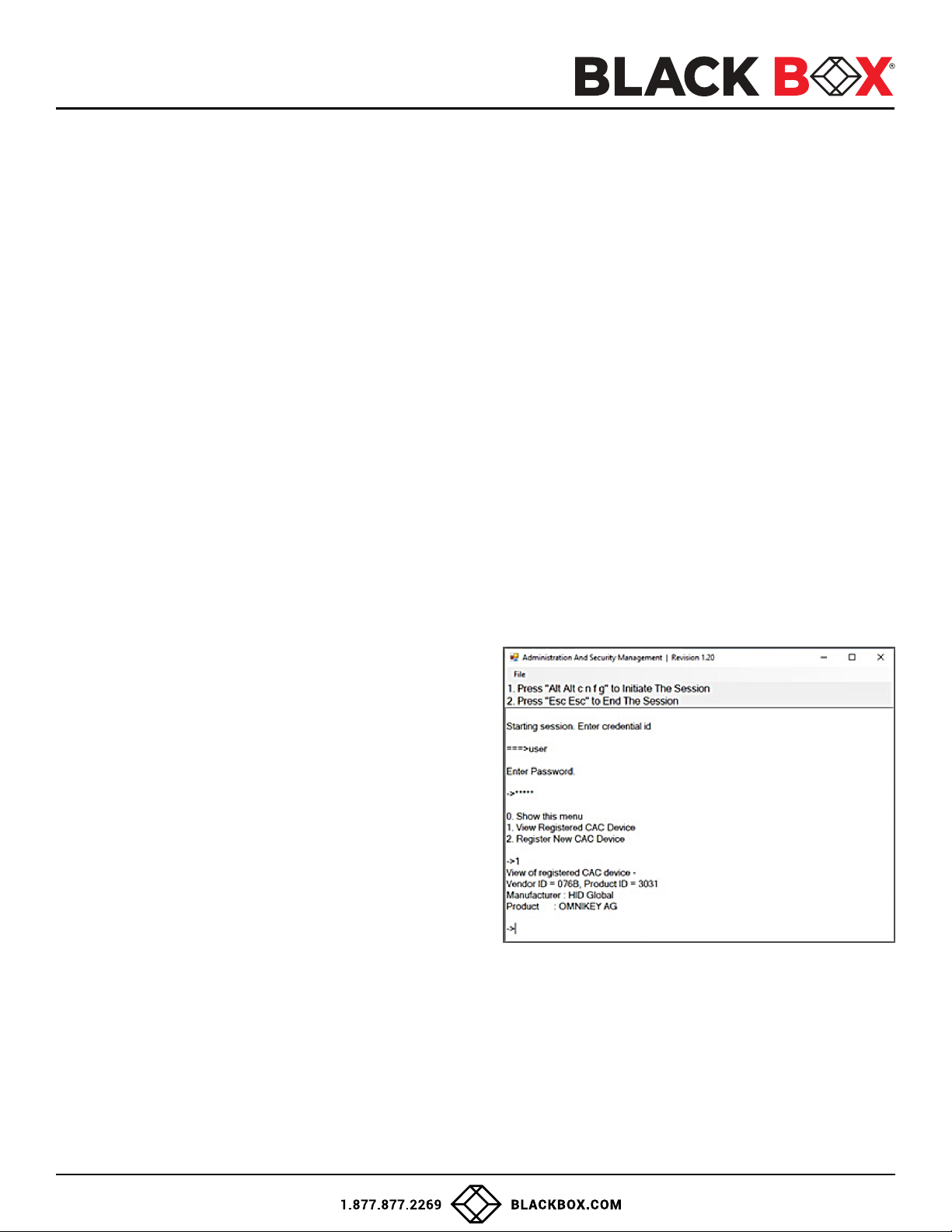

Congure the CAC Port via User Menu Options
1. Open the Administration and Security Management Program.
2. Using the keyboard, press the Alt key twice and type “cnfg”.
3. At this stage the mouse connected to the
Secure KVM Isolator will stop functioning.
4. Enter the default username “user” and press Enter.
5. Enter the default password “12345” and press Enter.
6. Select "Register New CAC Device" from the menu on your
screen and press Enter.
7. Connect the peripheral device to be registered to
the CAC USB port in the console side of the
Secure KVM Isolator and wait until
the Secure KVM Isolator is reading the new
peripheral information.
8. The Secure KVM Isolator will list the information of
the connected peripheral on the screen and buzz 3 times
when registration is completed.
Figure 1-6
10
Page 11
USER GUIDE
AUDITING: Dumping the Event Log via User Menu Options
The following steps are intended for the system administrator.
The Event Log is a detailed report of critical activities stored in the Secure KVM Isolator memory. A comprehensive feature
list and guidance for Administration and Security Management Tools can be found in the Administrator’s Guide available for
download from: https://www.blackbox.com/NIAP4/documentation.
1. Open the Administration and Security Management Program.
2. Using the keyboard, press the Alt key twice and type “cnfg”.
3. Enter the default admin name “admin” and press Enter.
4. Enter the default password “12345” and press Enter.
5. Request a Log Dump by selecting "Dump Log" from the menu.
(Shown in Figure 1-7)
* See Administration and Security Management Tool Guidance
for detailed information.
Figure 1-7
RESET: Restore Factory Defaults
The following steps are intended for the system administrator.
Note: Only one computer connected to port 1 is required for this operation.
Restore Factory Defaults will reset all settings on the Secure KVM Isolator to their original state.
Secure KVM Isolator mode.
CAC port registration will be removed.
Secure KVM Isolator settings will be reset to factory defaults.
To Restore Factory Defaults via User Menu Options:
1. Open the Administration and Security Management Program.
2. Using the keyboard, press the Alt key twice and type “cnfg”.
3. Enter the default admin name “admin” and press Enter.
4. Enter the default password “12345” and press Enter.
5. Select "Restore Factory Defaults" from the menu on your screen and press enter.
(Menu shown in Figure 1-7)
* See Administration and Security Management Tool Guidance for detailed information.
11
Page 12
USER GUIDE
LED’s BEHAVIOR
User Console Interface – Display LED:
# Status Description
1 Off Monitor is not connected
2 On Monitor is connected
3 Flashing EDID problem – Learn EDID to x the problem
User Console Interface – CAC LED:
# Status Description
1 Off CAC is not connected
2 On Authorized and functional CAC is connected
3 Flashing Non-CAC peripheral is connected
Front Panel - ST LED:
# Status Description
1 All Flashing
EDID Learn - Front Panel LEDs:
All LEDs are turned on for 1 second. Then:
Connected peripheral to keyboard or mouse
console ports is rejected
IMPORTANT!
If all the Front Panel LEDs are ashing and the
buzzer is beeping, the Secure KVM Isolator has
been TAMPERED with and all functions are
permanently disabled. Please contact Black Box
technical support at [email protected]
If all LEDs are on and not ashing, the POWER
UP SELF TEST has failed and all functions are
disabled. Check if the button is jammed. In this
case, release the jammed button and recycle the
power. If power up self test is still failing, please
contact Black Box technical support
at [email protected]
• Video LED will ash until the end of the process.
12
Page 13
USER GUIDE
SYSTEM OPERATION
Front Panel Control
No controls are required beyond ensuring the product is powered on and all peripheral/computer ports are connected.
TROUBLESHOOTING
No Power
• Make sure that the power adapter is securely connected to the power connector of the unit.
• Check the output voltage of the power supply and make sure that the voltage value is around 12VDC.
• Replace the power supply.
Flashing LEDs in the Front Panel with clicking sound
• Reboot the unit. If the error persists then there is a malfunction or wrong input connections at the K/M ports.
• Verify both Keyboard and Mouse connections are USB 1.0 or 1.1.
• Only USB Keyboard or Mouse can be connected in the designated K/M ports.
Flashing USB LED
• Make sure that the correct peripheral device is connected to the correct port of the Secure KVM.
• Check to see that the K/M USB cable is connected to the K/M port on the back of the unit.
• Check to see that the CAC USB cable is connected to the CAC port on the back of the unit.
No Video
• Check if all the video cables are connected properly.
• Connect the computer directly to the monitor to verify that your monitor and computer are functioning properly.
• Restart the computers.
Keyboard is not working
• Check if the keyboard is properly connected to the unit.
• Check if the USB cables connecting the unit and the computers are properly connected.
• Try connecting the USB on the computer to a different port.
• Make sure that the keyboard works when directly connected to the computer.
• Replace the keyboard.
Note: The NUM, CAPS, and SCROLL Lock LED indicators on the keyboard are not supposed to light up if connected to the
Secure KVM Isolator.
Mouse is not working
• Check if the mouse is properly connected to the unit.
• Try connecting the USB on the computer to a different port.
• Make sure that the mouse works when directly connected to the computer.
• Replace the mouse.
No Audio
• Check if all the audio cables are connected properly.
• Connect the speakers directly to the computer to verify that the speakers and the computer audio are
functioning properly.
• Check the audio settings of the computer and verify that the audio output is through the speakers.
No CAC (COMMON ACCESS CARD, SMART CARD READER)
• Check if the USB cables connecting the unit and the computers are properly connected.
TECHNICAL SUPPORT
For product inquiries, warranty questions, or technical questions, please contact [email protected].
FREE technical support 24 hours a day, 7 days a week: Call 877-877-2269 or fax 724-746-0746.
13
Page 14
USER GUIDE
LIMITED WARRANTY STATEMENT
A. Extent of limited warranty
Black Box warrants to the end-user customers that the product specied above will be free from defects in materials and
workmanship for the duration of 36 months, which duration begins on the date of purchase by the customer. Customer is
responsible for maintaining proof of date of purchase.
Black Box limited warranty covers only those defects which arise as a result of normal use of the product, and do not apply
to any:
a. Improper or inadequate maintenance or modications
b. Operations outside product specications
c. Mechanical abuse and exposure to severe conditions
If Black Box receives, during applicable warranty period, a notice of defect, Black Box will at its discretion replace or repair
defective product. If Black Box is unable to replace or repair defective product covered by the Black Box warranty within
reasonable period of time, Black Box shall refund the cost of the product.
Black Box shall have no obligation to repair, replace or refund unit until customer returns defective product to Black Box.
Any replacement product could be new or like new, provided that it has functionality at least equal to that of the product
being replaced.
Black Box limited warranty is valid in any country where the covered product is distributed by Black Box.
B. Limitations of warranty
To the extent allowed by local law, neither Black Box nor its third party suppliers make any other warranty or condition of
any kind whether expressed or implied with respect to the Black Box product, and specically disclaim implied warranties or
conditions of merchantability, satisfactory quality, and tness for a particular purpose.
C. Limitations of liability
To the extent allowed by local law the remedies provided in this warranty statement are the customers sole and exclusive
remedies.
To the extent allowed by local law, except for the obligations specically set forth in this warranty statement, in no event
will Black Box or its third party suppliers be liable for direct, indirect, special, incidental, or consequential damages whether
based on contract, tort or any other legal theory and whether advised of the possibility of such damages.
D. Local law
To the extent that this warranty statement is inconsistent with local law, this warranty statement shall be considered
modied to be consistent with such law.
14
Page 15
USER GUIDE
DISCLAIMER
Black Box Corporation shall not be liable for damages of any kind, including, but not limited to, punitive, consequential or
cost of cover damages, resulting from any errors in the product information or specications set forth in this document and
Black Box Corporation may revise this document at any time without notice.
TRADEMARKS
Black Box and the Black Box logo type and mark are registered trademarks of BB Technologies, Inc.
Any other trademarks mentioned in this document are acknowledged to be the property of the trademark owners.
© COPYRIGHT 2022. BLACK BOX CORPORATION. ALL RIGHTS RESERVED.
20180411
Black Box Corporation
1000 Park Drive
Lawrence, PA 15055-1018
KVS4-8001DX_HX_VX_user_Rev2.pdf
N4-BB-ISOLATOR
Phone: 877-877-2269
www.blackbox.com
15
Loading...
