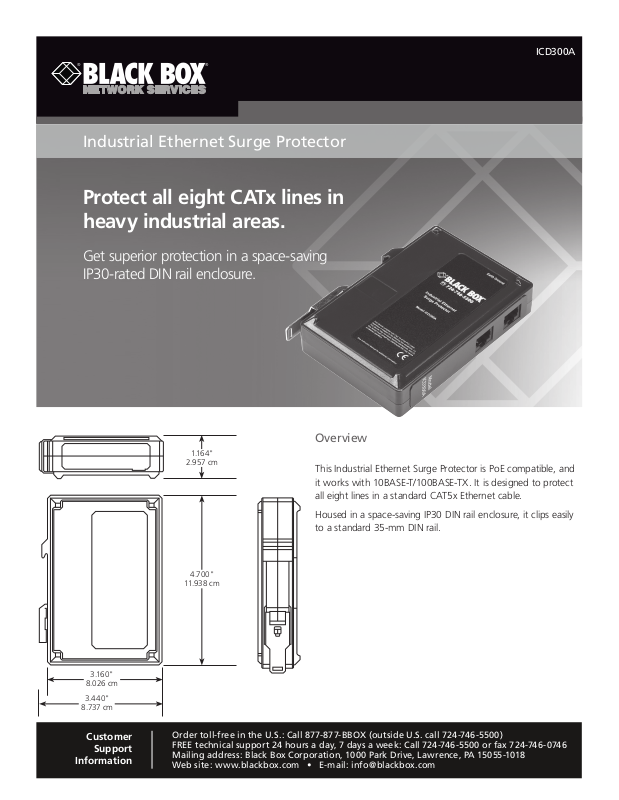

Industrial Ethernet Surge Protector
Protect all eight CATx lines in
heavy industrial areas.
Get superior protection in a space-saving
IP30-rated DIN rail enclosure.
February 2010
MT1000A-85-R4
ICD300A
3.1 60"
8.026 cm
3.4 40"
8.737 cm
1.16 4"
2.957 cm
4.700"
11. 93 8 c m
Overview
This Industrial Ethernet Surge Protector is PoE compatible, and
it works with 10BASE-T/100BASE-TX. It is designed to protect
all eight lines in a standard CAT5x Ethernet cable.
Housed in a space-saving IP30 DIN rail enclosure, it clips easily
to a standard 35-mm DIN rail.
Customer
Support
Information
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: w ww.blackbox.com • E-mail : [email protected]
Page 2
Specifications
Application — 10BA SE-T/10 0BASE-T X
Capacitance — <50 pF
Compliance — UL® File Number: E222870;
FCC DoC available for download
Enclosure — Plastic; IP 30 DIN rail case
Lines Protected — All (8)
MTBF — 131,960 hours; calculation method: parts count reliability prediction
Peak Pulse Power — 600 watts
Peak Surge Current — 1000 amps
Protocols — 802.11af (Modes A & B)
Response Time — <5 ns
Standard Clamping Voltage — 60 volts
Tightening Torque — 1.7 lb.-in.
Wire Range — 14 to 22 AWG
Wire Temperature Rating — +221° F (+105° C) minimum (sized for +140° F [+60° C] ampacity)
Wire Type — Copper wire only; one conductor per terminal
CE Approval — Yes
RoHS — Yes
Connectors — (2) RJ-45
Operating Environment — Temperature: -40 to +176º F (-40 to +80º C);
Humidity: 0 to 95%, noncondensing
Size — 4.7"H x 1.2"W x3.4"D (11.9 x 3.0 x 8.6 cm)
© Copyright 2010. Black Box Corporation. All rights reserved. Printed in U.S.A. Black Box® and the Double Diamond logo are registered trademarks of BB Technologies, Inc. UL® is a registered
trademark of Underwriters Laboratories, Inc. Any third-party trademarks appearing in this publication are acknowledged to be the property of their respective owners.
ICD300 A, rev. 1
