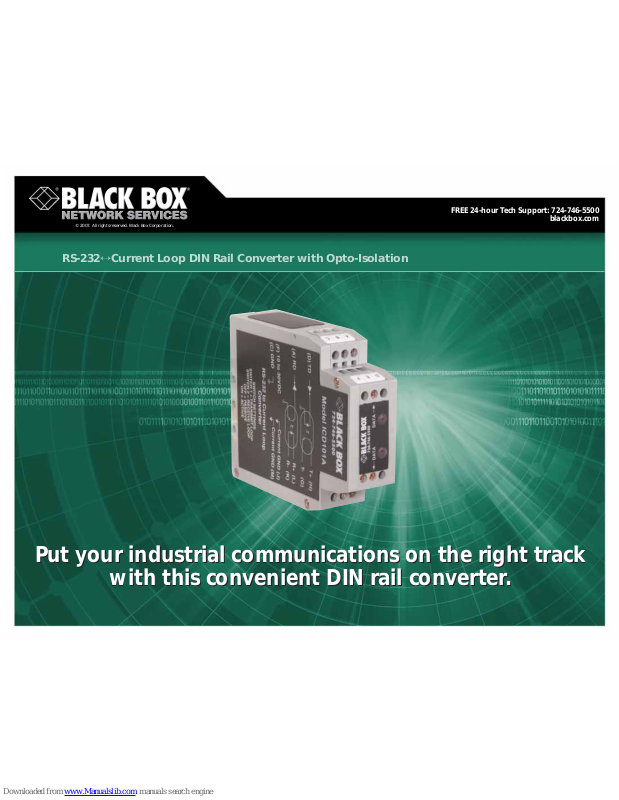

Black Box ICD101A Specifications
Put your industrial communications on the right track
with this convenient DIN rail converter.
Put your industrial communications on the right track
with this convenient DIN rail converter.
RS-232↔Current Loop DIN Rail Converter with Opto-Isolation
© 2007. All rights reserved. Black Box Corporation.
FREE 24-hour Tech Support: 724-746-5500
blackbox.com
2 of 2
6/25/2007
#26669
724-746-5500 blackbox.com
FEA TURES
• Has one 20-mA transmit loop and one
20-mA receive loop.
• Both signals feature 1000-VDC optoisolation to protect against surges
and ground loops.
• Both loops can be set as active or
passive. When set to active, an isolated
20-mA current is supplied to each loop.
• Top speed of 19.2 kbps.
DIN rail usage.
DIN rail is an industry-standard metal rail, usually installed
inside an electrical enclosure, which serves as a mount for
small electrical devices specially designed for use with DIN
rails. These devices snap right onto the rails, sometimes
requiring a set screw, and are then wired together.
Many different devices are available for mounting on DIN
rails: terminal blocks, interface converters, media converter
switches, repeaters, surge protectors, PLCs, fuses, or power
supplies, just to name a few.
DIN rails are a space-saving way to accommodate
components. And because DIN rail devices are so easy to
install, replace, maintain, and inspect, this is an exceptionally
convenient system that has become very popular in recent
years.
A standard DIN rail is 35 millimeters wide with raised-lip
edges, its dimensions outlined by the Deutsche Institut für
Normung, a German standardization body. Rails are generally
available in aluminum or steel and may be cut for installation.
Depending on the requirements of the mounted components,
the rail may need to be grounded.
Technically Speaking
TECH SPECS
Distance (Maximum) — 2000 ft. (609.6 m)
Isolation — 1000 VDC for 1 second
Operation — RS-232: Half- or full-duplex;
Current Loop: 20 mA, active or passive
Speed — Up to 19.2 kbps
CE Approval — Yes
Connectors — (2) 6-position terminal blocks
Indicators — (2) LEDs: Data flow direction
Operating Environment — Temperature: 32 to 176°F (0 to 80°C);
Humidity: Up to 95% noncondensing
Power — 10–30 VDC, 100 mA
Size — 0.9"H x 2.9"W x 3.9"D (2.3 x 7.4 x 9.9 cm)
Item Code
RS-232↔Current Loop DIN Rail Converter with Opto-Isolation
ICD101A
You may also need…
DIN Rail, 1-m (3.2-ft.) DR100
DB25 to Terminal Block Adapter IC980
DIN Rail RS-422/RS-485 Data Line Surge Protector SPD001A
T o power six converters, or der…
DIN Rail 12-VDC Power Supply PSD100
Recognize any of these situations?
• You wait more than 30 minutes to get through
to a vendor’s tech support.
• The so-called “tech” can’t help you or gives you
the wrong answer.
• You don’t have a purchase order number and the
tech refuses to help you.
• It’s 9 p.m. and you need help, but your vendor’s
tech support line is closed.
According to a survey by Data Communications
magazine, 90% of network managers surveyed say
that getting the technical support they need is extremely
important when choosing a vendor. But even though
network managers pay anywhere from 10 to 20% of their
overall purchase price for a basic service and support
contract, the technical support and service they receive falls
far short of their expectations—and certainly isn’t worth
what they paid.
At Black Box, we guarantee the best value and the
best support. You can even consult our Technical Support
Experts before you buy if you need help selecting just
the right component for your application.
Don’t waste time and money—call Black Box today.
Why Buy From Black Box? Exceptional V alue.
Exceptional Tech Support. Period.
