Black Box IC662A Specifications

Connect all your favorite desktop peripherals—

old or new—with a single device.

Connect all your favorite desktop peripherals—

old or new—with a single device.

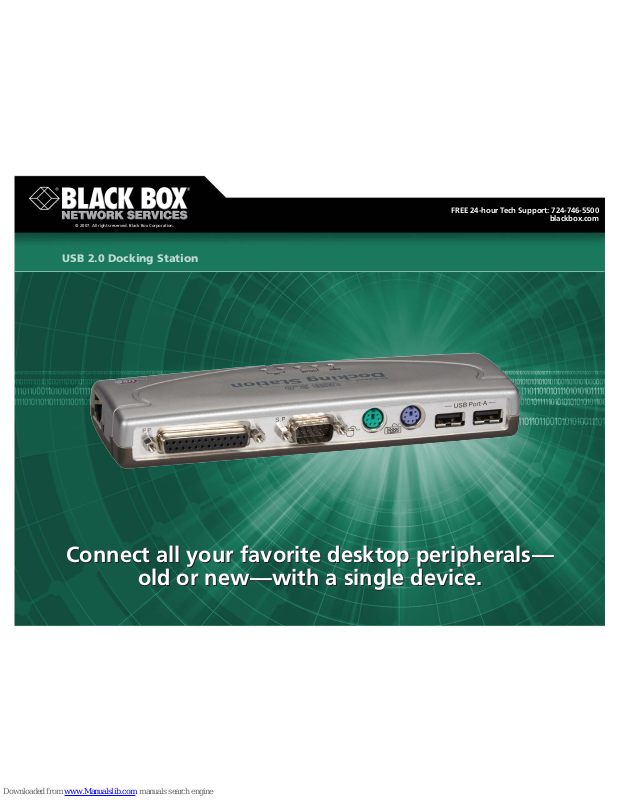

USB 2.0 Docking Station

© 2007. All rights reserved. Black Box Corporation.

FREE 24-hour Tech Support: 724-746-5500

blackbox.com

2 of 3

8/17/2007
#26794

724-746-5500 blackbox.com

FEATURES

• Connect multiple USB 2.0 or 1.1 devices
to your computer.

• Attach a PS/2

®

keyboard and mouse, an
IEEE 1284 parallel printer, a serial device,
and an Ethernet or a Fast Ethernet
device to your computer.

• Transfers data at rates up to 480 Mbps.

• Supports two modes: bus-powered and
self-powered.

Typical application

OVERVIEW

The USB 2.0 Docking Station enables you to connect all
your favorite desktop peripherals with a single device. Use any
of your peripherals, from parallel to PS/2

®

to USB, with faster
throughput without the loss in speed. The docking station is
ideal for both desktop and laptop users.

USB 2.0 Docking Station

(IC662A)

Laptop or PC

Scanner

Joystick

Keyboard

Printer

Modem

Mouse

TECH SPECS

Operating Systems Supported — Windows 98 SE/Me/XP or Windows 2000
Speed (Maximum) — 480 Mbps
CE Approval — Yes
Connectors — Computer: (1) USB 2.0 Type B F;

Peripherals: (2) USB Type F;
Keyboard and mouse: (2) 6-pin mini-DIN F
Serial: (1) DB9 M;
Parallel: (1) DB25 F;
Network: (1) RJ-45

Power — From the USB bus or from the included 100–240-VAC, 50-60-Hz

autosensing power adapter
