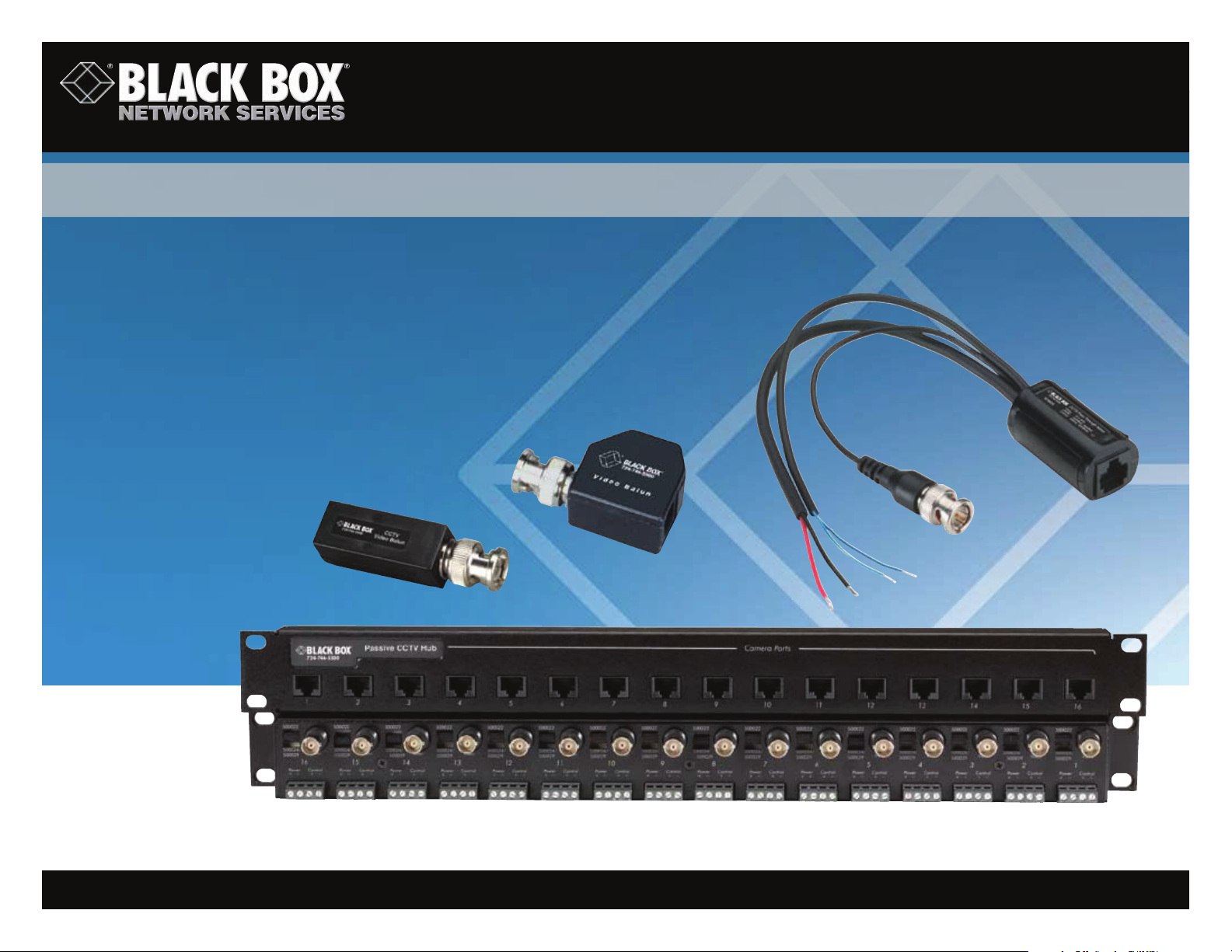

CCTV Passive Hubs and Baluns
Send video and/or audio
across ordinary CAT5 cable!
0118 965 6000 | www.blackbox.co.uk
#26520
1 of 3
Page 2
FEAT URE S
» Use CAT5 cable to connect audio/video
equipment.
» Transmit colour video up to 2200 feet
(670.6 m) or black-and-white video
up to 2500 feet (762 m).
» Use the CCTV Passive Hub to send video
over one 4-pair CAT5 cable.
» CCTV Power-Through Video Baluns are
available with RJ-45 or screw terminal
connectors.
OVERVIEW
Coaxial video cable is expensive. The farther you have to run it,
the bigger the bite it takes out of your budget.
isted-pair cable, on the other hand, is more economical. But
Tw
its impedance and signal characteristics dier from those of coax.
You can’t just attach it directly to video inputs and outputs.
The CCTV Passive Hubs and CCTV Video or Audio Baluns translate
your video-only, audio-only, or video-and-audio signals for
transmission over twisted pair.
CCTV Passive Hubs (IC562A–IC563A)
The hubs support NTSC, PAL, and SECAM
models are available: one with RJ-45 and coax connectors (IC562A)
and another with RJ-45 and 2-pole screw terminal twisted-pair
connectors (IC563A).
These 1U-high rackmount hubs work with the CCTV Mini Coax
(IC451A) and Passthrough (IC452A) Baluns.
The hubs channel video—plus remote power and 2-wire pan/tilt/
zoom (PTZ) control—over one 4-pair CAT5 cable.
Use the hubs to manage security cameras and other
devices in large installations.
CCTV Video Balun, 1-Way, Video Only (IC440A)
This balun converts a single Composite baseband video signal
(such as NTSC, PAL, and SECAM) from 75-ohm coax cable to UTP
cable. The one-way, video-only connection is ideal for connecting
security cameras.
CCTV Video Balun (IC444A)
Use a pair of CCTV Video Baluns to transmit Closed-Circuit TV
(CCTV) video signals over a single CAT3 or CAT5
has 2-position terminal screw locks for connection to the twisted-pair
cable.
CCTV Balun, Mini Coax (IC451A)
A pair of these baluns links twisted-pair cable between coax
devices. Typical applications include closed-circuit cameras, DVRs,
monitors, and CCTV equipment.
video standards. Two
security
cable. This balun
CCTV Balun, Passthrough (IC452A)
Send CCTV, low-voltage power, and 2-wire pan/tilt/zoom (PTZ)
signals over twisted pair between
CCTV Power-Through Video Baluns (IC560A–IC561A)
These baluns enable you to transmit video and remote power via a
single 4-pair CAT3 or CAT5 cable. With them, you eliminate the need
for multiple cables and provide more ecient cabling in CCTV security
and surveillance environments.
Two versions are available. The IC560A features an RJ-45
connector, and the IC561A comes with a 2-pole scre
Both baluns transmit baseband, NTSC, PAL, or SECAM video
at up to 2500 feet (762 m), plus they support 24-VAC power via
3 twisted pairs at up to 518 feet (157.9 m) when using 5 VA.
We recommend using a Class II power supply.
CCTV Quad Video Balun (IC564A)
Send up to four Composite video signals up to 2200 feet (670.6
m) or Component video up to 500 feet (152.4 m) using ordinary CAT5
cable. Supported video
and 480i/p Component.
CCTV Quad Audio Balun (IC565A)
Transmit up to four analogue audio signals up to 5000 feet (152.4 m)
using regular CAT5 cable.
CCTV Component Video/Digital Audio Balun (IC566A)
Link HDTV at long distances using CAT5 UTP cable. This balun
supports Component 480i/p, 720p, and 1080i/p video standards
and digital audio.
types include Composite, NTSC, PAL, SECAM,
two RS-232 or RS-422 coax devices.
w terminal.
#26520
0118 965 6000 www.blackbox.co.uk
2 of 3
Page 3

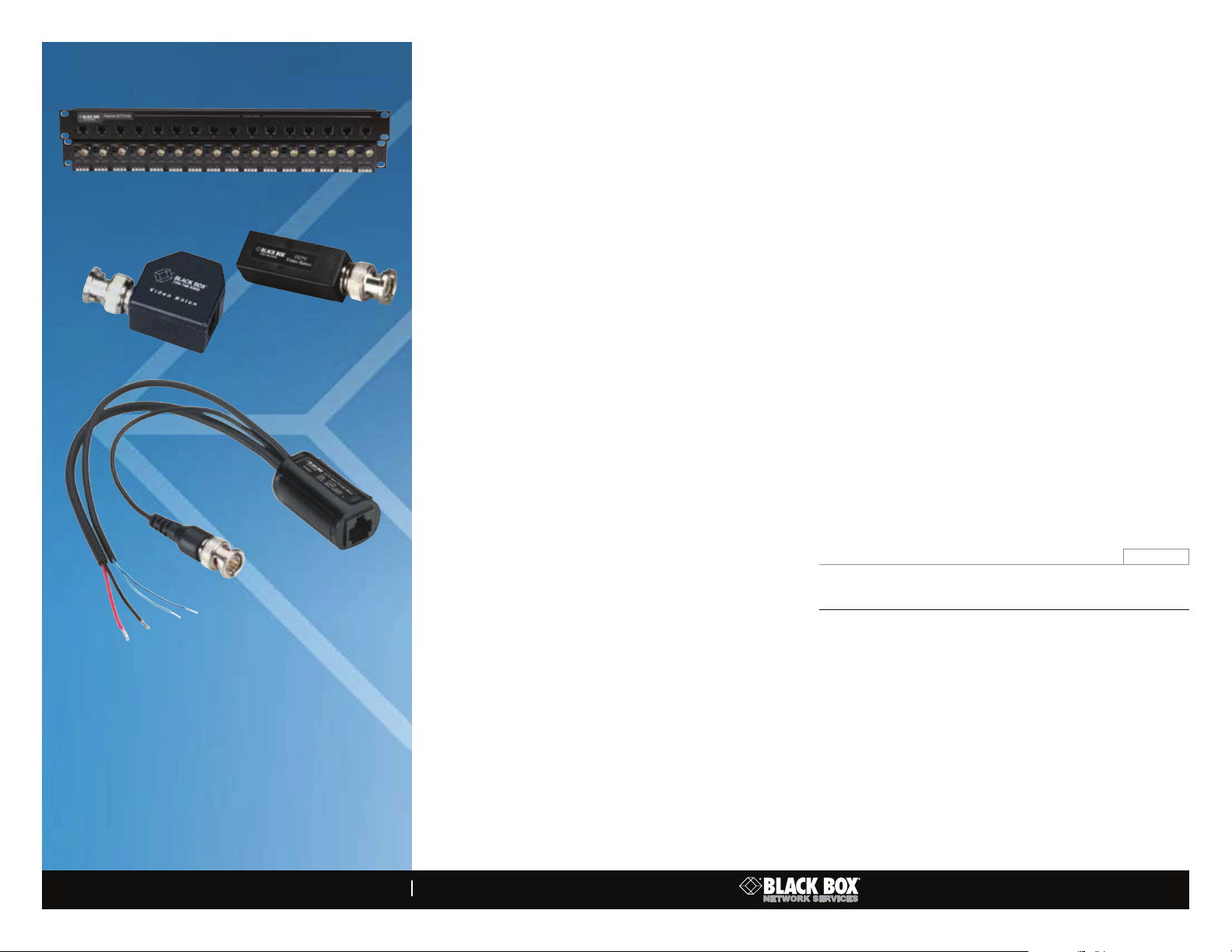

IC440A
IC444A
IC562A
Bandwidth — IC560A–IC564A, IC566A: Video: DC to 8 MHz;
IC440A, IC444A: Video: DC to 8 MHz, Audio: 20 Hz to 50 kHz;
IC451A: DC to 25 MHz;
IC452A: 0 Hz to 8 MHz;
IC565A: 60 Hz to 20 kHz
Common-Mode Rejection — Greater than 40 dB over the frequency range
Compliance — FCC Part 15 Class B; IC Class/classe B; CISPR Pub. 22 Class B
Composite Video Standard — IC562A–IC563A, IC440A, IC444A, IC451A–
IC452A, IC561A: Composite video, NTSC,
IC560A, IC564A–IC566A: Baseband video, NTSC, PAL, SECAM
Distance — IC562A–IC563A: Composite video: 2500 ft. (762 m),
Power: 350 ft. (106.7 m), PTZ: 4000 ft. (1219.2 m);
IC440A, IC444A: Colour video: 2200 ft. (670.6 m), Black-and-white video:
2500 ft. (762 m);
IC451A–IC452A, IC560A–IC561A: Colour video: CAT3: 1200 ft. (365.8 m),
CAT5: 2200 ft. (670.6 m), Black-and-white video: CAT3: 1500 ft.
(457.2 m), CAT5: 2500 ft. (76
(based on a 10% voltage drop at the camera), 5 VA: 518 ft. (157.9 m),
10 VA: 259 ft. (78.9 m), 20 VA: 130 ft. (39.6 m), 30 VA: 86 ft. (26.2 m);
IC564A: Composite video: 2200 ft. (670.6 m), Component video: 500 ft.
(152.4 m);
IC565A: Analogue audio: 5000 ft. (1524 m);
IC566A: Component video: 1000 ft. (304.8 m), Digital audio: 600 ft.
(182.9 m)
Impedance — Coaxial connections: 75 ohms;
UTP connections: 100 o
Phone connections: 600 ohms;
S-Video connections: 75 ohms
Insertion Loss — IC562A–IC563A, IC440A, IC444A, IC451A–IC452A,
IC560A–IC561A: Less than 2 dB per pair over the DC-to-8-MHz
frequency range;
IC564A–IC565A: 3 dB per pair over the DC-to-8-MHz frequency range;
IC566A: Per pair (Video): Greater than 15 dB over the DC-to-8-MHz
frequency range; Per pair (Audio): Greater than 15 dB over the
DC-to-8-MHz frequency range
hms;
PAL, or SECAM;
2 m), Power: 24 VAC via (3) twisted pairs
T E C H S P E C S
Return Loss — Greater
RF Input (Maximum) — 1.1 volts at 60 Hz
Connectors — IC562A: (16) RJ-45, (16) BNC F, (16) 2-pole screw terminals
for power, (16) 2-pole screw terminals for control;
IC563A: (16) RJ-45, (16) 2-pole screw terminals for twisted-pair,
(16) 2-pole screw terminals for power, (16) 2-pole screw terminals
for control;
IC440A, IC444A: (1) RJ-45, (1) BNC M;
IC451A: (2) screw terminals, (1) B
coax lead;
IC452A: (1) RJ-45, (1) BNC M on an 8" (20.3-cm) mini coax lead (power),
(1) 2-wire 24 AWG twisted-pair lead (PTZ control);
IC560A: (1) RJ-45, (1) BNC M, (1) 2-wire 18 AWG lead;
IC561A: (1) 2-pole screw terminal,(1) BNC M, (1) 2-wire 18 AWG lead;
IC564A–IC565A: (1) RJ-45, (1) RCA F;
IC566A: (1) RJ-45, (3) RCA M video, (1) RCA F audio
Temperature Tolerance — Operating: 32 to 131°F (0 to 55°C);
Storage: -4 to +185°F (-20 to +85°C)
Humidity Tolerance — Up to 95%, noncondensing
Power — From the interface
Size — IC562A–IC563A: 1.75"H x 19"W x 1.5"D (4.4 x 48.3 x 3.8 cm);
IC440A: 1"H x 0.8"W x 1.8"D (2.5 x 2 x 4.6 cm);
IC444A: 0.6"H x 0.6"W x 2.3"D (1.5 x 1.5 x 5.8 cm);
IC451A: 0.8"H x 1"W x 1.3"D (2 x 2.5 x 3.3 cm);
IC452A: 1"W x 1.9"L (2.5 x 4.8 cm);
IC560A–IC561A: 1.9"L x 1" diameter (4.8 x 2.5 cm) plus 8" (20.3-cm)
video lead and 10"
IC564A–IC566A: 2.4"H x 2.3"W x 1"D (6.1 x 5.8 x 2.5 cm)
than 15 dB over the frequency range
NC M on an 8" (20.3-cm) mini
(25.4-cm) power lead;
#26520
Item Code
IC452A
CCTV Passive Hub
Coax
Twisted-Pair
IC562A
IC563A
CCTV Baluns
Video Balun, 1-Way, Video Only
Video Balun
Mini Coax
Passthrough
IC440A
IC444A
IC451A
IC452A
Power-Through Video Baluns
RJ-45
Screw Terminal
Quad Video Balun
Quad Audio Balun
Component Video/Digital Audio Balun
0118 965 6000 www.blackbox.co.uk
IC560A
IC561A
IC564A
IC565A
IC566A
