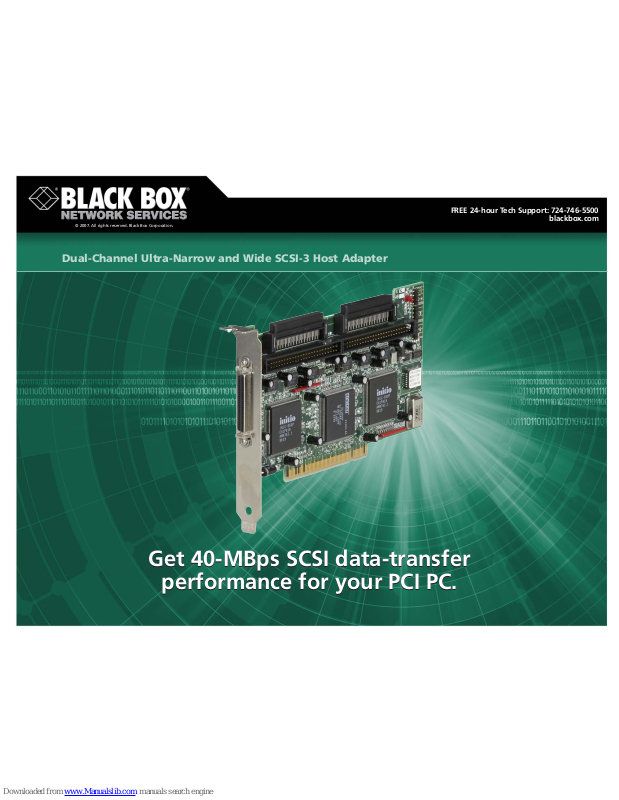

Get 40-MBps SCSI data-transfer
performance for your PCI PC.
Get 40-MBps SCSI data-transfer
performance for your PCI PC.
Dual-Channel Ultra-Narrow and Wide SCSI-3 Host Adapter
© 2007. All rights reserved. Black Box Corporation.
FREE 24-hour Tech Support: 724-746-5500
blackbox.com
2 of 3
FEATURES
• SCSI data rates up to 40 MBps.
• Supports most major operating
systems.
• Plug and play.
• 32-bit PC↔adapter data transfer
up to 133 MBps.
• SmartSCSI setup utility in firmware,
plus a number of software drivers
are included.
You can attach both internal and external peripherals to the adapter,
so your host PC will have high-speed SCSI access inside and out.
OVERVIEW
SCSI peripherals—hard drives, CD-ROM or DVD drives,
even printers and scanners—are fast and powerful. Maybe
you’d like to add one or two or more to your IBM PC compatible computer system, but thinking about what a hassle that
could be makes you really nervous….
Don’t sweat it—Black Box comes to the rescue again!
Our SCSI-3 Host Adapter is fully compliant with PC PCI bus
and SCSI bus specifications, so it isn’t likely to cause incompatibility errors like some cheap cards do. It can interoperate
with a wide variety of operating systems, including Microsoft
®
Windows®95/98/Me, Windows 2000, or Windows NT®; Novell
®
NetWare®; IBM®OS/2®; Linux®, Unixware®, and SCO®UNIX®.
The PCI card is plug-and-play for simple, automatic selfconfiguration. It comes with a potent setup utility built into its
firmware, so you can customize it for a variety of applications.
The Dual-Channel Ultra-Narrow and Wide SCSI-3 Host
Adapter can actually control two SCSI buses at the same time.
You can attach as many as 15 devices to any 1 or 2 of the 3
Channel A ports (Wide micro D68 internal, Narrow 50-pin
internal, and Narrow micro D50 external), and you can attach
up to 15 more devices to either one of or both of its internal
Channel B ports (Wide micro D68 and Narrow 50-pin
internal).
2/12/2007
#20321
724-746-5500 blackbox.com
Dual-Channel Ultra-Narrow and Wide
SCSI-3 Host Adapter
External SCSI cables
(not included but available)
Internal SCSI ribbon cable
(included)
External hard drive
(terminated)
External hard drive
(unterminated)
Internal hard drive
(unterminated)
Internal hard drive
(terminated unless the cable
itself is terminated)
External CD-R drive
(unterminated)
3 of 3
TECH SPECS
Bus Used — PCI
Cable Required — High-quality double-shielded
Compliance — CE; FCC Part 15 Subpart B Class B, IC Class/classe B
Data Rate (Maximum) —
External, internal narrow:
Sync: 20 MBps;
Async: 5 MBps;
Internal wide:
Sync: 40 MBps;
Async: 10 MBps
Other Hardware Resources Used —
Automatically self-configures interrupt, I/O address, BIOS address, etc.
(plug-and-play compatible)
Port Used — None (does not occupy any COM or LPT port)
Protocol — Synchronous or asynchronous
SCSI Bus Length (Maximum) —
3 m (9.8 ft.) with up to (4) devices attached; 1.5 m (4.9 ft.)
with up to (7) Narrow or (15) Wide devices attached
SCSI Disconnect/Reconnect — Enabled or disabled (user-selectable)
SCSI Parity — Enabled or disabled (user-selectable)
Standard — PCI 2.1
System Hardware Required — PCI slot
Transfer Rate in PCI Burst Mode (Maximum) — 133 MBps
User Controls — (1) or (2) jumpers for forcing termination;
firmware configuration utility; driver software
Interface — Ultra SCSI (SCSI-3):
External: Narrow;
Internal: Narrow and Wide
Connectors (LED) —
(3) 4-pin M for attachment to a CPU’s drive-activity LED(s):
(1) Activated by data transmission anywhere on the Channel A bus;
(1) Activated by data transmission anywhere on the Channel B bus;
(1) Activated by data transmission anywhere on either bus
Connectors (SCSI) —
External: (1) high-density micro D50 F;
Internal: (2) high-density micro D68 F, (2) 50-pin IDC header M
Power — +5 VDC from PC bus
Size — 3.8"H x 6.3"D (9.7 x 16 cm)
Weight — 0.2 lb. (0.1 kg)
2/12/2007
#20321
724-746-5500 blackbox.com
✦
The Host Adapter card
✦
Drivers on diskette for all major operating systems
✦
A user’s manual
✦
Internal ribbon cable (one connector is for the adapter,
the rest are for internal peripherals):
(1) three-connector Narrow [50-pin] and
(1) three-connector Wide [68-pin], both unterminated
WHAT‘S INCLUDED
Item Code
Dual-Channel Ultra-Narrow and Wide
SCSI-3 Host Adapter IC513C
For information about our wide range of SCSI cables, terminators,
and other accessories, refer to our catalog or blackbox.com.
• External SCSI cabling
• SCSI devices
• SCSI terminators
• Wide-to-Narrow SCSI adapters
• A SCSI tester
YOU MAY ALSO NEED
