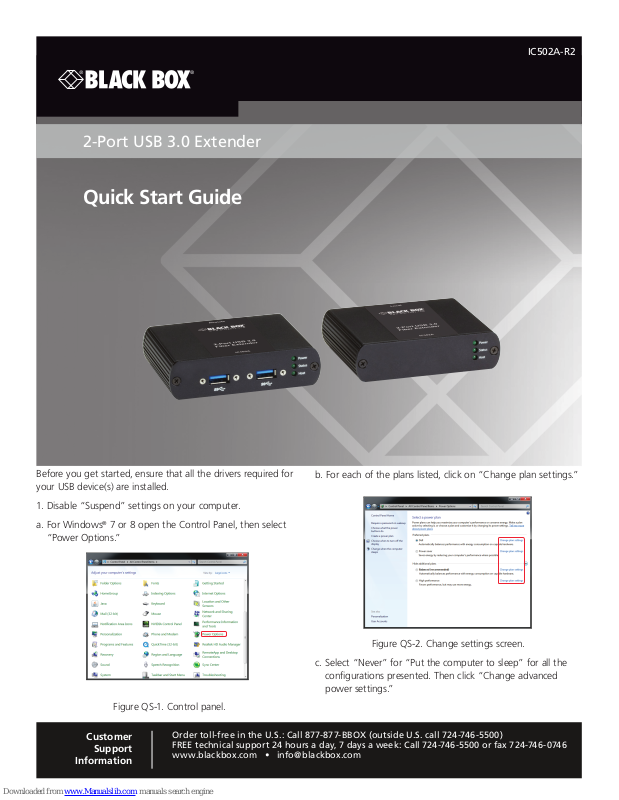

Black Box IC502A-R2 Quick Start Manual

2-Port USB 3.0 Extender

Quick Start Guide

IC502A-R2

Before you get started, ensure that all the drivers required for
your USB device(s) are installed.

1. Disable “Suspend” settings on your computer.

a. For Windows® 7 or 8 open the Control Panel, then select

“Power Options.”

Figure QS-1. Control panel.

Customer

Support

Information

Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax [phone]
www.blackbox.com • [e-mail]

b. For each of the plans listed, click on “Change plan settings.”

Figure QS-2. Change settings screen.

c. Select “Never” for “Put the computer to sleep” for all the

configurations presented. Then click “Change advanced
power settings.”

Black Box Tech Support: FREE! Live. 24/7.

3. Power the Remote Extender with the included 24 VDC

Tech support the

adapter and tighten the locking ring.

way it should be.

Figure QS-3. “Change settings for the plan” screen.

d. Expand “USB settings.” Expand “USB selective suspend

setting.” Select “Disabled” for all options listed.

Figure QS-4. “Expand USB settings” screen.

2. Place the Remote Extender where desired and attach the
USB 3.0 device(s) to the Remote Extender.

Remote Extender

(rear view)

Figure QS-6. Power the remote extender.

4. Directly connect the Local and Remote Extenders with a
duplex LC-LC crossover multimode fiber cable (not included).

Remote Extender

(rear view)

Local Extender

(rear view)

OM3 Multimode

fiber

Figure QS-7. Connect local and remote extenders.

NOTE: The maximum distance between local and remote

extenders is 328 feet (100 m), although storage devices
may only achieve 165 feet (50 m).

5. Connect the Local Extender to a computer with the included
USB cable.

Remote Extender

(front view)

NOTE: USB3 Vision locking

connectors supported.

Figure QS-5. Connect the USB device to the Remote Extender.

About Black Box

Black Box provides an extensive range of networking and infrastructure products. You’ll find everything from cabinets and racks
and power and surge protection products to media converters and Ethernet switches all supported by free, live 24/7 Tech support
available in 60 seconds or less.

© Copyright 2016. Black Box Corporation. All rights reserved. Black Box® and the Double Diamond logo are registered trademarks of BB Technologies, Inc. Windows is a registered
trademark of Microsoft Corporation. Any third-party trademarks appearing in this manual are acknowledged to be the property of their respective owners.

IC502A-R2 Quick Start Guide, version 3

Computer

Figure QS-8. Connect the local extender to a computer.

NOTE: Power adapter is not required at the local extender for

operation.

NOTE: Product does not support USB 1.1 and 2.0 devices.
