June 2010
February 2010
MT1000A-85-R4
IC402A

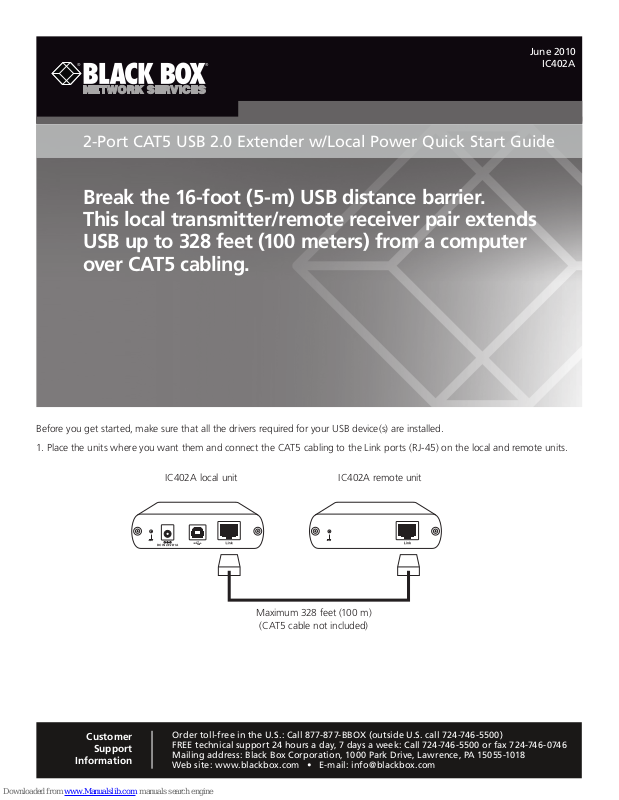

2-Port CAT5 USB 2.0 Extender w/Local Power Quick Start Guide
Break the 16-foot (5-m) USB distance barrier.
This local transmitter/remote receiver pair extends
USB up to 328 feet (100 meters) from a computer
over CAT5 cabling.
Before you get started, make sure that all the drivers required for your USB device(s) are installed.
1. Place the units where you want them and connect the CAT5 cabling to the Link ports (RJ-45) on the local and remote units.
IC402A local unit
Maximum 328 feet (100 m)
(CAT5 cable not included)
IC402A remote unit
Customer
Support
Information
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: w ww.blackbox.com • E-mail : [email protected]
Page 2
Trademarks Used in this Manual
Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc.
Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners
2. Connect the local unit to the AC adapter.
AC adapter
IC402A local unit
3. Connect the local unit to the computer.
IC402A
local unit
PC
NOTE: The power adapter is not required at the remote unit for normal operation.
4. Attach the USB device(s) to the remote unit.
IC402A remote unit
USB
device
FREE, live, 24/7 Tech Support is just 20 seconds away.
©
Copyright 2010. All rights reserved.
