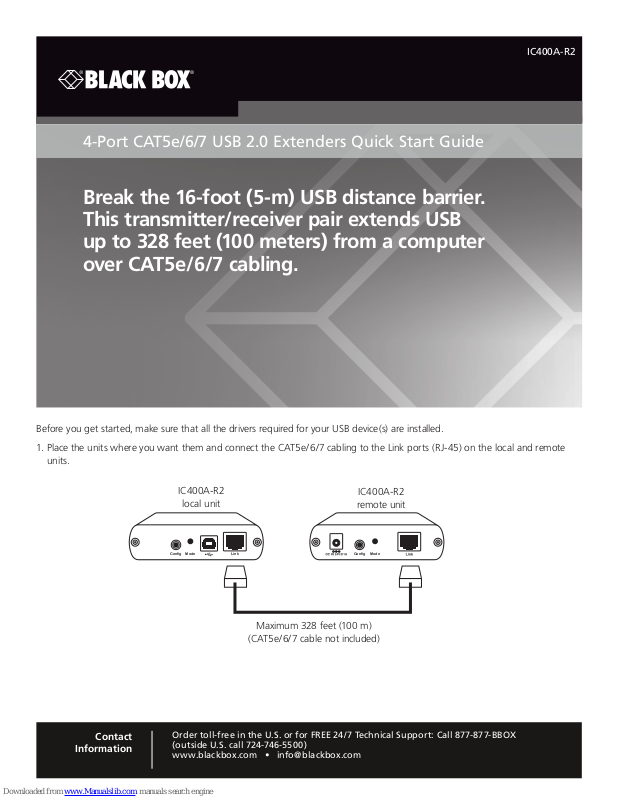

IC400A-R2
February 2010
4-Port CAT5e/6/7 USB 2.0 Extenders Quick Start Guide
Break the 16-foot (5-m) USB distance barrier.
This transmitter/receiver pair extends USB
up to 328 feet (100 meters) from a computer
over CAT5e/6/7 cabling.
MT1000A-85-R4
Before you get started, make sure that all the drivers required for your USB device(s) are installed.

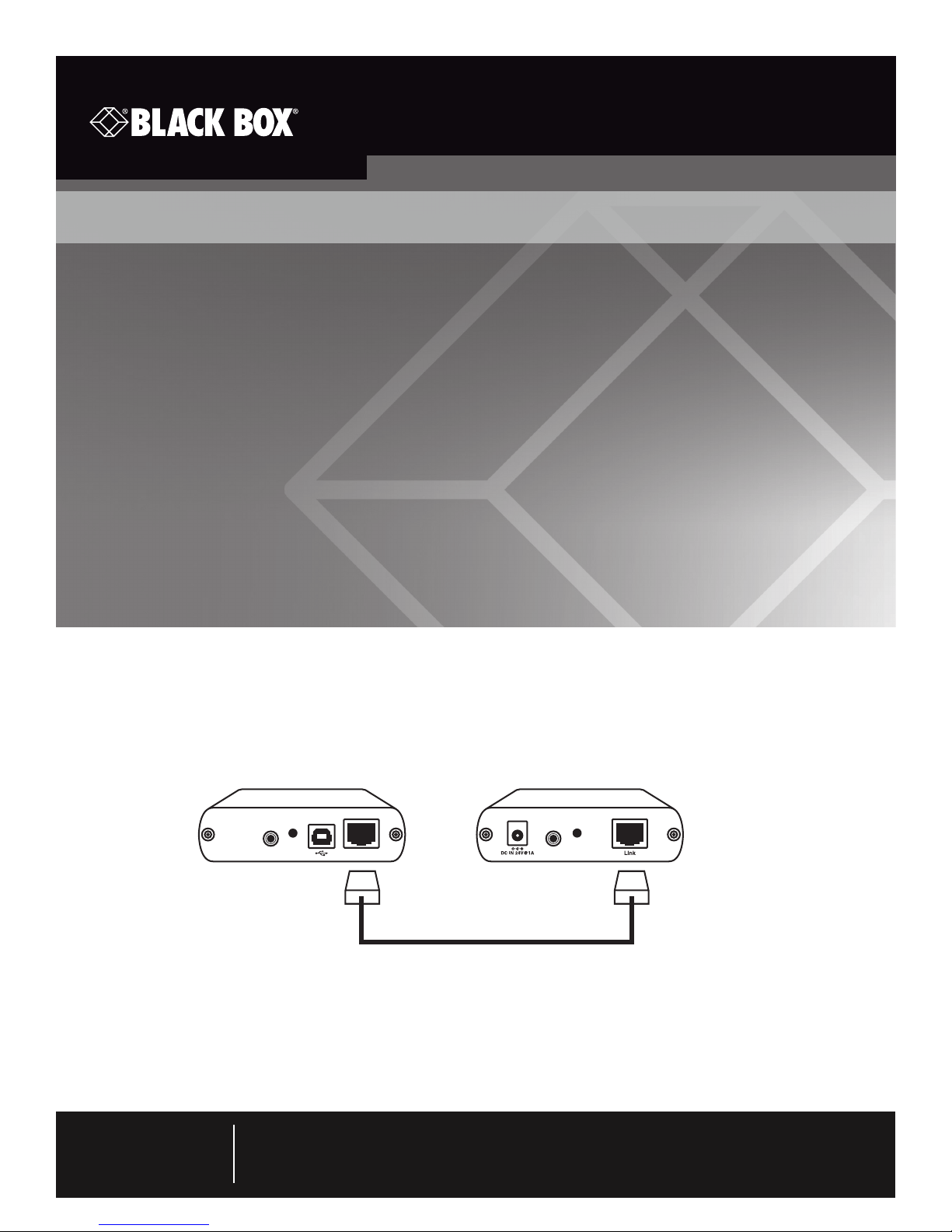

1. Place the units where you want them and connect the CAT5e/6/7 cabling to the Link ports (RJ-45) on the local and remote
units.
IC400A-R 2
local unit
LinkModeConfig
Maximum 328 feet (100 m)
(CAT5e/6/7 cable not included)
IC400A-R 2
remote unit
ModeConfig
Contact
Information
Order toll-free in the U.S. or for FREE 24/7 Technical Support: Call 877-877-BBOX
(outside U.S. call 724-746-5500)
www.blackbox.com • [email protected]
Page 2
Trademarks Used in this Manual
Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc.
Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners

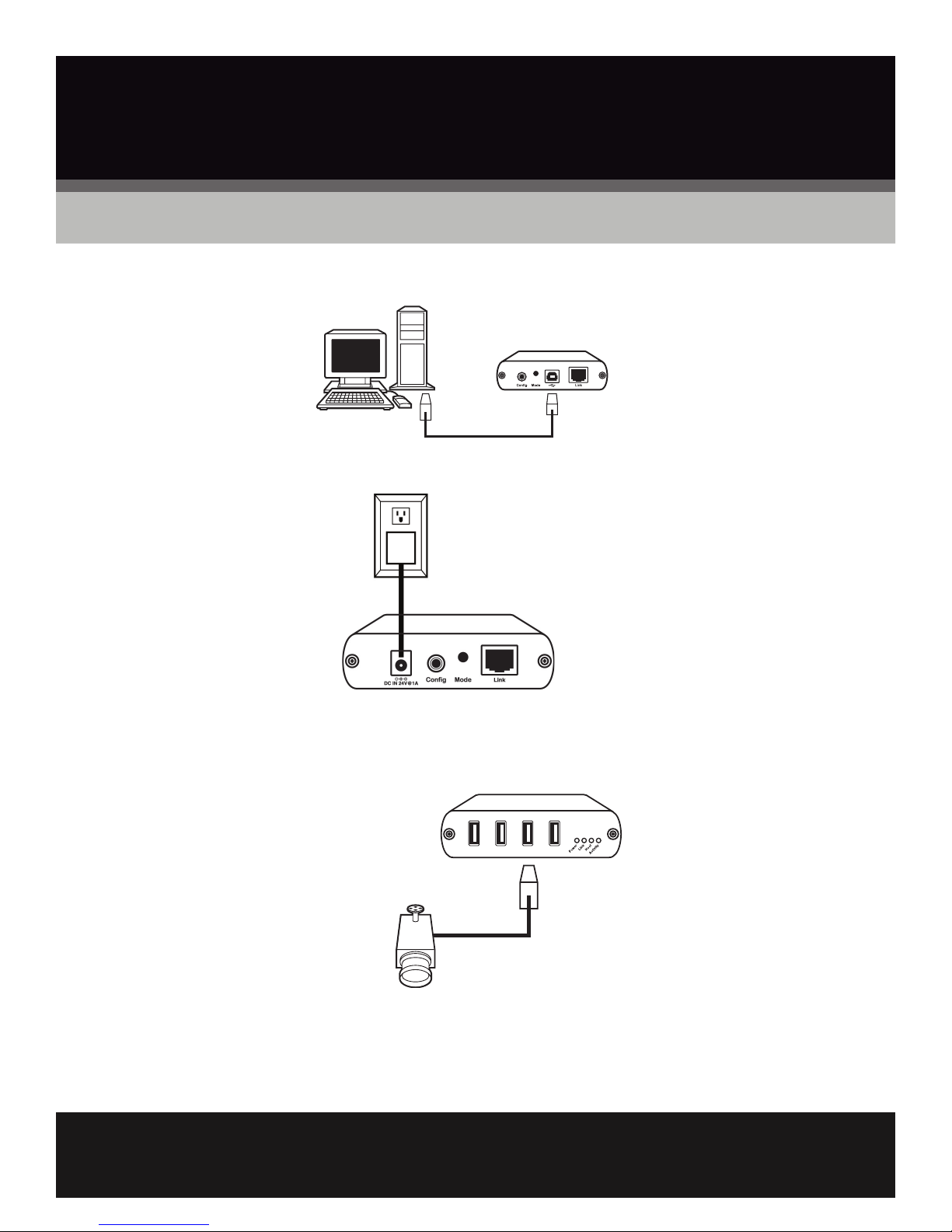

2. Connect the local unit to the computer.
IC400A-R 2
local unit
PC
3. Connect the remote unit to the AC adapter.
4. Attach the USB device(s) to the remote unit.
USB
device
AC adapter
IC400A-R2 remote unit
IC400A-R2 remote unit
NOTE: If grounding the USB extenders is required, refer to the user manual on blackbox.com. To download the manual, enter IC400A-R2 in the
search box, then click on IC400A-R2 in the product results page. Then click on the Support tab and select the IC400A-R2 user manual
to download.
