Black Box IC250C, IC250C-LP Specifications

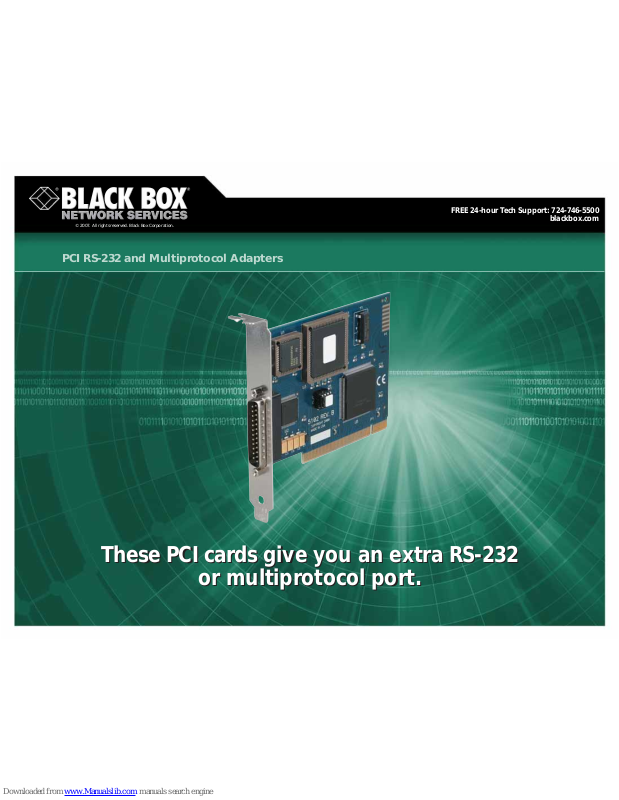

These PCI cards give you an extra RS-232

or multiprotocol port.

These PCI cards give you an extra RS-232

or multiprotocol port.

PCI RS-232 and Multiprotocol Adapters

© 2007. All rights reserved. Black Box Corporation.

FREE 24-hour Tech Support: 724-746-5500

blackbox.com

2 of 2

9/20/2007
#25539

724-746-5500 blackbox.com

FEA TURES

• Add a single-channel programmable
serial interface.

• Each card supports an RS-232 or
RS-232/422/485/530/530A/V.35 interface.

• Choose RS-232 sync only or
multiprotocol sync/async.

• Low-profile RS-232 sync card available.

• Ideal for Fractional T1, ISDN, leased-line,
and other digital applications.

• Drivers and software developer’s toolkit
included.

OVERVIEW

The PCI RS-232 and Multiprotocol Adapters provide the PC
with a single-channel RS-232 or multiprotocol serial interface
using the Zilog Z85230 (ESCC) chip. These chips are suitable
for the most popular communication protocols including
HDLC/SDLC, X.25, bisync, monosync, sync, and async. Contact
Black Box Technical Support for the latest drivers.

IC250C

Provides speeds up to 128 kbps, and features one channel
for sync/async communications. Supports HDLC/SDLC, X.25,
bisync, monosync, and sync/async.

IC250C-LP

Supports sync speeds up to 128 kbps, plus its MD1 low
profile fits most newer PCs. Its universal bus is compatible
with 3.3- or 5-volt systems.

TECH SPECS

Communications Chip — Zilog™Z85230
Protocol — IC250C: HDLC/SDLC, X.25, bisync, monosync, sync/async;

IC250C-LP: Sync only

Speed (Maximum) — 128 kbps
MTBF — Greater than 150,000 hours
Interface — IC250C: RS-232/422/485/530/530A/V.35;

IC250C-LP: RS-232

Connectors — (1) DB25 M
Indicators — None
Temperatur e Tolerance —Operating: 32 to 122°F (0 to 50°C);

Storage: -4 to +158°F (-20 to +70°C)

Humidity — 10 to 90%, noncondensing
Power — From the PCI slot: IC250C: +5 VDC; IC250C-LP: 3.3 or 5 VDC;

Rating: 350 mA

Size — IC250C: 3.5"H x 4.75"L (8.9 x 12.1 cm);

IC250C-LP: 2.5"H x 4.7"L (6.4 x 11.9 cm)

Item Code

PCI RS-232 and Multiprotocol Adapters

RS-232/422/485/530/530A/V.35, Sync/Async IC250C
RS-232, Sync, Low Profile IC250C-LP

For optimum performance and a 20% savings, order…

RS-232 Cable, 25-Conductor, Male/Female ECM25C
V.35 Interface Cable, Male/Female EYN450
RS-530 Cable, Male/Female EVN530
DB37 Interface Cable, Male/Female EDN37J
RS-449 to RS-530 Cable, DB37 Male/DB25 Female EDN47J

You may also need…

V.35 Gender Changer, V.35 Male/DB25 Female FA059-R2
