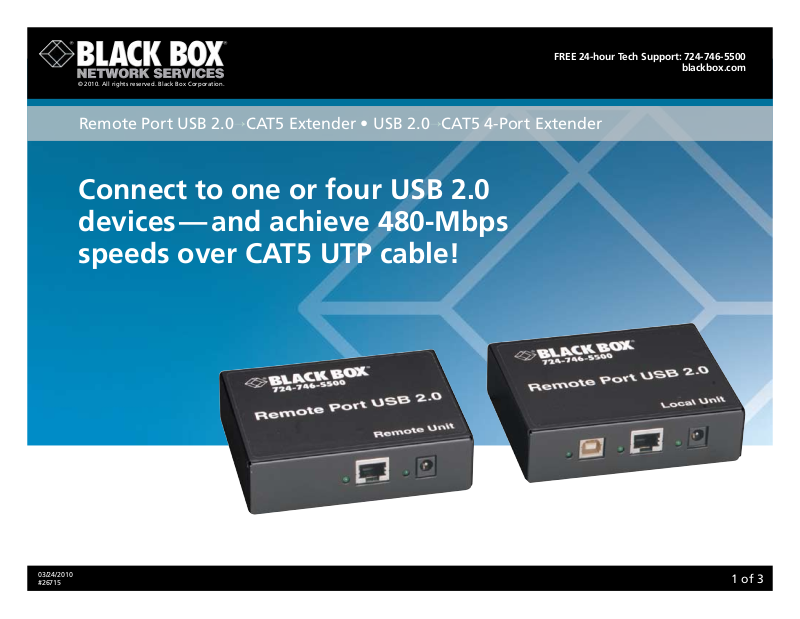

Remote Port USB 2.0→CAT5 Extender • USB 2.0→CAT5 4-Port Extender
Connect to one or four USB 2.0
devices — and achieve 480-Mbps
speeds over CAT5 UTP cable!
03/24/2010
#26715
1 of 3
724-746-5500 blackbox.com
FE ATURES
» Extend your range by 50 meters and
supply power to USB devices over
inexpensive CAT5 cabling!
» Connect to USB 2.0 devices such as CD/DVD
burners, scanners, digital cameras, and more.
» Extend USB 2.0 and 1.1 devices
in the same application.
» Compatible with Windows, Macintosh,
and Sun operating systems.
» Deliver enough power to the remote unit
to support most USB devices.
» Wallmount power adapters also included
for local and remote units.
Extend USB 2.0 communications over inexpensive CAT5 copper cable!
Remote Port USB 2.0
CAT5 Ex tender, Loc al (IC247A)
PC Workstation
→
CAT5 Cable, up to 164 ft.
(50 m)
Remote Port USB 2.0 →
CAT5 Ex tender, Rem ote (IC247A)
USB 2.0 Hub
(I C147A- R2)
DVD Burner
USB 2.0 Cable
(USB05)
Digital Video Camera
OVERVIEW
Our Remote Port USB 2.0→CAT5 Extender (IC247A) enables you
to extend USB 2.0 and 1.1 connections up to 50 meters (164 ft.) from
your workstation over CAT5 UTP cable. That makes it great for
extension applications using Hi-Speed USB 2.0 devices like CD/ DVD
burners, scanners, and digital cameras. In addition, it supports fullspeed USB 1.1 devices like disk drives as well as low-speed 1.1 devices
such as joysticks.
For flexibility, you can use the extender’s local or remote unit
to connect up to four standard USB hubs—in any order—in a single
chain. The extender is truly plug-and-play and compatible with
Windows
adapters. USB devices attached to the remote unit receive 500 mA
of power.
(164 ft.) with the USB 2.0
USB hubs on either the local or remote unit.
wallmount adapters. A maximum of 4 x 500-mA power is available
to USB devices connected to the remote unit.
®
, Macintosh®, and Sun® operating systems.
Power is supplied to the local and remote units via wallmount
Connect up to four USB 2.0 and 1.1 devices up to 50 meters
→CAT5 4-Port Extender (IC248A).
You can also increase the number of devices by using standard
Power is supplied to the local and remote units via 110-VAC
TECh SPECS
Distance (Maximum) — 50 m (164 ft.) over CAT5 UTP
Operating Temperature — 39 to 104°F (4 to 40°C)
Standards — USB 2.0, USB 1.1
USB Device Support — Hi-Speed USB 2.0: 480 Mbps;
Full-Speed USB 1.1: 12 Mbps;
Low-Speed USB 1.1: 1.5 Mbps
CE Approval — Yes
Connectors — Local unit: (1) USB Type B F, (1) RJ- 45;
Remote unit: (1) or (4 ) USB Type A F, (1) RJ -45
Power — From the USB bus: Maximum (1) or (4) 500-mA power available
to USB devices at remote unit;
Also from (2) 110-VAC, 60-Hz adapters for local and remote units;
International versions also available
Size — IC247A local and remote units: 1.4"H x 4.3"W x 3.4"D
(3.6 x 10.9 x 8.6 cm) each;
IC248A local unit: 1.4"H x 4.3"W x 3.4"D (3.6 x 10.9 x 8.6 cm);
Remote unit: 1.5"H x 4.2"W x 4.5"D (3.8 x 10.7 x 11.4 cm)
03/24/2010
#26715
2 of 3
724-746-5500 blackbox.com
Technically Speaking
IC248A
USB.
The Universal Serial Bus (USB) hardware (plug-and-play)
standard makes connecting peripherals to your computer easy.
USB 1.1, introduced in 1995, is the original USB standard.
It has two data rates: 12 Mbps for devices such as disk drives
that need high-speed throughput and 1.5 Mbps for devices such
as joysticks that need much lower bandwidth.
In 2002, a newer specification, USB 2.0, or Hi-Speed USB
2.0, gained wide acceptance in the industry. This version is
both forward- and backward-compatible with USB 1.1.
It increases the speed of the peripheral to PC connection
from 12 Mbps to 480 Mbps, or 40 times faster than USB 1.1!
This increase in bandwidth enhances the use of external
peripherals that require high throughput, such as CD/DVD
What’s included
✦ (1) local unit
✦ (1) remote unit
✦ (2) 110-VAC power adapters
✦ (1) 2-m USB cable
burners, scanners, digital cameras, video equipment, and more.
USB 2.0 supports demanding applications, such as
Web publishing, in which multiple high-speed devices run
simultaneously. USB 2.0 also supports Windows XP through
a Windows update.
An even newer USB standard, USB On-The-Go (OTG), is also
in development. USB OTG enables devices other than a PC to act
as a host. It enables portable equipment—such as PDAs, cell
phones, digital cameras, and digital music players—to connect
to each other without the need for a PC host.
USB 2.0 specifies three types of connectors: the A connect-or,
the B connector, and the Mini B connector. A fourth type of
connector, the Mini A (used for smaller peripherals such as mobile
phones), was developed as part of the USB OTG specification.
Item Code
Remote Port USB 2.0→CAT5 Extender
USB 2.0→CAT5 4-Port Extender
IC 247A
IC248A
03/24/2010
#26715
