Black Box IC1101A, IC1102A, IC1103A User Manual
USER MANUAL
IC1101A, IC1102A, IC1103A
USB TO
SERIAL
ADAPTERS
24/7 TECHNICAL SUPPORT AT 1.877.877.2269 OR VISIT BLACKBOX.COM
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TABLE OF CONTENTS
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
1. SPECIFICATIONS ........................................................................................................................................................................... 3
Specification Comparison Chart ...................................................................................................................................................................3
2. OV ERVIE W ...................................................................................................................................................................................... 4
2.1 Introduction ...............................................................................................................................................................................................4
2.2 Features .................................................................................................................................................................................................... 4
2.3 Hardware Description ..............................................................................................................................................................................4
3. DRIVER INSTALLATION ................................................................................................................................................................ 6

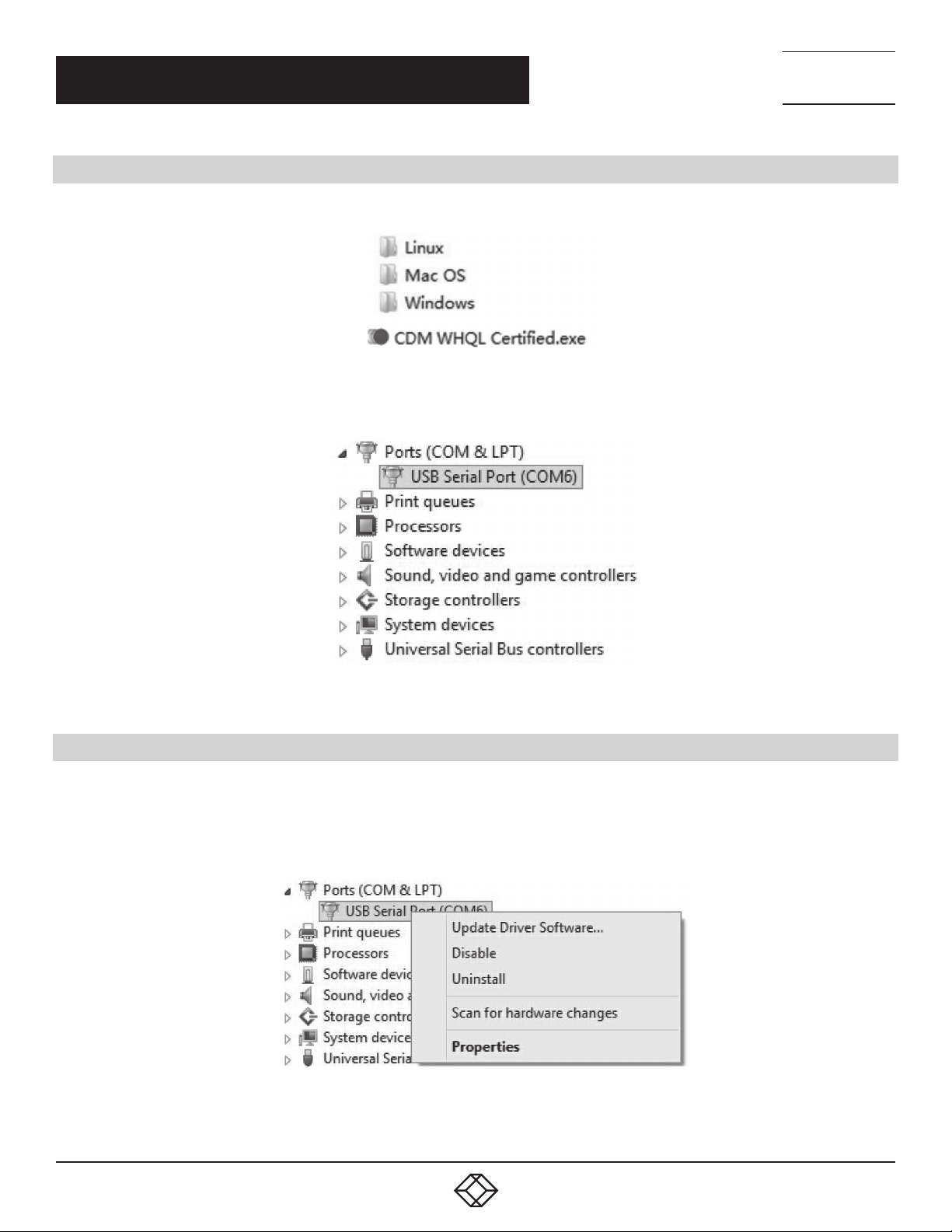

3.1 Driver Installation......................................................................................................................................................................................6

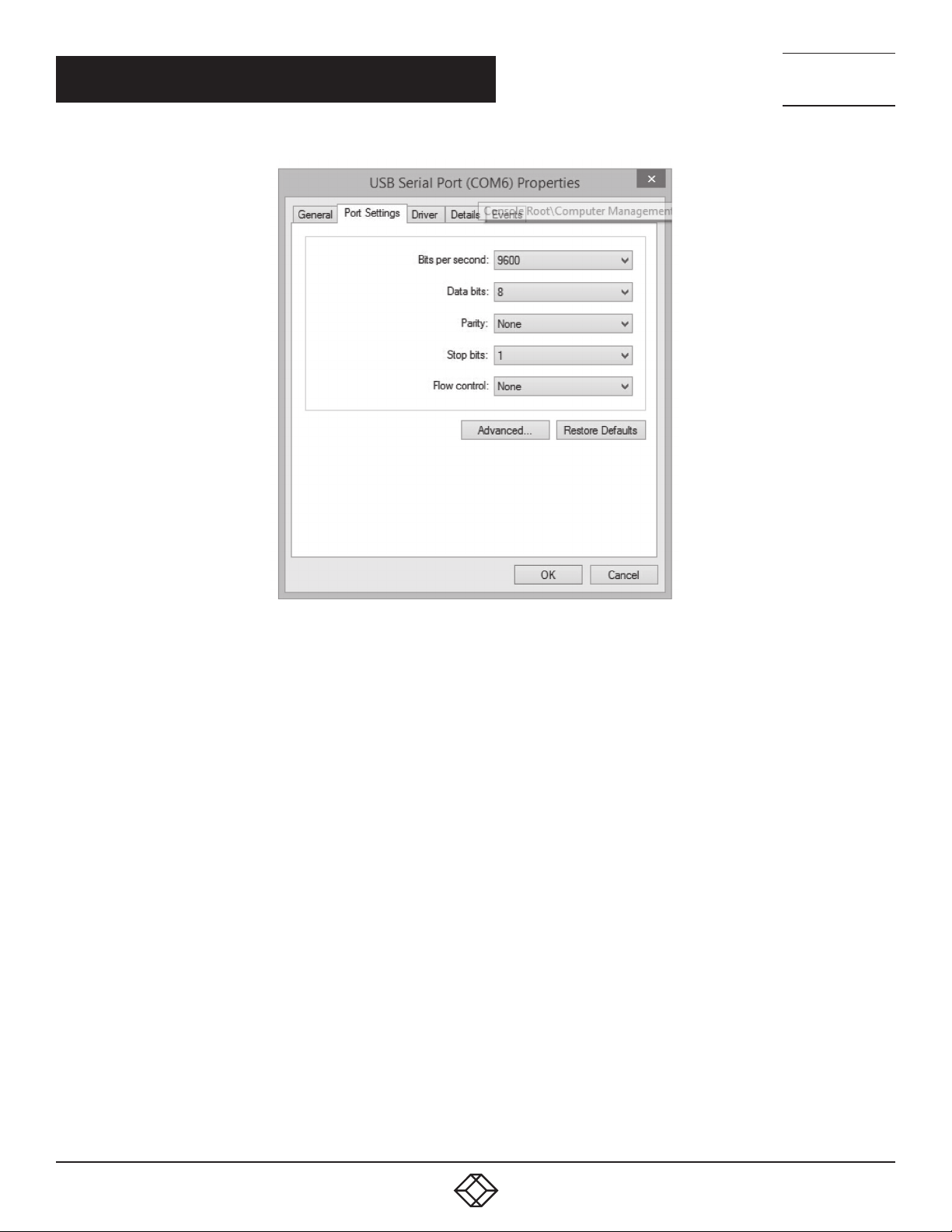

3.2 Serial Communication Settings ..............................................................................................................................................................6
APPENDIX A. REGULATORY INFORMATION .................................................................................................................................. 8
A.1 FCC Statement ......................................................................................................................................................................................... 8
A.2 CE and RoHS ............................................................................................................................................................................................ 8
A.3 NOM Statement ....................................................................................................................................................................................... 9
APPENDIX B. DISCLAIMER/TRADEMARKS ................................................................................................................................. 10
B.1 Disclaimer ............................................................................................................................................................................................... 10
B.2 Trademarks Used in this Manual ............................................................................................................ ..............................................10
2
1. 8 7 7. 8 7 7. 2 2 6 9 BL ACK BOX .COM
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 1: SPECIFICATIONS
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
SPECIFICATION COMPARISON CHART
SPECIFICATION COMPARISON CHART
I C 1101 A I C 110 2 A I C 110 3A
FTDI CHIP FT232R USB UART IC FT232R USB UART IC FT232R USB UART IC
CONNECTORS (1) USB TYPE A MALE, (1) RJ-45 MALE (1) USB TYPE C MALE, (1) RJ-45 MALE (1) USB TYPE C MALE, (1) DB9 MALE
CABLE LENGTH 6 FT. (1.8 M) 6 FT. (1.8 M) 5 FT. (1.5 M)
EEPROM 1024 BI T 1024 BI T 1024 BI T
DATA T R A NS FER R ATES 300 BAUD TO 3 MBAUD (RS-422, RS-485,
RS -232) AT T TL LE VELS
BUFFER RECEIV E: 128 BYTE ;
TR ANS FER: 256 BY TE
COMMUNICATION PARAMETERS SU PPORTS 7 OR 8 DATA B ITS, 1 OR 2
STOP BITS, AND ODD/EVEN/MARK/
SPACE/NO PARIT Y
OPERATING TEMPERATURE 32 TO 131° F (0 TO 55° C) 32 TO 131° F (0 TO 55° C) 32 TO 131° F (0 TO 55° C)
STORAGE TEMPERATURE -40 TO +185° F (-40 TO +85° C) -40 TO +185° F (-40 TO +85° C) -40 TO +185° F (-40 TO +85° C)
DRIVERS SUPPORTED WINDOWS 10 32- OR 64-BIT; WINDOWS 8/8.1 32- OR 64-BIT; WINDOWS 7 32- OR 64-BIT; WINDOWS VISTA AND VISTA 64-BIT;
WINDOWS XP AND XP 64-BIT; WINDOWS 98/98SE/ME/2000/SERVER 2003/XP/SERVER 2008/SERV ER 2012 R2; WINDOWS XP
EMBEDDED; WINDOWS CE 4.2, 5.0, AND 6.0; MAC OS 8/9, OS-X; LINUS 2.4 AND GREATER; ANDROID (J2XX)
APPROVALS ROH S, C E, FCC, WE EE ROHS , CE , FC C, W EEE ROHS , CE , FC C, W EEE
300 BAUD TO 3 MBAUD (RS-422, RS-485,
RS -232) AT T TL LE VELS
RECEIV E: 128 BYTE ;
TR ANS FER: 256 BY TE
SU PPORTS 7 OR 8 DATA B ITS, 1 OR 2
STOP BITS, AND ODD/EVEN/MARK/
SPACE/NO PARIT Y
300 BAUD TO 3 MBA UD (RS -422, RS-
485, R S-232) AT T TL LE VELS
RECEIV E: 128 BYTE ;
TR ANS FER: 256 BY TE
SU PPORTS 7 OR 8 DATA B ITS, 1 OR 2
STOP BITS, AND ODD/EVEN/MARK/
SPACE/NO PARIT Y
1. 8 7 7. 8 7 7. 2 2 6 9 BL ACK BOX .COM
3
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 2: OVERVIEW
2.1 INTRODUCTION
The USB to Serial Adapters are cables with a USB connector on one end and a serial connector on the other. They each use
a special FTDI chip to convert a USB interface to an RS-232/422/485 serial interface over a distance of five or six feet, depending
on the model.
The adapters support common Windows
Three models are available:
• IC1101A: USB to Serial Adapter USB A/M to RJ-45M, 6-ft.
• IC1102A: USB to Serial Adapter USB C/M to RJ-45M, 6-ft.
• IC1103A: USB to Serial Adapter USB C/M to DB9M, 5-ft.
2.2 FEATURES
Single FTDI chip USB to asynchronous serial data transfer interface
Entire USB protocol is handled on the chip. No USB specific firmware programming required
Fully integrated 1024 bit EEPROM storing device descriptors and CBUS I/O configuration
Fully integrated USB termination resistors
Data transfer rates from 300 baud to 3 Mbaud (RS-422, RS-485, RS-232) at TTL levels
128-byte receive buffer and 256-byte transmit buffer using buffer smoothing technology to allow for high data throughput
UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd/even/mark/space/no parity
Supports bus powered, self-powered and high-power bus powered USB configurations
Low USB bandwidth consumption
®
, Mac®, Linux®, and Android® software drivers.
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
2.3 HARDWARE DESCRIPTION

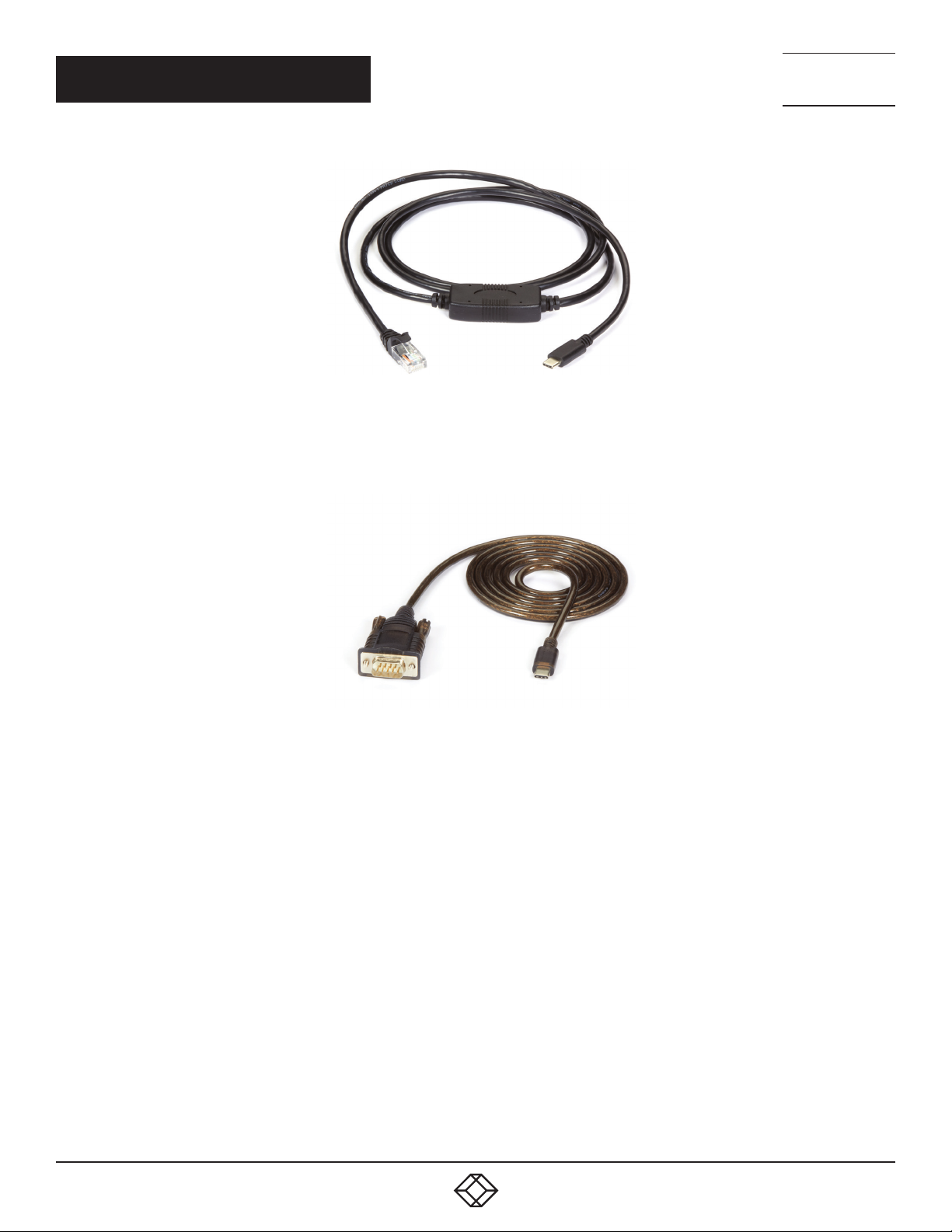

Figures 2-1 through 2-3 show the media converters and describe their components.
6-ft. (1.8-m)
cable
RJ-45
connector
USB Type A
connector
FIGURE 2-1. IC1101A
4
1. 8 7 7. 8 7 7. 2 2 6 9 BL ACK BOX .COM
