USER MANUAL
AVX-HDMI2-HDB-KIT
HDMI 2.0
EXTENDER
24/7 TECHNICAL SUPPORT AT 1.877.877.2269 OR VISIT BLACKBOX.CO M
RECEIVER
+
I
DC 12V
POWER STATUS
HDCP
LINK
HDBT IN
IR IN
IR OUT
RS232
HDMI OUT
ARC
S/PDIF IN
I I I I
AUDIO CONTROL
ETHERNET
TRANSMITTER
AUDIO IN
+
I
DC 12V
POWER STATUS
HDCP
LINK
HDBT OUT
IR IN
IR OUT
RS232
HDMI IN
ETHERNET
AUDIO OUT
Page 2
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TABLE OF CONTENTS
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 6 9
IMPORTANT SAFETY INSTRUCTIONS ........................................................................................................................................... 3
1. SPECIFICATIONS ........................................................................................................................................................................... 4
2. OVERVIE W ...................................................................................................................................................................................... 6
2.1 Introduction ...............................................................................................................................................................................................6
2.2 Features .................................................................................................................................................................................................... 6
2.3 What’s Included ........................................................................................................................................................................................7
2.4 Hardware Description ..............................................................................................................................................................................8
2.4.1 Transmitter ..........................................................................................................................................................................................................8
2.4.2 Receiver..............................................................................................................................................................................................................10
3. CONNECTIONS AND INSTALLATION ........................................................................................................................................ 12
Installation Steps .......................................................................................................................................................................................... 12
4. OPERATING WITH IR ................................................................................................................................................................... 15
4.1 IR Control ................................................................................................................................................................................................. 15
4.2 Control the Display ...................................................... ........................................................................................................................... 15
4.3 Control the Source ................................................................................................................................................................................. 16
5. OPER ATING WITH RS-232 .......................................................................................................................................................... 17
5.1 RS-232 Pinout ......................................................................................................................................................................................... 17
5.2 RS-232 Passthrough .............................................................................................................................................................................. 18
6. TROUBLESHOOTING ................................................................................................................................................................... 19
6.1 Troubleshooting Steps ........................................................................................................................................................................... 19
6.2 Contacting Black Box .............................................................................................................................................................................19
APPENDIX A. REGULATORY INFORMATION ................................................................................................................................ 20
A.1 FCC Statement .......................................................................................................................................................................................20
A.2 NOM Statement ..................................................................................................................................................................................... 21
APPENDIX B. DISCLAIMER/TRADEMARKS ................................................................................................................................. 22
B.1 Disclaimer ............................................................................................................................................................................................... 22
B.2 Trademarks Used in this Manual ............................................................................................................ ..............................................22
2
1. 87 7. 8 7 7. 2 26 9 BL ACK BOX .COM
Page 3
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
IMPORTANT SAFETY INSTRUCTIONS
1. Do not expose this apparatus to rain, moisture, dripping or splashing liquids. Do not place any objects filled with liquids, such as vases, on
the apparatus.
2. Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Make sure the unit is well ventilated.
3. To prevent risk of electric shock or fire hazard due to overheating, do not obstruct the unit’s ventilation openings with newspapers,
tablecloths, curtains, and similar items.
4. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
5. Do not place sources of open flames, such as lighted candles, on the unit.
6. Clean this apparatus only with a dry cloth.
7. Unplug this apparatus during lightning storms or when unused for long periods of time.
8. Do not walk on or pinch the power cord, particularly at plugs.
9. Only use attachments/accessories specified by the manufacturer.
10. Refer all servicing to qualified service personnel.
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 6 9
1. 87 7. 8 7 7. 2 26 9 BL ACK BOX .COM
3
Page 4
CHAPTER 1: SPECIFICATIONS
TABLE 1-1. SPECIFICATIONS
SPECIFICATION DESCRIPTION
Transmitter
Video Input (1) Locking HDMI female
Input Signal Type HDMI with 4K
Input/Output Resolution
Support
Maximum Data Rate 18 Gbps
Input Video Level 0.5 – 1.0 V p-p
Input DDC Signal 5 V p-p
Maximum Pixel Clock 594 MHz
Output (1) HDBaseT
Output Signal Type HDBaseT
Video Impedance 10 0 ohms
Power Consumption
(Maximum)
Receiver
Video Input (1) HDBaseT
Input Signal Type HDBaseT
Output Signal Type HDMI 2.0 and HDCP 2.2
Input/Output Resolution
Support
Maximum Data Rate 18 Gbps
Input Video Level 0.5 – 1.0 V p-p
Input DDC Signal 5 V p-p
Maximum Pixel Clock 584 MHz
Output (1) Locking HDMI
Output Signal Type HDMI with 4K
Video Impedance 10 0 ohms
Power Consumption
(Maximum)
800 x 600, 1024 x 768, 1280 x 720, 1280 x 768, 1280 x 800, 1280 x 960, 1280 x 1024, 1360 x 768, 1366 x 768,
1440 x 900,1600 x 900,1600 x 1200,16 80 x 1050,1920 x 108 0,1920 x 120 0, 2560 x 1440, 256 0 x 1600, 384 0 x 2160P,
4096 x 2160P
Receiver powered by transmitter:
18.6 W (1080p)
21.6 W (4K @ 60 Hz YUV 4:4:4)
Transmitter and Receiver powered separately:
11.6 W (1080p)
18.96 W (4K @ 60 Hz YUV 4:4:4)
800 x 600, 1024 x 768, 1280 x 720, 1280 x 768, 1280 x 800, 1280 x 960, 1280 x 1024, 1360 x 768, 1366 x 768,
1440 x 900,1600 x 900,1600 x 1200,16 80 x 1050,1920 x 108 0,1920 x 120 0, 2560 x 1440, 256 0 x 1600, 384 0 x 2160P,
4096 x 2160P
Transmitter and Receiver powered separately:
7.44 W (1080p)
7.2 W (4K @ 60 Hz YUV 4:4:4)
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 6 9
4
1. 87 7. 8 7 7. 2 26 9 BL ACK BOX .COM
Page 5
CHAPTER 1: SPECIFICATIONS
TABLE 1-1 (CONTINUED). SPECIFICATIONS
SPECIFICATION DESCRIPTION
General
ESD Protection Human-Body Model: ±8 kV (air-gap discharge)/±4 kV (contact discharge)
Surge Protection Voltage: ±1 kV
Electrical Fast Transient/Burst
Approvals CE, FCC, IC, RCM, and VCCI
Power
Power Supply Each unit: (1) External 12 VDC, 3 A
Environmental
Operating Temperature 32 to 113° F (0 to 45° C)
Storage Temperature -4 to +158° F (-20 to +70° C)
Humidity 10 to 90%, noncondensing
Mechanical
Dimensions Each unit: 0.8” H x 6.8” W x 3.7” D (2.1 x 17.3 x 9.5 cm)
Weight Each unit: 0.9 lb. (0.4 kg)
Data communication cord: 1 kV
Power cord: 2 kV
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 6 9
TABLE 1-2. CABLE SPECIFICATIONS
CABLE TYPE RANGE SUPPORTED VIDEO
CAT5e/6
CAT6a/ 7 328 ft. (100 m)
328 ft. (100 m) 1080p @ 60 Hz, 36 bpp
230 ft. (70 m)
1080p @ 60 Hz, 48 bpp
1080p @ 60 Hz 3D
4K @ 60 Hz YUV 4:4:4
1. 87 7. 8 7 7. 2 26 9 BL ACK BOX .COM
5
Page 6
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 2: OVERVIEW
2.1 INTRODUCTION
The HDMI 2.0 HDBaseT Extender supports 4K @ 60 4:4:4 resolution and complies with HDR and HDCP 2.2 standars. It distributes
uncompressed UHD video, audio, power, and IR together up to 328 feet (100 meters) over a single CATx cable.
The extender supports Dolby and DTS HD audio, bi-directional IR control, in a low-profile box. You can configure the ARC channel feed
for a TV (with ARC support) or an auxiliary S/PDIF Input port via an audio output DIP switch on the receiver.
The extender uses proprietary one-way PoH technology to power the receiver from the transmitter.
LEDs show power and signal status for established connections between devices.
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 6 9
2.2 FEATURES
4K/UHD capability @ 60 Hz with 4:4:4 Chroma sampling, plus support for HDR formats
HDCP 2.2 compliant
Supports HD signal transmission up to 100 meters (1080p) and 70 meters (4K @ 60 Hz YUV 4:4:4) via a single CAT5e/6 cable
Supports HD signal transmission up to 100 meters (1080p) and 100 meters (4K @ 60 Hz YUV 4:4:4) via a single CAT6a/7 cable
Visually Lossless Compression enables 4K @ 60 HDR extension over HDBaseT
Receiver to transmitter audio return via ARC or digital coax pathway
Extends RS232, IR and Ethernet control signals
Standard One way PoH (Transmitter power to receiver)
Automatic EDID management
Visual LED indication
Locking HDMI connector prevents accidental cable disconnects
6
1. 87 7. 8 7 7. 2 26 9 BL ACK BOX .COM
Page 7
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 2: OVERVIEW
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 6 9
2.3 WHAT’S INCLUDED
Your package should include the following items. If anything is missing or damaged, contact Black Box Technical Support
at 877-877-2269 or info@blackbox.com
AVX-HDMI2-HDB-KIT includes:
(1) Transmitter (AVX-HDMI2-HDB-TX)
(1) Receiver (AVX-HDMI2-HDB-RX)
(1) Power adapter (12 VDC, 2 A)
(2) Phoenix male connectors (3.5-mm, 3-pin)
(2) IR emitter cables
(2) IR broadband receiver cables (30 kHz – 50 KHz)
(4) Mounting brackets
AVX-HDMI2-HDB-TX includes:
(1) Transmitter
(1) Power adapter (12 VDC, 2 A)
(1) Phoenix male connector (3.5-mm, 3-pin)
(1) IR emitter cable
(1) IR broadband receiver cable (30 kHz – 50 KHz)
(2) Mounting brackets
AVX-HDMI2-HDB-RX includes:
(1) Receiver
(1) Phoenix male connector (3.5-mm, 3-pin)
(1) IR emitter cable
(1) IR broadband receiver cable (30 kHz – 50 KHz)
(2) Mounting brackets
1. 87 7. 8 7 7. 2 26 9 BL ACK BOX .COM
7
Page 8
CHAPTER 2: OVERVIEW
2.4 HARDWARE DESCRIPTION
The HDMI 2.0 Extender — HDBaseT, 4K60, Audio, IR consists of a Transmitter unit and a Receiver unit.
2.4.1 TRANSMITTER

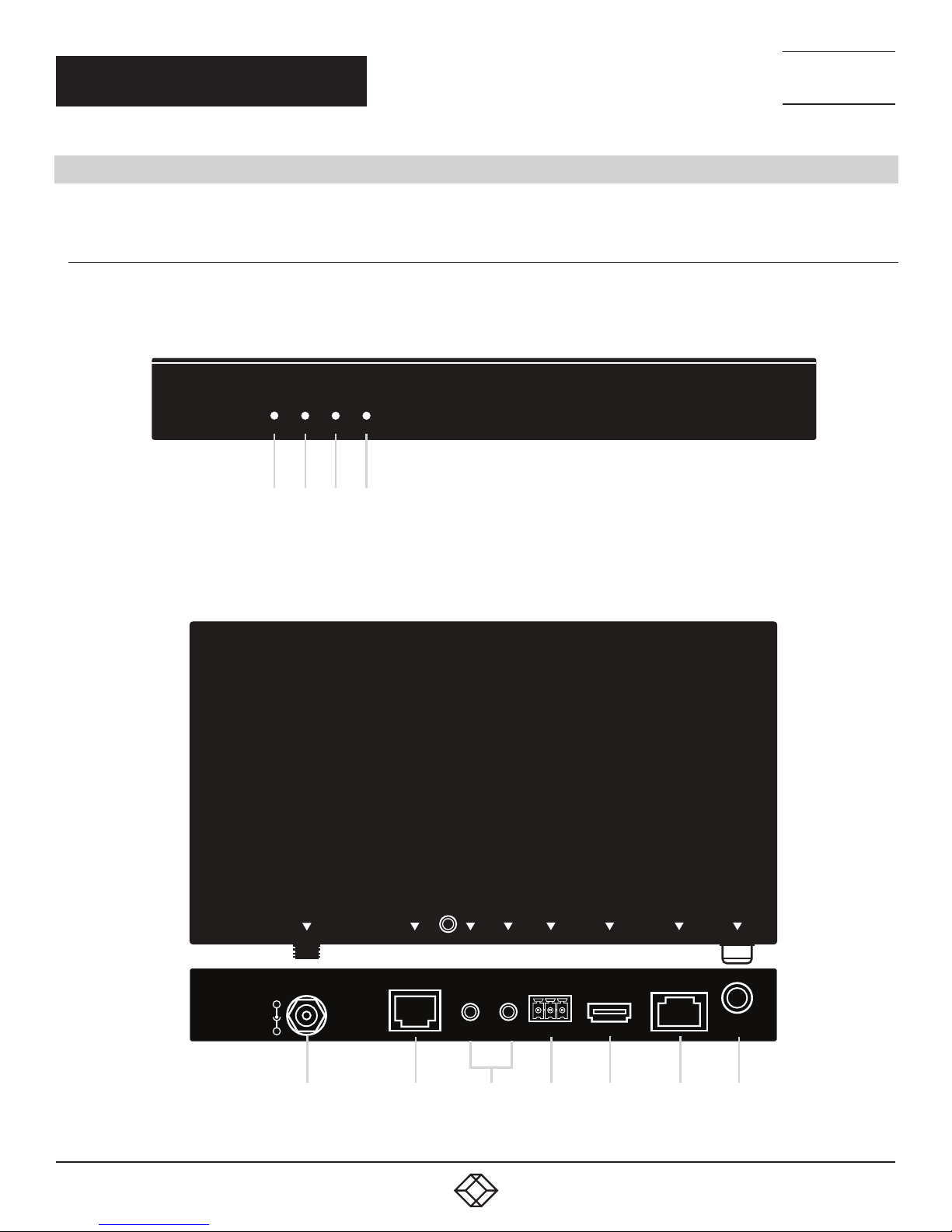

Figures 2-1 and 2-2 show the front, top and back panels of the transmitter. Table 2-1 describes its components.
STATUS HDCP LINK
POWER
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 6 9
2 3
1
TRANSMITTER DC 12V
4
FIGURE 2-1. TRANSMITTER FRONT PANEL
REAR PANEL
HDBT OUT IR IN
IR OUT
RS232 HDMI IN
ETHERNET
AUDIO OUT
+
I
1
8
IR IN
IR OUT TX RX G
2 3
HDMI IN
4
5 6
FIGURE 2-2. TRANSMITTER TOP AND BACK PANEL
1. 87 7. 8 7 7. 2 26 9 BL ACK BOX .COM
AUDIO OUT
7
Page 9
CHAPTER 2: OVERVIEW
TABLE 2-1. TRANSMITTER COMPONENTS
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 6 9
NUMBER IN
FIGURE 2-1
1 Power LED
2 Status LED
3 HDCP LED
4 Link LED
NUMBER IN
FIGURE 2-2
1 Power connector Links to 12-VDC power input
2 HDBT OUT Connects to HDBT IN port of receiver
3 IR IN Connects to IR receiver
3 IR OUT Connects to IR emitter
4 RS-232 Connects to control system for RS-232 passthrough
5 Locking HDMI IN connector Connects to an HDMI source
6 RJ-45 Ethernet connector Connects to internet with computer while the receiver is connected to the internet via a router
7 AUDIO OUT Connects to an audio system such as an AV receiver
COMPONENT DESCRIPTION
ON: The transmitter is powered on.
OFF: The transmitter is powered off.
Flashing: The transmitter is working properly.
OFF: The transmitter is not working properly.
ON: HDCP video is being transmitted.
Flashing: Non-HDCP video is being transmitted.
OFF: No HDMI signal.
ON: HDBT link is normal
OFF: No HDBT link
COMPONENT DESCRIPTION
1. 87 7. 8 7 7. 2 26 9 BL ACK BOX .COM
9
Page 10
CHAPTER 2: OVERVIEW
FRONT PANEL
2.4.2 RECEIVER

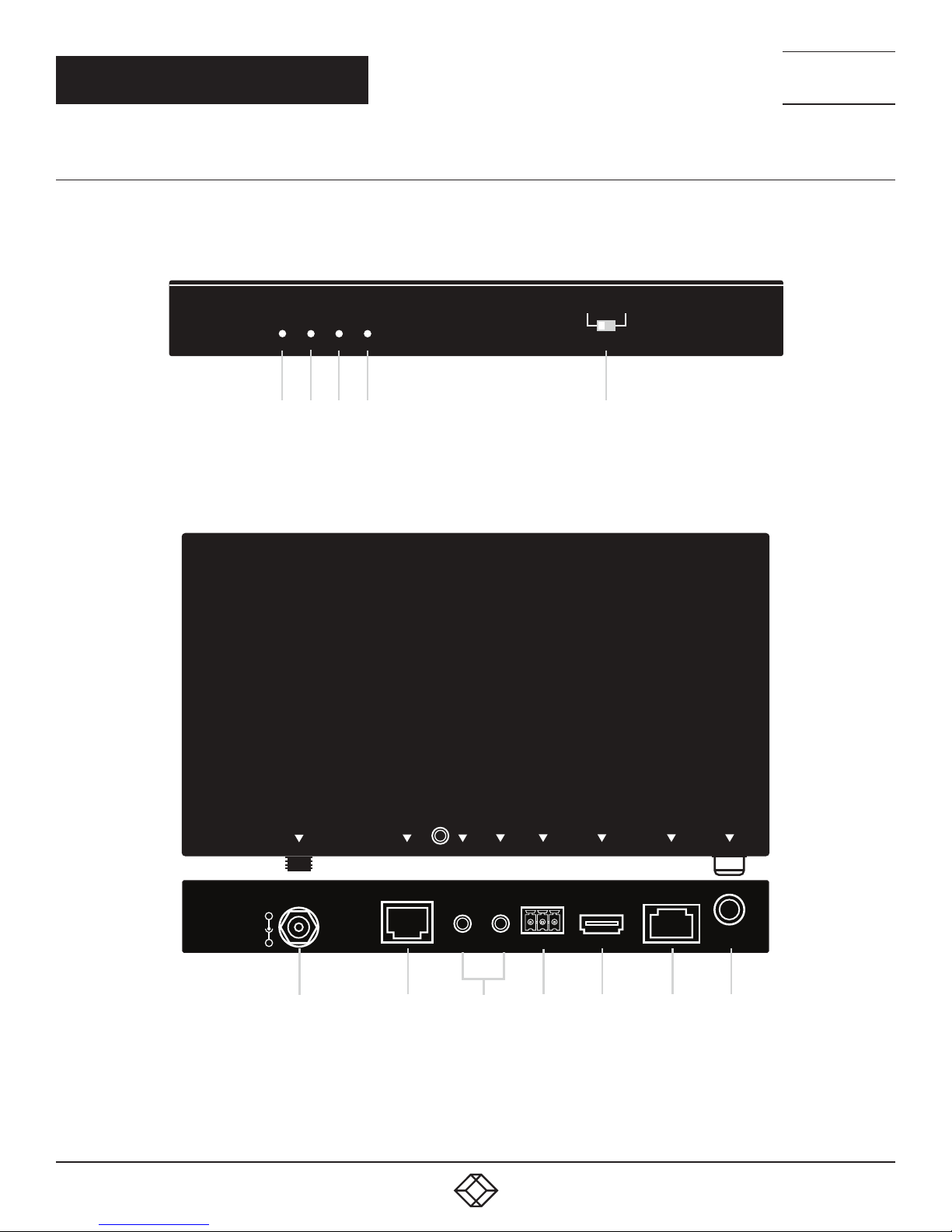

Figures 2-3 and 2-4 show the front and back panels of the receiver. Table 2-2 describes its components.
S/PDIF IN
ARC
I I I I
STATUS HDCP LINK
POWER
AUDIO CONTROL
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 6 9
1
RECEIVER DC 12V
2 3
4
FIGURE 2-3. RECEIVER FRONT PANEL
REAR PANEL
HDBT IN IR IN
IR OUT
RS232 HDMI OUT
5
ETHERNET
AUDIO IN
+
I
1
10
IR IN
IR OUT TX RX G
2 3
HDMI OUT
4
FIGURE 2-4. RECEIVER BACK PANEL
1. 87 7. 8 7 7. 2 26 9 BL ACK BOX .COM
5 6
AUDIO IN
7
Page 11
CHAPTER 2: OVERVIEW
TABLE 2-2. RECEIVER COMPONENTS
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 6 9
NUMBER IN
FIGURE 2-3
1 Power LED
2 Status LED
3 HDCP LED
4 Link LED
5 Audio Control
NUMBER IN
FIGURE 2-4
1 Power connector Links to 12-VDC power input
2 HDBT IN Connects to an HDBT OUT port of transmitter
3 IR IN Connects to IR receiver
3 IR OUT Connects to IR emitter
4 RS-232 Connects to a control system for RS-232 passthrough
5 Locking HDMI OUT connector Connects to an HDMI display
6 RJ-45 Ethernet connector Connects to internet with computer while the transmitter is connected to the internet via a router
7 AUDIO OUT Connects to an audio system on S/PDIF IN mode
COMPONENT DESCRIPTION
ON: The receiver is powered on.
OFF: The receiver is powered off.
Flashing: The receiver is working properly.
OFF: The receiver is not working properly.
ON: HDCP video is being transmitted.
Flashing: Non-HDCP video is being transmitted.
OFF: No HDMI signal.
ON: HDBT link is normal.
OFF: No HDBT link.
ARC: Configure ARC channel feed by TV
S/PDIF IN: Configure auxiliary S/PDIF input
COMPONENT DESCRIPTION
1. 87 7. 8 7 7. 2 26 9 BL ACK BOX .COM
11
Page 12
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 3: CONNECTIONS AND INSTALLATION
INSTALLATION STEPS
1. Using quality HDMI cables, connect an HDMI source (such as Blu-ray, games console, satellite/cable TV, media server etc.) to the
HDMI IN port of the transmitter.
2. Connect an audio system such as an AV receiver to the AUDIO OUT port of the transmitter.
3. Connect a good quality, well-terminated CATx cable between the HDBT OUT port of the transmitter to the HDBT IN port of the
receive r.
4. Connect the HDMI display device such as a TV to the HDMI OUT port of the receiver.
5. For two-way IR control of connected sources and displays from either location, first, connect IR Emitters to the IR OUT ports of
the transmitter and receiver, and then insert IR Receivers into the IR IN ports of the transmitter and receiver.
6. For the DIP switch of the audio output of the receiver:
When you configure the ARC channel feed by TV, switch it to ARC mode. The TV should be supported and ARC and CEC should be
open. See Figure 3-1.
When you configure the auxiliary S/PDIF input, switch it to S/PDIF mode and connect an audio system to the AUDIO IN port of the
receiver. See Figure 3-2.
7. Connect the included 12-V power supply to the transmitter. The PoE function carries power along the length of cable to power the
receive r.
Check that Power, Status, and HDCP and Link lights are illuminated on both units to indicate successful connection, with a lit HDCP
light illustrating the presence of encryption within the signal. Power and Link are static lights. Status should be blinking.
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 6 9
12
1. 87 7. 8 7 7. 2 26 9 BL ACK BOX .COM
Page 13
CHAPTER 3: CONNECTIONS AND INSTALLATION
TV REMOTE
DVD
AV RECEIVER
TRANSMITTER
TRANSMITTER
BROADBAND IR
RECEIVER
+
I
DC 12V
POWER STATUS
HDCP
HDBT OUT
LINK
CATX
CABLE
IR IN
EMITTER
IR OUT
IR
HDMI
IN
RS232
HDMI IN
ETHERNET
AUDIO OUT
AUDIO
OUT
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 6 9
RECEIVER
+
RECEIVER
I
DC 12V
POWER STATUS
HDCP
BROADBAND IR
RECEIVER
HDBT IN
LINK
DVD REMOTE
IR IN
RS232
IR OUT
IR
EMITTER
HDMI OUT
S/PDIF IN
ARC
I I I I
AUDIO CONTROL
HDMI
OUT
ETHERNET
TV

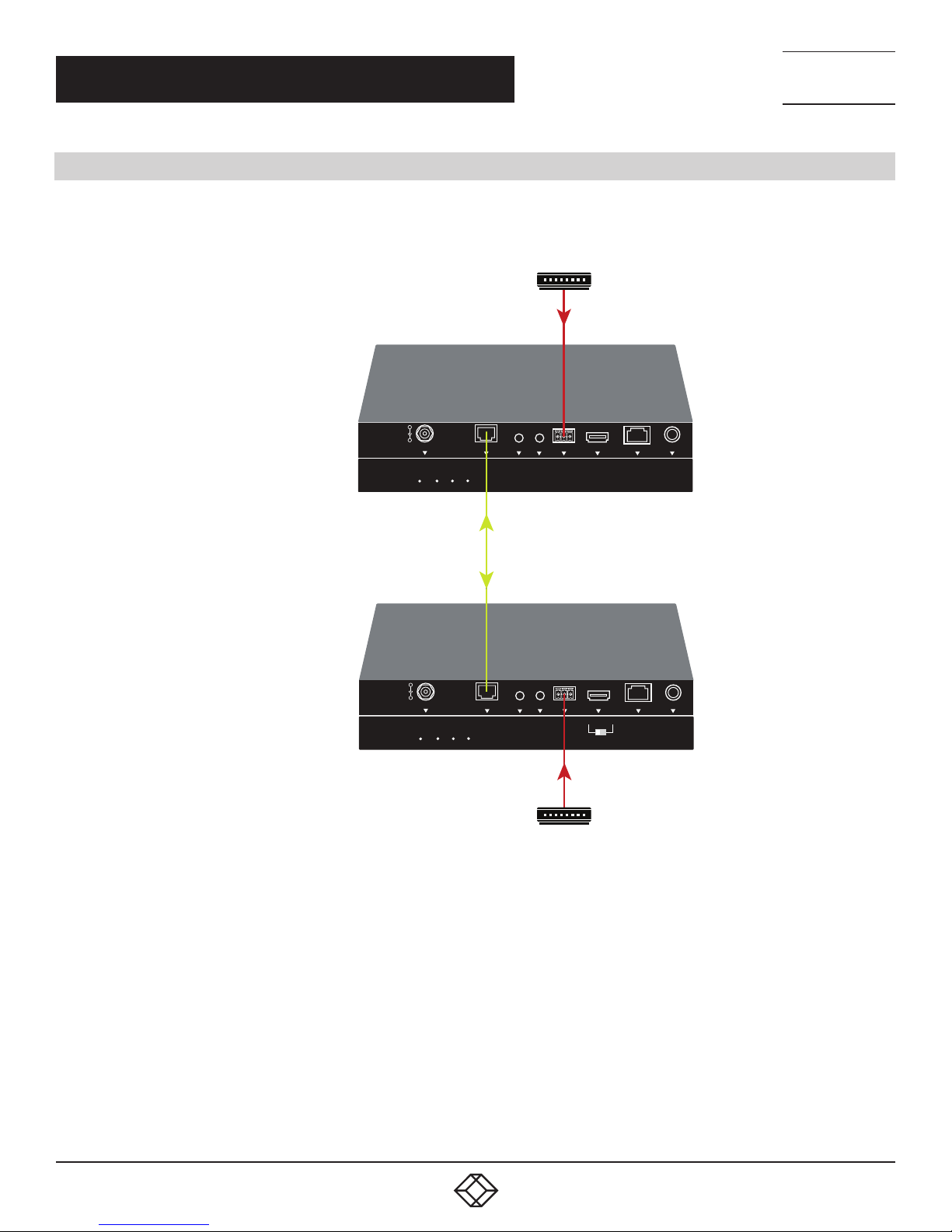

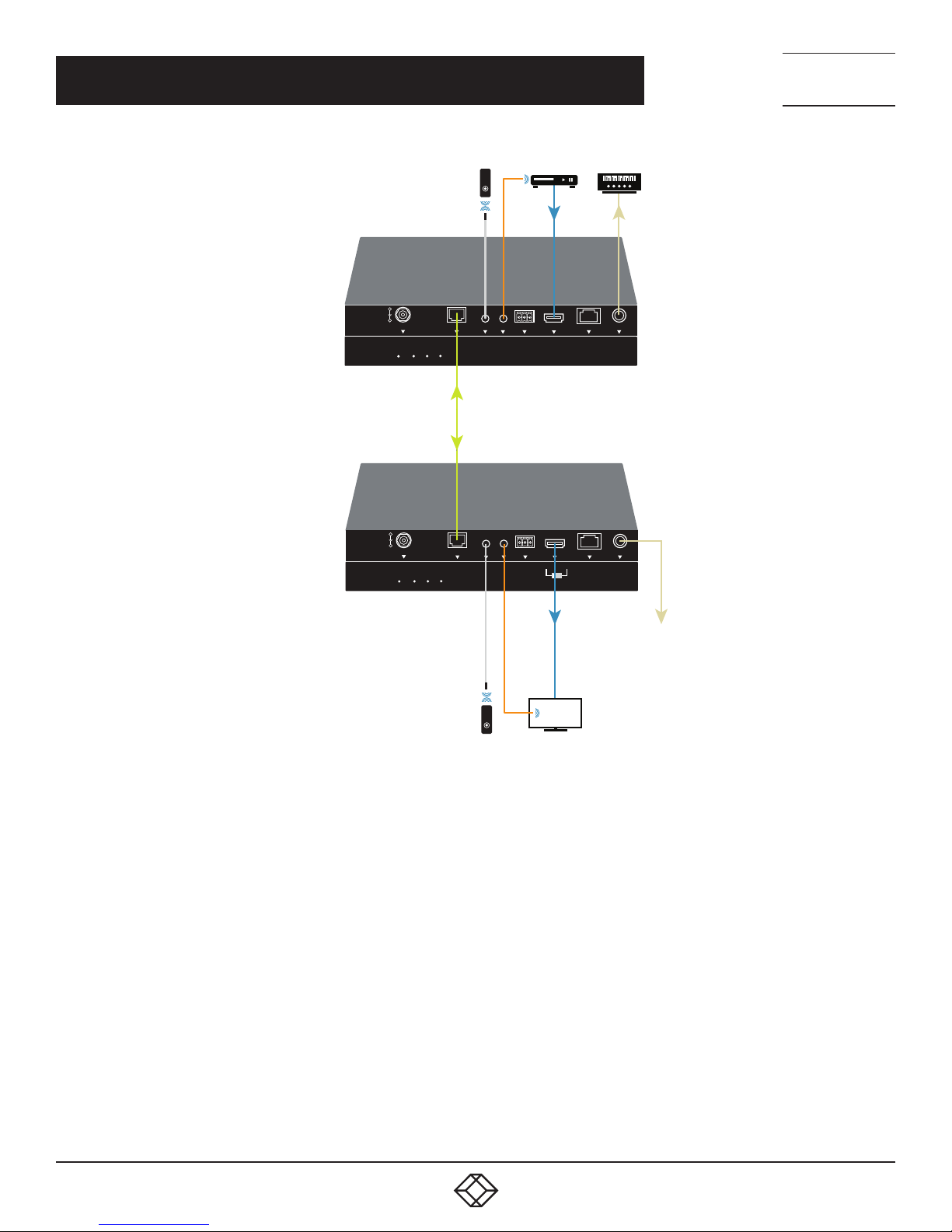

FIGURE 3-1. CONFIGURE ARC CHANNEL
AUDIO IN
AUDIO INPUT
EXTERNAL
1. 87 7. 8 7 7. 2 26 9 BL ACK BOX .COM
13
Page 14
CHAPTER 3: CONNECTIONS AND INSTALLATION
DVD
TV REMOTE
n n n
n n n
n n n
AV RECEIVER
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 6 9
TRANSMITTER
RECEIVER
TRANSMITTER
RECEIVER
BROADBAND IR
RECEIVER
+
I
DC 12V
POWER STATUS
HDCP
+
I
DC 12V
POWER STATUS
HDCP
BROADBAND IR
HDBT OUT
LINK
HDBT IN
LINK
RECEIVER
CATX
CABLE
ETHERNET
ETHERNET
AUDIO
OUT
AUDIO OUT
AUDIO IN
SWITCH
TO S/PDIF
IN MODE
AUDIO
IN
IR
EMITTER
IR IN
IR OUT
IR IN
IR OUT
EMITTER
HDMI
IN
RS232
HDMI IN
RS232
HDMI OUT
S/PDIF IN
ARC
I I I I
AUDIO CONTROL
IR
HDMI
OUT
n n n
n n n
n n n
DVD REMOTE
TV AUDIO SYSTEM

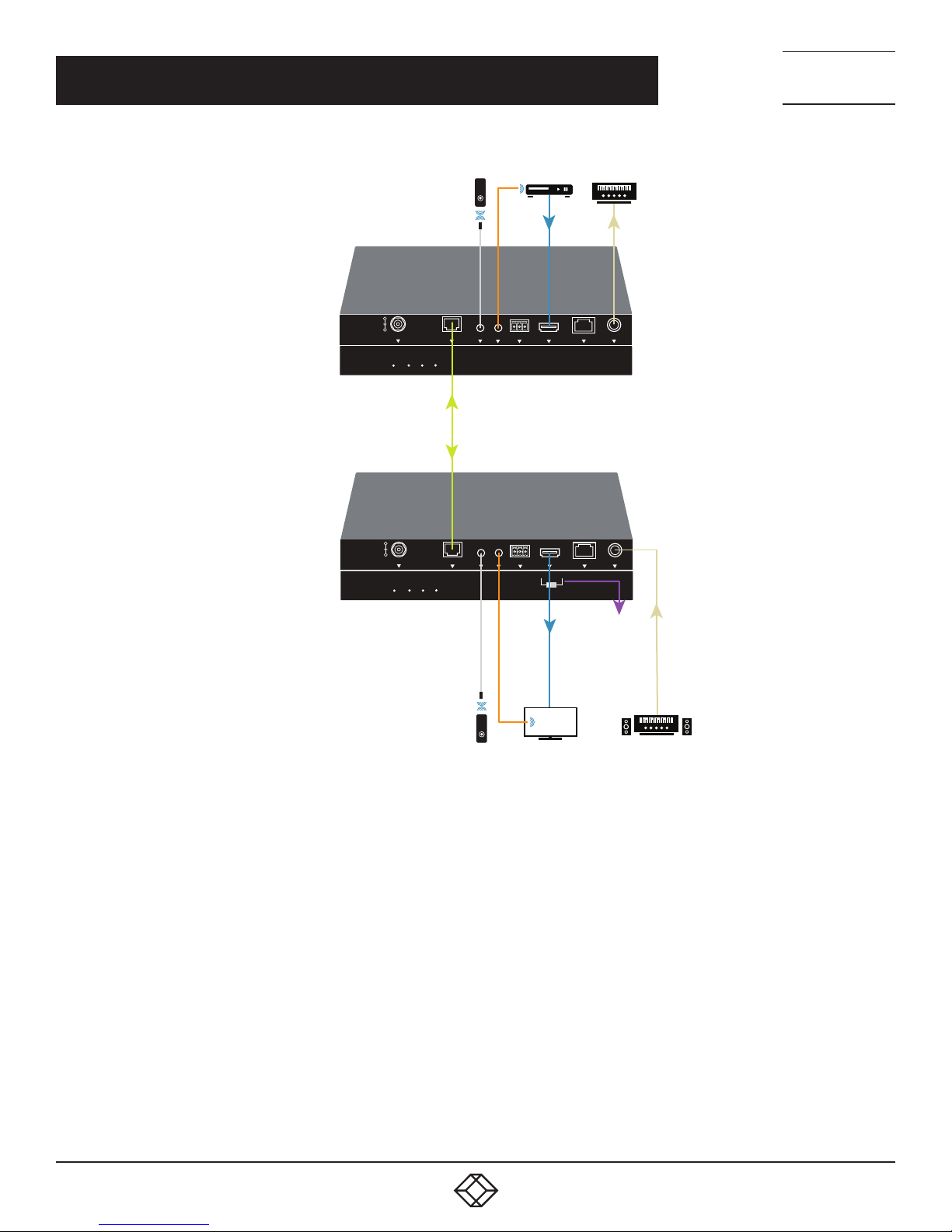

FIGURE 3-2. CONFIGURE S/PDIF
14
1. 87 7. 8 7 7. 2 26 9 BL ACK BOX .COM
Page 15
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 4: OPERATING WITH IR
4.1 IR CONTROL
The IR passthrough function allows you to control the source from the display location or control the display from the source location.
4.2 CONTROL THE DISPLAY
In this case, IR IN port on the transmitter is connected to a broadband IR receiver and the IR OUT port on the receiver is connected to an
IR emitter. You can control the TV from the DVD location with the TV remote.
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 6 9
TRANSMITTER
RECEIVER
TRANSMITTER
RECEIVER
TV REMOTE
BROADBAND IR
RECEIVER
+
I
DC 12V
POWER STATUS
HDCP
+
I
DC 12V
POWER STATUS
HDCP
RS232
RS232
IR
EMITTER
DVD
HDMI IN
HDMI OUT
S/PDIF IN
ARC
I I I I
AUDIO CONTROL
HDMI
IN
HDMI
OUT
ETHERNET
ETHERNET
AUDIO OUT
AUDIO IN
n n n
n n n
n n n
IR IN
HDBT OUT
LINK
HDBT IN
LINK
CATX
CABLE
IR OUT
IR IN
IR OUT
TV

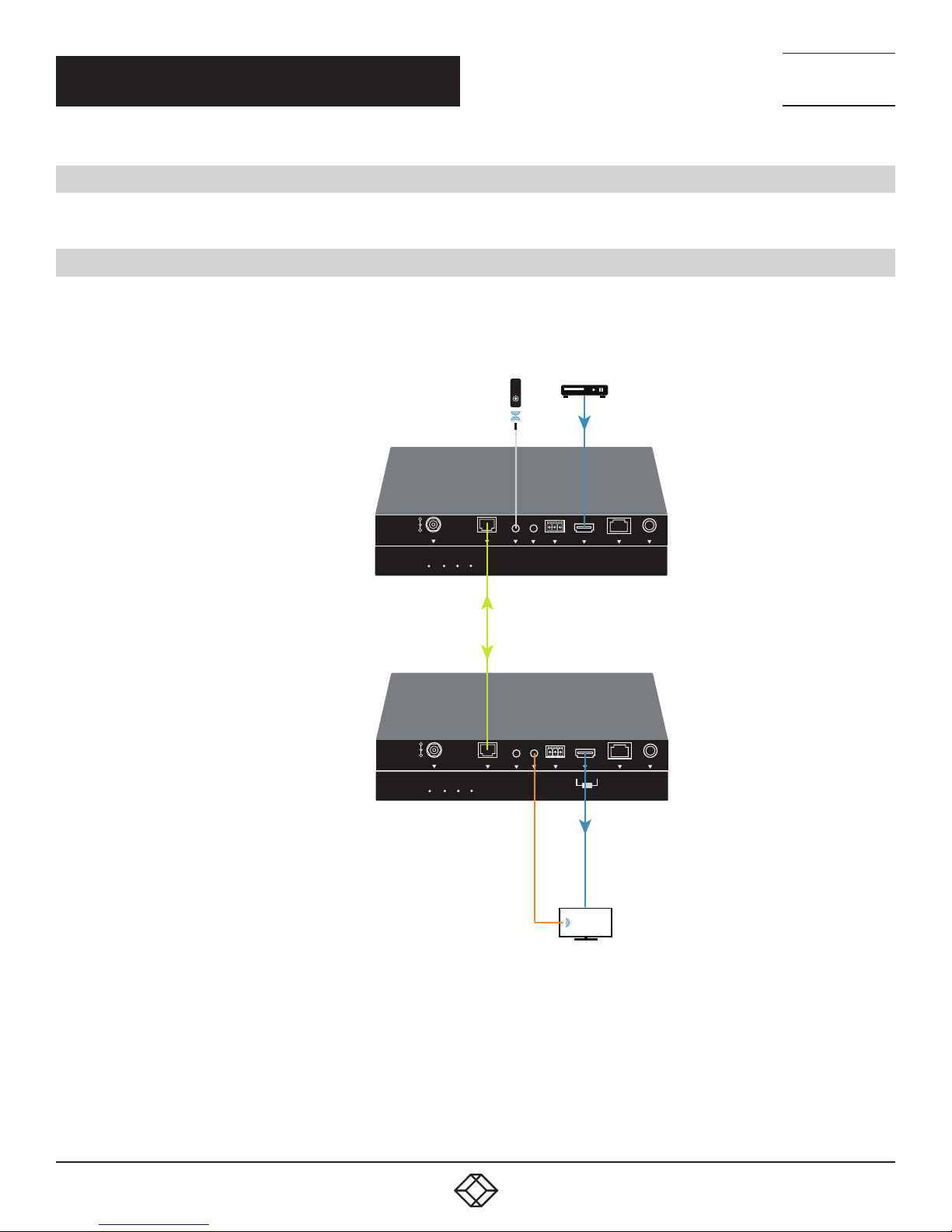

FIGURE 4-1. CONTROL THE DISPLAY
1. 87 7. 8 7 7. 2 26 9 BL ACK BOX .COM
15
Page 16
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 4: OPERATING WITH IR
4.2 CONTROL THE SOURCE
In this case, the IR OUT port of the transmitter is connected to an IR emitter and the IR IN port of the receiver is connected to a broadband
IR receiver. You can control the DVD player from the TV location with the DVD remote.
DVD
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 6 9
TRANSMITTER
RECEIVER
TRANSMITTER
RECEIVER
+
I
DC 12V
POWER STATUS
+
I
DC 12V
POWER STATUS
BROADBAND IR
HDBT OUT
LINK
HDCP
HDBT IN
LINK
HDCP
RECEIVER
IR
EMITTER
IR IN
CATX
CABLE
IR IN
HDMI
IN
RS232
IR OUT
RS232
IR OUT
HDMI IN
HDMI OUT
ARC
I I I I
AUDIO CONTROL
S/PDIF IN
HDMI
OUT
ETHERNET
ETHERNET
AUDIO OUT
AUDIO IN
16
n n n
n n n
n n n
DVD REMOTE
TV

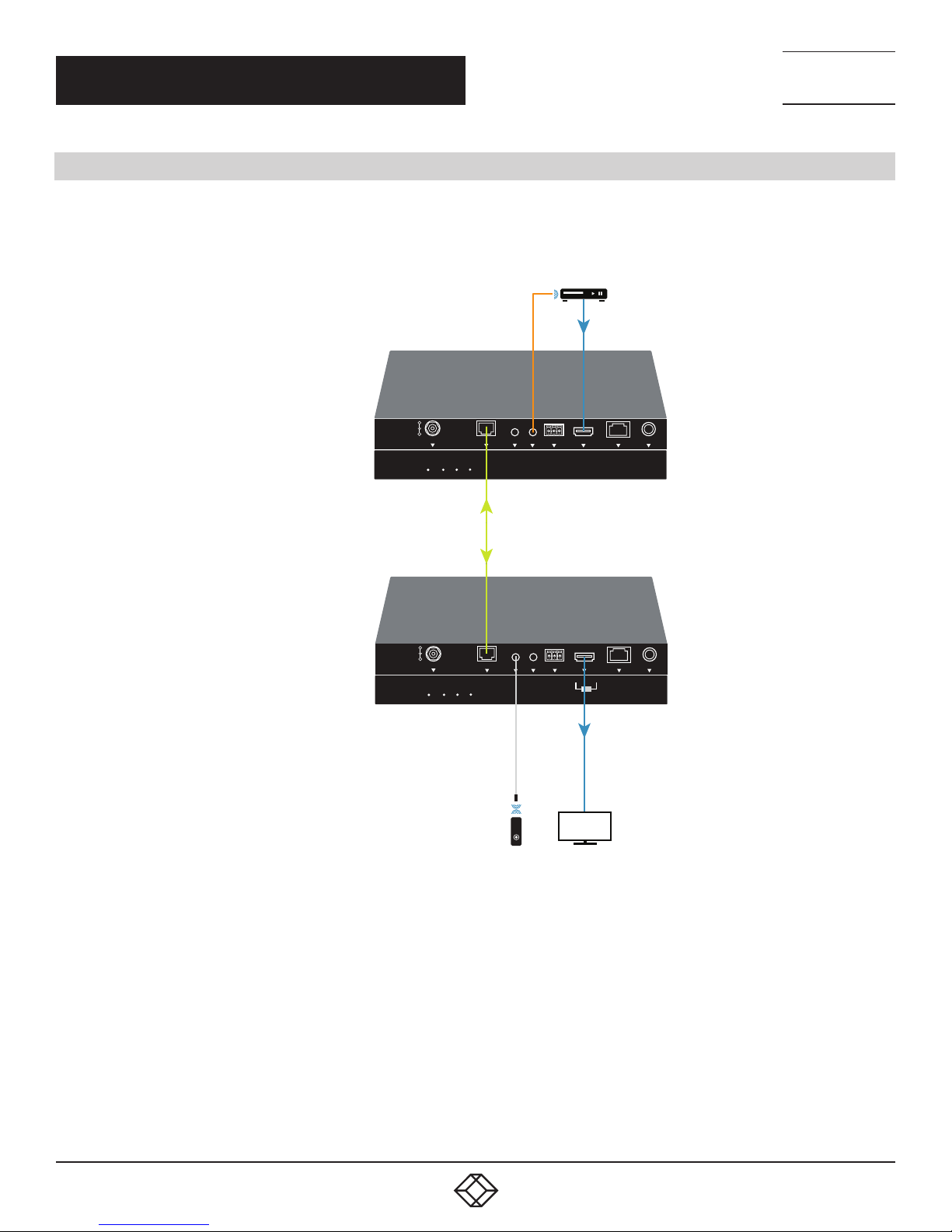

FIGURE 4-2. CONTROL THE SOURCE
1. 87 7. 8 7 7. 2 26 9 BL ACK BOX .COM
Page 17
CHAPTER 5: OPERATING WITH RS-232
5.1 RS-232 PINOUT
The following figure shows the RS-232 pinout. Please connect with the Phoenix connectors provided.
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 6 9

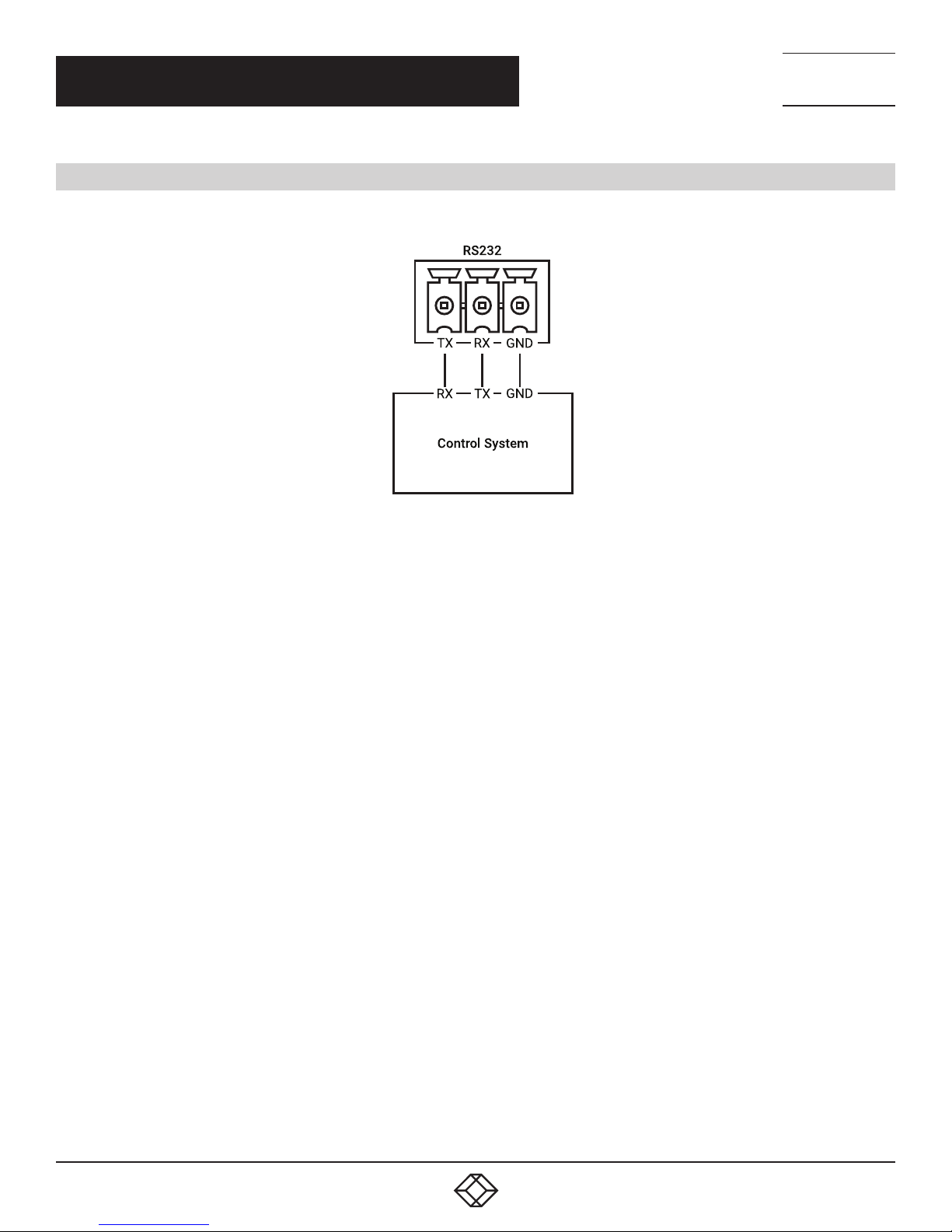

FIGURE 5-1. RS-232 PINOUT
1. 87 7. 8 7 7. 2 26 9 BL ACK BOX .COM
17
Page 18
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 5: OPERATING WITH RS-232
5.2 RS-232 PASSTHROUGH
According to the bi-directional RS-232 pass through function, you can use two RS-232 control systems for serial communication by
connecting to the devices via serial cables to control the source device or the display.
CONTROL SYSTEM
RS232 CABLE
+
TRANSMITTER
TRANSMITTER
I
DC 12V
HDBT OUT
IR IN
IR OUT
RS232
HDMI IN
ETHERNET
AUDIO OUT
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 6 9
RECEIVER
POWER STATUS
+
I
RECEIVER
POWER STATUS
DC 12V
LINK
HDCP
CATX
CABLE
IR IN
HDBT IN
LINK
HDCP
IR OUT
RS232
RS232 CABLE
CONTROL SYSTEM
FIGURE 5-2. RS-232 PASSTHROUGH
HDMI OUT
S/PDIF IN
ARC
I I I I
AUDIO CONTROL
ETHERNET
AUDIO IN
18
1. 87 7. 8 7 7. 2 26 9 BL ACK BOX .COM
Page 19
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 6: TROUBLESHOOTING
6.1 TROUBLESHOOTING STEPS
Follow these steps to troubleshoot your extender:
1. Power: Make sure all devices are powered on (the sources, extender and display).
2. Indicator: Make sure LED indicators of the extender is normal according to user manual.
3. Devices: Make sure a picture can be shown normally when connecting source to display devices directly.
4. Cable: Plug in and out an HDMI/CATx cable or try another HDMI/CATx cable. Make sure the specific cable length is within the
transmission range in the user manual Specification section. CAT5e/6/6a/7 cable is recommended, do not use CAT5 cable. Make sure
the two connectors of one CATx cable are the same standard (EIA/TIA 568B).
5. Compatibility: Test other source and display devices to determine if it is a compatibility issue.
6.2 CONTACTING BLACK BOX
If you determine that your extender is malfunctioning, do not attempt to alter or repair the unit. It contains no user-serviceable parts.
Contact Black Box Technical Support at 877-877-2269 or info@blackbox.com.
Before you do, make a record of the history of the problem. We will be able to provide more efficient and accurate assistance if you have a
complete description, including:
the nature and duration of the problem.
when the problem occurs.
the components involved in the problem.
any particular application that, when used, appears to create the problem or make it worse.
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 6 9
1. 87 7. 8 7 7. 2 26 9 BL ACK BOX .COM
19
Page 20
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 1: HEADLINE
APPENDIX A: REGULATORY COMPLIANCE
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 6 9
A.1 FCC STATEMENT
This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict
accordance with the manufacturer’s instructions, may cause inter ference to radio communication. It has been tested and found to
comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules,
which are designed to provide reasonable protection against such interference when the equipment is operated in a commercial
environment. Operation of this equipment in a residential area is likely to cause interference, in which case the user at his own
expense will be required to take whatever measures may be necessary to correct the interference.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate
the equipment.
This digital apparatus does not exceed the Class A limits for radio noise emis sion from digital apparatus set out in the Radio
Interference Regulation of Industry Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de
classe A prescrites dans le Règlement sur le brouillage radioélectrique publié par Industrie Canada.
20
1. 87 7. 8 7 7. 2 26 9 BL ACK BOX .COM
Page 21
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 1: HEADLINE
APPENDIX A: REGULATORY COMPLIANCE
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 6 9
A.2 NOM STATEMENT
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de operación deben ser respetadas.
4. Todas las instrucciones de operación y uso deben ser seguidas.
5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca de la tina de baño, lavabo, sótano mojado o cerca
de una alberca, etc.
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que sean recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea recomendado por el fabricante.
8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá a lo descrito en las instrucciones de operación.
Todo otro servicio deberá ser referido a personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no interfiera su uso. La colocación del aparato eléctrico
sobre una cama, sofá, alfombra o superficie similar puede bloquea la ventilación, no se debe colocar en libreros o gabinetes que
impidan el flujo de aire por los orificios de ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor como radiadores, registros de calor, estufas u otros
aparatos (incluyendo amplificadores) que producen calor.
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del tipo descrito en el instructivo de operación, o como
se indique en el aparato.
12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización del equipo no sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que no sean pisados ni pellizcados por objetos colocados
sobre o contra ellos, poniendo particular atención a los contactos y receptáculos donde salen del aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas de energia.
16. El cable de corriente deberá ser desconectado del cuando el equipo no sea usado por un largo periodo de tiempo.
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean derramados sobre la cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del aparato;o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en su desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada.
1. 87 7. 8 7 7. 2 26 9 BL ACK BOX .COM
21
Page 22
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 1: HEADLINE
APPENDIX B: DISCLAIMER/TRADEMARKS
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 6 9
B.1 DISCLAIMER
Black Box Corporation shall not be liable for damages of any kind, including, but not limited to, punitive, consequential or cost of cover
damages, resulting from any errors in the product information or specifications set forth in this document and Black Box Corporation
may revise this document at any time without notice.
B.2 TRADEMARKS USED IN THIS MANUAL
Black Box and the Black Box logo type and mark are registered trademarks of Black Box Corporation.
Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.
22
1. 87 7. 8 7 7. 2 26 9 BL ACK BOX .COM
Page 23
NOTES
________________________________________________________________________________________________
________________________________________________________________________________________________
__
________________________________________________________________________________________________
__
________________________________________________________________________________________________
__
________________________________________________________________________________________________
__
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 6 9
________________________________________________________________________________________________
__
________________________________________________________________________________________________
__
_
_________________________________________________________________________________________________
________________________________________________________________________________________________
__
________________________________________________________________________________________________
_ _\
________________________________________________________________________________________________
__
________________________________________________________________________________________________
__
________________________________________________________________________________________________
__
1. 87 7. 8 7 7. 2 26 9 BL ACK BOX .COM
23
Page 24
NEED HELP?
LEAVE THE TECH TO US
LIVE 24/7
TECHNICAL
SUPPORT
1.87 7.87 7. 2 269
© COPYRIGHT 2018 BLACK BOX CORPORATION. ALL RIGHTS RESERVED.
AVX-HDMI2-HDB-KIT_USER_RE V1.PDF
Loading...
