Black Box AVX-DVI-FO-MINI, AVX-DVI-FO-MINI-RX, AVX-DVI-FO-SP4, AVX-DVI-FO-SP8, AVX-DVI-FO-SPCS User Manual
...
AVX-DVI-FO-MINI AVX-DVI-FO-SP4
AVX-DVI-FO-MINI-RX AVX-DVI-FO-SP8
AVX-DVI-FO-SPCS AVX-DVI-FO-USBPS
Mini Extender Kit for DVI-D and Stereo Audio over Fiber
Extend DVI-D video and stereo audio up to
1.5 kilometers over a strand of single-mode fiber or
distribute DVI-D and stereo audio to 32 displays.
Customer
Support
Information
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S.
call 724-746-5500) FREE technical support 24 hours a day, 7 days
a week: Call 724-746-5500 or fax 724-746-0746 Mailing address:
Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: info@blackbox.com
FCC and IC RFI Statements/NOM Statement
FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY
CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS
This equipment generates, uses, and can radiate radio-frequency energy, and if
not installed and used properly, that is, in strict accordance with the manufacturer’s
instructions, may cause inter ference to radio communication. It has been tested
and found to comply with the limits for a Class A computing device in accordance
with the specifications in Subpart B of Part 15 of FCC rules, which are designed
to provide reasonable protection against such interference when the equipment
is operated in a commercial environment. Operation of this equipment in a
residential area is likely to cause interference, in which case the user at his own
expense will be required to take whatever measures may be necessary to correct
the interference.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This digital apparatus does not exceed the Class A limits for radio noise emis sion
from digital apparatus set out in the Radio Interference Regulation of Industry
Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant
les limites applicables aux appareils numériques de classe A prescrites dans le
Règlement sur le brouillage radioélectrique publié par Industrie Canada.
Normas Oficiales Mexicanas (NOM)Electrical Safety Statement
INSTRUCCIONES DE SEGURIDAD
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes
de que el aparato eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas para
referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de
operación deben ser respetadas.
Page 2
724-746-5500 | blackbox.com
NOM Statement
4. Todas las instrucciones de operación y uso deben ser seguidas.
5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca
de la tina de baño, lavabo, sótano mojado o cerca de una alberca, etc.
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que
sean recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea
recomendado por el fabricante.
8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá
a lo descrito en las instrucciones de operación. Todo otro servicio deberá ser
referido a personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no
interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,
alfombra o superficie similar puede bloquea la ventilación, no se debe colocar
en libreros o gabinetes que impidan el flujo de aire por los orificios de
ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor
como radiadores, registros de calor, estufas u otros aparatos (incluyendo
amplificadores) que producen calor.
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del
tipo descrito en el instructivo de operación, o como se indique en el aparato.
12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización
del equipo no sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que no
sean pisados ni pellizcados por objetos colocados sobre o contra ellos,
poniendo particular atención a los contactos y receptáculos donde salen del
aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las
recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas
de energia.
724-746-5500 | blackbox.com Page 3
NOM Statement
16. El cable de corriente deberá ser desconectado del cuando el equipo no sea
usado por un largo periodo de tiempo.
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean
derramados sobre la cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del aparato; o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en su
desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada.
Page 4
724-746-5500 | blackbox.com
Trademarks Used in this Manual
Trademarks Used in this Manual
Black Box and the Double Diamond logo are registered trademarks of
BB Technologies, Inc.
Any other trademarks mentioned in this manual are acknowledged to be
the property of the trademark owners.
724-746-5500 | blackbox.com Page 5
Contents
Contents
1. Specifications .............................................................................................. 7
2. Overview ............................................................................................... 8
2.1 Introduction ....................................................................................... 8
2.2 Features ............................................................................................. 8
2.3 What’s Included ................................................................................ 9
2.4 Hardware Description ......................................................................10
2.4.1 AVX-DVI-FO-MINI and AVX-DVI-FO-MINI-RX ....................10

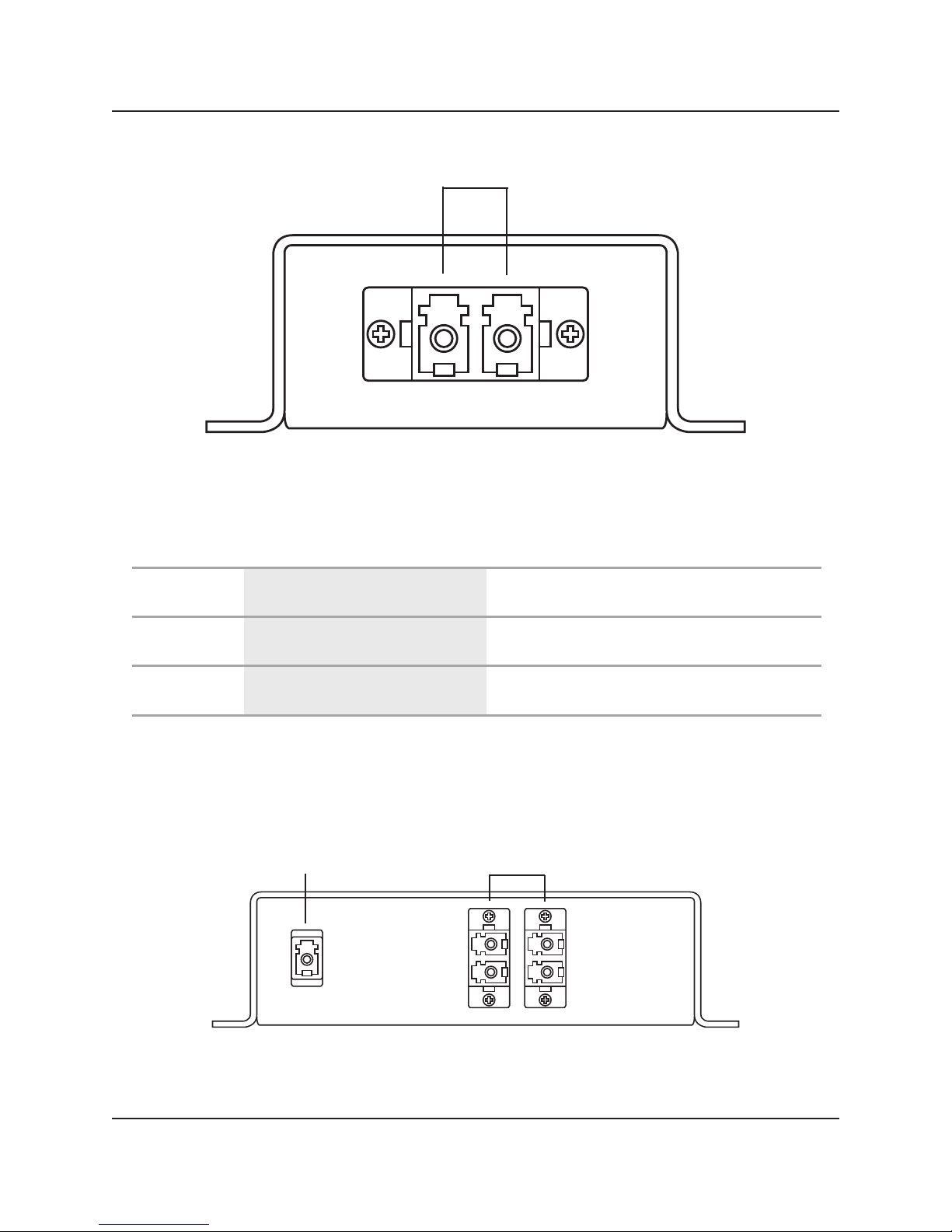

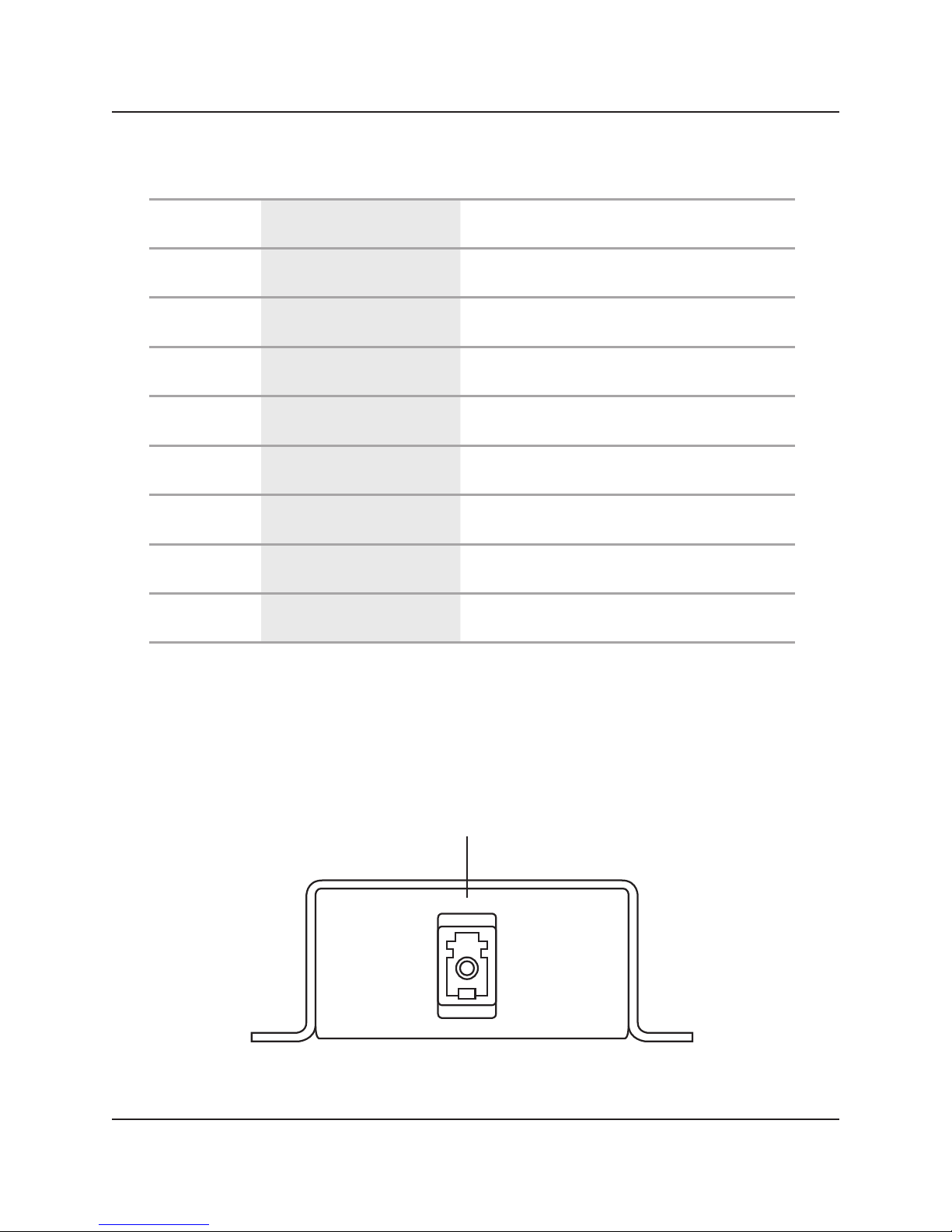

2.4.2 AVX-DVI-FO-SPCS ................................................................11
2.4.3 AVX-DVI-FO-SP4 ..................................................................12
2.4.4 AVX-DVI-FO-SP8 ..................................................................13
2.4.5 AVX-DVI-FO-USBPS ..............................................................14
2.5 System Configuration .......................................................................14
2.5.1 AVX-DVI-FO-MINI and AVX-DVI-FO-MINI-RX ....................14
2.5.2 AVX-DVI-FO-SPCS ................................................................15
2.5.3 AVX-DVI-FO-SP4 ..................................................................16
2.5.4 AVX-DVI-FO-SP8 ..................................................................17
3. Installation ..............................................................................................18
3.1 Connections .....................................................................................18
3.2 EDID Setting .....................................................................................18
3.3 Installation Steps ............................................................................. 20
4. Troubleshooting ........................................................................................ 25
4.1 Problems/Solutions .......................................................................... 25
4.2 Contacting Black Box ...................................................................... 26
4.3 Shipping and Packaging .................................................................. 26
Page 6
724-746-5500 | blackbox.com
Chapter 1: Specifications
1. Specifications
Color Depth — 24-bit true color
Data Rate — 5 Gbps (2.5 Gbps per single wavelength)
Distance — Multimode cable: 1640.4 ft. (500 m);
Single-mode cable: 4921.3 ft. (1.5 km)
Fiber Type — Single-mode or multimode
Optical Budget — 16 dB
Receiver Sensitivity — -21 dB
Resolutions — Supports up to WUXGA (1920 x 1200)
Wavelength — 1310 nm/1550 nm (dual wavelength)
Operating Temperature — 32 to 122° F (0 to +50° C)
Power Consumption — 2.5 W max.
Video Standard — Complies with DVI 1.0
Indicators — (1) two-color LED for Power and Link status
Connector — AVX-DVI-FO (kit): Receiver: (1) 24-pin DVI-D, (2) 3.5-mm audio,
(1) barrel connector for power;
Transmitter: (1) 24-pin DVI-D, (2) 3.5-mm audio, (1) barrel connector for power;
Splitters: AVX-DVI-FO-SPCS: (3) LC connectors: (1) for interconnect, (2) for devices;
AVX-DVI-FO-SP4: (5) LC connectors: (1) for interconnect, (4) for devices;
AVX-DVI-FO-SP8: (9) LC connectors: (1) for interconnect, (8) for devices
NOTE: The splitters trasmit both audio and video signals over one single-strand,
single-mode fiber cable.
Size — 0.6"H x 1.5"W x 2.7"D (1.5 x 3.9 x 6.9 cm)
Weight — 0.2 lb. (0.1 kg)
724-746-5500 | blackbox.com Page 7
Chapter 2: Overview
2. Overview
2.1 Introduction
The DVI Extender transmits high-quality video signal formats and audio to a remote
screen, without compromising the original media quality. The DVI Extender delivers
a full HD resolution signal through one fiber optic cable up to 1.5 kilometers. It’s an
ideal solution for systems where high-resolution and high-quality video signals need
to be displayed over long distances.
Connect the extender in a point-to-point configuration to transmit high-resolution
video to a remote display. The transmitter module is compatible with all kinds of
display devices. It reads and stores the display's EDID information to prevent EDID
handshake problems. Installing the extender is easy and more flexible than ever.
Connect the extender in a point-to-multipoint configuration to distribute
high-resolution video to up to 32 displays. Use the 2-, 4-, and 8-port splitters to
achieve flawless video distribution and extenstion. All splitters are passive devices
and do not require external power.
Typical applications include public informational displays in elevators, trains,
subways, airports, shopping malls, museums, or hotels.
2.2 Features
• Delivers high-quality multimedia content in real time from a media player to
a distant screen while maintaining crystal-clear video. A high-definition video
signal from a single player to a display can be extended up to 1.5 km without
electrical support for splitters. The DVI Extender increases the range of the display
network and enables you to set up your screens at any locations without
sacrificing the quality of media.
• Supports audio extension. The DVI Extender transmits both audio and video over
a single-strand fiber optic cable.
• Extends all DVI VESA standards all the way up to a 1920 x 1200 resolution.
• Offers programmable EDID. The transmitter reads and stores the display's EDID
information and provides a handshaking capability for any type of display with
different resolutions.
• Consumes very little power. Transmitters and receivers consume 3 W or less for
transmitting and receiving Full HD resolution video signals and CD-quality audio.
• Split, extend, and distribute DVI video and stereo audio using the passive fiber
splitters.
Page 8
724-746-5500 | blackbox.com
Chapter 2: Overview
2.3 What’s Included
Your package should contain the following items. If anything is missing or damaged,
contact Black Box Technical Support at 724-746-5500 or info@blackbox.com.
AVX-DVI-FO-MINI:
• (1) Mini Fiber Transceiver
• (1) Mini Fiber Receiver
• (2) 5-VDC wallmount power supplies with international adapters for U.S., U.K.,
AU, and EU
• (2) 5-ft. (1.5-m) male-male 3.5-mm audio cables
• This user’s manual
AVX-DVI-FO-MINI-RX:
• (1) Mini Fiber Receiver
• (1) 5-VDC wallmount power supply with international adapters for U.S., U.K., AU,
and EU
• (1) 5-ft. (1.5-m) male-male 3.5-mm audio cable
• This user’s manual
AVX-DVI-FO-SPCS:
• (1) 2-Port Fiber Splitter
AVX-DVI-FO-SP4:
• (1) 4-Port Fiber Splitter
AVX-DVI-FO-SP8:
• (1) 8-Port Fiber Splitter
The DVI Extender is the best system to use when extending high-quality DVI video
and stereo audio over long distances. The extender includes a transmitter module
and a receiver module.
The transmitter module encodes the audio/video signals into an optical signal and
the receiver module decodes the optical signal back into the original audio/video
signal.
In point-to-point transmission, each display needs a transmitter and a receiver to
extend the source.
724-746-5500 | blackbox.com Page 9
Loading...
