Customize your Smart-UPS or Matrix-UPS
for easier power management.
Customize your Smart-UPS or Matrix-UPS
for easier power management.
SmartSlot UPS Accessories
© 2007. All rights reserved. Black Box Corporation.
FREE 24-hour Tech Support: 724-746-5500
blackbox.com
2 of 3
6/12/2007
#19039
724-746-5500 blackbox.com
FEATURES
• Protect servers and telecomm
equipment.
• Accessories directly plug into your UPS!
• Daisychain SmartSlot Expansion Chassis
for additional power-management
features.
• Perform safe system shutdowns with
the Interface Expander.
• Monitor environmental conditions with
Measure-UPS II.
• Conduct effective remote management
with Call-UPS II and Relay I/O Module.
OVERVIEW
Uninterruptible power supplies from APC®provide
incredible protection for your application. From servers to
midrange systems—even telecomm equipment—you know
you can rely on APC.
Wouldn’t it be great if you could customize your UPS for
greater reliability? Now you can!

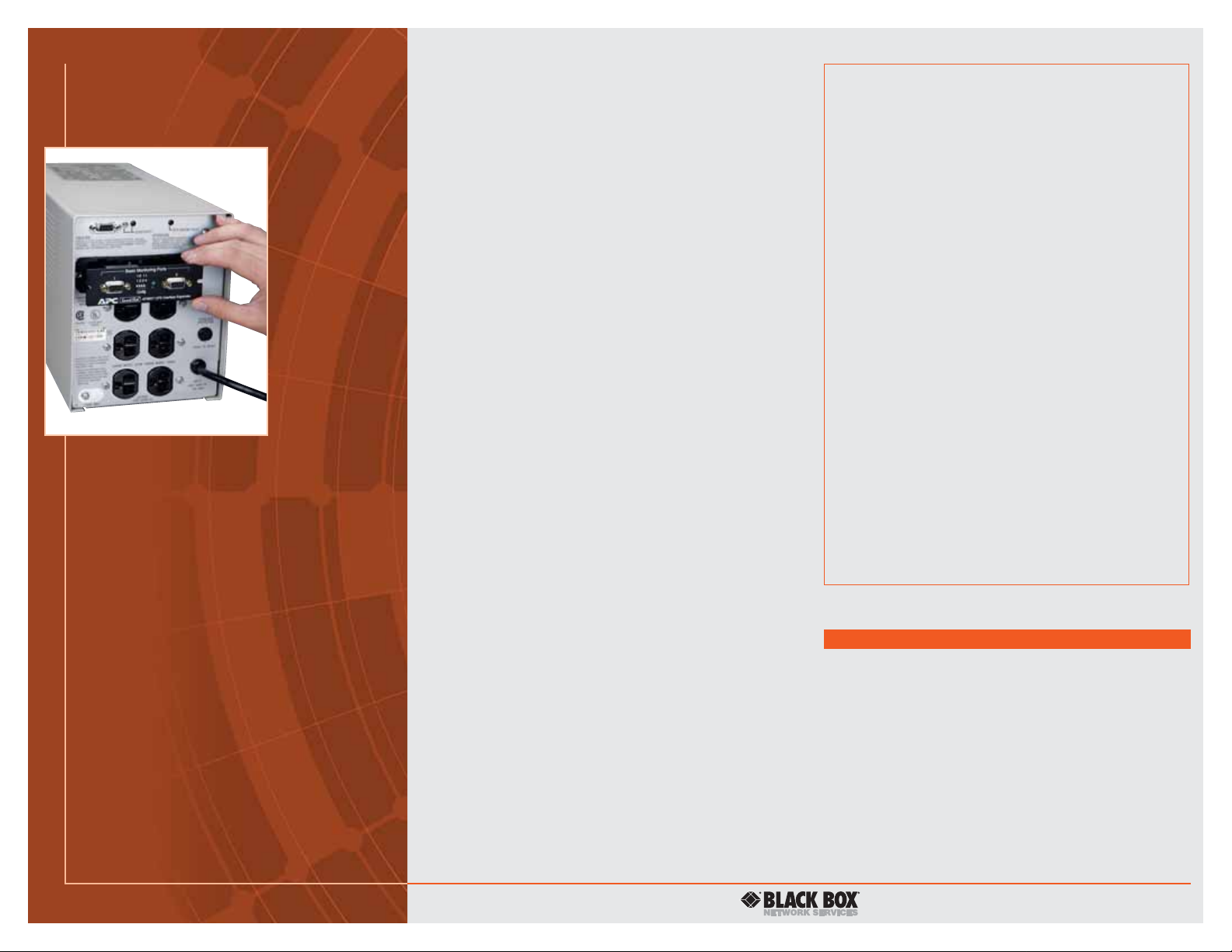

Plug SmartSlot
™
Accessories into your UPS—the accessories
become an integral part of the UPS. Customization is that
easy!
Expansion Chassis
With the Expansion Chassis, you can integrate SmartSlot
Accessories with your Smart-UPS
®
or Matrix-UPS®—even if the
UPS is not SmartSlot equipped.
You can even use multiple SmartSlot Accessories with a
single UPS.
Attach a SmartSlot Expansion Chassis to any Smart-UPS or
Matrix-UPS serial port, and place a SmartSlot Accessory into
the Expansion Chassis. That’s all it takes to customize the UPS
to your specific application.
You can configure your UPS for multiple applications.
TwoSmartSlot Expansion Chassis can be daisychained
together , enabling you to use the combined features of up
to three SmartSlot Accessories from one UPS installation.
UPS Interface Expander
If you’re managing multiple servers, particularly in a mixed
OS environment, the SmartSlot UPS Interface Expander along
with a Share-UPS
™
UPS Interface Expander (Product Data
Sheet 19022) are essential tools to properly manage signaling
servers from a single UPS.
The SmartSlot UPS Interface Expander provides two
additional ports to facilitate a safe system shutdown plus
advanced UPS management of up to three servers from one
UPS.
The SmartSlot UPS Interface Expander offers similar
multiple server shutdown capabilities to the APC Share-UPS,
in a three-port, integrated version.
Measure-UPS™II
Remotely monitor temperature, humidity, and other
environmental conditions via PowerChute
®
plus, Call-UPS™II,
or PowerNet
®
SNMP Adapters and Agents.
SmartSlot Measure-UPS II offers several benefits:
• Remote monitoring via sensor probe. Extendable probe
enables users to monitor environments up to 12 feet
(3.7 m) from the UPS or Measure-UPS. Models are available for temperature and humidity monitoring, or for
temperature only.
• Flexible sensor monitoring via dry contacts. Compatible
with closed- or open-loop sensors, even in the same zone.
Dry contacts come with a DC power source, allowing
more flexibility in sensor options.
Web/SNMP Management Card
Connect your Smart-UPS or Matrix-UPS to the network
in a 10BASE-T environment. With this Card, you can fully
manage and control the UPSs through a Web browser,
Telnet
™
, or SNMP.
Configure the Card locally with a serial connection from
a terminal session or with a special configuration utility
(included). Or remotely configure it using BootP, TFTP, or
FTP. You can also remotely reboot your networking equipment if it locks up.
Call-UPS II
Manage a UPS with a SmartSlot from a remote site. CallUPS II provides complete UPS information, page-notification
of power problems, and the ability to reboot attached equipment safely via a Call-UPS II Modem (ask Tech Support for
Modem details). Communicate with your UPS even
during power outages or when your server is down.
Relay I/O Module
Control and monitor power through a simple dry-contact
interface. With the Relay I/O Module, users can control SmartUPS or Matrix-UPS operations and receive critical UPS alarms,
functions that are normally available only through fileserver
or modem communications.
Remotely monitor the UPS battery and operation when
the power goes out. And safely reboot locked-up remote
devices.
NOTE: SmartSlot Accessories provide complete control of your
UPS by creating a power-management solution custom-tailored
to your application.
3 of 3
6/12/2007
#19039
724-746-5500 blackbox.com
TECH SPECS
Expansion Chassis:
System Requirements — Smart-UPS or Matrix-UPS
Power — From UPS (some older Smart-UPS models may require an
external power supply)
Size — 2.8"H x 5"W x 5.3"D (7.1 x 12.7 x 13.5 cm)
Weight — 1.5 lb. (0.7 kg)
Smart-UPS Interface Expander:
System Requirements —
Smart-UPS or Matrix-UPS;
Safe System: (1) per server;
PowerChute plus software
Connectors — (2) Basic monitoring power with simple signaling,
(1) smart communication from UPS port
Power — From UPS (some older Smart-UPS models may require an
external power supply)
Size — 4"H x 1.5"W x 4"D (10.2 x 3.8 x 10.2 cm)
Weight — 0.3 lb. (0.1 kg)
Measure-UPS II:
System Requirements — Smart-UPS or Matrix-UPS equipped with a
SmartSlot; PowerChute plus 4.0 or higher, PowerDoctor 1.2 or higher,
PowerNet SNMP Adapter/Agents, or Call-UPS II
Connectors — DB9 serial for modem
T emperatur e Range — 32 to 149°F (0 to 65°C)
Humidity Range — 10 to 90% relative humidity
Power — From SmartSlot
Size — 1.5"H x 5"W x 5.3"D (3.8 x 12.7 x 13.5 cm)
Weight —1.1 lb. (0.5 kg)
Web/SNMP Management Card:
System Requirements — Smart-UPS or Matrix-UPS
Connectors — (1) RJ-45 10BASE-T
Indicators — (1) Link – TX/RX, (1) Status
Power — From the interface
Size — 1.5"H x 4.5"W x 4.25"D (3.8 x 11.4 x 10.8 cm)
Weight — 0.5 lb. (0.2 kg)
Call-UPS II and Relay I/O Module:
System Requirements — Smart-UPS or Matrix-UPS;
AP9608: 1200 bps or above modem
Power — From SmartSlot
Size — 4"H x 1.5"W x 4"D (10.2 x 3.8 x 10.2 cm)
Weight — 0.3 lb. (0.1 kg)
Recognize any of these situations?
• You wait more than 30 minutes to get through
to a vendor’s tech support.
• The so-called “tech” can’t help you or gives you
the wrong answer.
• You don’t have a purchase order number and the
tech refuses to help you.
• It’s 9 p. m. and you need help, but your vendor’s
tech support line is closed.
According to a survey by Data Communications
magazine, 90% of network managers surveyed say
that getting the technical support they need is extremely
important when choosing a vendor . But even though
network managers pay anywhere from 10 to 20% of their
overall purchase price for a basic service and support
contract, the technical support and service they receive
falls far short of their expectations—and certainly isn’t
worth what they paid.
At Black Box, we guarantee the best value and the
best support. You can even consult our Technical Support
Experts before you buy if you need help selecting just
the right component for your application.
Don’t waste time and money—call Black Box today.
Why Buy From Black Box?
Exceptional V alue. Exceptional
Tech Support. Period.
AP9607
Item Code
SmartSlot UPS Accessories
Expansion Chassis AP9600
Smart-UPS Interface Expander AP9607
Measure-UPS II
Temperature AP9612T
Temperature/Humidity AP9612TH
Web/SNMP Management Card AP9606
Call-UPS II AP9608
Relay I/O Module AP9610
