Black Box ACXMODH2R-P-R2, ACXMODH6R-R2, ACXMODH6BPAC-R2, ACXMODH6FPAC-R2, ACXMODH21R User guide
Page 1
USER MANUAL
ACX1MR, ACX1MT D ISPLAYPO RT 1.1 SERI E S
DKM KVM DP
MODULAR
EXTENDERS
24/7 TECHNICAL SUPPORT AT 1.877.877.2269 OR VISIT BLACKBOX.COM
100-240 VAC/50 60 Hz
5V DC
5A
PROG
PROG
USB-HID
USB
DisplayPort
DisplayPort
max 0.7A
100-240 VAC/50 60 Hz
5V DC
5A
Page 2
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TABLE OF CONTENTS
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
CONTENTS
SAFETY INSTRUCTIONS ................................................................................................................................................................................ 6
1. SPECIFICATIONS ......................................................................................................................................................................................... 7
1.1 INTERFACES ............................................................................................................................................................................................... 7
1.1.1 D IS P LAY PO R T ....................................................................................................................................................................................................... 7
1.1.2 U SB-H I D .................................................................................................................................................................................................................. 7
1.1.3 P S/2 ......................................................................................................................................................................................................................... 7
1.1.4 USB 2.0 (TRANSPARENT) ..................................................................................................................................................................................8
1.1.5 RJ-45 (INTERCONNECT) ....................................................................................................................................................................................8
1.1.6 FIBER SFP TYPE LC (INTERCONNECT) ..........................................................................................................................................................8
1.1.7 SERIAL INTERFACE .............................................................................................................................................................................................8
1.1.8 SERIAL INTERFACE RS-422 ............................................................................................................................................................................... 9
1.1.9 ANALOG AUDIO INTERFACE .............................................................................................................................................................................9
1.1.10 DIGITAL AUDIO INTERFACE ...........................................................................................................................................................................10
1.2 INTERCONNECT CABLE.......................................................................................................................................................................... 11
1.2 .1 C AT X ...................................................................................................................................................................................................................... 11
1.2.2 FIBER .....................................................................................................................................................................................................................12
1.3 SUPPORTED PERIPHERALS .................................................................................................................................................................. 13
1.3.1 USB-HID DEVICES ..............................................................................................................................................................................................13
1.3.2 USB 2.0 DE VICES ...............................................................................................................................................................................................13
1.4 CONNECTOR PINOUTS ........................................................................................................................................................................... 13
1.5 POWER SUPPLY........................................................................................................................................................................................ 17
1.6 ENVIRONMENTAL CONDITIONS ........................................................................................................................................................... 18
1.7 S I Z E ............................................................................................................................................................................................................ 18
1.8 SHIPPING WEIGHT .................................................................................................................................................................................. 19
2. INTRODUCTION ......................................................................................................................................................................................... 20
2.1 DESCRIPTION ........................................................................................................................................................................................... 20
2.2 SYSTEM OVERVIEW ................................................................................................................................................................................ 20
2.3 PRODUCT RANGE .................................................................................................................................................................................... 21
2.3.1 PART NUMBERS ................................................................................................................................................................................................. 21
2.3.2 CHASSIS .............................................................................................................................................................................................................. 21
2.3.3 KVM EXTENDER MODULES ........................................................................................................................................................................... 22
2.3.4 UPGRADE MODULES ....................................................................................................................................................................................... 22
2.3.5 USB 2.0 EXTENDER MODULES ..................................................................................................................................................................... 23
2.4 ACCESSORIES UPGRADE KITS ............................................................................................................................................................. 24
2.5 ACCESSORIES .......................................................................................................................................................................................... 24
2
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 3
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TABLE OF CONTENTS
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
2.6 DEVICE VIEWS .......................................................................................................................................................................................... 25
2.6.1 2-SLOT CHASSIS (ACXMODH2-R2/2R-R2) ..................................................................................................................................................25
2.6.2 2-SLOT CHASSIS (ACXMODH2R-P-R2) ........................................................................................................................................................25
2.6.3 4-SLOT CHASSIS (ACXMODH4-R2/4R-R2) ..................................................................................................................................................26
2.6.4 6-SLOT CHASSIS (ACXMODH6R-R2) ............................................................................................................................................................26
2.6.5 6-SLOT CHASSIS (ACXMODH6BPAC-R2) ................................................................................................................................................... 27
2.6.6 6-SLOT CHASSIS (ACXMODH6FPAC-R2) ................................................................................................................................................... 28
2.6.7 21-SLOT CHASSIS (ACXMODH21R) ............................................................................................................................................................. 28
2.6.8 MODEL ACX2MT-DPH-C/ACX2MR-DPH-C ................................................................................................................................................. 29
2.6.9 MODEL ACX2MT-DPH-SM/ACX2MR-DPH-SM .......................................................................................................................................... 30
2.6.10 MODEL ACX2MT-DPH-2C/ACX2MR-DPH-2C ........................................................................................................................................... 30
2.6.11 MODEL ACX2MT-DPH-2S/ACX2MR-DPH-2S .............................................................................................................................................31
2.6.12 MODEL ACX2MR-DP11ATH-2C/ACX2MT-DP11ATH-2C ..........................................................................................................................31
2.6.13 MODEL ACX2MR-DP11ATH-2C/ACX2MT-DP11ATH-2C ......................................................................................................................... 32
2.6.14 MODEL ACX2MR-DP11ATH-SM/ACX2MT-DP11ATH-SM ...................................................................................................................... 32
2.6.15 MODEL ACX2MR-DP11ATH-2S/ACX2MT-DP11ATH-2S ......................................................................................................................... 33
2.6.16 MODEL ACX1MT-HID/ACX1MR-HID ........................................................................................................................................................... 33
2.6.17 MODEL ACX1MT-G2-EU/ACX1MR-G2-EU .................................................................................................................................................. 34
2.6.18 MODEL ACX1MT-AR/ACX1MR-AR ............................................................................................................................................................... 34
2.6.19 MODEL ACX1MT-ARP/ACX1MR-ARP ..........................................................................................................................................................35
2.6.20 MODEL ACX1MT-DA/ACX1MR-DA ...............................................................................................................................................................35
2.6.21 MODEL ACX1MT-U23-C/ACX1MR-U23-C .................................................................................................................................................. 36
2.6.22 MODEL ACX1MT-U23-SM/ACX1MR-U23-SM ........................................................................................................................................... 36
2.7 S TAT U S LED S ........................................................................................................................................................................................... 37
2.7.1 STATUS K VM EX TENDER MODULE .............................................................................................................................................................. 37
2.7.2 STATUS UPGRADE MODULE DIGITAL AUDIO ............................................................................................................................................ 38
2.7.3 STATUS UPGRADE MODULE USB-HID ........................................................................................................................................................ 39
2.7.4 STATUS UPGRADE MODULE USB 2.0 EMBEDDED ................................................................................................................................... 40
2.7.5 STATUS UPGR ADE MODULE USB 2.0 V1 .....................................................................................................................................................41
2.7.6 STATUS UPGR ADE MODULE USB 2.0 V2 .....................................................................................................................................................42
2.7.7 STATUS MONITORING MODULE SNMP ...................................................................................................................................................... 43
3. INSTALLATION ........................................................................................................................................................................................... 44
3.1 PACKAGE CONTENTS .............................................................................................................................................................................44
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
3
Page 4
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TABLE OF CONTENTS
3.2 SYSTEM SETUP ....................................................................................................................................................................................... 46
3.2.1 KVM EXTENDER SETUP ................................................................................................................................................................................. 46
3.2.2 SETUP OF UPGRADE MODULES .................................................................................................................................................................. 46
3.3 EXAMPLE APPLICATIONS ..................................................................................................................................................................... 48
3.4 OVERVIEW UPGRADE MODULES .......................................................................................................................................................... 49
4. CONFIGURATION .......................................................................................................................................................................................50
4.1 TRANSMISSION PARAMETERS ............................................................................................................................................................ 50
4.2 DDC SETTINGS.........................................................................................................................................................................................50
4.3 COMMAND MODE .................................................................................................................................................................................... 50
4.4 USB-HID GHOSTING ................................................................................................................................................................................ 51
4.5 CONFIGURATION FILE ............................................................................................................................................................................ 52
4.5.1 PAR AMETERS FOR CPU UNITS .................................................................................................................................................................... 52
4.5.2 PARAMETERS FOR CON UNITS .................................................................................................................................................................... 53
4.5.3 PAR AMETERS FOR CPU UND CON UNITS ................................................................................................................................................. 54
5. OPERATION ................................................................................................................................................................................................. 55
5.1 DOWNLOAD OF DDC INFORMATION ..................................................................................................................................................... 55
5.2 PARALLEL OPERATION OF REDUNDANT CPU UNITS ....................................................................................................................... 55
6. TROUBLESHOOTING ................................................................................................................................................................................. 57
6.1 GENERAL FAILURES ................................................................................................................................................................................ 57
6.2 BLANK SCREEN .......................................................................................................................................................................................57
6.3 US B-HID ..................................................................................................................................................................................................... 58
6.4 SERIAL CONNECTION ............................................................................................................................................................................. 59
6.5 ANALOG AUDIO ........................................................................................................................................................................................ 59
6.6 DIGITAL AUDIO ......................................................................................................................................................................................... 60
6.7 UPGRADE MODULE USB-HID ................................................................................................................................................................. 60
6.8 USB 2.0 EMBEDDED ................................................................................................................................................................................. 61
6.9 USB 2.0 ....................................................................................................................................................................................................... 62
7. TECHNICAL SUPPORT ..............................................................................................................................................................................63
7.1 SUPPORT CHECKLIST ............................................................................................................................................................................ 63
7.2 SHIPPING CHECKLIST ............................................................................................................................................................................ 63
APPENDIX A. REGULATORY INFORMATION .............................................................................................................................................64
A.1 FCC CLASS A STATEMENT .................................................................................................................................................................... 64
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
4
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 5
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TABLE OF CONTENTS
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
A.2 WEEE .........................................................................................................................................................................................................64
A.3 ROHS 2 ......................................................................................................................................................................................................65
A.4 NOM STATEMENT ................................................................................................................................................................................... 65
APPENDIX B. GLOSSARY .............................................................................................................................................................................. 66
DISCLAIMER .................................................................................................................................................................................... 68
TRADEMARKS USED IN THIS MANUAL ........................................................................................................................................ 68
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
5
Page 6
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
To ensure reliable and safe long-term operation of your KVM Extender please note the following guidelines:
Only use in dry, indoor environments.
Only use the device according to this User Manual. Failure to follow these procedures could result in damage to the equipment or injury to
the user or installer.
The KVM Extender and the power supply units can get warm. Do not install components in an enclosed space without any airflow.
Do not place the power supply directly on top of the device.
Do not obscure ventilation holes.
Only use power supplies originally supplied with the product or manufacturer-approved replacements. Do not use a power supply if it
appears to be defective or has a damaged chassis.
Connect all power supplies to grounded outlets. In each case, ensure that the ground connection is maintained from the outlet socket
through to the power supply’s AC power input.
Do not connect the link interface to any other equipment, particularly network or telecommunications equipment.
Take any required ESD precautions.
To disconnect the device completely from the electric circuit, remove all power cables.
Do not attempt to open or repair a power supply unit.
Do not attempt to open or repair the KVM Extender. There are no user-serviceable parts inside.
Contact Black Box at 877-877-2269 or [email protected] if there is a fault.
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
6
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 7
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 1: SPECIFICATIONS
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
1. SPECIFICATIONS
1.1 INTERFACES

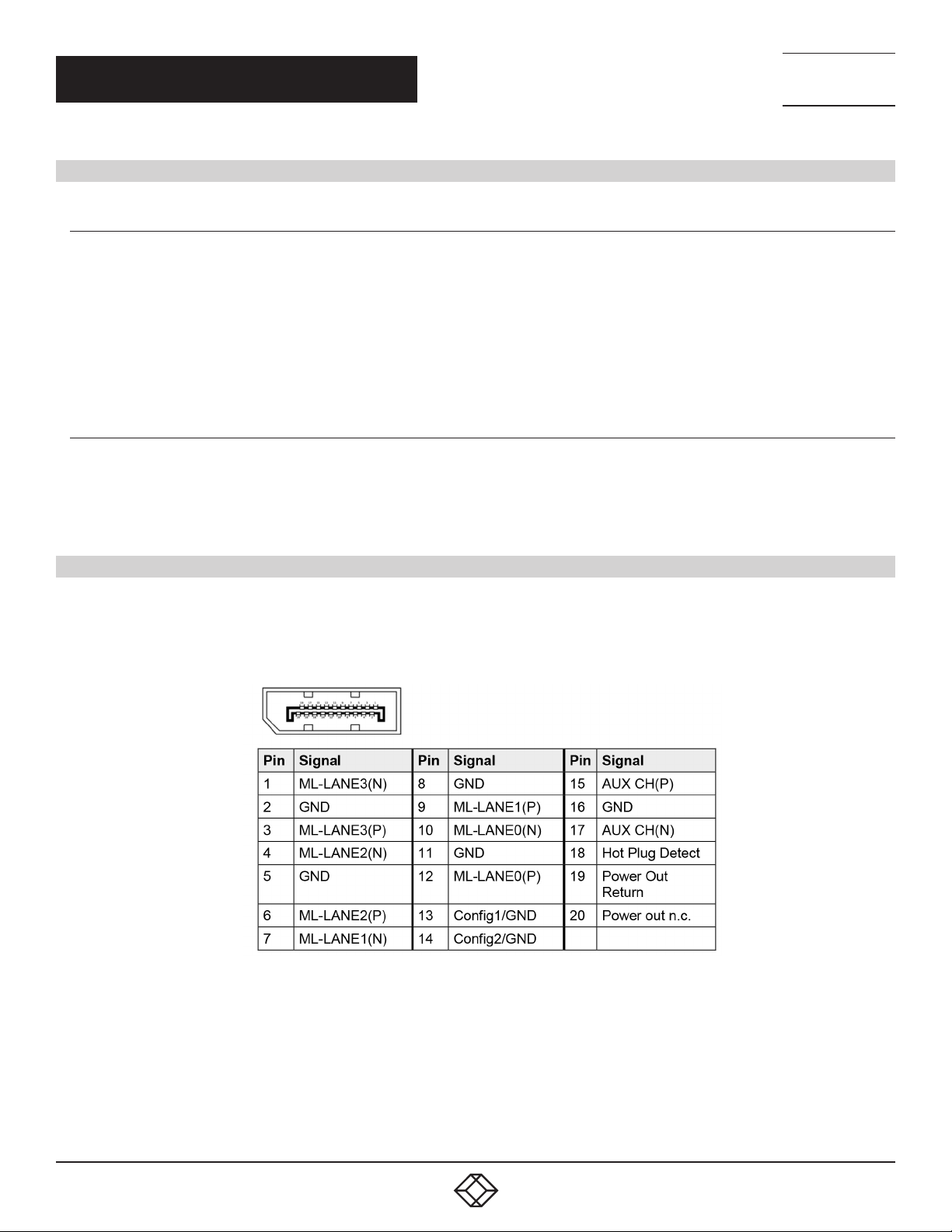

1.1.1 D IS P LAY PO R T
Video
The video interface supports the DisplayPort™ 1.1 standard. All signals that comply with this standard can be transmitted. This includes
monitor resolutions up to 4096 x 2160 @ 30 Hz (4K DCI), 3840 x 2160 @ 30 Hz (UHD), 2560 x 1600 @ 60Hz, 2560 x 1440 @ 60Hz,
2560 x 2048 @ 60Hz, 1920 x 1200 @ 60Hz, and 1920 x 1080 @ 60Hz. Data rate is limited to 8.64 Gbit/s.The color depth is 24 bit (4:4:4).
Audio
Various audio formats can be transmitted through the interface.
Standards: Stereo Linear Pulse Code Modulation (LPCM), DTS, DTS-HD (5.1), Dolby Digital, Dolby Digital Plus (5.1)
Color Depth: 16 to 24 bit
Sample-Rate: 32 to 192 kHz
1.1.2 U SB-H I D
Our devices with USB-HID interface support a maximum of two devices with USB-HID protocol. Each USB-HID port provides a maximum
current of 100 mA.
Keyboard
Compatible with most USB keyboards. Certain keyboards with additional functions may require custom firmware to operate. Keyboards
with an integral USB Hub (Mac keyboards e.g.) are also supported.
Mouse
Compatible with most 2-button, 3-button, and scroll mice.
Other USB-HID devices
The proprietary USB emulation also supports certain other USB-HID devices, such as specific touch screens, graphic tablets, barcode
scanners or special keyboards. Support cannot be guaranteed, however, for every USB-HID device.
Extension
If it is required to extend the USB-HID signals on CON or CPU side (e.g. mounting requirement), the signals can be extended either via a
3.0 m AB cable or a 3.0 m USB A-A extension cable.
NOTE: Only two USB-HID devices are supported concurrently, such as keyboard and mouse or keyboard and touchscreen. A hub is
allowed, but it does not increase the number of HID devices allowed.
To support other USB non-HID devices, such as scanners, webcams or memory devices, choose our devices with transparent USB
support.
1.1.3 P S/2
Our devices with PS/2 interface support the use of a PS/2 keyboard and mouse.
Keyboard
Compatible with most PS/2 keyboards, even with various special keyboards. Certain keyboards with additional functions can be run with
special firmware.
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
7
Page 8
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 1: SPECIFICATIONS
Mouse
Compatible with most 2-button, 3-button, and scroll mice.
1.1.4 USB 2.0 (TRANSPARENT)
KVM Extender models with transparent USB 2.0 support allow the connection of all types of USB 2.0 devices (without restriction). USB 2.0
data transfer is supported, depending on the upgrade module, with USB high speed (max. 480 Mbit/s) or USB embedded (max. 36/100/480
Mbits, depending on extender type).
Each USB embedded port provides a maximum current of 500 mA (high power). When using a USB high speed interface with 4 USB ports,
respectively 2 connectors provides a maximum of 500 mA (high power) and 2 connectors a maximum of 100 mA.
1.1.5 RJ-45 (INTERCONNECT)
Communication between CATx devices requires a 1000BASE-T connection.
Connector wiring must comply with EIA/TIA-568-B (1000BASE-T), with RJ-45 connectors at both ends. All four cable wire pairs are used.
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
1.1.6 FIBER SFP TYPE LC (INTERCONNECT)
Communication of fiber devices is performed via Gigabit SFPs that are connected to suitable fibers fitted with connectors type LC.
NOTE: The correct function of the device can only be guaranteed with SFPs provided by Black Box.
CAUTION: SFP modules can be damaged by electrostatic discharge (ESD). Please consider ESD handling specifications.
1.1.7 SERIAL INTERFACE
The serial interface option supports a full-duplex transmission with a real hardware handshake up to a Baud rate of 115,200 Baud.
The CON Unit is cabled as DTE (Data Terminal Equipment, like CPU output) and can be connected directly to DCE devices (Data
Communication Equipment).
A touchscreen can be connected directly to the CON Unit.
To connect to a serial printer (or any other DTE instead of a DCE device), you need a null-modem cable (crossed cable) between CON Unit
and the device.
Operation of several devices:
The serial interface transmits 6 signals (3 for each direction). Normally, 4 of the 6 signals are handshake signals (in addition to RxD and
TxD). The following configurations, however, can be realized using special adapter splitting cables:
Three single 2-wire transmissions
Two transmissions with a handshake signal
A serial mouse and a single 2-wire transmission
In this case, choose X-ON/X-OFF software handshake for traffic control at printer and PC.
8
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 9
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 1: SPECIFICATIONS
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
Connection Format DTE (Data Terminal Equipment)
Speed Up to 115,200 Baud
Data Format Format independent
Data Transmission
Traffic Control
1.1.8 SERIAL INTERFACE RS-422
KVM Extenders with a serial interface RS-422 (DB9) support a differential full duplex transmission up to a Baud rate of 115,200 Baud.
The CPU unit is designed as controlling device and can, for example, be connected directly to video or media servers.
The CON unit is designed as a controlled device and so can be connected directly to remote controllers.
• RxD (Receive Data)
• TxD (Transmit Data)
The following signals are transmitted (hardware handshake):
• RTS (Request To Send)
• CTS (Clear To Send)
•DTR (Data Terminal Ready)
•DSR (Data Set Ready)
Connection Format Sony Standard
Speed Up to 115,200 Baud
Data Format Format independent
• Rx + (Receive Data)
Data Transmission
• Rx – (Receive Data)
• Tx + (Transmit Data)
• Tx – (Transmit Data)
NOTE: The serial interface only supports one connected device per upgrade module.
1.1.9 ANALOG AUDIO INTERFACE
The analog audio option supports a bidirectional stereo audio transmission, in near-CD quality.
The audio interface is a ‘line level’ interface and it is designed to transmit the signals of a sound card (or another “line level” device) as well
as to allow the connection of active speakers to the CON Unit.
Stereo audio can be transmitted bidirectionally at the same time.
Connection of a microphone:
Connect the microphone to the audio input of the CON Unit. There are two ways to establish this connection:
The output of the CPU Unit is connected to the microphone input of the sound card (red). Adjust the sound card to provide an additional
amplification (20 dB).
The output of the CPU Unit is connected to the audio input of the sound card (blue). Choose this connection if the microphone has its own
pre-amplifier.
NOTE: The CON Unit can also provide pre-amplification of a microphone. Open the CON Unit, locate the MIC jumper on the audio board and
close the pins.
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
9
Page 10
CHAPTER 1: SPECIFICATIONS
ANALOG AUDIO SPECIFICATIONS
Transmission Format Digitized virtually CD quality audio (16 bit, 38.4 KHz)
Signal Level Line-Level (5 Volt Pk-Pk maximum)
Input Impedance 47 K-Ohm
Connections CPU Unit (2) 3.5-mm stereo jack plugs (audio in and audio out)
Connections CON Unit (2) 3.5-mm stereo jack plugs (audio in and audio out)
ANALOG AUDIO USB 2.0 SPECIFICATIONS
Transmission Format Digitized virtually CD quality audio, 16 bit (8, 11.025, 16, 22.05, 32, 44.1, 48 KHz)
Signal Level Line-Level (5 Volt Pk-Pk maximum)
Input Impedance 20 K-Ohm
Connections CPU Unit (1) USB type B female connector
Connections CON Unit (2) 3.5-mm stereo jack plugs (audio in and audio out)
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
1.1.10 DIGITAL AUDIO INTERFACE
The digital audio option supports the unidirectional transmission of digital audio data.
Up to three sources can be connected to the CPU Unit. The active source is transmitted. If several sources are active, the XLR signal takes
priority, otherwise the first active signal.
The three connectors on the CON Unit provide concurrent digital audio.
KVM Extenders with the digital audio option include an built-in sample rate converter that provides predefined sample frequencies at the
output of the CON Unit.

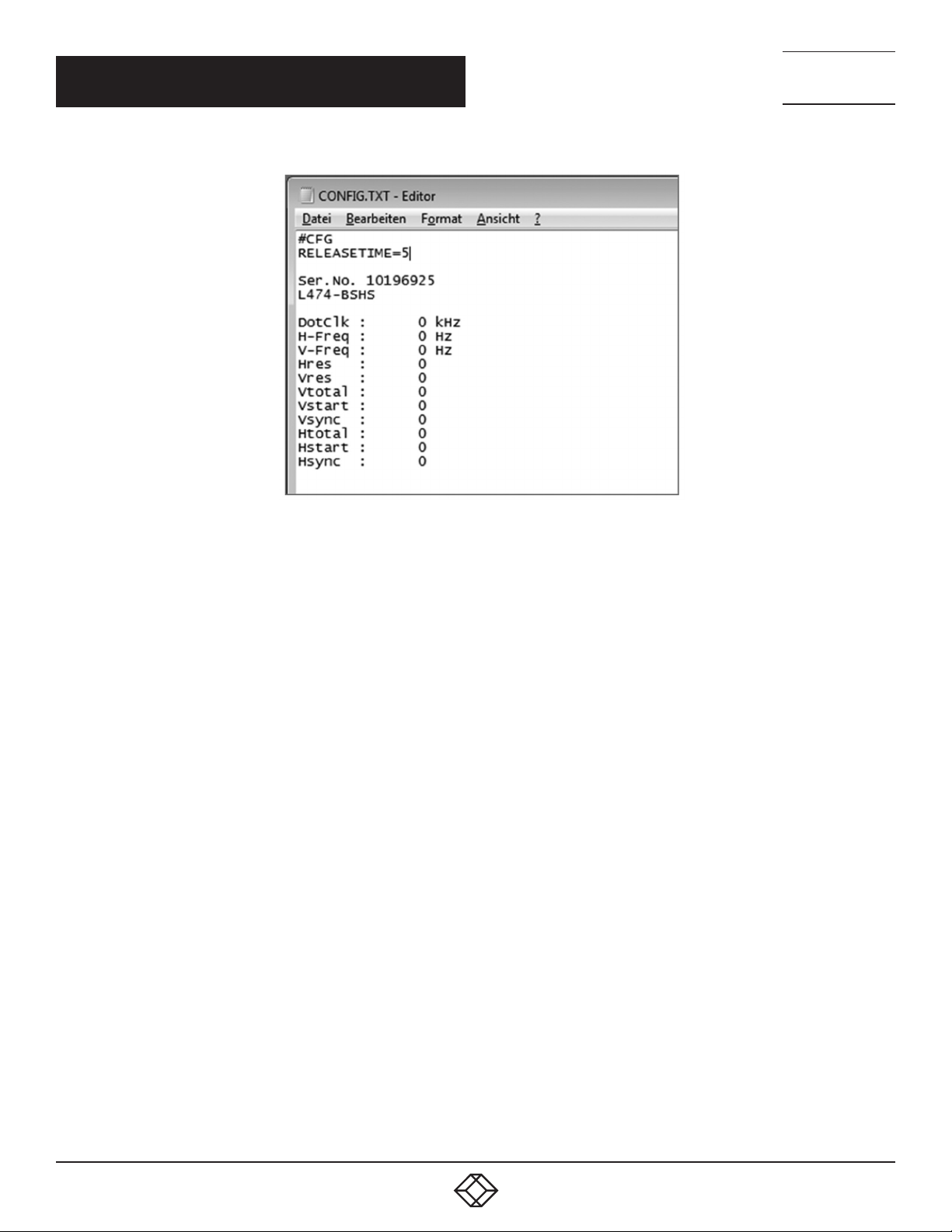

The user can set directly the following parameters by using a configuration file:
Activate or deactivate sample rate converter in the Config.txt file on the flash drive of the KVM Extender.
If the sample rate converter is activated, the following characteristics are valid: 140 dB dynamic range and -120 dB total harmonic distortion +
noise.
Set sample frequency of the sample rate converter by writing the parameter in a new line. The following sample frequencies are available:
– 32.0 kHz (write SRC32000 in Config.txt file of the CPU unit)
– 44.1 kHz (write SRC44100 in Config.txt file of the CPU unit)
– 48.0 kHz (write SRC48000 in Config.txt file of the CPU unit)
– 96.0 kHz (write SRC96000 in Config.txt file of the CPU unit)
You can use a delay for converting the sample rate. The time is set in milliseconds and separated from the parameter for the sample rate by
a semicolon (e.g. SRC44100;12). You can set the following delays for the sample rates:
– 32.0 kHz: 3 - 60 ms
– 44.1 kHz: 2 - 44 ms
– 48.0 kHz: 2 - 40 ms
– 96.0 kHz: 1 - 20 ms
To deactivate the sample rate converter, write SRC_NONE in the Config.txt file of the CPU unit.
10
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 11
CHAPTER 1: SPECIFICATIONS
Compatibility AES/EBU, S/PDIF, EIAJ CP1201, IEC 60958
Standards Dolby Digital, DTS, PCM
Bit Depth 24 bit
Sample Rate 32 to 192 kHz
• Mini-XLR (AES/EBU; symmetrical, lockable)
CPU Unit (Inputs)
CON Unit (Outputs)
1.2 INTERCONNECT CABLE
1.2 .1 C AT X
• Coaxial (S/PDIF; RCA, Cinch)
• Optical (S/PDIF; TOSLINK)
• Mini-XLR (AES/EBU; symmetrical, lockable)
• Coaxial (S/PDIF; RCA, Cinch)
• Optical (S/PDIF; TOSLINK)
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
A point-to-point connection is required. Operation with several patch fields is possible. Routing over an active network component, such
as an Ethernet Hub, Router or Matrix, is not allowed.
CAUTION: Avoid routing CATx cables along power cables.
NOTE: To maintain regulatory EMC compliance, correctly installed shielded CATx cable must be used throughout the interconnection
link.
NOTE: To maintain regulatory EMC compliance, all CATx cables need to carry ferrites on both cable ends close to the device.
Type of Interconnect Cable
The KVM Extender requires interconnect cabling specified for Gigabit Ethernet (1000BASE-T). The use of solid-core (AWG24), shielded,
CAT5e (or better) is recommended.
CATx Solid-Core Cable AWG24
CATx Patch Cable AWG26/8
S/UTP (CAT5e) cable according to EIA/TIA-568-B. Four pairs of wires AWG24. Connection according
to EIA/TIA-568-B (1000BASE-T).
S/UTP (CAT5e) cable according to EIA/TIA-568-B. Four pairs of wires AWG26/8. Connection according
to EIA/TIA-568-B (1000BASE-T).
NOTE: The use of flexible cables (patch cables) type AWG26/8 is possible, however the maximum possible extension distance is halved.
MAXIMUM ACCEPTABLE CABLE LENGTH
CATx Installation Cable AWG24 140 m (400 ft.)
CATx Patch Cable AWG26/8 70 m (200 ft.)
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
11
Page 12
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 1: SPECIFICATIONS
1.2.2 FIBER
A point-to-point connection is necessary. Operation with multiple patch panels is allowed. Routing over active network components, such
as Ethernet Hubs, Switches or Routers, is not allowed.
TYPE OF INTERCONNECT CABLE
CABLE TYPE SPECIFICATIONS
• Two fibers 9 μm
• in-house patch cable
Single-mode 9 μm
Multi-mode 50 μm
Multi-mode 62.5 μm
• in-house breakout cable
• in-house or outdoor breakout cable, resistant
• outdoor cable, with protection against rodents
• Two fibers 50 μm
• in-house patch cable
• in-house or outdoor breakout cable, resistant
• Two fibers 62.5 μm
• in-house breakout cable
• outdoor cable, with protection against rodents
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
MAXIMUM ACCEPTABLE CABLE LENGTH
CABLE TYPE MAXIMUM LENGTH
Singlemode 9 μm 10,000 m (32,800 ft)
Singlemode 9 μm XV 5,000 m (16,400 ft)
Multimode 50 μm (OM3) 1,000 m (3,280 ft)
Multimode 50 μm 400 m (1,300 ft)
Multimode 62.5 μm 200 m (650 ft)
NOTE: If you use singlemode SFPs with multimode fibers, you normally can double the maximum acceptable cable length.
TYPE OF CONNECTOR
Connector LC connector
12
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 13
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 1: SPECIFICATIONS
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
1.3 SUPPORTED PERIPHERALS
1.3.1 USB-HID DEVICES
The KVM Extender will support most USB-HID devices, including the vast majority of keyboards and mice currently on the market. Many
other kinds of HID devices such as bar-code scanners and touch screens may also be compatible.
It is not possible to guarantee support for all available USB-HID devices. In certain cases, custom firmware may be required.
USB-HID (and other) devices that are not supported as standard will normally operate with our devices featuring transparent USB
support.
NOTE: Concurrent operation of more than two USB-HID devices is not possible even if you use a USB hub.
1.3.2 USB 2.0 DE VICES
KVM Extender models featuring a transparent USB 2.0 connection use Extreme USB Technology.
This technology supports all types of USB 2.0 devices, however, we cannot guarantee compatibility with every device on the market.
Contact Black Box Technical Support at 877-877-2269 or [email protected] if any issues are found.
1.4 CONNECTOR PINOUTS
DisplayPort™ CONNECTOR PINOUT
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
13
Page 14
CHAPTER 1: SPECIFICATIONS

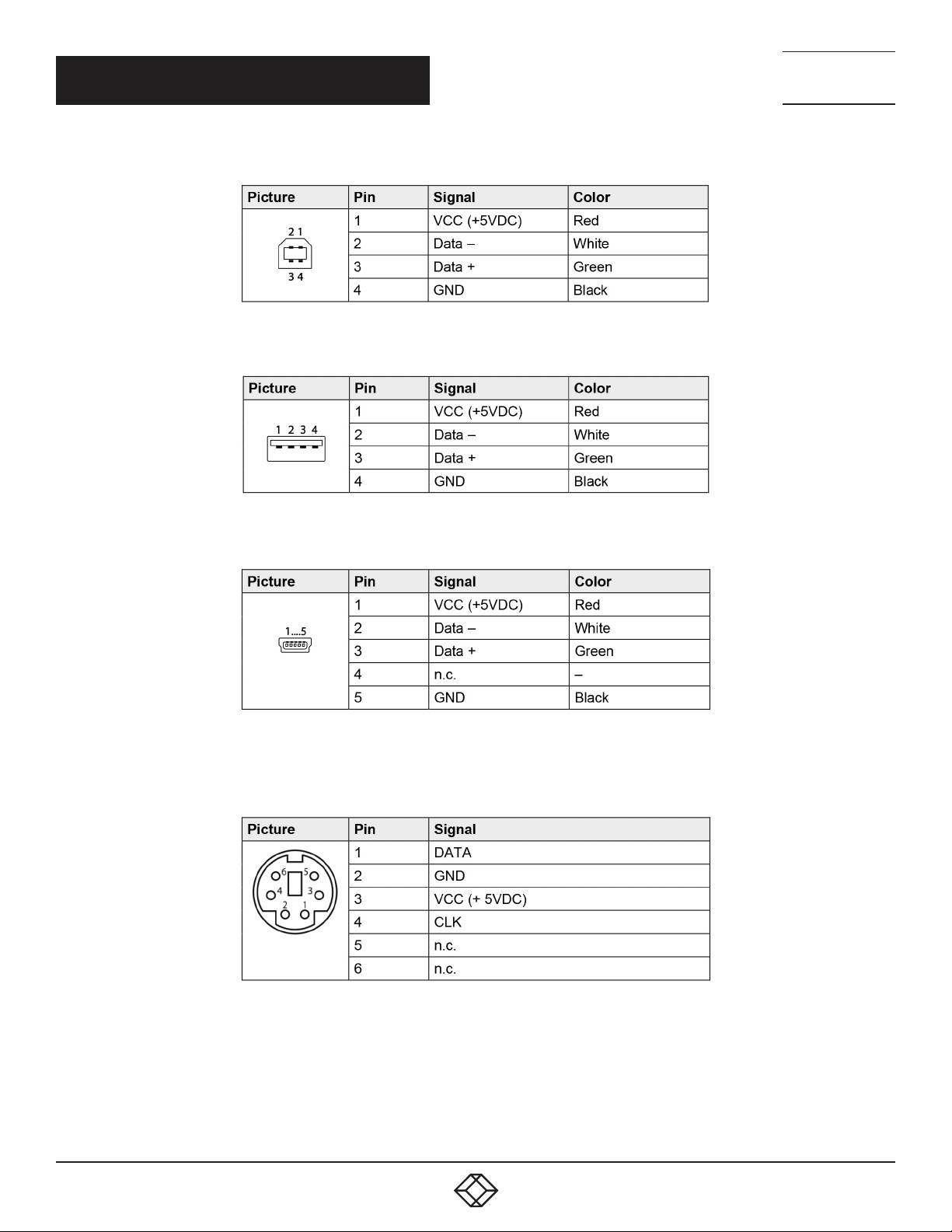

USB TYPE B CONNECTOR PINOUT
USB TYPE A CONNECTOR PINOUT
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
MINI USB TYPE B CONNECTOR PINOUT
PS/2 CONNECTOR PINOUT
14
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 15
CHAPTER 1: SPECIFICATIONS

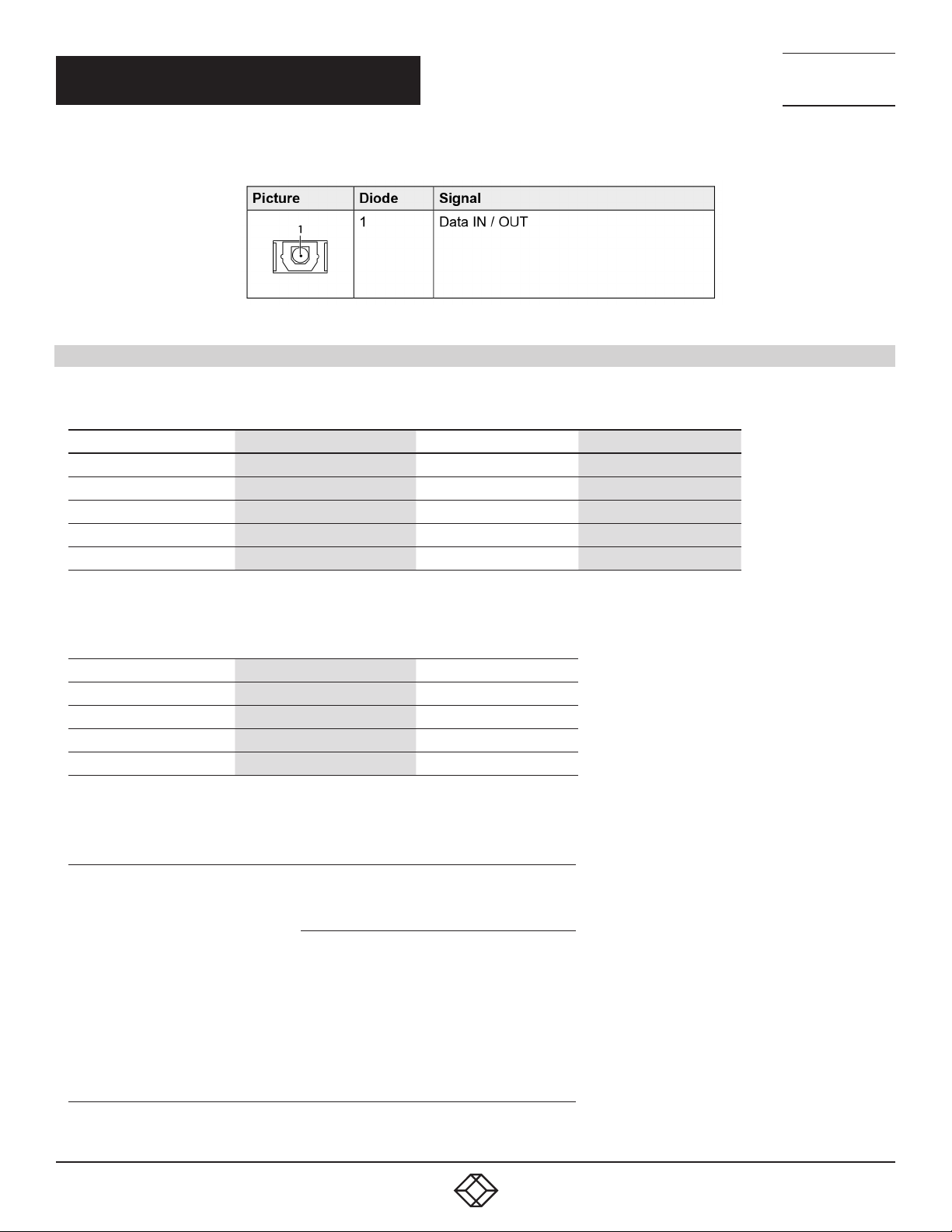

FIBER SFP TYPE LC CONNECTOR PINOUT
RJ-45 CONNECTOR PINOUT
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69

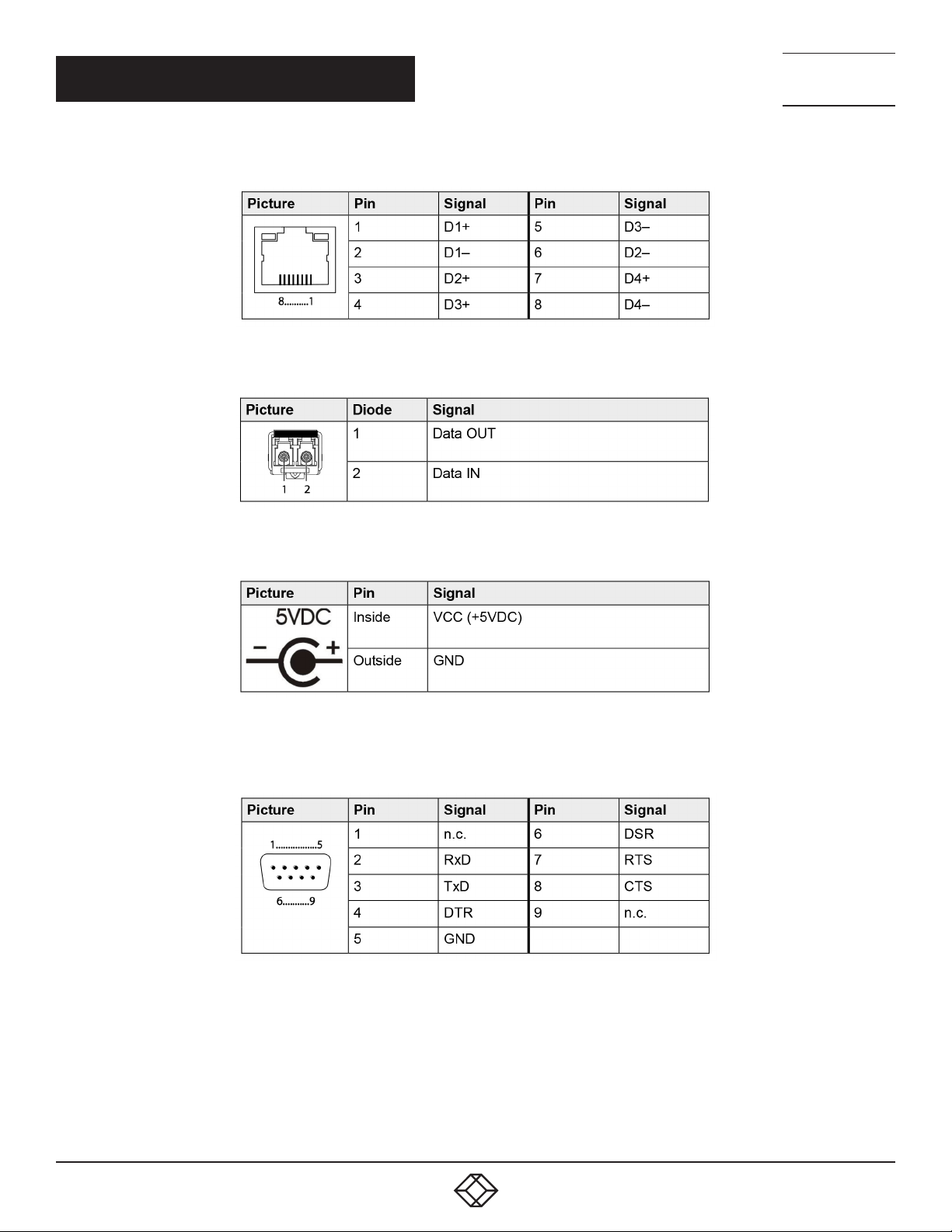

POWER SUPPLY CONNECTOR PINOUT

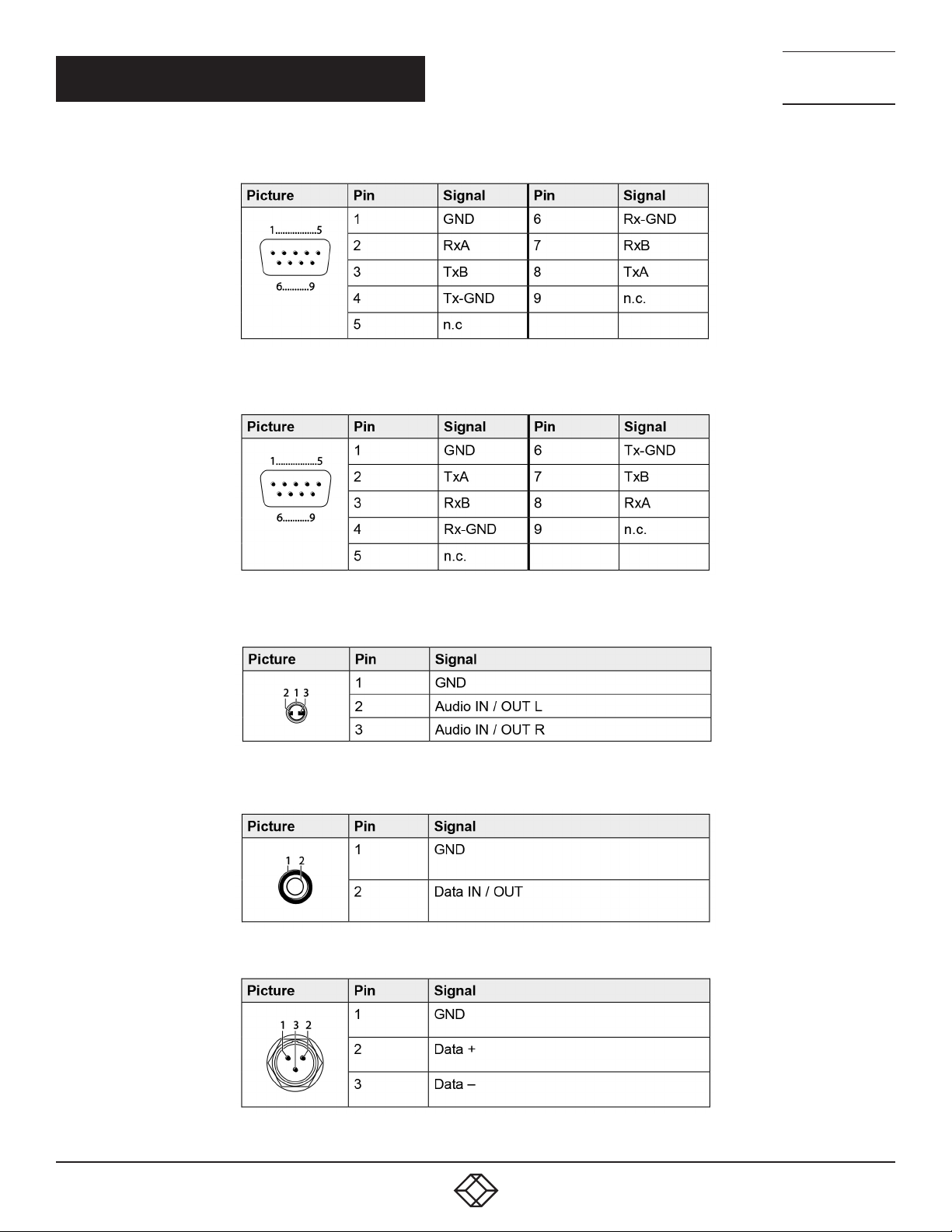

DB9 (SERIAL) RS-232 CONNECTOR PINOUT
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
15
Page 16
CHAPTER 1: SPECIFICATIONS
DB9 (SERIAL) RS-422 CONTROLLED DEVICE CONNECTOR PINOUT
DB9 (SERIAL) RS-422 CONTROLLING DEVICE CONNECTOR PINOUT
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
3.5-/6.35-MM STEREO JACK PLUG CONNECTOR PINOUT
RCA (CINCH) CONNECTOR PINOUT
MINI-XLR CONNECTOR PINOUT
16
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 17
CHAPTER 1: SPECIFICATIONS
TOSLINK CONNECTOR PINOUT
1.5 POWER SUPPLY
AC POWER SUPPLY
MODEL MAX. CURRENT MAX. VO LTAGE FREQUENCY
ACXMODH2R-P-R2 700 mA max. 100 to 240 V 50/60 Hz
ACXMODH6R-R2 1,400 mA max. 100 to 240 V 47 to 63 Hz
ACXMODH6BPAC-R2 1,300 mA max. 100 to 240 V 50/60 Hz
ACXMODH6FPAC-R2 1,300 mA max. 100 to 240 V 50/60 Hz
ACXMOD H21R 4,000 mA max. (2) 100 to 240 V 50/60 Hz
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
DC POWER SUPPLY
MODEL MAX. CURRENT MAX. VO LTAGE
ACXMODH2-R2/2R-R2 3,000 mA 5 VDC
ACXMODH2R-P-R2 5,000 mA 5 VDC
ACXMODH4-R2/4R-R2 5,000 mA 5 VDC
ACXMODH6R-R2 8,000 mA 5 VDC
POWER REQUIREMENT
KVM Extender:
• Single-Head devices: max. 800 mA
• Redundancy devices: max. 1,050 mA
Upgrade Modules:
• Analog Audio/Serial: max. 300 mA
Power Requirement (per Unit)
• Serial (RS-422): max. 150 mA
• Digital Audio: max. 300 mA
• USB-HID: max. 300 mA
• PS/2: max. 650 mA
• USB 2.0 embedded: max. 1,100 mA
• USB 2.0: max. 2,500 mA
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
17
Page 18
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 1: SPECIFICATIONS
1.6 ENVIRONMENTAL CONDITIONS
ENVIRONMENTAL SPECIFICATIONS
NAME DESCRIPTION
Operating Temperature 41 to 113°F (5 to 45°C)
Storage Temperature -13 to 140°F (-25 to 60°C)
Relative Humidity
Noise Emission: Sound Pressure Level (SPL) max 0.21 dBA per fan (ACXMODH6FAN)
Heat Dissipation: Thermal output Corresponds to power consumption in Watts (W) (see extender configurator on the website)
1.7 S I Z E
Max. 80% non-condensing
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
DEVICES IN THE 2-SLOT ACXMODH2-R2/ACXMODH2R-R2
CPU Unit/CON Unit 1.7" H x 5.7" W x 5.8" D (4.1 x 14.5 x 14.7 cm)
Shipping Box 5.5" H x 8.3" W x 6.5" D (14.0 x 16.5 x 21.0 cm)
DEVICES IN THE 2-SLOT ACXMODH2R-P-R2
CPU Unit/CON Unit 1.7" H x 8.7" W x 5.8" D (4.1 x 22.1 x 14.7 cm)
Shipping Box 4.5" H x 21.7" W x 14.4" D (11.5 x 55.0 x 36.5 cm)
DEVICES IN THE 4-SLOT ACXMODH4-R2/ACXMODH4R-R2
CPU Unit/CON Unit 1.7" H x 11.5" W x 5.8" D (4.1 x 29.3 x 14.7 cm)
Shipping Box 4.5” x 21.7" W x 14.4" D (11.5 x 55.0 x 36.5 cm)
DEVICES IN THE 6-SLOT ACXMODH6R-R2
CPU Unit/CON Unit 1.7" H x 17.4" W x 5.8" D (4.1 x 44.2 x 14.7 cm)
Shipping Box 4.5" H x 29.9" W 14.4" D (11.5 x 76.0 x 36.6 cm)
18
DEVICES IN THE 6-SLOT ACXMODH6BPAC-R2/ACXMODH6FPAC-R2
CPU Unit/CON Unit 1.7" H x 17.4" W x 9.8" D (4.1 x 44.2 x 25.0 cm)
Shipping Box 6.1" H x 21.7" W x 14.6" D (15.5 x 55.0 x 37.2 cm)
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 19
CHAPTER 1: SPECIFICATIONS
DEVICES IN THE 21-SLOT ACXMODH21R
CPU Unit/CON Unit 6.9" H x 19.0" W x 18.2" D (17.6 x 48.2 x 46.2 cm)
Shipping Box 14.5" H x 25.4" W x 22.6" D (36.8 x 64.5 x 57.4 cm)
1.8 SHIPPING WEIGHT
DEVICES IN THE 2-SLOT ACXMODH2-R2/ACXMODH2R-R2
CPU Unit/CON Unit 1.5 lb. (0.7 kg)
Shipping Box 5.5 lb. (2.5 kg)
DEVICES IN THE 2-SLOT ACXMODH2R-P-R2
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
CPU Unit/CON Unit 2.4 lb. (1.1 kg)
Shipping Box 6.4 lb. (2.9 kg)
DEVICES IN THE 4-SLOT ACXMODH4-R2/ACXMODH4R-R2
CPU Unit/CON Unit 2.0 lb. (0.9 kg)
Shipping Box 7.5 lb. (3.4 kg)
DEVICES IN THE 6-SLOT ACXMODH6R-R2
CPU Unit/CON Unit 4.2 lb. (1.9 kg)
Shipping Box 11.2 lb. (5.1 kg)
DEVICES IN THE 6-SLOT ACXMODH6BPAC-R2/ACXMODH6FPAC-R2
CPU Unit/CON Unit 5.5 lb. (2.5 kg)
Shipping Box 7.7 lb. (3.5 kg)
DEVICES IN THE 21-SLOT ACXMODH21R
CPU Unit/CON Unit 22.1 lb. (10.9 kg)
Shipping Box 32.0 lb. (14.5 kg)
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
19
Page 20
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 2: INTRODUCTION
2. INTRODUCTION
This manual describes how to install your KVM Extender, how to operate it, and how to perform troubleshooting.
2.1 DESCRIPTION
The KVM Extender is used to increase the distance between a source (computer, CPU) and its console (keyboard, mouse, and other
peripheral devices). The Extender is designed for use with CATx (Twisted Pair) interconnect cables or fiber interconnect cables.
The KVM Extender with CATx interconnect cables is unsuitable for connection between buildings where a fiber optic based
product should be used instead. You can use the KVM Extender with fiber interconnect cables in environments that are subject to
electromagnetic interference. Electromagnetic interference can limit the maximum distance and reliability of operation.
2.2 SYSTEM OVERVIEW
The KVM Extender consists of at least one CPU module and one CON module. The various modules install in a 2-, 4-. or 6-slot chassis at
the CPU site and at the CON site (CPU and CON Unit).
The CPU module connects directly to the source (computer, CPU) using the supplied cables.
The CON module connects to the console (monitor, keyboard and mouse).
The CPU Unit and the CON modules communicate with each other through the interconnect cables.
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69

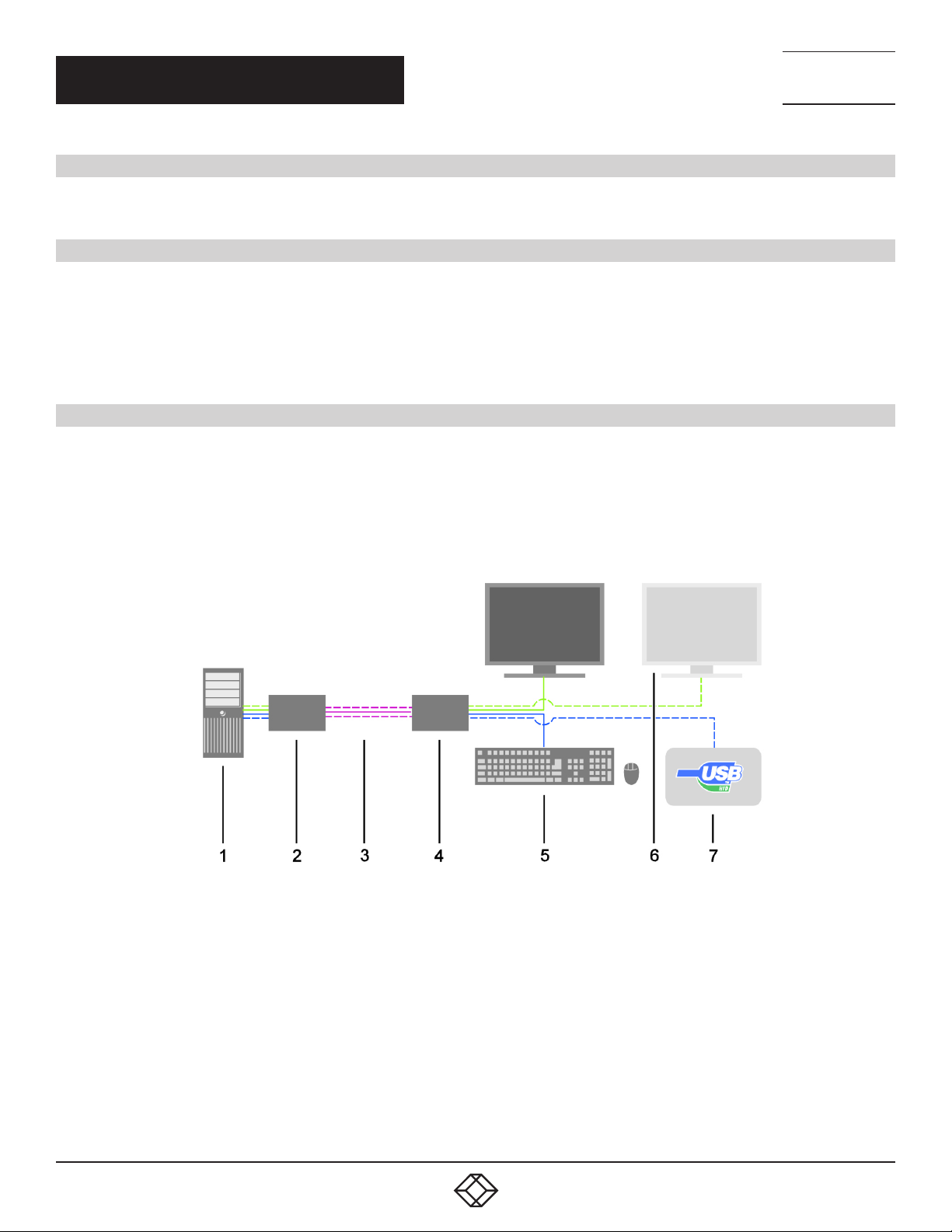

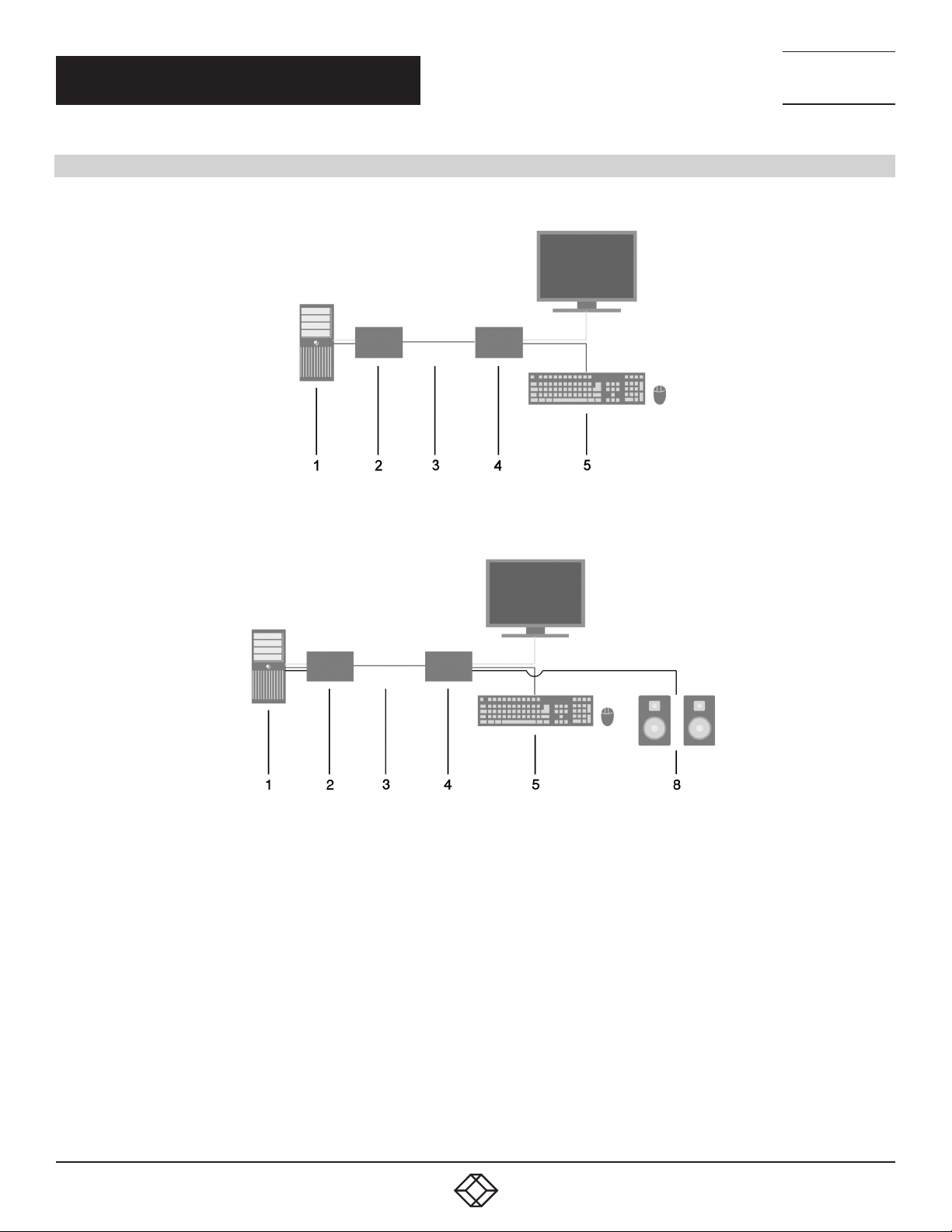

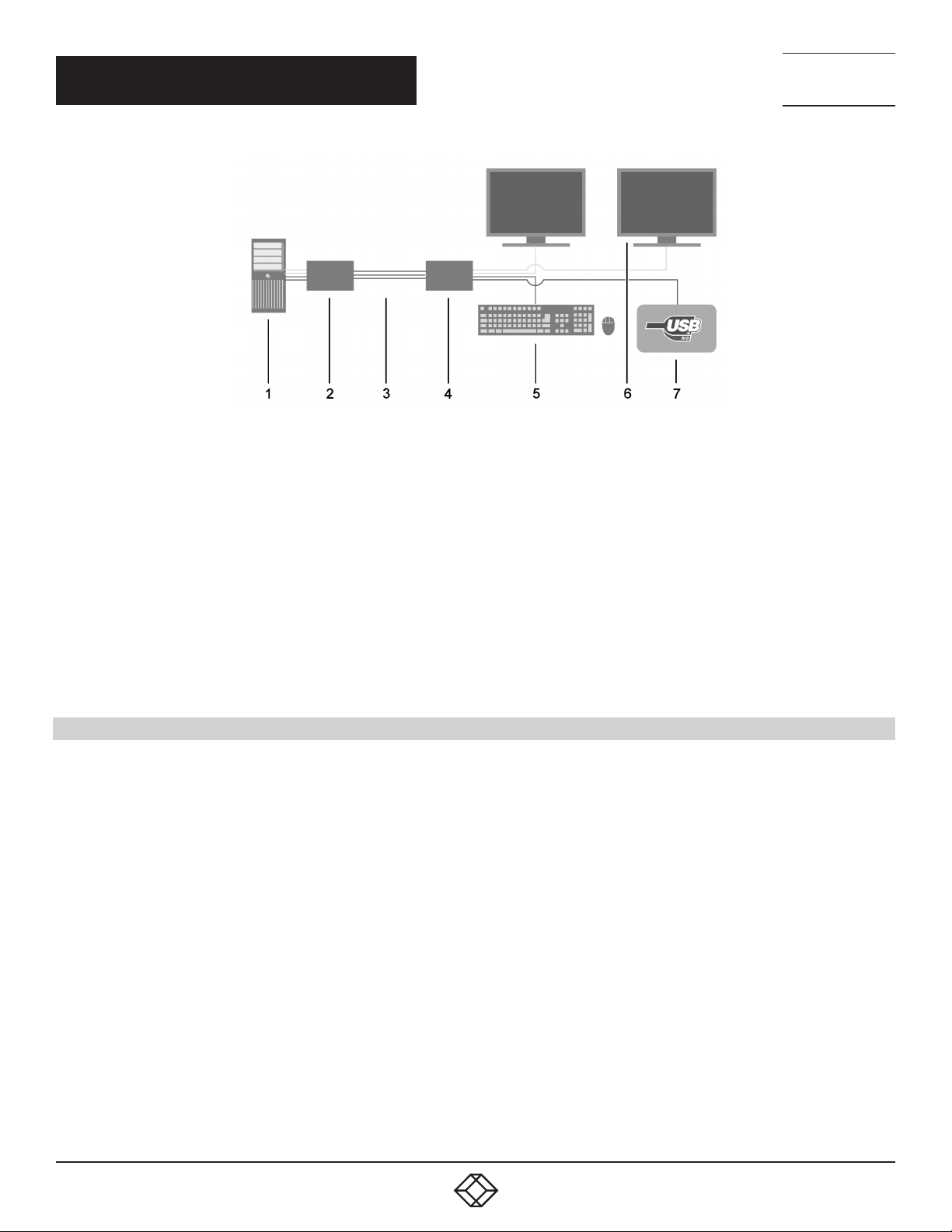

System Overview
1 Source (computer, CPU)
2 KVM Extender CPU Unit
3 Interconnect cable
4 KVM Extender CON Unit
5 Console (monitor, keyboard, mouse)
6 Second monitor (option, only with Dual-Head devices)
7 USB-HID devices (option, only with 4x USB-HID devices)
20
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 21
CHAPTER 2: INTRODUCTION
2.3 PRODUCT RANGE
2.3.1 PART NUMBERS
Part numbers for Connections via CATx or Fiber Cable
All devices are available in the following versions:
Connection via CATx cable (x = “C”)
Connection via singlemode fiber cable (x = “S”)
High-speed connection (3.125 Gbit/s) via singlemode fiber cable (x = “X”)
NOTE: Fiber devices can be used with multimode and singlemode cables.
Part numbers for CPU Unit and CON Unit
The part numbers for the CPU Unit and the CON Unit can be derived from the part number of the complete device.
CPU Unit: ACX1MT, ACX2MT
CON Unit: ACX1MR, ACX2MR
NOTE: All devices in the series are technically compatible with other devices in the family of Black Box extenders.
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
2.3.2 CHASSIS
AVAILABLE CHASSIS
MODEL DESCRIPTION
ACXMODH2-R2 Empty chassis for up to two boards, one external power supply unit
ACXMODH2R-R2
ACXMODH2R-P-R2
ACXMODH4-R2 Empty chassis for up to four boards, one external power supply unit
ACXMODH4R-R2
ACXMODH6R-R2
ACXMODH6BPAC-R2 Empty chassis for up to six boards, active backplane, two internal power supply units (redundancy)
ACXMODH6FPAC-R2 Empty chassis for up to six boards, active backplane, two internal power supply units (redundancy) with connectors on rear side
ACXMOD H21R
Empty chassis for up to two boards, one external power supply unit, prepared for redundancy for a second power supply unit
(external)
Empty chassis for up to two boards, one internal power supply unit, prepared for redundancy for a second power supply unit
(external)
Empty chassis for up to four boards, one external power supply unit, prepared for redundancy for a second power supply unit
(external)
Empty chassis for up to six boards, one internal power supply unit, prepared for redundancy for a second power supply unit
(external)
Empty chassis for up to 21 boards, one internal power supply unit, prepared for redundancy for a second power supply unit
(internal)
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
21
Page 22
CHAPTER 2: INTRODUCTION
2.3.3 KVM EXTENDER MODULES
MODEL DESCRIPTION
ACX2MT-DPHS-SM
ACX2MR-DPHS-SM
ACX2MT-DPHS-2S
ACX2MR-DPHS-2S
ACX2MT-DP11ATH-C
ACX2MR-DP11ATH-C
ACX2MT-DP11ATH-SM
ACX2MR-DP11ATH-SM
ACX2MT-DP11HS-SM
ACX2MR-DP11HS-SM
ACX2MT-DP11ATH-2C
ACX2MR-DP11ATH-2C
ACX2MT-DP11ATH-2S
ACX2MR-DP11ATH-2S
Single-Head module for (1) DisplayPort™ with (2) USB-HID
(up to 1920 x 1200 @ 60 Hz or 4096 x 2160 @ 30 Hz)
Single-Head module for (1) DisplayPort with (2) USB-HID and redundant connector for interconnect cables
(up to 1920 x 1200 @ 60 Hz or 4096 x 2160 @ 30 Hz)
DKM Dual-Head DisplayPort 1.1 and USB HID TX or RX card — CATx
(up to 1920 x 1200 @ 60Hz dual-head or 3840 x 2160 @ 30Hz single-head)
DKM Dual-Head DisplayPort 1.1 and USB HID TX or RX card — Fiber
(up to 1920 x 1200 @ 60Hz dual-head or 3840 x 2160 @ 30Hz single-head)
DKM Dual-Head DisplayPort 1.1 and USB HID High-Speed TX or RX card — Fiber
(up to 1920 x 1200 @ 60Hz dual-head or 3840 x 2160 @ 30Hz single-head)
DKM Dual-Head DisplayPort 1.1 and USB HID Redundant TX or RX card — (2) CATx
(up to 1920 x 1200 @ 60Hz dual-head or 3840 x 2160 @ 30Hz single-head)
DKM Dual-Head DisplayPort 1.1 and USB HID Redundant TX or RX card — (2) Fiber
(up to 1920 x 1200 @ 60Hz dual-head or 3840 x 2160 @ 30Hz single-head)
EXTENDER MODULES
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
2.3.4 UPGRADE MODULES
MODEL DESCRIPTION
ACX1MT-HID
ACX1MR- HID
ACX1MT-G2-EU
ACX1MR-G2-EU
ACX1MT-A R
ACX1MR-AR
ACX1MT-A RP
ACX1MR-ARP
ACX1MT-422
ACX1MR- 42 2
ACX1MT-DA
ACX1MR- DA
Upgrade module with (2) USB-HID
Upgrade module with (2) USB 2.0 (uses Icron 2300 chip)
Upgrade module with Analog Audio/Serial RS-232 (bidirectional)
Upgrade module with Analog Audio/Serial RS-232 (bidirectional) and PS/2
Upgrade module with Analog Audio/Serial RS-422 (bidirectional)
Upgrade module with Digital Audio (unidirectional)
UPGRADE MODULES
22
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 23
CHAPTER 2: INTRODUCTION
UPGRADE MODULES (CONTINUED)
MODEL DESCRIPTION
ACX1MT-A RH
ACX1MR-ARH
ACX1MT-A RE
ACX1MR-ARE
ACX1MT-DAH
ACX1MR- DAH
ACX1MT-DAE
ACX1MR- DAE
ACX1MT-DA X
ACX1MR- DAX
ACX1MT-A RD
ACX1MR-ARD
Upgrade module with Analog Audio/Serial RS-232 (bidirectional) and (2) USB-HID
Upgrade module with Analog Audio/Serial RS-232 (bidirectional) and (2) USB 2.0
Upgrade module with Digital Audio (unidirectional) and (2) USB-HID
Upgrade module with Digital Audio (unidirectional) and (2) USB 2.0
Upgrade module with Digital Audio (bidirectional)
Upgrade module with Digital Audio (unidirectional) and Analog Audio/Serial (bidirectional)
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
2.3.5 USB 2.0 EXTENDER MODULES
MODEL DESCRIPTION
ACX1MT-U23-C,
ACX1MT-U23-SM
ACX1MR-U23-C,
ACX1MR- U23 - SM
USB 2.0 upgrade module with (4) USB 2.0, fixed port (based on: ICRON 2300 Core)
USB 2.0 EXTENDER MODULES
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
23
Page 24
CHAPTER 2: INTRODUCTION
2.4 ACCESSORIES UPGRADE KITS
ACCESSORIES UPGRADE KITS
MODEL DESCRIPTION
ACXMODHEAR2 19”/1U rackmount kit for 2-slot chassis
ACXMODHEAR2P 19”/1U rackmount kit for 2-slot chassis with internal PSU
ACXMODHEAR4 19”/1U rackmount kit for 4-slot chassis
ACXMODHEAR6 19”/1U rackmount kit for 6-slot chassis
ACXMODH-DMK DIN Railmount Kit for DKM Modular Housing
ACXMODH-WMK Deskmount Kit for DKM Modular Housing
ACXMODH2-PS Power supply for 2-slot chassis (spare or redundancy)
ACXMODH4-PS Power supply for 4-slot chassis (spare or redundancy)
ACXMODH6-PS Power supply for 6-slot chassis (spare or redundancy)
ACXMODH21-PS Power supply for 6-slot-chassis (spare or redundancy)
ACXMODH21-4S Blind plate 3U/4HP for 2-, 4- and 6-slot chassis
ACXMODH21-8S Blind plate 3U/8HP for 2-, 4- and 6-slot chassis
ACXMODH6FAN Fan option for chassis ACXMODH6BPAC/F
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
NOTE: KVM Extenders and the power supply units can get warm and must not be installed in closed rooms with no air circulation. For
rackmount installations, at least 0.5 U (height unit) is required above the extenders for ventilation.
2.5 ACCESSORIES
ACCESSORIES
MODEL DESCRIPTION

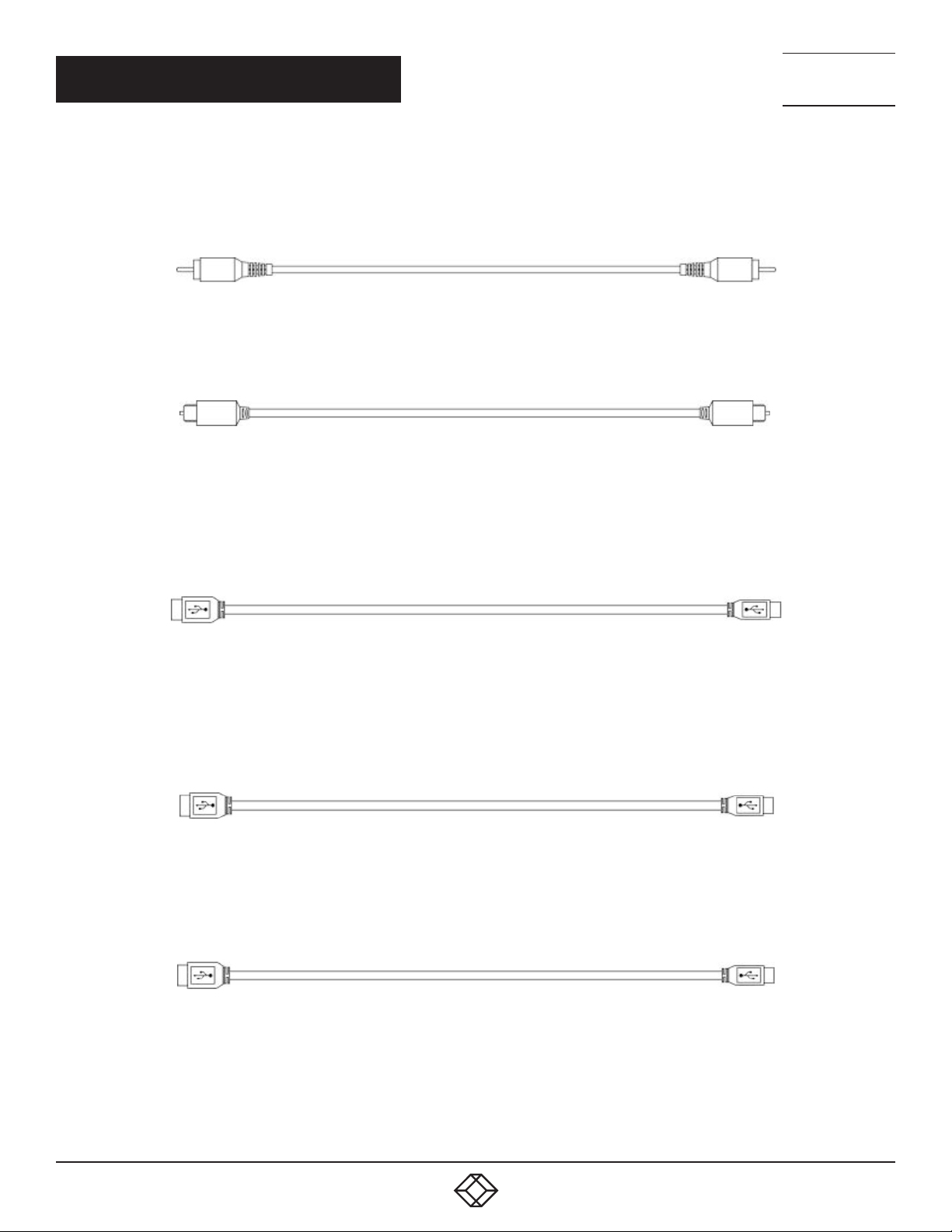

EDN12H-0005-MF Serial cable 1.8 m (RS-232)

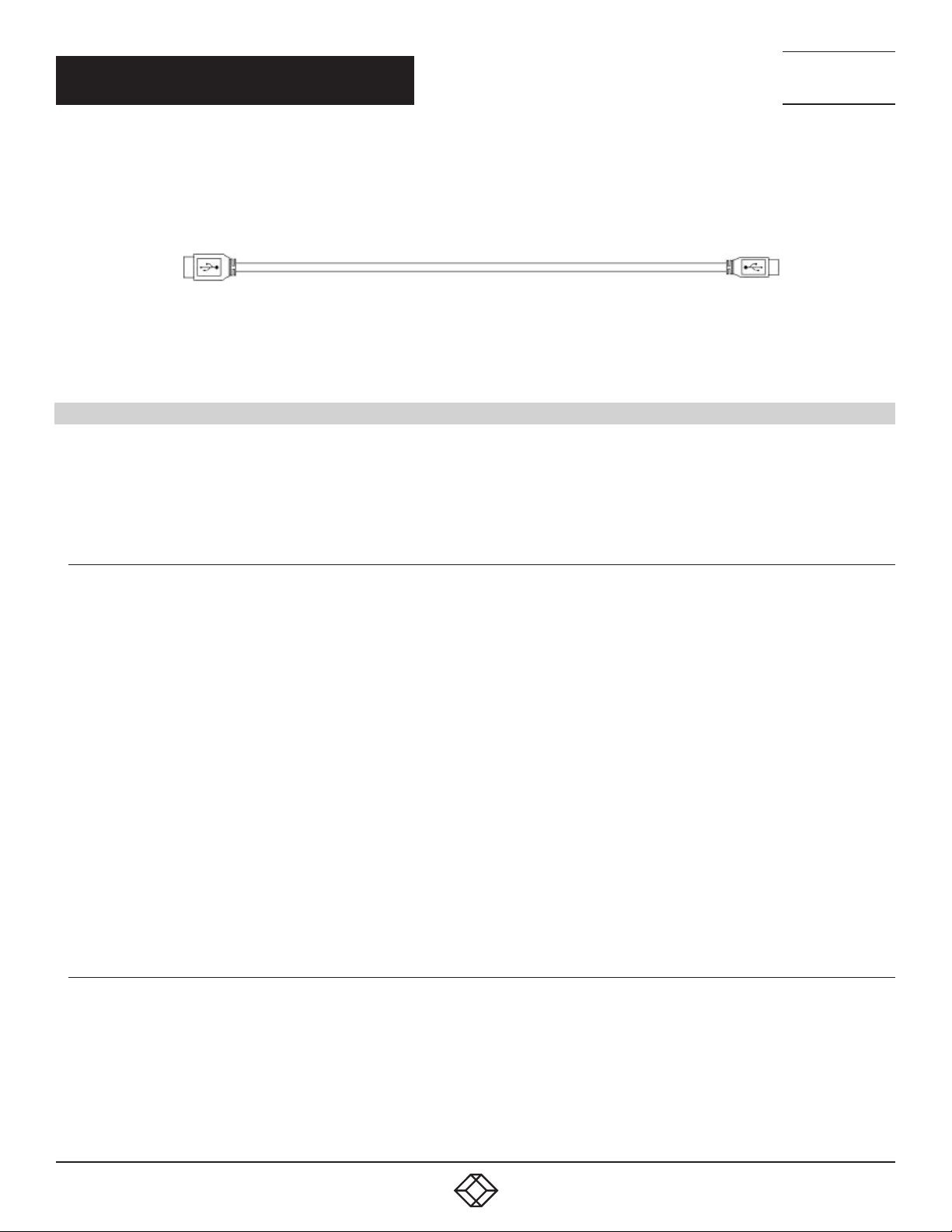

USB05-0006 USB cable 1.8 m (Type A to B)
USB05-0010 USB cable 3.0 m (Type A to B)
EVNDVI01-0006 DVI-D cable 1.8 m (DVI-D)
AC XSPL12-S DVI-D splitter cable
EVHDMI01T-001M HDMI cable 1.8 m
VCB-DP-0015-MM DisplayPort™ cable 1.8 m
EJ110-0005 Stereo jack cable 1.6 m (3.5 mm Stereo)
24
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 25
CHAPTER 2: INTRODUCTION
2.6 DEVICE VIEWS
2.6.1 2-SLOT CHASSIS (ACXMODH2-R2/2R-R2)
CPU and CON Unit
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69

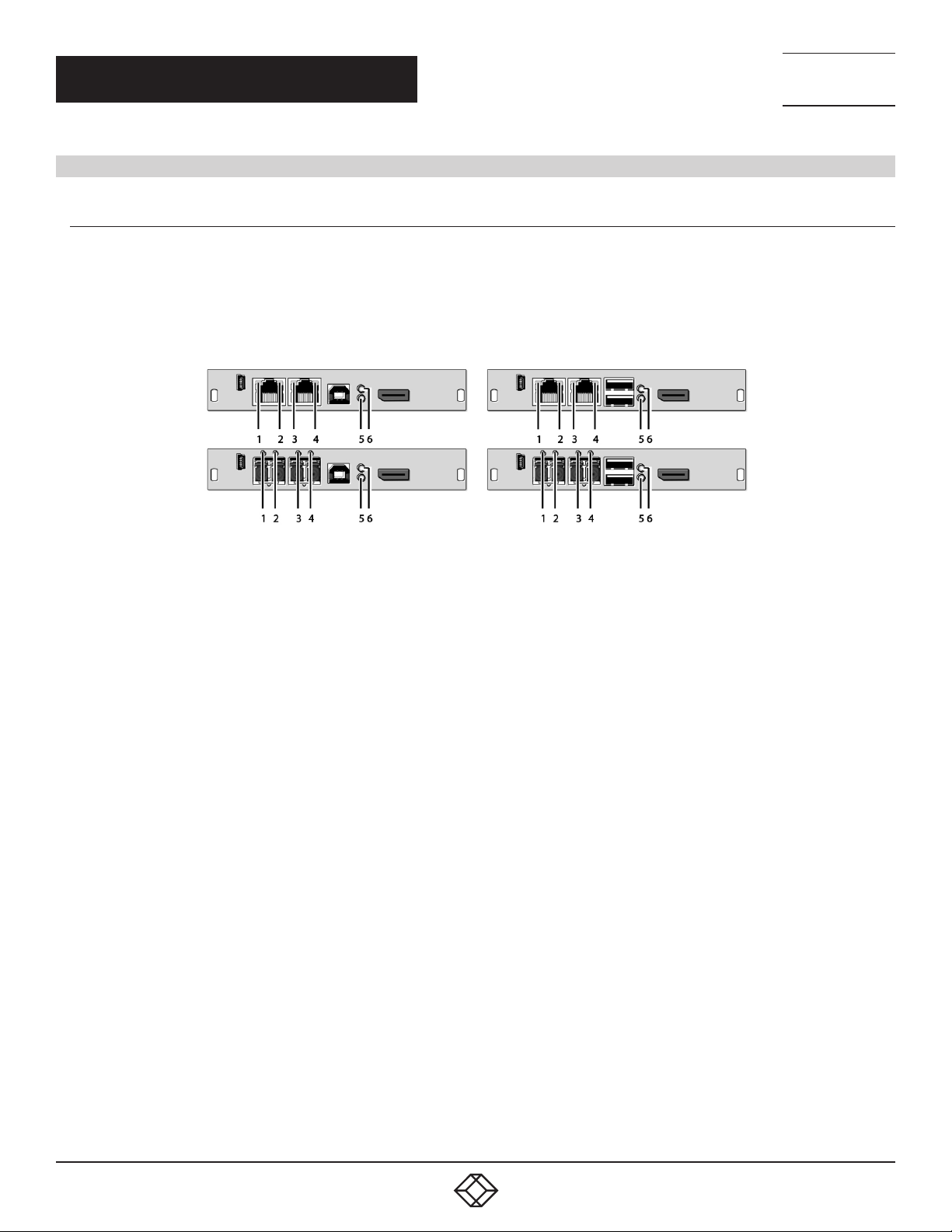

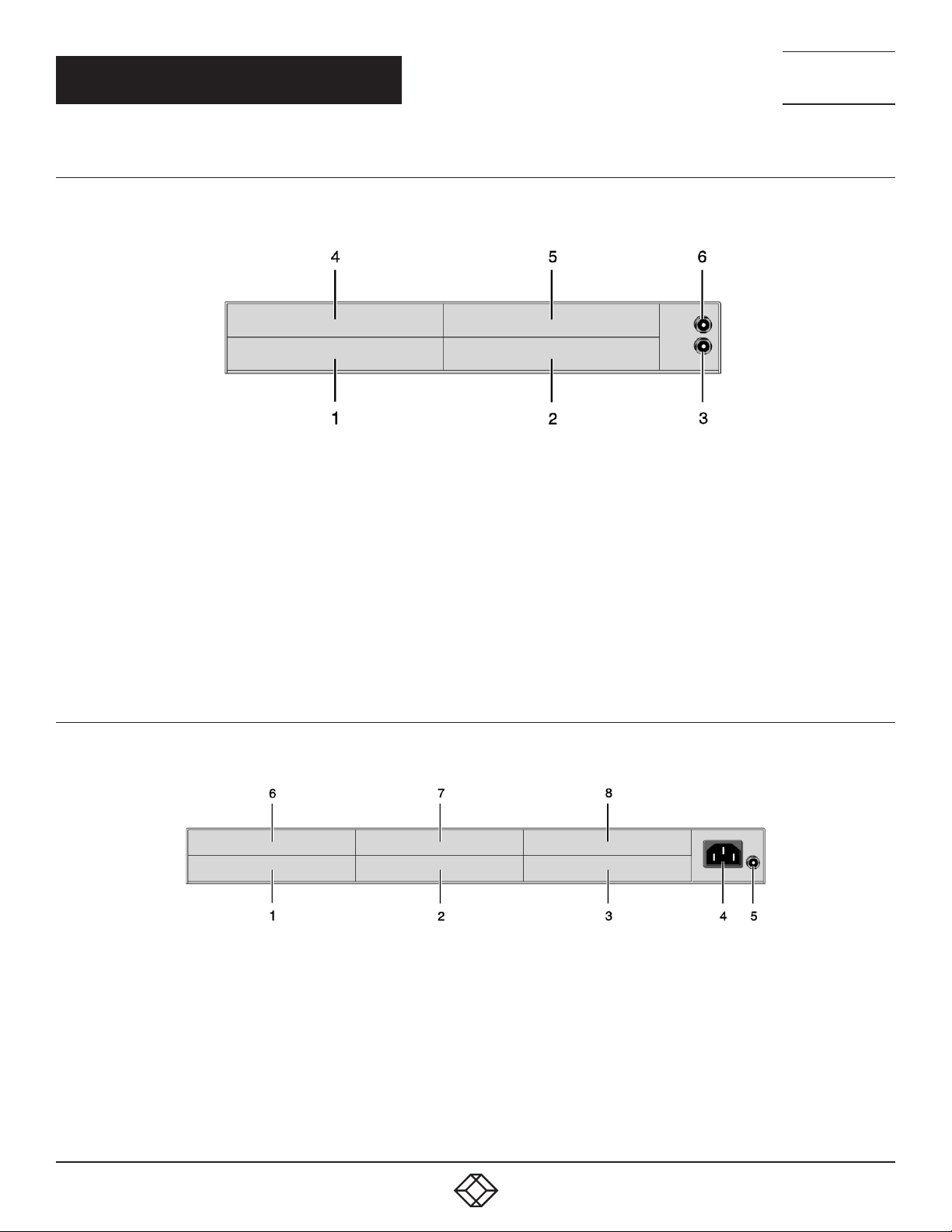

Rear View
1 Slot for modules #1
2 Connect to 5-VDC power supply (standard)
3 Slot for modules #2
4 Connect to 5-VDC power supply (redundancy, optional)
2.6.2 2-SLOT CHASSIS (ACXMODH2R-P-R2)
CPU and CON Unit
Rear View
1 Slot for modules #1
2 Connect to power supply (standard)
3 Slot for modules #2
4 Connect to 5-VDC power supply (redundancy)
NOTE: The 2-slot chassis with an internal power supply is not equipped with a fuse on its primary side. Therefore, the protection against
excessive currents has to be provided by the electrical installation of the building.
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
25
Page 26
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 2: INTRODUCTION
2.6.3 4-SLOT CHASSIS (ACXMODH4-R2/4R-R2)
CPU and CON Unit
Rear View
1 Slot for modules #3
2 Slot for modules #1
3 Connect to 5-VDC power supply (standard)
4 Slot for modules #4
5 Slot for modules #2
6 Connect to 5-VDC power supply (redundancy, optional)
NOTE: For operation with three KVM Extender CON modules and a USB 2.0 CON module in a 4-slot chassis, two power supplies are
necessary. In this case, redundancy is not applicable.
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
2.6.4 6-SLOT CHASSIS (ACXMODH6R-R2)
CPU and CON Unit
Rear View
1 Slot for modules #5
2 Slot for modules #3
3 Slot for modules #1
4 Connect to power supply (standard)
5 Connect to 5VDC power supply (standard)
6 Slot for modules #6
7 Slot for modules #4
8 Slot for modules #2
26
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 27
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 2: INTRODUCTION
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
NOTE: For operation with KVM Extender modules in a 6-slot chassis, two power supplies are necessary. In this case, redundancy is not
applicable.
NOTE: The 6-slot chassis is not equipped with a fuse on its primary side. Therefore, the protection against excessive currents has to be
provided by the electrical installation of the building.

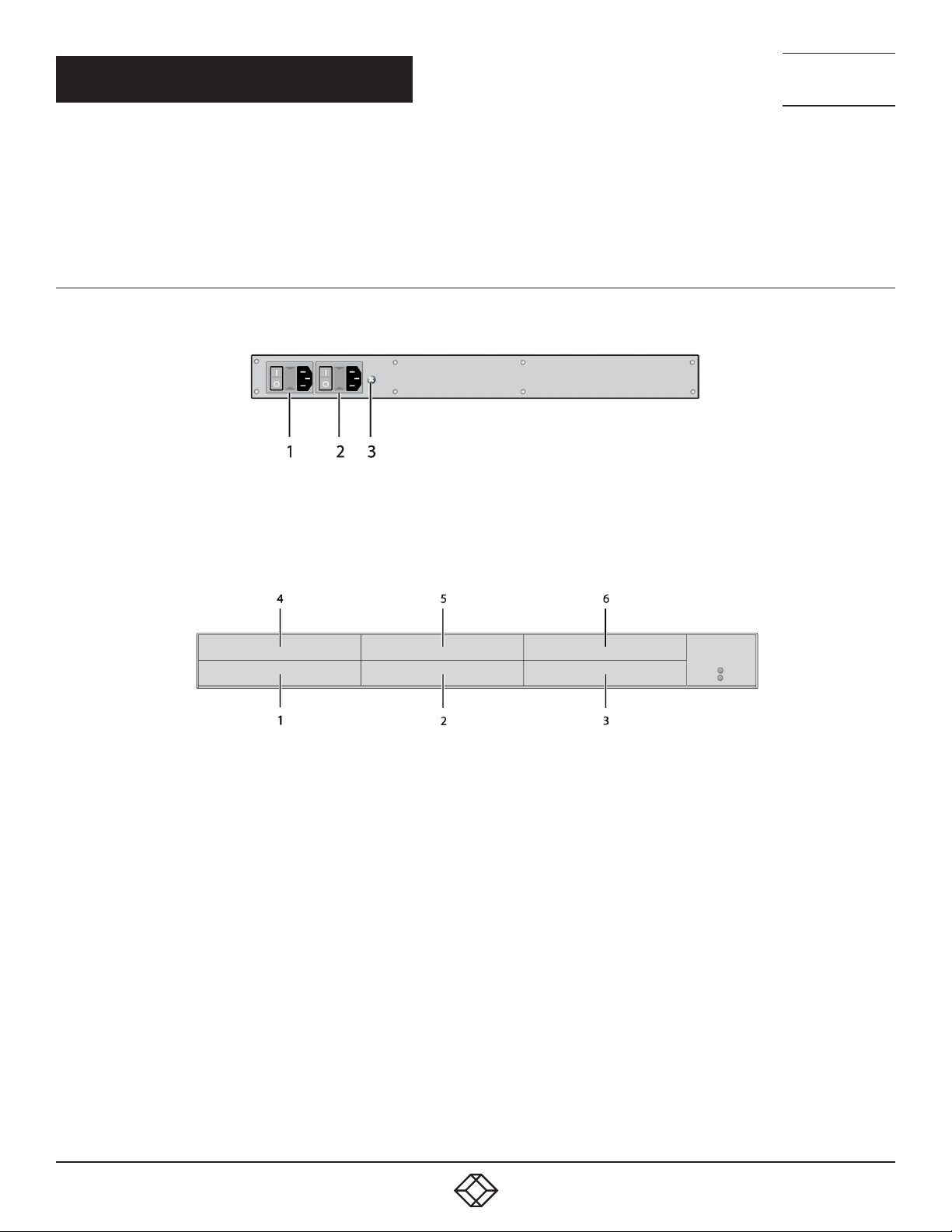

2.6.5 6-SLOT CHASSIS ACXMODH6BPAC-R2
CPU and CON Unit
Front View
1 Connect to power supply 1
2 Connect to power supply 2 (redundancy)
3 Grounding
Rear View
1 Slot for modules #5
2 Slot for modules #3
3 Slot for modules #1
4 Slot for modules #6
5 Slot for modules #4
6 Slot for modules #2
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
27
Page 28
CHAPTER 2: INTRODUCTION
2.6.6 6-SLOT CHASSIS (ACXMODH6FPAC-R2)
CPU and CON Unit
Rear View
1 Slot for modules #5
2 Slot for modules #3
3 Slot for modules #1
4 Connect to power supply 1
5 Connect to power supply 2 (redundancy)
6 Slot for modules #6
7 Slot for modules #4
8 Slot for modules #2
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69

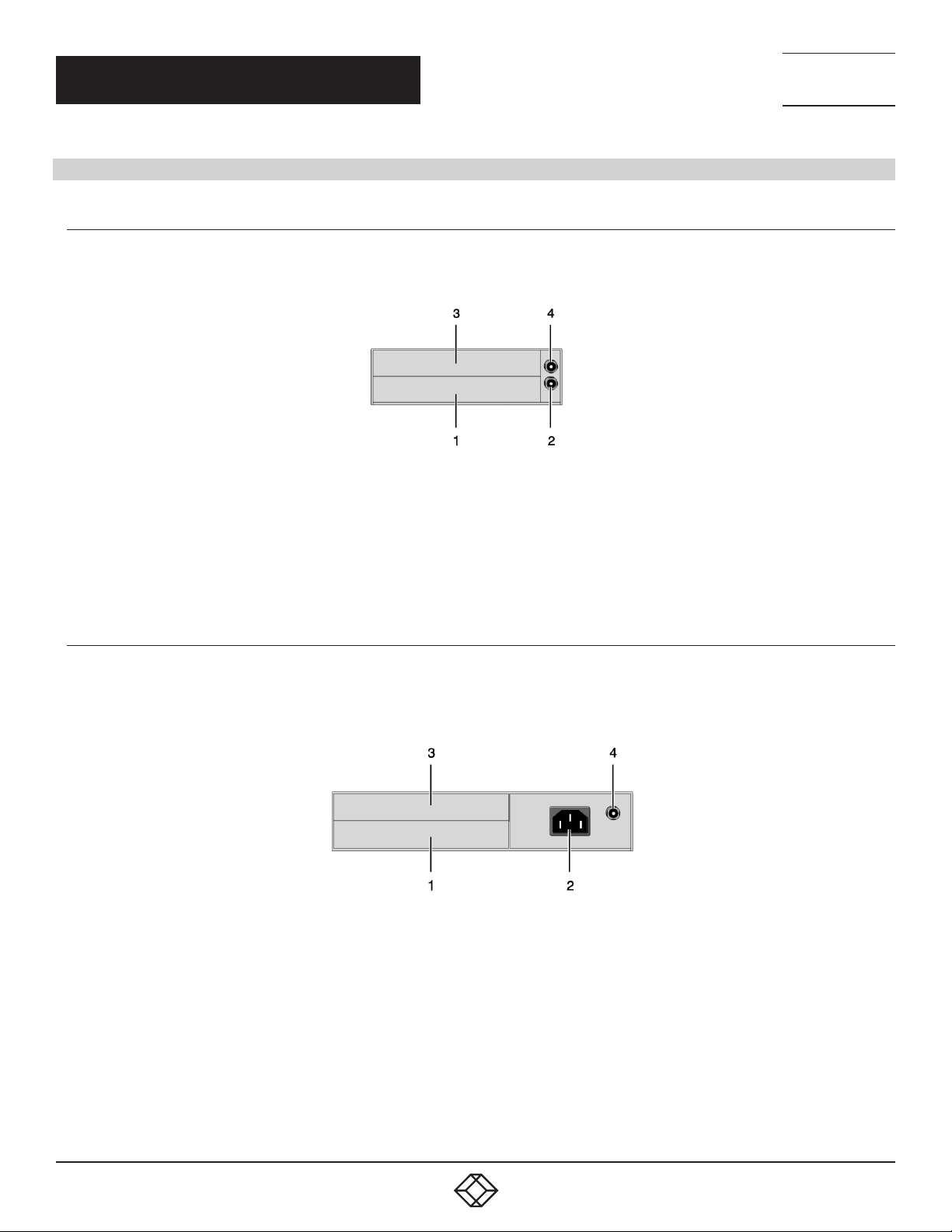

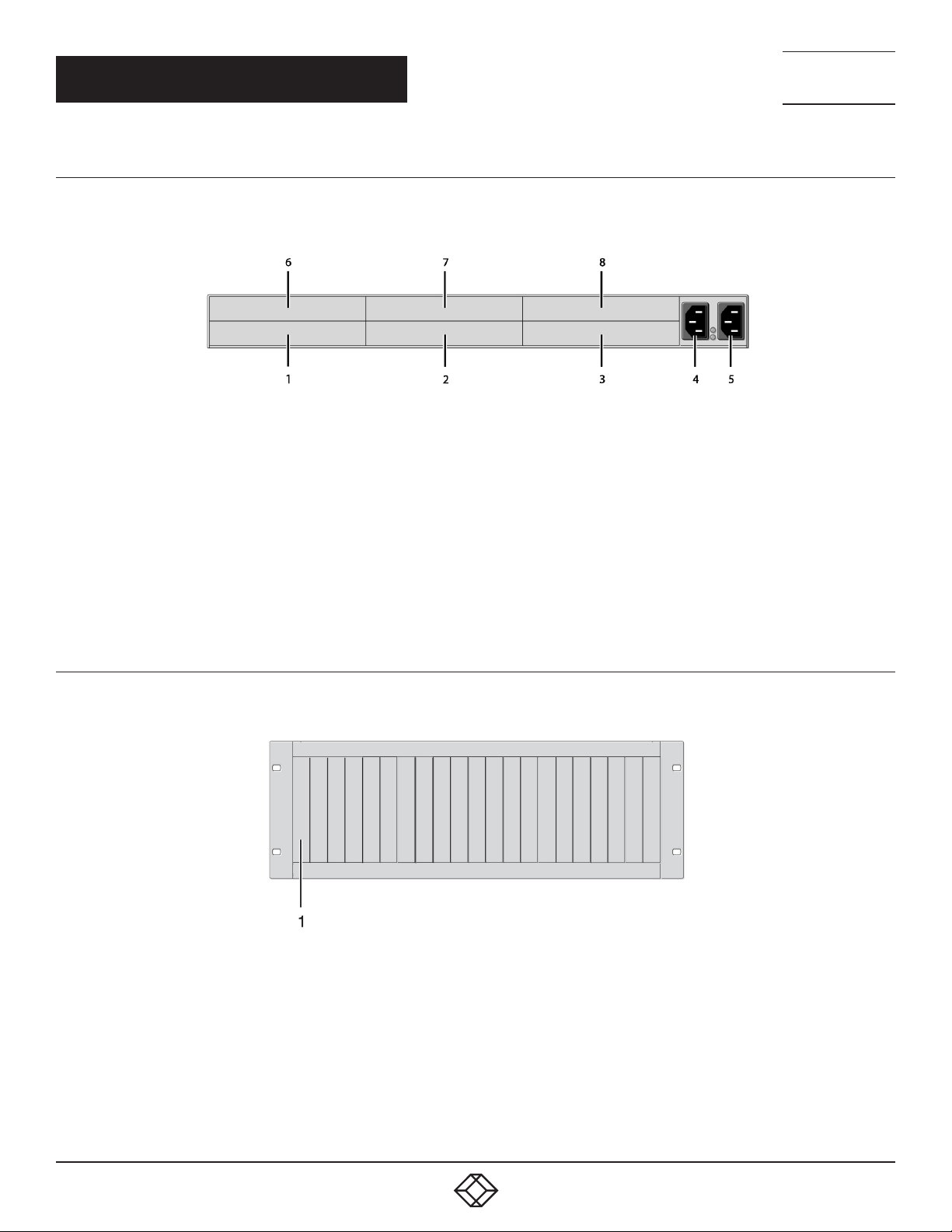

2.6.7 21-SLOT CHASSIS (ACXMODH21R)
CPU and CON Unit
Rear view
1 Slots for modules #1 - #21
28
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 29
CHAPTER 2: INTRODUCTION
Front View

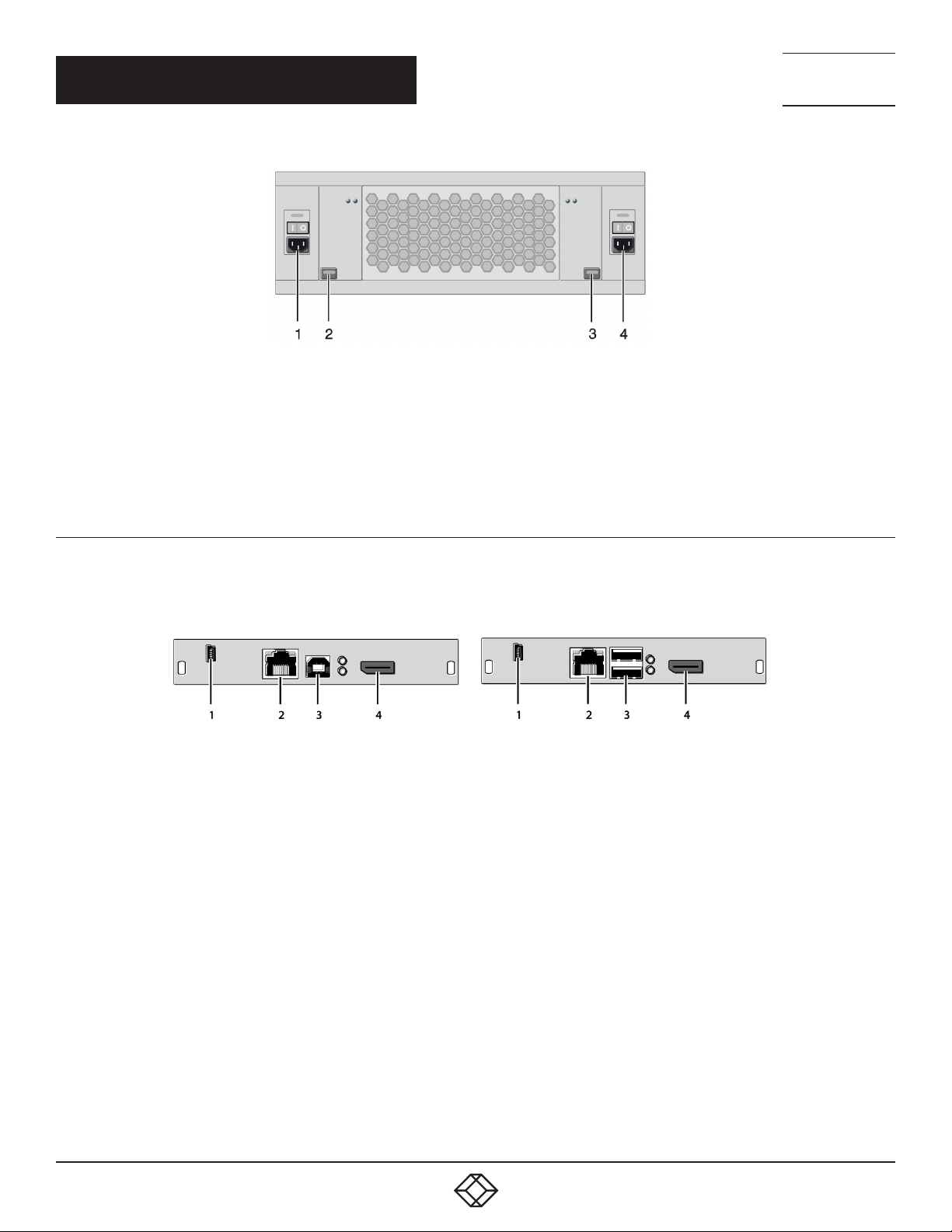

1 Connect to power supply 2
2 Locking for power supply 2 (redundancy)
3 Locking for power supply 1 (standard)
4 Connect to power supply 1
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
2.6.8 MODEL ACX2MT-DPH-C/ACX2MR-DPH-C
CPU Module CON Module
Rear View Rear View
1 Service port 1 Service port
2 Connect to interconnect cable 2 Connect to interconnect cable
3 To CPU: USB-HID 3 Connect to USB-HID devices
4 To CPU: DisplayPort™ 4 Connect to DisplayPort monitor
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
29
Page 30
CHAPTER 2: INTRODUCTION
2.6.9 MODEL ACX2MT-DPH-SM/ACX2MR-DPH-SM
CPU Module CON Module
Rear View Rear View
1 Service port 1 Service port
2 Connect to interconnect cable 2 Connect to interconnect cable
3 To CPU: USB-HID 3 Connect to USB-HID devices
4 To CPU: DisplayPort™ 4 Connect to DisplayPort monitor
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69

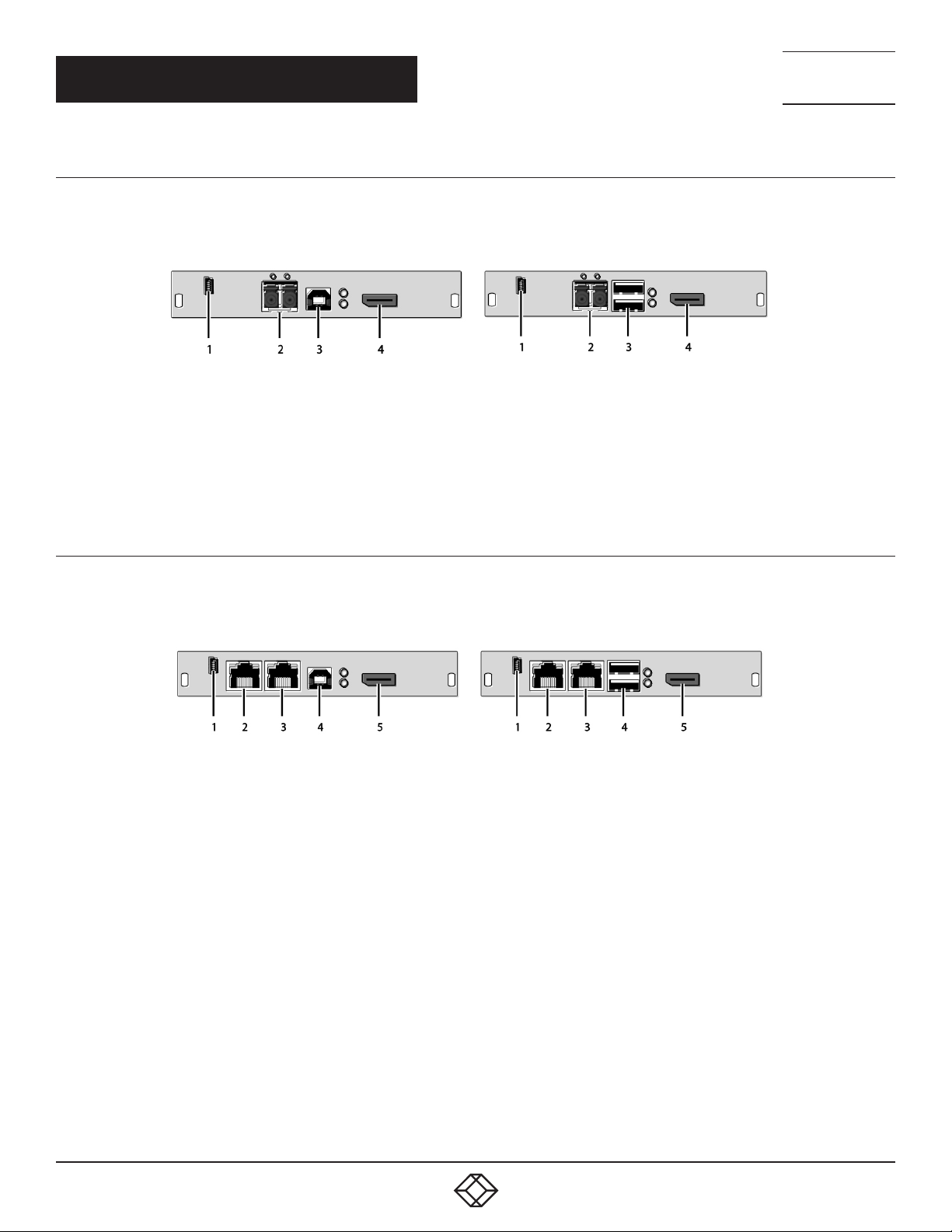

2.6.10 MODEL ACX2MT-DPH-2C/ACX2MR-DPH-2C
CPU Module CON Module
Rear View Rear View
1 Service port 1 Service port
2 Connect to interconnect cable 1 2 Connect to interconnect cable 1
3 Connect to interconnect cable 2 3 Connect to interconnect cable 2
4 To CPU: USB-HID 4 Connect to USB-HID devices
5 To CPU: DisplayPort 5 Connect to DisplayPort monitor
30
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 31
CHAPTER 2: INTRODUCTION
2.6.11 MODEL ACX2MT-DPH-2S/ACX2MR-DPH-2S
CPU Module CON Module
Rear View Rear View
1 Service port 1 Service port
2 Connect to interconnect cable 1 2 Connect to interconnect cable 1
3 Connect to interconnect cable 2 3 Connect to interconnect cable 2
4 To CPU: USB-HID 4 Connect to USB-HID devices
5 To CPU: DisplayPort™ 5 Connect to DisplayPort monitor
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69

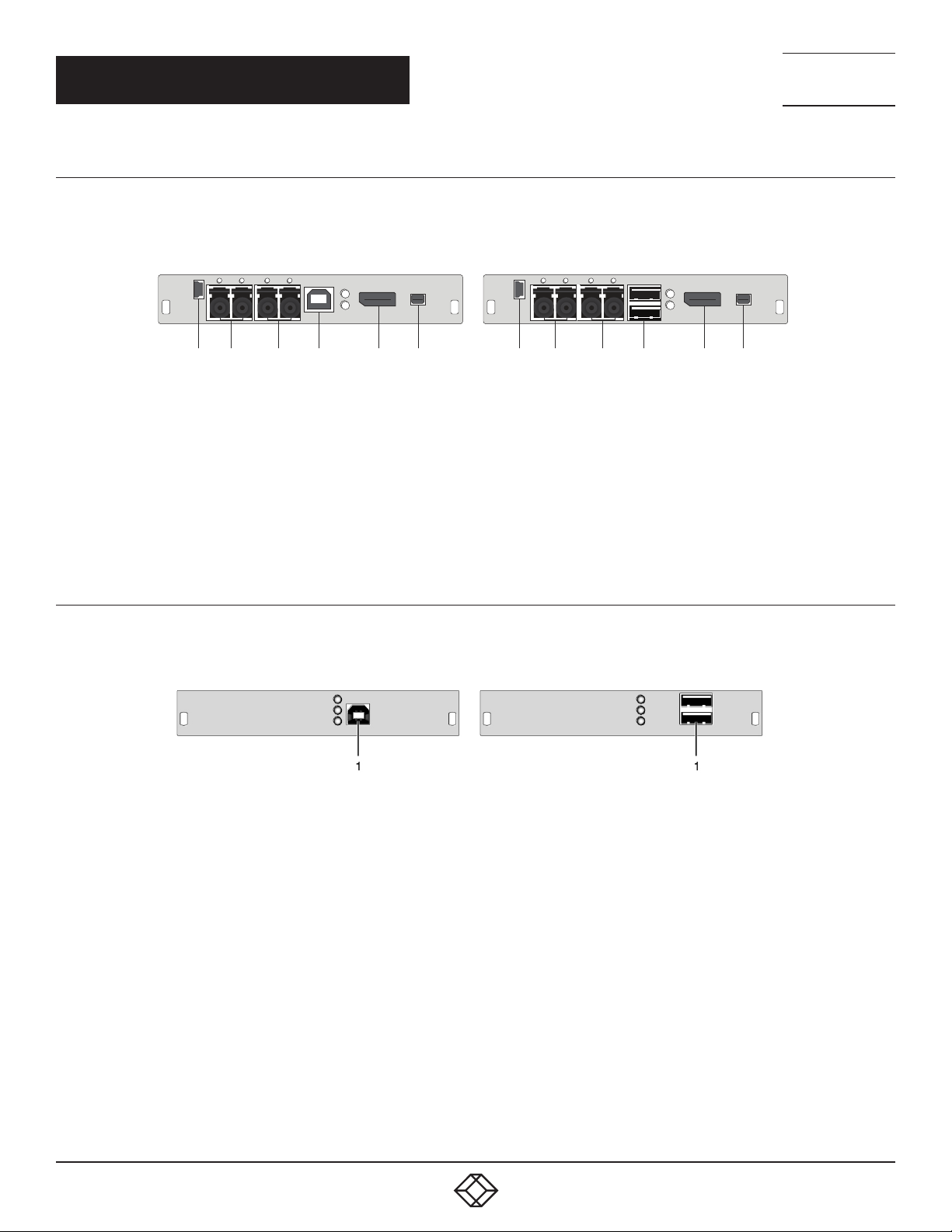

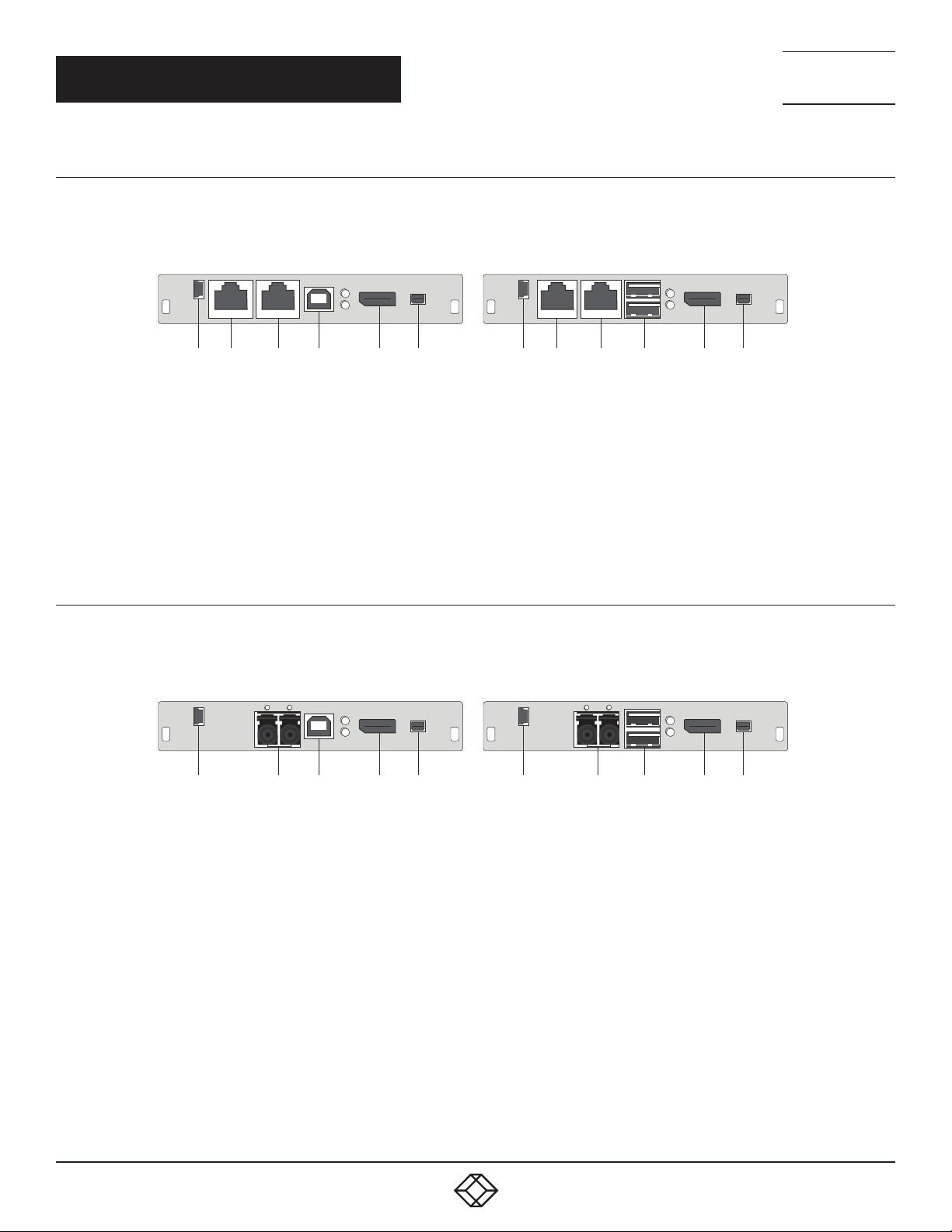

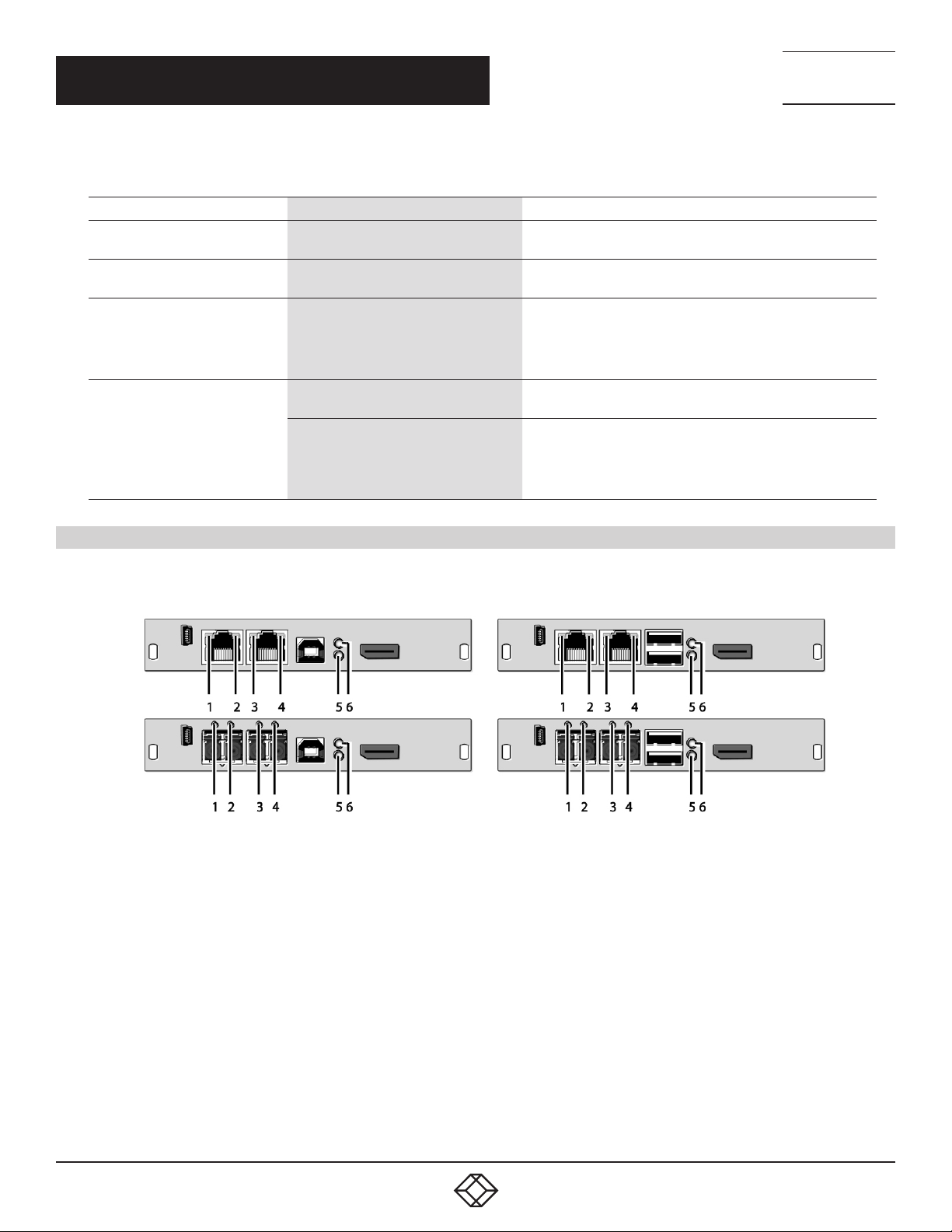

2.6.12 MODEL ACX2MR-DP11ATH-2C/ACX2MT-DP11ATH-2C
CPU Module CON Module
1 32 4 5 61 2 3 4 65
Rear View Rear View
1 Service port 1 Service port
2 Connect to interconnect cable 1 2 Connect to interconnect cable 1
3 Connect to interconnect cable 2 3 Connect to interconnect cable 2
4 To CPU: USB-HID 4 Connect to USB-HID devices
5 To CPU: DisplayPort 5 Connect to DisplayPort monitor
6 To CPU: Mini DisplayPort 6 Connect to Mini DisplayPort monitor
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
31
Page 32
CHAPTER 2: INTRODUCTION
2.6.13 MODEL ACX2MR-DP11ATH-2C/ACX2MT-DP11ATH-2C
CPU Module CON Module
1 32 4 5 61 2 3 4 65
Rear View Rear View
1 Service port 1 Service port
2 Connect to interconnect cable 1 2 Connect to interconnect cable 1
3 Connect to interconnect cable 2 3 Connect to interconnect cable 2
4 To CPU: USB-HID 4 Connect to USB-HID devices
5 To CPU: DisplayPort™ 5 Connect to DisplayPort monitor
6 To CPU: Mini DisplayPort 6 Connect to Mini DisplayPort monitor
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
2.6.14 MODEL ACX2MR-DP11ATH-SM/ACX2MT-DP11ATH-SM
CPU Module CON Module
1 2 3 4 51 2 3 4 5
Rear View Rear View
1 Service port 1 Service port
2 Connect to interconnect cable 2 Connect to interconnect cable
3 To CPU: USB-HID 3 Connect to USB-HID devices
4 To CPU: DisplayPort 4 Connect to DisplayPort monitor
5 To CPU: Mini DisplayPort 5 Connect to Mini DisplayPort monitor
32
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 33
CHAPTER 2: INTRODUCTION
2.6.15 MODEL ACX2MR-DP11ATH-2S/ACX2MT-DP11ATH-2S
CPU Module CON Module
1 32 4 5 61 32 4 5 6
Rear View Rear View
1 Service port 1 Service port
2 Connect to interconnect cable 1 2 Connect to interconnect cable 1
3 Connect to interconnect cable 2 3 Connect to interconnect cable 2
4 To CPU: USB-HID 4 Connect to USB-HID devices
5 To CPU: DisplayPort™ 5 Connect to DisplayPort monitor
6 To CPU: Mini DisplayPort 6 Connect to Mini DisplayPort monitor
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69

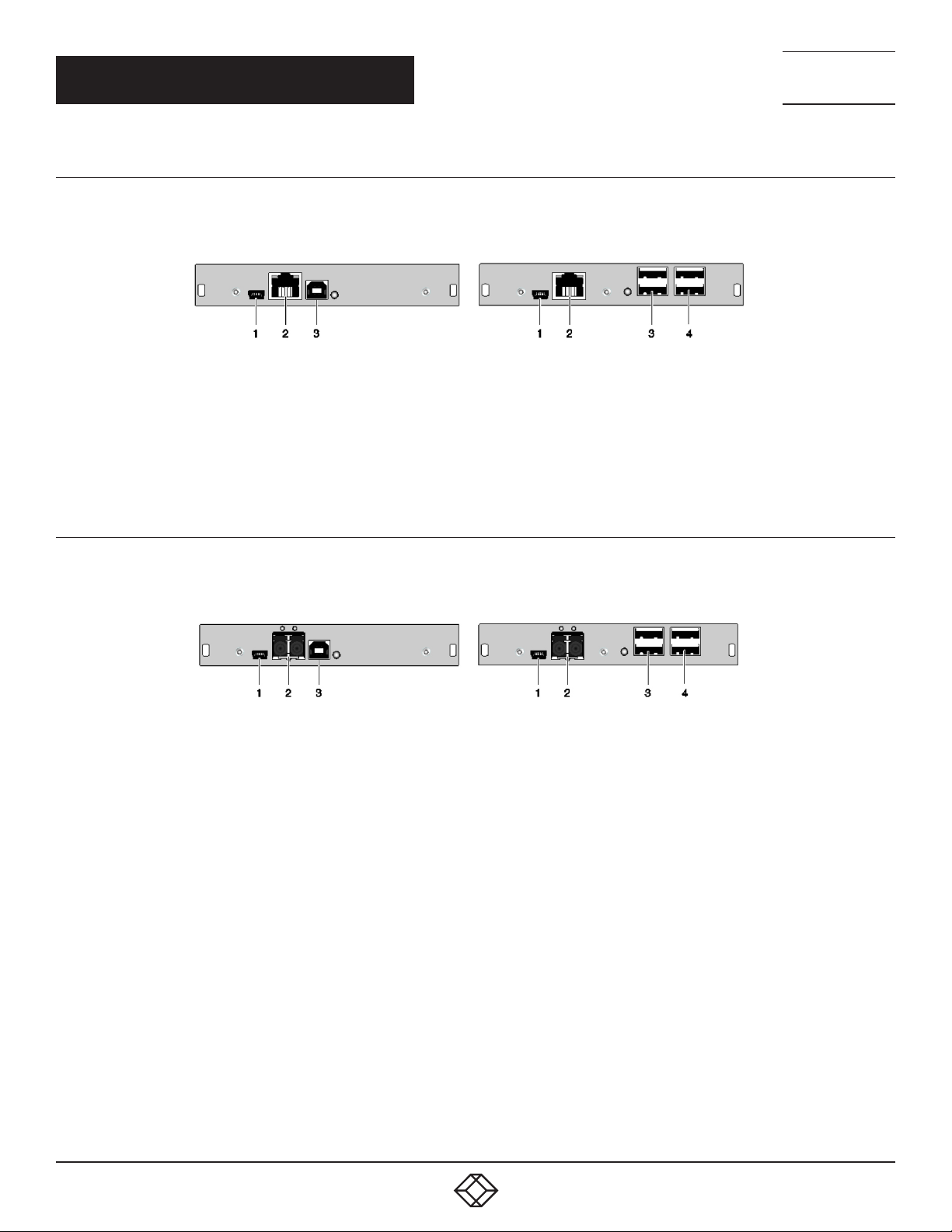

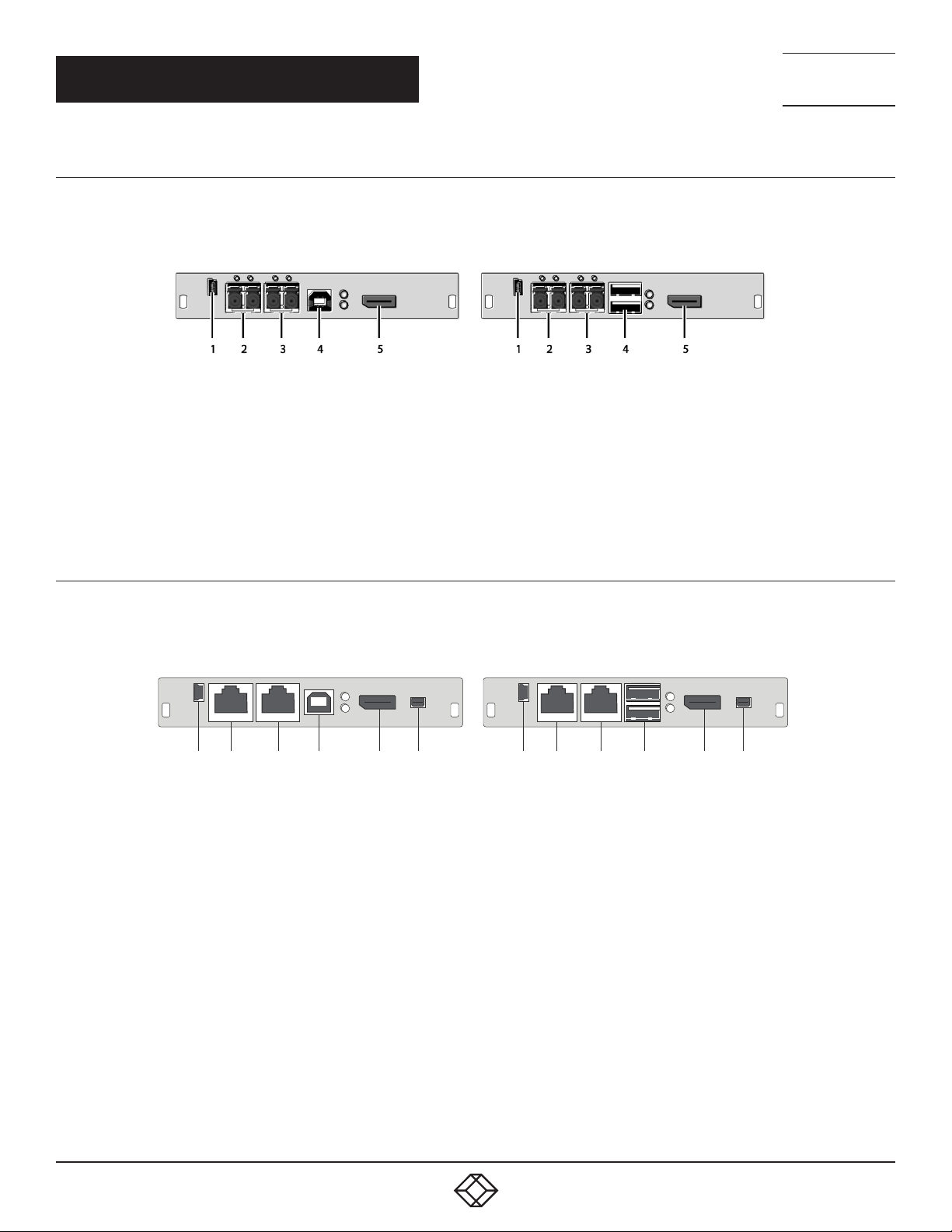

2.6.16 MODEL ACX1MT-HID/ACX1MR-HID
CPU Module CON Module
Rear View Rear View
1 To CPU: USB-HID 1 Connect to USB-HID devices
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
33
Page 34
CHAPTER 2: INTRODUCTION
2.6.17 MODEL ACX1MT-G2-EU/ACX1MR-G2-EU
CPU Module CON Module
Rear View Rear View
1 To CPU: USB 2.0 1 Connect to USB 2.0 devices
2 Connect to USB 2.0 devices
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69

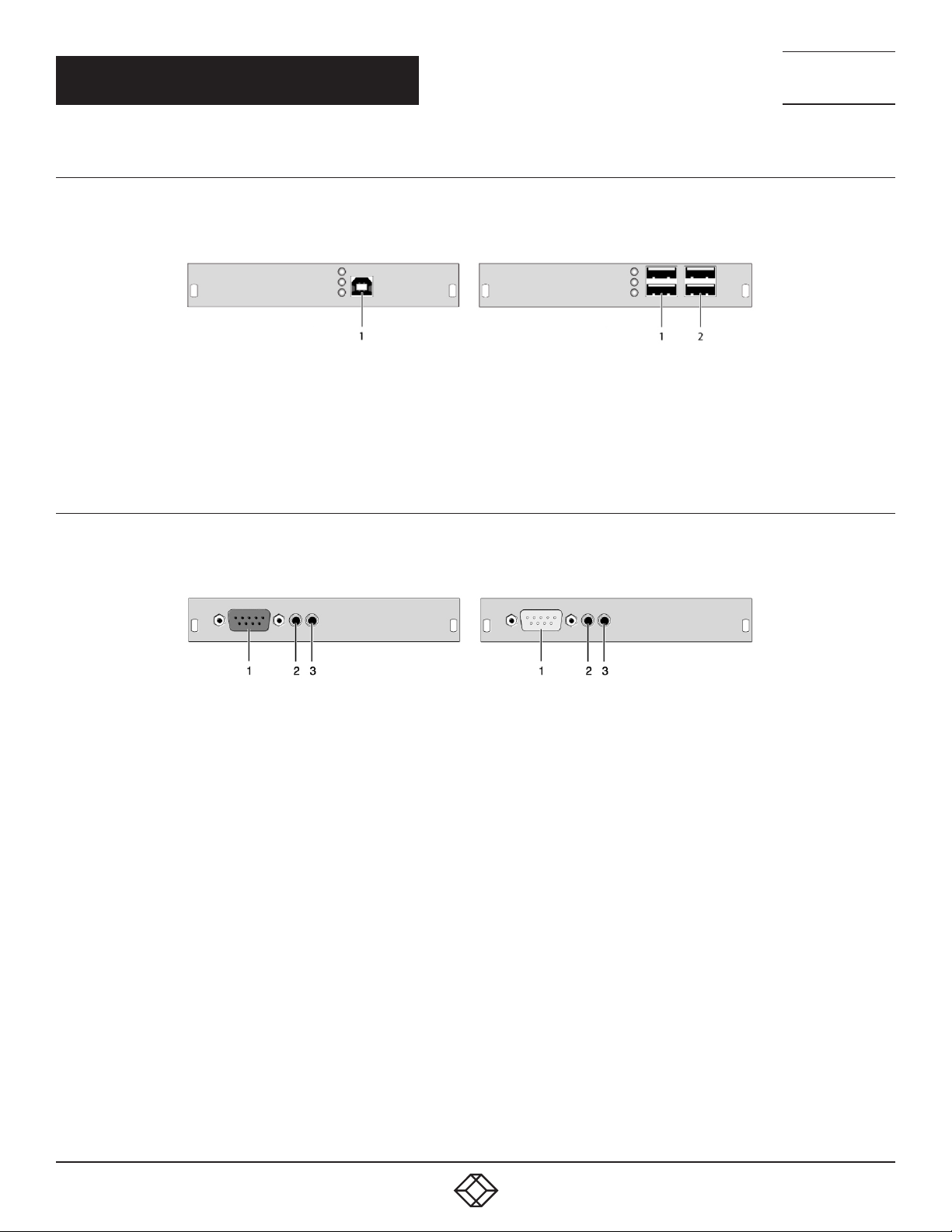

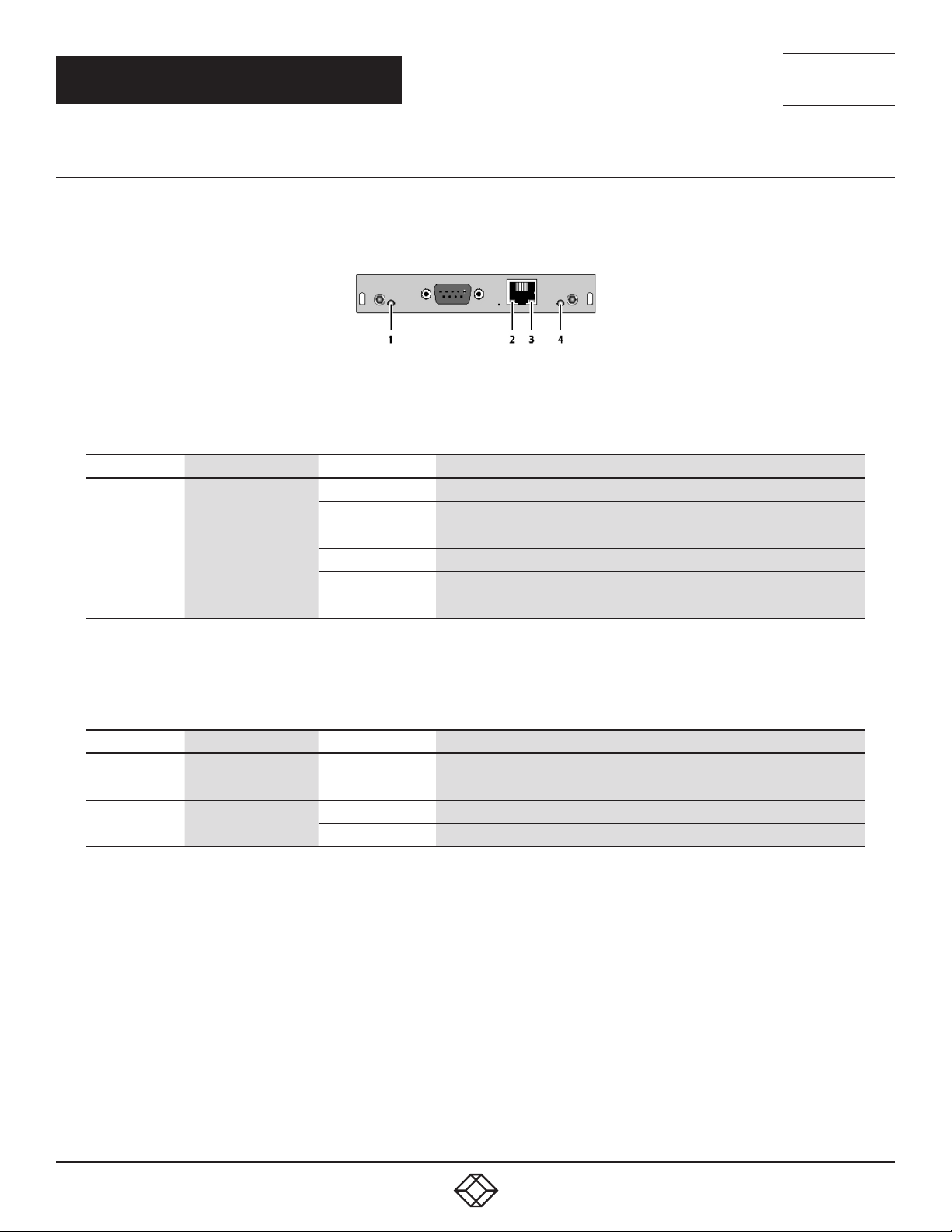

2.6.18 MODEL ACX1MT-AR/ACX1MR-AR
CPU Module CON Module
Rear View Rear View
1 Connect to serial (D-Sub 9) 1 Connect to serial (D-Sub 9)
2 Audio IN 2 Audio IN
3 Audio OUT 3 Audio OUT
34
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 35
CHAPTER 2: INTRODUCTION

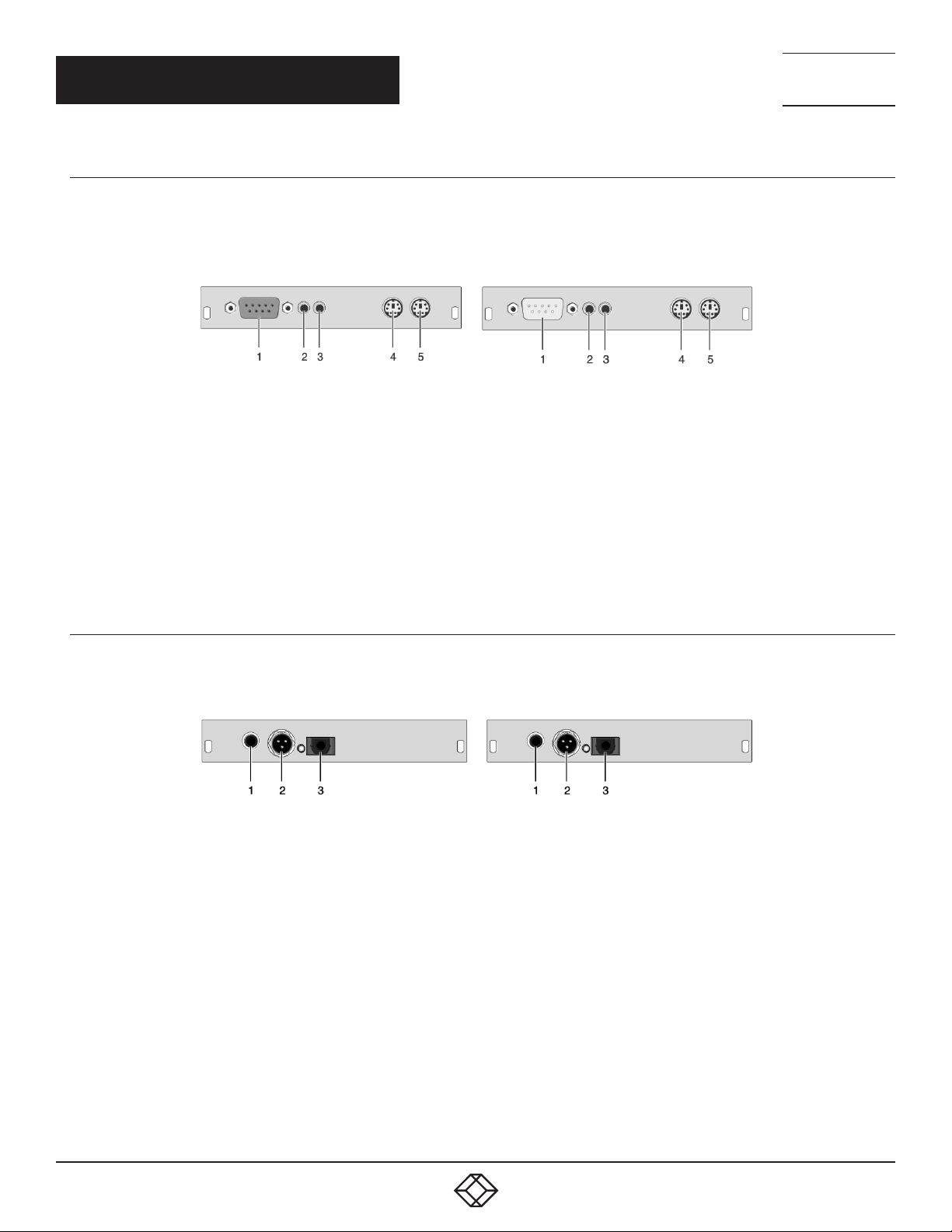

2.6.19 MODEL ACX1MT-ARP/ACX1MR-ARP
CPU Module CON Module
Rear View Rear View
1 Connect to serial (D-Sub 9) 1 Connect to serial (D-Sub 9)
2 Audio IN 2 Audio IN
3 Audio OUT 3 Audio OUT
4 To CPU: PS/2 mouse 4 Connect to PS/2 mouse
5 To CPU: PS/2 keyboard 5 Connect to PS/2 keyboard
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
2.6.20 MODEL ACX1MT-DA/ACX1MR-DA
CPU Module CON Module
Rear View Rear View
1 S/PDIF input (RCA) 1 S/PDIF output (RCA)
2 AES/EBU input (Mini-XLR) 2 AES/EBU output (Mini-XLR)
3 S/PDIF input (TOSLINK) 3 S/PDIF output (TOSLINK)
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
35
Page 36
CHAPTER 2: INTRODUCTION
2.6.21 ACX1MT-U23-C/ACX1MR-U23-C
CPU Module CON Module
Rear View Rear View
1 Service port 1 Service port
2 Connect to interconnect cable 2 Connect to interconnect cable
3 To CPU: USB 2.0 3 Connect to USB 2.0 devices
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
2.6.22 MODEL ACX1MT-U23-SM/ACX1MR-U23-SM
CPU Module CON Module
Rear View Rear View
1 Service port 1 Service port
2 Connect to interconnect cable 2 Connect to interconnect cable
3 To CPU: USB 2.0 3 Connect to USB 2.0 devices
36
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 37
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 2: INTRODUCTION
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69

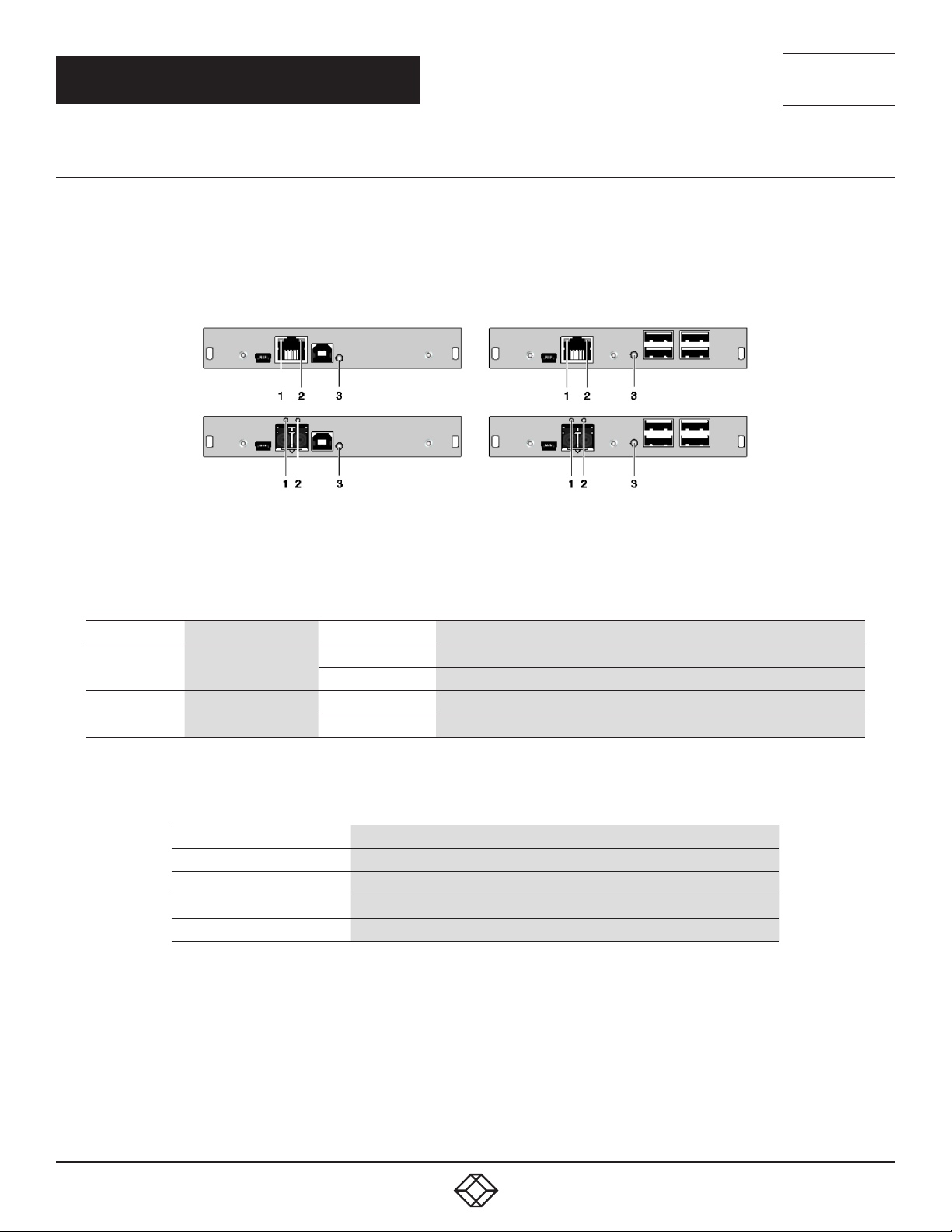

2.7 STAT U S LEDS
2.7.1 STATUS K VM EX TENDER MODULE
The KVM Extender module is fitted with a multi color LED on both sides for overall status indication and with two further LEDs on the
back side for indication of the connection status.
CPU Module CON Module
Rear View Rear View
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
37
Page 38
CHAPTER 2: INTRODUCTION

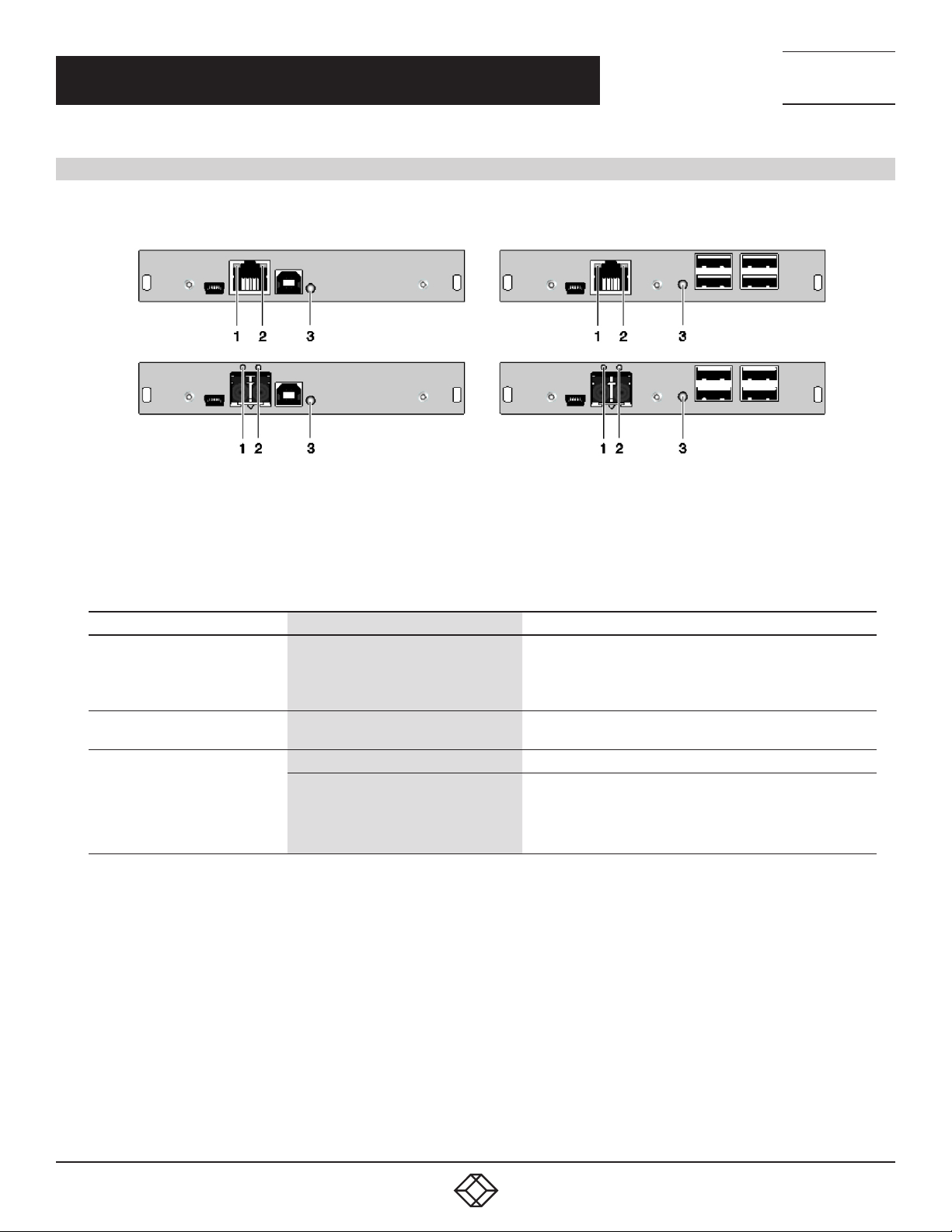

LED 1 and 2: Connection Status Link 1
LED 3 and 4: Connection Status Link 2
LEDS 3 AND 4
POSITION LED STAT U S DESCRIPTION
1, 3 Failure LED (green)
2, 4 Status LED (green)
LED 5: USB and Video Status Video Channel 1 (Single Link)
LED 6: USB and Video Status Video Channel 2 (Dual Link, 4K)
Off Connection available
On or Flashing Connection failure (flashing for about 20 s following a connection failure)
Flashing No connection via interconnect cable
On Connection available
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
LEDS 5 AND 6
LED COLOR DESCRIPTION
Red Device ready
Violet Connection and USB signal (interconnect) available
Green Connection and video signal available
Light Blue Connection, USB and video signal available (operating status)

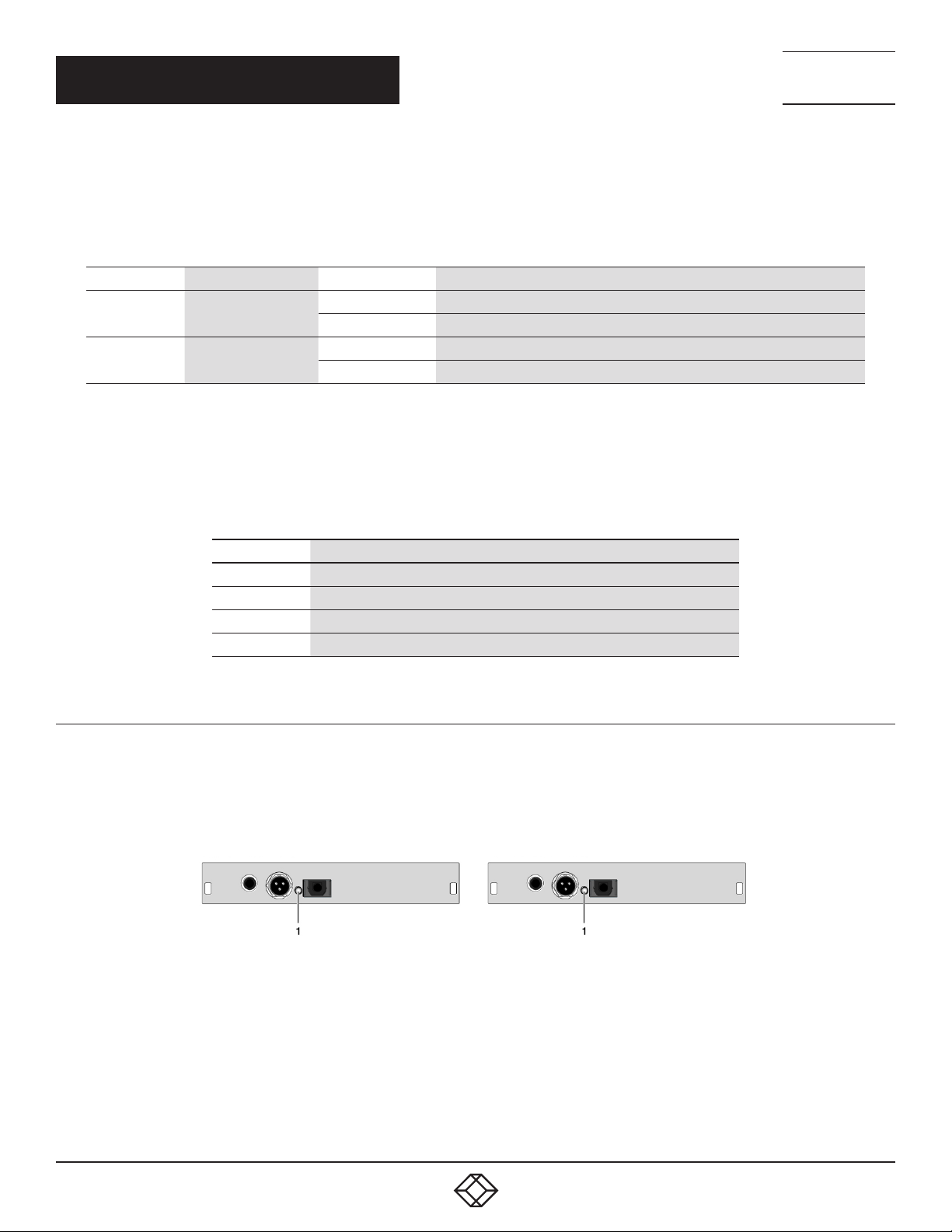

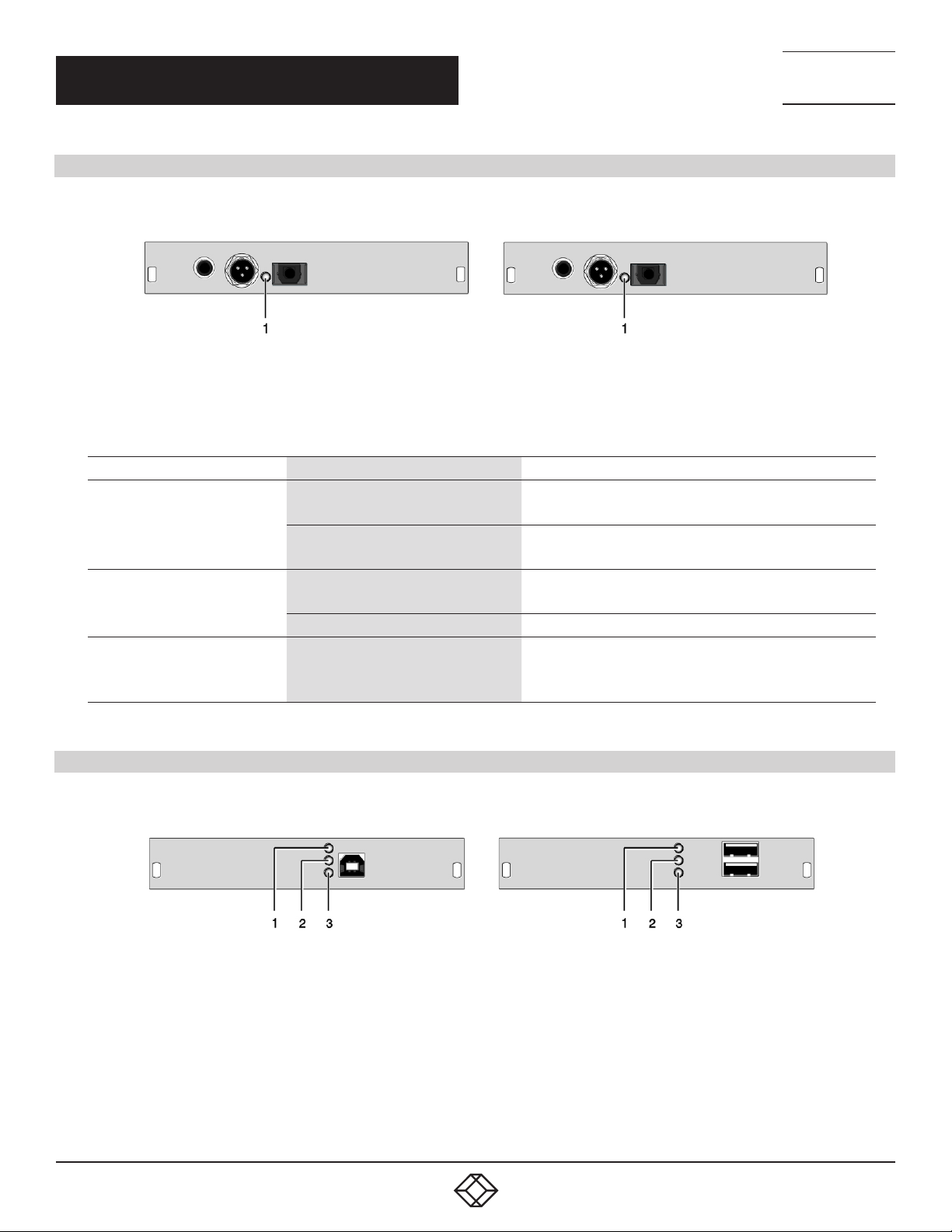

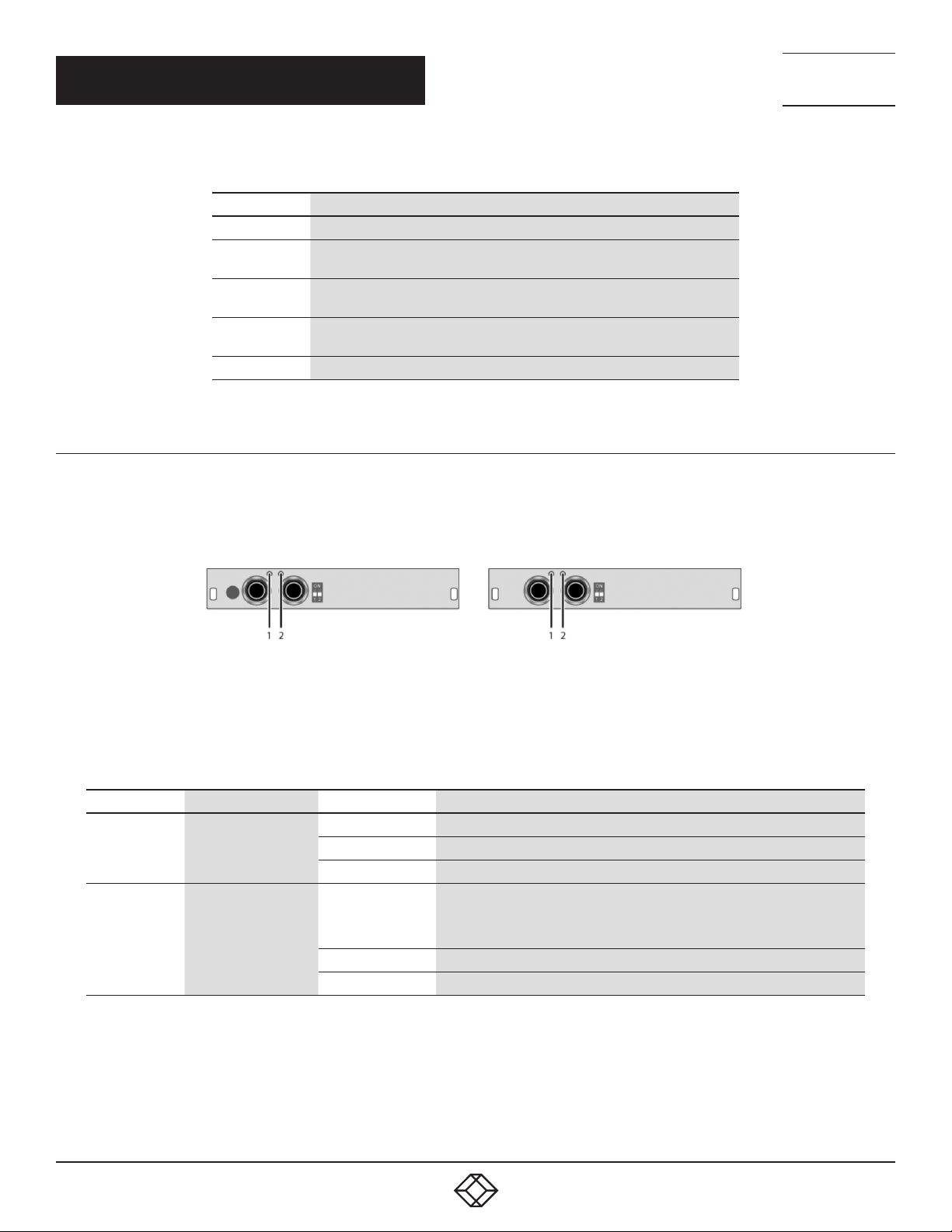

2.7.2 STATUS UPGRADE MODULE DIGITAL AUDIO
LED 1: Digital Audio Status
The upgrade module digital audio is fitted with a further multi-color LED on the rear side for indication of the connection status.
CPU Module CON Module
Rear View Rear View
38
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 39
CHAPTER 2: INTRODUCTION
LED COLOR DESCRIPTION
Red No signal
Light Blue
Violet
Blue
Green CON Unit: Signal available
2.7.3 STATUS UPGRADE MODULE USB-HID
Static: CPU Unit: S/PDIF signal (RCA) available;
Flashing: CPU Unit: Digital noise
Static: CPU Unit: AES/EBU signal (Mini-XLR) available;
Flashing: CPU Unit: Digital noise
Static: CPU Unit: S/PDIF signal (TOSLINK) available;
Flashing: CPU Unit: Digital noise
LED 1: DIGITAL AU D I O STATUS
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69

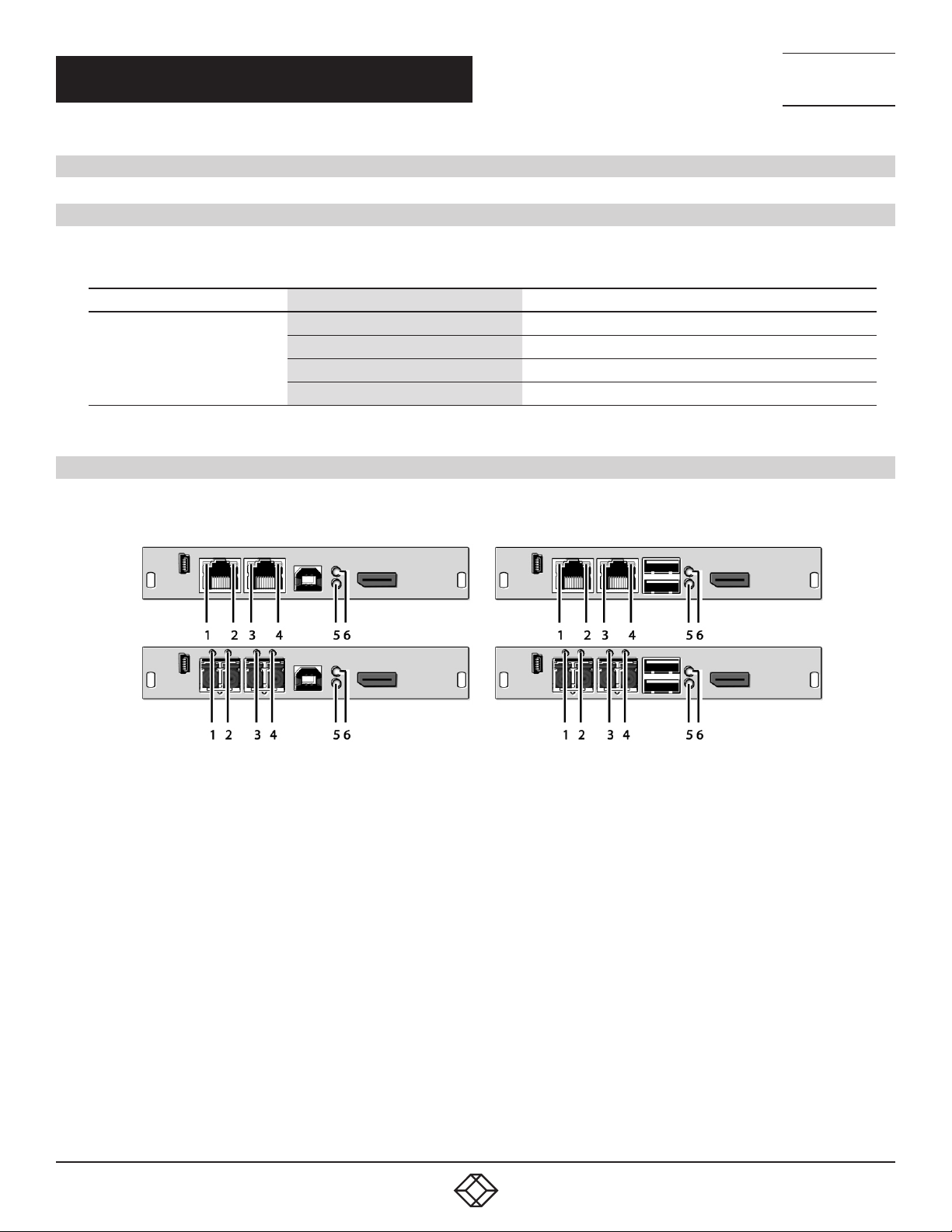

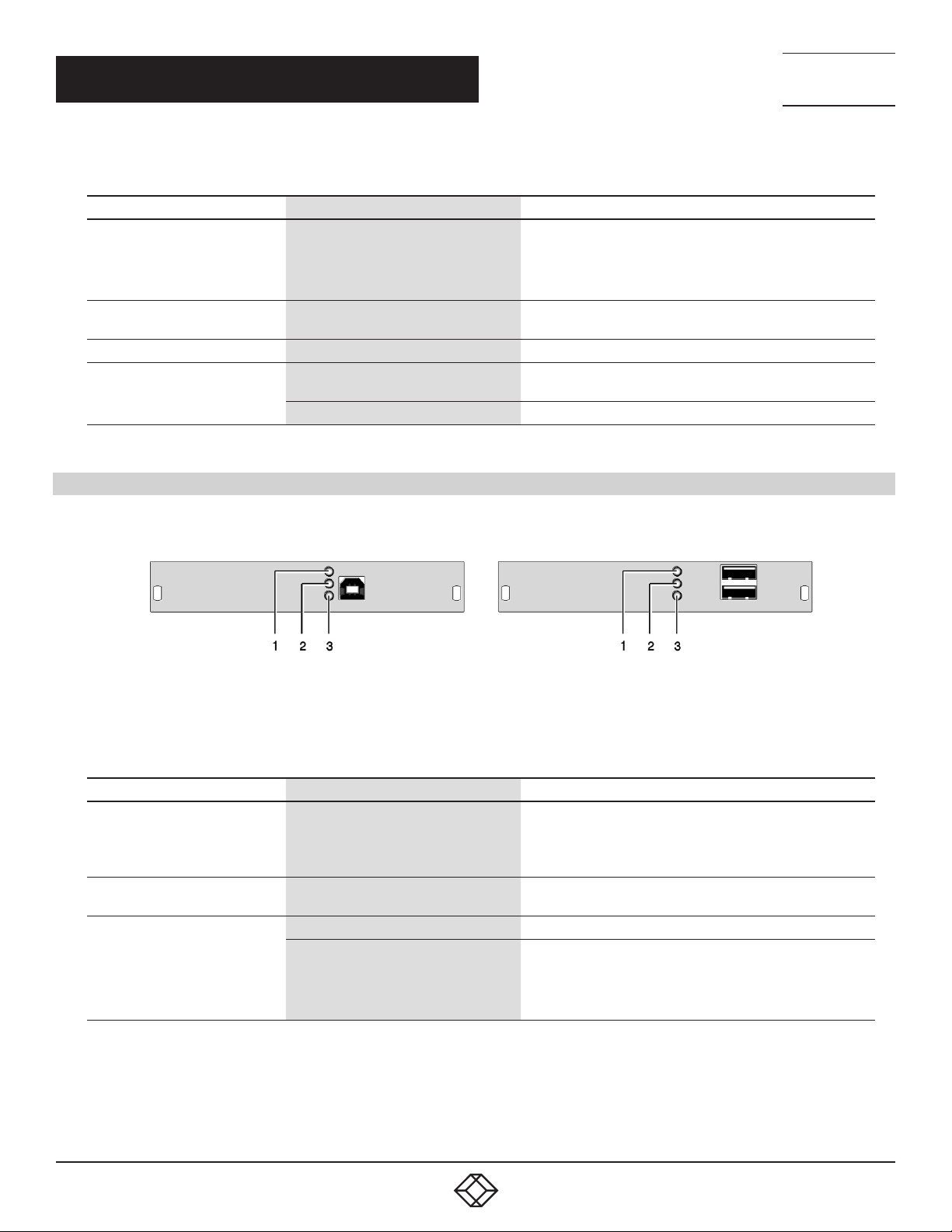

The upgrade module USB-HID is fitted with three further LEDs on the rear side for indication of the connection status.
CPU Module CON Module
Rear View Rear View
LEDS
POSITION LED STAT U S DESCRIPTION
Off No USB-HID device or not supported
1, 2 Device LED (orange)
3 Status LED (orange)
Flashing fast USB-HID device active
On USB-HID device ready or KVM Extender in command mode
• No power supply voltage
Off
Flashing slowly CON Unit: KVM Extender in command mode or no connection
Flashing fast Operating status
• CPU Unit: KVM Extender in command mode or no connection
• CON Unit: Keyboard in command mode
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
39
Page 40
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 2: INTRODUCTION

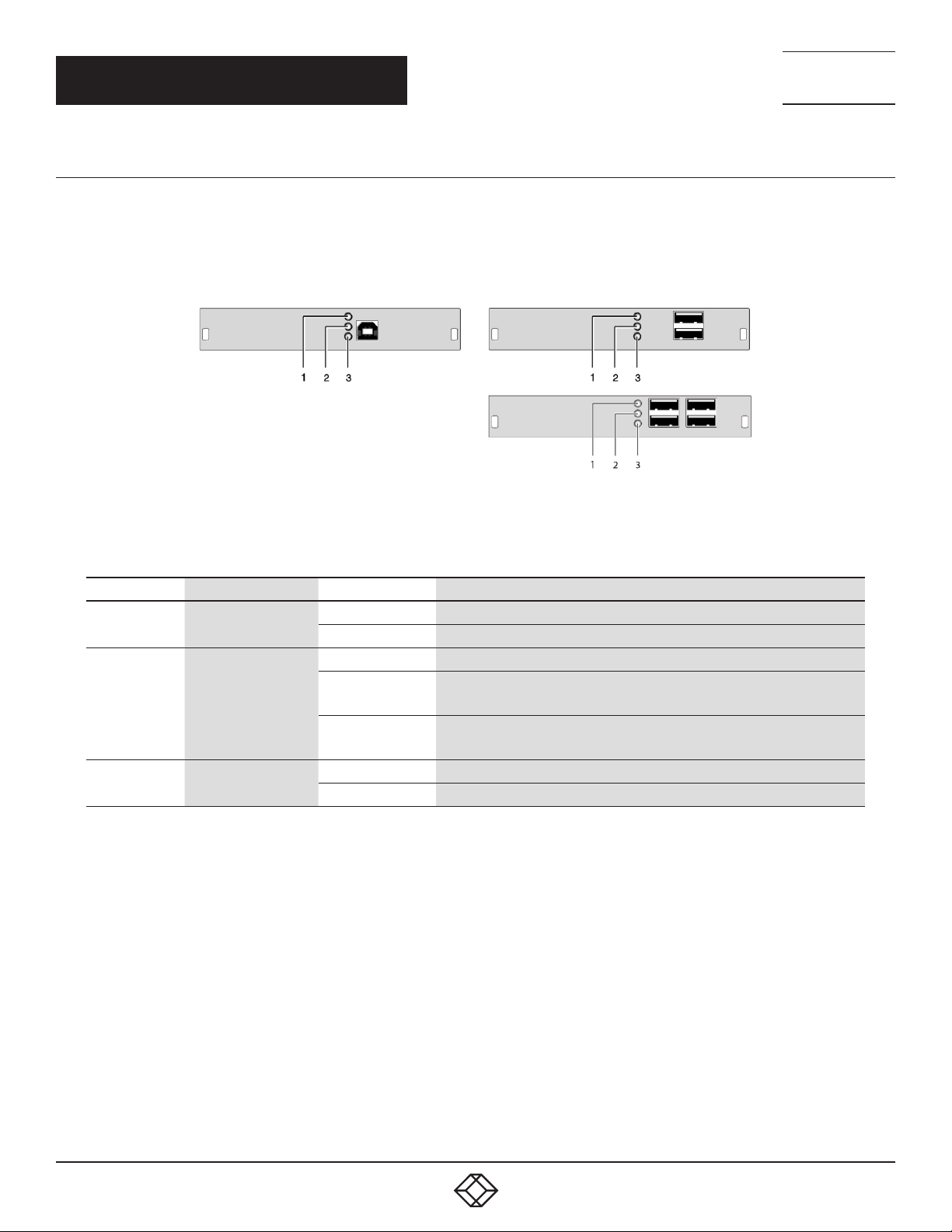

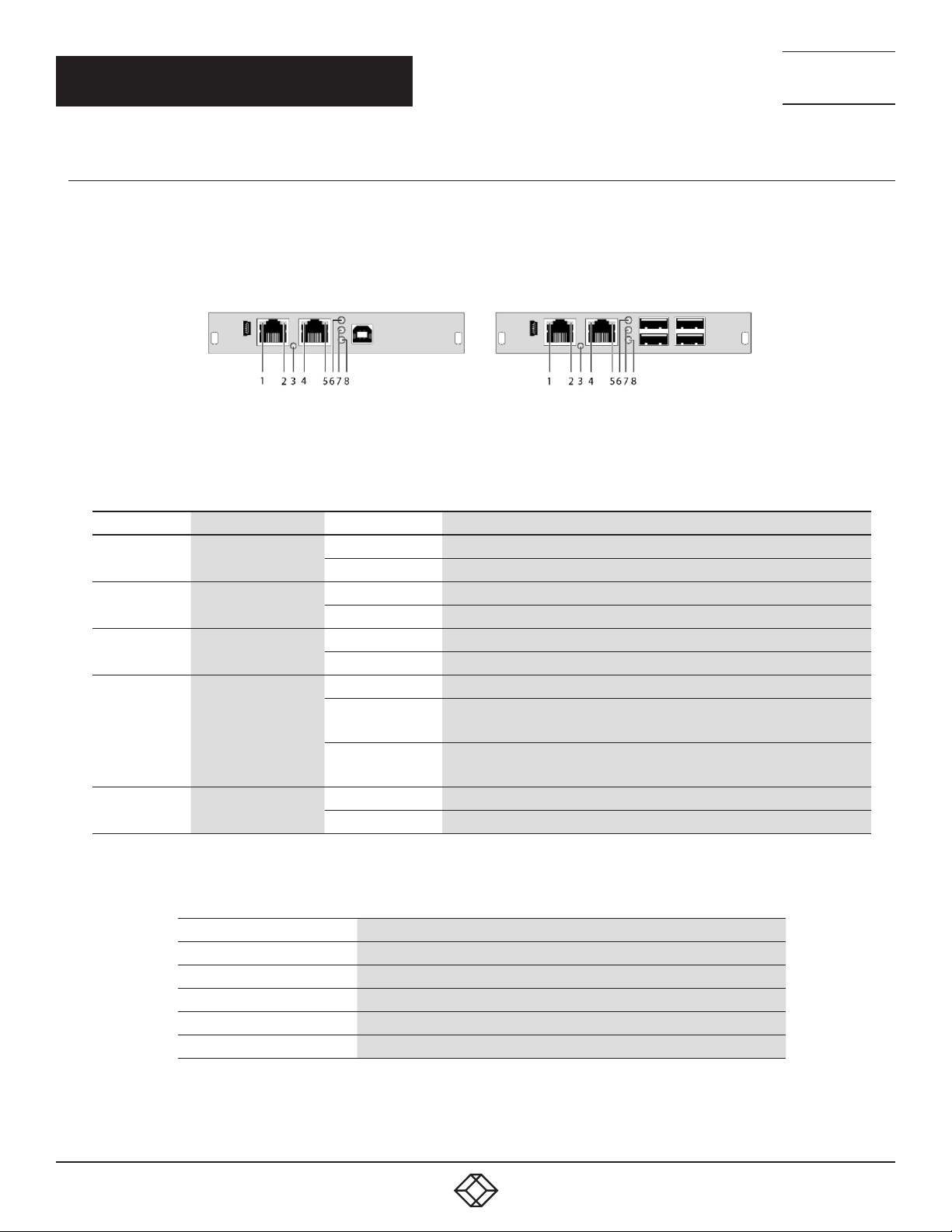

2.7.4 STATUS UPGRADE MODULE USB 2.0 EMBEDDED
The upgrade module USB 2.0 embedded is fitted with three further LEDs on the rear side for indication of the connection status.
CPU Module CON Module
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
Rear View Rear View
LEDS
POSITION LED STAT U S DESCRIPTION
1 Status LED (green)
2 Status LED (green)
3 Status LED (green)
Off No USB 2.0 device connected
Flashing slowly USB 2.0 device connected
Off No connection to source (computer, CPU) available
Flashing slowly
On
Off No connection between CON and CPU module
On Connection between CON and CPU module available
• Connection to source (computer, CPU) available
• No USB 2.0 device connected
• Connection to source (computer, CPU) available
• USB 2.0 device(s) connected
40
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 41
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 2: INTRODUCTION
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
2.7.5 STATUS UPGR ADE MODULE USB 2.0 V1
The upgrade module USB 2.0 is fitted with a multi color LED on both sides for overall status indication and with two further LEDs on the
back side for indication of the connection status.
CPU Module CON Module
Rear View Rear View
LEDS
POSITION LED STAT U S DESCRIPTION
1 Failure LED (green)
2 Status LED (green)
Off Connection available
On or Flashing Connection failure (flashing for about 20 s following a connection failure)
Off No connection via interconnect cable
On Connection available
LED 3: USB 2.0 S TAT U S
LED COLOR DESCRIPTION
Red Device ready
Green Only connection available, no USB 2.0 signal
Green/light blue flashing Connection available, no USB 2.0 device connected
Light Blue Connection and USB 2.0 signal available (operating status)
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
41
Page 42
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 2: INTRODUCTION
2.7.6 STATUS UPGR ADE MODULE USB 2.0 V2
The upgrade module USB 2.0 is fitted with a multi color LED on both sides for overall status indication and with two further LEDs on the
back side for indication of the connection status.
CPU Module CON Module
Rear View Rear View
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
LEDS
POSITION LED STAT U S DESCRIPTION
1, 4 Failure LED (green)
2, 5 Status LED (green)
6 Status LED (green)
7 Status LED (green)
9 Status LED (green)
Off Connection available
On or flashing Connection failure (flashing for about 20 s following a connection failure)
Off No connection via interconnect cable
On Connection available
Off No USB 2.0 device connected
Flashing slowly USB 2.0 device connected
Off No connection to source (computer, CPU) available
Flashing slowly
On
Off No connection between CON and CPU module
On Connection between CON and CPU module available
• Connection to source (computer, CPU) available
• No USB 2.0 device connected
• Connection to source (computer, CPU) available
• USB 2.0 device connected
LED 3: USB 2.0 S TAT U S
LED COLOR DESCRIPTION
Red Device ready, no Matrix connection
Violet Connection to Matrix available
Green USB 1.1 connection available
Light Blue USB 2.0 connection available
Blue Debug mode
42
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 43
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 2: INTRODUCTION
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
2.7.7 STATUS MONITORING MODULE SNMP
The monitoring module SNMP is fitted with a multi color LED on both sides for overall status indication and with two further LEDs for
indication of the network status.
Rear view
STATUS LEDS OF THE SNMP BOARD
POSITION LED STAT U S DESCRIPTION
White SNMP board is in registration process
Blue flashing Registration of the SNMP board has started
1 Status 1
4 Status 2 White SNMP board is in registration process
Red flashing Registration in progress
Green flashing Operating condition
Green SNMP board de-registered
NOTE: Due to variations in LED type “white” might also appear as light purple or light blue.
STATUS LEDS OF THE NETWORK PORT
POSITION LED STAT U S DESCRIPTION
2 Link status (orange)
3 Link status (green)
Off Port not activated
Flashing Port activated, no connection via network cable
Off Port not activated
Flashing Port activated, no connection via network cable
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
43
Page 44
CHAPTER 3: INSTALLATION
3. I N STALL ATION

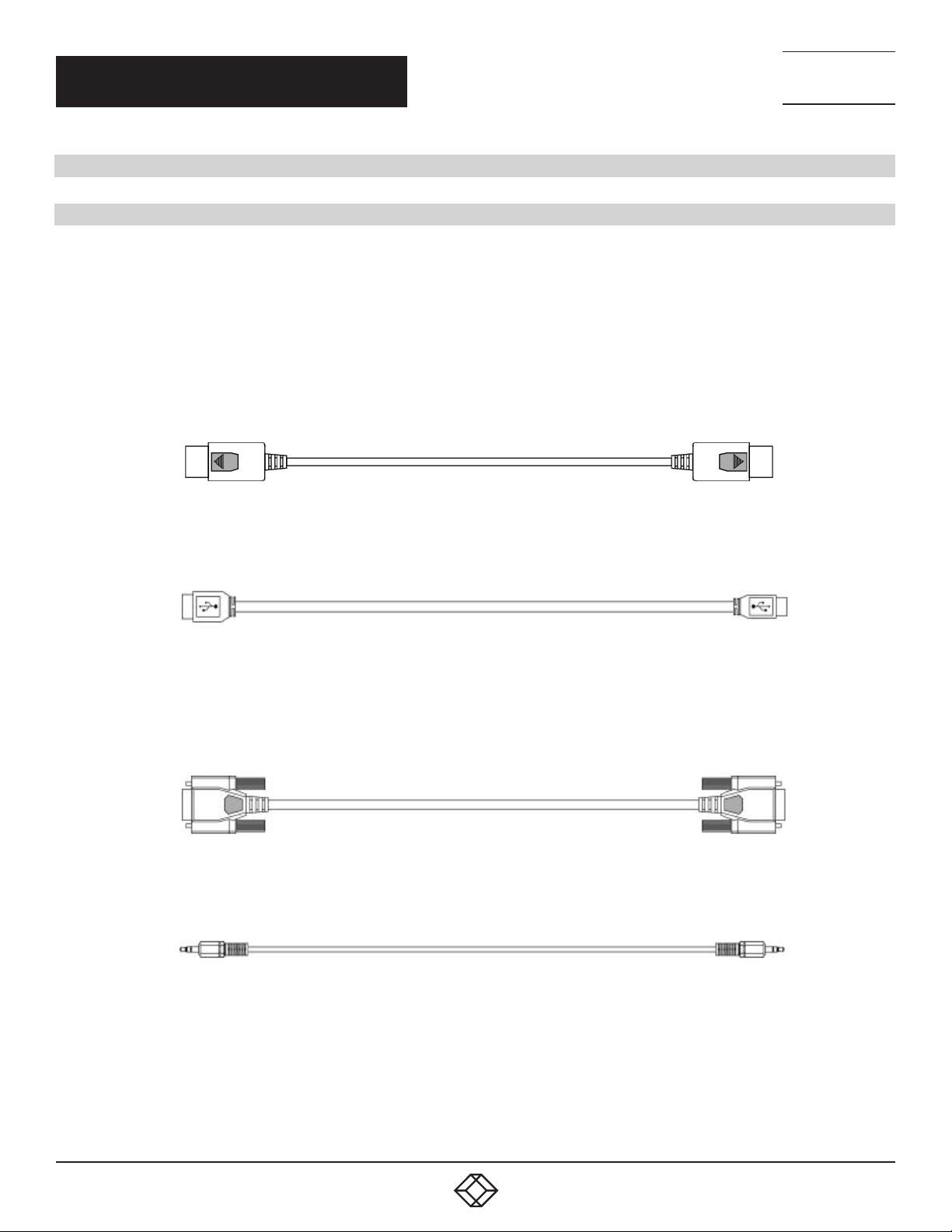

3.1 PACKAGE CONTENTS
Your extender package contains the following items:
KVM Extender:
KVM Extender pair (CPU Unit and CON Unit) in the chassis
(1) (redundancy 2) 5-VDC international power supply unit per KVM Extender unit
(1) (redundancy 2x) country-specific power cord
DisplayPort™ video cable (2.0 m, DisplayPort male-to-male)
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
USB cable (1.8 m, type A to type B)
Additional content for upgrade module Analog Audio/Serial:
Serial cable (1.8 m, D-Sub 9 male connector)
Stereo jack cable (1.6 m, 3.5 mm male connector)
44
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 45
CHAPTER 3: INSTALLATION
Additional content for upgrade module Digital Audio:
RCA cable (2.5 m, Cinch male connector)
TOSLINK cable (1.8 m, F05 male connector)
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
Additional content for upgrade module USB-HID:
USB cable (1.8 m, USB type A to type B)
Additional content for upgrade module PS/2:
(2) PS/2 cables (1.8 m, 6-pole connector)
Additional content for upgrade module USB 2.0 embedded:
USB cable (1.8 m, USB type A to type B)
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
45
Page 46
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 3: INSTALLATION
Additional content for upgrade module USB 2.0:
USB cable (1.8 m, USB type A to type B)
If anything is missing or damaged, contact Black Box Technical Support at 877-877-2269 or [email protected]
3.2 SYSTEM SETUP
We recommend that first-time users set up the system with the CPU Unit and the CON Unit in the same room as a test setup. This will
allow you to identify and solve any cabling problems, and experiment with your system more conveniently.
Please verify that interconnect cables, interfaces, and handling of the devices comply with the requirements.
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
3.2.1 KVM EXTENDER SETUP
1. Switch off all devices.
CON Unit Installation
2. Connect your monitor(s), keyboard and mouse to the CON Unit.
3. Connect the CON Unit with the interconnect cable(s).
4. Connect the 5VDC power supply to the CON Unit.
CPU Unit Installation
5. Connect the source (computer, CPU) to the CPU Unit with the supplied cables. Make sure that the cables are not strained.
6. Connect the CPU Unit to the interconnect cable(s).
7. Connect the 5VDC power supply to the CPU Unit.
8. Power up the system.
To power up the system, the following sequence is recommended:
Monitor – CON Unit – CPU Unit – source.
3.2.2 SETUP OF UPGRADE MODULES
The modules can be hot plugged.
Upgrade Module Analog Audio/Serial:
1. Connect the audio source to the CPU Unit (e.g. CPU audio output with audio input, CPU audio input with audio output).
2. Connect the audio output on the CON Unit to headphones or suitable speakers.
3. Connect the audio input on the CON Unit to a suitable microphone.
46
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 47
CHAPTER 3: INSTALLATION
Upgrade Module Serial RS-422:
1. Connect the CPU to the CPU Unit by using the serial cable.
2. Connect the CON Unit to the serial connector of the input device.
Upgrade Module Digital Audio:
1. Connect the digital audio source to the audio input of the CPU Unit.
2. Connect the audio output of the CON Unit to suitable speakers or audio amplifiers.
NOTE: If several active sources are connected, Mini-XLR input takes priority. The audio signal is available at all outputs.
Upgrade Module Balanced Audio:
1. Connect the digital audio source to the balanced audio input of the CPU Unit.
2. Connect the audio output of the CON Unit to suitable speakers or audio amplifiers.
Upgrade Module USB-HID:
1. Connect the CPU to the CPU Unit (USB-HID 2).
2. Connect the USB-HID devices to the CON Unit (Connect to USB-HID devices 2).
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
Upgrade Module PS/2:
1. Connect the CPU to a CPU unit with cables for PS/2 devices.
2. Connect the PS/2 devices to the CON unit (Connector to PS/2 devices).
Upgrade Module USB 2.0 Embedded:
1. Connect the CPU to the CPU Unit (USB 2.0).
2. Connect the USB 2.0 devices to the CON Unit (Connect to USB 2.0 devices).
Upgrade Module USB 2.0:
1. Connect the CPU to the CPU Unit (USB 2.0).
2. Connect the USB 2.0 devices to the CON Unit (Connect to USB 2.0 devices).
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
47
Page 48
CHAPTER 3: INSTALLATION
3.3 EXAMPLE APPLICATIONS
This section illustrates typical installations of KVM Extenders.
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
KVM EXTENDER (SINGLE-HEAD)
KVM EXTENDER (SINGLE-HEAD WITH DIGITAL/ANALOG AUDIO)
48
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 49
CHAPTER 3: INSTALLATION
KVM EXTENDER (DUAL-HEAD WITH 4 USB-HID)
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
1 Source (computer, CPU)
2 KVM Extender CPU Unit
3 Interconnect cable
4 KVM Extender CON Unit
5 Console (monitor, keyboard, mouse)
6 Second monitor (option, only with Dual-Head devices)
7 USB 2.0 devices (option, only with 2x USB 2.0 devices)
8 Audio sink (optional, only with devices with Analog Audio/Serial option or Digital Audio option)
3.4 OVERVIEW UPGRADE MODULES
Section 2.3.4 lists available upgrade modules for the KVM Extender.
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
49
Page 50
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 4: CONFIGURATION
4. CONFIGURATION
4.1 TRANSMISSION PARAMETERS
The device operates with a proprietary compression method.
In the default configuration, the device adapts dynamically to monitor resolution and image content. This configuration is suitable for
almost all conditions and should only be modified if image quality is not fully satisfactory. In exceptional cases the displayed video image
may exhibit “frame dropping” (loss of single pictures) or color effects.
4.2 DDC SETTINGS
By default, the device transmits the factory preset DDC information to the CPU. This information is suitable in most cases.
Downloading of the DDC information of the console monitor can be performed during normal operation.
For special requirements, DDC information can be retrieved and uploaded as a binary file to both the CPU Unit and the CON Unit.
Connect your computer with a USB mini cable to the service port of the CPU Unit or CON Unit.
The data area of the unit is now accessible as a flash drive “Extender.”
Uploading DDC Information
Copy the binary file containing your specific DDC information to the flash drive of the CPU Unit or CON Unit.
The current DDC information is replaced.
Retrieving DDC Information
Copy the file “DDC-EDID.bin” on the flash drive of the CPU Unit to your computer.
To open the binary file, you have to install a suitable software, e.g. WinDDCwrite, on your computer. Contact your dealer for this purpose.
Reset to Factory DDC Information
Delete the file called “DDC-EDID.bin” on the flash drive of the CPU Unit. By deleting this file, the factory DDC Information is restored.
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
4.3 COMMAND MODE
During normal use, the console keyboard functions in the usual manner. However, for all KVM Extenders with USB-HID support, you can
set the keyboard into a Command Mode by using a specific Hotkey sequence. While in Command Mode, several functions are performed
via keyboard commands. To exit Command Mode, press <Esc>.
While in Command Mode, the Shift and Scroll LEDs on the console keyboard will flash.
NOTE: In Command Mode normal keyboard and mouse operation will cease. Only selected keyboard commands are available.
If no keyboard command is executed within 10 s after activating Command Mode, it will be automatically deactivated.
The following table lists the keyboard commands to enter and to exit Command Mode and to change the Hotkey sequence.
KEYBOARD COMMANDS
FUNCTION KEYBOARD COMMAND
Enter Command Mode (default) 2x <Left Shift> / (Hotkey)
Exit Command Mode <Esc>
Change Hotkey sequence
<current Hotkey>, <c>, <new Hotkey code>, <Enter>
Until 2011-30-09: <Left Ctrl> + <Left Shift> + <c>, <Hotkey Code>, <Enter>
50
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 51
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 4: CONFIGURATION
<Key> + <Key> Press keys simultaneously
<Key>, <Key> Press keys successively
2x <Key> Press key quickly, twice in a row (similar to a mouse double-click)
The Hotkey sequence to enter Command Mode can be changed. The following table lists the Hotkey Codes for the available key sequences.
HOTKEY CODES
HOTKEY CODE HOTKEY
0 Freely selectable (from 2012-01-12)
2 2x <Scroll>
3 2x <Left Shift>
4 2x <Left Ctrl>
5 2x <Left Alt>
6 2x <Right Shift>
7 2x <Right Ctrl>
8 2x <Right Alt>
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
Set freely selectable Hotkey (exemplary)
To set a freely-selectable Hotkey (e.g. 2x <Space>), use the following keyboard sequence:
<current Hotkey>, <c>, <0>, <Space>, <Enter>
Reset Hotkey
To set a Hotkey back to default settings of the extender, press the key combination <Right Shift> + <Del> within 5 s after plugging in a
keyboard.
4.4 USB-HID GHOSTING
This function allows specific keyboard and mice descriptors (device descriptions) to be permanently stored in the CPU unit. This eliminates
the need to register and deregister the keyboard and mouse on an operating system each time there is a shared use of a source (computer,
CPU) by two or more consoles within a KVM matrix.
The next table lists the keyboard commands for the configuration of USB-HID Ghosting.
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
51
Page 52
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 4: CONFIGURATION
CONFIGURATION COMMANDS FOR USB-HID GHOSTING
FUNCTION KEYBOARD COMMAND
Writes the device descriptions of the input devices connected to the CON Unit into the CPU Unit. Activating the
emulation in the CPU Unit.
Activates the emulation of already stored device descriptions in the CPU Unit <Hotkey>, <h>, <e>, <Enter>
Deactivates the emulation of active device descriptions in the CPU Unit. The input devices connected to the CON Unit
will be now passed transparently to the source (computer, CPU).
Deactivates the emulation of active device descriptions in the CPU Unit. Deletes the descriptions out of the CPU Unit.
The input devices connected to the CON Unit will be now passed transparently to the source (computer, CPU).
NOTE: When using a USB combo device as a USB-HID input device, switching to a CPU Unit with activated USB-HID Ghosting may cause
limited functionality.
<Hotkey>, <h>, <w>, <Enter>
<Hotkey, <h>, <d>, <Enter>
<Hotkey, <h>, <r>, <Enter>
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
4.5 CONFIGURATION FILE
The KVM Extender contains a configuration file (Config.txt) to set specific parameters and to read out device and video information. You
can find it on the flash drive of the KVM Extender. The flash drive can be opened by a mini USB connection to a computer.
The configuration file can be edited with all common text editors.
NOTE: After setting a parameter, the KVM Extender needs to be restarted.
NOTE: To ensure correct identification and acceptance of the parameters, the start command #CFG has to be written into the first line of
the Config.txt file.
4.5.1 PAR AMETERS FOR CPU UNITS
You can write the following parameters into the configuration file of a CPU Unit.
DDC MANAGEMENT
PARAMETER FUNCTION
ENAHPDET Enable hotplug switch for K238-5x series
LOCKEDID Activate DDC write protection
52
DIGITAL AUDIO
PARAMETER FUNCTION
SRC32000 Activate sample rate conversion, sample rate 32 kHz (only with digital audio upgrade module)
SRC44100 Activate sample rate conversion, sample rate 44.1 kHz (only with digital audio upgrade module)
SRC48000 Activate sample rate conversion, sample rate 48 kHz (only with digital audio upgrade module)
SRC96000 Activate sample rate conversion, sample rate 96 kHz (only with digital audio upgrade module)
SRC_NONE Deactivate sample rate conversion (only with digital audio upgrade module)
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 53
CHAPTER 4: CONFIGURATION
COMPRESSION
PARAMETER FUNCTION
MEDCPRATE Activate medium compression rate
MINCPRATE Activate low compression rate
MAXCPRATE Activate high compression rate
ENADITHER Activate dithering filter for Mac OS systems
SHARED OPERATION
PARAMETER FUNCTION
RELEASETIME=n Release timer n = 0...9 seconds for Mouse and Keyboard Connect, without parameter = 10 seconds
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
4.5.2 PARAMETERS FOR CON UNITS
You can write the following parameters into the configuration file of a CON Unit.
OUTPUT SETTINGS
PARAMETER FUNCTION
1080p50Hz Always display 50 Hz when using 1920 x 1080
DISEXTOSD Deactivate extender OSD
ENAFRAME Show orange colored frame when losing extender connection
ENAHOLDPIC Show last transmitted picture highlighted by an orange colored frame when losing connection
ENALOSTMR Activate LOS timer
ENADDCTX Activate DDC transmission by unplugging and connecting the monitor back to the CON Unit
CENTERMODE Simulate the native resolution of Dual-Link monitors by an additional black frame in order to enable Instant Switching.
PARAM=V Simultaneous output of DVI-D and VGA signal
ENAAUDIO Enable RS-232 or RS-422 and analog audio during video only connections
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
53
Page 54
CHAPTER 4: CONFIGURATION
4.5.3 PAR AMETERS FOR CPU UND CON UNITS
You have to write the following parameters into the configuration file of both CON Unit and CPU Unit.
LOCAL SWITCHING
PARAMETER FUNCTION
BLANKSCR
PRIVATEMODE
Activate dark switching between local and remote console by keyboard or mouse event (only with HDMI extenders
and local control by an USB-HID CON upgrade module)
Activate switching of video and control between local and remote console by keyboard commands (only with HDMI
extenders and local control by an USB-HID CON upgrade module)
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
USB 2.0 EMBEDDED
PARAMETER FUNCTION
EN AU SB11 Activate USB 1.1 mode for USB 2.0 embedded upgrade modules (only with USB 2.0 embedded upgrade module)
DISUSBAUD Disable USB audio codec
ENAMICAMP Activate microphone amplifier
54
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 55
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 5: OPERATION
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
5. OPERATION
5.1 DOWNLOAD OF DDC INFORMATION
By default, data from the internal DDC list is reported to the source (computer, CPU). If these are not optimal settings for the display
device, the DDC information of the console monitor can be downloaded and stored internally. The devices have to be configured
accordingly.
On all KVM Extenders with USB-HID support, the user can load the DDC information of the console monitor via keyboard command under
operating conditions.
1. Enter Command Mode with the Hotkey.
2. Press the <a> key to download the DDC information of the console monitor.
The screen will go black for a short time.
At the same time Command Mode is closed and the keyboard LEDs return to previous status.
3. Restart the corresponding source (computer, CPU).
The video mode has been readjusted. Screen quality should be optimal. The CPU should now show the console monitor as the current
screen, together with the available video resolutions.
The DDC information of the console monitor was loaded once. Reloading is possible by repeating the operation.
5.2 PARALLEL OPERATION OF REDUNDANT CPU UNITS
CPU Units with a redundant connector for interconnect cables offer the possibility for a competing control by two connected CON Units.
Taking over control is performed using a keyboard and/or mouse. The release timer function determines the release time of the input
devices at one of the CON Units after that control can be taken over from the second CON Unit.
To configure a redundant CPU Unit for the operation with two parallel controlling CON Units, proceed as follows:
1. Connect a redundant CPU Unit to any source (computer, CPU) by using a mini USB connection.
2. Open the file “Config.txt” that is located on the appearing flash drive of the extender.
3. Activate the release timer by writing the parameter RELEASETIME=n into the second line. The variable “n” defines the time in seconds
and has to be replaced by the numbers 0 to 9 (e.g. RELEASETIME=5). If this parameter is not activated at all, the release time is set to 2
seconds by default. The parameter RELEASETIME=X deactivates the shared operation.
4. Save your changes.
5. Reboot the CPU Unit.
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
55
Page 56
CHAPTER 5: OPERATION
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
EX AMPLE VIEW – CONFIG.TXT
NOTE: When using redundant CPU Units in combination with a KVM matrix, the function of competing control will be automatically
deactivated in the extender and will have to be performed by the KVM matrix.
56
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 57
CHAPTER 6: TROUBLESHOOTING
6. TROUBLESHOOTING
6.1 GENERAL FAILURES
GENERAL FAILURES
DIAGNOSIS POSSIBLE REASON MEASURE
Parameter not set or saved Write parameter into Config.txt file and save changes.
Config.txt parameter without
function
6.2 BLANK SCREEN
Start Command #CFG not set Write start command #CFG into first line of the Config.txt file.
Parameter written incorrectly Check correct spelling and capitalization.
Extender not restarted Restart extender.
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
CPU Module CON Module
Rear View Rear View
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
57
Page 58
CHAPTER 6: TROUBLESHOOTING
BLANK SCREEN TROUBLESHOOTING
DIAGNOSIS POSSIBLE REASON MEASURE
LED 5, 6 off Power supply
LED 1, 3 on or LED 2, 4 off
CPU Unit: LED 5, 6 red or violet
CON Unit: LED 5, 6 red or violet
Connection between CON Unit and CPU
Unit
No video signal detected by source
(computer, CPU)
No monitor detected
No video signal detected from CPU Unit
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
Check power supply units and the connection to the power
network.
Check interconnect cables and connections.
• Check video cable to CPU
• Download DDC information from console monitors (see
Chapter 6.1, Page 54).
• Reboot CPU if necessary.
Check connection, length and quality of the video cable to
monitor, tighten cable thumbscrews.
• Check connection, length and quality of interconnect cables
between the units.
• Download DDC information from console monitors.
• Reboot CPU if necessary.
6.3 USB-HID
CPU Module CON Module
Rear View Rear View
58
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 59
CHAPTER 6: TROUBLESHOOTING
USB-HID TROUBLESHOOTING
DIAGNOSIS POSSIBLE REASON MEASURE
Keyboard LEDs Shift and Scroll
are blinking
CPU Unit: LED 5, 6 green or violet No USB connection to CPU
CON Unit: LED 5, 6 greenor violet Problems with USB connection
USB device without function
Keyboard in Command Mode Press <Esc> to leave Command Mode.
No USB-HID device Connect USB-HID device.
USB-HID device is not supported
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
• Check connection of USB cable to CPU; select another USB
port if necessary.
• Remove USB and power cable and restart CPU. Connect power
cable first.
• Check connection of USB cable to USB-HID device.
• Remove video and power cable and restart CON Unit. Connect
power cable first.
Contact Black Box Technical Support at 877-877-2269 or info@
blackbox.com
6.4 SERIAL CONNECTION
SERIAL CONNECTION TROUBLESHOOTING
DIAGNOSIS POSSIBLE REASON MEASURE
Settings of the serial interface Check Baud rate and general settings.
Serial device not operational
Touch screen not operational Hardware handshake Adjust serial interface to X-ON/X-OFF software handshake.
No serial connection to CPU Check connection via serial cable.
No serial connection to end device (e.g.
touch screen, keyboard)
• Connect serial end device and switch it on.
• Check connection via serial cable.
6.5 ANALOG AUDIO
ANALOG AUDIO TROUBLESHOOTING
DIAGNOSIS POSSIBLE REASON MEASURE
• Connect analog audio source.
• Check audio cable.
• Switch analog audio source on.
• Activate analog output at CPU/audio source.
• Connect analog audio sink and switch it on.
• Check connection of audio cable.
• Connect analog audio source (microphone).
• Check connection of audio cable.
• Switch analog audio source on.
• Activate analog output at audio source.
• Check connection to CPU.
• Check connection of audio cable.
• Check audio configuration.
CON Unit: No signal at audio
output
CPU Unit: No signal at audio
output (microphone)
No audio connection to CPU/audio
source
No Signal
No audio connection to audio sink (e.g.
speakers)
No audio connection to audio source
(microphone)
No signal
No audio connection to audio sink (e.g.
CPU)
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
59
Page 60
CHAPTER 6: TROUBLESHOOTING
6.6 DIGITAL AUDIO
CPU Module CON Module
Rear View Rear View
DIGITAL AUDIO TROUBLESHOOTING
DIAGNOSIS POSSIBLE REASON MEASURE
No audio connection to CPU/audio
CPU Unit: LED 1 red
CON Unit: LED 1 red
No signal/LEDs 1 OK Digital Silence at active audio source
source
No signal
No audio connection to audio sink (e.g.
speakers)
No signal Check signal at CPU Unit.
• Connect digital audio source.
• Check connection of audio cable.
• Switch digital audio source on.
• Activate digital output at CPU/audio source.
• Connect digital audio sink.
• Check connection of audio cable.
• Check LEDs at CPU Unit.
• Check audio format.
• Change audio input.
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
6.7 UPGRADE MODULE USB-HID
CPU Module CON Module
Rear View Rear View
60
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 61
CHAPTER 6: TROUBLESHOOTING
UPGRADE MODULE USB-HID TROUBLESHOOTING
DIAGNOSIS POSSIBLE REASON MEASURE
• Check connection of USB cable to USB-HID device.
LED 1/2 off
CPU Unit: LED 3 off
CON Unit: LED 3 off Keyboard in Command Mode Press <Esc> to leave Command Mode.
CON Unit: LED 3 flashing slowly
Device at higher/lower USB-HID port not
detected
Connection between CON Unit and CPU
Unit
Connection between CON Unit and CPU
Unit
Keyboard in Command Mode Press <Esc> to leave Command Mode.
6.8 USB 2.0 EMBEDDED
• Connect USB-HID device.
• Contact Black Box Technical Support at 877-877-2269 or
[email protected]
Check interconnect cable and connectors.
Check interconnect cable and connections.
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
CPU Module CON Module
Rear View Rear View
USB 2.0 EMBEDDED TROUBLESHOOTING
DIAGNOSIS POSSIBLE REASON MEASURE
• Check connection USB cable to CPU; select another USB port
CPU & CON Unit: LED 3 off No connection to CPU
CPU & CON Unit: LED 2 off
CPU & CON Unit: LED 2 off and
USB 2.0 device without function
No connection between CON Unit and
CPU Unit
No USB 2.0 device Connect USB 2.0 device.
USB 2.0 device is not supported
if necessary.
• Remove USB and power cable and restart CPU. Connect power
cable first.
Check interconnect cable and connectors.
• Check installation at the CPU, also the necessary drivers.
• New connection of the USB 2.0 device.
• Contact Black Box Technical Support at 877-877-2269 or
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
61
Page 62
CHAPTER 6: TROUBLESHOOTING
6.9 USB 2.0
CPU Module CON Module
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
Rear View Rear View
USB 2.0 TROUBLESHOOTING
DIAGNOSIS POSSIBLE REASON MEASURE
• Check connection USB cable to CPU; select another USB port
CPU Unit: All LEDs off No connection to CPU
CON Unit: LED 3 red
CON Unit: LED 3 flashing green/
light blue and USB 2.0 device
without function
Connection between CON Unit and CPU
Unit
No USB 2.0 device Connect USB 2.0 device.
USB 2.0 device is not supported
if necessary.
• Remove USB and power cable and restart CPU. Connect
power cable first.
Check interconnect cable and connectors.
• Check installation at the CPU, also the necessary drivers.
• New connection of the USB 2.0 device.
• Contact Black Box Technical Support at 877-877-2269 or
62
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 63
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
CHAPTER 7: TECHNICAL SUPPORT
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
7. TECHNICAL SUPPORT
Before contacting support please ensure you have read this manual, and then installed and set-up your KVM Extender as recommended.
7.1 SUPPORT CHECKLIST
To efficiently handle your request it is necessary that you complete a support request checklist. Make sure that you have the following
information available before you call:
Company, name, phone number, and email
Type and serial number of the device (see bottom of device)
Date and number of sales receipt
Nature, circumstances and duration of the problem
Components included in the system (such as graphic source/CPU, OS, graphic card, monitor, USB-HID/USB 2.0 devices, interconnect
cable) including manufacturer and model number
Results from any testing you have done
7.2 SHIPPING CHECKLIST
1. To return your device, contact your dealer to obtain a RMA number (Return-Material-Authorization).
2. Package your devices carefully, preferably using the original box. Add all pieces that you received originally.
3. Note your RMA number visibly on your shipment. Devices that are sent in without a RMA number cannot be accepted. The shipment
will be sent back without being opened, postage unpaid.
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
63
Page 64
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
APPENDIX A: REGULATORY INFORMATION
APPENDIX A. REGULATORY INFORMATION
A.1 FCC CLASS A STATEMENT
This equipment has been found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment. Shielded cables must be used with this equipment to maintain compliance with radio frequency energy emission regulations
and ensure a suitably high level of immunity to electromagnetic disturbances.
A.2 WEEE
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
The manufacturer complies with the EU Directive 2012/19/EU on the prevention of waste electrical and electronic equipment (WEEE).
The device labels carry a respective marking.
64
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 65
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
APPENDIX A: REGULATORY INFORMATION
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
A.3 ROHS 2
This device complies with the Directive 2011/65/EU of the European Parliament and of the council of 8 June 2011 on the restriction of
the use of certain hazardous substances in electrical and electronic equipment (RoHS 2, RoHS II). The device labels carry a respective
marking.
A.4 NOM S TAT E M E N T
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de operación deben ser respetadas.
4. Todas las instrucciones de operación y uso deben ser seguidas.
5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca de la tina de baño, lavabo, sótano mojado o cerca de
una alberca, etc.
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que sean recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea recomendado por el fabricante.
8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá a lo descrito en las instrucciones de operación.
Todo otro servicio deberá ser referido a personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no interfiera su uso. La colocación del aparato eléctrico
sobre una cama, sofá, alfombra o superficie similar puede bloquea la ventilación, no se debe colocar en libreros o gabinetes que
impidan el flujo de aire por los orificios de ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor como radiadores, registros de calor, estufas u otros
aparatos (incluyendo amplificadores) que producen calor.
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del tipo descrito en el instructivo de operación, o como
se indique en el aparato.
12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización del equipo no sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que no sean pisados ni pellizcados por objetos colocados
sobre o contra ellos, poniendo particular atención a los contactos y receptáculos donde salen del aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas de energia.
16. El cable de corriente deberá ser desconectado del cuando el equipo no sea usado por un largo periodo de tiempo.
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean derramados sobre la cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del aparato;o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en su desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada.
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
65
Page 66
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
APPENDIX B: GLOSSARY
APPENDIX B. GLOSSARY
The following terms are commonly used in this guide or in video and KVM technology.
AES/EBU: Digital audio standard that is officially known as AES3 and that is used for carrying digital audio signals between devices.
CATx: Any CAT5e (CAT6, CAT7) cable
CGA: Color Graphics Adapter (CGA) is an old analog graphic standard with up to 16 displayable colors and a maximum resolution of 640
x 400 pixels.
Component Video: Component Video (YPbPr) is a high-quality video standard that consists of three independently and separately
transmittable video signals, the luminance signal and two color difference signals.
Composite Video: Composite Video is also called CVBS and it is part of the PAL TV standard.
CON Unit: Component of a KVM Extender or Media Extender to connect to the console (monitor(s), keyboard and mouse; optionally also
with USB 2.0 devices)
Console: Keyboard, mouse and monitor
CPU Unit: Component of a KVM Extender or Media Extender to connect to a source (computer, CPU)
CVBS: The analog color video baseband signal (CVBS) is also called Composite Video and it is part of the PAL TV standard.
DDC: Display Data Channel (DDC) is a serial communication interface between monitor and source (computer, CPU). It allows a data
exchange via monitor cable and an automatic installation and configuration of a monitor driver by the operating system.
DisplayPort™: A VESA standardized interface for an all-digital transmission of audio and video data. It is differentiated between the
DisplayPort standards 1.1 and 1.2. The signals have LVDS level.
Dual Access: A system to operate a source (computer, CPU) from two consoles.
Dual Link: A DVI-D interface for resolutions up to 2560 x 2048 by signal transmission of up to 330 MPixel/s (24-bit).
Dual-Head: A system with two video connections.
DVI: Digital video standard, introduced by the Digital Display Working Group (http://www.ddwg.org). Single Link and Dual Link standard
are distinguished. The signals have TMDS level.
DVI-I: A combined signal (digital and analog) that allows running a VGA monitor at a DVI-I port — in contrast to DVI-D (see DVI).
EGA: The Enhanced Graphics Adapter (EGA) is an old analog graphic standard, introduced by IBM in 1984. A DB9 connector is used for
connection.
Fiber: Singlemode or multimode fiber cables.
HDMI: An interface for an all-digital transmission of audio and video data. It is differentiated between the HDMI standards 1.0 to 1.4a. The
signals have TMDS level.
KVM: Keyboard, video, and mouse
Mini-XLR: Industrial standard for electrical plug connections (3-pole) for the transmission of digital audio and control signals
Multimode: 62.5μ multimode fiber cable or 50μ multimode fiber cable
OSD: The On-Screen-Display is used to display information or to operate a device.
Quad-Head: A system with four video connections
RCA (Cinch): A non-standard plug connection for transmission of electrical audio and video signals, especially with coaxial cables
S/PDIF: A digital audio interconnect that is used in consumer audio equipment over relatively short distances.
SFP: SFPs (Small Form Factor Pluggable) are pluggable interface modules for Gigabit connections. SFP modules are available for CATx
and fiber interconnect cables.
Single-Link: A DVI-D interface for resolutions up to 1920 x 1200 by signal transmission of up to 165 MPixel/s (24-bit). Alternative
frequencies are Full HD (1080p), 2K HD (2048 x 1080) and 2048 x 1152.
Single-Head: A system with one video connection
Singlemode: 9 μ singlemode fiber cable
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
66
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 67
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
APPENDIX B: GLOSSARY
S-Video ( Y/C): S-Video (Y/C) is a video format transmitting luminance and chrominance signals separately. Thereby it has a higher quality
standard than CVBS.
TOSLINK: Standardized fiber connection system for digital transmission of audio signals (F05 plug connection)
Triple-Head: A system with three video connections
USB-HID: USB-HID devices (Human Interface Device) allow for data input. There is no need for a special driver during installation; “New
USB-HID device found” is reported. Typical HID devices include keyboards, mice, graphics tablets, and touchscreens. Storage, video, and
audio devices are not HID.
VGA: Video Graphics Array (VGA) is a computer graphics standard with a typical resolution of 640 x 480 pixels and up to 262,144 colors. It
can be seen as a follower of the graphics standards MDA, CGA, and EGA.
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
67
Page 68
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
DISCLAIMER/TRADEMARKS
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
DISCLAIMER
Black Box Corporation shall not be liable for damages of any kind, including, but not limited to, punitive, consequential or cost of cover
damages, resulting from any errors in the product information or specifications set forth in this document and Black Box Corporation
may revise this document at any time without notice.
TRADEMARKS USED IN THIS MANUAL
Black Box and the Black Box logo type and mark are registered trademarks of BB Technologies, Inc.
Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.
68
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 69
NOTES
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
69
Page 70
NOTES
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
70
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
Page 71
NOTES
NEED HELP?
LEAV E TH E TEC H TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7. 8 7 7. 2 2 69
1. 8 7 7. 87 7. 2 2 69 BLACKBOX.COM
71
Page 72
NEED HELP?
LEAVE THE TECH TO US
LIVE 24/7
TECHNICAL
SUPPORT
1.877.877.2269
© COPYRIGHT 2020, 2022, 2023. BLACK BOX CORPORATION. ALL RIGHTS RESERVED.
EN_KVM_MANUAL_ACX1MT_REV2_2302.PDF
Loading...
