Black Box ACX1MT, ACX1MR, ACXMODH4, ACXMODH2, ACXMODH6 User Manual

...

Download

ACX1MT Series ACXMODH2*

ACX1MR Series ACXMODH4*

ACXMODH6*

ACXMODH21*

DKM KVM Extender TX/RX Interface Modules

Increase the distance between a source (computer, CPU) and its console (keyboard, mouse, and other peripheral devices).

Models available for CATx or fiber.

Customer

Support

Information

Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 www.blackbox.com • info@blackbox.com

Trademarks Used in this Manual/DIsclaimer

Trademarks Used in this Manual

Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc. Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.

Disclaimer

Black Box Network Services shall not be liable for damages of any kind, including, but not limited to, punitive, consequential or cost of cover damages, resulting from any errors in the product information or specifications set forth in this document and Black Box Network Services may revise this document at any time without notice.

We‘re here to help! If you have any questions about your application

or our products, contact Black Box Tech Support at 724 -746-5500

or go to blackbox.com and click on “Talk to Black Box.”

You’ll be live with one of our technical experts in less than 60 seconds.

Page 2

724-746-5500 | blackbox.com

FCC/CE/WEEE Information

Federal Communications Commission and Industry Canada Radio Frequency Interference Statements

This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause inter ference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipment is operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference, in which case the user at his own expense will be required to take whatever measures may be necessary to correct the interference.

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This digital apparatus does not exceed the Class A limits for radio noise emis sion from digital apparatus set out in the Radio Interference Regulation of Industry Canada.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la classe A prescrites dans le Règlement sur le brouillage radioélectrique publié par Industrie Canada.

CE Declaration of Conformity

Disclaimer:

724-746-5500 | blackbox.com

Page 3

NOM Statement

Instrucciones de Seguridad (Normas Oficiales Mexicanas Electrical Safety Statement)

1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado.

2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura.

3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de operación deben ser respetadas.

4. Todas las instrucciones de operación y uso deben ser seguidas.

5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca de la tina de baño, lavabo, sótano mojado o cerca de una alberca, etc.

6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que sean recomendados por el fabricante.

7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea recomendado por el fabricante.

8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá a lo descrito en las instrucciones de operación. Todo otro servicio deberá ser referido a personal de servicio calificado.

9. El aparato eléctrico debe ser situado de tal manera que su posición no interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá, alfombra o superficie similar puede bloquea la ventilación, no se debe colocar en libreros o gabinetes que impidan el flujo de aire por los orificios de ventilación.

10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor como radiadores, registros de calor, estufas u otros

aparatos (incluyendo amplificadores) que producen calor.

11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del tipo descrito en el instructivo de operación, o como

se indique en el aparato.

12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización del equipo no sea eliminada.

13. Los cables de la fuente de poder deben ser guiados de tal manera que no sean pisados ni pellizcados por objetos colocados

sobre o contra ellos, poniendo particular atención a los contactos y receptáculos donde salen del aparato.

14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las recomendaciones del fabricante.

15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas de energia.

16. El cable de corriente deberá ser desconectado del cuando el equipo no sea usado por un largo periodo de tiempo.

17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean derramados sobre la cubierta u orificios de ventilación.

18. Servicio por personal calificado deberá ser provisto cuando:

A: El cable de poder o el contacto ha sido dañado; u B: Objectos han caído o líquido ha sido derramado dentro del aparato; o C: El aparato ha sido expuesto a la lluvia; o D: El aparato parece no operar normalmente o muestra un cambio en su desempeño; o E: El aparato ha sido tirado o su cubierta ha sido dañada.

Page 4

724-746-5500 | blackbox.com

Table of Contents

1. Specifications ....................................................................................................................................................................9

1.1 Interfaces ....................................................................................................................................................................9

1.1.1 DVI-D Single Link ........................................................................................................................................9

1.1.2 DVI-D Dual Link...........................................................................................................................................9

1.1.3 DVI-I Single Link .......................................................................................................................................... 9

1.1.4 HDMI Single-Link ........................................................................................................................................ 9

1.1.5 Disp layPo r t ..................................................................................................................................................9

1.1.6 USB-HID ...................................................................................................................................................... 9

1.1.7 PS /2........................................................................................................................................................... 10

1.1.8 USB 2.0 (transparent) ................................................................................................................................10

1.1.9 RJ-45 (Interconnect) .................................................................................................................................. 10

1.1.10 Fiber SFP Type LC (Interconnect) ............................................................................................................... 10

1.1.11 Serial Interface ...........................................................................................................................................10

1.1.12 Serial Interface RS-422 .............................................................................................................................. 11

1.1.13 Analog Audio Interface ............................................................................................................................. 12

1.1.14 Digital Audio Interface .............................................................................................................................. 12

1.2 Interconnect Cable .................................................................................................................................................... 13

1.2.1 CATx .......................................................................................................................................................... 13

1.2.2 Fiber .......................................................................................................................................................... 14

1.3 Supported Peripherals ...............................................................................................................................................15

1.3.1 USB-HID Devices ....................................................................................................................................... 15

1.3.2 USB 2.0 Devicese .......................................................................................................................................15

1.4 Connector Pinouts .................................................................................................................................................... 15

1.5 Power Supply, Environmental Conditions, Dimensions, and Shipping Weight ...........................................................23

2. Overview ..................................................................................................................................................................24

2.1 Application ................................................................................................................................................................ 24

2.2 System Overview ....................................................................................................................................................... 24

2.3 Part Numbers ............................................................................................................................................................ 25

2. 3.1 Ch a ss is ...................................................................................................................................................... 25

2.3.2 KVM Extender Modules ............................................................................................................................ 26

2.3.3 Upgrade Modules ..................................................................................................................................... 29

2.3.4 Chassis for Free Configuration...................................................................................................................30

2.4 Accessories Upgrade Kits ..........................................................................................................................................31

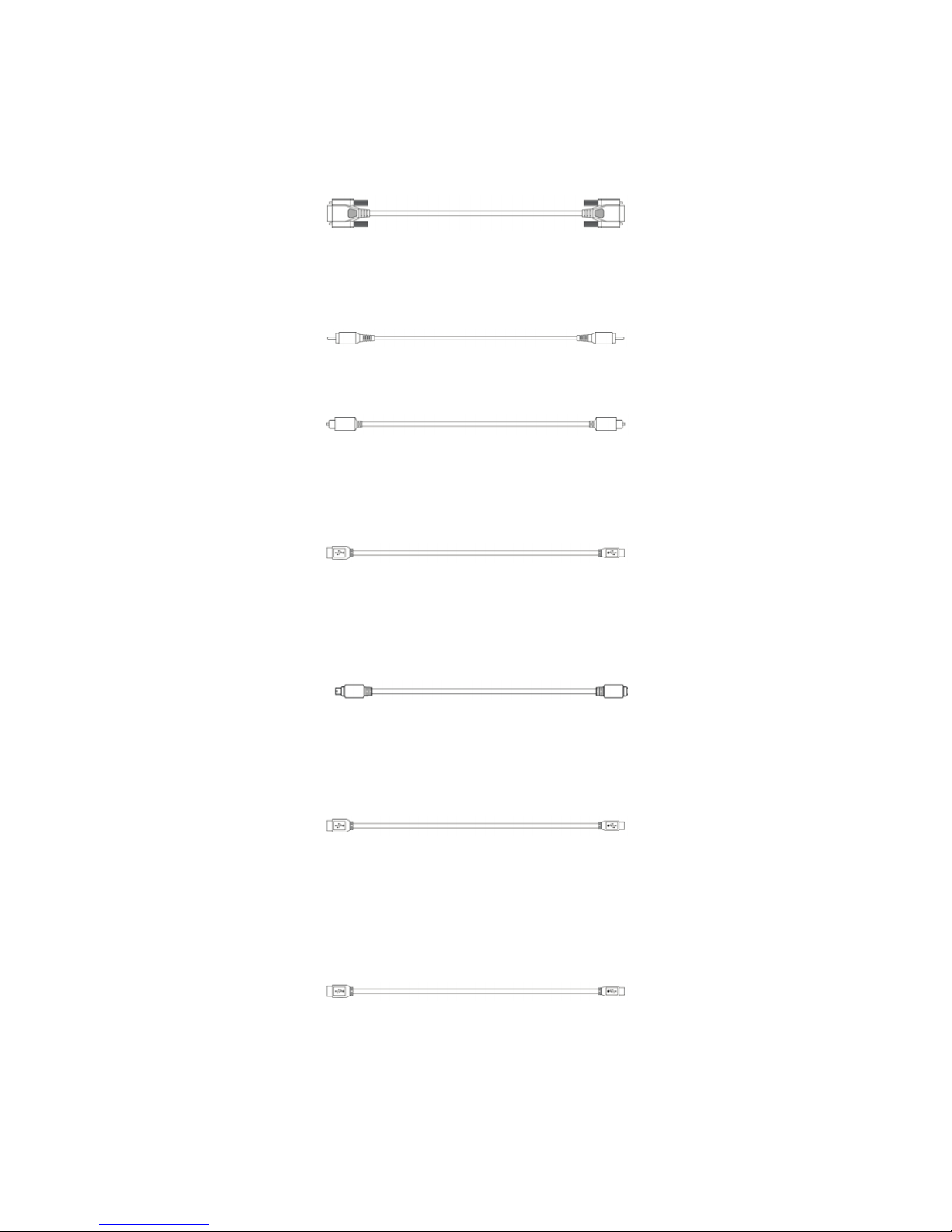

2.5 Accessories ................................................................................................................................................................ 31

2.6 Device Views ............................................................................................................................................................. 32

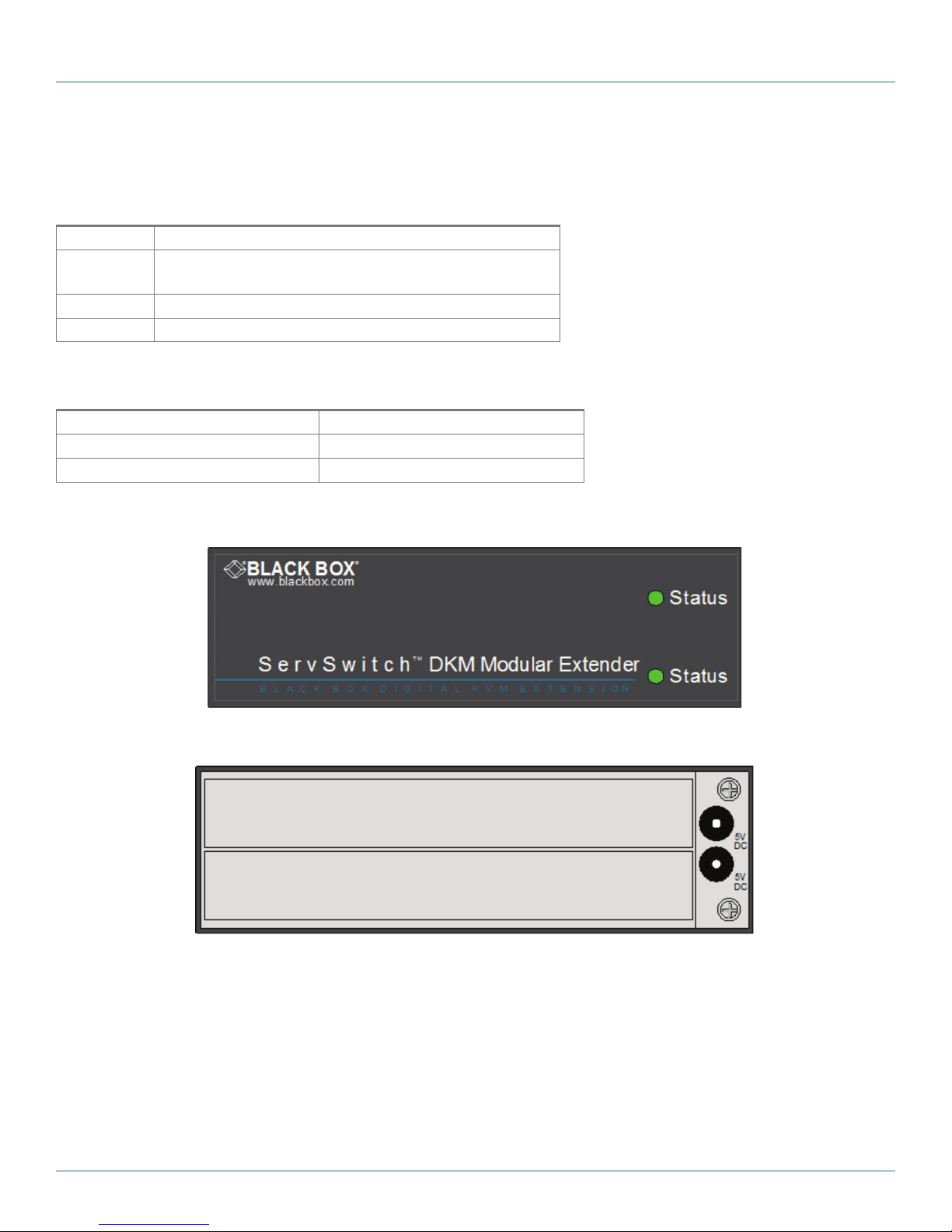

2.6.1 Compatible Chassis ...................................................................................................................................32

2.6.2 AC X1M T-DHI D -C/ACX1MR- DHID - C ......................................................................................................... 41

2.6.3 ACX1M T-VDHID- C /ACX1MR-VDHID-C .................................................................................................... 41

2.6.4 AC X1M T-DHI D -SM /ACX1MR-DHID-SM .................................................................................................... 42

2.6.5 AC X1M T-DHS -SM /ACX1MR- DHS -SM ....................................................................................................... 42

2.6.6 AC X1M T-VDHID-SM /ACX1MR-VDH I D -SM ................................................................................................43

2.6.7 ACX1MT- DHID -2C/ACX1M R- DHID -2C ......................................................................................................43

2.6.8 AC X1M T-VDHID-2S/ACX1MR-VDHID-2S ..................................................................................................44

2.6.9 ACX1MT- DHID -2S /ACX1MR-DHID-2S .......................................................................................................44

2.6.10 ACX1MT-V DHID-2S / ACX1MR-VDHID-2S ..................................................................................................45

2.6.11 ACX1MT-DV HID - C/ACX1M R- DVHID-C .................................................................................................... 45

2.6.12 ACX1MT-DV HID -SM/ACX1MR- DVHID-SM ...............................................................................................46

724-746-5500 | blackbox.com

Page 5

Table of Contents

2. 6 .13 ACX2MT-DLH-C/ACX2MR-DLH-C ............................................................................................................46

2.6.14 ACX2MT-DHH-C/ACX2MR-DHH-C .......................................................................................................... 47

2.6.15 ACX2MT-DLH-SM/ACX2MR-DLH-SM.......................................................................................................47

2.6.16 ACX2MT-DHH-SM /ACX2MR-DHH-SM ....................................................................................................48

2.6.17 ACX2MT-DHHS-SM/ACX2MR-DHHS-SM .................................................................................................48

2.6.18 ACX2MT-DLHS-SM/ACX2MR-DLHS-SM ...................................................................................................48

2.6.19 ACX2MT-DLH-2C/ACX2MR-DLH-2C ........................................................................................................49

2.6.20 ACX2MT-DHH-2C/ACX2MR-DHH-2C ......................................................................................................49

2.6.21 ACX2MT-DLH-SM/ACX2MR-DLH-SM.......................................................................................................50

2.6.22 ACX1MT-HDMI-C/ACX1MR-HDMI-C .......................................................................................................50

2.6.23 ACX1MT-HDMI/ACX1MR-HDMI ............................................................................................................... 51

2.6.24 ACX1MT-HDM2-C .................................................................................................................................... 51

2.6.25 ACX1MT-HDM2-2C/ACX1MR-HDM2-2C .................................................................................................. 52

2.6.26 ACXMT-HDMI-SM/ACX1MR-HDMI-SM ....................................................................................................52

2.6.27 ACX1MT-HDMI-2C/ACX1MR-HDMI-2C .................................................................................................... 53

2.6.28 ACX1MT-HDM2-SM/ACX1MR-HDM2-SM ................................................................................................53

2.6.29 ACX1MT-HDM2-2S/ACX1MR-HDM2-2S ................................................................................................... 54

2.6.30 ACX1MR-HDSW-C .................................................................................................................................... 54

2.6.31 ACX1MR-HDSW-2C ..................................................................................................................................55

2.6.32 ACX1MR-HDSW-SM .................................................................................................................................55

2.6.33 ACX1MR-HDSW-2S ...................................................................................................................................56

2.6.34 ACX1MT-HDO-C/ACX1MR-HDO-C .......................................................................................................... 56

2.6.35 ACX1MT-HDO-SM/ACX1MR-HDO-SM .....................................................................................................57

2.6.36 ACX1MT-DPH-C/ACX1MR-DPH-C ............................................................................................................ 57

2.6.37 ACX1MT-DPH-SM/ACX1MR-DPH-SM ....................................................................................................... 58

2.6.38 ACX1MT-DPHS-SM/ACX1MR-DPHS-SM ...................................................................................................58

2.6.39 ACX1MT-DPH-2C/ACX1MR-DPH-2C ......................................................................................................... 59

2.6.40 ACX1MT-DPH-2S/ACX1MR-DPH-2S .......................................................................................................... 59

3.6.41 ACX1MT-DPHS-2S/ACX1MR-DPHS-2S ......................................................................................................60

2.6.42 AC X1M T-HID/AC X1MR-HID ...................................................................................................................... 60

2.6.43 AC X1M T-EU /ACX1MR-EU ......................................................................................................................... 60

2.6.44 ACX1MT-AR/ACX1MR-AR ........................................................................................................................ 61

2.6.45 ACX1MT-ARP/ACX1MR-ARP ..................................................................................................................... 61

2.6.46 ACX1MT-DA/ACX1MR-DA ........................................................................................................................ 62

2.6.47 ACX1MT-ARH/ACX1MR-ARH ................................................................................................................... 62

2.6.48 ACX1MT-DAH /ACX1MR-DAH ...................................................................................................................63

2.6.49 ACX1MT-ARE/ACX1MR-ARE ..................................................................................................................... 63

2.6.50 ACX1MT-DAE /ACX1MR-DAE ....................................................................................................................64

2.6.51 ACX1MT-DAX /ACX1MR-DAX ................................................................................................................... 64

2.6.52 ACX1MT-ARD/ACX1MR-ARD ................................................................................................................... 65

2.6.53 ACX1MT-U2-C/ACX1MR-U2-C .................................................................................................................65

2.6.54 AC X1M T-U2-SM /ACX1MR- U2-SM ............................................................................................................ 66

2.7 Status LEDs ................................................................................................................................................................ 66

2.7.1 KVM Extender Module Status ...................................................................................................................66

2.7.2 KVM Extender Module VGA/DVI-I Status ................................................................................................. 67

2.7.3 Upgrade Module Digital Audio Status ....................................................................................................... 68

2.7.4 Upgrade Module USB-HID Status..............................................................................................................69

2.7.5 Upgrade Module USB 2.0 Embedded Status ............................................................................................. 70

2.7.6 Upgrade Module USB 2.0 Status ............................................................................................................... 71

Page 6

724-746-5500 | blackbox.com

Table of Contents

3. Installation .................................................................................................................................................................. 72

3.1 What's Included ........................................................................................................................................................ 72

3.2 System Setup ............................................................................................................................................................74

3.2.1 KVM Extender Setup................................................................................................................................. 74

3.2.2 Upgrade Modules Setup ...........................................................................................................................74

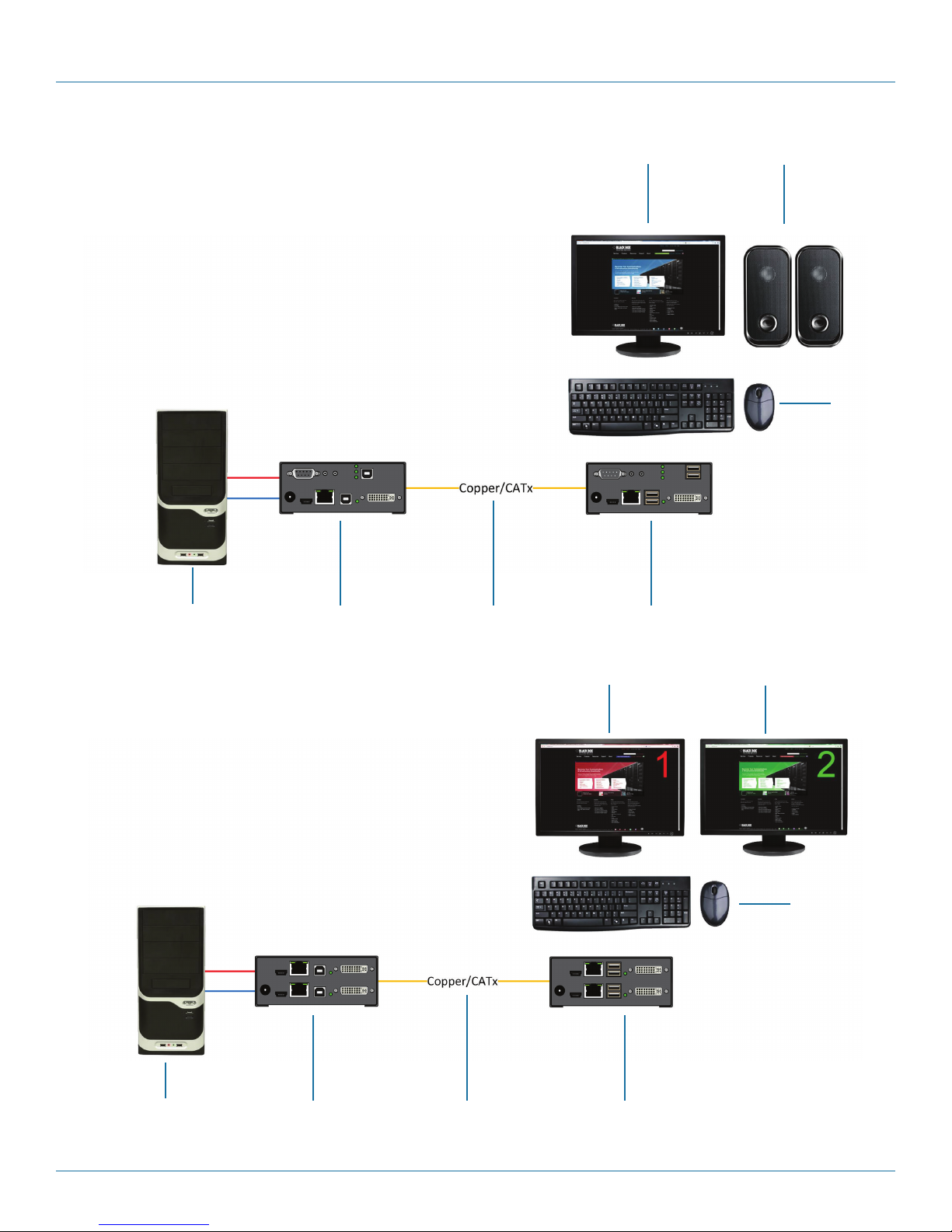

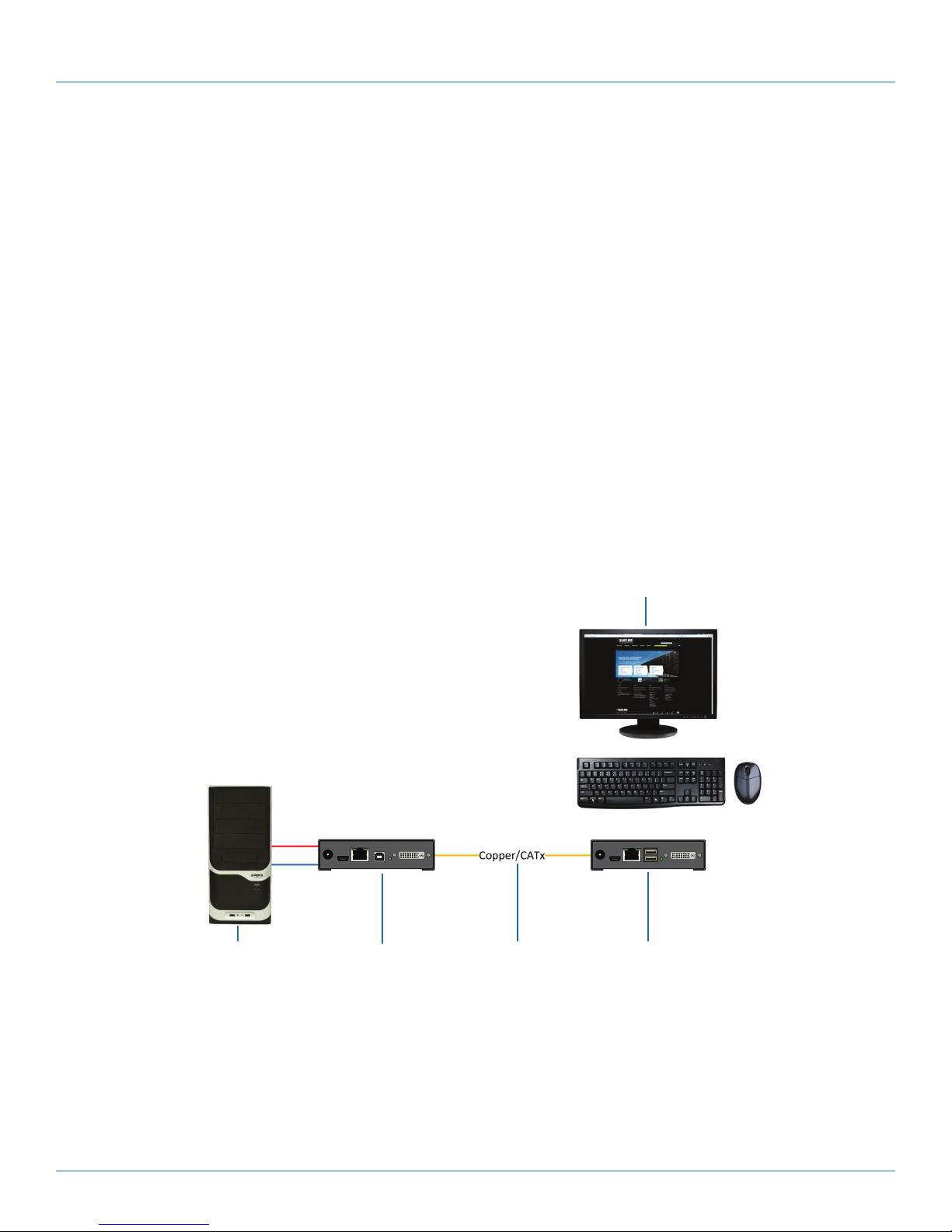

3.3 Example Applications ................................................................................................................................................ 76

4. Configuration ..................................................................................................................................................................78

4.1 Transmission Parameters ........................................................................................................................................... 78

4.2 DDC Settings.............................................................................................................................................................78

4.3 Command Mode .......................................................................................................................................................78

4.4 USB-HID Ghosting..................................................................................................................................................... 79

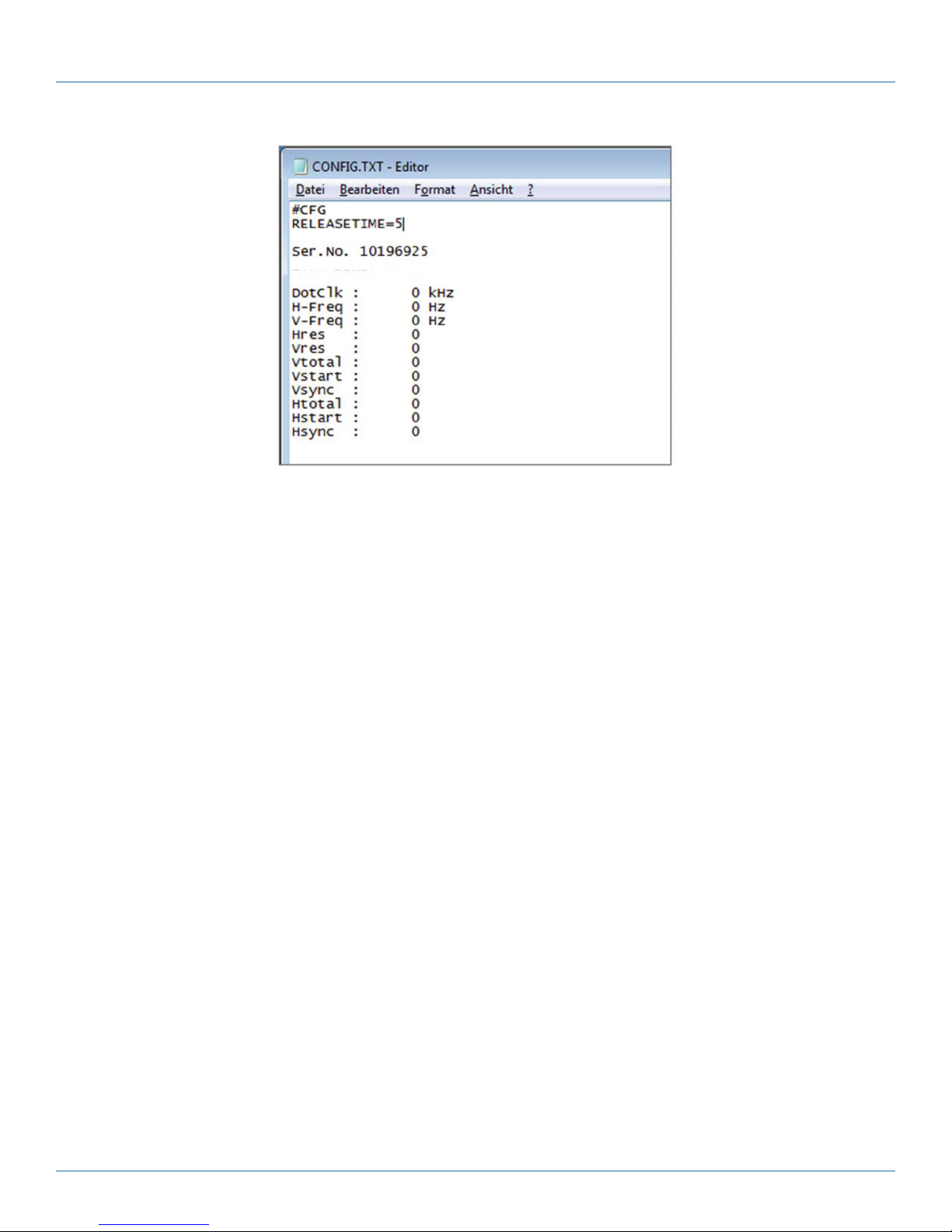

4.5 Configuration File ......................................................................................................................................................80

4.5.1 CPU Units Parameters ...............................................................................................................................80

4.5.2 CON Units Parameters ...............................................................................................................................81

4.5.3 CPU and CON Units Parameters ................................................................................................................ 82

5. Operation .................................................................................................................................................................. 83

5.1 DDC Information Download .....................................................................................................................................83

5.2 Redundant CPU Units Shared Operation ...................................................................................................................83

6. Troubleshooting ..................................................................................................................................................................85

6.1 General Failures ......................................................................................................................................................... 85

6.2 Blank Screen.............................................................................................................................................................. 85

6.3 USB-HID .................................................................................................................................................................. 86

6.4 Serial Connection ...................................................................................................................................................... 86

6.5 Analog Audio ............................................................................................................................................................87

6.6 Digital Audio .............................................................................................................................................................87

6.7 USB-HID Upgrade Module ........................................................................................................................................ 88

6.8 USB 2.0 Embedded ...................................................................................................................................................88

6.9 USB 2.0 Upgrade Module .........................................................................................................................................89

7. Technical Support Information .............................................................................................................................................90

7.1 Contacting Technical Support ...................................................................................................................................90

7.2 Shipping and Packaging ............................................................................................................................................90

8. Glossary ..................................................................................................................................................................91

724-746-5500 | blackbox.com

Page 7

Safety Instructions

To ensure reliable and safe long-term operation of your KVM Extender please note the following guidelines:

Installation

• Only use in dry, indoor environments.

• The KVM Extender and the power supply units can get warm. Do not install components in an enclosed space without any

airflow.

• Do not place the power supply directly on top of the device.

• Do not obscure ventilation holes.

• Only use power supplies originally supplied with the product or manufacturer-approved replacements. Do not use a power

supply if it appears to be defective or has a damaged chassis.

• Connect all power supplies to grounded outlets. In each case, ensure that the ground connection is maintained from the outlet

socket through to the power supply's AC power input.

• Do not connect the link interface to any other equipment, particularly network or telecommunications equipment.

• Take any required ESD precautions.

NOTE: To disconnect the device completely from the electric circuit, all power cables have to be removed.

Repair

• Do not attempt to open or repair a power supply unit.

• Do not attempt to open or repair the KVM Extender. There are no user serviceable parts inside.

• Please contact Black Box Technical Support at 724-746-5500 or info@blackbox.com if there is a fault.

Page 8

724-746-5500 | blackbox.com

Chapter 1: Specifications

1. Specifications

1.1 In te rfa ce s

1.1.1 DVI-D Single Link

The video interface supports the DVI-D protocol. All signals that comply with the DVI-D Single-Link specification can be transmitted. This includes, for example, monitor resolutions such as 1920 x 1200 @ 60 Hz, Full HD (1080p), or 2K HD (up to 2048 x 1152). Data rate is limited to 165 Megapixels per second.

1.1.2 DVI-D Dual Link

The video interface supports the DVI-D protocol. All signals that comply to DVI-D Dual Link norm can be transmitted. This includes monitor resolutions up tp 2560x2048@60Hz. Data rate is limited to 330 MPixel/s.

1.1.3 DVI-I Single Link

The video interface supports the DVI-I protocol. All analog (VGA) or digital (DVI) signals that comply with the DVI-I Single-Link specification can be transmitted. This includes monitor resolutions for VGA up to 1920 x 1200 @ 60 Hz, and monitor resolutions for DVI-I up to Full HD (1080p) or for DVI-D 2K HD (up to 2048 x 1152). Data rate is limited to 165 Megapixels per second.

NOTE: Transmission of interlaced video signals, such as 1920 x 1080i, cannot be guaranteed.

1.1.4 HDMI Single Link

Video

The audio/ video interface can transmit monitor resolutions such as 1920 x1200 @60 Hz, Full HD (1080p) or 2K HD (up to 2048 x

1152). Data rate is limited to 165 MPixel/s and 8 bit.

Audio

The audio format PCM can be transmitted through the interface.

• Standards: Stereo Linear Pulse Code Modulation (LPCM)

• Bit Depth: 16 bit

• Sample Rate: Up to 96 kHz

Further audio formats will be supported in the future through a firmware update.

The interface is compatible to 3D, so the 3D formats Side-by-Side and Top-and-Bottom can be transmitted.

NOTE: HDCP coded content is currently not supported.

1.1.5 DisplayPort

Video

The video interface supports the DisplayPort 1.2 standard. All signals that comply with this standard can be transmitted. This includes monitor resolutions up to 2560 x 2048@ 60 Hz or 3840 x 2160 @30 Hz. Data rate is limited to 330 MPixel/s.

Audio

Various audio formats can be transmitted through the interface.

• Standards: Stereo Linear Pulse Code Modulation (LPCM), DTS, DTS-HD (5.1), Dolby Digital, Dolby Digital Plus (5.1)

• Bit Depth: 16 to 24 bit

• Sample-Rate: 32 to 192 kHz

1.1.6 USB-HID

Our devices with an USB-HID interface support a maximum of two devices compliant with the USB-HID protocol. Each USB-HID port provides a maximum current of 100 mA.

724-746-5500 | blackbox.com

Page 9

Chapter 1: Specifications

Keyboard

Compatible with most USB keyboards. Certain keyboards with additional functions may require custom firmware to operate. Keyboards with an integral USB hub (such as Mac® keyboards) can also be supported using non-USB HID cards.

Mouse

Compatible with most 2-button, 3-button, and scroll mice.

Other USB-HID devices

The proprietary USB emulation also supports certain other USB-HID devices, such as specific touchscreens, graphics tablets, bar-code scanners or special keyboards. Support cannot be guaranteed, however, for every USB-HID device.

NOTE: Only two USB-HID devices are supported concurrently, such as keyboard and mouse or keyboard and touchscreen. A hub

is allowed, but it does not increase the number of HID devices allowed.

To support other USB ”non-HID” devices, such as scanners, Web cams, or memory devices, choose our devices with transparent USB support.

1.1.7 PS/2

Our devices with PS/2 interface support the use of a PS/2 keyboard and mouse.

Keyboard

Compatible with most PS/2 keyboards, even with various special keyboards. Certain keyboards with additional functions can be run with special firmware.

Mouse

Compatible with most 2-button, 3-button and scroll mice.

1.1.8 USB 2.0 (transparent)

DKM Modular Extender models with transparent USB 2.0 support allow the connection of all types of USB 2.0 devices (without restriction). USB 2.0 data transfer is supported, depending on the upgrade module, with high-speed USB (max. 480 Mbps) or fullspeed USB (max. 36 Mbps).

Each USB 2.0 port provides a maximum current of 500 mA (high power). When using a USB high speed interface with 4 USB ports, respectively 2 connectors provides a maximum of 500 mA (high power) and 2 connectors a maximum of 100 mA.

1.1.9 RJ-45 (Interconnect)

For CATx communications, the extender requires a 1000BASE-T connection.

Connector wiring must comply with EIA/TIA-568-B (1000BASE-T), with RJ-45 connectors at both ends. All four cable wire pairs are used.

1.1.10 Fiber SFP Type LC (Interconnect)

The communication of fiber devices is performed via Gigabit SFPs that have to be connected to suitable fibers fitted with type LC connectors.

NOTE: The correct function of the device can only be guaranteed with SFPs provided by Black Box.

CAUTION: SFP modules can be damaged by electrostatic discharge (ESD).

When handling, take care not to damage devices.

1.1.11 S erial I nter face

The serial interface option supports a full-duplex transmission with a real hardware handshake up to a baud rate of 19,200.

The CON module is cabled as DTE (Data Terminal Equipment, such as CPU output) and can be connected directly to DCE (Data Communication Equipment) devices.

• A touchscreen can be connected directly to the CON module.

Page 10

724-746-5500 | blackbox.com

Chapter 1: Specifications

• To connect to a serial printer (or any other DTE instead of DCE device), you need a null-modem cable (cross-over cable)

between the CON module and the device.

Operation of several devices:

The serial interface transmits six signals (three for each direction). Normally, four of the six signals are handshake signals (in addition to RxD and TxD). The following configurations, however, are possible using special adapter splitting cables:

• Three single 2-wire transmissions.

• Two transmissions with a handshake signal.

• A serial mouse and a single 2-wire transmission.

In this case, choose X-ON/X-OFF software handshake for traffic control at the printer and PC.

• Connection Format: DTE (Data Terminal Equipment)

• Speed: Up to 19,200 Baud

• Data Format: Format independent

• Data Transmission:

- RxD (Receive Data)

- TxD (Transmit Data)

• Traffic Control: The following signals are transmitted (hardware handshake):

- RTS (Request To Send)

- CTS (Clear To Send)

- DTR (Data Terminal Ready)

- DSR (Data Set Ready)

1.1.12 Serial Interface RS-422

KVM Extenders with a serial interface RS-422 (DB9) support a differential full-duplex transmission up to a Baud rate of 115,200 Baud.

The CPU unit is designed as controlling device and can, for example, be connected directly to video or media servers.

The CON unit is designed as a controlled device and so can be connected directly to remote controllers.

Table 1-1. Serial interface specifications.

Specification Description

Connection Format DTE (Data Terminal Equipment)

Speed Up to 115,200 baud

Data Format Format independent

Data Transmission

• RxD (Receive Data)

• TxD (Transmit Data)

Traffic Control

The following signals are transmitted (hardware handshake):

• RTS (Request to Send)

• CTS (Clear to Send)

• DTR (Data Terminal Ready)

• DSR (Data Set Ready)

724-746-5500 | blackbox.com

Pa ge 11

Chapter 1: Specifications

1.1.13 Analog Audio Interface

The Analog Audio option supports a bidirectional stereo audio transmission, in nearly CD quality.

The audio interface is a “line level” interface and it is designed to transmit the signals of a sound card (or another “line level” device) as well as to allow the connection of active speakers to the CON module.

Stereo audio can be transmitted bidirectionally at the same time.

Connection of a microphone:

Connect the microphone to the “audio” input of the CON module. There are two ways to establish this connection:

• The output of the CPU module is connected with the microphone input of the sound card (red). Adjust the sound card to

provide an additional amplification (20 dB).

• The output of the CPU module is connected to the audio input of the sound card (blue). Choose this connection if the

microphone has its own pre-amplifier.

NOTE: The CON module can do the pre-amplification of the microphone as well. Open the CON module, locate the “MIC” jumper

on the audio board and close the pins.

Table 1-2. Analog audio specifications.

Specification Description

Transmission Format Digitized virtually CD-quality audio (16-bit, 38.4 kHz)

Signal Level Line-level (5-volt peak-peak maximum)

Input Impedance 47 kOhm

Connections CPU Unit (2) 3.5-mm stereo audio plug (audio in and audio out)

Connections CON Unit (2) 3.5-mm stereo audio plug (audio in and audio out)

1.1.14 Digital Audio Interface

The digital audio option supports the unidirectional transmission of digital audio data.

Up to three sources can be connected to the CPU module. The active source is transmitted. If several sources are active, the XLR signal takes priority, otherwise the first active signal.

Up to three sinks can be connected to the CON module. The signal is available at all outputs concurrently.

DKM Modular Extender with digital audio option includes a built-in sample rate converter that provides predefined sample frequencies at the CON module’s output.

The user can set the following parameters directly via a configuration file:

• Activate or deactivate sample rate converter

• Set sample frequency of the sample rate converter. The following sample frequencies are available:

– 32.0 kHz

– 44.1 kHz

– 48.0 kHz

– 96.0 kHz

• To deactivate the sample rate converter, write SRC_NONE in the Config.txt file of the CPU unit.

Page 12

724-746-5500 | blackbox.com

Chapter 1: Specifications

Table 1-3. Digital audio interface specifications.

Specification Description

Compatibility AES/ EBU, S /PDIF, EIAJCP1201, IEC 60958

Standards Dolby digital, DTS, PCM

• Mini XLR (AES/EBU ; symmetrical lockable)

CPU Unit (Inputs)

CON Unit (Outputs)

1.2 Interconnect Cable

1.2.1 CATx

NOTE: A point-to-point connection is required. Operation with several patch fields is possible. Routing over an active network

component, such as an Ethernet hub, router, or switch, is not allowed.

• Coaxial (S /PDIF; RCA, Cinch)

• Optical (S/ PDIF, TOSLINK

• Mini XLR (AES/EBU ; symmetrical, lockable)

• Coaxial (S /PDIF, RCA, Cinch

• Optical (S/ PDIF, TOSLINK)

)

• Avoid routing CATx cables along power cables.

• If the site has 3-phase AC power, make sure that the CPU module and CON module are on the same phase.

CAUTION: To maintain regulatory EMC compliance, you must use correctly installed shielded CATx cable throughout the

interconnection link. Also, all CATx cables need to have ferrites on both cable ends close to the device.

Type of Interconnect Cable

The DKM Modular Extender requires interconnect cabling specified for Gigabit Ethernet (1000BASE-T). The use of solid-core (24 AWG), shielded, CAT5e (or better) is recommended.

Table 1-4. CATx interconnect cable specifications.

Parameter Description

CATx solid-core cable 24 AWG

CATx patch cable 26/ 8 AWG

S/UTP (CAT5e) cable according to EIA/T IA-568-B. Four pairs of 24 AWG wires. Connection according to EIA /TIA-568-B (1000BASE-T).

S/UTP (CAT5e) cable according to EIA/T IA-568-B. Four pairs of 26/8 AWG wires. Connection according to EIA / TIA-568 -B (1000BASE-T).

NOTE: You can use flexible cables (patch cables) type 26/8 AWG; however, but you’ll only get half the maximum possible

extension distance (Table 1-5).

724-746-5500 | blackbox.com

Page 13

Chapter 1: Specifications

Maximum Acceptable Cable Length

Table 1-5. Maximum acceptable CATx cable length.

Ca bl e Ty pe Maximum Length

Solid- conductor 24 AWG CATx cable 400 feet (140 m)

Stranded- conductor 26/ 28 or 27/28 AWG or CATx cable 200 feet (70 m)

1.2.2 Fiber

NOTE: A point-to-point connection is necessary. Operation with multiple patch panels is allowed. Routing over active network

components, such as Ethernet hubs, switches, or routers, is not allowed.

Type of Interconnect Cable

(Cable notations according to VDE)

Table 1-6. Fiber cable specifications.

Ca bl e Ty pe Description

Single-mode fiber 9 µm

Multimode fiber 50 µm

Multimode fiber 62.5 µm

• Duplex.

• Indoor patch cable ( EFN092)

• Duplex.

• Indoor patch cable ( EFN6020)

• Duplex.

• Indoor patch cable ( EFN116-LCLC)

Table 1-7. Maximum acceptable fiber cable length specifications.

Ca bl e Ty pe Description

Single-mode fiber 9 µm 32,800 feet (10,000 m)

Single-mode 9µm XV 5,000 m (16,400 ft)

Multimode fiber 50 µm ( OM3) 3280 feet (1000 m)

Multimode fiber 50 µm 1300 feet (400 m)

Multimode fiber 62.5 µm 650 feet (200 m)

NOTE: If you use single-mode SFPs with multimode fibers, you can normally double the maximum acceptable cable length.

Connector type

The Modular Extenders have fiber LC connectors.

Page 14

724-746-5500 | blackbox.com

Chapter 1: Specifications

1.3 Supported Peripherals

1.3.1 USB-HID Devices

The DKM Modular Extender will support most USB-HID devices, including the vast majority of keyboards and mice currently on the market. Many other kinds of HID devices such as bar-code scanners and touchscreens may also be compatible.

It is not possible to guarantee support for all available USB-HID devices. In certain cases, you may need custom firmware.

USB-HID (and other) devices that are not supported as standard will normally operate with our devices featuring transparent USB support.

NOTE: Concurrent operation of more than two USB-HID devices is not possible even if you use a USB hub.

1.3.2 USB 2.0 Devices

DKM Modular Extender models featuring a transparent USB 2.0 connection use Extreme USB Technology. This technology supports all types of USB 2.0 devices; however, we cannot guarantee compatibility with every device on the market. Please contact Black Box Technical Support at 724-746-5500 or info@blackbox.com if any issues are found.

1.4 Connector Pinouts

Connector DVI Single-Link

Figure 1-1. DVI-D single-link connector.

Table 1-8. DVI-D single-link connector pinout.

Pin Signal Pin Signal Pin Signal

1 TMDS data 2- 9 TMDS data 1- 17 TMDS data 0 -

2 TMDS data 2+ 10 TMDS data 1+ 18 TMDS data 0+

3 TMDS data 2 GND 11 TMDS data 1 GND 19 TMDS data 0 GN D

4 Not connected 12 Not connected 20 Not connected

5 Not connected 13 Not connected 21 Not connected

6 DDC input (SCL) 14 +5 VDC high impedance 22 TMDS clock GND

7 DDC output (SDA) 15 GND 23 TMDS clock +

8 Internal use 16 Hot-plug recogniition 24 TMDS clock -

C1 Internal use — — C3 Internal use

C2 Not connected C5 GND C4 Internal use

724-746-5500 | blackbox.com

Page 15

Chapter 1: Specifications

Connector DVI Dual-Link

Pin Signal Pin Signal Pin Signal

1 GND 21 RX5_U 41 GND

2 Not connected 22 GND 42 GND

3 Not connected 23 Not connected 43 GND

4 GND 24 Not GND 44 BRXC_N

5 5V DVI 25 RX2_P 45 BRXC_P

6 DDC SCL 26 RX2_N 46 GND

7 DDC SDA 27 R X1_ P 47 Not connected

8 GND 28 R X1_ N 48 Not connected

9 BDDC SDA 29 R X0_P 49 GND

10 BDDC SCL 30 RX0_N 50 Not connected

11 B5V DVI 31 R XC_P 51 Not connected

12 GND 32 RXC_ N 52 GND

13 Not connected 33 GND 53 Not connected

14 Not connected 34 GND 54 GND

15 GND 35 GND 55 Not connected

16 RX3_P 36 HPD 56 Not connected

17 RX3_N 37 Not connected 57 GND

18 RX4_P 38 Not connected 58 Not connec ted

19 R X4_N 39 Not connected 59 Not connected

20 RX5_P 40 BHPDT 60 GND

Figure 1-2. DVI-D dual link connector.

Table 1-9. DVI-D dual-link connector pinout.

Page 16

724-746-5500 | blackbox.com

Connector DVI-I Single-Link

Pin Signal Pin Signal Pin Signal

1 TMDS data 2- 9 TMDS data 1- 17 TMDS data 0 -

2 TMDS data 2+ 10 TMDS data 1+ 18 TMDS data 0 +

3 TMDS data 2 GND 11 TMDS data 1 GND 19 TMDS data 0 GN D

4 Not connected 12 Not connected 20 Not connected

5 Not connected 13 Not connected 21 Not connected

6 DDC input (SCL) 14 +5 VDC high impedance 22 TMDS clock GND

7 DDC output (SDA) 15 GND 23 TMDS clock +

8 V-sync 16 Hot-plug recogniition 24 TMDS clock -

C1 Red signal — — C3 Blue signal

C2 Green signal C5 GND C4 H-sync

Chapter 1: Specifications

Figure 1-3. DVI-I connector.

Table 1-10. DVI-I single-link connector pinout.

Connector HDMI Single-Link

Pin Signal Pin Signal Pin Signal

1 T.M.D.S data 2 + 8 T.M.D.S data 0 GND 15 DDC Input (SCL)

2 T.M.D.S data 2 GND 9 T.M.D.S data 0 - 16 DDC Output (SDA)

3 T.M.D.S data 2 - 10 T.M.D.S clock + 17 DDC/CEC/HEC GND

4 T.M.D.S data 1 + 11 T.M.D.S clock GND 18 +5VDC high impedance

5 T.M.D.S data 1 GND 12 T.M.D.S clock - 19 Hot Plug recognition

6 DDC Input (SCL) 13 CEC — —

7 T.M.D.S data 1 - 14 HEC data - — —

Figure 1-4. HDMI single-link connector.

Table 1-11. HDMI single-link connector pinout.

724-746-5500 | blackbox.com

Page 17

Chapter 1: Specifications

DisplayPort connector

Pin Signal Pin Signal Pin Signal

ML-LANE3(N)

GND

ML-LANE3(P)

ML-LANE2(N)

GND

ML-LANE2(P)

ML-LANE1(N)

Figure 1-5. HDMI single-link connector.

Table 1-12. HDMI single-link connector pinout.

GND

ML-LANE1(P)

ML-LANE0(N)

GND

ML-LANE0(P)

Config1/GND

Config2 /GND

20 Power Out (not connec ted)

— —

AUX CH ( P)

GND

AUX CH ( N )

Hot Plug Detect

Power Out Return

Connector USB Type B

Figure 1-6. USB Type B connector.

Table 1-13. USB Type B connector pinout.

Pin Signal Color

1 VCC (+5 VDC) Red

2 Data - White

3 Data + Green

4 GND Black

Page 18

724-746-5500 | blackbox.com

Connector USB Type A

Connector Mini USB Type B

Chapter 1: Specifications

Figure 1-7. USB Type A connector.

Table 1-14. USB Type A connector pinout.

Pin Signal Color

1 VCC (+5 VDC) Red

2 Data - White

3 Data + Green

4 GND Black

Connector PS/2

Figure 1-8. Mini USB Type B connector.

Table 1-15. Mini USB Type B connector pinout.

Pin Signal Color

1 VCC (+5 VDC) Red

2 Data - White

3 Data + Green

4 Not connected —

5 GND Black

Figure 1-9. PS/2 connector.

Table 1-16. PS/2 connector pinout.

Pin Signal

1 Data

2 GND

3 VCC (+ 5VDC)

4 CLK

5 Not connected

6 Not connected

724-746-5500 | blackbox.com

Page 19

Chapter 1: Specifications

RJ-45 connector

Fiber SFP Type LC

Figure 1-10. RJ-45 connector.

Table 1-17. RJ-45 connector pinout.

Pin Signal Pin Signal

1 D1+ 5 D3 -

2 D1- - 6 D2-

3 D2+ 7 D4+

4 D3+ 8 D4-

Power Supply

Figure 1-11. SFP Type LC connector.

Table 1-18. SFP Type LC connector pinout.

Pin Signal

1 Data OUT

2 Data IN

Figure 1-12. Power supply label..

Table 1-19. Power supply connector pinout.

Pin Signal

Inside VCC (+5 VDC)

Outside GND

Page 20

724-746-5500 | blackbox.com

DB9 (Serial) RS-232

Chapter 1: Specifications

Figure 1-13. DB9 serial connector.

Table 1-20. DB9 serial RS-232 connector pinout.

Pin Signal Pin Signal

1 Not connected 6 DSR

2 RxD 7 RTS

3 TxD 8 CTS

4 DTR 0 Not connected

5 GND — —

DB9 (Serial) RS-422 Controlled Device

Table 1-21. DB9 serial RS-422 connector pinout, controlled device.

Figure 1-14. DB9 serial connector.

Pin Signal Pin Signal

1 GND 6 Rx GN D

2 RxA 7 RxB

3 TxB 8 Tx A

4 Tx GND 0 Not connected

5 Not connected — —

724-746-5500 | blackbox.com

Page 21

Chapter 1: Specifications

DB9 (Serial) RS-422 Controlling Device

Table 1-22. DB9 serial RS-422 connector pinout, controlling device.

Figure 1-15. DB9 serial connector.

Pin Signal Pin Signal

1 GND 6 Tx GND

2 TxA 7 Tx B

3 RxB 8 RxA

4 Rx GND 0 Not connected

5 Not connected — —

3.5-mm Stereo Jack Plug

RCA (Cinch)

Figure 1-16. 3.5-mm stereo jack plug.

Table 1-23. 3.5-mm stereo jack plug pinout.

Pin Signal

1 GND

2 Audio IN /OUT L

3 Audio IN /OUT R

Figure 1-17. RCA connector.

Page 22

Table 1-24. RCA connector pinout.

Pin Signal

1 GND

2 Data IN /OUT

724-746-5500 | blackbox.com

Mini-XLR

TOSLINK

Chapter 1: Specifications

Figure 1-18. Mini XLR connector.

Table 1-25. Mini XLR connector pinout.

Pin Signal

1 GND

2 Data +

3 Data -

Figure 1-19. TOSLINK connector.

Table 1-26. TOSLINK connector pinout.

Pin Signal

1 Data IN /OUT

1.5 Power Supply, Environmental, Dimensions, and Shipping Weight

Table 1-27. Power supply, environmental, dimensions, and shipping weight specifications.

Basic modules: Single-head devices: 800 mA max., VGA: 900 mA max.;

Power

Environmental

Upgrade modules: Analog audio/serial 300 mA max., Digital audio: 300 mA max., USB-HID: 300 mA max.; USB 2.0 modules: 2500 mA max.

Temperature Tolerance: Operating: +41 to +113° F (+5 to +45° C) Storage Temperature: -13 to +140° F (-25 to +60° C); Relative Humidity (Max.): 80% non-condensing

Dimensions

Shipping Weight

CPU Module/CON Module:

1.6"H x 5.7"W x 5.6"D (4.1 x 14.5 x 14.2 cm)

CPU Module/CON Module:

0.6 lb. (0.3 kg)

724-746-5500 | blackbox.com

Page 23

Chapter 2: Overview

2. Overview

2.1 Application

The DKM Modular Extender is used to increase the distance between a source (computer, CPU) and its console (keyboard, mouse, and other peripheral devices). It’s designed for use with CATx (twisted-pair) interconnect cables or fiber interconnect cables.

The DKM Modular Extender with CATx interconnect cables won’t work between buildings where you should use a fiber optic based product instead.

The DKM Modular Extender with fiber interconnect cables also works with applications in environments with a great deal of electromagnetical interference. Electromagnetical interference can limit the maximum distance und reliability.

The DKM Modular Extender is fully compatible with the DKM Compact Extender (ACX1T/ACX1R series).

2.2 System Overview

The DKM Modular Extender consists of at least one CPU module and one console (CON) module. A 2-, 4-, or 6-slot modular case holds the modules. The DKM Modular cases (2-slot, 4-slot, or 6-slot) are installed at the CPU (transmitter) and CON (receiver) site.

The CPU module connects directly to the source (computer, CPU) using the supplied cables. The CON module connects to the console (monitor, keyboard, and mouse). The CPU module and the CON modules communicate with each other through the interconnect cables. Figure 2-1 shows a typical system application. Table 2-1 describes the components shown in the diagram.

1 2 3 4

Page 24

Figure 2-1. System diagram.

724-746-5500 | blackbox.com

Table 2-1. System components.

Number Component

1 Source (computer, CPU)

2 DKM Modular E xtender CPU unit

3 Interconnect cable

4 DKM Modular E xtender CON unit

5 Console (monitor, keyboard, mouse)

6 USB-HID devices (option, only with four USB-HID devices)

NOTE: See Section 3.3 for installation examples.

2.3 Part Numbers

Part numbers for connections via CATx or fiber cable:

All mentioned devices are available in the following versions:

• Connection via CATx cable (xx = "C")

Chapter 2: Overview

• Connection via single-mode fiber cable (x = “SM”)

Part numbers for CPU module and CON module:

IMPORTANT! The part numbers for the CPU module and the CON module can be derived from the part number of the complete

device.

• CPU module: ACX1MT

• CON module: ACX1MR

NOTE: All devices in the ACX1MT/R DKM Modular series are compatible with the devices of the DKM Compact Extenders

(ACX1T/R series).

2.3.1 Chassis

NOTE: For information about the chassis, see the Chassis User Manual.

724-746-5500 | blackbox.com

Page 25

Chapter 2: Overview

2.3.2 KVM Extender Modules

Part Number Description

ACX1MT-DHID- C

ACX1MR-DHID-C

Table 2-2. KVM Extender modules.

Single-Head module for (1) DVI-D Single link

ACX1MT-VDHID-C

ACX1MR-VDHID- C

ACX1MT-DHID-SM

ACX1MR-DHID-SM

ACX1MT-DHS-SM

ACX1MR-DHS -SM

ACX1MT-VDH I D -SM

ACX1MR-VDHID-SM

ACX1MT-DHID-2C

ACX1MR-DHID-2C

ACX1MT-VDH I D -2C

ACX1MR-VDHID-2C

ACX1MT-DHID-2S

ACX1MR-DHID-2S

ACX1MT-VHID-2S

ACX1MR-VHID-2S

ACX1MT-DVHID-C

ACX1MR-DVHID - C

Single-Head module for (1) DVI-I input (VGA / DVI), Single-Link (up to 1920 x 1200) with (2) USB-HID

Single-Head module for (1) DVI-D Single Link (up to 1920 x 1200) with (2) USB-HID

Single-Head module for (1) DVI-I (VGA/DVI onboard) Single-Link (up to 1920 x 1200) with (2) USB-HID

Single-Head module for (1) DVI-D Single Link (up to 1920 x 1200) with (2) USB-HID and redundant connector for interconnect cables

Single-Head module for (1) DVI-I (VGA/DVI) Single Link (up to 1920 x 1200) with (2) USB-HID

Single-Head module for (1) DVI-D Single Link (up to 1920 x 1200) with (2) USB-HID and redundant connector for interconnect cables

Single-Head module for (1) DVI-I (VGA/DVI onboard) Single-Link (up to 1920 x 1200) with (2) USB-HID and redundant connector for interconnect cables

Single-Head module for (1) DVI-I (VGA/DVI) Single Link (up to 1920x1200) with (2) USB-HID

ACX1MT-DVHID-SM

ACX1MR-DVHID -SM

ACX2MT-DLH-C

ACX2MR-DLH-C

ACX 2MT- DHH-C

ACX2MR-DHH-C

ACX2MT-DLH-SM

ACX2MR-DLH-SM

ACX2MT-DLHS-SM

ACX2MR-DLHS-SM

Single-Head module for (1) DVI-I (VGA/DVI) Single Link (up to 1920 x 1200) with (2) USB-HID

Single-Head module for (1) DVI-D Dual Link (up to 2560 x 1600), (2) USB-HID

Dual-Head module for (2) DVI-D Single Link (up to 1920 x 1200), (2) USB-HID

Single-Head module for (1) High-Speed DVI-D Dual Link (up to 2560 x 1600), (2) USB-HID

Page 26

724-746-5500 | blackbox.com

Table 2-2. KVM Extender modules (continued).

Part Number Description

ACX 2MT- DHHS

Dual-Head module for (2) DVI-D High-Speed Single Link (up to 1920 x 1200), (2) USB-HID

ACX2MR-DHHS

Chapter 2: Overview

ACX 2MT- DHH-SM

ACX2MR-DHH-SM

ACX2MT-DLH-2C

ACX2MR-DLH-2C

ACX 2MT- DHH-2C

ACX2MR-DHH-2C

ACX1MT-HDMI-C

ACX1MR-HDMI-C

ACX1MT-HDMI-2C

ACX1MR-HDMI-2C

ACX1MT-HDM2-2C

ACX1MT-HDMI-SM

ACX1MR-HDMI-SM

ACX1MT-HDMI-2C

ACX1MR-HDMI-2C

ACX1MT-HDM2-2C

Dual-Head module for (2) DVI-D Single Link (up to 1920 x 1200), (2) USB-HID

Dual-Head module for (2) DVI-D Single Link (up to 1920 x 1200), (2) USB-HID and redundant connector for interconnect cables.

Single-Head module for (1) HDMI Single Link (up to 1920 x 1200), (2) USB-HID

Single-Head KVM Extender for (1) HDMI Single Link (up to 1920 x 1200), (2) USB-HID and local output and redundant connector for interconnect cables

Single-Head module for (1) HDMI Single Link (up to 1920 x 1200), (2) USB-HID

Single-Head KVM Extender for (1) HDMI Single Link (up to 1920 x 1200), (2) USB-HID and local output and redundant connector for interconnect cables

Single-Head KVM Extender for (1) HDMI Single Link (up to 1920 x 1200) with local HDMI output, (2) USB-HID, and redundant connector for interconnect cables

ACX1MT-HDMI-SM

ACX1MR-HDMI-SM

ACX1MT-HDMI-2C

ACX1MR-HDMI-2C

ACX1MT-HDM2-SM

ACX1MT-HDM2-2S

ACX1MR-HDSW-C

ACX1MT-HDSW-2C

Single-Head KVM Extender for (1) HDMI Single Link (up to 1920 x 1200), (2) USB-HID, KVM switch for local workstation and redundant connector for interconnect cables

Single-Head KVM Extender for (1) HDMI Single Link (up to 1920 x 1200), (2) USB-HID, KVM switch for local workstation

Single-Head KVM Extender for (1) HDMI Single Link (up to 1920 x 1200), (2) USB-HID with local HDMI output

Single-Head KVM Extender for (1) HDMI Single Link (up to 1920 x 1200), (2) USB-HID with local HDMI output and redundant connector for interconnect cables

Single-Head KVM Extender for (1) HDMI Single Link (up to 1920 x 1200), (2) USB-HID with built-in KVM switch on CON unit

Single-Head KVM Extender for (1) HDMI Single Link (up to 1920 x 1200), (2) USB-HID with built-in KVM switch on CON unit and redundant connectors for interconnect cables

724-746-5500 | blackbox.com

Page 27

Chapter 2: Overview

Part Number Description

Table 2-2. KVM Extender modules (continued).

ACX1MR-HDSW-SM

ACX1MR-HDSW-2S

ACX1MT-HDO-C

ACX1MR-HDO -C

ACX1MT-HDO-SM

ACX1MR-HDO -SM

ACX1MT-DPH-C

ACX1MR-DPH-C

ACX1MT-DPH-SM

ACX1MR-DPH-SM

Single-Head KVM Extender for (1) HDMI Single Link (up to 1920 x 1200), (2) USB-HID with built-in KVM switch on CON unit

Single-Head KVM Extender for (1) HDMI Single Link (up to 1920 x 1200), (2) USB-HID with built-in KVM switch on CON unit and redundant connectors for interconnect cables

Single-Head KVM Extender for (1) HDMI Single Link (up to 1920 x 1200)

Single-Head module for (1) DisplayPort with (2) USB-HID

ACX1MT-DPHS-SM

ACX1MR-DPHS-SM

ACX1MT-DPH-2C

ACX1MR-DPH-2C

ACX1MT-DPH-2S

ACX1MR-DPH-2S

ACX1MT-DPHS-2S

ACX1MR-DPHS-2S

Single-Head module for (1) DisplayPort with (2) USB-HID

Single-Head module for (1) DisplayPort with (2) USB-HID and redundant connector for interconnect cables

Page 28

724-746-5500 | blackbox.com

2.3.3 Upgrade Modules

Part Number Description

ACX1M T- HID

ACX1M R-H ID

ACX1M T- EU

ACX1M R-EU

L/R474-BUE

Chapter 2: Overview

Table 2-3. Upgrade modules.

Upgrade module with (2) USB- HID

Upgrade module with (2) USB 2.0

Upgrade module with Analog Audio (bidirectional) and (2) USB 2.0

ACX1M T-AR

ACX1MR-AR

L / R474 - BS X

ACX1M T-AR P

ACX1MR-ARP

L / R474 - BX P

ACX1M T- DA

ACX1M R-DA

ACX1M T-AR H

ACX1MR-ARH

ACX1M T- DAH

ACX1M R-DAH

ACX1M T-AR E

ACX1MR-ARE

ACX1M T- DA E

ACX1M R-DAE

ACX1M T- DA X

ACX1M R-DAX

ACX1MR-ARD

ACX1M T-AR D

ACX1M T- U2- C

ACX1M R-U2-C

ACX1M T- U2-SM

ACX1M R-U2-SM

Upgrade module with analog audio/serial (bidirectional)

Upgrade module with Analog Audio/ Serial R S422 (bidirectional)

Upgrade module with Analog Audio / Serial RS232 (bidirectional) and PS /2

Upgrade module with PS/ 2 (only available with upgrade module Analog Audio /Serial)

Upgrade module with digital audio (unidirectional)

Upgrade module with analog audio/seral (bidirectional) and (2) USB-HID

Upgrade module with digital audio (unidirectional) and (2) USB-HID

Upgrade module with Analog Audio/ Serial R S232 (bidirectional) and (2) USB 2.0

Upgrade module with Digital Audio (unidirectional) and (2) USB 2.0

Upgrade module with digital audio (bidirectional)

Upgrade module with digital audio (unidirectional) and analog audio /serial (bidirectional)

USB 2.0 upgrade module with (4) USB 2.0

724-746-5500 | blackbox.com

Page 29

Chapter 2: Overview

2.3.4 Chassis for Free Configuration

Part Number Description

ACXMODH2- R2 DKM extender for free configuration in a 2-slot chassis, external power supply unit

Table 2-4. Chassis for free configuration.

ACXMODH2R-R2

ACXMODH2R-P-R2

ACXMODH4-R2 DKM extender for free configuration in a 4-slot chassis, external power supply unit

ACXMODH4R-R2

ACXMODH6R-R2

ACXMODH6BPAC-R2

ACXMODH6FPAC-R2

ACXMODH21

NOTE: When using redundant power supply units, the load will be shared between units.

DKM extender for free configuration in a 2-slot chassis, external power supply unit, preparation for redundancy for a second external power supply unit

DKM extender for free configuration in a 2-slot chassis, internal power supply unit, preparation for redundancy of an external power supply unit

extender for free configuration in a 4-slot chassis, external power supply unit, prepara-

DKM tion for redundancy of a second external power supply unit

DKM

extender for free configuration in a 6-slot chassis, internal power supply unit, prepara-

tion for redundancy of an external power supply unit

DKM

extender for free configuration in a 6-slot chassis, active backplane, 2x internal power

supply unit (redundancy)

DKM

extender for free configuration in a 6-slot chassis, active backplane, 2x internal power

supply unit (redundancy) with connectors on rear side

DKM

extender for free configuration in a 21-slot 4U chassis, internal power supply unit,

preparation for redundancy for a second external power supply unit

Page 30

724-746-5500 | blackbox.com

2.4 Upgrade Kits

2.5 Accessories

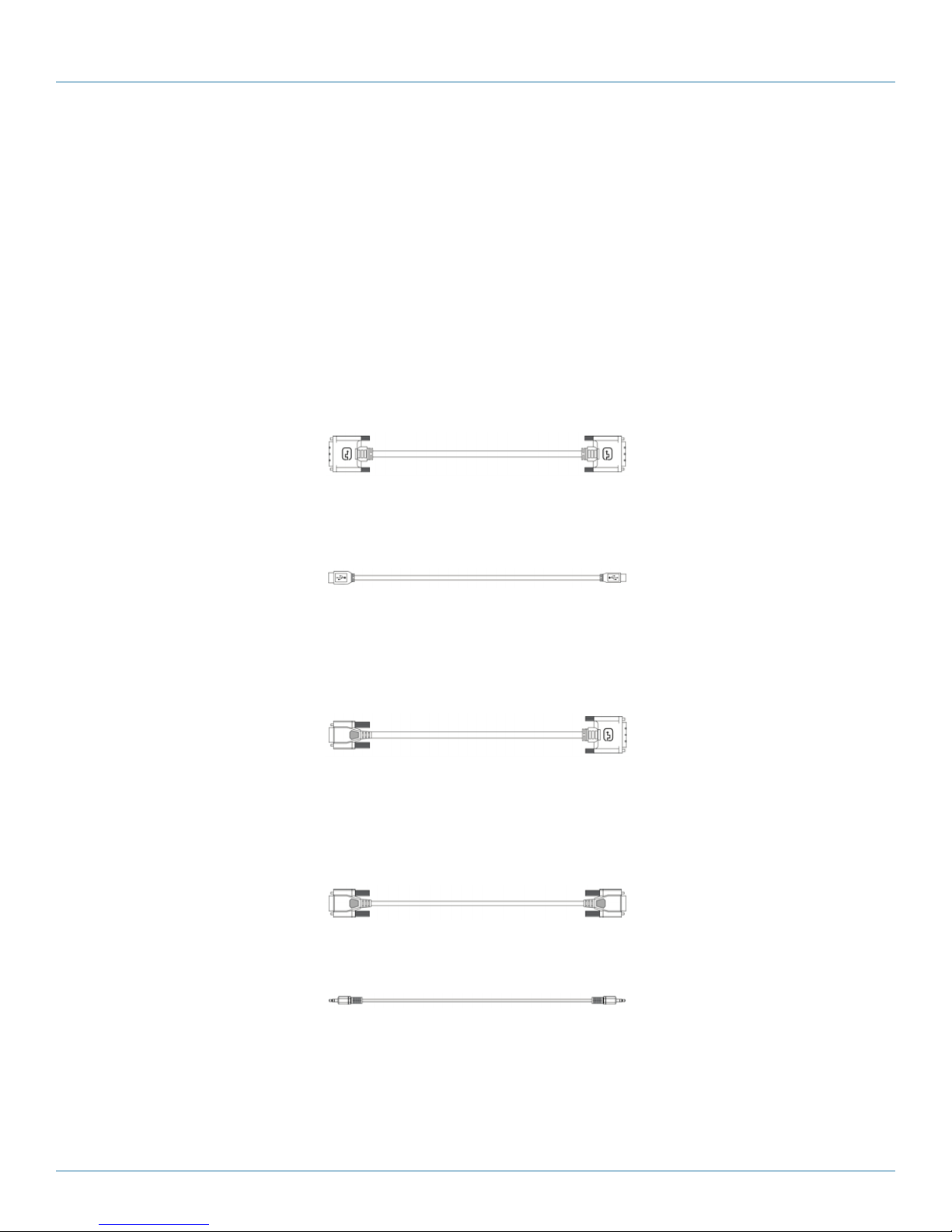

Part Number Description

BC00200 6-foot (1.8-m) serial RS-232 cable

USB05-0006 6-foot (1.8-m) USB Type A to B cable

EVNDVI04-0006 6-foot (1.8-m) VGA cable (VGA to DVI-I)

EVNDVI02-0006 6-foot (1.8-m) DVI -D cable (DVI-D)

AC X SPL12 DVI-D splitter cable

EJ110-0005 5-foot (1.5-m) 3.5-mm stereo jack cable

EJ514-0005-MM 5-foot (1.5-m) RCA cable (Cinch male connector)

EFJ04 - 001M 3-foot (1-m) TOSLINK cable (F05 male connector)

Chapter 2: Overview

Table 2-5. Upgrade kits.

Part Number Description

ACXMO DH- RMK 19"/1U rackmount kit for 2-, 4-, and 6 -fold chassis (for older non- R2 chassis)

ACXMO DH- DMK Fastening strips for screw or snap on for 2-, 4-, and 6-fold chassis

ACXMO DH- R Retrolifting for redundant power supply option (without power supply) for 4-fold chassis

ACXMOD H2-PS Power supply for 2-fold chassis (spare or redundant), 5 -VDC, 3-A

ACXMO DH4 -PS Power supply for 4-fold chassis (spare or redundant), 5-VDC, 5-A

ACXMODH6-PS Power supply for 6-fold chassis (spare or redundant), 5-VDC, 8-A

ACX MODH21- 4S Blind plate 3U /4HP for 2-, 4-, and 6 -fold chassis

ACX MODH21- 8S Blind plate 3U /8HP for 2-, 4-, and 6-fold chassis

Table 2-6. Accessories.

Contact Tech Support at 724-746-5500 or info@blackbox.com.

6-foot (1.8-m) Mini-XLR cable (3-pole)

724-746-5500 | blackbox.com

Page 31

Chapter 2: Overview

2.6 Device Views

2.6.1 Compatible Chassis

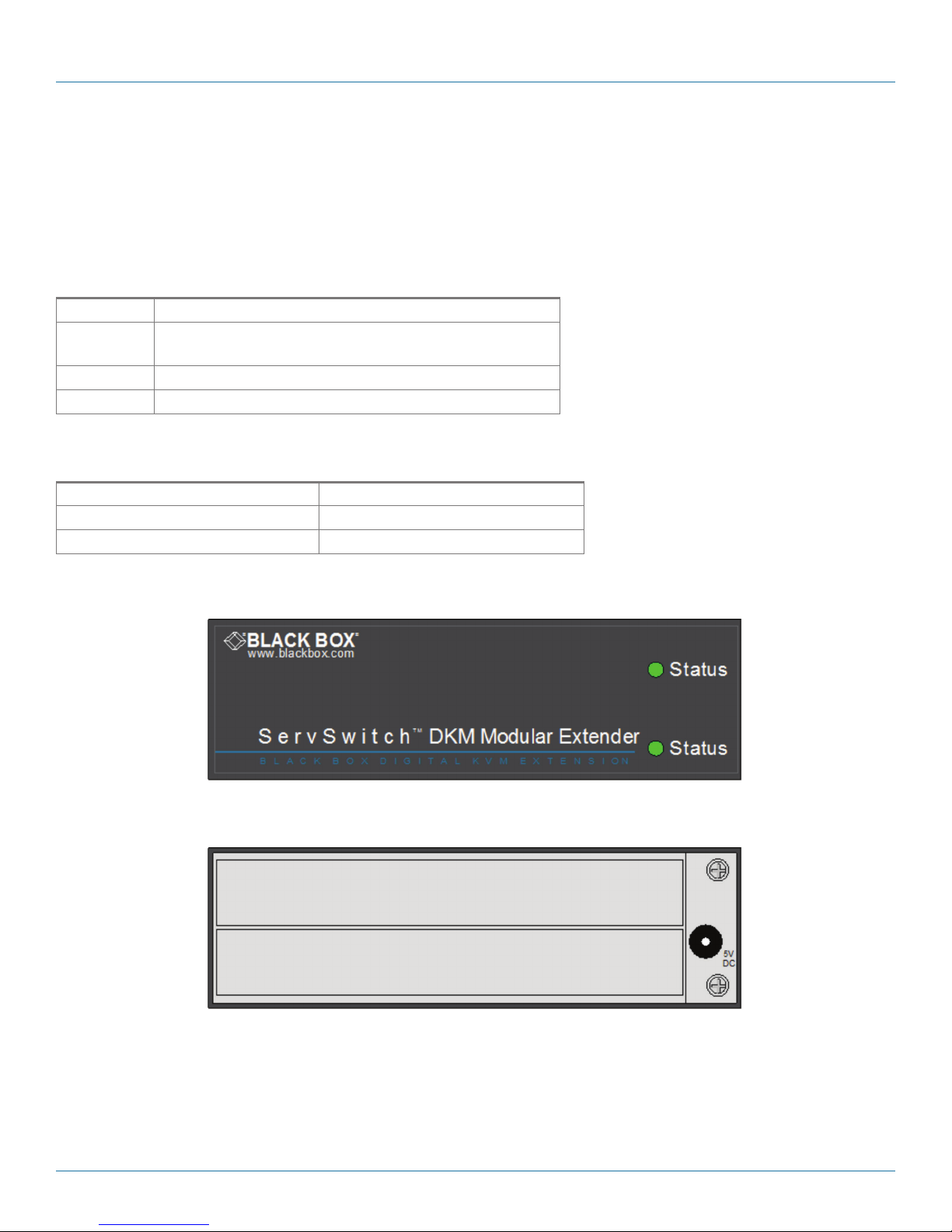

ACXMODH2-R2 and Compatible Accessories

ACXMODH2-R2 Specifications

Connectors (1) 2.5-mm barrel connector for power

Power Primary Power Output: 5 V, 3 A;

Secondary Power Output: Does not support redundant power

Dimensions 1.7"H x 5.7"W x 5.75"D (4.3 x 14.5 x 14.6 cm)

Weight 0.6 lb. (0.3 kg)

ACXMODH2-R2 Acccessories

Rackmount Option ACXMODHEAR2

Optional Redundant Power Supply Does not support redundant power

Blanking Panel Options ACXMODH21- 4S or ACX MOD21-8S

Page 32

ACXMODH2-R2 front view.

ACXMODH2-R2 back view.

724-746-5500 | blackbox.com

ACXMODH2R-R2 and Compatible Accessories

ACXMODH2R-R2 Specifications

Connectors (2) 2.5-mm barrel connectors for power

Power Primary Power Output: 5 V, 3 A;

Secondary Power Output (optional): 5 V, 3 A

Dimensions 1.7"H x 5.7"W x 5.75"D (4.3 x 14.5 x 14.6 cm)

Weight 0.6 lb. (0.3 kg)

ACXMODH2R-R2 Acccessories

Rackmount Option ACXMODHEAR2

Optional Redundant Power Supply ACXMODH2-PS

Blanking Panel Options ACXMODH21- 4S or ACX MOD21-8S

Chapter 2: Overview

ACXMODH2R-R2 front view.

ACXMODH2R-R2 back view.

724-746-5500 | blackbox.com

Page 33

Chapter 2: Overview

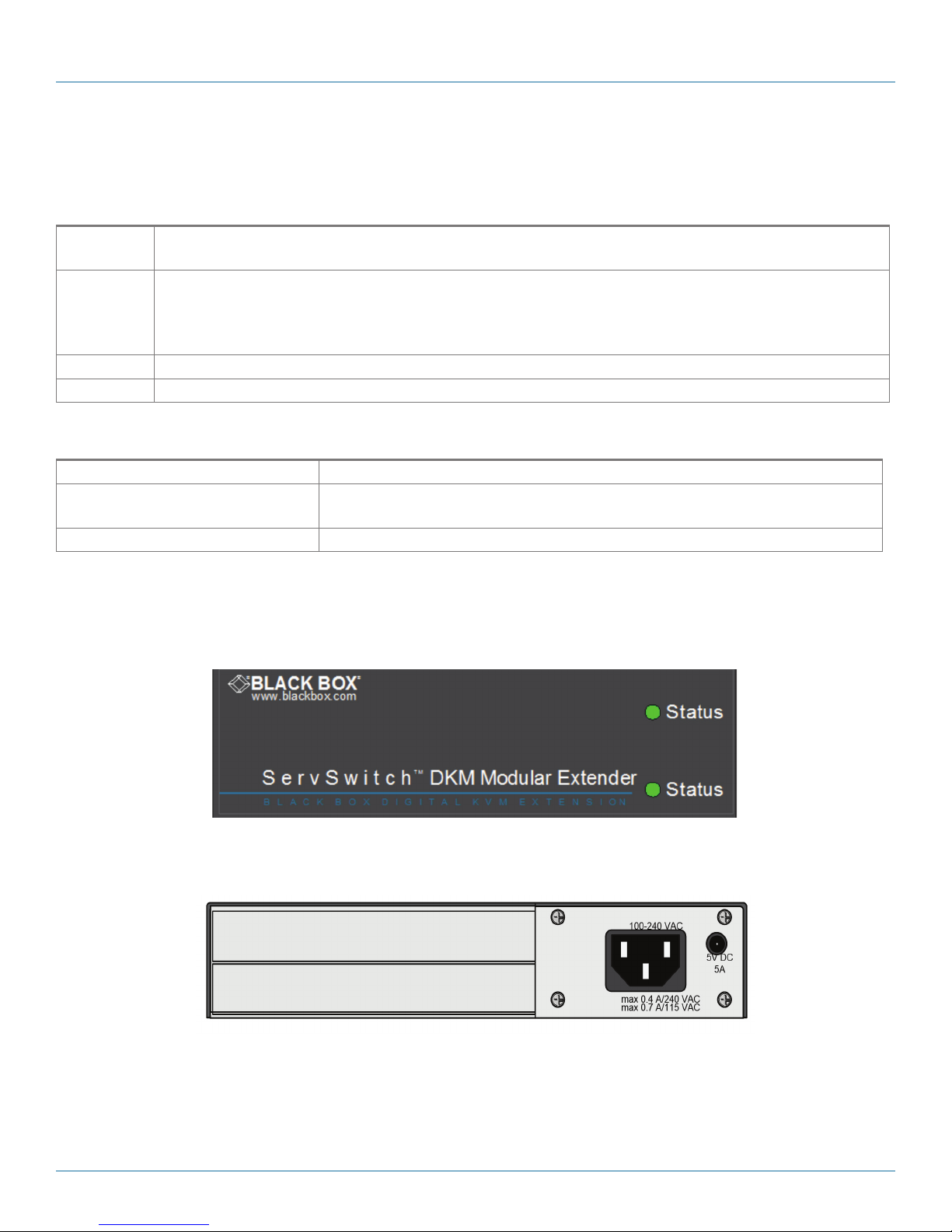

ACXMODH2R-P-R2 and Compatible Accessories

ACXMODH2R-P-R2 Specifications

Connectors (1) 2.5-mm barrel connector for power;

(1) IEC320, C14

Power Primary Power Output: 5 V, 3 A

NOTE: If you are using this chassis as an 8-Port DKM FX Switch, use a higher amperage power supply such as

ACXMODH6-PS or the main IEC320 power input.

Secondary Power Output (optional): 5 V, 3 A

Dimensions 1.7"H x 8.75"W x 5.75"D (4.3 x 22.2 x 14.6 cm)

Weight 0.8 lb. (0.4 kg)

ACXMODH2R-P-R2 Acccessories

Rackmount Option ACXMODHEAR2P

Optional Redundant Power Supply ACXMODH2-PS (5 V, 3 A, for standard cards);

ACXMODH4-PS (5 V, 5 A, for load sharing)

Blanking Panel Options ACXMODH21- 4S or ACX MOD21-8S

Page 34

ACXMODH2R-P-R2 front view.

ACXMODH2R-P-R2 back view.

724-746-5500 | blackbox.com

ACXMODH4-R2 and Compatible Accessories

ACXMODH4-R2 Specifications

Connectors (1) 2.5-mm barrel connector for power

Power Primary Power Output: 5 V, 5 A;

Secondary Power Output: Does not support redundant power

Dimensions 1.7"H x 11.5"W x 5.75"D (4.3 x 29.2 x 14.6 cm)

Weight 0.9 lb. (0.4 kg)

ACXMODH4-R2 Acccessories

Rackmount Option ACXMODHEAR4

Optional Redundant Power Supply Does not support redundant power

Blanking Panel Options ACXMODH21- 4S or ACX MOD21-8S

Chapter 2: Overview

ACXMODH4-R2 front view.

ACXMODH4-R2 back view.

724-746-5500 | blackbox.com

Page 35

Chapter 2: Overview

ACXMODH4R-R2 and Compatible Accessories

ACXMODH4R-R2 Specifications

Connectors (2) 2.5-mm barrel connectors for power

Power Primary Power Output: 5 V, 5 A;

Secondary Power Output (optional): 5 V, 5 A

Dimensions 1.7"H x 11.5"W x 5.75"D (4.3 x 29.2 x 14.6 cm)

Weight 0.9 lb. (0.4 kg)

ACXMODH4R-R2 Acccessories

Rackmount Option ACXMODHEAR4

Optional Redundant Power Supply ACXMODH4-PS

Blanking Panel Options ACXMODH21- 4S or ACX MOD21-8S

Page 36

ACXMODH4R-R2 front view.

ACXMODH4R-R2 back view.

724-746-5500 | blackbox.com

ACXMODH6R-R2 and Compatible Accessories

ACXMODH6R-R2 Specifications

Connectors (1) IEC320 main power input;

(1) 2.5-mm barrel connector for redundant power

Power Primary Power Output: 5 V, 8 A;

Secondary Power Output (optional): 5 V, 8 A

Dimensions 1.7"H x 17.5"W x 5.75"D (4.3 x 44.5 x 14.6 cm)

Weight 1.75 lb. (0.8 kg)

ACXMODH6R-R2 Acccessories

Rackmount Option ACXMODHEAR6

Optional Redundant Power Supply ACXMODH6-PS

Blanking Panel Options ACXMODH21- 4S or ACX MOD21-8S

Chapter 2: Overview

ACXMODH6R-R2 front view.

ACXMODH6R-R2 back view.

724-746-5500 | blackbox.com

Page 37

Chapter 2: Overview

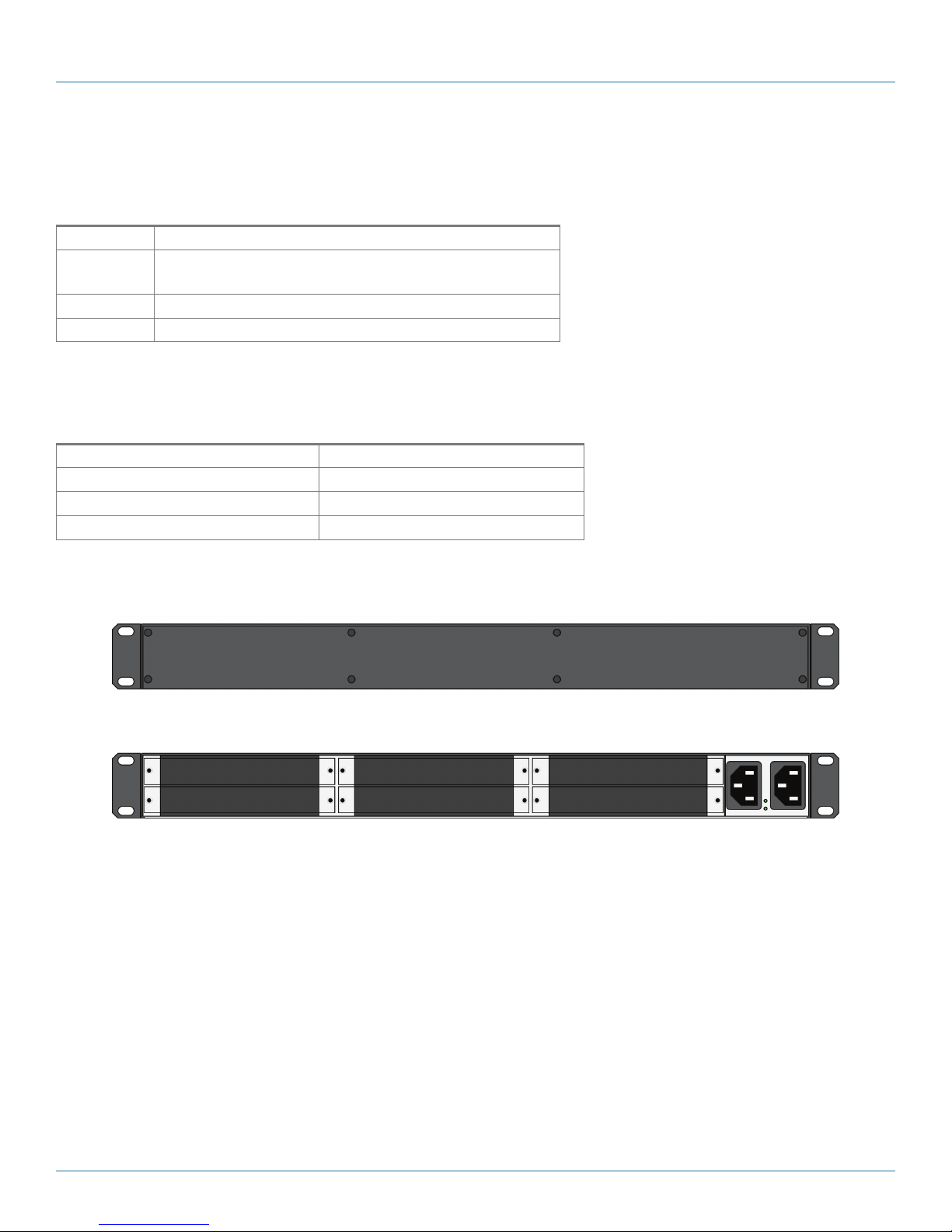

ACXMODH6BPAC-R2 and Compatible Accessories

ACXMODH6BPAC-R2 Specifications

Connectors (2) IEC320 main power inputs

Power Primary Power Output: 5 V, 10 A;

Redundant Power Output (included): 5 V, 10 A

Dimensions 1.7"H x 17.5"W x 8"D (4.3 x 44.5 x 20.3 cm)

Weight 1.75 lb. (0.8 kg)

ACXMODH6BPAC-R2 Acccessories

Rackmount Option ACXMODHEAR6FPAC

Redundant Power Supply Included

Blanking Panel Options ACXMODH21- 4S or ACX MOD21-8S

Optional Fan ACXMODH6FAN

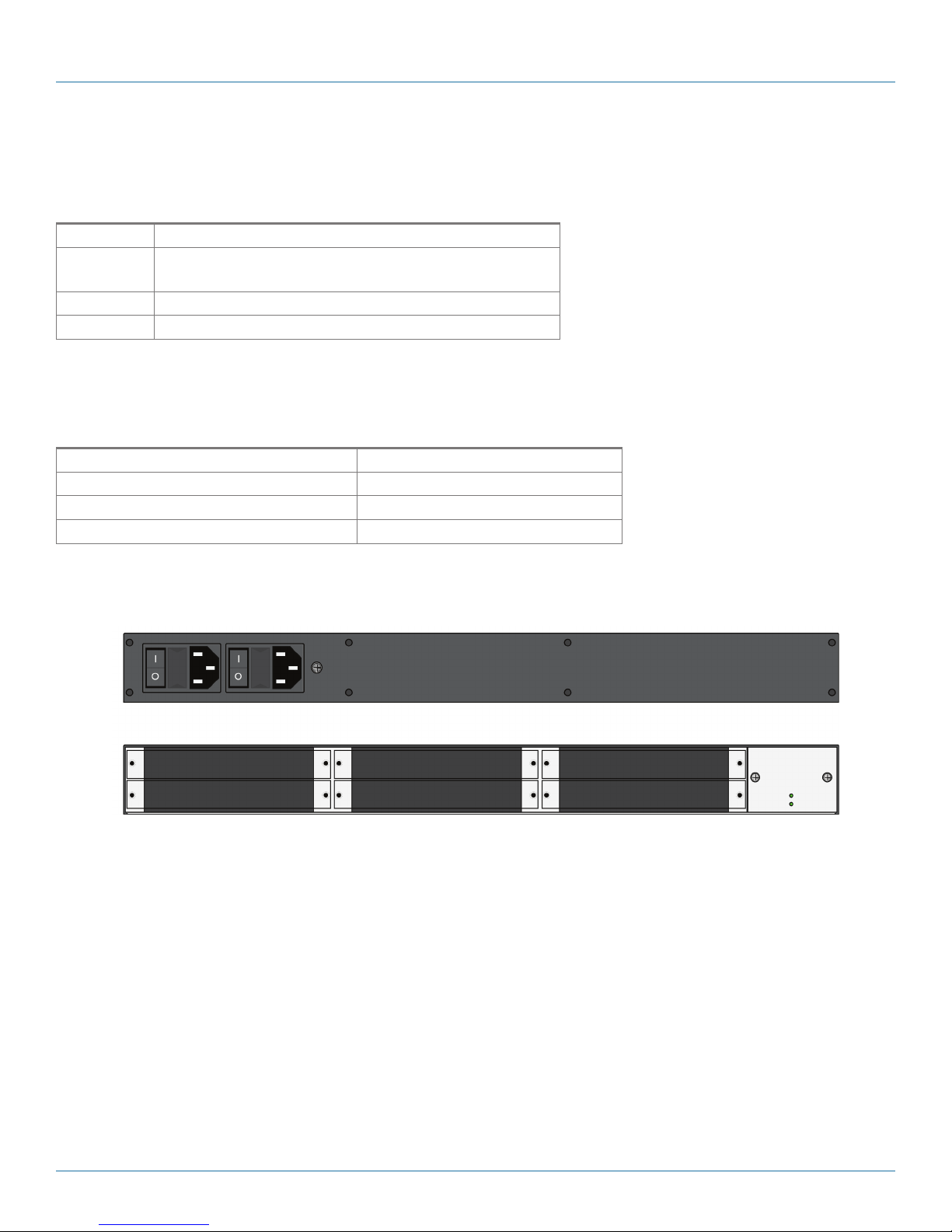

ACXMODH6BPAC-R2 front view.

ACXMODH6BPAC-R2 back view.

Page 38

724-746-5500 | blackbox.com

ACXMODH6FPAC-R2 and Compatible Accessories

ACXMODH6FPAC-R2 Specifications

Connectors (2) IEC320 main power inputs

Power Primary Power Output: 5 V, 10 A;

Secondary Power Output (optional): 5 V, 10 A

Dimensions 1.7"H x 17.5"W x 8"D (4.3 x 44.5 x 20.3 cm)

Weight 1.75 lb. (0.8 kg)

ACXMODH6FPAC-R2 Acccessories

Rackmount Option ACXMODHEAR6FPAC

Redundant Power Supply Included

Blanking Panel Options ACX MODH21-4S or ACXMOD21- 8S

Optional Fan ACXMODH6FAN

Chapter 2: Overview

ACXMODH6FPAC-R2 front view.

ACXMODH6FPAC-R2 back view.

724-746-5500 | blackbox.com

Page 39

Chapter 2: Overview

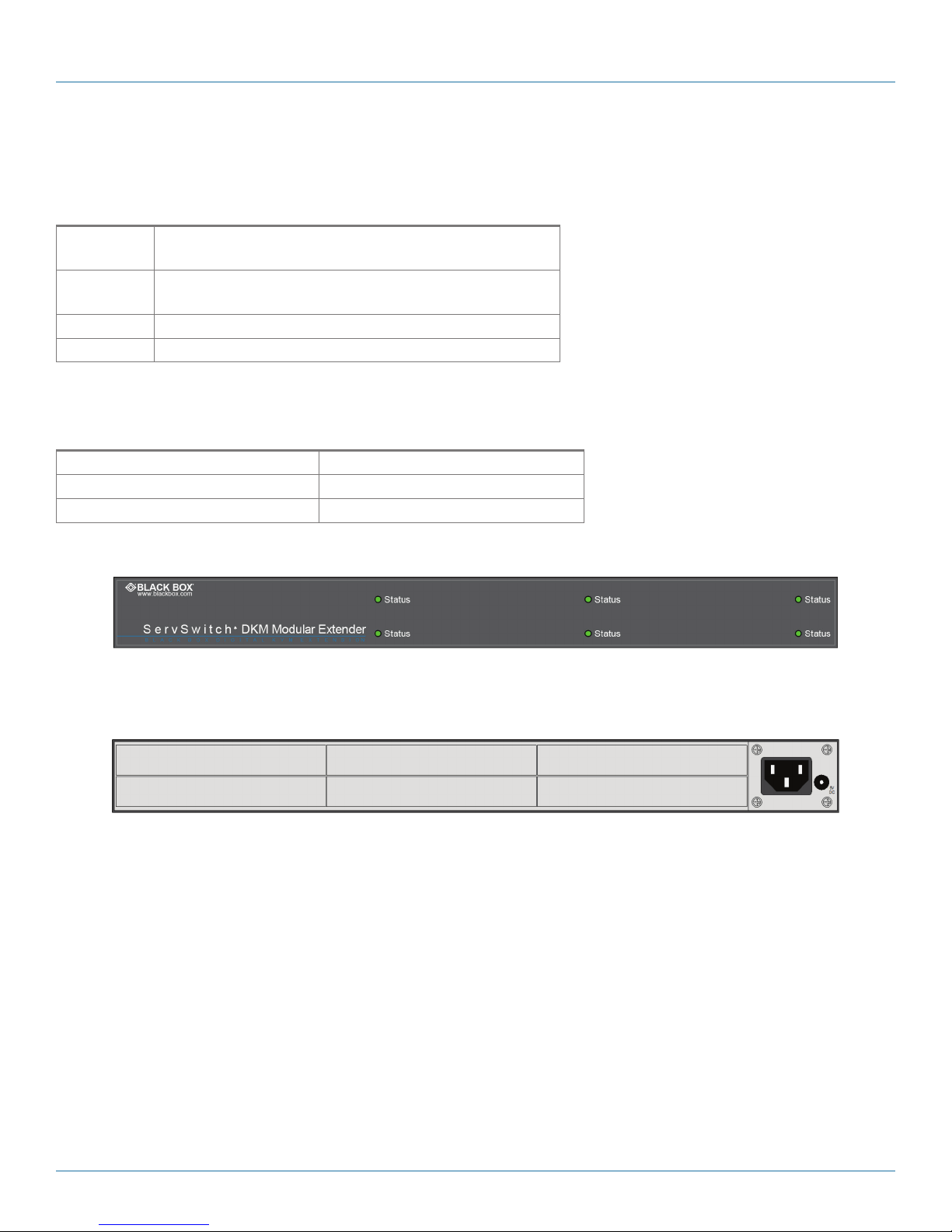

ACXMODH21R and Compatible Accessories

ACXMODH21R Specifications

Connectors (2) IEC320 main power inputs;

(21) 20-position headers for cards

Power Primary Power Output: 5 V, 50 A;

Secondary Power Output (optional): 5 V, 50 A

Dimensions 7"H x 19"W x 18.25"D (17.8 x 48.3 x 46.4 cm)

Weight 16 lb. (7.3 kg)

ACXMODH21R Acccessories

Rackmount Option Included

Optional Redundant Power Supply ACXMODH21-PS

Blanking Panel Options ACXMODH21- 4S or ACX MOD21-8S

Page 40

ACXMODH21R front view.

ACXMODH21R back view.

724-746-5500 | blackbox.com

Chapter 2: Overview

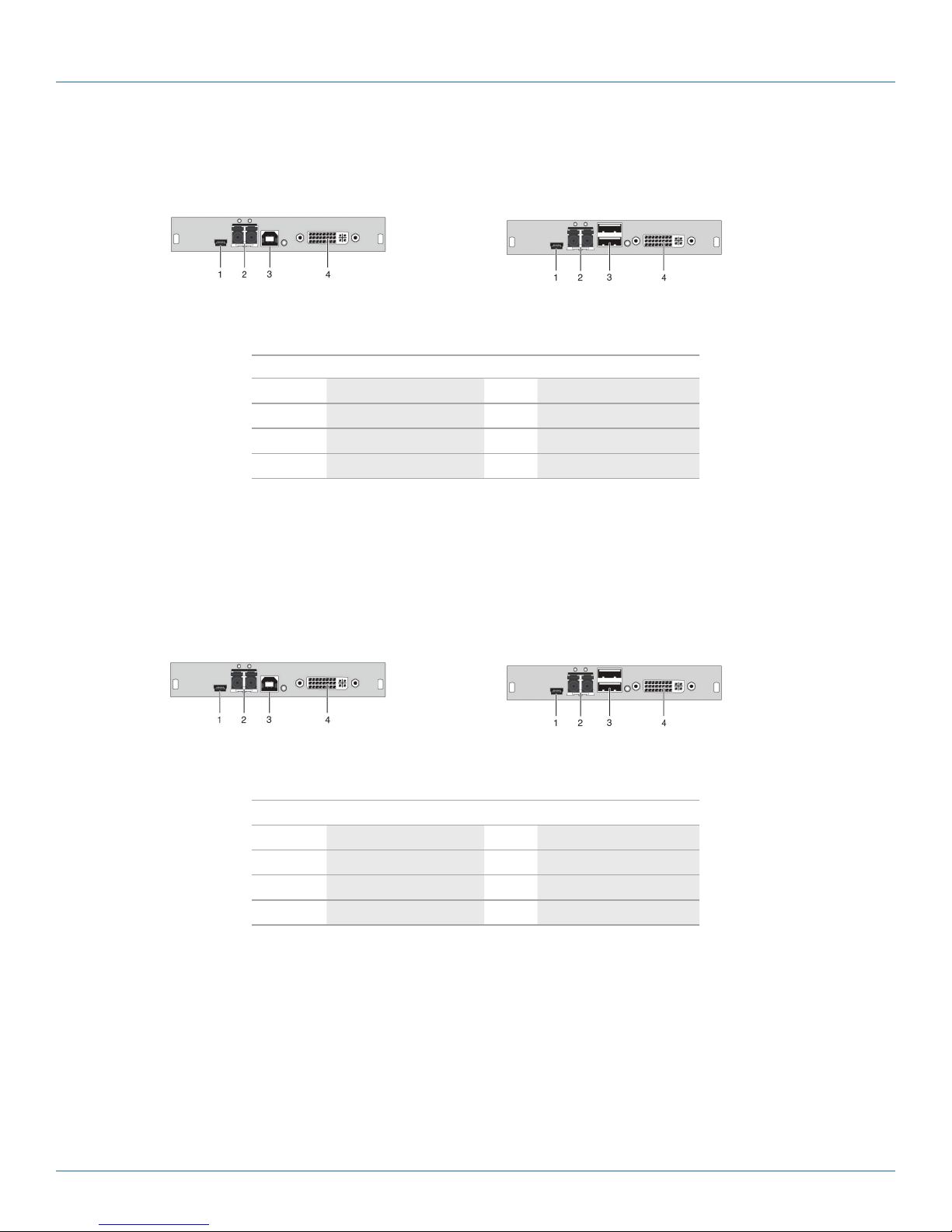

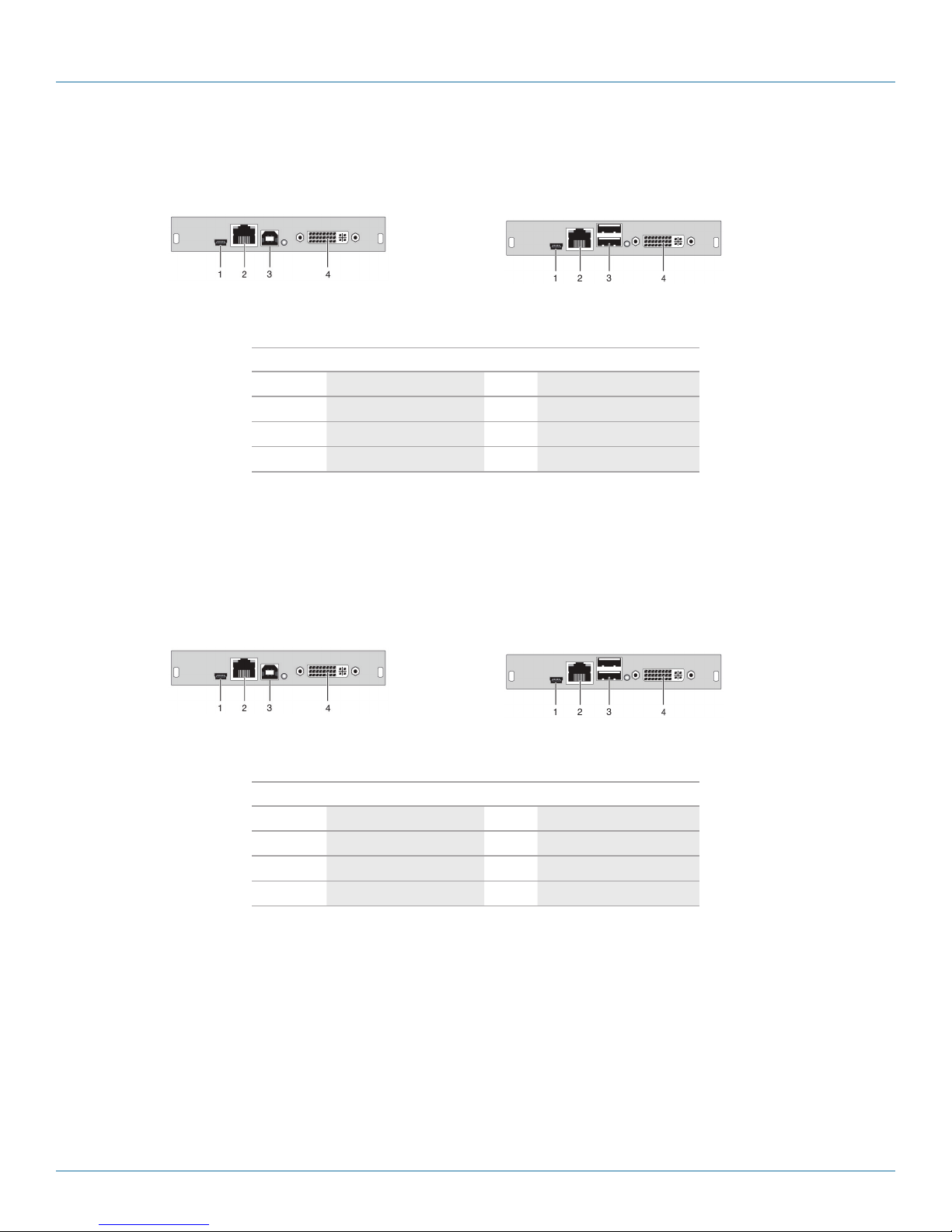

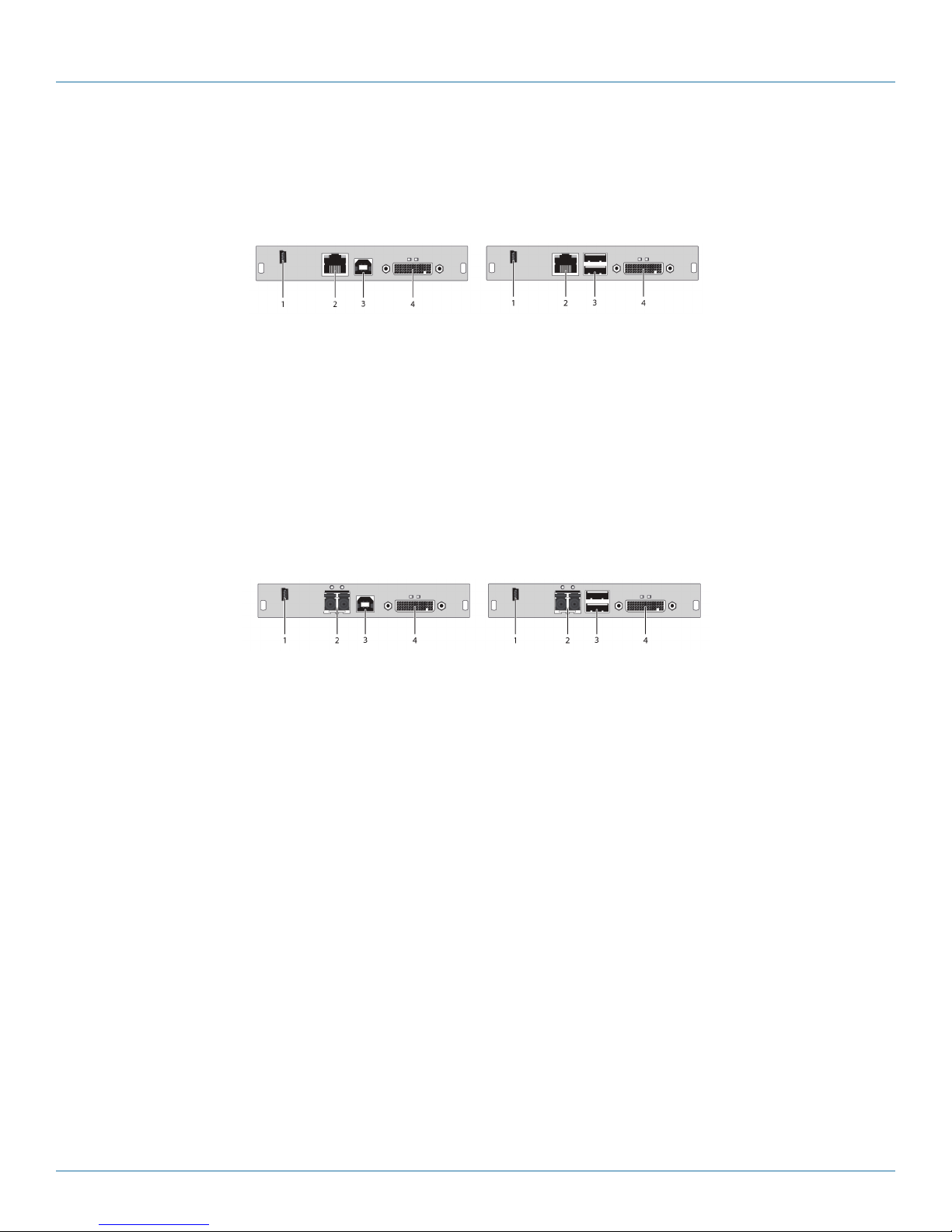

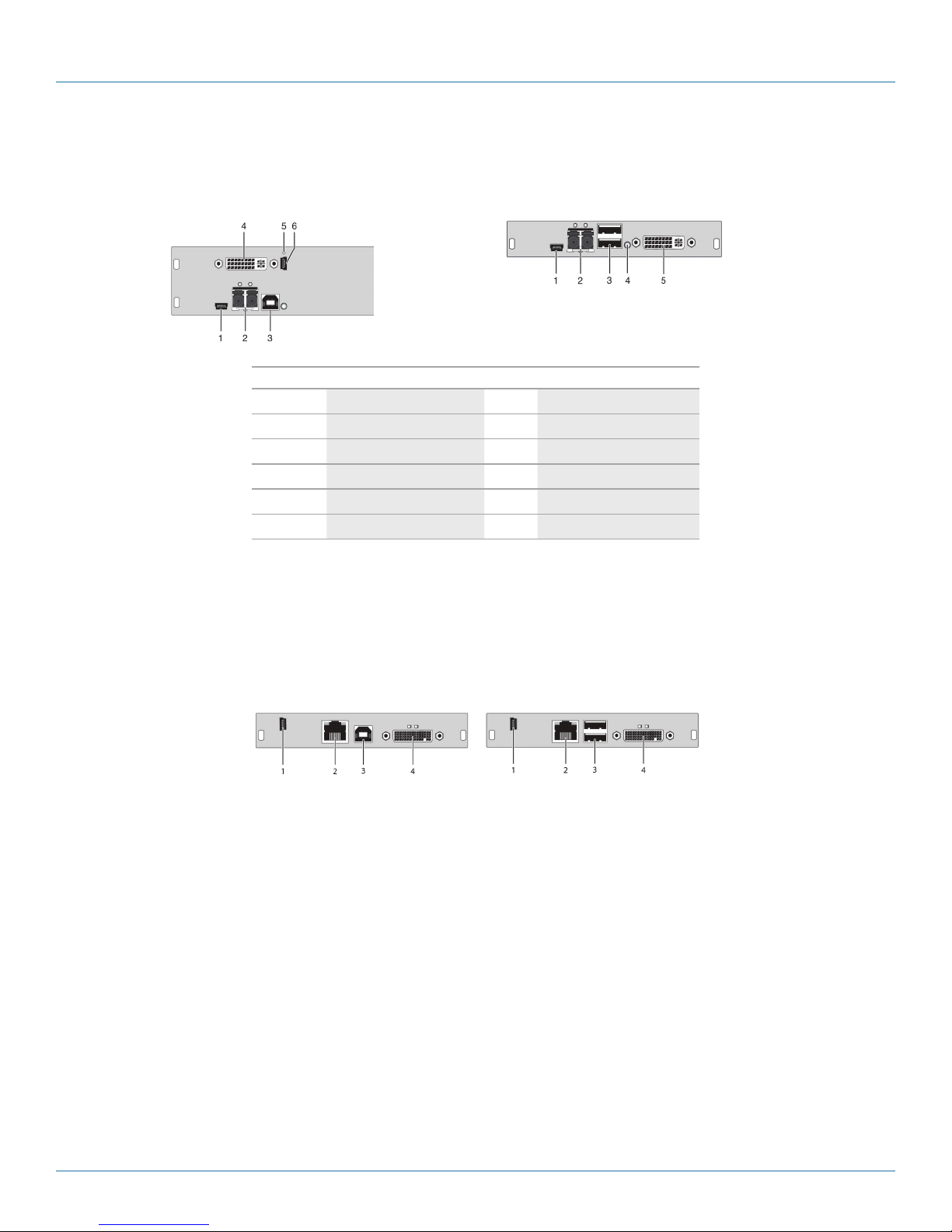

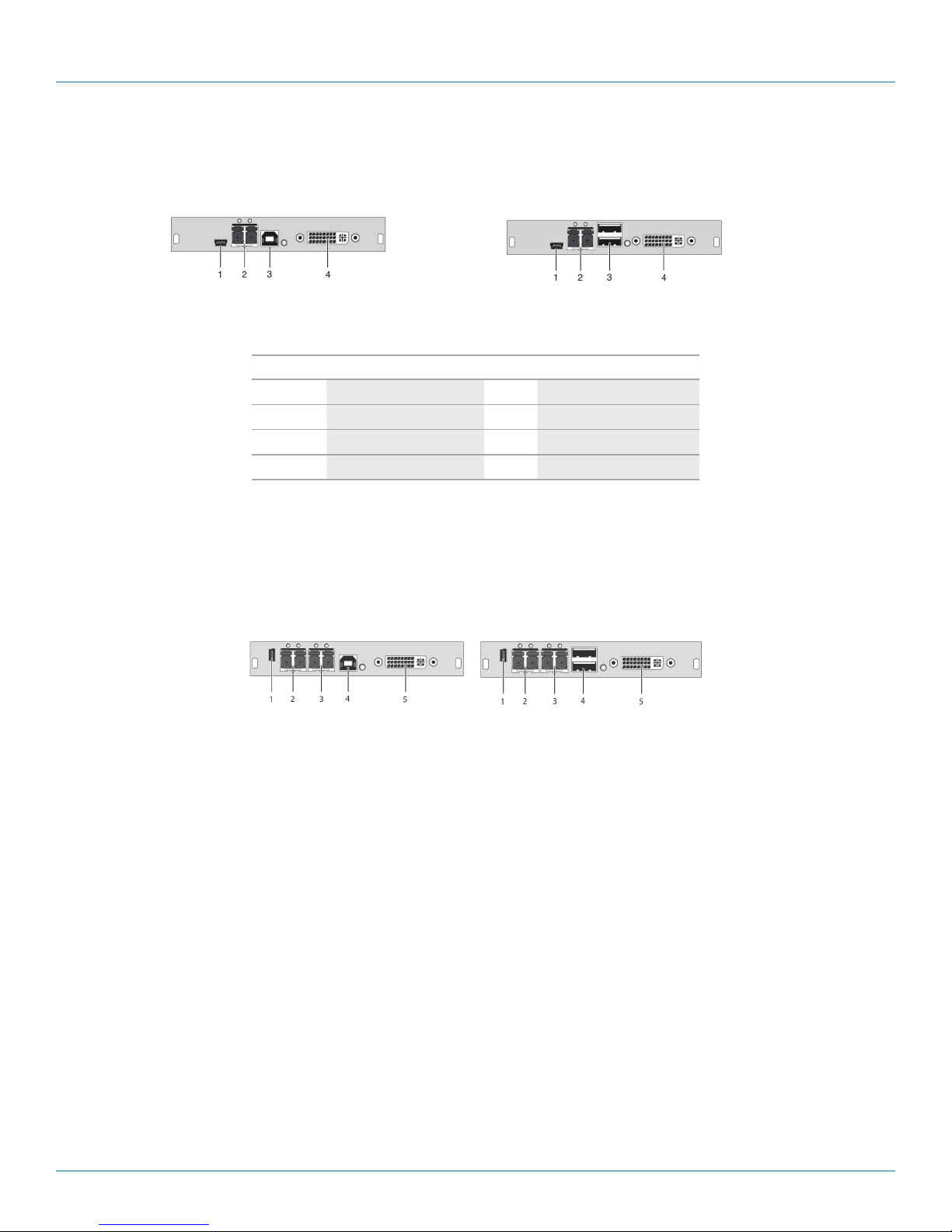

2.6.2 ACX1MT-DHID -C/ ACX1MR- DHID- C

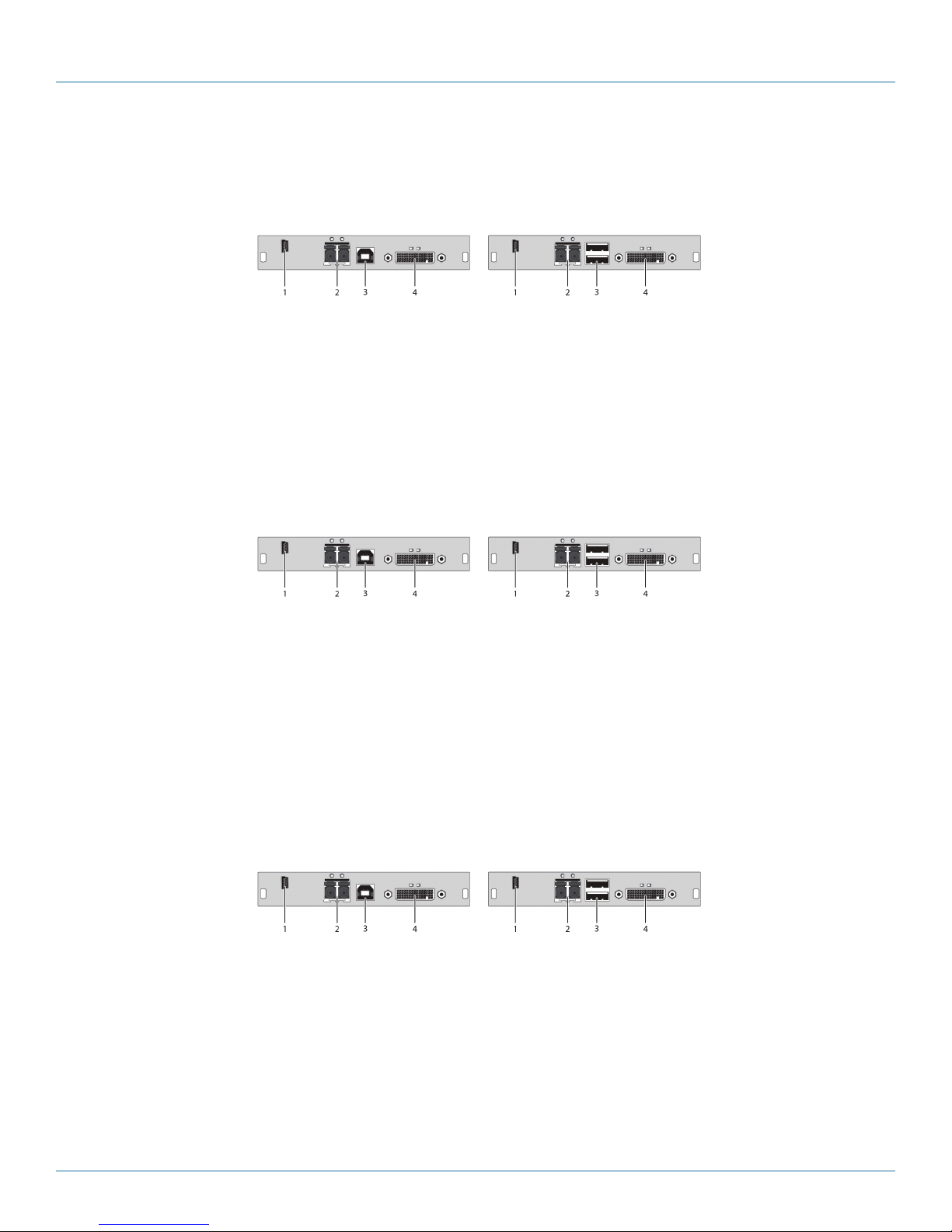

CPU Unit, rear view CON Unit, rear view

CPU unit CON unit

1 Service port 1 Service port

2 Connect to interconnect cable 2 Connect to interconnect cable

3 To CPU: USB-HID 3 Connect to USB -HID devices

4 To CPU: DVI-D 4 Connect to DVI monitor

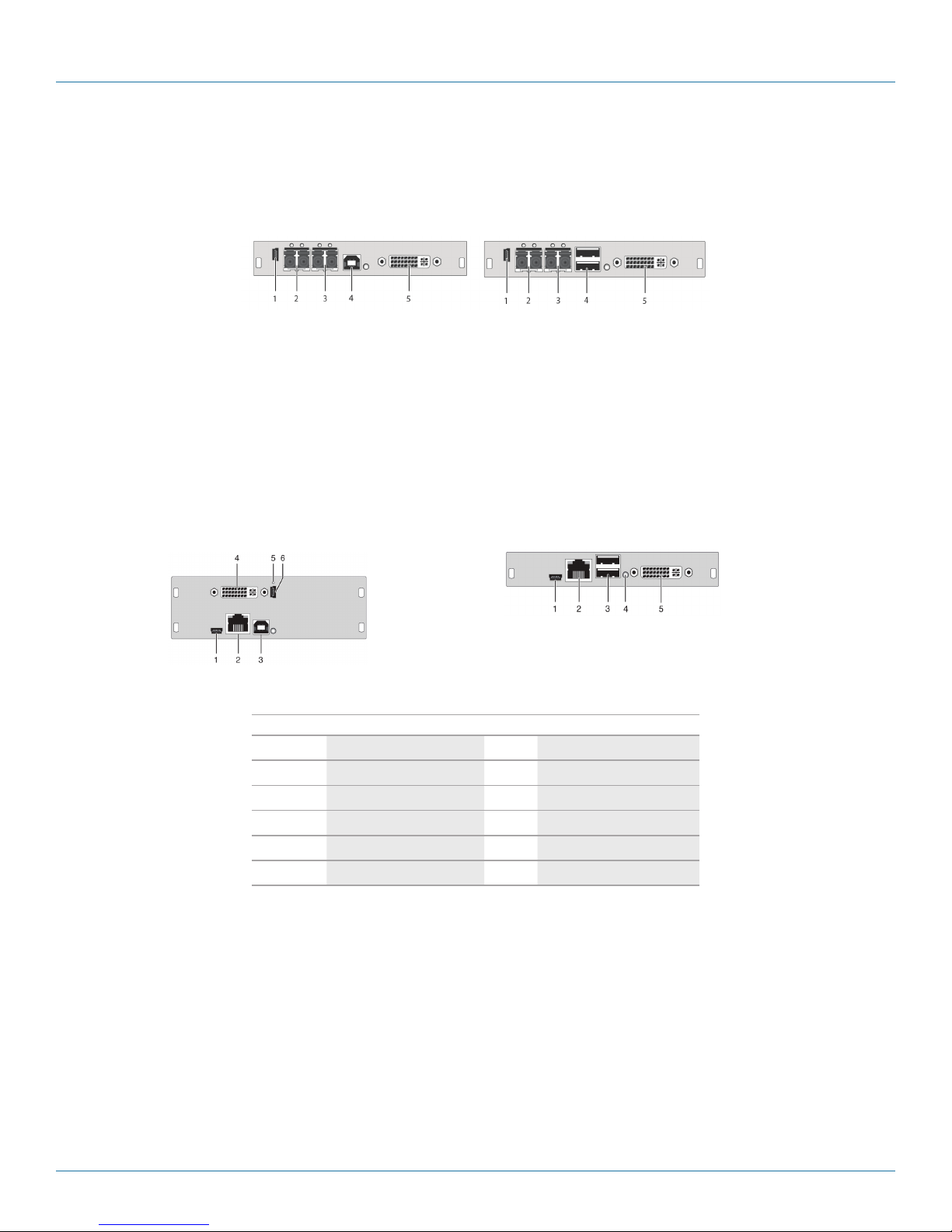

2.6.3 ACX1MT-VDHID-C /ACX1MR-VDHID-C

CPU Unit, rear view CON Unit, rear view

CPU unit CON unit

1 Service port 1 Service port

2 Connect to interconnect cable 2 Connect to interconnect cable

3 To CPU: USB-HID 3 Connect to USB -HID devices

4 To CPU: DVI-D, DVI-I 4 Connec t to DVI monitor, DVI-I

724-746-5500 | blackbox.com

Page 41

Chapter 2: Overview

2.6.4 Basic Module ACX1MT-DHID-SM/ACX1MR-DHID-SM

CPU Unit, rear view CON Unit, rear view

CPU unit CON unit

1 Service port 1 Service port

2 Connect to interconnect cable 2 Connect to interconnect cable

3 To CPU: USB-HID 3 Connect to USB -HID devices

4 To CPU: DVI-D 4 Connect to DVI monitor

2.6.5 ACX1MT-DHS-SM/ACX1MR-DHS-SM

CPU Unit, rear view CON Unit, rear view

CPU unit CON unit

1 Service port 1 Service port

2 Connect to interconnect cable 2 Connect to interconnect cable

3 To CPU: USB-HID 3 Connect to USB -HID devices

4 To CPU: DVI-D 4 Connect to DVI monitor

Page 42

724-746-5500 | blackbox.com

Chapter 2: Overview

2.6.6 ACX1MT-VHID-SM/ACX1MR-VHID-SM

CPU Unit, rear view CON Unit, rear view

CPU unit CON unit

1 Service port 1 Service port

2 Connect to interconnect cable 2 Connect to interconnect cable

3 To CPU: USB-HID 3 Connect to USB -HID devices

4 To CPU: DVI-D, DVI-I 4 Connec t to DVI monitor, DVI-D

2.6.7 ACX1MT-DHID-2C/ACX1MR-DHID-2C

CPU Unit CON Unit

Rear view Rear view

1 Service port 1 Service port 2 Connected to interconnect cable 1 2 Connected to interconnect cable 1 3 Connected to interconnect cable 2 3 Connected to interconnect cable 2 4 To CPU: USB-HID 4 Connect to USB-HID devices 5 To CPU: DVI-D 5 Connect to DVI monitor

724-746-5500 | blackbox.com

Page 43

Chapter 2: Overview

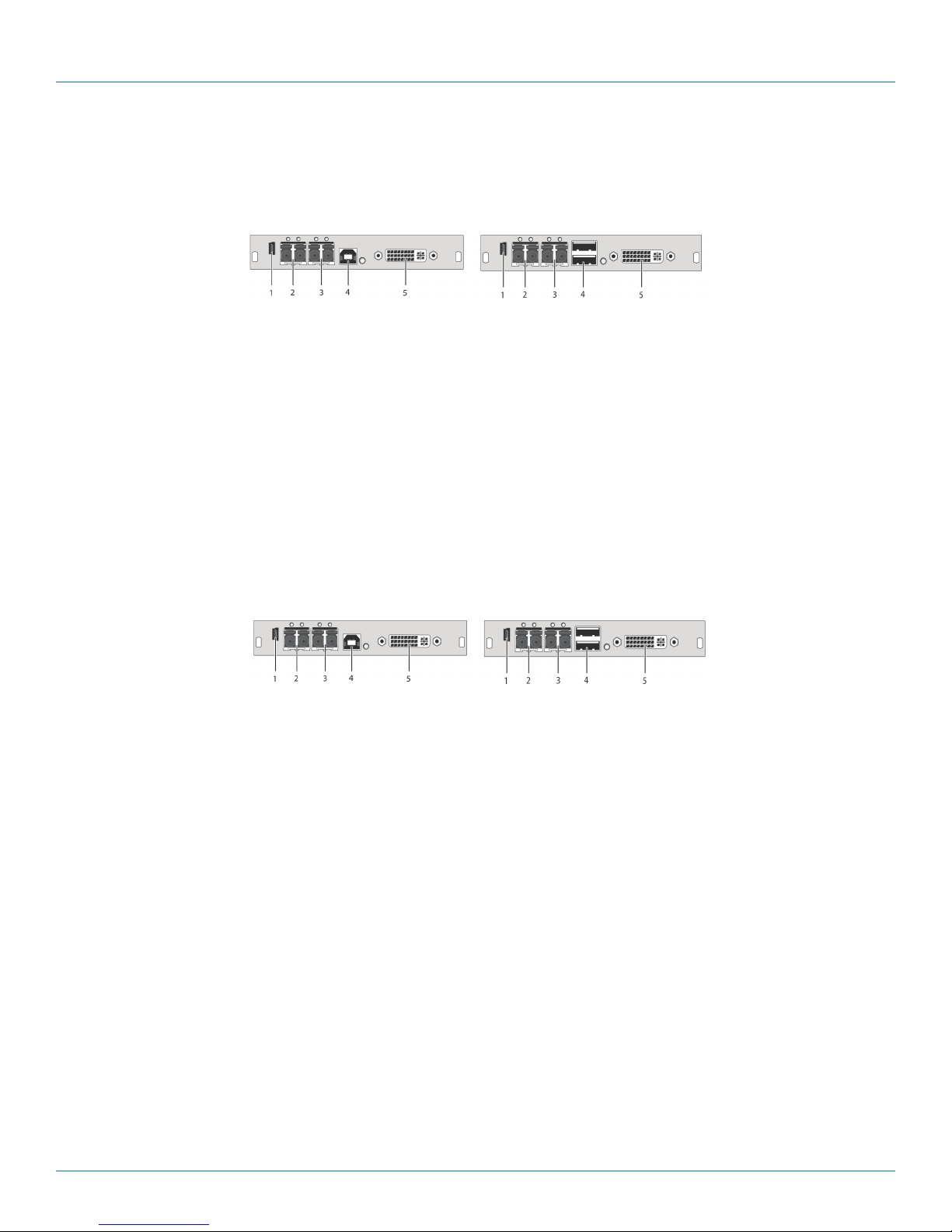

2.6.8 ACX1MT-VDHID-2S/ACX1MR-VDHID-2S

CPU Unit CON Unit

Rear view Rear view

2.6.9 ACX1MT-DHID-2S/ACX1MR-DHID-2S

CPU Unit CON Unit

Rear view Rear view

Page 44

724-746-5500 | blackbox.com

Chapter 2: Overview

2.6.10 ACX1MT-VDHID-2S/ACX1MR-VDHID-2S

CPU Unit CON Unit

Rear view Rear view

2.6.11 Basic Module ACX1MT-DVHID-C/ACX1MR-DVHID-C

CPU Unit, rear view CON Unit, rear view

CPU unit CON unit

1 Service port 1 Service port

2 Connect to interconnect cable 2 Connect to interconnect cable

3 To CPU: USB-HID 3 Connect to USB -HID devices

4 To CPU: DVI-I (VGA / DVI) 4 IR receiver for remote control

5 IR receiver for remote control 5 Connect to DVI monitor, DVI- D

6 Service port — —

724-746-5500 | blackbox.com

Page 45

Chapter 2: Overview

2.6.12 Basic Module ACX1MT-DVHID-SM/ ACX1MR-DVHID-SM

CPU Unit, rear view CON Unit, rear view

CPU unit CON unit

1 Service port 1 Service port

2 Connect to interconnect cable 2 Connect to interconnect cable

3 To CPU: USB-HID 3 Connect to USB -HID devices

4 To CPU: DVI-I (VGA / DVI) 4 IR receiver for remote control

5 IR receiver for remote control 5 Connect to DVI monitor, DVI- D

6 Service port — —

2.6.13 ACX2MT-DLH-C/ACX2MR-DLH-C

CPU Unit CON Unit

Rear view Rear view

1 Service port 1 Service port 2 Connected to interconnect cable 2 Connected to interconnect cable 3 To CPU: USB-HID 3 Connect to USB-HID devices

4 To CPU: DMS-59 4 Connect to DVI monitor(s) (DMS-59)

Page 46

724-746-5500 | blackbox.com

Chapter 2: Overview

2.6.14 ACX2MT-DHH-C/ACX2MR-DHH-C

CPU Unit CON Unit

Rear view Rear view

1 Service port 1 Service port 2 Connected to interconnect cable 2 Connected to interconnect cable 3 To CPU: USB-HID 3 Connect to USB-HID devices

4 To CPU: DMS-59 4 Connect to monitor(s) (DMS-59)

2.6.15 ACX2MT-DLH-SM/ACX2MR-DLH-SM

CPU Unit CON Unit

Rear view Rear view

1 Service port 1 Service port 2 Connected to interconnect cable 2 Connected to interconnect cable 3 To CPU: USB-HID 3 Connect to USB-HID devices

4 To CPU: DMS-59 4 Connect to monitor(s) (DMS-59)

724-746-5500 | blackbox.com

Page 47

Chapter 2: Overview

2.6.16 ACX2MT-DHH-SM/ACX2MR-DHH-SM

CPU Unit CON Unit

Rear view Rear view

1 Service port 1 Service port 2 Connected to interconnect cable 2 Connected to interconnect cable 3 To CPU: USB-HID 3 Connect to USB-HID devices

4 To CPU: DMS-59 4 Connect to monitor(s) (DMS-59)

2.6.17 ACX2MT-DHHS-SM/ACX2MR-DHHS-SM

CPU Unit CON Unit

Rear view Rear view

1 Service port 1 Service port 2 Connected to interconnect cable 2 Connected to interconnect cable 3 To CPU: USB-HID 3 Connect to USB-HID devices

4 To CPU: DMS-59 4 Connect to monitor(s) (DMS-59)

2.6.18 ACX2MT-DLHS-SM/ACX2MR-DLHS-SM

CPU Unit CON Unit

Rear view Rear view

1 Service port 1 Service port 2 Connected to interconnect cable 2 Connected to interconnect cable 3 To CPU: USB-HID 3 Connect to USB-HID devices

4 To CPU: DMS-59 4 Connect to monitor(s) (DMS-59)

Page 48

724-746-5500 | blackbox.com

Chapter 2: Overview

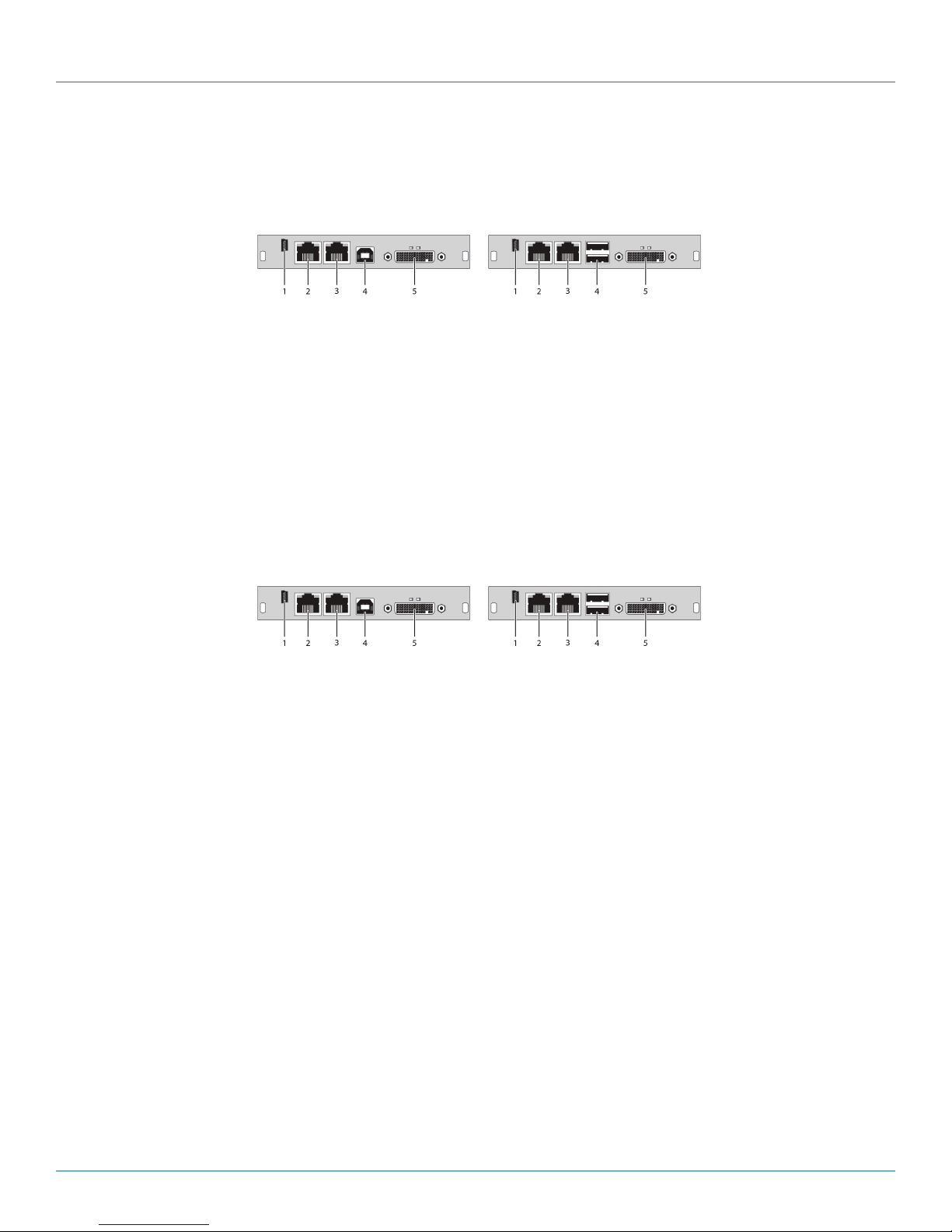

2.6.19 ACX2MT-DLH-2C/ACX2MR-DLH-2C

CPU Unit CON Unit

Rear view Rear view

5 To CPU: DMS-59 5 Connect to monitor(s) (DMS-59)

2.6.20 ACX2MT-DHH-2C/ACX2MT-DHH-2C

CPU Unit CON Unit

Rear view Rear view

5 To CPU: DMS-59 5 Connect to monitor(s) (DMS-59)

724-746-5500 | blackbox.com

Page 49

Chapter 2: Overview

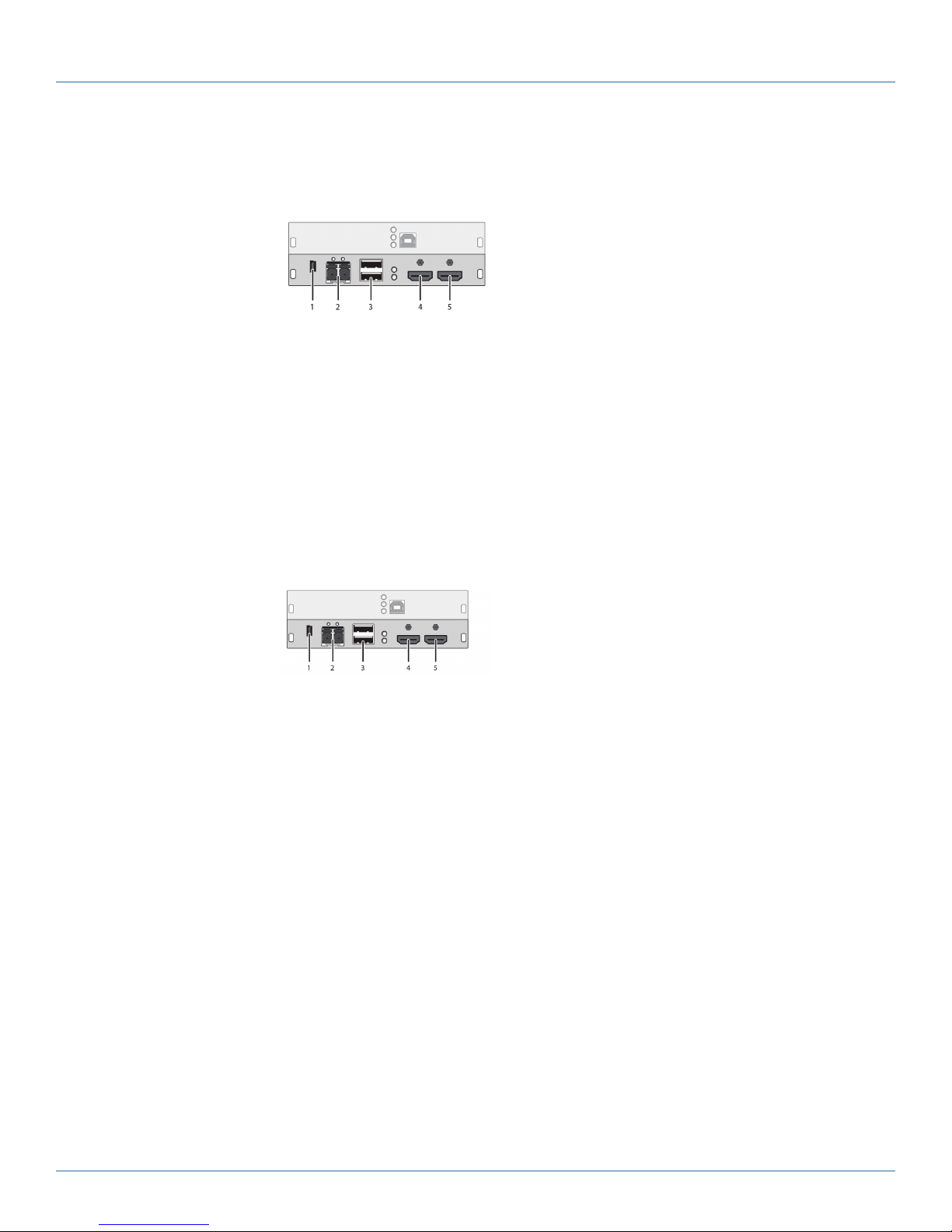

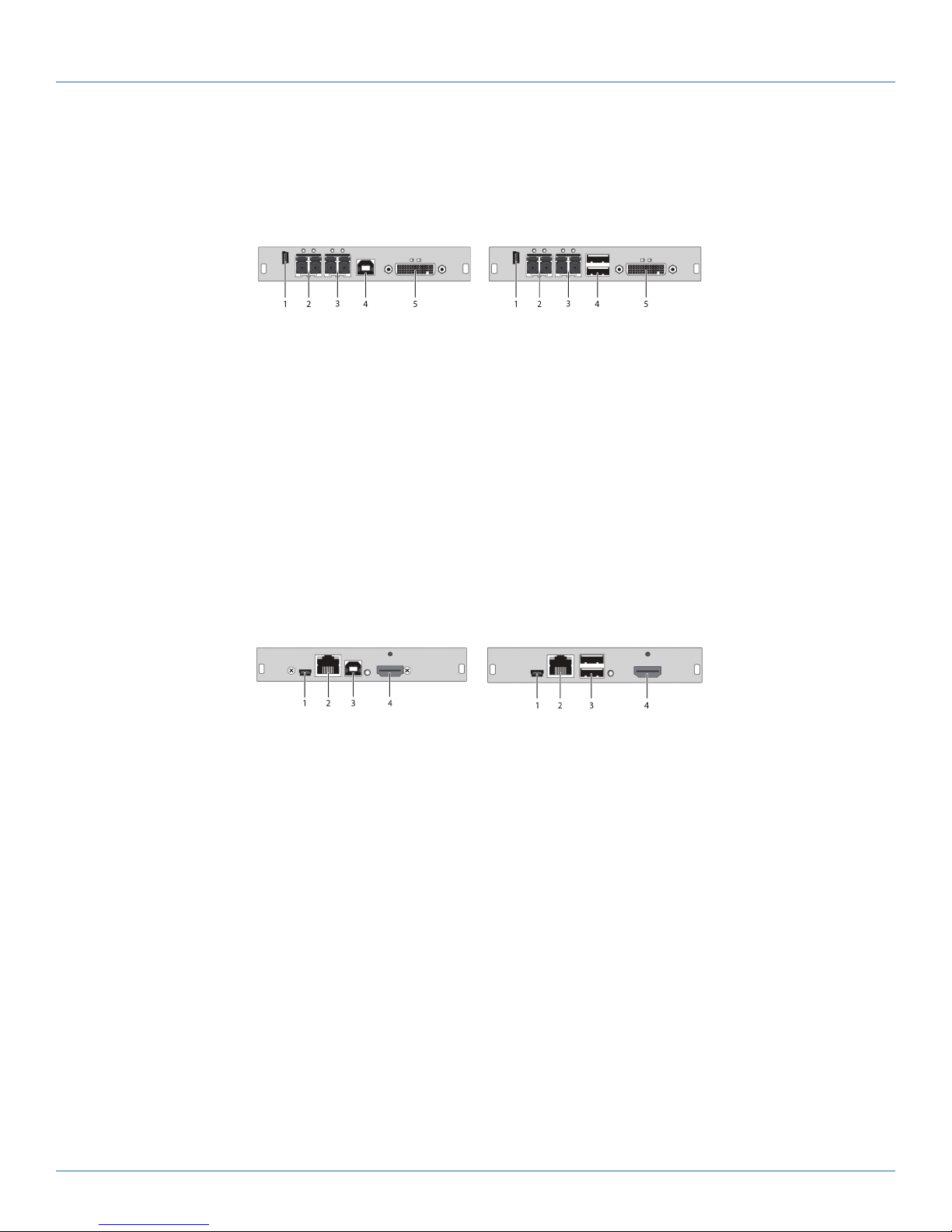

2.6.21 ACX2MT-DLH-SM/ACX2MT-DLH-SM

CPU Unit CON Unit

Rear view Rear view

5 To CPU: DMS-59 5 Connect to monitor(s) (DMS-59)

2.6.22 ACX1MT-HDMI-C/ACXMR-HDMI-C

CPU Unit CON Unit

Rear view Rear view

1 Service port 1 Service port 2 Connected to interconnect cable 2 Connected to interconnect cable 3 To CPU: USB-HID 3 Connect to USB-HID devices 4 To CPU: HDMI 4 Connect to HDMI monitor

Page 50

724-746-5500 | blackbox.com

Chapter 2: Overview

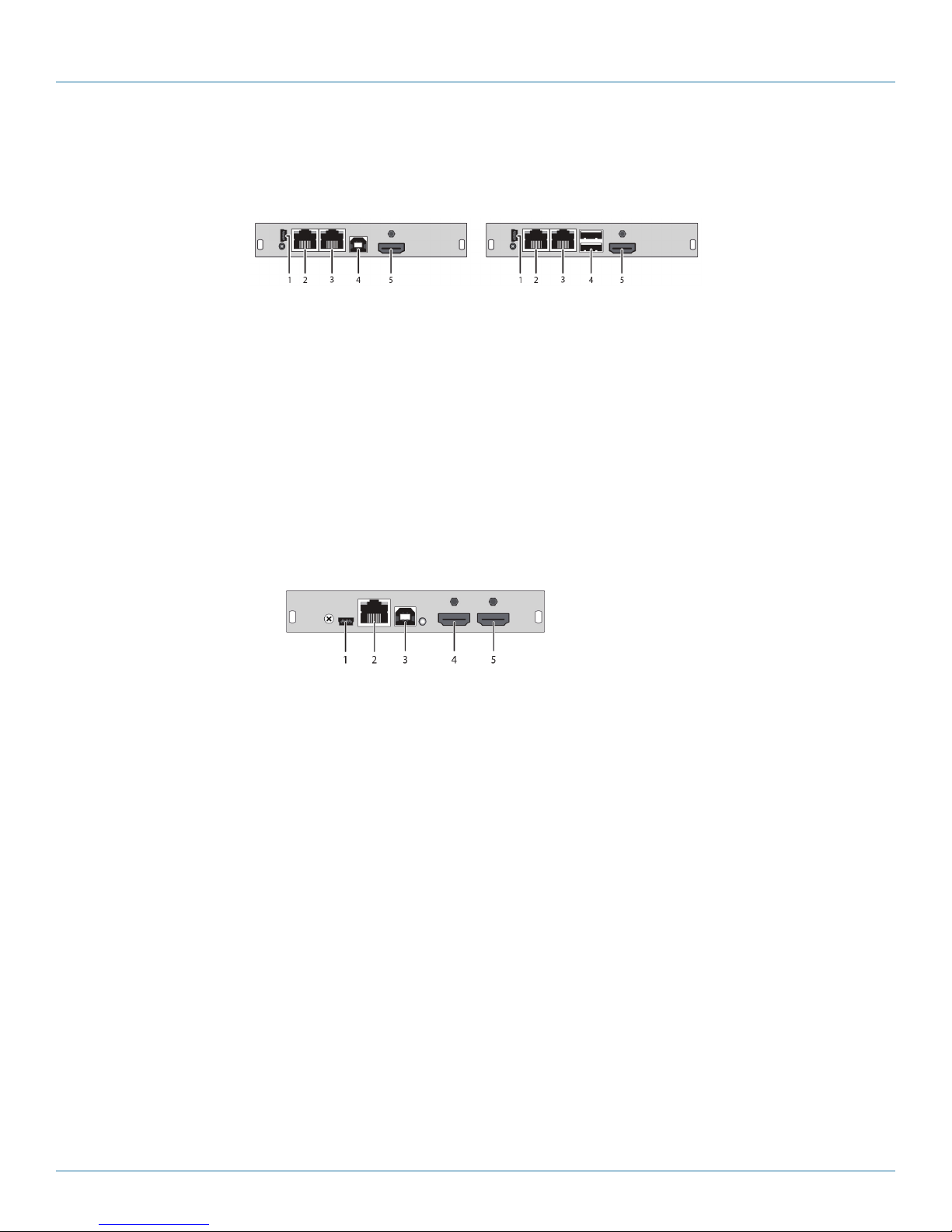

2.6.23 ACX1MT-HDMI-2C /ACX1MR-HDMI-2C

CPU Unit CON Unit

Rear view Rear view

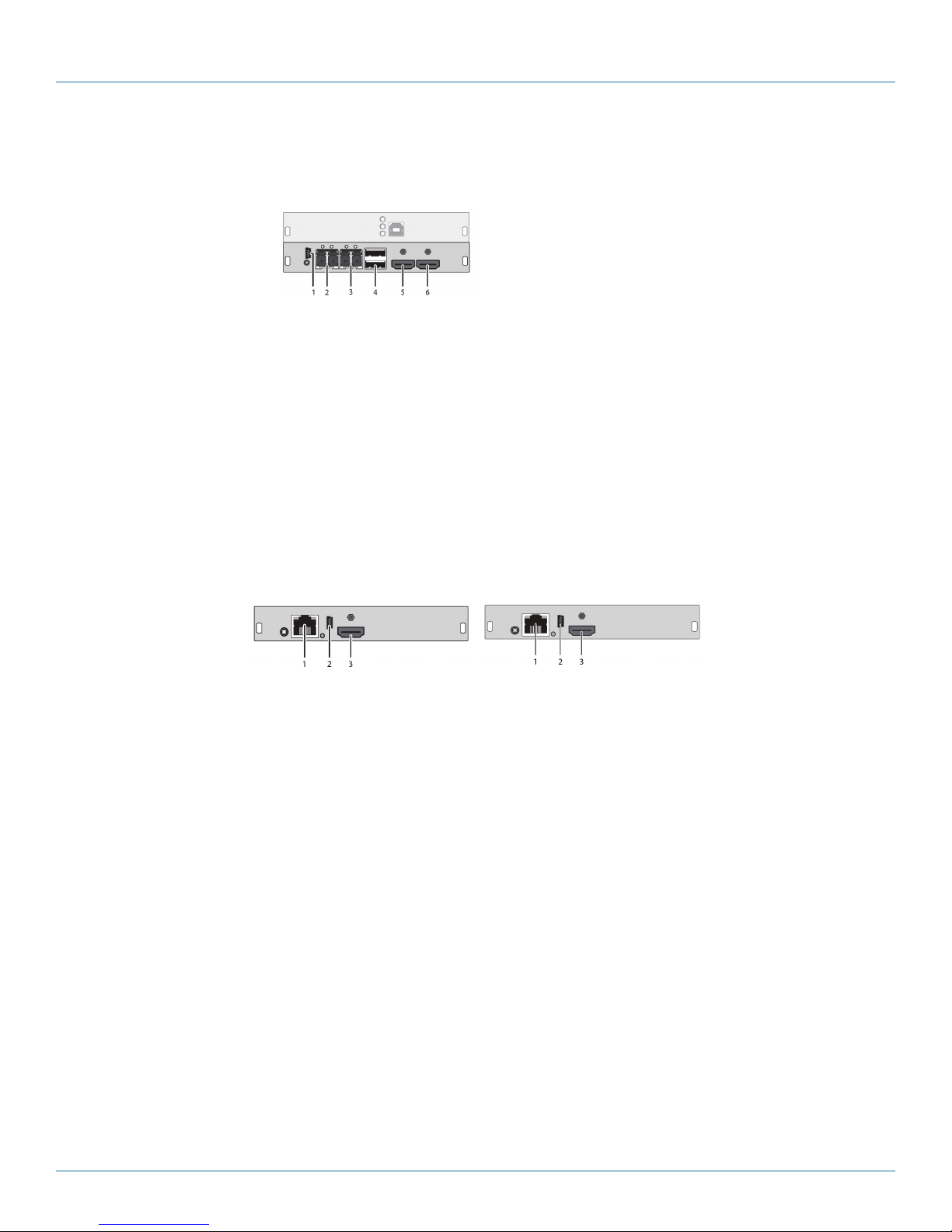

2.6.24 ACX1MT-HDM2-C

CPU Unit

Rear view

1 Service port 2 Connected to interconnect cable 3 To CPU: USB-HID 4 To CPU: HDMI 5 Local output: HDMI

724-746-5500 | blackbox.com

Pag e 51

Chapter 2: Overview

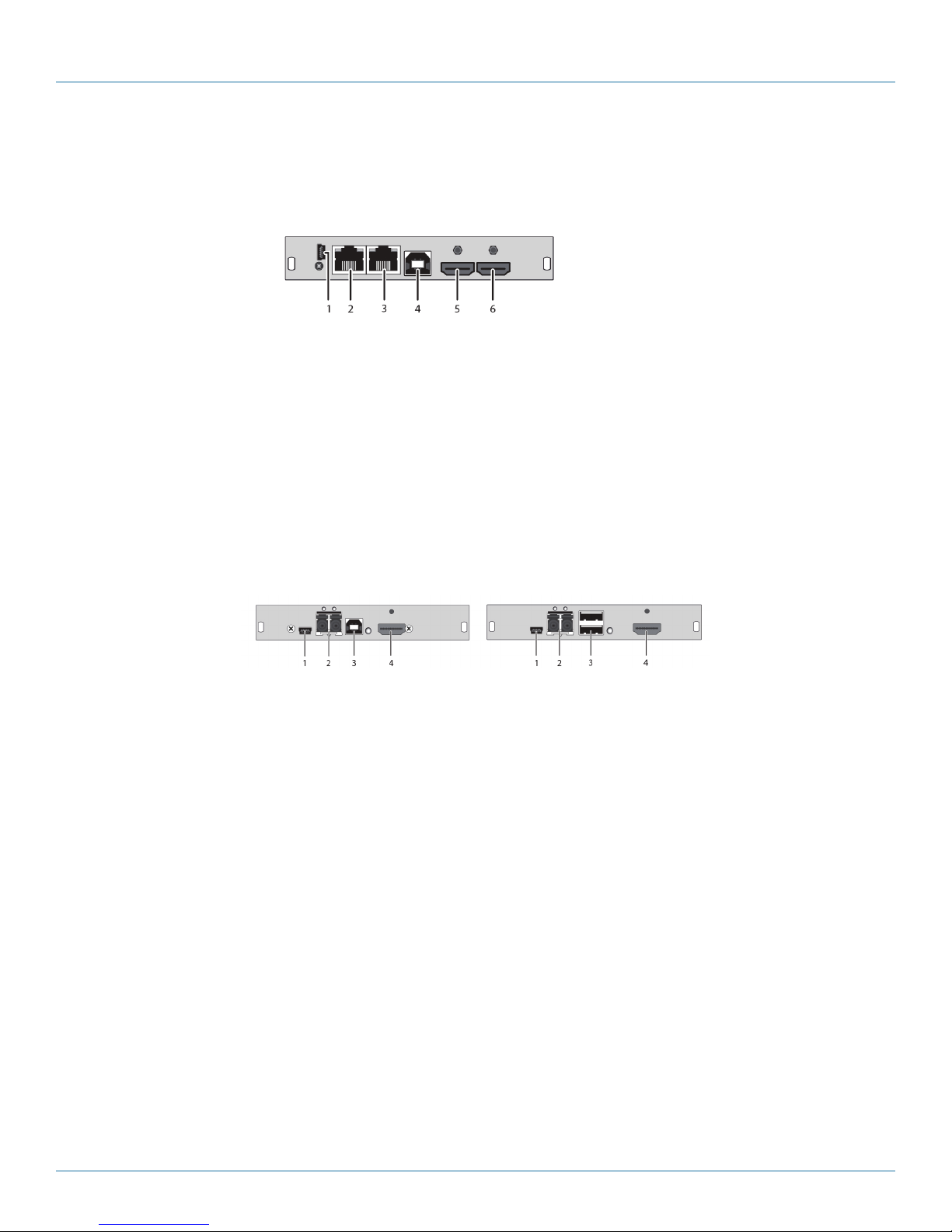

2.6.25 ACX1MT-HDM2-2C

CPU Unit

Rear view

1 Service port 2 Connected to interconnect cable 1 3 Connected to interconnect cable 2 3 To CPU: USB-HID 4 To CPU: HDMI 5 Local output: HDMI

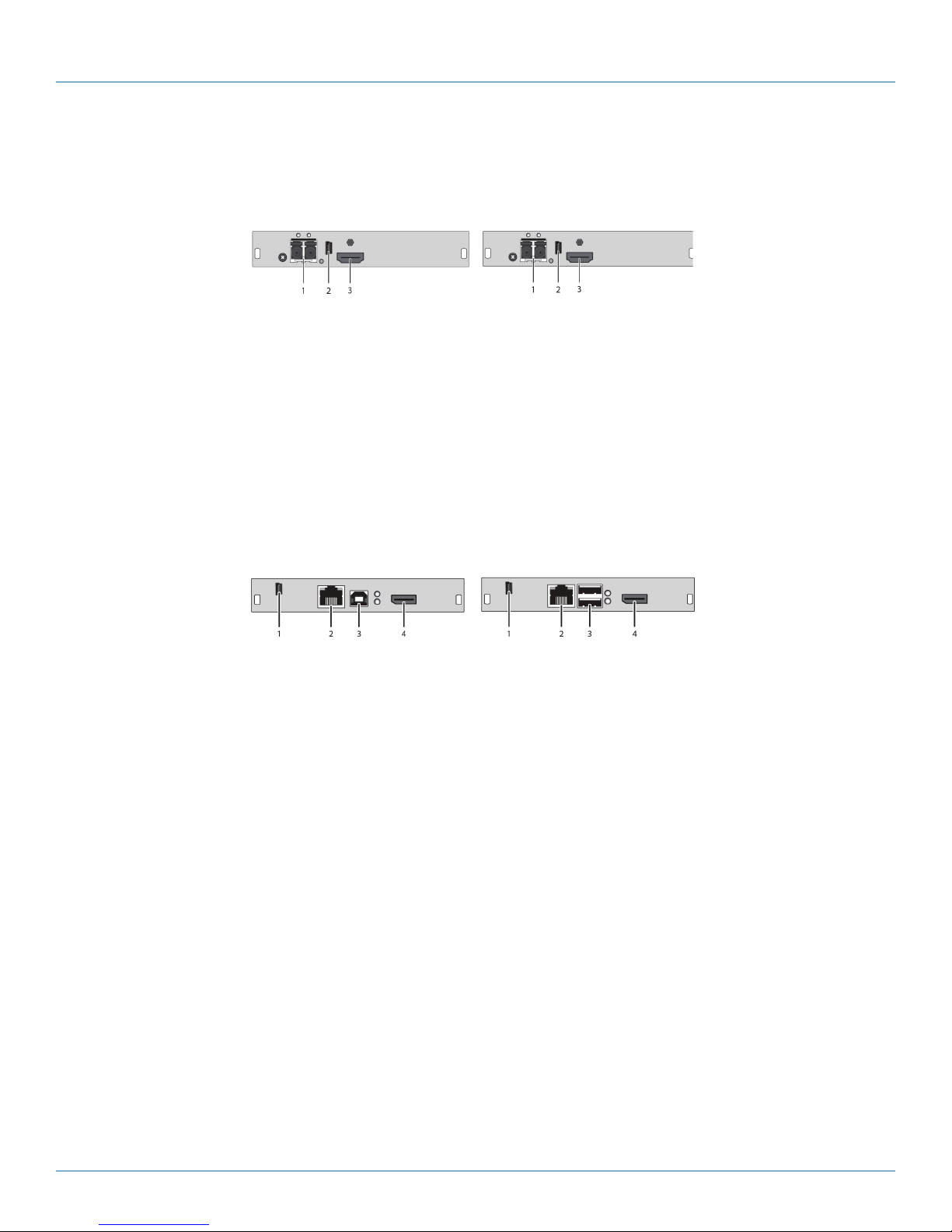

2.6.26 ACX1MT-HDMI-SM/ACX1MR-HDMI-SM

CPU Unit CON Unit

Rear view Rear view

1 Service port 1 Service port 2 Connected to interconnect cable 1 2 Connected to interconnect cable 1 3 To CPU: USB-HID 3 Connect to USB-HID devices 4 To CPU: HDMI 4 Connect to HDMI monitor

Page 52

724-746-5500 | blackbox.com

Chapter 2: Overview

2.6.27 ACX1MT-HDMI-SM/ACX1MR-HDMI-SM

CPU Unit CON Unit

Rear view Rear view

2.6.28 ACX1MT-HDM2-SM/ACX1MR-HDM2-SM

CPU Unit

Rear view

1 Service port 2 Connected to interconnect cable 3 To CPU: USB-HID 4 To CPU: HDMI 5 Local output: HDMI

724-746-5500 | blackbox.com

Page 53

Chapter 2: Overview

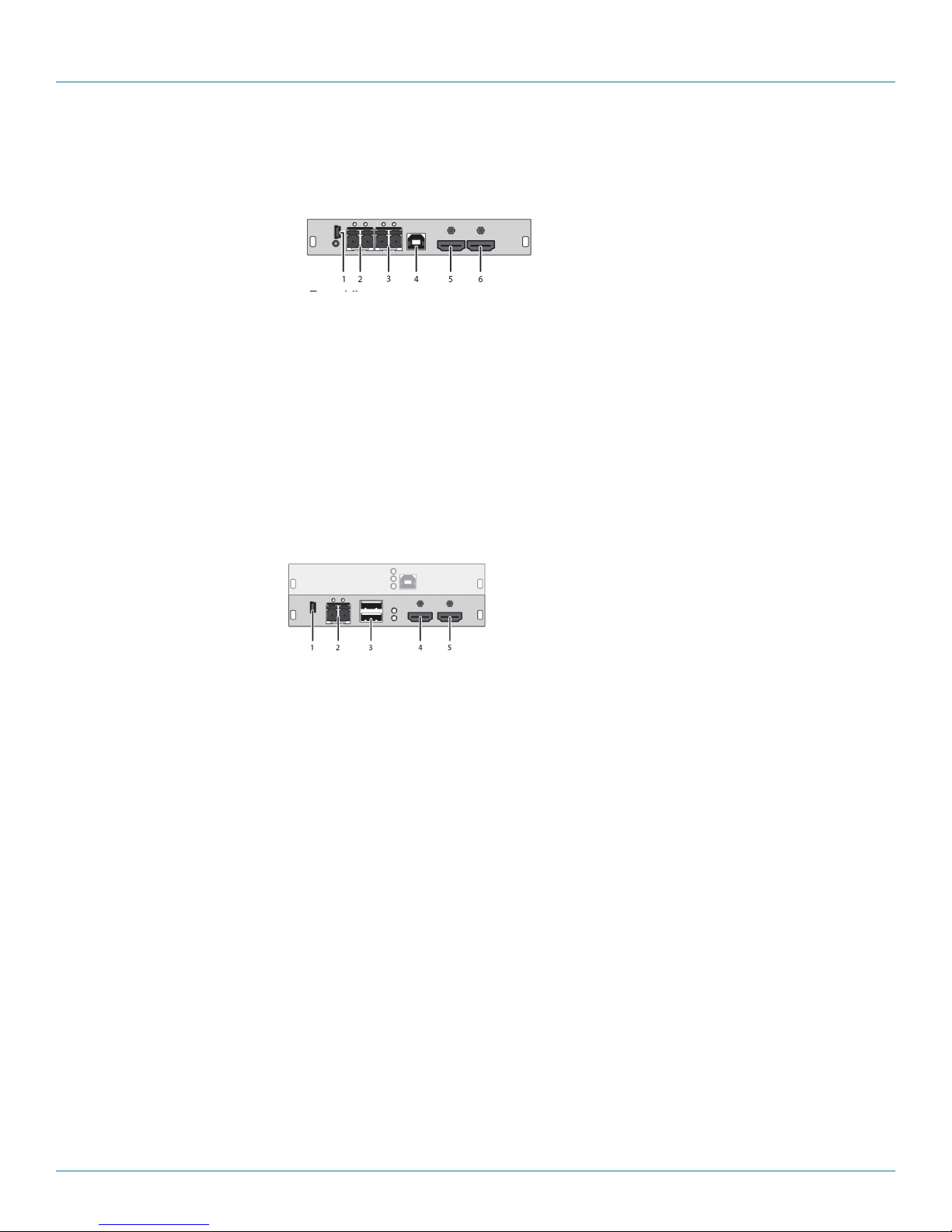

2.6.29 ACX1MT-HDM2-2S

CPU Unit

Rear view

1 Service port 2 Connect to interconnect cable 3 Connect to interconnect cable 4 To CPU: USB-HID 5 To CPU: HDMI 6 Local output: HDMI

2.6.30 ACX1MR-HDSW-C

CON Unit

Rear view

1 Service port 2 Connect to interconnect cable 3 Connect to USB-HID devices 4 Connect to HDMI monitor

5 Local input: HDMI

Page 54

724-746-5500 | blackbox.com

2.6.31 ACX1MR-HDSW-2C

CON Unit

Rear view

1 Service port 2 Connect to interconnect cable 1 3 Connect to USB-HID devices 4 Connect to HDMI monitor

5 Local input: HDMI

Chapter 2: Overview

2.6.32 ACX1MR-HDSW-SM

CON Unit

Rear view

1 Service port 2 Connect to interconnect cable 1 3 Connect to USB-HID devices 4 Connect to HDMI monitor

5 Local input: HDMI

724-746-5500 | blackbox.com

Page 55

Chapter 2: Overview

2.6.33 ACX1MR-HDSW-2S

CON Unit

Rear view

1 Service port 2 Connect to interconnect cable 1 3 Connect to interconnect cable 2 4 Connect to USB-HID devices 5 Connect to HDMI monitor

6 Local input: HDMI

2.6.34 ACX1MT-HDO -C/ACX1MR- HDO-C

CPU Unit CON Unit

Rear view Rear view

1 Connected to interconnect cable 1 Connected to interconnect cable 2 Service port 2 Service port 3 To CPU: HDMI 3 Connect to HDMI monitor

Page 56

724-746-5500 | blackbox.com

Chapter 2: Overview

2.6.35 ACX1MT-HDO-SM/ACX1MR-HDO-SM

CPU Unit CON Unit

Rear view Rear view

1 Connected to interconnect cable 1 Connected to interconnect cable 2 Service port 2 Service port 3 To CPU: HDMI 3 Connect to HDMI monitor

NOTE: The video-only modules without USB-HID connection are only meant for use with basic extender modules.

2.6.36 ACX1MT-DPH- C/ACX1MR-DPH- C

CPU Unit CON Unit

Rear view Rear view

1 Service port 1 Service port 2 Connect to interconnect cable 2 Connect to interconnect cable 3 To CPU: USB-HID 3 Connect to USB-HID devices 4 To CPU: DisplayPort 4 Connect to DisplayPort monitor

724-746-5500 | blackbox.com

Page 57

Chapter 2: Overview

2.6.37 AC X1MT- DPH-SM /AC X1MR- DPH-SM

CPU Unit CON Unit

Rear view Rear view

1 Service port 1 Service port 2 Connect to interconnect cable 2 Connect to interconnect cable 3 To CPU: USB-HID 3 Connect to USB-HID devices 4 To CPU: DisplayPort 4 Connect to DisplayPort monitor

2.6.38 ACX1MT-DPHS-SM/ACX1MR-DPHS-SM

CPU Unit CON Unit

Rear view Rear view

1 Service port 1 Service port 2 Connect to interconnect cable 2 Connect to interconnect cable 3 To CPU: USB-HID 3 Connect to USB-HID devices 4 To CPU: DisplayPort 4 Connect to DisplayPort monitor

Page 58

724-746-5500 | blackbox.com

Chapter 2: Overview

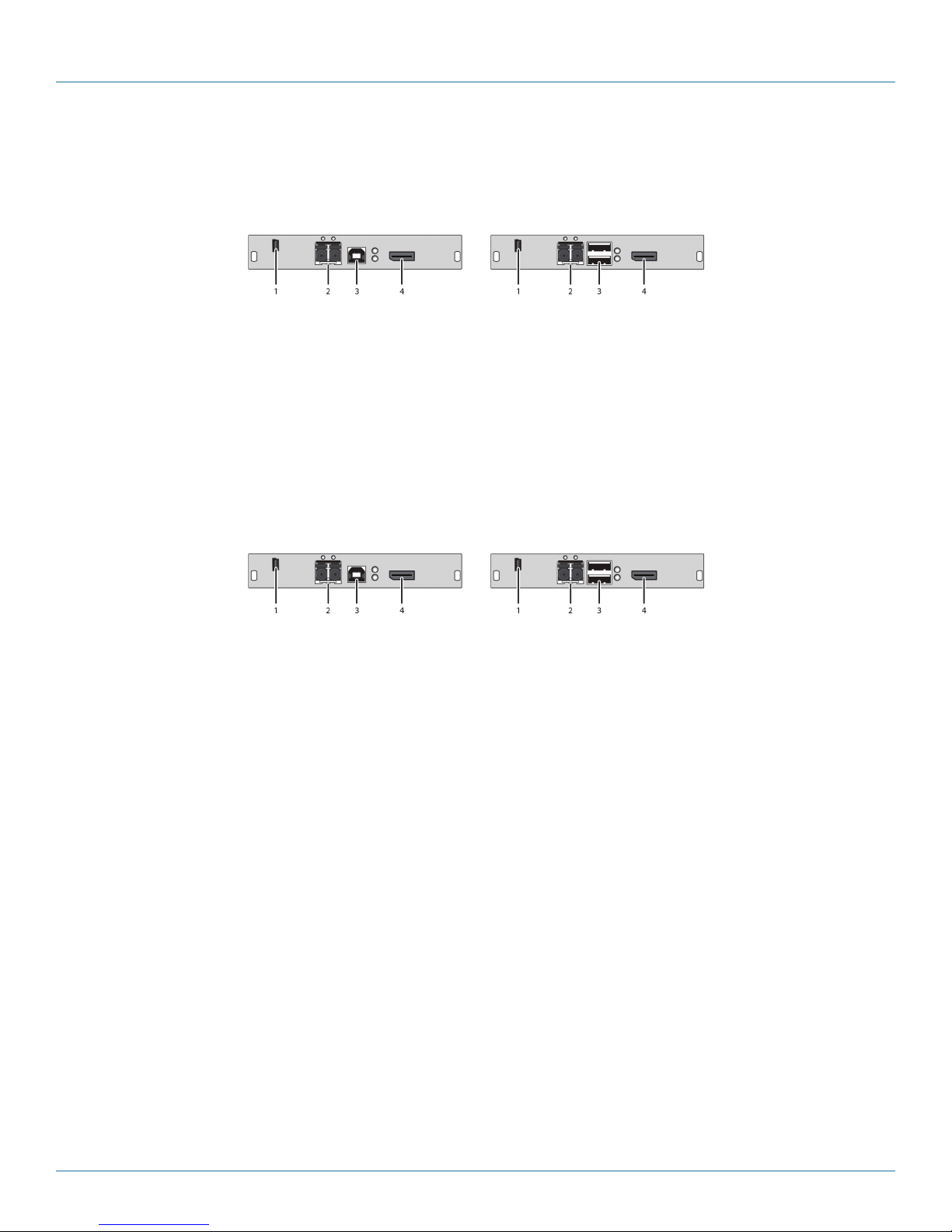

2.6.39 ACX1MT-DPH-2C/ACX1MR-DPH-2C

CPU Unit CON Unit

Rear view Rear view

1 Service port 1 Service port 2 Connect to interconnect cable 1 2 Connect to interconnect cable 1 3 Connect to interconnect cable 2 3 Connect to interconnect cable 2 4 To CPU: USB-HID 4 Connect to USB-HID devices 5 To CPU: DisplayPort 5 Connect to DisplayPort monitor

2.6.40 ACX1MT-DPH-2S/ACX1MR-DPH-2S

CPU Unit CON Unit

Rear view Rear view

724-746-5500 | blackbox.com

Page 59

Chapter 2: Overview

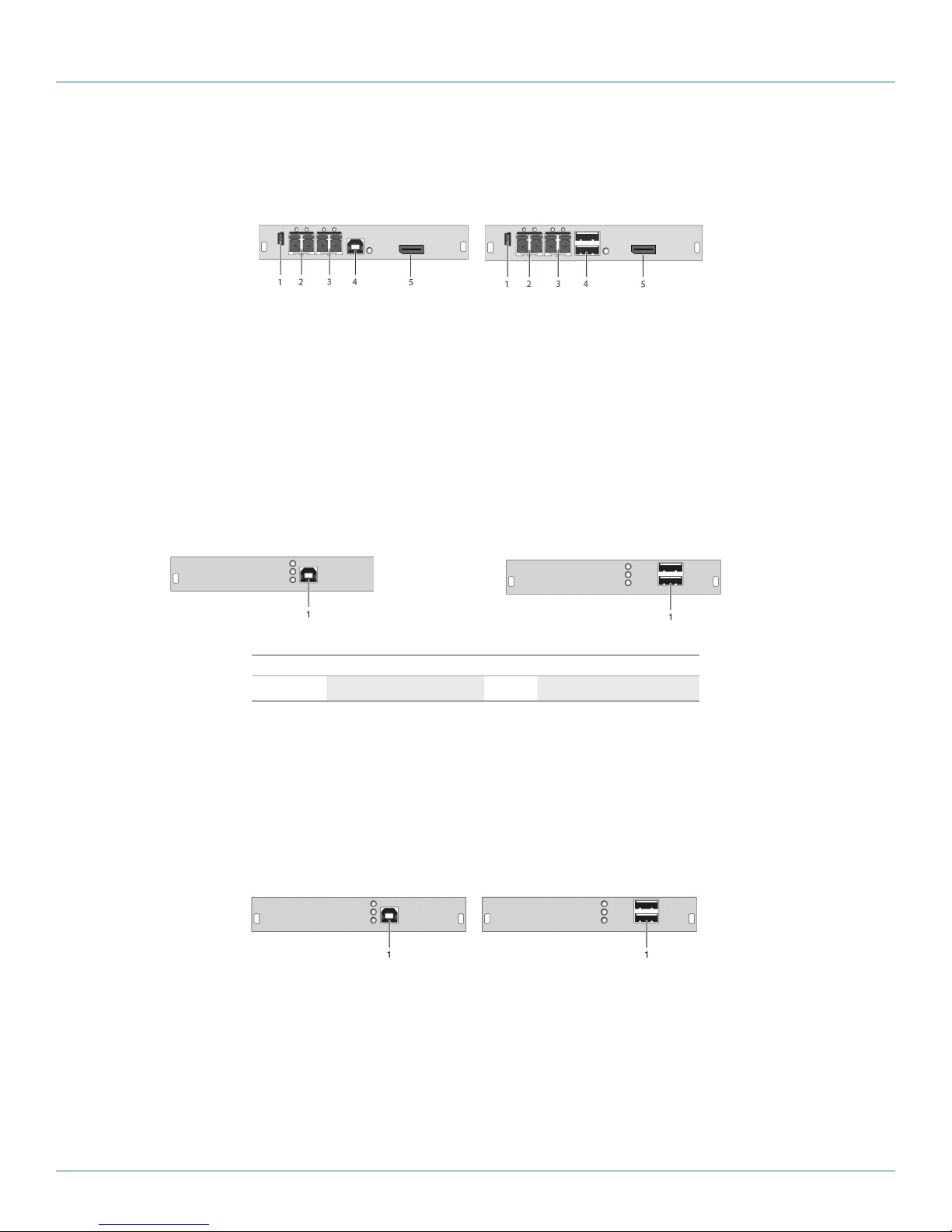

2.6.41 ACX1MT-DPHS-2S/ACX1MR-DPHS-2S

CPU Unit CON Unit

Rear view Rear view

2.6.42 Upgrade Module ACX1MT-HID/ACX1MR-HID

CPU Unit, rear view CON Unit, rear view

CPU unit CON unit

1 To CPU: USB-HID 1 Connect to USB -HID devices

2.6.43 ACX1MT-EU/ACX1MR-EU

CPU Unit CON Unit

Rear view Rear view

1 To CPU: USB-HID 1 Connect to USB-HID devices

Page 60

724-746-5500 | blackbox.com

Chapter 2: Overview

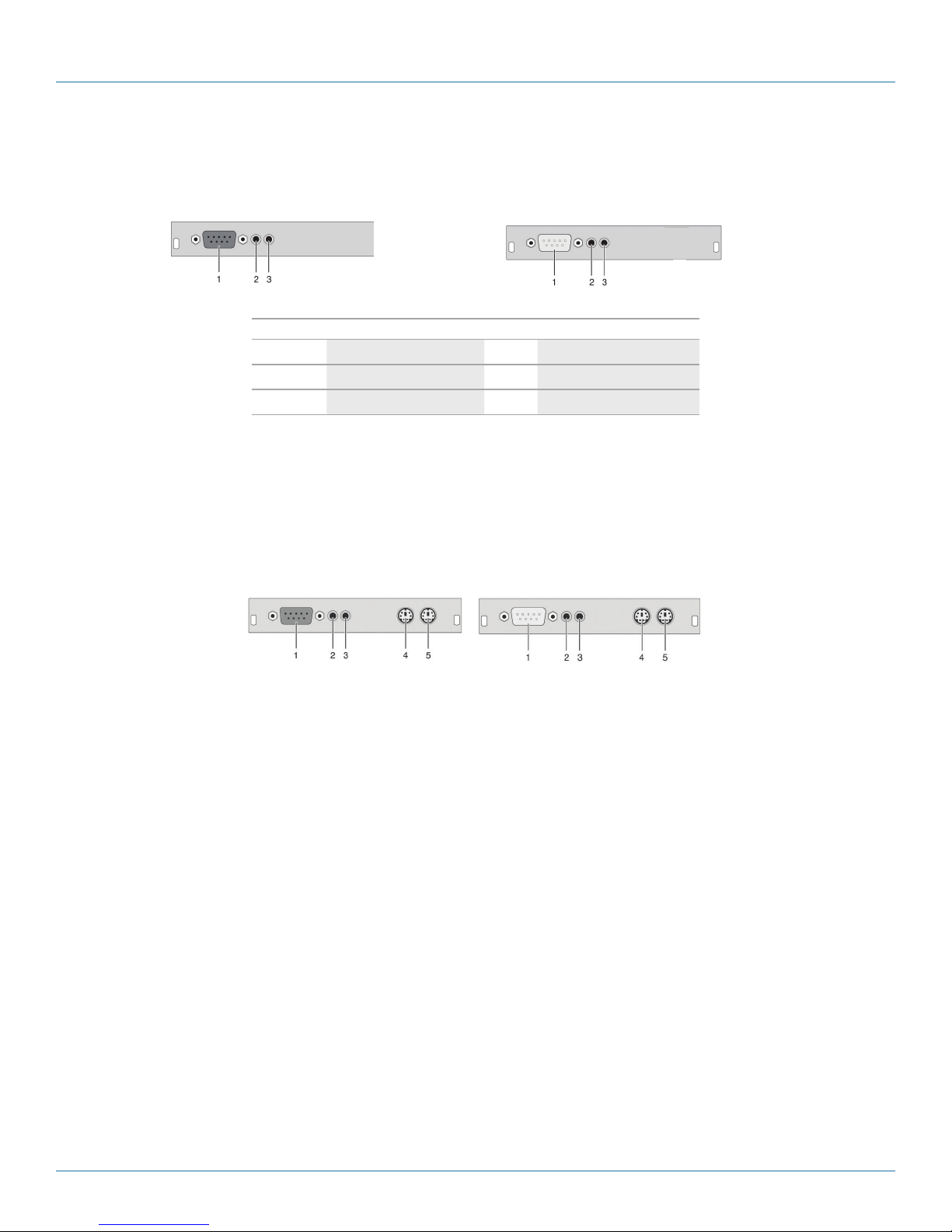

2.44 Upgrade Module ACX1MT-AR/ACX1MR-AR

CPU Unit, rear view CON Unit, rear view

CPU unit CON unit

1 Connect to serial (DB9) 1 Connec t to serial DB9

2 Audio IN 2 Audio IN

3 Audio OUT 3 Audio OUT

2.6.45 ACX1MT-ARP/ACX1MR-ARP

CPU Unit CON Unit

Rear view Rear view

1 Connect to serial DB9 1 Connect to serial DB9 2 Audio IN 2 Audio IN 3 Audio OUT 3 Audio OUT 4 To CPU: PS/2 mouse 4 Connect to PS/2 module 5 To CPU: PS/2 keyboard 5 Connect to PS/2 keyboard

724-746-5500 | blackbox.com

Page 61

Chapter 2: Overview

2.6.46 Upgrade Module ACX1MT-DA/ACX1MR-DA

CPU Unit, rear view CON Unit, rear view

CPU unit CON unit

1 S /PDIF input (RCA) 1 S/PDIF output (RCA)

2 AES/EBU input (Mini-XLR) 2 AES/ EBU output (Mini-XLR)

3 S /PDIF input (TOSLINK

) 3 S /PDIF output (TOSLINK)

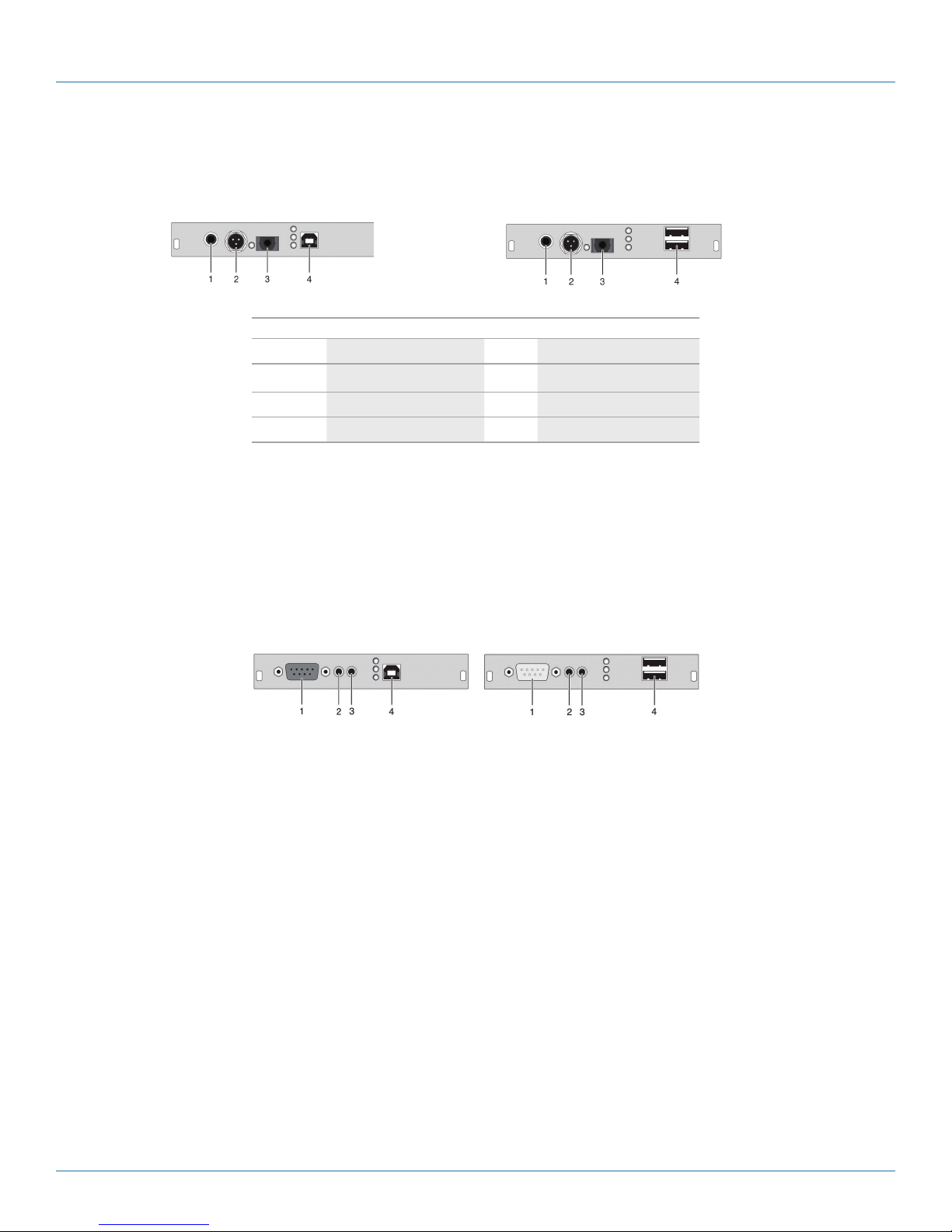

2.6.47 Upgrade Module ACX1MT-ARH/ACX1MR-ARH

CPU Unit, rear view CON Unit, rear view

CPU unit CON unit

1 Connect to serial (DB9) 1 Connec t to serial ( DB9)

2 Audio IN 2 Audio IN

3 Audio OUT 3 Audio OUT

4 To CPU: USB-HID 4 Connect to USB -HID devices

Page 62

724-746-5500 | blackbox.com

Chapter 2: Overview

2.6.48 Upgrade Module ACX1MT-DAH/ACX1MR-DAH

CPU Unit, rear view CON Unit, rear view

CPU unit CON unit

1 S /PDIF input (RCA) 1 S/PDIF output (RCA)

2 AES/EBU input (Mini-XLR) 2 AES/ EBU output (Mini-XLR)

3 S /PDIF input (TOSLINK) 3 S /PDIF output (TOSLINK)

4 To CPU: USB-HID 4 Connect to USB -HID devices

2.6.49 ACX1MT-ARE/ACX1MR-ARE

CPU Unit CON Unit

Rear view Rear view

1 Connect to serial DB9 1 Connect to serial DB9 2 Audio IN 2 Audio IN 3 Audio OUT 3 Audio OUT 4 To CPU: USB 2.0 4 Connect to USB 2.0 devices

724-746-5500 | blackbox.com

Page 63

Chapter 2: Overview

2.6.50 ACX1MT-DAE/ACX1MR-DAE

CPU Unit CON Unit

Figure 2-X.

Rear view Rear view

1 S/PDIF input (RCA) 1 S/PDIF output (RCA) 2 AES/EBU input (Mini-XLR) 2 AES/EBU output (Mini-XLR) 3 S/PDIF input (TOSLINK) 3 S/PDIF output (TOSLINK) 4 To CPU: USB 2.0 4 Connect to USB 2.0 devices

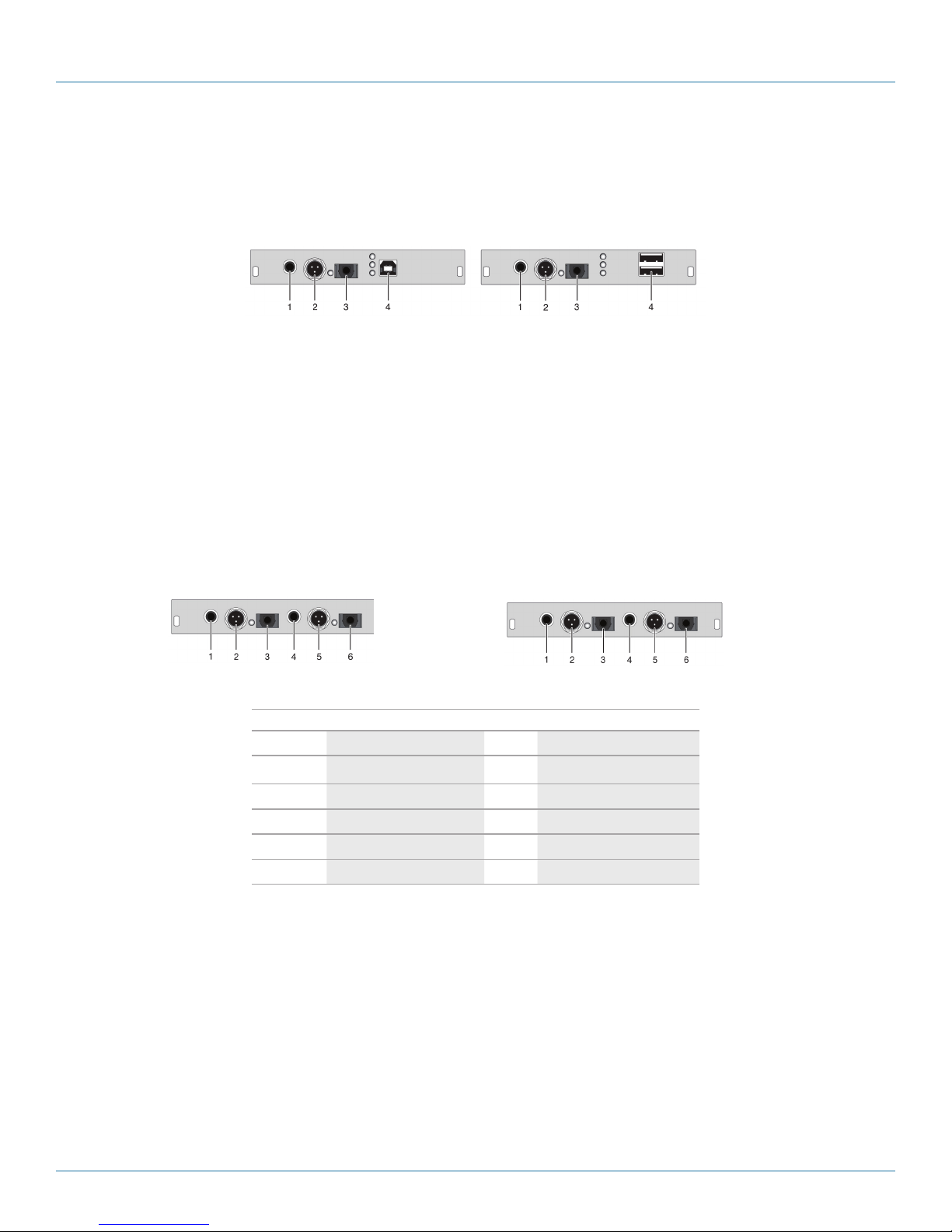

2.6.51 Upgrade Module ACX1MT-DAX/ACX1MR-DAX

CPU Unit, rear view CON Unit, rear view

CPU unit CON unit

1 S /PDIF input (RCA) 1 S/PDIF output (RCA)

2 AES/EBU input (Mini-XLR) 2 AES/ EBU output (Mini-XLR)

3 S /PDIF input (TOSLINK) 3 S /PDIF output (TOSLINK)

4 S /PDIF output (RCA) 4 S /PDIF input (RCA)

5 AEX /EBU output ( Mini-XLR) 5 AES/ EBU input (Mini-XLR)

6 S /PDIF output (TOSLINK) 6 S/PDIF input (TOSLI NK)

Page 64

724-746-5500 | blackbox.com

Chapter 2: Overview

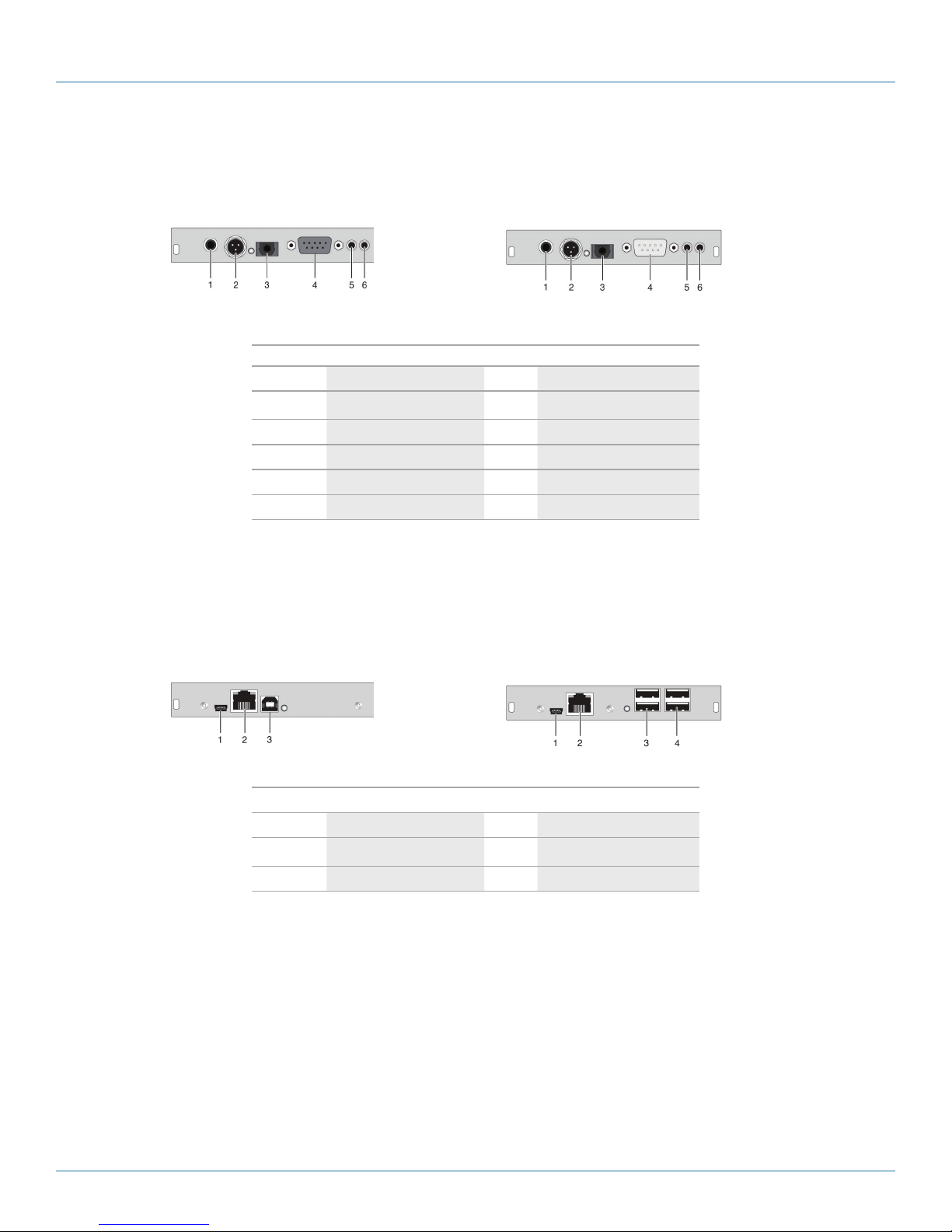

2.6.52 Upgrade Module ACX1MT-ARD/ACX1MR-ARD

CPU Unit, rear view CON Unit, rear view

CPU unit CON unit

1 S /PDIF input (RCA) 1 S/PDIF output (RCA)

2 AES/EBU input (Mini-XLR) 2 AES/ EBU output (Mini-XLR)

3 S /PDIF input (TOSLINK) 3 S /PDIF output (TOSLINK)

4 Connect to serial (DB9) 4 Connec t to serial ( DB9)

5 Audio IN 5 Audio IN

6 Audio OUT 6 Audio OUT

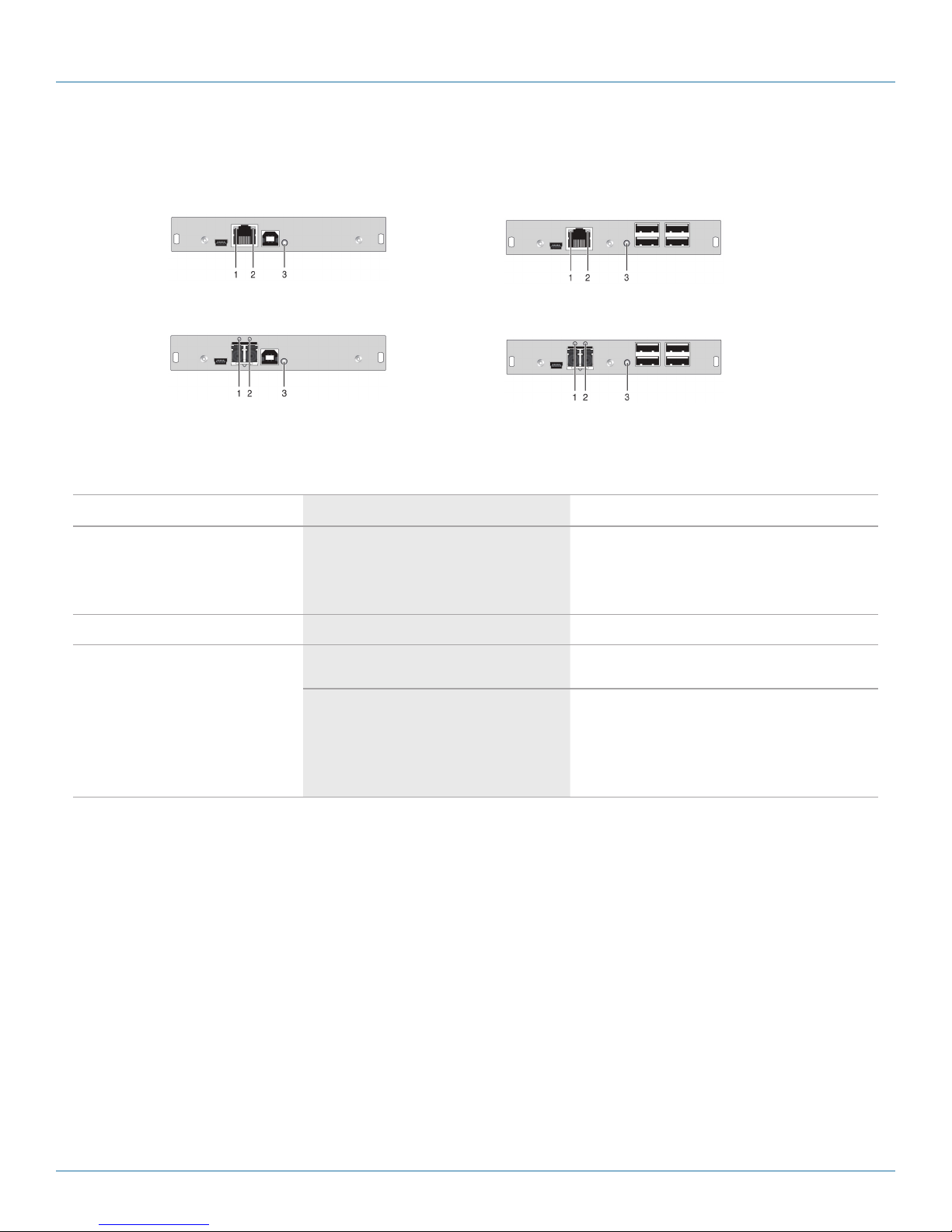

2.6.53 USB 2.0 Module ACX1MT-U2-C/ACX1MR-U2-C

CPU Unit, rear view CON Unit, rear view

CPU unit CON unit

1 Service port 1 Service port

2 Connect to interconnect cable 2 Connect to interconnect cable

3 To CPU: USB 2.0 3 Connect to USB 2.0 devices

NOTE: Operates at 480 Mbps.

724-746-5500 | blackbox.com

Page 65

Chapter 2: Overview

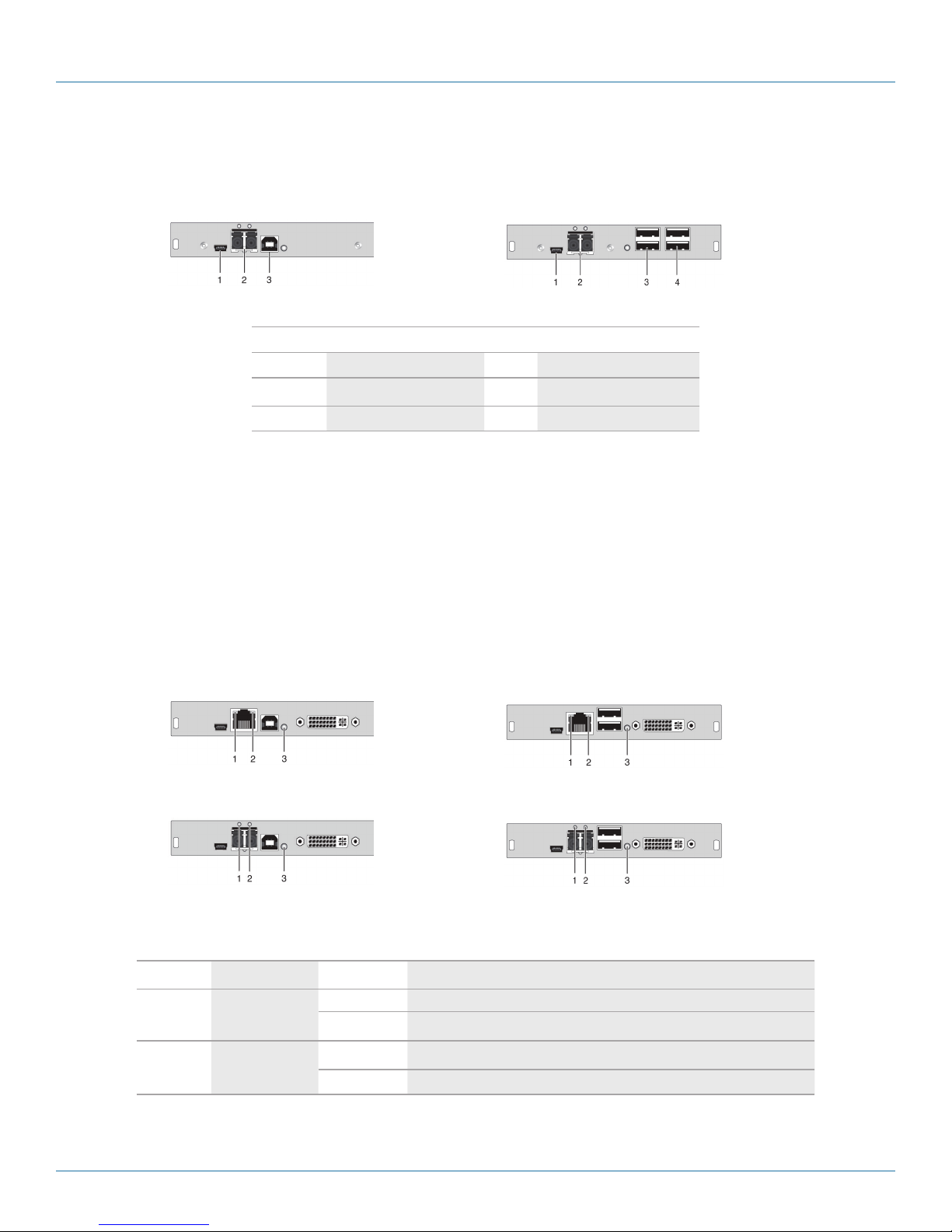

2.6.54 USB 2.0 Module ACX1MT-U2-SM/ACX1MR-U2-SM

CPU Module, rear view CON Module, rear view

CPU unit CON unit

1 Service port 1 Service port

2 Connect to interconnect cable 2 Connect to interconnect cable

3 To CPU: USB 2.0 3 Connect to USB 2.0 devices

2.7 Status LEDs

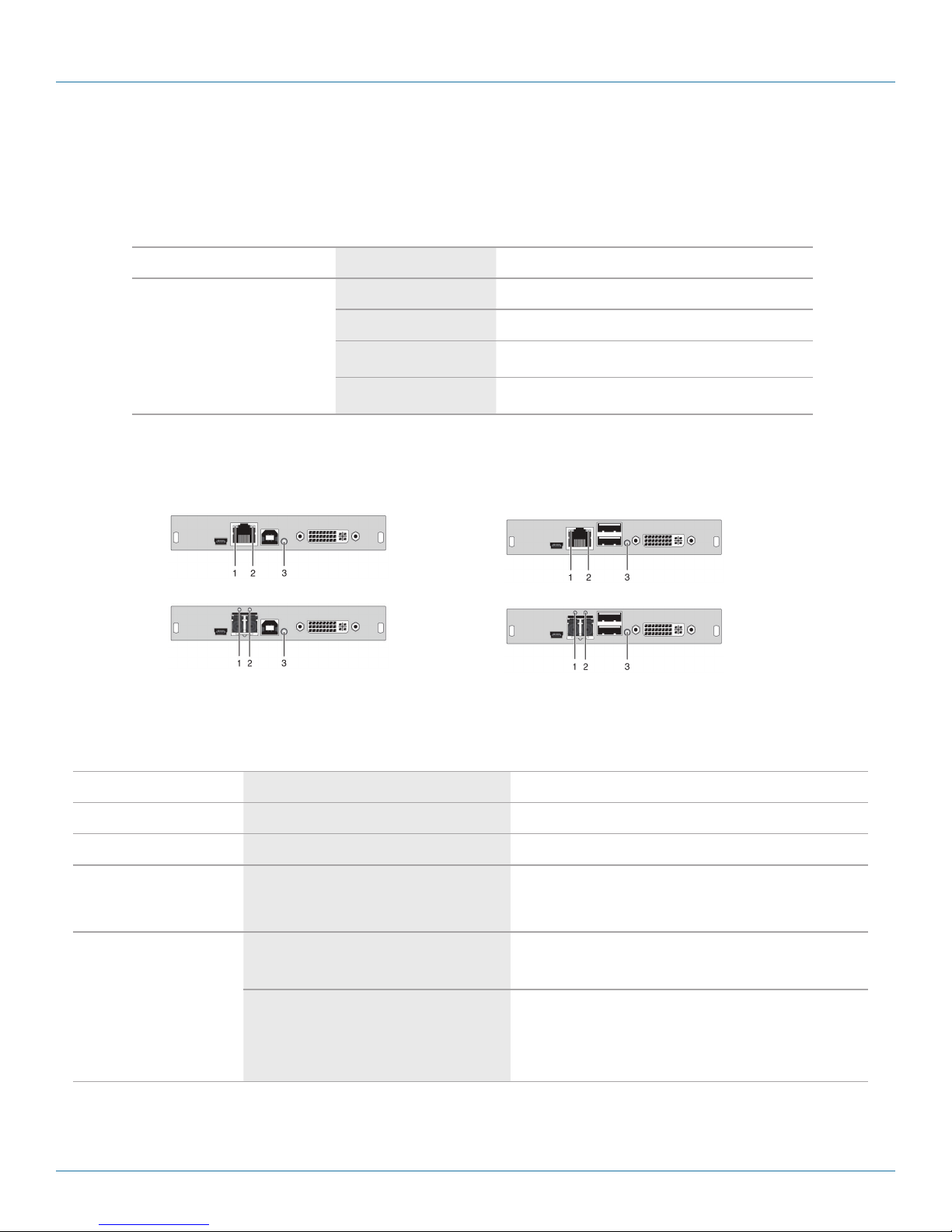

2.7.1 KVM Extender Module Status

The KVM Extender module has a multicolor LED on both sides to indicate overall status. It also has two additional LEDs on the back side to indicate the connection status.

CPU module, rear view CON module, rear view

Status LEDs on the basic module.

LED 1 and 2: Connection Status.

Position LED Status Description

1 Failure LED (green)

Off Connection available

On or Flashing Connec tion failure (flashing for about 20 seconds following a connection failure)

2 Status LED (green)

Page 66

Flashing No connection via interconnect cable

On Connection available

724-746-5500 | blackbox.com

Chapter 2: Overview

LED 3: USB and Video Status.

Color Description

Red Device ready

Violet Connection and USB signal (interconnect) available

Green Connection and video signal available

Light Blue Connection, USB, and video signal available (operating status)

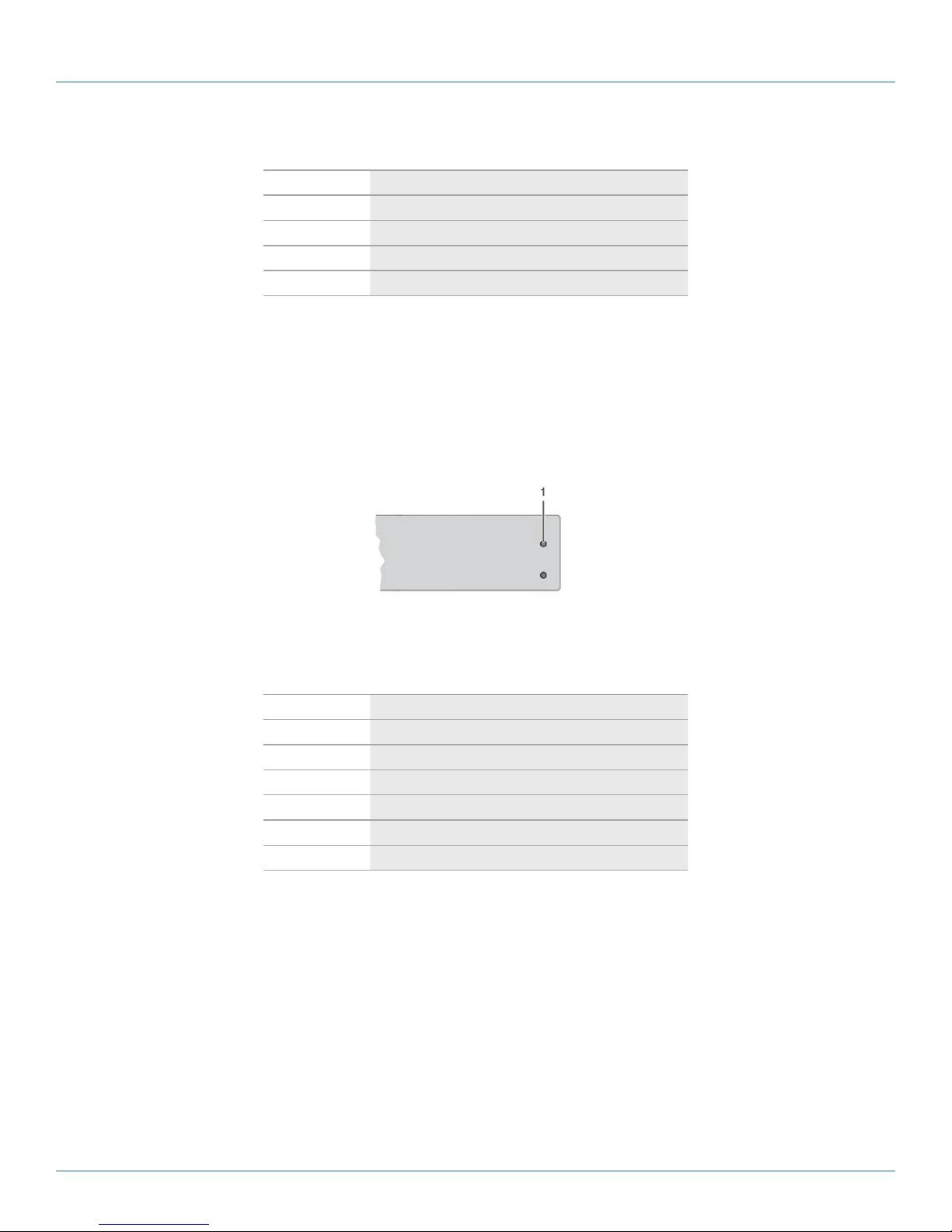

2.7.2 KVM Extender Module VGA/DVI-I Status

The KVM Extender module with VGA/DVI-I input has a multicolor LED on the front side of the CPU module to indicate connection status. More information is available via on-screen display (OSD) (see the manual for the Media/DVI Converter [AC S 411A -R 2 ]) .

CPU module

Front view of the CPU module.

LED 3: Connection Status VGA/DVI-I.

LED Description

Dark Red No video signal; monitor not detected

Red Video signal not supported; monitor not detected

Green Video signal supported; monitor not detected

Blue No video signal; monitor detected

Violet Video signal not supported; monitor detected

Light Blue Video signal supported; monitor detected

724-746-5500 | blackbox.com

Page 67

Chapter 2: Overview

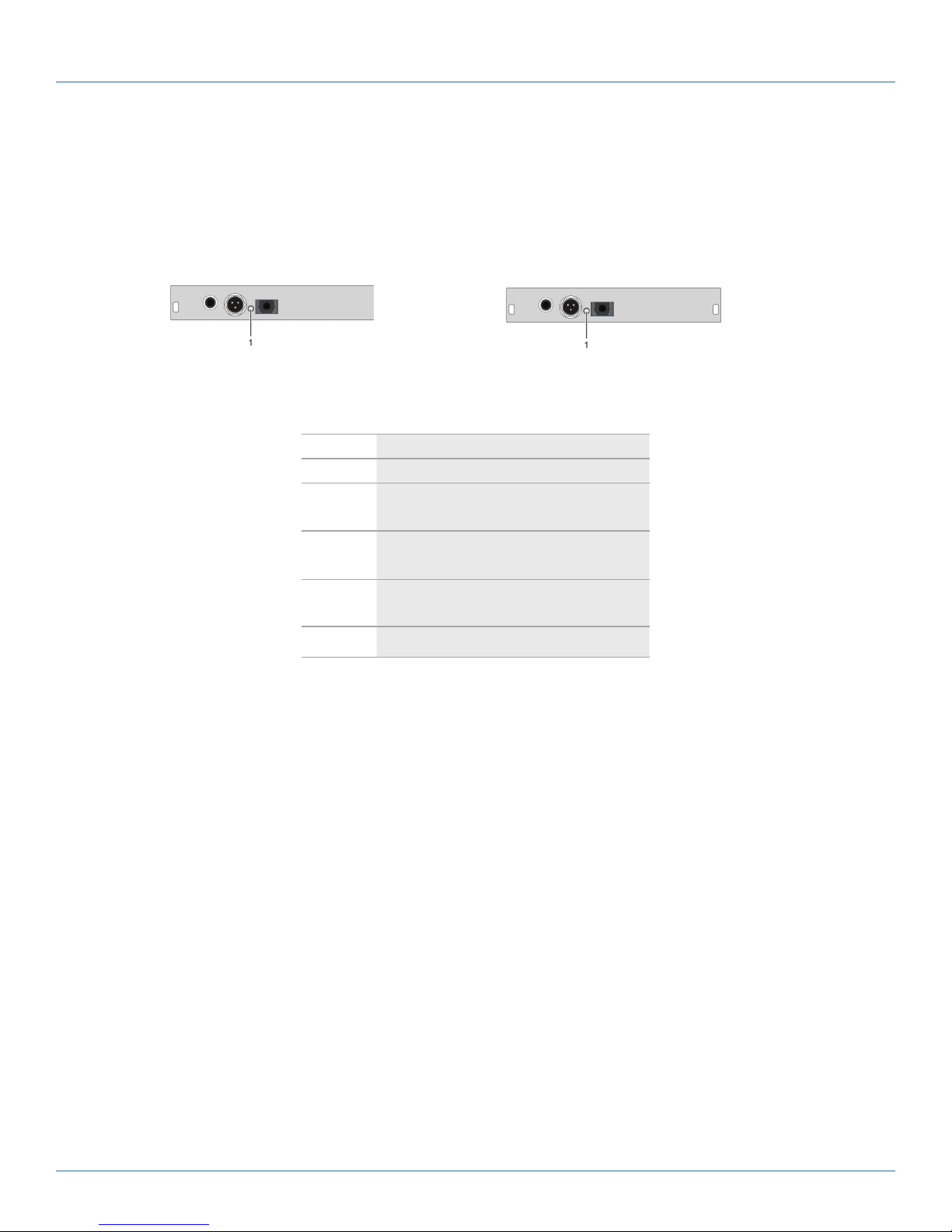

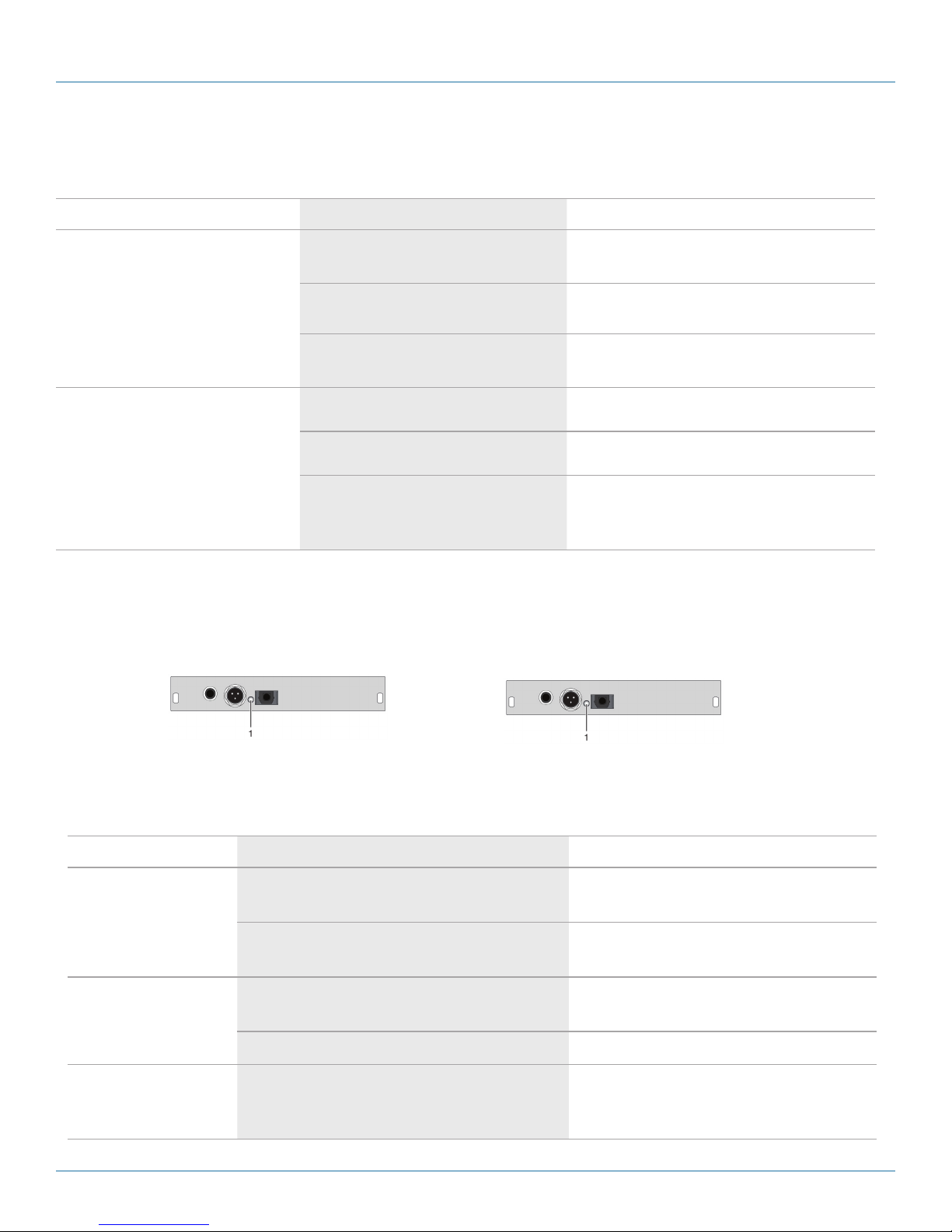

2.7.3 Upgrade Module Digital Audio Status

The upgrade module digital audio has another multicolor LED on the rear side to indicate the connection status:

CPU module, rear view CON module, rear view

Status upgrade module digital audio.

LED 1: Digital Audio Status.

LED color Description

Red No signal

Light Blue

Violet

Blue

Static: CPU Unit: S/ PDIF signal (RCA) availabl

Flashing: CPU Unit: Digital noise

Static: CPU Unit: AES/EBU signal (Mini-XLR) available

Flashing: CPU Unit: Digital noise

Static: CPU Unit: S/ PDIF signal (TOSLINK) available

Flashing: CPU Unit: Digital noise

Green CON Unit: Signal available

Page 68

724-746-5500 | blackbox.com

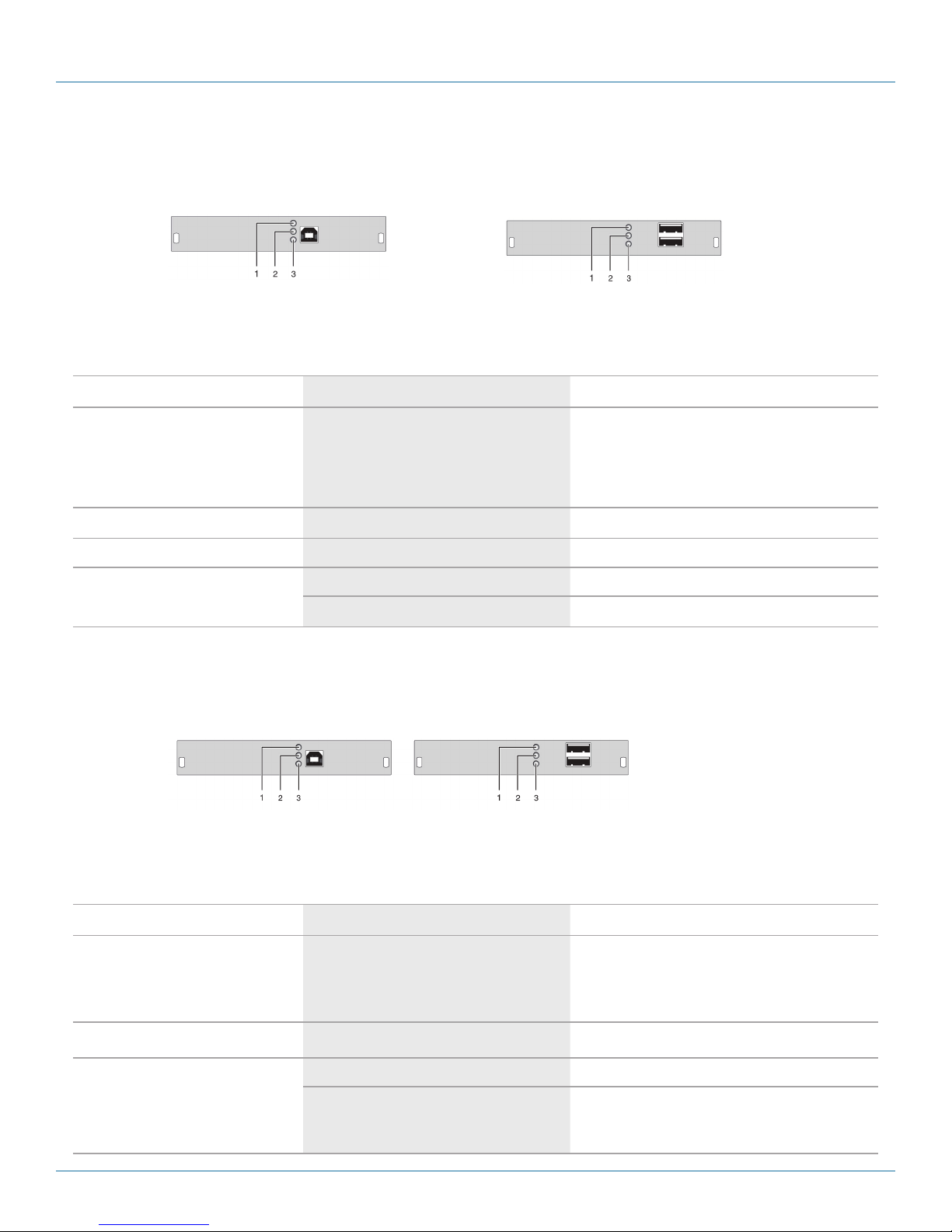

2.7.4 Upgrade Module USB-HID Status

The upgrade module USB-HID has three LEDs on the rear side to indicate the connection status:

CPU module, rear view CON module, rear view

Status upgrade modules USB-HID.

LED 1, 2, and 3: Status.

Position LED Status Description

Off No USB-HID device or not supported; USB device connected

1, 2 Device LED (orange)

3 Status LED (orange)

Flashing fast USB -HID device active

On USB-HID device ready or DKM Modular Extender in command mode

• No power supply voltage

Off

Flashing slowly CON Unit: DKM Modular Extender in command mode or no connection

Flashing fast Operating status

• CPU Unit: DKM Modular Extender in command mode or no connection

• CON Unit: Keyboard in command mode

Chapter 2: Overview

724-746-5500 | blackbox.com

Page 69

Chapter 2: Overview

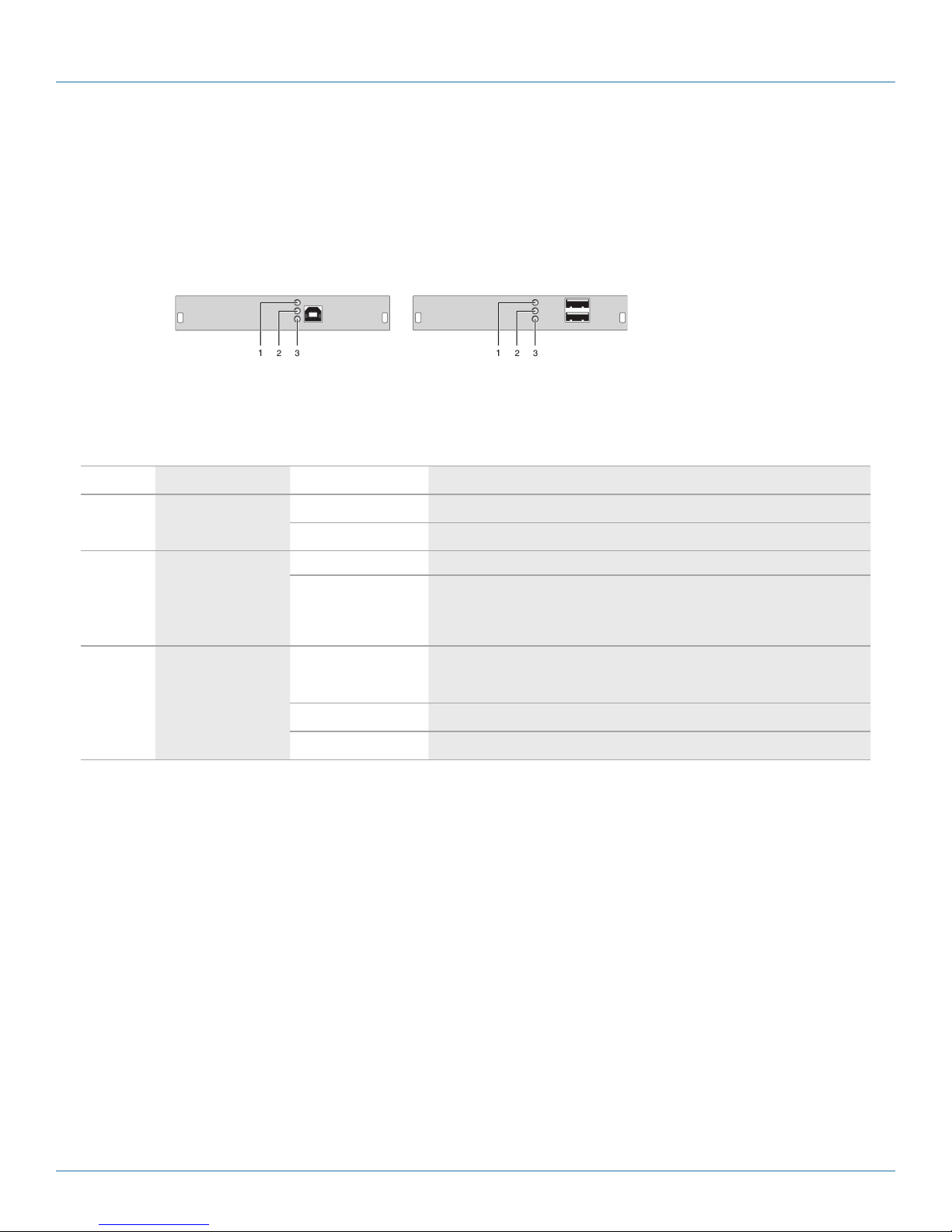

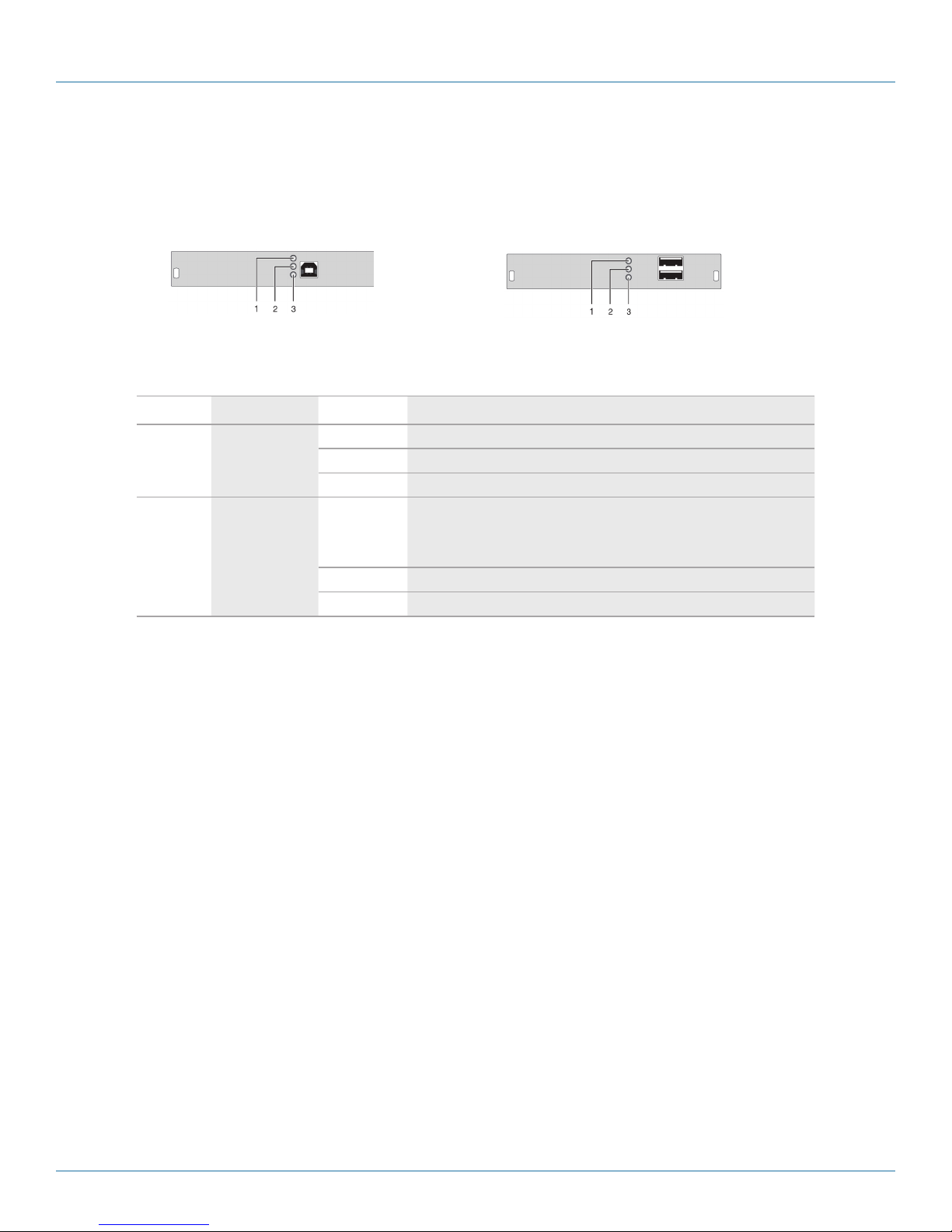

2.7.5 Upgrade Module USB 2.0 Embedded Status

The upgrade module USB 2.0 embedded is fitted with three LEDs on the rear side that indicate the connection status.

CPU module, rear view CON module, rear view

USB 2.0 embedded upgrade module.

USB 2.0 embedded upgrade module status LEDs.

Position LED Status Description

1 Status LED (green)

2 Status LED (green)

3 Status LED (green)

Off No USB 2.0 device connected

Flashing slowly USB 2.0 device connected

Off No connection to source (computer, CPU) available

• Connection to source (computer, CPU) available

Flashing slowly

• No USB 2.0 device connected

• Connection to source (computer, CPU) available

• USB 2.0 device(s) connected

Off No connection between CON and CPU module

On Connection between CON and CPU module available

Page 70

724-746-5500 | blackbox.com

Chapter 2: Overview

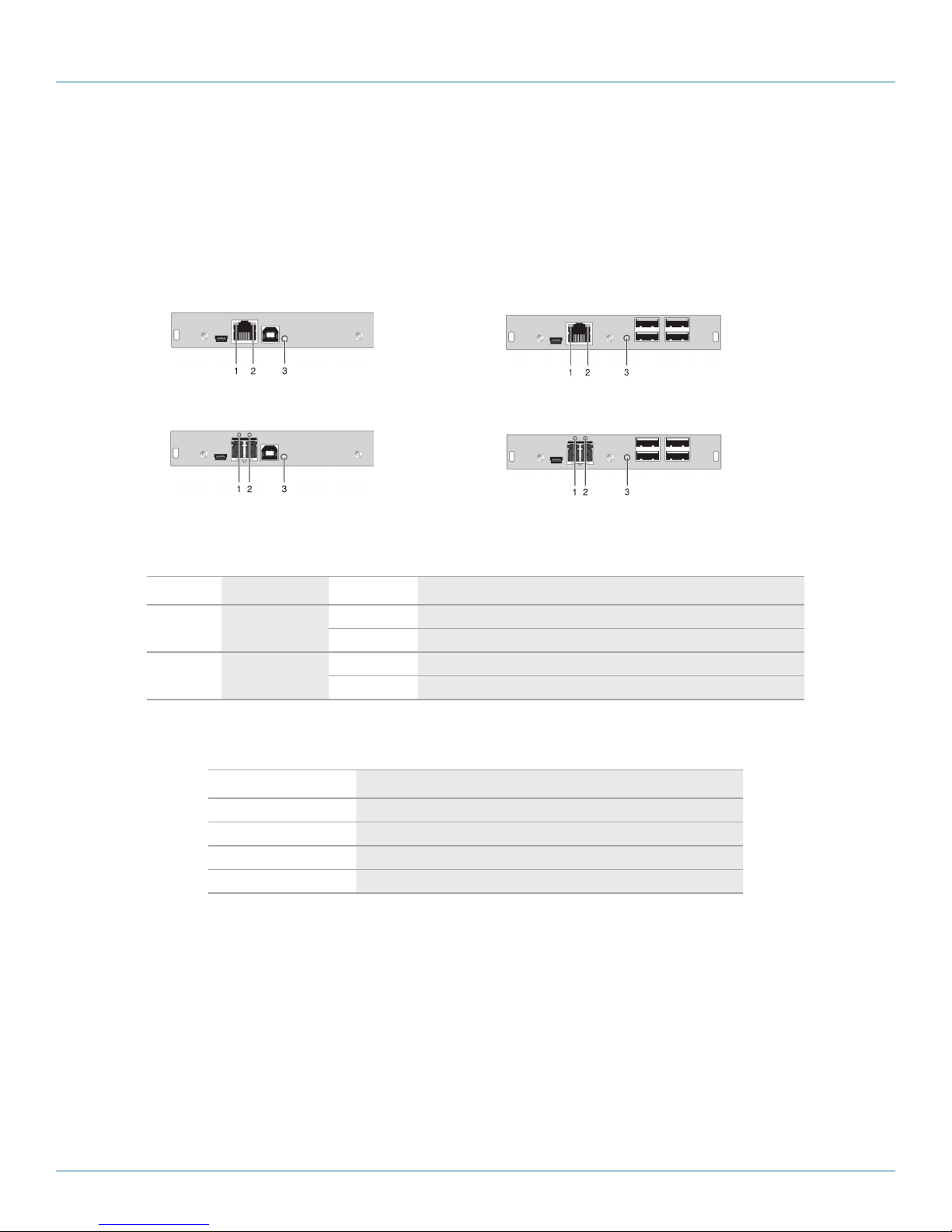

2.7.6 USB 2.0 Module Status

The USB 2.0 module has a multicolor LED on both sides to indicate overall status. It also has two more LEDs on the back side to indicate the connection status.

CPU module, rear view CON module, rear view

Status USB 2.0 module.

LEDs 1 and 2: Status.

Position LED Status Description

1 Failure LED (green)

2 Status LED (green)

Off Connection available

On or flashing Connection failure (flashing for about 20 seconds following a connection failure )

Off No connection via interconnect cable

On Connection available

LED 3: USB 2.0 Status.

LED color Description

Red Device ready

Green Only connection available, no USB 2.0 signal

Green/light blue flashing Connection available, no USB 2.0 device connected (only CON unit)

Light blue Connection and USB 2.0 signal available (operating status)

724-746-5500 | blackbox.com

Page 71

Chapter 3: Installation

3. Installation

3.1 Package Contents

Your extender package contains the following items. If anything is missing or damaged, please contact Black Box Technical Support at 724-746-5500 or info@blackbox.com.

KVM Extender:

• DKM Modular Chassis with pre-installed CON/CPU Modules

• (2) 5-VDC international power supply units

• (2) country-specific power cords

• Quick Start Guide

• (1) DVI video cable (6-ft. [1.8 m], DVI-D male-to-male)

Figure 3-1. DVI video cable.

• (1) USB cable (6-ft. [1.8 m], Type A to Type B)

Figure 3-2. USB cable.

The KVM Extender VGA/DVI-I (replaces DVI-D cable) also includes:

• VGA cable (6-ft. [1.8 m], VGA male to DVI-I male)

Figure 3-3. VGA cable.

• Infrared remote control

The upgrade module Analog Audio/Serial RS-232 also includes:

• Serial cable (6-ft. [1.8 m], RS-232 male connector)

Figure 3-4. Serial cable.

• Stereo jack cable (5.2-ft. [1.6-m], 3.5 mm male connector)

Page 72

Figure 3-5. Stereo jack cable.

724-746-5500 | blackbox.com

The upgrade module serial RS-422 also includes:

• Serial cable (6-ft. [1.8-m] , RS-422 male connector

The upgrade module Digital Audio also includes:

• RCA cable (8.2-ft. [2.5 m], Cinch male connector)

• TOSLINK cable (6-ft. [1.8 m], F05 male connector)

Figure 3-7. TOSLINK cable.

The upgrade module USB-HID also includes:

• USB cable (6-ft. [1.8 m], USB Type A to Type B)

Chapter 3: Installation

Figure 3-6. Serial cable.

Figure 3-6. RCA cable.

Figure 3-8. USB cable.

The upgrade module PS/2 also includes:

• (2) PS/2 cables (6-ft. [1.8 m], 6-pole connector)

Figure 3-9. PS/2 cable.

The USB 2.0 embedded upgrade module also includes:

• USB cable (6-ft. [1.8 m], USB Type A to Type B)

Figure 3-10. USB cable.

The USB 2.0 module also includes:

• USB cable (6-ft. [1.8 m], USB Type A to Type B)

Figure 3-11. USB cable.

NOTE: If anything is missing, please contact Black Box Technical Support at 724-746-5500 or info@blackbox.com.

724-746-5500 | blackbox.com

Page 73

Chapter 3: Installation

3.2 System Setup

NOTE: I f you are a first-time user, we recommend that you set up the system with the CPU module and the CON module in the

same room as a test setup. This will enable you to identify and solve any cabling problems, and experiment with your system more conveniently.

NOTE: Verify that interconnect cables, interfaces, and handling of the devices comply with the requirements (see Section 3.1).

3.2.1 KVM Extender Module Setup

1. Switch off all devices.

CON Module Installation

2. Connect your monitor(s), keyboard, and mouse to the CON module.

3. Connect the CON module with the interconnect cable(s).

4. Connect the 5-VDC power supply to the CON module.

CPU Module Installation

5. Connect the source (computer, CPU) with the supplied cables to the CPU module. Make sure the cables are not strained.

6. Connect the CPU module to the interconnect cable(s).

7. Connect the 5-VDC power supply to the CPU module.

8. Power up the system.

NOTE: To power up the system, the following sequence is recommended: Monitor – CON module – CPU module – source.

NOTE: The basic module with VGA / DVI-I input is connected as mentioned above. Default output video setting is scaled to 1024

x 768. For a complete and detailed description of the setup and configuration of the VGA option, see the Media/DVI Converter (ACS411A-R2) manual.

NOTE: In the modular chassis, CON modules may be fitted next to CPU modules. The CON/CPU naming convention is based on

the module rather than on the chassis that holds the modules.

3.2.2 Setup of Upgrade Modules

You can hot-plug the modules.

Upgrade Module Analog Audio/Serial:

1. Connect the audio source with the CPU module (for example, CPU audio output with audio input, CPU audio input with audio output).

2. Connect the audio output at the CON module with headphones or suitable speakers.

3. Connect the audio input at the CON module with a suitable microphone.

Upgrade Module Serial RS422:

1. Connect the CPU to the CPU Unit by using the serial cable.

2. Connect the CON Unit to the serial connector of the input device.

Upgrade Module Digital Audio:

1. Connect the digital audio source with the suitable audio input of the CPU module.

2. Connect the audio output of the CON module with suitable speakers or audio amplifiers.

NOTE: If several active sources are connected, Mini-XLR input takes priority. The audio signal is available at all outputs.

Page 74

724-746-5500 | blackbox.com

Upgrade Module USB-HID:

1. Connect the CPU with the CPU module (USB-HID 2).

2. Connect the USB-HID devices with the CON module (Connect to USB-HID device 2).

Upgrade Module PS/2:

1. Connect the CPU to a CPU unit with cables for PS/2 devices.

2. Connect the PS/2 devices to the CON unit (Connector to PS/2 devices).

Upgrade Module USB 2.0 Embedded:

1. Connect the CPU to the CPU Unit (USB 2.0).

2. Connect the USB 2.0 devices to the CON Unit (Connect to USB 2.0 devices).

Upgrade Module USB 2.0:

1. Connect the CPU to the CPU Unit (USB 2.0).

2. Connect the USB 2.0 devices to the CON Unit (Connect to USB 2.0 devices).

Chapter 3: Installation

3.3 Example Applications

This section illustrates typical installations of DKM Modular Extenders:

1 2 3 4

Figure 3-12. DKM Modular Extender (Single-Head).

724-746-5500 | blackbox.com

Page 75

Chapter 3: Installation

5 7

1 2 3 4

Figure 3-13. DKM Modular Extender (Single-Head with Digital/Analog Audio).

5 6

1 2 3 4

Figure 3-14. DKM Modular Extender (Dual-Head).

Page 76

724-746-5500 | blackbox.com

Chapter 3: Installation

Table 3-1. Components in Figures 3-10 through 3-12.

Number Description

1 Source (computer, CPU)

2 DKM Modular Extender CPU Unit

3 Interconnect cable

4 DKM Modular Extender CON Unit

5 Console (keyboard, monitor, mouse)

6 Second monitor (option, only with dual-head devices)

7 Audio sink (optional, only with devices with analog audio /serial option or digital audio option

724-746-5500 | blackbox.com

Page 77

Chapter 4: Configuration

4. Configuration

4.1 Transmission Parameters

The device operates with a proprietary compression method. In its default configuration, the device adapts dynamically to monitor resolution and image content. This configuration works in almost all conditions. Modify it only if image quality is not fully satisfactory.

NOTE: In exceptional cases, detached "frame droppings" (loss of single pictures) or color effects can appear.

4.2 DDC Settings

By default, the device sends the factory preset DDC information to the CPU. This information works in most cases.

During normal operation , you can downoad the console monitor’s DDC information (see Chapter 5).

For special requirements, DDC information can be retrieved and uploaded as a binary file at both the CPU module and the CON module.

Connect your computer with a USB Mini cable to the CPU module’s or CON module’s service port.

You can now access the data area of the unit as a flash drive “Extender.”

Uploading DDC Information

Copy the binary file containing your specific DDC information to the flash drive of the CPU module or CON module.

The current DDC information is replaced.

Retrieving DDC Information

Copy the file "DDC-EDID.bin" on the flash drive of the CPU module to your computer.

To open the binary file, you have to install a suitable software, for example, WinDDCwrite (Download), on your computer.

Reset to Factory DDC Information

Delete the file called “DDC-EDID.bin” on the flash drive of the CPU module. By deleting this file, the factory DDC Information is restored.

4.3 Command Mode

During normal use, the console keyboard functions in the usual manner. However, for all KVM Extenders with USB-HID support, you can set the keyboard into a Command Mode by using a specific “hotkey” sequence. While in Command Mode, several functions are performed via keyboard commands. To exit Command Mode, press <Esc>. While in Command Mode, the LEDs Shift and Scroll on the console keyboard will flash.

NOTE: In Command Mode, normal keyboard and mouse operation will cease. Only selected keyboard commands are available.

Table 4-1 lists the keyboard commands to enter and to exit Command Mode and to change the hotkey sequence.

Table 4-1. Keyboard commands.

Function Keyboard Command

Enter Command Mode 2x <Left-Shift>/ Hotkey

Exit Command Mode <Esc>

Change Hotkey sequence <Currrent Hotkey >, <c>, < newHotkey code>, < Enter>

Page 78

724-746-5500 | blackbox.com

Chapter 4: Configuration

Table 4-2. Keyboard sequences.

Keyboard Sequence Description

<Key> + <Key > Press keys simultaneously

<Key>, <Key > Press keys successively

2x<Key> Press key quickly, twice in a row (similar to a mouse-click)

You can change the hotkey sequence to enter Command Mode. Table 4-3 lists the hotkey codes for the available key sequences.

Table 4-3. Hotkey Sequences.

Hotkey Code Hotkey

0 Freely selectable (since 1-12-2012)

2 2x <Scroll>

3 2x <Left-Shift>

4 2x <Left-Ctrl>

5 2x <Left-Alt>

6 2x <Right-Shift>

7 2x <Right-Ctrl>

8 2x <Right-Alt>

Set freely selectable “Hot Key” (exemplary)

In order to set a freely selectable 'Hot Key' (e.g. 2x <Space>), use the following keyboard sequence:

Reset “Hot Key”

To set a 'Hot Key' back to default settings of the extender, press the key combination <Right Shift> + <Del> within 5 seconds after switching on the CON Unit or plugging in a keyboard.

4.4 USB-HID Ghosting

This function allows specific keyboard and mice descriptors (device descriptions) to be permanently stored in the CPU unit. This eliminates the need to register and deregister the keyboard and mouse on an operating system each time there is a shared use of a source (computer, CPU) by two or more consoles within a KVM matrix.

724-746-5500 | blackbox.com

Page 79

Chapter 4: Configuration

The following table lists the keyboard commands for the configuration of USB-HID Ghosting:

Table 4-4. Keyboard commands for USB-HID ghosting configuration.

Function Keyboard Command

Writes the device descriptions of the input devices connected to the CON Unit into the CPU Unit. Activating the emulation in the CPU Unit.

Activates the emulation of already stored device descriptions in the CPU Unit. <'Hot Key'>, <h>, <e>, <Enter>

Deactivates the emulation of active device descriptions in the CPU Unit. The input devices connected to the CON Unit will be now passed transparently to the source (computer, CPU).

Deactivates the emulation of active device descriptions in the CPU Unit. Deletes the descriptions out of the CPU Unit. The input devices connected to the CON Unit will be now passed transparently to the source (computer, CPU).

NOTE: When using a USB combo device as a USB-HID input device, switching to a CPU Unit with activated USB-HID Ghosting

may cause limited functionality.

<'Hot Key'>, <h>, <w>, <Enter>

<'Hot Key', <h>, <d>, <Enter>

<'Hot Key', <h>, <r>, <Enter>

4.5 Configuration File

The KVM Extender contains a configuration file (Config.txt) to set specific parameters and to read out device and video information. You can find it on the flash drive of the KVM Extender. The flash drive can be opened by a mini USB connection to a computer.

The configuration file can be edited with all common text editors.

NOTE: After setting a parameter, you need to restart the KVM Extender.

NOTE: To ensure correct identification and acceptance of the parameters, the start command #CFG has to be written into the first

line of the Config.txt file.

4.5.1 Parameters for CPU Units

You can write the following parameters into the configuration file of a CPU Unit.

Table 4-5. Parameters for CPU units.

DDC Management

Parameter Function

ENAHPDET Enable hotplug switch

LOCKEDID Activate DDC write protection

Digital Audio

Parameter Function

SRC32000 Activate sample rate conversion, sample rate 32 kHz (only with digital audio upgrade module)

Page 80

724-746-5500 | blackbox.com

Chapter 4: Configuration

Table 4-5 (continued). Parameters for CPU units.

Digital Audio (continued)

Parameter Function

SRC4410 0 Activate sample rate conversion, sample rate 44,1 kHz (only with digital audio upgrade module)

SRC48000 Activate sample rate conversion, sample rate 48 kHz (only with digital audio upgrade module)

SRC96000 Activate sample rate conversion, sample rate 96 kHz (only with digital audio upgrade module)

SRC_NONE Deactivate sample rate conversion (only with digital audio upgrade module)

Compression

Parameter Function

MEDCPRATE Activate medium compression rate

MINCPRATE Activate low compression rate

MA XCPRATE Activate high compression rate

Shared Operation

Parameter Function

KBDCON Activate Keyboard Connect (only with redundant CPU Units)

MO UCON Activate Mouse Connect (only with redundant CPU Units)

RELEASETIME=n Release timer n = 0...9 seconds for Mouse and Keyboard Connect, without parameter = 10 seconds

General Settings

Parameter Function

DISPLAY2 Show video channel 2 per default after switching on the respective Dual-Head unit

4.5.2 Parameters for CON Units

You can write the following parameters into the configuration file of a CON Unit.

Table 4-6. Parameters for CON units.

Output Settings

Parameter Function

1080p50Hz Always display 50 Hz when using 1920 x 1080

DISEXTOSD Deactivate extender OSD

ENAFRAME Show orange colored frame when losing extender connection

ENAHOLDPIC Show last transmitted picture highlighted by an orange colored frame when losing connection

ENADDCTX Activate DDC transmission by unplugging and connecting the monitor back to the CON Unit

CENTERMODE

PAR AM = V Simultaneous output of DVI-D and VGA signal (DVI-I module only)

Simulate the native resolution of Dual-Link monitors by an additional black frame in order to enable Instant Switching (Dual-Link models only).

724-746-5500 | blackbox.com

Page 81

Chapter 4: Configuration

4.5.3 Parameters for CPU und CON Units

You have to write the following parameters into the configuration file of both CON Unit and CPU Unit.

Table 4-7. Parameters for CPU and CON units.

Local switching

Parameter Function

BLANKSCR

PRIVATEMODE

USB 2.0 embedded

Parameter Function

ENAUSB11

Activate dark switching between local and remote console by keyboard or mouse event (only with HDMI extenders and local control by an USB-HID CON upgrade module).

Activate switching of video and control between local and remote console by keyboard commands (only with HDMI extenders and local control by an USB-HID CON upgrade module).

Activate USB 1.1 mode for USB 2.0 embedded upgrade modules (only with USB 2.0 embedded upgrade module).

Page 82

724-746-5500 | blackbox.com

Chapter 5: Operation

5. Operation

5.1 Download of DDC Information

By default, data from the internal DDC list is reported to the source (computer, CPU). If these settings do not lead to a satisfying result, you can download and store the console monitor’s DDC information internally. The devices must be configured accordingly (see Section 4.2).

On all KVM Extenders with USB-HID support, the user can load the DDC information of the console monitor via keyboard command under operating conditions.

1. Enter Command Mode with the “hotkey” (see Section 4.2).

2. Press the <a> key to download the DDC information of the console monitor.

The screen goes black for a short time.

At the same time Command Mode is closed and the keyboard LEDs return to previous status.

3. Restart the corresponding source (computer, CPU).

The video mode has been readjusted. Screen quality should be optimal. The CPU should now show the console monitor as the current screen, together with the available video resolutions.

The DDC information of the console monitor was loaded once. Reloading is possible by repeating the operation.

5.2 Shared Operation of redundant CPU Units

CPU Units with a redundant connector for interconnect cables offer the possibility for a competing control by two connected CON Units.

Taking over control is performed using a keyboard and/or mouse. The release timer function determines the release time of the input devices at one of the CON Units after that control can be taken over from the second CON Unit.

In order to configure a redundant CPU Unit for the operation with two competing CON Units, proceed as follows:

1. Connect a redundant CPU Unit to any source (computer, CPU) by using a mini USB connection.

2. Open the file "Config.txt" that is located on the appearing flash drive of the extender.

3. Activate the release timer by writing the parameter RELEASETIME=n into the second line. The variable "n" defines the time in seconds and has to be replaced by the numbers 0 to 9 (e.g. RELEASETIME=5). If this parameter is not activated at all, the release time is set to 2 seconds by default. The parameter RELEASETIME=X deactivates the shared operation.

4. Save your changes.

5. Reboot the CPU Unit.

724-746-5500 | blackbox.com

Page 83

Chapter 5: Operation

Figure 5-1. Example View – Config.txt.

NOTE: When using a USB combo device as a USB-HID input device, switching to a CPU Unit with activated USB-HID Ghosting

may cause limited functionality.

Page 84

724-746-5500 | blackbox.com

Chapter 6: Troubleshooting

6. Troubleshooting

6.1 General Failures

Table 6-1. General failures troubleshooting.

Diagnosis Possible Reason Measure

Parameter not set or saved • Write parameter into Config.txt file and save changes.

Start Commanc # CFG not set • Write start command #CFG into first line of the Config.txt file.

Config.txt parameter without function

6.2 Blank Screen

CPU module, rear view CON module, rear view

Parameter written incorrectly • Check correct spelling and capitalization.•

Extender not restarted • Restart extender.

Figure 6-1. Blank screen.

Table 6-2. Blank screen troubleshooting.

Diagnosis Possible Reason Measure

LED 3 off Power supply • Check power supply units and the connection to the power net work.

LED 1 on or LED 2 off Connection between the CON unit and the CPU unit • Check interconnect cables and connections.

• Check DVI-D cable to CPU.

CPU unit: LED 3 red or yellow No video signal detected by source (computer, CPU)

No monitor detected

• Download DDC information from console monitors (see Chapter 5). Reboot CPU if necessary.

• Check connection, length, and quality of the DVI-D cable to monitor; tighten cable thumbscrews.

CON unit: LED 3 red or yellow

No video signal detected from CPU unit

• Check connection, length, and quality of the interconnect cables between the units.

• Download DDC information from console monitors (see Chapter 5). Reboot CPU if necessary.

724-746-5500 | blackbox.com

Page 85

Chapter 6: Troubleshooting

6.3 USB-HID

CPU module, rear view CON module, rear view

Figure 6-2. USB-HID module.

Table 6-3. USB-HID troubleshooting.

Diagnosis Possible Reason Measure

Keyboard LEDs Shift and Scroll are blinking Keyboard in command mode • Press <Esc> to leave command mode

CPU unit: LED 3 green or violet No USB connec tion to CPU

CON unit: LED 3 green or violet Problems with USB connection

No USB- HID device • Connect USB -HID device.

USB device without function

USB-HID device is not supported

6.4 Serial Connection

Table 6-4. Serial connection upgrade module troubleshooting.

Diagnosis Possible Reason Measure

Settings of the serial interface • Check baud rate and general settings.

Serial device not operational

No serial connection to CPU • Check connection via serial cable.

No serial connection to end device (for example, touchscreen, keyboard)

• Check connection of USB cable to CPU; select another USB port if necessary.

• Remove USB and power cable and restar t CPU. Connect power cable first.

• Check connection of USB cable to USB-HID device.

• Remove DVI and power cable and restar t CON unit. Connect power cable first.

• Contact Black Box Technical Support at 724-746-550 0 or info@ blackbox.com if necessar y.

• Connect serial end device and switch it on.

• Check connection via serial cable.

Touchscreen not operational Hardware handshake • Adjust serial interface to X- ON /X-OFF software handshake.

Page 86

724-746-5500 | blackbox.com

6.5 Analog Audio

Table 6-5. Analog audio troubleshooting.

Diagnosis Possible Reason Measure

• Connect analog audio source.

• Check audio cable.

• Switch analog audio source on.

• Activate analog output at CPU/audio source.

• Connect analog audio sink and switch it on.

• Check connection of audio cable.

• Connect analog audio source (microphone) .

• Check connection of audio cable.

• Switch analog audio source on.

• Activate analog output at audio source.

• Check connection to CPU.

• Check connection of audio cable.

• Check audio configuration.

CON unit: No signal at audio output

CPU unit: No signal at audio output (microphone )

No audio connection to CPU/audio source

No signal

No audio connection to audio sink (for example, speakers)

No audio connection to audio source (microphone)

No signal

No audio connection to audio sink (for example, CPU )

Chapter 6: Troubleshooting

6.6 Digital Audio

CPU module, rear view CON module, rear view

Figure 6-3. Digital audio module.

Table 6-6. Digital audio upgrade module troubleshooting.

Diagnosis Possible Reason Measure

No audio connection to CPU/audio source

CPU unit: LED 1 red

No signal

No audio connection to audio sink (for example, speakers)

CON unit: LED 1 red

No signal • Check signal at CPU unit.

• Connect digital audio source.

• Check connection of audio cable.

• Switch digital audio source on.

• Activate digital output at CPU/audio source.

• Connect digital audio sink.

• Check connection of audio cable.

No signal /LEDs 1 OK Digital silence at active audio source

• Check LEDs at CPU unit.

• Check audio format.

• Change audio input.

724-746-5500 | blackbox.com

Page 87

Chapter 6: Troubleshooting

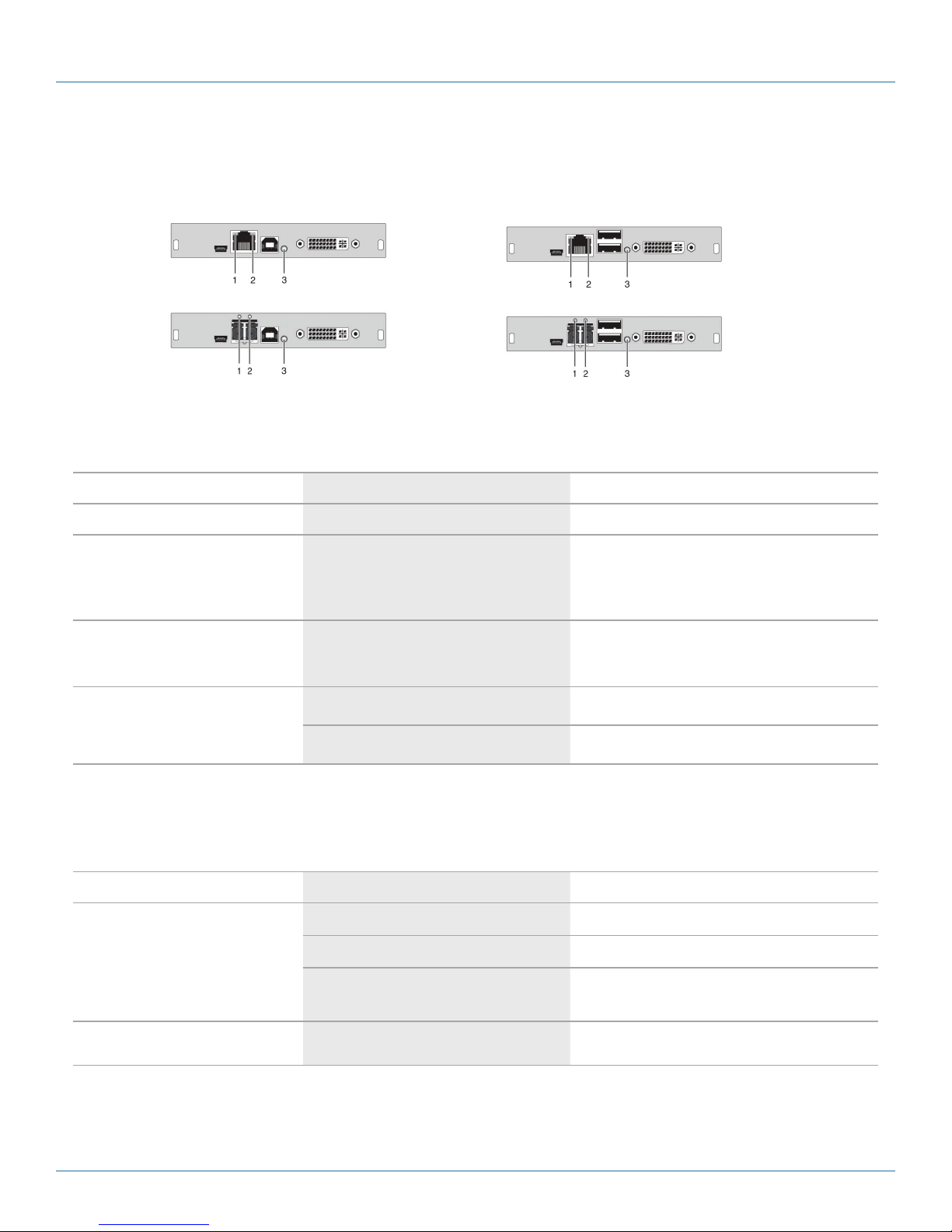

6.7 USB-HID Upgrade Module

CPU module, rear view CON module, rear view

Figure 6-4. USB-HID at the basic module.

Table 6-7. USB-HID upgrade module troubleshooting.

Diagnosis Possible Reason Measure

• Check connection of USB cable to USB-HID device.

LEDs 1 and 2 off Device at higher/lower USB-HI D port not detected

• Connect USB -HID device.

• Contact Black Box Technical Support at 724-746-550 0 or info@ blackbox.com or your local Black Box subsidiary if neces sary.

CPU unit: LED 3 off Connec tion between CON unit and CPU unit • Check interconnect cable and connectors.

CON unit: LED 3 off Keyboard in command mode • Press <Esc> to leave command mode.

CON unit: LED 3 flashing slowly

Connection between CON unit and CPU unit • Check interconnect cable and connections.

Keyboard in command mode • Press < Esc> to leave command mode.

6.8 USB 2.0 Embedded

CPU module, rear view CON module, rear view

Figure 6-5. USB 2.0 Embedded.

Table 6-8. USB-HID upgrade module troubleshooting.

Diagnosis Possible Reason Measure

• Check connection USB cable to CPU; select another USB por t

CPU & CON Unit: LED 3 off No connection to CPU

if n ecessary.

• Remove USB and power cable and restar t CPU. Connect power cable first.

CPU & CON Unit: LED 2 off Connection between CON unit and CPU unit • Check interconnect cable and connectors.

No USB 2.0 device • Connect USB 2.0 device.

CPU & CON Unit: LED 2 off and USB 2.0 device without function

USB 2.0 device is not supported

Page 88

• Check installation at the CPU, also the necessary drivers.

• New connection of the USB 2.0 device.

• Contact dealer if necessary

724-746-5500 | blackbox.com

Chapter 6: Troubleshooting

6.9 USB 2.0 Upgrade Module

CPU module, rear view CON module, rear view

Figure 6-6. USB 2.0 upgrade module.

Table 6-9. USB 2.0 upgrade module troubleshooting.

Diagnosis Possible Reason Measure

• Check connection USB cable to CPU; select another USB por t

CPU unit: All LEDs off No connection to CPU

CON unit: LED 3 red Connection between CON unit and CPU unit • Check interconnect cable and connectors.

No USB 2.0 device • Connect USB 2.0 device.

CON unit: LED 3 flashing green /turquoise and USB 2.0 device without func tion

USB 2.0 device is not supported

if n ecessary.

• Remove USB and power cable and restar t CPU. Connect power cable first.

• Check installation at the CPU. Also check to make sure the CPU has the necessary drivers.

• New connection of the USB 2.0 device.

• Contact Black Box Technical Support at 724-746-550 0 or info@ blackbox.com if necessar y.

724-746-5500 | blackbox.com

Page 89

Chapter 7: Technical Support

7. Technical Support

7.1 Contacting Black Box

If you determine that your ServSwitch DKM Extender is malfunctioning, do not attempt to alter or repair the unit. It contains no user-serviceable parts. Contact Black Box Technical Support at 724-746-5500 or info@blackbox.com or your local Black Box subsidiary.

Before you do, make a record of the history of the problem. We will be able to provide more efficient and accurate assistance if you have a complete description, including:

• the nature and duration of the problem.

• when the problem occurs.

• the components involved in the problem.

• any particular application that, when used, appears to create the problem or make it worse.

7.2 Shipping and Packaging

If you need to transport or ship your ServSwitch DKM Extender:

• Package it carefully. We recommend that you use the original container.

• If you are returning the unit, make sure you include everything you received with it. Before you ship for return or repair, contact Black Box to get a Return Authorization (RA) number.

Page 90

724-746-5500 | blackbox.com

Chapter 8: Glossary

8. Glossary

The following terms are commonly used in this guide or in video and KVM technology:

Access: A system to operate a source (computer, CPU) from two consoles.

AES/EBU: Digital audio standard that is officially known as AES3. It’s used to carry digital audio signals between devices.

CATx : Any CAT5e (CAT6, CAT7) cable

CGA: The Color Graphics Adapter (CGA) is an old analog graphic standard that displays up to 16 colors and at a maximum

resolution of 640 x 400 pixels.

Component Video: The Component Video (YPbPr) is a high-quality video standard that consists of three independently and separately transmittable video signals: the luminance signal and two color difference signals.

Composite Video: The Composite Video is also called FBAS and it is part of the PAL TV standard.

CON module: Component of a DKM Modular Extender or Media Extender to connect to the console (monitor(s), keyboard and

mouse; optionally also with USB 2.0 devices).

Console: Keyboard, mouse and monitor.

CPU module: Component of a DKM Modular Extender or Media Extender to connect to a source (computer, CPU).

DDC: The Display Data Channel (DDC) is a serial communication interface between monitor and source (computer, CPU). It can

exchange data via a monitor cable and the operating system can install and configure a monitor driver automatically.

Dual-Head: A system with two video connections.

Dual-Link: A DVI-D interface for resolutions up to 2560 x 2048 that transmits signals up to 330 MPixel/s (24-bit)

DVI: Digital video standard, introduced by the Digital Display Working Group (http://www.ddwg.org). Single-Link and Dual-Link

standard are distinguished. The signals have TMDS level.

DVI-I: A combined signal (digital and analog) that allows running a VGA monitor at a DVI-I port—in contrast to DVI-D (see DVI).

EGA: The Enhanced Graphics Adapter (EGA) is an old analog graphics standard, introduced by IBM in 1984. It uses a DB9

connector for connection.

FBAS: The analog color video baseband signal (FBAS) is also called Composite Video and it is part of the PAL TV standard.

Fiber: Single-mode or multimode fiber cables.

KVM: Keyboard, video and mouse.

Mini-XLR: Industrial standard for electrical plug connections (3-pole) for the transmission of digital audio and control signals.

Multimode: 62.5µ fiber cable or 50µ fiber cable

OSD: The on-screen-display displays information or operates a device.

Quad-Head: A system with four video connections.

RCA (Cinch): A non-standardized plug connection that transmits electrical audio and video signals, especially with coaxial cables.

SFP: Small Form Factor Pluggable (SFPs) are pluggable interface modules for Gigabit connections. SFP modules are available for

CATx and fiber interconnect cables.

Single-Head: A system with one video connection.

Single Link: A DVI-D interface that supports resolutions up to 1920 x 1200 by transmitting signals up to 165 Megapixels per

second (24-bit). Alternative frequencies are Full HD (1080p), 2K HD (2048 x 1080), and 2048 x 1152.

Single-mode: 9µ fiber cable

724-746-5500 | blackbox.com

Page 91

Chapter 8: Glossary

S/PDIF: A digital audio interconnect that is used in consumer audio equipment over relatively short distances.

S-Video (Y/C): The S-Video (Y/C) is a video format that transmits luminance and chrominance signals separately. It has a higher

quality standard than FBAS.

TOSLINK: Standardized fiber connection system that digitally transmits audio signals (F05 plug connection).

Triple -Head : A system with three video connections.

USB-HID: USB-HID devices (Human Interface Device) allow for data input. There is no need for a special driver during installation;

“New USB-HID device found” is reported. Typical HID devices include keyboards, mice, graphics tablets, and touchscreens. Storage, video, and audio devices are not HID.

VGA: Video Graphics Array (VGA) is a computer graphics standard with a typical resolution of 640 x 480 pixels and up to 262,144 colors. It follows the graphics standards MDA, CGA and EGA.

Page 92

724-746-5500 | blackbox.com

NOTES

724-746-5500 | blackbox.com

Page 93

NOTES

Page 94

724-746-5500 | blackbox.com

NOTES

724-746-5500 | blackbox.com

Page 95

Black Box Tech Support: FREE! Live. 24/7.

Tech support the way it should be.

Great tech support is just 60 seconds away at 724-746-5500 or blackbox.com.

About Black Box

Black Box provides an extensive range of networking and infrastructure products. You’ll find everything from cabinets and racks and power and surge protection products to media converters and Ethernet switches all supported by free, live 24/7 Tech support available in 60 seconds or less.

© Copyright 2015. Black Box Corporation. All rights reserved. Black Box® and the Double Diamond logo are registered trademarks of BB Technologies, Inc. Any third-party trademarks appearing in this manual are acknowledged to be the property of their respective owners.

ACX1MR_T-user_rev3

724-746-5500 | blackbox.com
