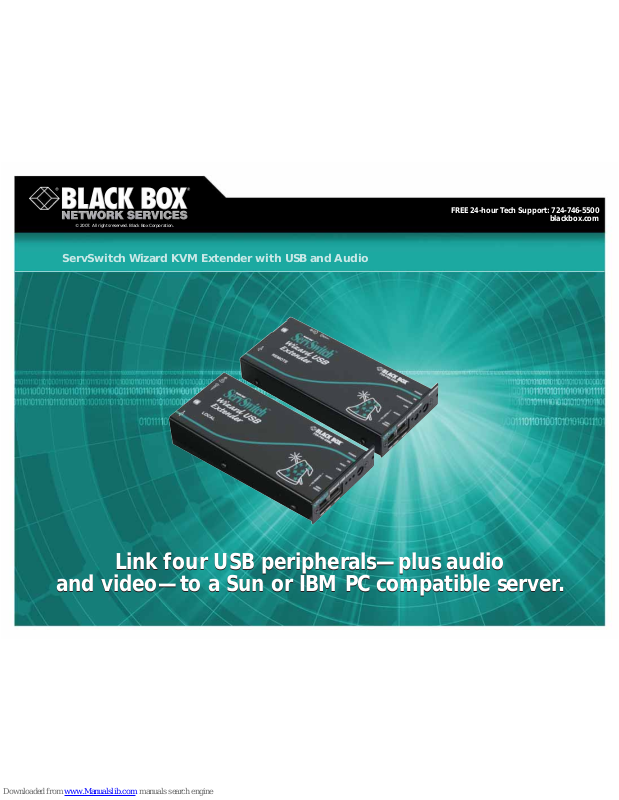

Black Box ACU5050A Specifications

Link four USB peripherals—plus audio

and video—to a Sun or IBM PC compatible server.

Link four USB peripherals—plus audio

and video—to a Sun or IBM PC compatible server.

ServSwitch Wizard KVM Extender with USB and Audio

© 2007. All rights reserved. Black Box Corporation.

FREE 24-hour Tech Support: 724-746-5500

blackbox.com

2 of 3

6/8/2007
#12056

724-746-5500 blackbox.com

FEA TURES

• Works with Sun or IBM PC compatible
computers.

• Transparent USB 1.1 operation.

• 4-port USB hub is included at the
receiver end.

• Select from four brightness levels.

• High-quality, low-noise audio via
dedicated differential signaling.

• Interface powered at the computer end,
IEC power supply at the user end.

• Preserves all sync polarities.

Rackmount multiple local and remote units

in the optional ServSwitch Wizard Extender Chassis.

OVERVIEW

Place up to 4 USB peripherals—along with a speaker,
micro-phone, and video monitor—up to 394 feet (120 m)
away from a Sun

®

or IBM®compatible PC or server. The
ServSwitch Wizard KVM Extender with USB and Audio
supports Sun USB keyboards and mice, and PC compatible
USB keyboards and mice.

Clear, crisp video and USB version 1.1 signals travel
over ordinary CATx (CAT5, CAT5e, or CAT6)cable. Your
configuration can be complete with just one CATx cable
that transfers video signals.

Or, use asecond CATx cable to carry microphone and
stereo audio signals. One cable carries video and USB data
signals while the second cable accommodates microphone
and speaker signals.

The ServSwitch Wizard KVM Extender with USB and Audio
consists of a local and a remote unit. The local unit features
audio (speaker and microphone), video, and USB inputs.
The remote unit has four USB, two audio (speaker and
microphone), and one video monitor outputs.

In a typical setup, the local module connects to the system.
The remote module attaches to the user and up to four USB
peripherals including printers, scanners, or workstations. Both
local and remote modules also connect to video and audio.
The remote module is powered by an included power supply
(PS649-R2). A power supply is required by the local module
only when no USB connection is made to the PC. The power
supply unit attaches to an AC power source at the local end.

The local and remote modules connect together via up
to 394 feet (120 m) of 1 or 2 ordinary Category 5 twisted­pair cables.

Place the modules on a desk (or floor) or mount them in
a rack. (For rackmounting, order the rackmount chassis (see
page 3) or call our FREE Tech support.

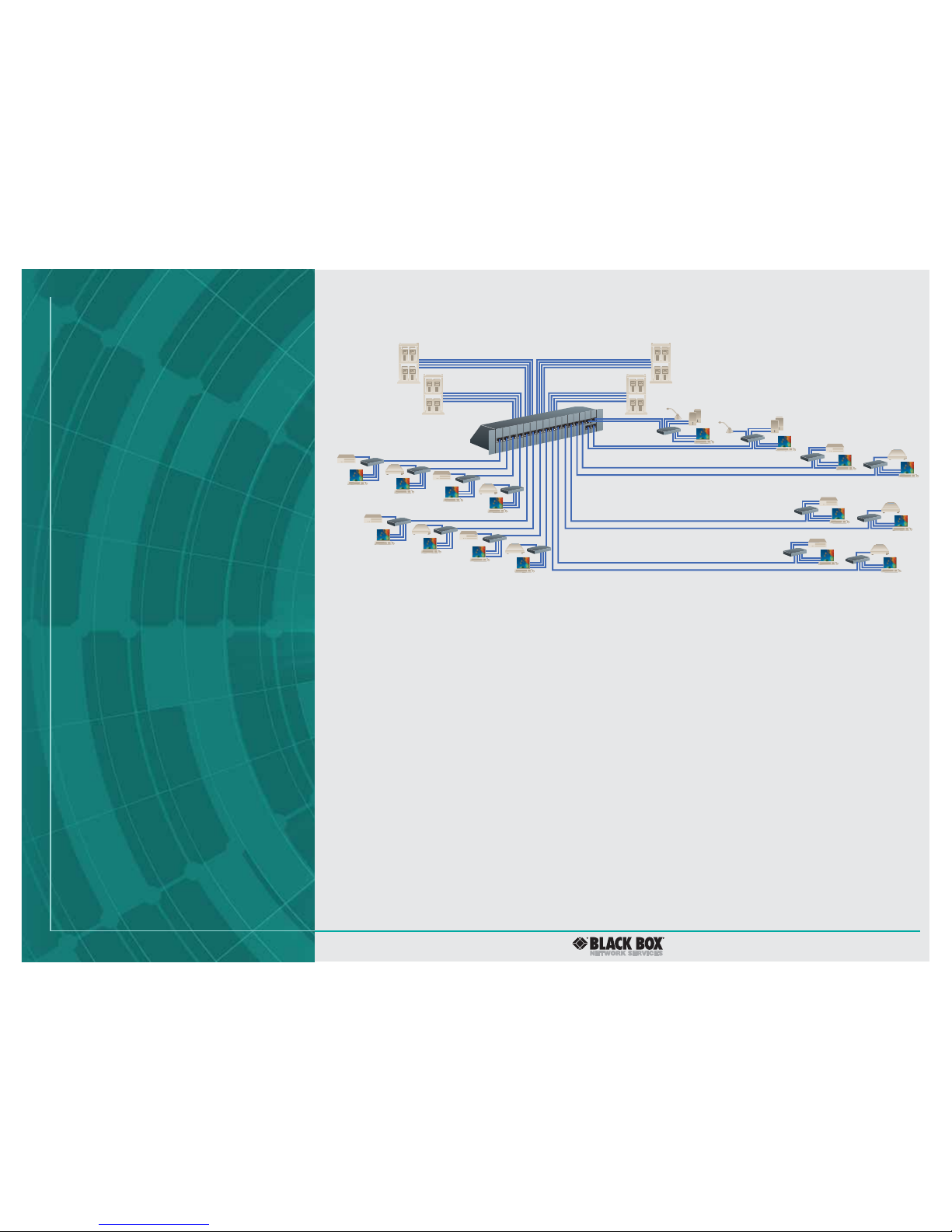

ServSwitch Wizard Extender Chassis

(ACU5000A) with up to (16) ServSwitch

Wizard USB Extenders with Audio

(ACU5050A)

Servers

Remote Workstations with

Peripheral Devices

Servers

Remote Workstations with

Peripheral Devices

Remote Workstations with

Audio Input/Output

(Requires Second CATx Connection)

3 of 3

6/8/2007
#12056

724-746-5500 blackbox.com

TECH SPECS

Distance (Maximum) — Up to 394 feet (120 m) between the local and

remote modules

Operating Systems — Windows® XP , Windows 2000, Windows 2003

server, Linux

®

, Sun

User Controls — (1) 4-position DIP switch
MTBF — 500,000 hours
Connectors — Local module:

(2) RJ-45, (1) USB Type B,
(1) HD15 female for video,
(2) 3.5-mm audio, (1) barrel
connector for power supply;

Remote module: (2) RJ-45,

(4) USB 1.1 Type B, (1) HD15
female for video, (2) 3.5-mm
audio, (1) barrel connector for
power supply

Indicators — Local module: (3) LEDs:

(1) ON, (1) Host, (1) Link; Remote module:(2) LEDs: (1)ON,
(1) Link

Temperatur e Tolerance —

Operating: 32 to 176°F (0 to 80°C);
Storage: -22 to +176°F (-30 to +80°C)

Relative Humidity — 5 to 85%, noncondensing
Power — Each unit: (1) external 100- to 240-VAC power supply,

47 to 63 Hz, 500 mA

Size — Each module: 1"H x 2.9"W x 6.4"D (2.5 x 7.4 x 16.3 cm)
Weight — Each module: 1 lb. (0.5 kg)

Item Code

ServSwitch Wizard KVM Extender
with USB and Audio ACU5050A

T o rackmount the extender, order…

Rackmount Chassis for ServSwitch

Wizard™KVM Extender ACU5000A

Recognize any of these situations?

• You wait more than 30 minutes to get through
to a vendor’s tech support.

• The so-called “tech” can’t help you or gives you
the wrong answer.

• You don’t have a purchase order number and the
tech refuses to help you.

• It’s 9 p. m. and you need help, but your vendor’s
tech support line is closed.

According to a survey by Data Communications
magazine, 90% of network managers surveyed say
that getting the technical support they need is extremely
important when choosing a vendor. But even though
network managers pay anywhere from 10 to 20% of their
overall purchase price for a basic service and support
contract, the technical support and service they receive falls
far short of their expectations—and certainly isn’t worth
what they paid.

At Black Box, we guarantee the best value and the
best support. You can even consult our Technical Support
Experts before you buy if you need help selecting just
the right component for your application.

Don’t waste time and money—call Black Box today.

Why Buy From Black Box? Exceptional V alue.
Exceptional Tech Support. Period.

ACU5050A:

✦ L

ocal extender module

✦ R

emote extender module

✦

Video cable

✦ A

udio cable

✦

USB cable

✦

(2) power supplies ([1] for local module, [1] for remote

module) with power cord (PS649-R2)

✦

(8) self-adhesive rubber feet

✦ U

ser’s manual

WHA T‘S INCLUDED

ACU5050A
