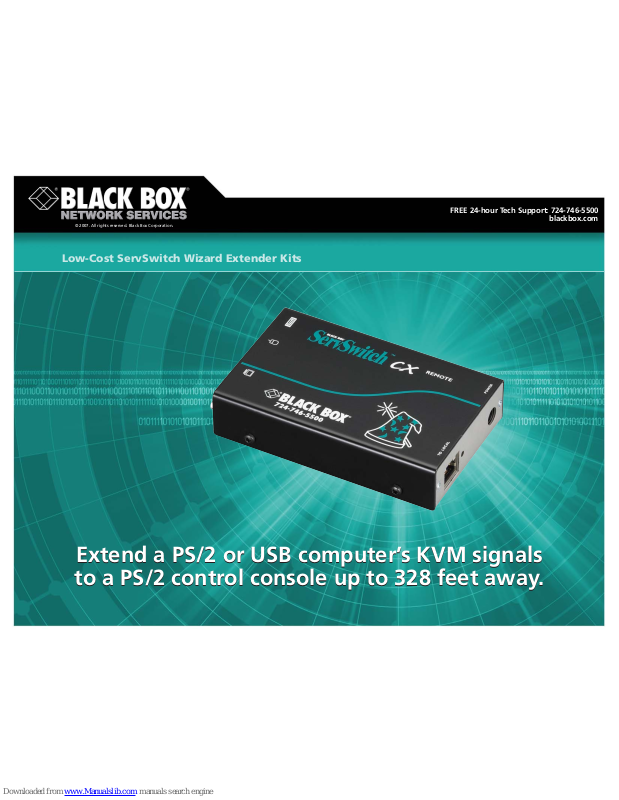

Extend a PS/2 or USB computer’s KVM signals
to a PS/2 control console up to 328 feet away.
Extend a PS/2 or USB computer’s KVM signals
to a PS/2 control console up to 328 feet away.
Low-Cost ServSwitch Wizard Extender Kits
© 2007. All rights reserved. Black Box Corporation.
FREE 24-hour Tech Support: 724-746-5500
blackbox.com
Page 2
2 of 3
FEATURES
• Provide 1600 x 1200 resolution
up to 328 feet (100 m).
• Provide 1900 x 1440 resolution
up to 164 feet (50 m).
• Work with flat-screen and CRT-style
monitors.
• Perfect for short-haul extension
applications over CATx cable.
• Compatible with a wide range of
operating systems: Windows
®
, DOS,
Linux
®
, UNIX®, BSD, Sun®OS, Solaris®,
Mac
®
, NetWare®, and more!
• Fully support DDC for automatic video
setup plus USB emulation, ensuring
maximum compatibility with Sun
and Mac computers.
• Include Rackmount Blanking Plate
(ACU5005).
Connect to a PS/2 or USB Computer!
OVERVIEW
Need simple, inexpensive KVM extension for short distances?
BLACK BOX
®
Low-Cost ServSwitch Wizard™Extender Kits extend
your CATx transmissions up to 328 feet (100 m) for PS/2
®
and
USB computers.
You get top-flight video performance. Enjoy resolutions
of 1600 x 1200 up to 328 feet (100 m) and 1900 x 1440 up to
164 feet (50 m). These Wizard Extender Kits feature built-in
skew compensation and emulated DDC so your computer’s
high-performance video card can be used at high resolutions.
What’s more, both extender models offer their own brightness correction to ensure clear and bright images. You can use
the extender kits with flat-screen and CRT-style monitors.
If you use the ACU5002A, you can use a USB computer
with a PS/2 keyboard and mouse at the remote console, which
enables essential functionality such as country code reporting
for Sun computers.
Low-Cost ServSwitch
Wizard Extender Kit
(ACU5001A), Remote Unit
Low-Cost ServSwitch
Wizard Extender Kit
(ACU5001A), Local Unit
PS/2 console
GigaBase 350 CAT5e
Patch Cable (EVNSL51),
up to 328 ft. (100 m)
PS/2 computer
with PS/2 mouse,
PS/2 keyboard, video,audio,
and USB connections
With a PS/2 Computer
Low-Cost ServSwitch
Wizard Extender Kit
(ACU5002A), Remote Unit
Low-Cost ServSwitch
Wizard Extender Kit
(ACU5002A), Local Unit
PS/2 console
GigaBase 350 CAT5e
Patch Cable (EVNSL51),
up to 328 ft. (100 m)
USB computer with
video, audio,and USB
connections
With a USB Computer
1/23/2007
#26547
724-746-5500 blackbox.com
Page 3
3 of 3
TECH SPECS
Distance (Maximum) — 328 feet (100 m)
Resolution — 1600 x 1200 up to 328 ft. (100 m);
1900 x 1440 up to 164 ft. (50 m)
CE Approval — Yes
Connectors —
ACU5001A:
Local module: Interconnect: (1) RJ-45; Keyboard and mouse:
(2) 6-pin mini-DIN F; Video: (1) HD15 F;
Remote module: Interconnect: (1) RJ-45; Keyboard and mouse:
(2) 6-pin mini-DIN F; Video: (1) HD15 F; Power: (1) 2.5-mm jack;
ACU5002A:
Local module: Interconnect: (1) RJ-45; Keyboard and mouse:
(1) USB Type A F; Video: (1) HD15 F;
Remote module: Interconnect: (1) RJ-45; Keyboard and mouse:
(2) 6-pin mini-DIN F; Video: (1) HD15 F; Power: (1) 2.5-mm jack
Operating Temperature — 32 to 104°F (0 to 40°C)
Power — 100 to 240 VAC, 50 to 60 Hz, autosensing, external
Size — 1"H x 1.8"W x 2.4"D (2.5 x 4.6 x 6.1 cm)
1/23/2007
#26547
Recognize any of these situations?
• You wait more than 30 minutes to get through
to a vendor’s tech support.
• The so-called “tech” can’t help you or gives you
the wrong answer.
• You don’t have a purchase order number and the
tech refuses to help you.
• It’s 9 p. m. and you need help, but your vendor’s
tech support line is closed.
According to a survey by Data Communications
magazine, 90% of network managers surveyed say
that getting the technical support they need is extremely
important when choosing a vendor. But even though
network managers pay anywhere from 10 to 20% of their
overall purchase price for a basic service and support
contract, the technical support and service they receive falls
far short of their expectations— and certainly isn’t worth
what they paid.
At Black Box, we guarantee the best value and the
best support. You can even consult our Technical Support
Experts before you buy if you need help selecting just
the right component for your application.
Don’t waste time and money— call Black Box today.
Why Buy From Black Box? Exceptional Value.
Exceptional Tech Support. Period.
724-746-5500 blackbox.com
Your Low-Cost ServSwitch Wizard Extender Kit comes
with everything you need to make connections over CAT5e
copper cable.
✦
(1) local module with either PS/2 style keyboard and
mouse connections (ACU5001A) or USB keyboard and
mouse connections (ACU5002A).
✦
(1) remote module.
✦
(1) power adapter with (1) U.S. power lead.
✦
(4) self-adhesive rubber feet.
✦
(1) Rackmount Blanking Plate (ACU5005).
✦
(1) CD-ROM.
WHAT‘S INCLUDED
Item Code
Low-Cost ServSwitch Wizard Extender Kits
for PS/2 Console and PS/2 Computer ACU5001A
for PS/2 Console and USB Computer ACU5002A
You may also need…
GigaBase®350 CAT5e Patch Cable, Basic Connector,
Straight-Pinned, Blue, Custom Lengths EVNSL51
