Black Box AC500AE, AC501A, AC502A, AC502AE, AC503A User Manual

CUSTOMER

SUPPORT

INFORMATION

Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax [phone]
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: [e-mail]

NOVEMBER 2003
AC500A AC502A
AC500AE AC502AE
AC501A AC503A
AC501AE AC503AE

CAT5 VGA Video Splitter

CAT5 VGA Video Splitter

4 Channel

CAT5 VGA Video Splitter

2 Channel

CAT5 VGA Video Splitter Remote LR

CAT5 Video Splitter Remote

1

FCC AND IC RFI STATEMENTS

FEDERAL COMMUNICATIONS COMMISSION

AND

INDUSTRY CANADA

RADIO FREQUENCY INTERFERENCE STATEMENTS

This equipment generates, uses, and can radiate radio frequency energy and if not
installed and used properly, that is, in strict accordance with the manufacturer’s
instructions, may cause interference to radio communication. It has been tested
and found to comply with the limits for a Class A computing device in accordance
with the specifications in Subpart B of Part 15 of FCC rules, which are designed
to provide reasonable protection against such interference when the equipment
is operated in a commercial environment. Operation of this equipment in a
residential area is likely to cause interference, in which case the user at his own
expense will be required to take whatever measures may be necessary to correct
the interference.

Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.

This digital apparatus does not exceed the Class A limits for radio noise emission from
digital apparatus set out in the Radio Interference Regulation of Industry Canada.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites
applicables aux appareils numériques de la classe A prescrites dans le Règlement sur le
brouillage radioélectrique publié par Industrie Canada.

2

CAT5 VGA VIDEO SPLITTER

NORMAS OFICIALES MEXICANAS (NOM)

ELECTRICAL SAFETY STATEMENT

INSTRUCCIONES DE SEGURIDAD

1. Todas las instrucciones de seguridad y operación deberán ser leídas antes
de que el aparato eléctrico sea operado.

2. Las instrucciones de seguridad y operación deberán ser guardadas para
referencia futura.

3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de
operación deben ser respetadas.

4. Todas las instrucciones de operación y uso deben ser seguidas.

5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca
de la tina de baño, lavabo, sótano mojado o cerca de una alberca, etc..

6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que
sean recomendados por el fabricante.

7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea
recomendado por el fabricante.

8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá
a lo descrito en las instrucciones de operación. Todo otro servicio deberá ser
referido a personal de servicio calificado.

9. El aparato eléctrico debe ser situado de tal manera que su posición no
interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,
alfombra o superficie similar puede bloquea la ventilación, no se debe colocar
en libreros o gabinetes que impidan el flujo de aire por los orificios de
ventilación.

10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor
como radiadores, registros de calor, estufas u otros aparatos (incluyendo
amplificadores) que producen calor.

3

NOM STATEMENT

11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del
tipo descrito en el instructivo de operación, o como se indique en el aparato.

12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización
del equipo no sea eliminada.

13. Los cables de la fuente de poder deben ser guiados de tal manera que no
sean pisados ni pellizcados por objetos colocados sobre o contra ellos,
poniendo particular atención a los contactos y receptáculos donde salen
del aparato.

14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las
recomendaciones del fabricante.

15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas
de energia.

16. El cable de corriente deberá ser desconectado del cuando el equipo no sea
usado por un largo periodo de tiempo.

17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean
derramados sobre la cubierta u orificios de ventilación.

18. Servicio por personal calificado deberá ser provisto cuando:

A: El cable de poder o el contacto ha sido dañado; u

B: Objectos han caído o líquido ha sido derramado dentro del aparato; o

C: El aparato ha sido expuesto a la lluvia; o

D: El aparato parece no operar normalmente o muestra un cambio en su

desempeño; o

E: El aparato ha sido tirado o su cubierta ha sido dañada.

4

CAT5 VGA VIDEO SPLITTER

TRADEMARKS

AT and PS/2 are registered trademarks, and PC/XT is a trademark, of
International Business Machines Corporation.

Any other trademarks mentioned in this manual are acknowledged to be the property of the
trademark owners.

5

CONTENTS

Contents

Chapter Page

1. Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.1 Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.2 How to Use this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.3 What the Package Includes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.3.1 2-Port CAT5 VGA Video Splitter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.3.2 4-Port CAT5 VGA Video Splitter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.3.3 Remote Standard CAT5 VGA Video Splitter . . . . . . . . . . . . . . . . . . . . . 8

2.3.4 Remote Long-Range CAT5 VGA Video Splitter . . . . . . . . . . . . . . . . . . 8

2.4 Typical Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

3.1 Setting the DIP Switches (AC503A and AC503AE Only). . . . . . . . . . . . . . . 11

3.2 Installing the System Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.2.1 Connecting the 2-Port CAT5 VGA Video Splitter

(Central Unit) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3.2.2 Connecting the 4-Port CAT5 VGA Video Splitter

(Central Unit) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3.3 Installing the Screen Cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3.3.1 Connecting the 2-Port CAT5 VGA Video Splitter

and Remote Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

3.3.2 Connecting the 4-Port CAT5 VGA Video Splitter

and Remote Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

3.4 Connecting to the Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

4. Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

4.1 2-Port CAT5 VGA Video Splitter (Central Unit) . . . . . . . . . . . . . . . . . . . . . 17

4.1.1 Front Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

4.1.2 Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

4.2 4-Port CAT5 VGA Video Splitter (Central Unit) . . . . . . . . . . . . . . . . . . . . . 19

4.2.1 Front Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

4.2.2 Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

4.3 Remote Standard CAT5 VGA Video Splitter. . . . . . . . . . . . . . . . . . . . . . . . . 21

4.3.1 Front Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

4.3.2 Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

4.4 Remote Long-Range CAT5 VGA Video Splitter . . . . . . . . . . . . . . . . . . . . . . 22

4.4.1 Front Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

4.4.2 Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

4.5 Switching On the Units. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

5.1 Calling Black Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

5.2 Shipping and Packaging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

6

CAT5 VGA VIDEO SPLITTER

1. Specifications

System Requirements: 2-channel models: (1) PC, (1) local monitor,

(2) remote monitors;

4-channel models: (1) PC, (1) local monitor, (4) remote monitors

I/O Signals: Video signals: Red, Green, Blue, 0.7 Vp-p/75 ohms positive; Sync:

TTL vertical and horizontal

Resolution: Monitor: 1280 x 1024;

Horizontal: 30 to 100 kHz;
Vertical: 43 to 100 Hz

Transmission: Remote Standard Splitter to monitor: 360 ft. (109.7 m);

Remote Long-Range Splitter to monitor: 820 ft. (250 m)

Cables: 4-pair Category 5 twisted pair, 24 AWG

Connectors: AC500A(E): Input port: (1) HD15 male,

Pass-through port: (1) HD15 female,
Interconnect port: (2) RJ-45;

AC501A(E): Input port: (1) HD15 male,

Pass-through port (1) HD15 female,
Interconnect ports: (4) RJ-45;

AC502A(E), AC503A(E): Input port: (1) HD15 female,

Output port: (1) RJ-45

Enclosure: Shielded metal box

Size: AC500A(E), AC501A(E): 1.6"H x 7.7"W x 4.1"D (4.1 x 19.6 x 10.4 cm);

AC502A(E): 1.6"H x 4.4"W x 3.5"D (4.1 x 11.2 x 8.9 cm);
AC503A(E): 1.6"H x 6.3"W x 5"D (4.1 x 16 x 12.7 cm)

7

CHAPTER 2: Introduction

2. Introduction

2.1 Overview

The CAT5 VGA Video Splitter simultaneously distributes a CPU’s picture to several
monitors at up to 360 ft. (109.7 m) using CAT5 UTP Cables—without losing any
picture quality.

The CAT5 VGA Video Splitter supports AT

®

, PS/2®, or PC/XT™ computers and

VGA, SVGA, or XGA video standards.

2.2 How to Use this Manual

This manual is divided into five chapters:

• Chapter 1 lists technical specifications for the splitters.

• Chapter 2 describes the video splitter, what the package includes, and how to
use this manual.

• Chapter 3 explains how to install the video splitter system. It also illustrates and
explains the front and rear panels of both local and remote units.

• Chapter 4 describes the splitter’s front-panel operations and the rear-panel
connections.

• Chapter 5 describes how to troubleshoot the splitter.

If, after reading this manual, you have questions, please call Black Box Technical
Support at 724-746-5500.

2.3 What the Package Includes

Your package should include the following items. If anything is missing
or damaged, please contact Black Box at 724-746-5500.

2.3.1 2-P

ORT

CAT5 VGA V

IDEOSPLITTER

The 2-port host module (AC500A or AC500AE) comes with:

• (1) 2-Port CAT5 VGA Video Splitter

• (1) DB15 HD male to DB15 HD female screen cable

8

CAT5 VGA VIDEO SPLITTER

• 110- (for AC500A) or 220-VAC (for AC500AE) power supply

• Power cord

• This users’ manual

2.3.2 4-P

ORT

CAT5 VGA V

IDEOSPLITTER

The 4-port host module (AC501A or AC501AE) comes with:

• (1) 4-Port CAT5 VGA Video Splitter

• (1) 5-ft. (1.5-m) DB15 HD male to DB15 HD female screen cable

• 110- (for AC501A) or 220-VAC (for AC501AE) power supply

• Power cord

• This users’ manual

2.3.3 R

EMOTESTANDARD

CAT5 VGA V

IDEOSPLITTER

You’ll need one remote standard or remote long-range splitter for each monitor
you wish to connect. This model (AC502A or AC502AE) lets you connect the
remote unit up to 360 ft. (109.7 m) away from the host. For longer distances,
choose the long-range model described in Section 2.3.4.

• (1) Remote CAT5 VGA Video Splitter

• 110- (for AC502A) or 220-VAC (for AC502AE) power supply

• Power cord

• This users’ manual

2.3.4 R

EMOTELONG-RANGE

CAT5 VGA V

IDEOSPLITTER

You’ll need one remote standard or remote long-range splitter for each monitor
you wish to connect. This model (AC503A or AC503AE) lets you connect the
remote unit up to 820 ft. (250 m) away from the host.

• (1) Remote Long-Range CAT5 VGA Video Splitter

• 110- (for AC503A) or 220-VAC (for AC503AE) power supply

• Power cord

• This users’ manual

9

CHAPTER 2: Introduction

2.4 Typical Applications

Figure 2-1 shows a 2-Port VGA Video Splitter (central unit) broadcasting data to
two remote monitors via two Remote Standard CAT5 VGA Video Splitters or
Remote Long-Range CAT5 VGA Video Splitters.

Figure 2-1. Typical application of the 2-Port VGA Video Splitter.

Optional keyboard,
mouse, and screen

Screen

cable

Central unit

(AC500A)

Monitor

Monitor

Remote unit

(AC502A or

AC503A)

Remote unit

(AC502A or

AC503A)

10

CAT5 VGA VIDEO SPLITTER

Figure 2-2 shows a 4-Port VGA Video Splitter (central unit) broadcasting data to
four remote monitors via four Remote Standard CAT5 VGA Video Splitters or
Remote Long-Range CAT5 VGA Video Splitters.

Figure 2-2. Typical application of the 4-Port VGA Video Splitter.

Optional keyboard,
mouse, and screen

Screen cable

Central unit

(AC501A)

Remote unit

(AC502A or AC503A)

Remote unit

(AC502A or AC503A)

Remote unit

(AC502A or AC503A)

Monitor

Monitor

Monitor

Monitor

Remote unit

(AC502A or AC503A)

11

CHAPTER 3: Installation

3. Installation

This chapter describes how to connect the system cables, the screen cable, and the
power supply to the CAT5 Video Splitter System using the Remote Standard CAT5
Video Splitter or Remote Long-Range CAT5 Video Splitter in conjunction with:

• The 2-Port CAT5 VGA Video Splitter (central unit).

• The 4-Port CAT5 VGA Video Splitter (central unit).

3.1 Setting the DIP Switches (AC503A and AC503AE Only)

You can improve the picture quality and sharpness by setting the DIP switches
(located on the bottom of the remote unit) for coarse adjustment.

1. The bottom of the remote unit contains DIP-switches G, B, and R.
See Figure 3-1.

Figure 3-1. AC503A(E) DIP-switch settings for coarse adjustment.

2. RGB compensation demands identical settings for all three DIP switches.
Table 3-1 defines the appropriate DIP-switch settings.

NOTE

Set positions 1, 2, and 3 of DIP-switches R, G, and B as described in
Table 3-1. Position 4 on each of the three DIP switches is not used.

This DIP

switch is

not used.

Set DIP-switch

positions 1, 2, and 3

as described in

Table 3-1. Position

4 is not used.

12

CAT5 VGA VIDEO SPLITTER

Table 3-1. Screen resolution and refresh rates.

Cable Length 640 x 480 800 x 600 1024 x 768 1280 x 1024
meters feet 75 Hz 75 Hz 75 Hz 75 Hz

50 165 1, 2, 3—OFF 1, 2, 3—OFF 1, 2, 3—OFF 1, 2, 3—OFF

100 330 1—ON, 1—ON, 1—ON, 1—ON,

2, 3—OFF 2, 3—OFF 2, 3—OFF 2, 3—OFF

150 490 1—ON, 1—ON, 1—ON, 1—ON,

2, 3—OFF 2, 3—OFF 2, 3—OFF 2, 3—OFF

200 655 1—ON, 1—ON, 1—ON, 1—ON,

2, 3—OFF 2, 3—OFF 2, 3—OFF 2, 3—OFF

250 820 1, 2—OFF, 1, 2—OFF, 1, 2—OFF, 1, 2—OFF,

3—ON 3—ON 3—ON 3—ON

*300 *980 1, 3—ON, 1, 3—ON, — —

2—OFF 2—OFF

*450 *1475 1, 2, 3—ON 1, 2, 3—ON — —

*Use Potentiometer PIC for fine-tuning the picture’s quality; use Potentiometer BR for

fine-tuning the picture’s brightness.

3.2 Installing the System Cables

The system cable you received with each remote unit ordered is a single 4-pair
CAT5 UTP cable with two RJ-45 male connectors attached at each end, as shown in
Figure 3-2. One system cable connects each remote unit to each system port on the
central unit’s rear panel.

Figure 3-2. System cable.

RJ-45 male

connector

RJ-45 male

connector

13

CHAPTER 3: Installation

3.2.1 C

ONNECTING THE

2-P

ORT

CAT5 VGA V

IDEOSPLITTER(CENTRALUNIT

)

You need to use two system cables.

To connect the system cables:

1. Connect one of the system cable’s RJ-45 male connectors to the system 1 port
on the central unit’s rear panel.

2. Connect the other system cable’s RJ-45 male connector to the system port on
the rear panel of remote unit # 1.

3. Connect the second system cable’s RJ-45 male connector to the system 2 port
on the central unit’s rear panel.

4. Connect the second system cable’s RJ-45 male other connector to the system
port on the rear panel of remote unit # 2.

3.2.2 C

ONNECTING THE

4-P

ORT

CAT5 VGA V

IDEOSPLITTERCENTRALUNIT

You need to use four system cables.

To connect the system cables:

1. Connect one of the system cable’s RJ-45 male connectors to the system 1 port
on the central unit’s rear panel.

2. Connect the other system cable’s RJ-45 male connector to the system port on
the rear panel of remote unit # 1.

3. Repeat this scenario with the other three system cables—connecting the
central unit’s system 2, system 3, and system 4 ports to the system ports of
remote units #2, #3, and #4, respectively.

3.3 Installing the Screen Cable

The screen cable has a DB15 HD male connector attached at one end, and a DB15
HD female connector attached at the other end. It connects the 2- or 4-Port CAT5
VGA Video Splitter central unit to the CPU.

Or, you can link a display screen to the CPU by connecting the display screen to
the screen out port on the central unit’s rear panel. You can also connect a
keyboard and mouse to the CPU, which lets you update the data display on each
remote display screen.

14

CAT5 VGA VIDEO SPLITTER

3.3.1 C

ONNECTING THE

2-P

ORT

CAT5 VGA V

IDEOSPLITTER ANDREMOTEUNITS

Use a screen cable to connect the central unit to the CPU, and to connect each
remote display screen to its corresponding remote unit.

To connect the screen cable to the central unit:

1. Connect the screen cable’s DB15 HD male connector to the DB15 HD female
screen port of the CPU.

2. Connect the screen cable’s DB15 HD female connector to the screen in port
on the central unit’s rear panel.

Or:

Connect the DB15 HD male connector from the display screen to the screen
out port on the central unit’s rear panel.

To connect the screen cable to the remote unit:

1. Connect the DB15 HD male connector from remote display screen # 1 to the
DB15 HD female screen port on the rear panel of the remote unit # 1.

2. Connect the DB15 HD male connector from remote display screen # 2 to
the DB15 HD female screen port on the rear panel of the remote unit # 2.

3.3.2 C

ONNECTING THE

4-P

ORT

CAT5 VGA V

IDEOSPLITTER ANDREMOTEUNITS

Use a screen cable to connect the central unit to the CPU, and to connect each
remote display screen to its corresponding remote unit.

To connect the screen cable to the central unit:

1. Connect the screen cable’s DB15 HD male connector to the DB15 HD female
screen port of the CPU.

2. Connect the screen cable’s DB15 HD female connector to the screen in port
on the central unit’s rear panel.

Or:

Connect the DB15 HD male connector from the display screen to the screen
out port on the central unit’s rear panel.

15

CHAPTER 3: Installation

To connect the screen cable to the remote unit:

1. Connect the DB15 HD male connector from remote display screen # 1
to the DB15 HD female screen port on the rear panel of remote unit # 1.

2. Repeat this scenario with the other three remote display screens, connecting
the DB15 HD male connectors from remote display screens #2, #3, and #4 to
the DB15 HD female screen ports on the rear panels of remote units # 2, #3,
and #4, respectively.

3.4 Connecting to the Power Supply

Connect each of the units—the 2- or 4-Port CAT5 VGA Video Splitter central unit,
and the Remote Standard or Remote Long-Range CAT5 VGA Video Splitters—to
the power supply in the following way.

To connect each unit to the power supply:

1. Connect the 9-VAC adapter plug to the power-cable connector.

2. Connect the power cable to the 9-VAC adapter and insert the mains plug
into a wall socket. The unit is connected to the power supply.

Figure 3-3. The power supply block diagram.

To wall socket

16

CAT5 VGA VIDEO SPLITTER

Figure 3-4. Cabling diagram for the CAT5 VGA Video Splitter system.

Powe r

Supply

Powe r

Supply

Powe r

Supply

To wall socket

To wall socket

To wall socket

Central unit (AC500A)

Screen cable

UTP CAT5 system cable

CPU

Optional

keyboard,

screen, and

mouse

17

CHAPTER 4: Operation

4. Operation

This chapter describes the front-panel operations and rear-panel connections of
the following:

• 2-Port CAT5 VGA Video Splitter (central unit)

• 4-Port CAT5 VGA Video Splitter (central unit)

• Remote Standard CAT5 VGA Video Splitter

• Remote Long-Range CAT5 VGA Video Splitter

4.1 2-Port CAT5 VGA Video Splitter (Central Unit)

4.1.1 F

RONTPANEL

Figure 4-1 shows the front panel of the 2-port central unit.

Figure 4-1. Front panel of the 2-port central unit.

Push the power switch to turn the power ON or OFF.

18

CAT5 VGA VIDEO SPLITTER

4.1.2 R

EAR

P

ANEL

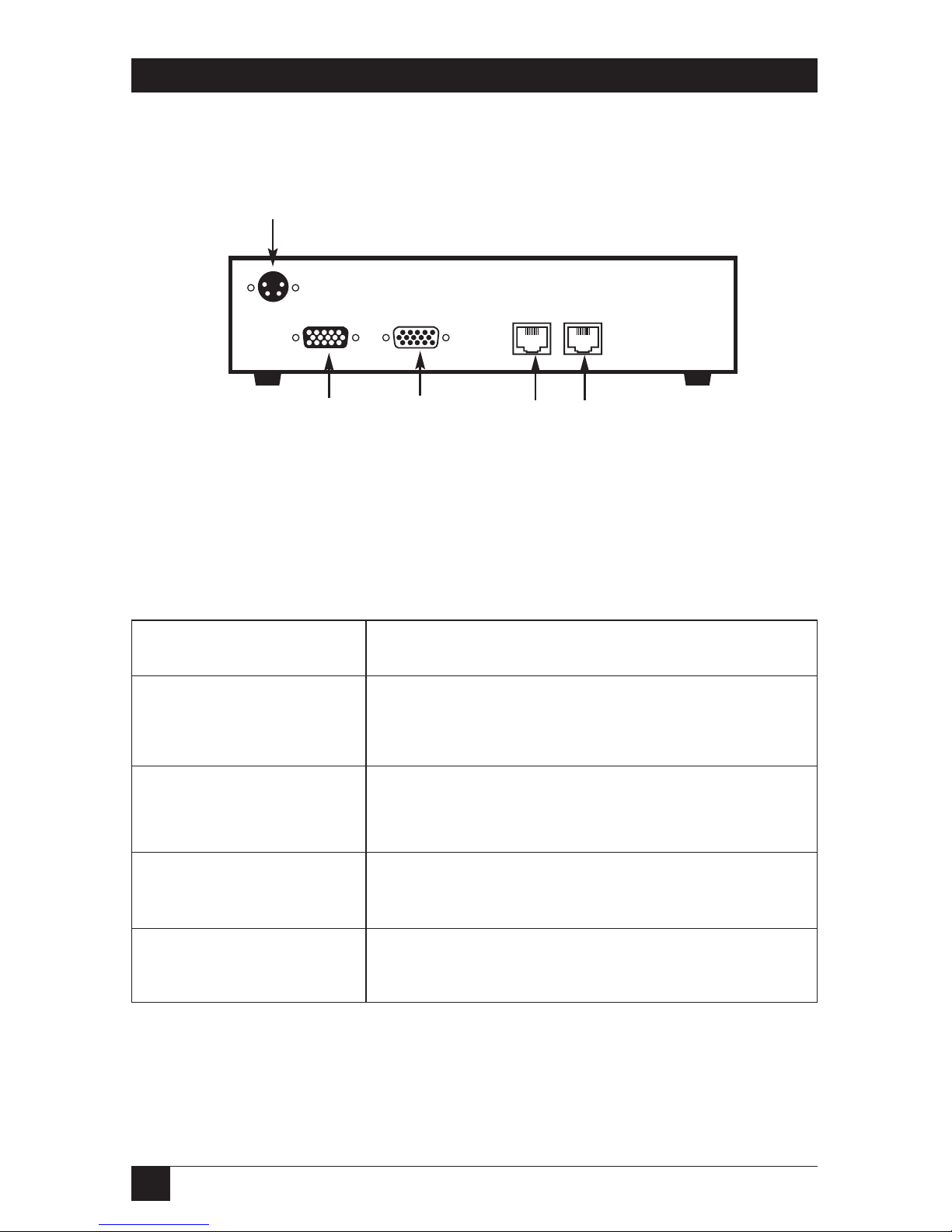

Figure 4-2 shows the rear panel of the 2-port central unit. Table 4-1 describes the
basic hardware connections.

Figure 4-2. Rear panel of the 2-port central unit.

Table 4-1. Connectors on the rear panel of the 2-port central unit.

Connector Function

Power Connect the 9-VAC, 1.5-A adapter’s power cable to

this connector.

Screen In Connect the screen cable’s DB15 HD female

connector to this port.

Screen Out Connect the DB15 HD male connector from the

display screen to this port.

System # Connect the system cable’s connector to this port.

Screen in

Power

Screen out

System

19

CHAPTER 4: Operation

4.2 4-Port CAT5 VGA Video Splitter (Central Unit)

4.2.1 F

RONTPANEL

Figure 4-3 shows the front panel of the 4-port central unit.

Figure 4-3. Front panel of the 4-port central unit.

Push the power switch to turn the power ON or OFF.

20

CAT5 VGA VIDEO SPLITTER

4.2.2 R

EAR

P

ANEL

Figure 4-4 shows the rear panel of the 4-port central unit. Table 4-2 describes the
basic hardware connections.

Figure 4-4. Rear panel of the 4-port central unit.

Table 4-2. Connectors on the rear panel of the 4-port central unit.

Connector Function

Power Connect the 9-VAC, 1.5-A adapter’s power cable to

this connector.

Screen In Connect the screen cable’s DB15 HD female

connector to this port.

Screen Out Connect the DB15 HD male connector from the

display screen to this port.

System # Connect the system cable’s connector to this port.

Screen in

Power

Screen out

System connectors

21

CHAPTER 4: Operation

4.3 Remote Standard CAT5 VGA Video Splitter

4.3.1 F

RONTPANEL

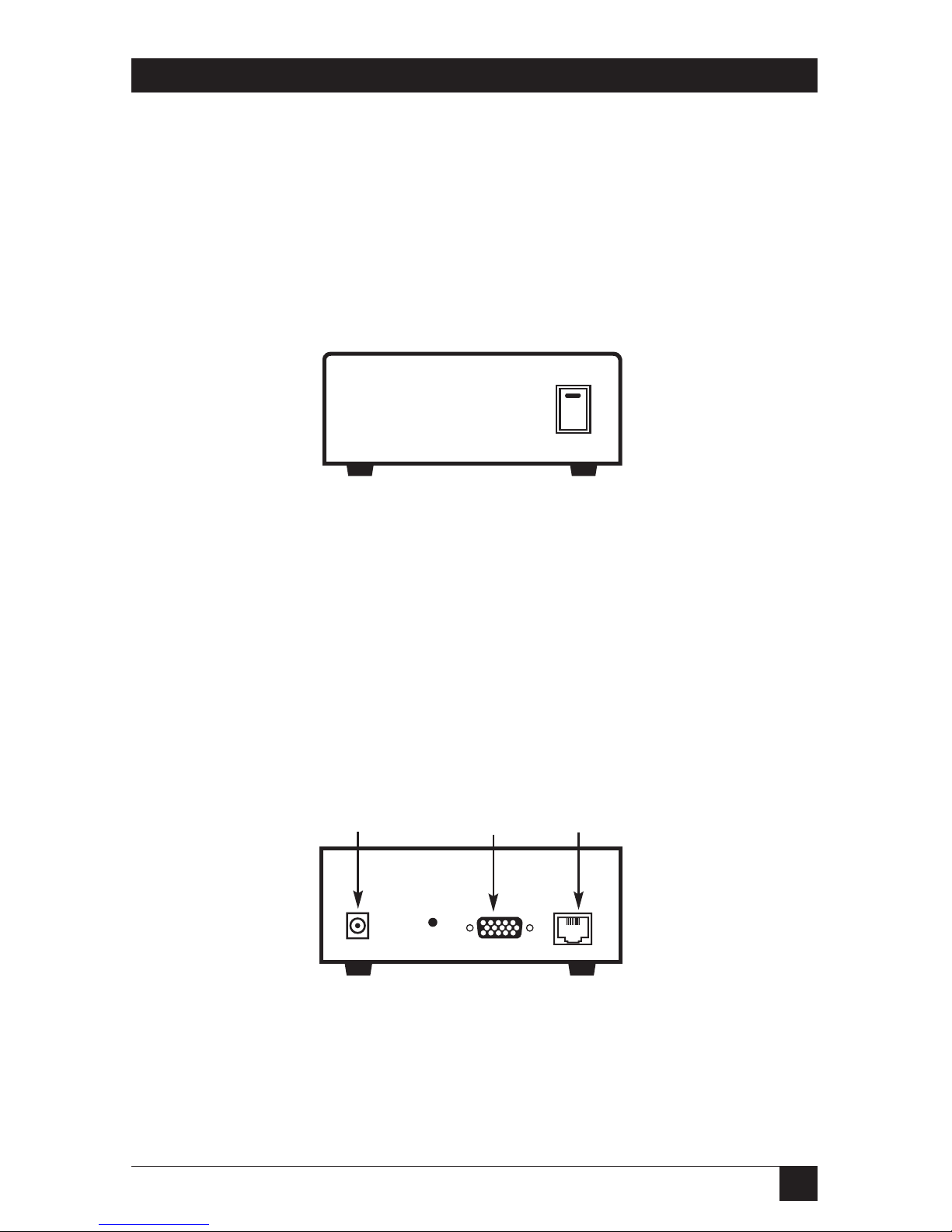

Figure 4-5 shows the front panel of the Remote Standard CAT5 VGA Video
Splitter.

Figure 4-5. Front panel of the remote standard unit.

Push the power switch to turn the power ON or OFF.

4.3.2 R

EARPANEL

Figure 4-6 shows the rear panel of the remote standard unit. Table 4-3 describes
the basic hardware connections.

Figure 4-6. Rear panel of the remote standard unit.

Power Screen

System

22

CAT5 VGA VIDEO SPLITTER

Table 4-3. Connectors on the rear panel of the remote standard unit.

Connector Function

Power Connect the 9-VAC, 1.5-A adapter’s power cable to

this connector.

Screen Connect the display screen’s connector to this

port.

System # Connect the system cable’s connector to this port.

4.4 Remote Long-Range CAT5 VGA Video Splitter

4.4.1 F

RONTPANEL

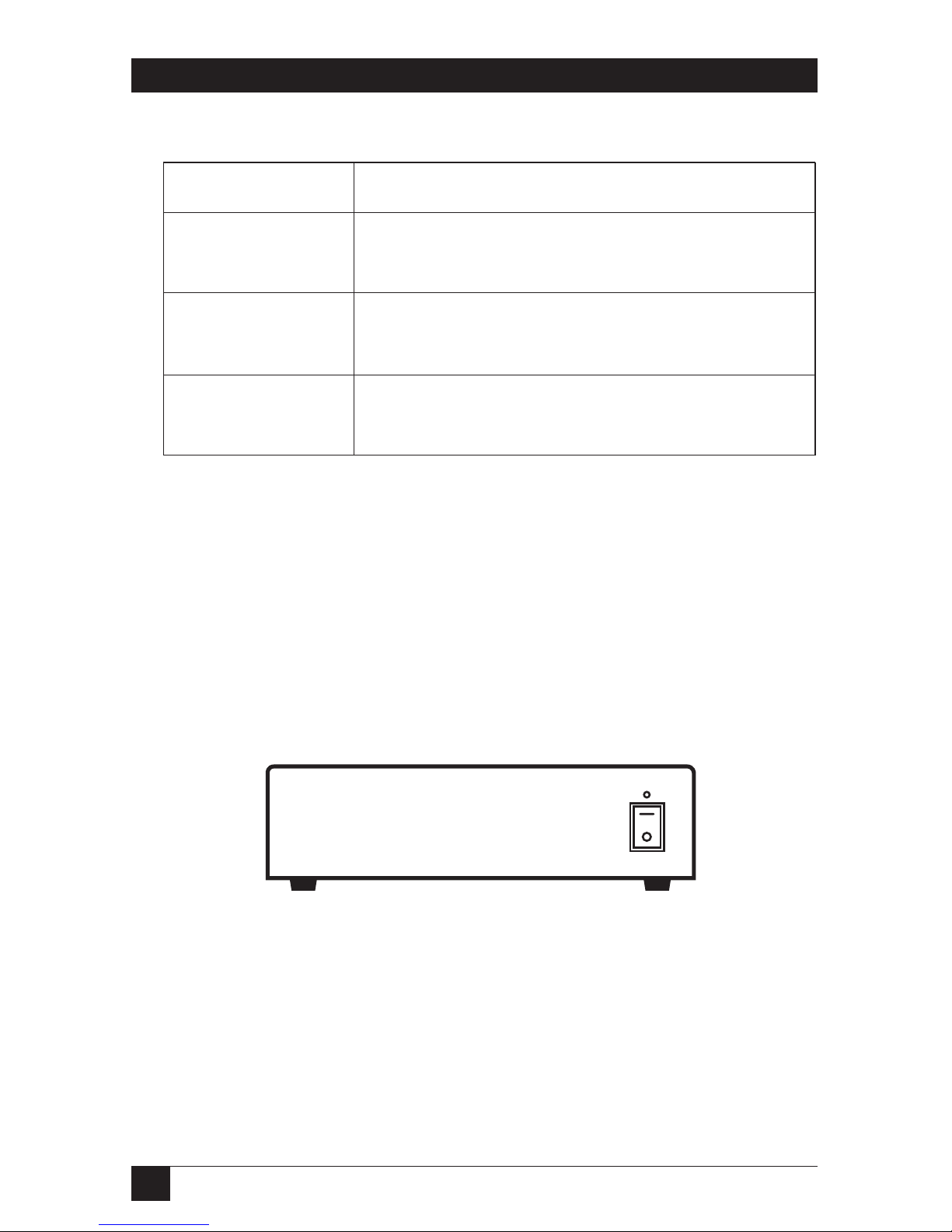

Figure 4-7 shows the front panel of the Remote Long-Range CAT5 VGA Video
Splitter.

Figure 4-7. Front panel of the remote long-range unit.

Push the power switch to turn the power ON or OFF.

23

CHAPTER 4: Operation

4.4.2 R

EAR

P

ANEL

Figure 4-8 shows the rear panel of the remote long-range unit. Table 4-4 describes
the basic hardware connections.

Figure 4-8. Rear panel of the remote long-range unit.

Table 4-4. Connectors on the rear panel of the remote long-range unit.

Connector Function

Power Connect the 9-VAC, 1.5-A adapter’s power cable to

this connector.

Screen Connect the display screen’s connector to this

port.

System # Connect the system cable’s connector to this port.

4.5 Switching On the Units

When the CAT5 VGA Video Splitter system is properly connected, you’re ready to
switch on the each of the units—the CPU, the central unit, the remote units, and
the remote display screens. You can switch them on in any order.

Each remote display screen shows the CPU’s data simultaneously.

Power

Screen

System

24

CAT5 VGA VIDEO SPLITTER

5. Troubleshooting

5.1 Calling Black Box

If you determine that your CAT5 VGA Video Splitter is malfunctioning, do not
attempt to alter or repair the unit. It contains no user-serviceable parts. Contact
Black Box at 724-746-5500.

Before you do, make a record of the history of the problem. We will be able to
provide more efficient and accurate assistance if you have a complete description,
including:

• the nature and duration of the problem.

• when the problem occurs.

• the components involved in the problem.

• any particular application that, when used, appears to create the problem or
make it worse.

5.2 Shipping and Packaging

If you need to transport or ship your CAT5 VGA Video Splitter:

• Package it carefully. We recommend that you use the original container.

• If you are shipping the video splitter for repair, make sure you include
everything that came in the original package. Before you ship, contact Black
Box to get a Return Authorization (RA) number.

1000 Park Drive • Lawrence, PA 15055-1018 • 724-746-5500 • Fax [phone]

© Copyright 2003. Black Box Corporation. All rights reserved.
