Page 1
Turn Mac or PC-based video/graphic presentations
into overhead multimedia displays.
Turn Mac or PC-based video/graphic presentations
into overhead multimedia displays.

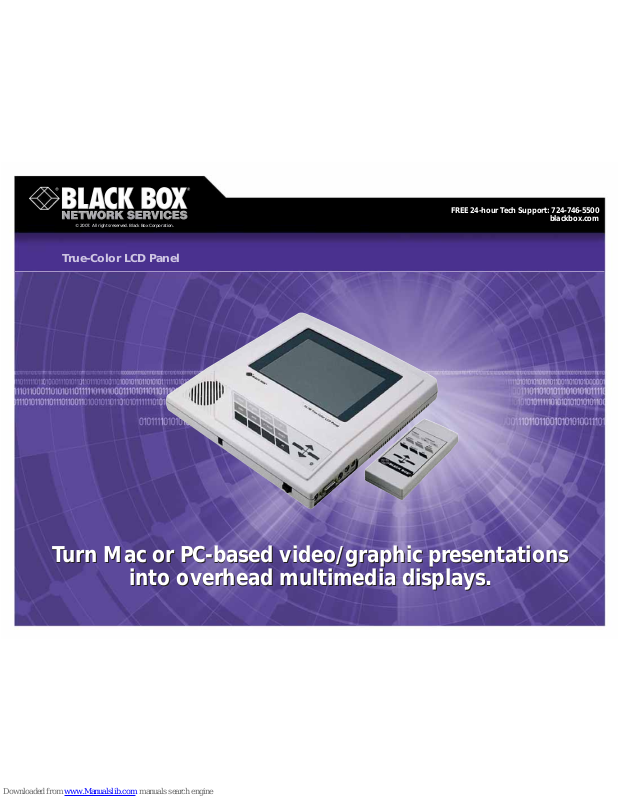

True-Color LCD Panel
© 2007. All rights reserved. Black Box Corporation.
FREE 24-hour Tech Support: 724-746-5500
blackbox.com
Page 2
2 of 3
6/20/2007
#16139
724-746-5500 blackbox.com
FEA TURES
• Active-matrix technology brings
out the most vibrant hues.
• Displays PC graphics and full-motion
video.
• Up to 16.7 million true colors.
• Infrared, full-function remote control
provides control from anywhere in
the room.
• No software or utilities need to be
loaded.
With no software, setup is easy.Just plug in thecables and go!
OVERVIEW
With the True-Color LCD Panel you can project vivid
color images from almost any composite video source—your
computer screen, VCR, Laser Disc Player, orvideo camera—
onto a large screen using an overhead projector. Just plug
the True-Color LCD Panel into your laptop and lay it on top
of an overhead projector. With no software setup, you’re up
and running in minutes.
The True-Color LCD Panel is easy to use. It automatically
senses NTSC, PAL, or SECAM formats, and the maximum
number of colors required by each software program. And all
cabling and accessories needed to connect to an IBM
®
XT/AT
®
or PS/2®with a VGA monitor or a Mac®with DB15 connectors
and 640 x 480 resolution are included.
The True-Color LCD Panel uses an active TFT (Thin Film
Transistor) color panel where the video image is generated.
TFT is faster and supports more colors along with a higher
contrast.
Adjust contrast, tint, centering, text/graphic mode, or
mirror-image selection using an on-screen menu or by remote
control. Any adjustments you make are stored so you don’t
have to set your preferences every time you use the machine.
A serial mouse cable (DB9 to 6-pin mini-DIN) is included
for DOS and Windows
®
applications. This lets you control
the cursor from the control panel or the remote control.
And you never have to worry about your panel failing in
the middle of a session. A triple-fan cooling system keeps the
panel running smoothly throughout your presentation—even
if it takes all day.
The panel also makes the perfect traveling companion,
weighing only 4.8 pounds (2.2 kg), so you can take it just
about anywhere. And for added convenience, use a Soft-Side
Carrying Case (AC405A) for transporting the LCD Panel.
You may also need a Laser Pointer (AC435A) or a Remote
Mouse with Laser (AC480A-R3; see Product Specification Sheet
12795) to accompany your True-Color LCD Panel. These tools
will allow you the freedom to walk around the room, even
into the audience, during your presentation.
For best results, use projectors with indirect lighting, bulb
types ENX, FXI, metal hallide, or a lamp with greater than
3500-lumen output.
To Monitor
To Video Port
Y Adapter Cable
(Supplied)
To Mouse Port
To VCR
True-Color LCD Panel
(AC404A)
To Power Supply
Page 3
3 of 3
6/20/2007
#16139
724-746-5500 blackbox.com
TECH SPECS
Approvals — UL®, CSA
Contrast — 100:1
LCD Matrix — Active TFT
Maximum Colors — 16.7 million
Resolution — 640 x 480
Response Time — 30 ms
Power — 100–250 VAC, 50–60 Hz, autosensing
Size — 1.9"H x 12.5"W x 13.6"D (4.8 x 31.8 x 34.5 cm)
Weight — 4.8 lb. (2.2 kg)
Item Code
True-Color LCD Panel AC404A
Laser Pointer AC435A
Remote Mouse with Laser AC480A-R3
Soft-Side Carrying Case AC405A
Recognize any of these situations?
• You wait more than 30 minutes to get through
to a vendor’s tech support.
• The so-called “tech” can’t help you or gives you
the wrong answer.
• You don’t have a purchase order number and the
tech refuses to help you.
• It’s 9 p. m. and you need help, but your vendor’s
tech support line is closed.
According to a survey by Data Communications
magazine, 90% of network managers surveyed say
that getting the technical support they need is extremely
important when choosing a vendor. But even though
network managers pay anywhere from 10 to 20% of their
overall purchase price for a basic service and support
contract, the technical support and service they receive falls
far short of their expectations—and certainly isn’t worth
what they paid.
At Black Box, we guarantee the best value and the
best support. You can even consult our Technical Support
Experts before you buy if you need help selecting just
the right component for your application.
Don’t waste time and money—call Black Box today.
Why Buy From Black Box? Exceptional V alue.
Exceptional Tech Support. Period.
AC404A:
✦
(1) True-Color LCD Panel.
✦
(1) Infrared remote control unit.
✦
(1) VGA Y cable (DB26 HD male to DB15 HD
male/female).
✦
(1) Mac®II Y cable (DB25 male to DB15 male/female).
✦
(1) Serial mouse cable (6-pin mini-DIN male to DB9
female).
✦
(1) IEC 320 to 3-prong North American power cord.
WHA T‘S INCLUDED
AC404A
