AC345A-R2
UMA1089 Rev C
VGA/HDTV Scaler Plus
Scales video, converts and transforms formats
724-746-5500 | blackbox.com
1
VGA/HDTV Scaler Plus
1
We‘re here to help! If you have any questions about your application
or our products, contact Black Box Tech Support at 724-746-5500
or go to blackbox.com and click on “Talk to Black Box.”
You’ll be live with one of our technical experts in less than 20 seconds.
TRADEMARKS USED IN THIS MANUAL
BLACK BOX and its logo are registered trademarks of
BB Technologies, Inc.
Any other trademarks mentioned in this manual are acknowledged to be the
property of the trademark owners.
724-746-5500 | blackbox.com
VGA/HDTV Scaler Plus
2
FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY CANADA
RADIO FREQUENCY INTERFERENCE STATEMENTS
This equipment generates, uses, and can radiate radio-frequency energy, and if not installed
and used properly, that is, in strict accordance with the manufacturer’s instructions, may
cause interference to radio communication. It has been tested and found to comply with the
limits for a Class A computing device in accordance with the specifications in Subpart J of
Part 15 of FCC rules, which are designed to provide reasonable protection against such
interference when the equipment is operated in a commercial environment. Operation of this
equipment in a residential area is likely to cause interference, in which case the user; at own
expense; will be required to take whatever measures may be necessary to correct the
interference.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment. This digital apparatus does not
exceed the Class A limits for radio noise emission from digital apparatus set out in the Radio
Interference Regulation of Industry Canada
.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites
applicables aux appareils numériques de classe A prescrites dans le Règlement sur le
brouillage radioélectrique publié par Industrie Canada.
724-746-5500 | blackbox.com
3
VGA/HDTV Scaler Plus
3
INSTRUCCIONES DE SEGURIDAD
Normas Oficiales Mexicanas (NOM) Electrical Safety Statement
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato
eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de operación deben ser
respetadas.
4. Todas las instrucciones de operación y uso deben ser seguidas.
5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca de la tina de
baño, lavabo, sótano mojado o cerca de una alberca, etc.
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que sean
recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea recomendado por
el fabricante.
8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá a lo descrito en
las instrucciones de operación. Todo otro servicio deberá ser referido a personal de servicio
calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no interfiera su uso. La
colocación del aparato eléctrico sobre una cama, sofá, alfombra o superficie similar puede
bloquea la ventilación, no se debe colocar en libreros o gabinetes que impidan el flujo de aire
por los orificios de ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor como radiadores,
registros de calor, estufas u otros aparatos (incluyendo amplificadores) que producen calor.
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del tipo descrito en el
instructivo de operación, o como se indique en el aparato.
12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización del equipo no
sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que no sean pisados ni
pellizcados por objetos colocados sobre o contra ellos, poniendo particular atención a los
contactos y receptáculos donde salen del aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las recomendaciones del
fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas de energia.
16. El cable de corriente deberá ser desconectado del cuando el equipo no sea usado por un
largo periodo de tiempo.
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean derramados sobre la
cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
a. El cable de poder o el contacto ha sido dañado; u
b. Objectos han caído o líquido ha sido derramado dentro del aparato; o
c. El aparato ha sido expuesto a la lluvia; o
d. El aparato parece no operar normalmente o muestra un cambio en su
desempeño; o
e. El aparato ha sido tirado o su cubierta ha sido dañada.
724-746-5500 | blackbox.com
VGA/HDTV Scaler Plus
4
Contents
1. SPECIFICATIONS...................................................................... 5
1.1
GENERAL................................................................................. 5
1.2
INPUT AND OUTPUT RESOLUTIONS............................................. 6
2. OVERVIEW................................................................................. 7
2.1
INTRODUCTION ......................................................................... 7
2.2
FEATURES ............................................................................... 7
2.3
WHAT’S INCLUDED.................................................................... 8
2.4
HARDWARE DESCRIPTION ......................................................... 8
3. INSTALLATION ......................................................................... 9
3.1
CONNECTIONS ......................................................................... 9
3.2
CONNECTION BLOCK DIAGRAM .................................................. 9
4. CONFIGURATION & OPERATION ......................................... 10
4.1
INPUT AND OUTPUT ................................................................ 10
4.2
MENUS AND ADJUSTMENTS ..................................................... 10
5. TROUBLESHOOTING ............................................................. 13
5.1
CONTACTING BLACK BOX........................................................ 13
5.2
SHIPPING AND PACKAGING ...................................................... 13
724-746-5500 | blackbox.com
5
VGA/HDTV Scaler Plus
5
1. Specifications
1.1 General
Connectors Input: (1) HD15
Output: (2) HD15
([1] processed and [1] bypassed)
Operating
Temperature
32 to 122° F (0 to 50° C)
Power
5-VDC, 2.6 A (CE/FCC/UL certified)
Dimensions 1"H x 4"W x 6.5"D (2.5 x 10.2 x 16.5 cm)
Weight 0.75 lb. (0.34 kg)
724-746-5500 | blackbox.com
VGA/HDTV Scaler Plus
6
1.2 Input and Output Resolutions
Table 1-1. Input and Output Resolutions
Input Resolution Output Resolution
640x480 (VGA) 60/72/75/85 Hz 640x480 (VGA) 60 Hz
800x600 (SVGA) 56/60/72/75/85 Hz 800x600 (SVGA) 60 Hz
1024x768 (XGA) 60/70/75/85 Hz 1024x768 (XGA) 60 Hz
1280x800 (WXGA) 60 Hz 1280x800 (WXGA) 60 Hz
1440x900 (WXGA+) 60 Hz 1440x900 (WXGA+) 60 Hz
1280x1024 (SXGA) 60/75/85 Hz 1280x1024 (SXGA) 60 Hz
1400x1050 (SXGA+) 60 Hz 1400x1050 (SXGA+) 60 Hz
1600x1200 (UXGA) 60 Hz 1600x1200 (UXGA) 60 Hz
1680x1050 (WSXGA) 60 Hz 1680x1050 (WSXGA) 60 Hz
1920x1080 60 Hz 1920x1080 60 Hz
1920x1200 (WUXGA) 60 Hz 1920x1200 (WUXGA) 60 Hz
480I 60 Hz 480I 60 Hz
480P 60 Hz 480P 60 Hz
576I 50 Hz 576I 50 Hz
576P 50 Hz 576P 50 Hz
720P50 50 Hz 720P50 50 Hz
720P60 60 Hz 720P60 60 Hz
1080I50 50 Hz 1080I50 50 Hz
1080I60 60 Hz 1080I60 60 Hz
1080P50 50 Hz 1080P50 50 Hz
1080P60 60 Hz 1080P60 60 Hz
724-746-5500 | blackbox.com
7
VGA/HDTV Scaler Plus
7
2. Overview
2.1 Introduction
The VGA/HDTV Scaler Plus is a high-performance universal VGA / HDTV to
VGA / HDTV Scan Rate converter with a local loop out.
The scaler can output a specified resolution and refresh rate regardless of the
input. Output timing to the display is constant, regardless of the input. When
switched from one input to another, the display device does not see any
interruption in the signal coming to it.
The video processor combines the functions of a video scaler, scan-converter,
and format transformer. The VGA/HDTV Scaler Plus also includes a horizontal
mirroring feature that you can use for teleprompter’s and rear projection
systems.
The VGA/HDTV Scaler Plus features an OSD menu for configuration, picture
setup, system information, and many other advanced options.
2.2 Features
• Any PC or HDTV video signal can be scaled up or scaled down to any
other PC or HDTV resolution.
• Adjustable output frame rate.
• Additional loop-out to bypass signal processing.
• Large Video memory for real-time frame rate capture and conversion.
• Signal format conversion between RGBHV and YPbPr.
• Automatically detects input mode and timing parameters.
• Allows adjustment of sampling clock, phase, and position on screen.
• Easy-to-use push buttons and OSD menu control.
• Horizontal mirroring (X-Axis Flip)
724-746-5500 | blackbox.com
VGA/HDTV Scaler Plus
8
2.3 What’s Included
Your package should include the following items. If anything is missing or
damaged, contact Black Box Technical Support at 724-746-5500 or
info@blackbox.com.
• VGA/HDTV Video Scaler Plus
• (1) 3-ft. (0.9-m) male to female VGA cable
• (1) 3-ft. (0.9-m)VGA to component cable
• (1) User Manual
• (1) Power Supply
• Power Supply Cord
2.4 Hardware Description
2.4.1 Front Panel
Figure 2.1 shows side 1 panel of the VGA/HDTV Video Scaler Plus.
Table 2-1 describes its components.
TABLE 2-1
Component Description
HD15 Connector Output/Bypass
HD15 Connector PC/HD Input
2.4.2 Back Panel
Figure 2.2 shows side 2 panel of the VGA/HDTV Video Scaler Plus.
Table 2-2 describes its components.
TABLE 2-2
Component Description
Barrel Connector 5 VDC Power
HD15 Connector Processed/Output
Up Arrow Button Select next higher OSD option
Menu
Enter the OSD
Dn Arrow Button Select next lower OSD option
Fi
g
ure 2.1
Figure 2.2
724-746-5500 | blackbox.com
9
VGA/HDTV Scaler Plus
9
3. Installation
3.1 Connections
The VGA/HDTV Video Scaler Plus accepts both PC and HDTV input and
output.
Use the HD15 to YPbPr/3 RCA cable to convert YPbPr for HDTV devices.
The scaler includes a display local loop out connection labeled “Bypass
Output.” Use this connection to send a non-processed signal to a secondary
display.

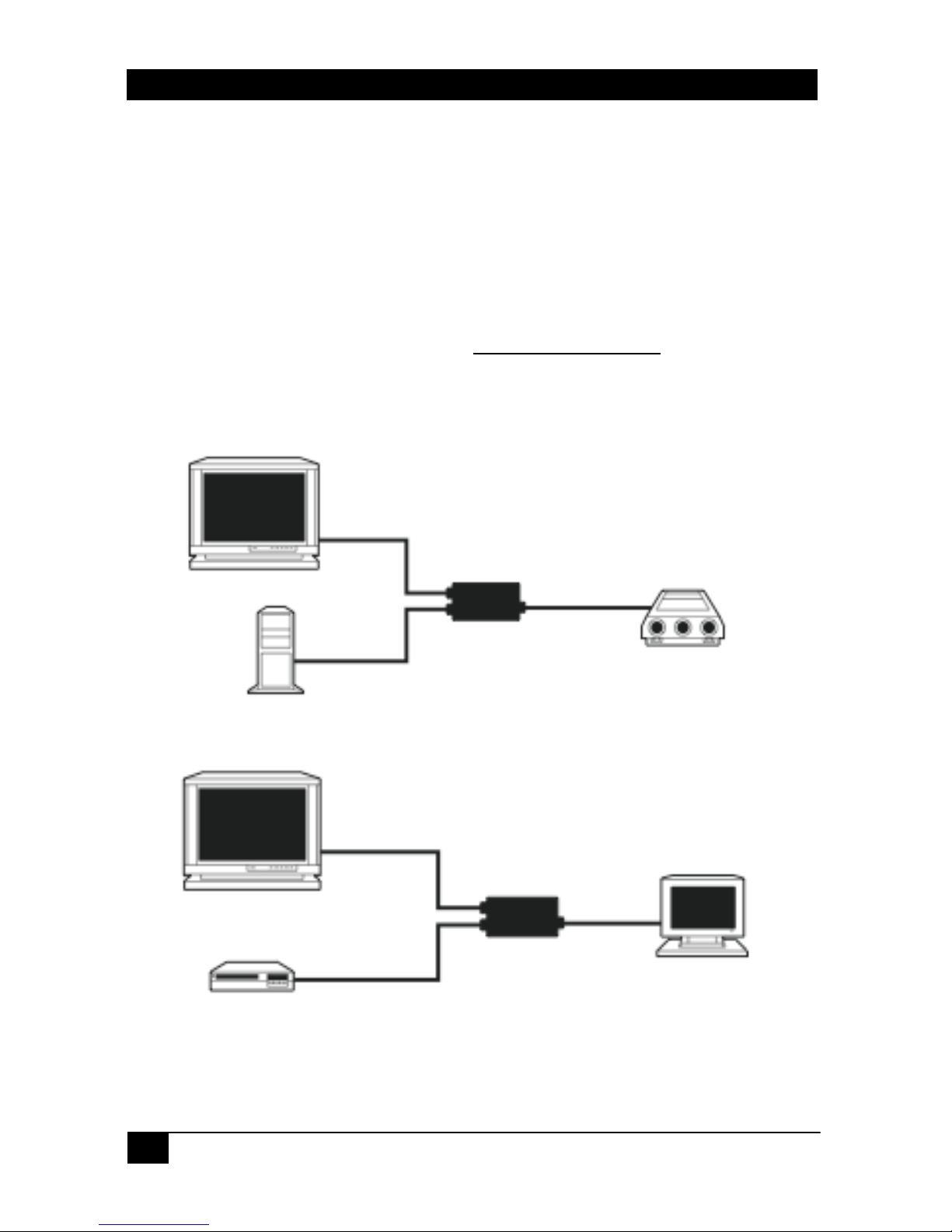

3.2 Connection Block Diagram
Figure 3.2
DVD Connection
Processed
Output
Bypassed
Output
Figure 3.1
PC Connection
Processed
Output
Processed
Output
724-746-5500 | blackbox.com
VGA/HDTV Scaler Plus
10
4. Configuration & Operation
4.1 Input and Output
See figures 2-1 and 2-2 above for information about the connections
4.2 Menus and Adjustments
Pressing the Menu button will bring up the OSD menu controls on the screen.
Use the up and down arrows to get to the desired item, then press MENU to
select and enter the submenu. Select EXIT from a submenu to go back to the
main menu or from the main menu to exit the OSD.
CONTRAST
Adjusts image contrast. Range is 0-100%, default=50 (RGB) or 43 (YPbPr)
BRIGHTNESS
Adjusts image brightness. Range is 0-100%, default=47 (RGB) or 54 (YPbPr)
FINETUNE
For RGB Video Input
PHASE - refers to nanosecond timing position of each sample taken. This
adjustment can be used to align the pixels grabbed by the SC-VGA-2B to
those created by the video source. Range is 0-100%, default=73
CLOCK - changes the number of samples per display line. The unit samples
the video at the nominal pixel rate. For example a 1024x768 resolution signal
is sampled 1024 times during the active video time. Changing the clock has
the effect of adjusting horizontal size of the displayed output. When you
change this setting; the right edge of the video moves to the left (shrinking the
width) or to the right (expanding the width). Range is 0-100%, default=50
H-POSITION – Shifts image right and left. Range is 0-100%, default=50
V-POSITION – Shifts image up and down. Range is 0-100%, default=50
EXIT – Exit FINETUNE Submenu
724-746-5500 | blackbox.com
11
VGA/HDTV Scaler Plus
11
For YPbPr Input
PHASE Range is 0-100%, default=60
HUE – Adjusts Picture HUE. Range is 0-100%, default=55
SATURATION – Adjusts Picture SATURATION. Range is 0-100%, default=37
SHARPNESS – Adjusts Picture Sharpness Range is 0-100%, default=18
NOISE REDUCTION – When turned on, reduces the amount of noise in the
video. Range is ON or OFF, default=OFF
EXIT – Exit FINETUNE Submenu
COLOR
RED – Adjust RED RGB value. Range is 0-100%, default=47 (RGB) or 48
(YPbPr)
GREEN – Adjust GREEN RGB value. Range is 0-100%, default=47 (RGB)
or 48 (YPbPr)
BLUE – Adjust BLUE RGB value. Range is 0-100%, default=47 (RGB) or 48
(YPbPr)
EXIT – Exit COLOR Submenu
SIZE
Select this option to toggle between FULL, PANSCAN, LETTERBOX,
UNDERSCAN or OVERSCAN display modes. The change occurs as each
option is selected. Default=FULL
SOURCE
AUTO – Automatically detects the type of input video source based on the
selected resolution. Default
PC – Forces the input video source to be RGBHV
YPbPr – Forces the input video source to be YPbPr
OUTPUT
Use arrows to adjust output mode. Refer to Section 5.2 below for a list of all
available modes.
The default output resolution of the SC-VGA-2B is XGA @ 60Hz.
The unit has non-volatile memory and memorizes all your settings before
power off and recalls those settings on the next power on.
724-746-5500 | blackbox.com
VGA/HDTV Scaler Plus
12
At any time, pressing the UP ARROW ▲ and MENU button together will
change the output resolution to XGA@60Hz.
Pressing the MENU and DOWN ARROW ▼ together will change the output
resolution to 480P@60 Hz.
OSD
H-POSITION – Adjust horizontal position of the OSD on the screen. Range =
0-100%, default=10
V-POSITION – Adjust vertical position of the OSD on the screen. Range = 0-
100%, default=90
TIMER – Select the approximate number of seconds for the OSD to be
displayed on the screen before turning off. Range = 0-100, default=10
BACKGROUND – Changes opacity of the OSD background on the screen. “0”
is a black background, “100” is a transparent background. Range = 0-100%,
default=10
EXIT – Exit OSD Submenu
FACTORY RESET
Select this option to reset all values to the factory defaults.
INFORMATION
Displays source type, Input resolution, output resolution and firmware version.
MIRROR
If enabled; this function will flip the image horizontally on the screen. Range =
ON or OFF, default=OFF
EXIT
This selection will exit the OSD Menu.
724-746-5500 | blackbox.com
13
VGA/HDTV Scaler Plus
13
5. Troubleshooting
There are no field serviceable parts or circuits in the device. If you think that the
device is malfunctioning (or you have no picture output), first try to reset to factory
default settings. Select FACTORY RESET from OSD menu or Press and HOLD the
MENU button while plugging in the power supply.
Some display devices may become confused and display the output video shifted or
with odd colors if the display device receives BOTH the RGBHV Sync signals as well
as the YPbPr Sync signals at the same time.
This can be caused by using the HD15-HD15 cable on the VGA/HDTV Scaler Plus
output but setting the unit to output YPbPr resolutions (480p for example).
Use supplied HD15 to 3 RCA to make sure that only the desired YPbPr sync signals
are sent to the display device.
5.1 Contacting Black Box
If you determine that your Receiver is malfunctioning, do not attempt to repair the
unit. Contact Black Box Tech. Support at 724-746-5500 or info@blackbox.com
Before you do, make a record of the history of the problem. We will be able to provide
more efficient and accurate assistance if you have a complete description.
5.2 Shipping and Packaging
If you need to transport or ship your Receiver:
• Package it carefully. We recommend that you use the original container.
• Before you ship the unit back to Black Box for repair or return, contact us to get a
Return Authorization (RA) number.
724-746-5500 | blackbox.com
VGA/HDTV Scaler Plus
14
19
Black Box Tech Support: FREE! Live. 24/7.
Tech support the
way it should be.
About Black Box
Black Box Network Services is your source for more than 118,000
networking and infrastructure products. You’ll find everything from
cabinets and racks and power and surge protection to media converters
and Ethernet switches all supported by free, live 24/7 Tech support
available in 20 seconds or less.
©
Copyright 2010. All rights reserved
Great tech support is just 20 seconds away
at 724-746-5500 or blackbox.com
Loading...
