Black Box AC334A Quick Start Manual

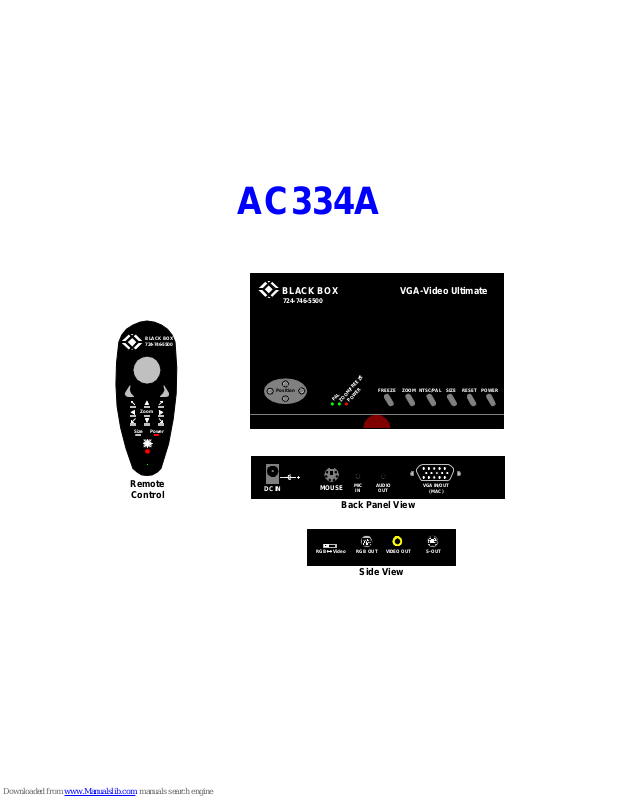

Position

PAL

ZOOM/FREEZE

POWER

BLACK BOX

724-746-5500

VGA-Video Ultimate

FREEZE ZOOM NTSC/PAL SIZE RESET POWER

AC334A

Back Panel View

DC IN

MOUSE

MICINAUDIO

OUT

VGA IN/OUT

(MAC)

Side View

RGB Video RGB OUT VIDEO OUT S-OUT

BLACK BOX
724-746-5500

Size Power

Zoom

Remote
Control

Specifications:

System Hardware Computer of one of these types:
Required: IBM AT, PS/2, or compatible with VGA output, or Apple Macintosh or compatible supporting standard

Macintosh display mode (640 x 480, 31.5 or 35 KHz); TV set with one of these inputs: composite video,
S-video, analog RGBS video, or (with modulator) RF.

System Software Microsoft serial mouse driver or included utility (IBM compatibles only)
Required:

Interfaces: Input: VGA or Macintosh video

Output: Composite video, S-video, RGBS video, and VGA or Macintosh video.

Resolutions VGA: Up to 1024 x 768 (46.4KHz hsync/60 Hz vsync), 800 x 600 (35.2KHz hsync/56 Hz vsync) or 640 x 480 sup
ported: (37.9KHz hsync/72 Hz vsync);

MAC: 640 x 480 (35 KHz hsync 66.6 Hz vsync)

Color: Full color support, including 24-bit (true color) input.
Horizontal sync 24 to 38 KHz (autosensing)

supported:
Vertical sync 56 to 72 KHz

(Refresh rates)
supported:

Maximum Distance: 50 ft. (15.2 m) to any input or output device.
User Controls: Top-mounted and remote controls for: Freeze, Zoom, Width (Overscan/Underscan), PAL/NTSC, sharpness,

and Power (On/Off)

Indicators: Top-mounted: Power LED, Zoom/Freeze LED, PAL/NTSC LED

cont. on next page

Connectors: (8) Side -mounted:

(1) DB15HD female for computer video (IN/OUT)
(1) RCA jack for composite video output;
(1) 4-pin mini-DIN for S-video output;
(1) 9-pin mini-DIN female for RGBS video;
(1) DB15HD female for computer video (IN/OUT);
(1) RCA jack for composite video output;
(1) 4-pin mini-Din for S-video;
(1) 9-pin mini-Din female for RGBS video output;
(1) barrel jack for power output;
(1) 6-pin mini-Din female for remote mouse
(1) MIC input
(1) Audio output

Power: From wallmount power supply:

Input: 100 to 240 VAC; 47 to 63 Hz
Output: 7.5 VDC at 1.2 A

Introduction

General Overview:

The VGA-Video Ultimate is a portable high-resolution computer-to-TV video converter. It transfers images from your computer for
display on a TV or video projector of any size or for recording on a VCR of any type (VHS, VHS-C, 8mm or Beta). The Ultimate is
completely hardware based - you don't have to run any computer software to make the converter work ( A driver is required for the
remote mouse function ). Its portability, easy installation and use, features and high-resolution display make it perfect for presentations,
training, kiosks, education, and a host of other applications.
