HD View™ Quick Start Guide
AC3000A-R2–AC3016A-R2
Series
This manual includes information for these product codes:
AC3000A-R2, AC3008A-R2, AC3016A-R2, AC3003A-R2,
and AC3004A-R2.
Page 2
724-746-5500 | blackbox.com
Page 2
Trademarks Used in this Manual
Trademarks Used in this Manual
Black Box and the Double Diamond logo are registered
trademarks, and HD View is a trademark, of BB Technologies,
Inc.
Any other trademarks mentioned in this manual are
acknowledged to be the property of the trademark owners.
Page 3
724-746-5500 | blackbox.com Page 3
Table of Contents
Chapter Page
1. System Overview ............................................................ 4
1.1 Transmitter ........................................................... 5
1.2 Receivers ............................................................... 6
1.3 LEDs .................................................................. 8
1.4 Pre-Installation Guidelines.................................... 9
2. Connecting the Cables ................................................. 10
2.1 Transmitter Connections .................................... 10
2.2 Receiver/Receiver LR Connections ..................... 10
3. Connecting CATx Cables .............................................. 12
3.1 Connecting the Transmitter ............................... 12
3.2 Connecting to the Power Supply ....................... 12
3.3 Adjusting the Picture Quality ............................. 12
3.4 Note on Serial Extension .................................... 12
4. Updates on Revision 3 .................................................. 13
4.1 Changes that Apply to All the Items Listed
in Table 4-1 ......................................................... 13
4.2 Changes that Apply to Individual Items
Listed in Table 4-1 .............................................. 14
Page 4
724-746-5500 | blackbox.com
Page 4
Chapter 1: System Overview
1. System Overview
Figure 1-1 provides an overview of the system, showing a
Transmitter and different Receiver types.
Receiver
Screen
Serial port/
device
Audio
CATx cables to
receivers
CATx cable
to receiver
HD View
Transmitter
Player
computer
Video cable
Audio cable
Serial ext. cable

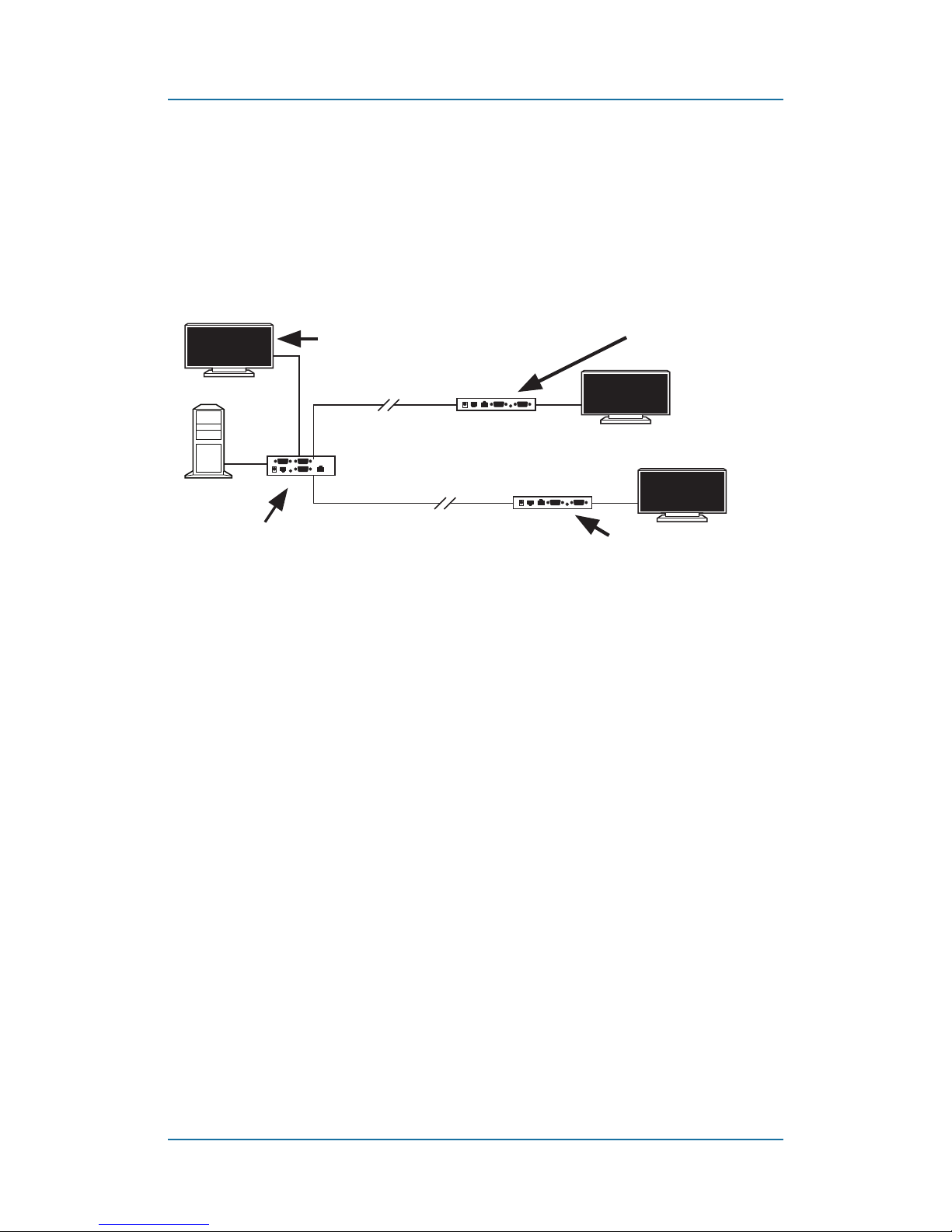

Figure 1-1. HD View system overview.
NOTE: The transmitters have a local VGA output that can feed
another transmitter.
Page 5
724-746-5500 | blackbox.com Page 5
Chapter 1: System Overview
1.1 Transmitter
Three Transmitter models are available:
• 1-Port Transmitter (part number AC3000A-R2)
• 8-Port Transmitter (part number AC3008A-R2)
• 16-Port Transmitter (part number AC3016A-R2)
Figures 1-2 and 1-3 illustrate the 8-Port Transmitter. The ports
are the same for the Transmitter 1-port, 8-port, and 16-port
models, except for the number of system ports. The
AC3000A-R2 has one system port, the AC3008A-R2 has eight
System ports, and the AC3016A-R2 has sixteen system ports.
Table 1-1 describes the transmitter’s components.
1
Figure 1-2. Transmitter Unit—8-port, front view.
2 3 4 5 6
7 8
Figure 1-3. Transmitter Unit—8-port, back view.
Page 6
724-746-5500 | blackbox.com
Page 6
Chapter 1: System Overview
Table 1-1. Transmitter Unit—8-port components.
Number Component Description
1 Power LED Lights when power is on
2 Power connector Links to 12-VDC power
3 RJ-11 connector
Connects to serial
download cable
4 Audio
Links to stereo audio
input
5 HD15 connector Links to video in
6 RJ-45 connectors Link to system cables
7 DB9 connector Connects to serial cable
8 HD15 connector
Connects to local video
out
1.2 HD View Receivers
The HD View Receivers come in the following models:
• HD View Receiver (part number AC3003A-R2 or AC3003ANEC). It can be up to 330 ft. (100 m) from the Transmitter.
• HD View Receiver—LR (part number AC3004A-R2 or
AC3004A-NEC). It can be up to 1000 ft. (300 m) from the
Transmitter.
Figure 1-4 illustrates the Receiver ports. Table 1-2 describes their
components.
Page 7
724-746-5500 | blackbox.com Page 7
Chapter 1: System Overview
1 2 3 4 5 6

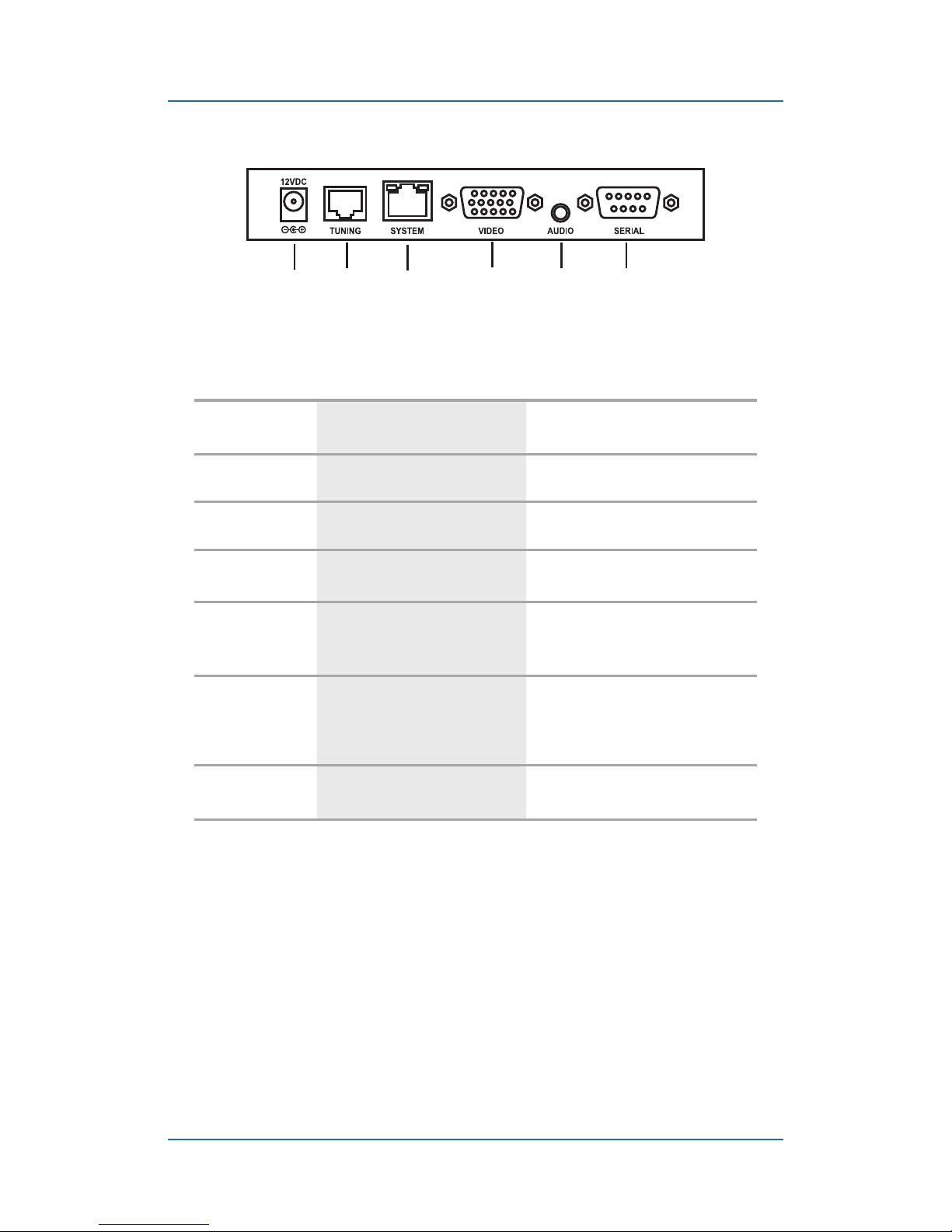

Figure 1-4. AC3003A-R2 back view.
Table 1-2. AC3003A-R2 receiver components.
Number Component Description
1 Power connector Links to 12-VDC power
2 RJ-11 connector Tuning
3 RJ-45 connector Links to system cable
4 HD15 connector
Links to video cable
output
5 Audio connector
Links to mono audio
output
6 DB9 connector Links to serial cable
NOTE: In Version 3, both products have the same ports. Refer to
the part number to be sure that a receiver is a Standard
Receiver (AC3003A-R2) or LR Receiver (AC3004A-R2).
Page 8
724-746-5500 | blackbox.com
Page 8
Chapter 1: System Overview
1.4 LEDs
Table 1-4 explains the functions of all the LEDs of the units in the
system.
Table 1-4. LED functions.
Unit LED Function
Transmitter Front panel—Green
Lights green when power
is on
Lights yellow when a link
is established
Unit LED Function
Receiver,
Receiver LR
RJ-45 system port—
Green/Yellow
Lights green when power
is on.
Lights yellow when a link
is established. This LED will
blink yellow intermittently.
Blinks yellow constantly to
indicate bidirectional
RS-232 communication.
(This is only possible with
one Receiver/Receiver LR
at a time.)
Page 9
724-746-5500 | blackbox.com Page 9
Chapter 1: System Overview
1.5 Pre-Installation Guidelines
• Place cables away from fluorescent lights, air conditioners, and
machines that are likely to generate electrical noise.
• Do not bend the cable in a way that it can be damaged.
• While using tie wraps to hold the cables in place, make sure
not to pull them too tight, because this can damage the cable.
• For best performance, the specifications of the cable should be:
- Gage: 24 AWG (should be written on the cable)
- Wire: solid wire (should be written in the spec. of the cable)
- For cable runs over 330 feet (100 m), the SKEW delay of the
cable should be no more than 20 ns per 330 feet (100 m) (this
should be written in the spec of the cable).
Page 10
724-746-5500 | blackbox.com
Page 10
Chapter 2: Connecting CATx Cable
2. Connecting the Cables
The figures below illustrate the versatility of the HD View system.
Figure 2-1 shows a basic installation with a Receiver and
Receiver—LR. Receivers can be up to 328 feet (100 m) away
from the Transmitter. The Receiver—LR can be up to 1000 feet
(300 m) away from the Transmitter.
PC
Transmitter
(AC3008A-R2)
Receiver
(AC3003A-R2)
1000 ft. (304.8 m)
CATx cable
Receiver—LR
(AC3004A-R2)
NEC display with expansion
and AC3003A-NEC
330 ft. (100 m)
330 ft. (100 m)
Figure 2-1. HD View basic installation.
2.1 Transmitter Connections
1. Connect the video cable to the transmitter’s Video In port and
the computer’s Video card.
2. Connect the serial extender cable to the transmitter’s Serial In
port and the computer’s Serial port.
3. Connect the stereo audio cable to the transmitter’s Audio In
port and the computer’s Line Out port.
4. To use the video service utility, connect the serial download
cable to the transmitter’s Control port and the computer’s
Serial port.
5. (Optional) Connect a monitor to the transmitter’s Video Out
port.
2.2 Receiver/Receiver LR Connections
1. Connect the screen to the Video port.
Page 11
724-746-5500 | blackbox.com Page 11
Chapter 2: Connecting CATx Cable
2. Connect the audio/speakers to the Audio port.
NOTE: If you are connecting the audio out of the receivers to
speakers, they must have an internal amplifier. The audio
out is a line out extension of the player.
3. Where relevant, attach the Serial connection to the Serial
port.
Page 12
724-746-5500 | blackbox.com
Page 12
Chapter 3: Connecting CATx Cables
3. Connecting CATx cables
3.1 Connecting the Transmitter
Connect CATx cables to the System ports of the Transmitter and
the System In ports of Receivers/Receivers—LR.
3.2 Connecting to the Power Supply
Connect the Transmitter and all Receivers and Receivers—LR
units to the power supply using the included AC/DC adapters.
Once the system is connected, the HD View system broadcasts
to all remote monitors/speakers.
3.3 Adjusting the Picture Quality
When the broadcasted picture needs adjusting:
The Receiver (version 3)/Receiver LR can be tuned via the Service
Utility.
Link to the HD View Service Utility:
http://www.blackbox.com
NOTE: Where there are cascaded Receivers/Receivers—LR, you
must tune them from the unit nearest the transmitter
onwards.
3.5 Note on Serial Extension
The serial connection requires two cables: from player to a
transmitter, use straight-through serial cable; from receiver to
screen use crossover cable.
Page 13
724-746-5500 | blackbox.com Page 13
Chapter 4: Updates on Revision 3
4. Updates on Revision 3
HD View has been upgraded to Revision 3. There are some
major changes in this new revision; however, it is fully backward
compatible, that is, new Rev3 elements can be installed in a
system that includes older revisions.
Table 4-1 lists the products that were upgraded to Rev3.
Table 4-1. Products upgraded to Rev3.
Unit LED
AC3004A-R2 LR Receiver
AC3008A-R2 8-Port Transmitter
AC3016A-R2 16-Port Transmitter
AC3000A-R2 1-Port Transmitter
AC3003A-R2 Standard Receiver
4.1 Changes that Apply to All the Items Listed in
Table 4-1
1. The new power supply is 12-VDC, standard polarity. The
power jack is different compared to older versions, so you
can’t connect a new power supply to old version of the
transmitter or receiver, and vice versa.
2. Units are highly immune to EMI/RFI.
3. Units are highly immune to spikes/peaks from the power
source.
4. Aluminum enclosure ensures heat dissipation and lighter
weight.
Page 14
724-746-5500 | blackbox.com
Page 14
Chapter 4: Updates on Revision 3
4.2 Changes that Apply to Individual Items
Listed in Table 4-2
Table 4-2. Changes per item.
Unit LED
AC3004A-R2
New
enclosure
All connectors are on one
panel.
AC3004A-R2 Audio output
One stereo audio
output.
AC3008A-R2,
AC3016A-R2
New
enclosure
1U,
1
⁄3 shelf size
AC3008A-R2,
AC3016A-R2
Omits local
RS-232 port.
Does not have a local
RS-232 port.
AC3008A-R2,
AC3016A-R2
Omits local
Audio port.
Does not have a local
Audio port.
AC3000A-R2
New
enclosure
1U,
1
⁄3 shelf size
AC3000A-R2
Omits local
RS-232 port.
Does not have a local
RS-232 port.
AC3000A-R2
Omits local
Audio port.
Does not have a local
Audio port.
Page 15
724-746-5500 | blackbox.com Page 15
Chapter 4: Updates on Revision 3
Table 4-2 (Continued). Changes per item.
Unit LED
AC3003A-R2
New
enclosure
All connectors are on
one panel.
AC3003A-R2 Audio output
Has one stereo audio
output.
AC3003A-R2
Supports full
tuning.
SKEW, Equalization, and
Luminance can be set
either by utility or a
video tuning unit.
Page 16
Chapter
Page 900
About Black Box
Black Box provides an extensive range of networking and
infrastructure products. You’ll find everything from cabinets and racks
and power and surge protection products to media converters and
Ethernet switches all supported by free, live 24/7 Tech support available
in 30 seconds or less.
© Copyright 2013. Black Box Corporation. All rights reserved.
Great tech support is just 30 seconds away
at 724-746-5500 or blackbox.com.
Black Box Tech Support: FREE! Live. 24/7.
Tech support the
way it should be.
AC3000A-R2 Quick Start Guide, version 3
724-746-5500 | blackbox.com
Loading...
