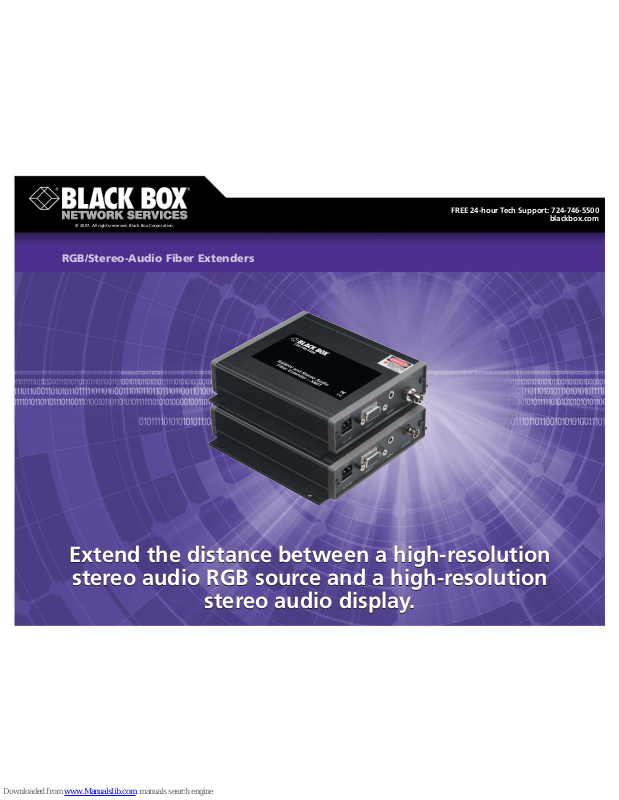

Page 1
RGB/Stereo-Audio Fiber Extenders
© 2007. All rights reserved. Black Box Corporation.
FREE 24-hour Tech Support: 724-746-5500
blackbox.com
Extend the distance between a high-resolution
stereo audio RGB source and a high-resolution
stereo audio display.
Extend the distance between a high-resolution
stereo audio RGB source and a high-resolution
stereo audio display.
Page 2
2 of 3
2/26/2007
#11976
724-746-5500 blackbox.com
FEATURES
• Send high-resolution RGB and stereo
audio up to 750 meters (2460.6 ft.)
over multimode fiber optic cable or
up to 30 kilometers (18.6 mi.) over
single-mode fiber optic cable.
• Require only a single fiber strand.
• Transmit VGA, SVGA, XGA, and WXGA.
• Support HDTV resolutions of 480p,
720p, and 1080i (RGBHV format only).
• Easy to install—require no adjustments,
equalization, or de-skewing.
• Digital processing ensures crystal-clear
transmission with no color pixel
skewing.
Send audio and video over a single-strand fiber cable.
RGB/Stereo-Audio Fiber Extender,
Receiver (AC1023A)
RGB/Stereo-Audio Fiber Extender,
Transmitter (AC1021A-XMIT)
Laptop
Remote monitors
with speakers
Remote monitors
with speakers
OVERVIEW
Do you need to send high-resolution RGB and audio signals
over single-mode or multimode fiber? Then look no further than
the RGB/Stereo-Audio Fiber Extenders! They work in point-topoint, point-to-multipoint, and drop-and-repeat configurations.
These fiber extenders are ideal for applications in which you
need to keep your audience informed and up to date, including:
• Broadcast studios where you need additional video and audio
capacity.
• Corporate theaters for presentations and important company
information.
• Stadiums for live game coverage everywhere in the facility.
• Airports kiosks with flight and retail information.
• Stores with sales, special offers, and other important
information for your customers.
• Medical facilities to share images and observe procedures.
• Network operations centers.
• Secure facilities.
• And many more!
The fiber extenders are interoperable: you can use each
receiver with each transmitter—so nearly any configuration
you design will work.
By operating in the 1310-nm wavelength over single- or
multimode fiber, these units reduce optical loss and enable
you to get maximum distance in your application—up to
750 meters (2460.6 ft.) over multimode cable and a whopping
30 kilometers (18.6 mi) over single-mode cable. They maintain
high-resolution video integrity with uncompressed, unscaled
24-bit RGB processing, and because the audio signals are also
sent over fiber, you’re not limited by copper distance
restrictions or signal degradation.
The receivers feature a simple set of LEDs that give you
immediate status updates, and the system doesn’t require
any special software or drivers— just plug them in.
Page 3
3 of 3
2/26/2007
#11976
724-746-5500 blackbox.com

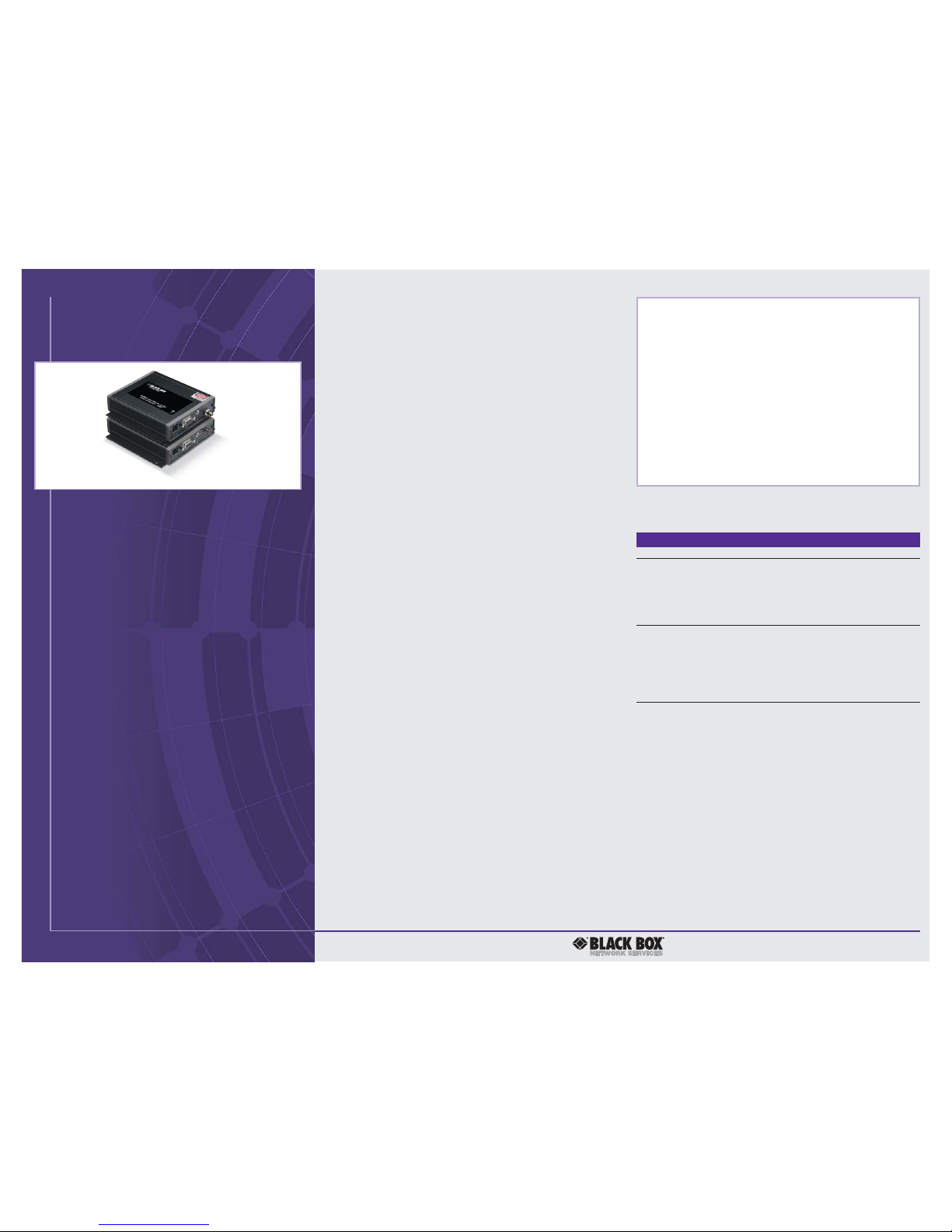

Top: AC1021A-XMIT;
bottom: AC1021A-REC
TECH SPECS
Audio Bandwidth — 20 Hz to 20 kHz
Distance (Maximum) — Multimode: 750 m (2460.6 ft.);
Single-mode: 30 km (18.6 mi.) (Optical loss budget of 0–15 dB
must not be exceeded regardless of distance.)
Wavelength — 1310 nm
CE Approval — Yes
Connectors — AC1021A-XMIT, AC1021A-REC: Video: (1) HD15 F;
Audio: (1) 3.5-mm stereo jack;
Fiber: (1) ST
®
;
AC1022A: Video: (1) HD15 F;
Audio: (1) 3.5-mm stereo jack;
Fiber: (4) ST;
AC1023A: Video: (4) HD15 F;
Audio: (4) 3.5-mm stereo jack;
Fiber: (1) ST;
AC1024A: Video: (1) HD15 F;
Audio: (1) 3.5-mm stereo jack;
Fiber: (2) ST;
All: Power: (1) terminal block
Indicators — LEDs: (1) Power, (1) Video, (1) Audio
Power — AC1021A-XMIT, AC1021A-REC: 9–24 VAC or VDC, 5 W;
AC1022A: 95–250 VAC, 9 W;
AC1023A–AC1024A: 9–24 VAC or VDC, 8 W
Size — AC1021A-XMIT, AC1021A-REC: 1.2"H x 5"W x 5.3"D
(3 x 12.7 x 13.5 cm);
AC1022A: 1.8"H x 16.8"W x 10"D (4.6 x 42.7 x 25.4 cm);
AC1023A–AC1024A: 1.2"H x 6.5"W x 8"D (3 x 16.5 x 20.3 cm)
Weight — AC1021A-XMIT, AC1021A-REC: 0.6 lb. (0.3 kg);
AC1022A: 5.5 lb. (2.5 kg);
AC1023A–AC1024A: 1.2 lb. (0.5 kg)
AC1020A:
✦
XMIT unit
✦
REC unit
✦
(2) power supplies
✦
(2) 6-ft. (1.8-m) HD15 male to HD15 male VGA cables
✦
(2) 6-ft. (1.8-m) 3.5-mm plug to 3.5-mm plug stereo audio
cables
✦
6-ft. (1.8-m) 3.5-mm plug to (2) RCA male stereo
audio cable
✦
User’s manual
NOTE: Transmitters and Receivers can also be ordered
individually.
WHAT‘S INCLUDED
Item Code
RGB/Stereo-Audio Fiber Extenders
Transmitters
(1) ST Optical Output, (1) RGB Input, (1) 3.5-mm Audio Jack
AC1021A-XMIT
(4) ST Optical Outputs, (1) RGB Input with Loop-Through,
(1) 3.5-mm Audio Jack with Loop-Through
AC1022A
Receivers
(1) ST Optical Input, (1) RGB Output, (1) 3.5-mm Audio Jack
AC1021A-REC
(1) ST Optical Input, (1) 1 x 4 RGB Output,
(1) 3.5-mm Audio Jack
AC1023A
(1) ST Optical Input, (1) ST Optical Loop-Through,
(1) RGB Output, (1) 3.5-mm Audio Jack
AC1024A
Kit
(AC1021A-XMIT and AC1021A-REC)
AC1020A
