Page 1
888-310-4393 • 120
Frontage Road, Altamont, IL 62411 • www.bk-resources.co
m
E
A
D
F
R
E
E
•
L
E
A
D
L
E
A
D
F
R
E
E
•
L
•
L
E
A
D
F
R
E
E

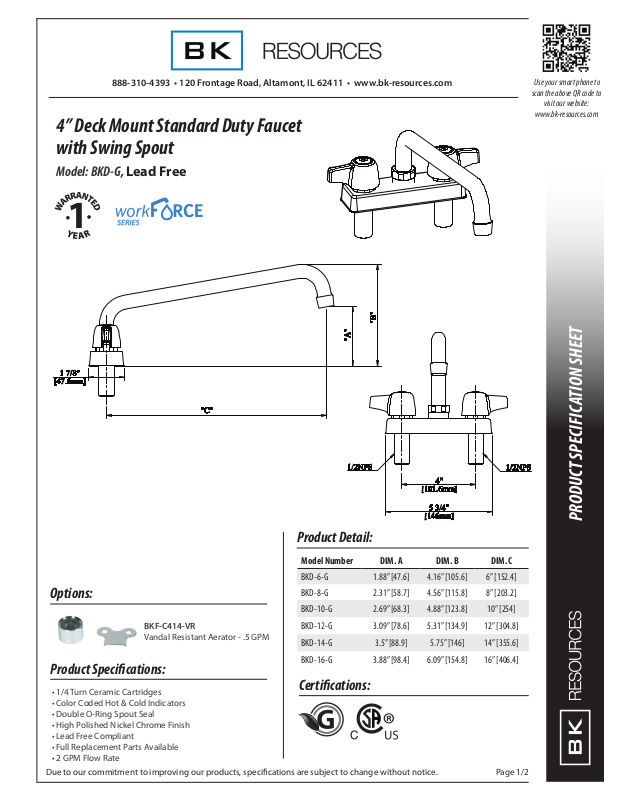

4” Deck Mount Standard Duty Faucet
with Swing Spout
Model: BKD-G, Lead Free
1
Use your smart phone to
scan the above QR code to
visit our website:
www.bk-resources.com
Options:
Product Specications:
• 1/4 Turn Ceramic Cartridges
• Color Coded Hot & Cold Indicators
• Double O-Ring Spout Seal
• High Polished Nickel Chrome Finish
• Lead Free Compliant
• Full Replacement Parts Available
• 2 GPM Flow Rate
Due to our commitment to improving our products, specications are subject to change without notice.
BKF-C414-VR
Vandal Resistant Aerator - .5 GPM
Product Detail:
Model Number DIM. A DIM. B DIM. C
BKD-6-G 1.88” [47.6] 4.16” [105.6] 6” [152.4]
BKD-8-G 2.31” [58.7] 4.56” [115.8] 8” [203.2]
BKD-10-G 2.69” [68.3] 4.88” [123.8] 10” [254]
BKD-12-G 3.09” [78.6] 5.31” [134.9] 12” [304.8]
BKD-14-G 3.5” [88.9] 5.75” [146] 14” [355.6]
BKD-16-G 3.88” [98.4] 6.09” [154.8] 16” [406.4]
Certications:
F
L
R
E
•
E
E
•
E
L
R
E
F
A
D
D
A
F
E
L
•
E
E
R
F
D
A
E
L
•
E
E
R
F
D
A
R
E
E
•
E
A
D
F
E
R
L
E
•
E
E
•
E
L
R
E
F
A
D
D
A
F
E
R
L
E
•
E
Page 1/2
PRODUCT SPECIFICATION SHEET
Page 2
888-310-4393 • 120
Frontage Road, Altamont, IL 62411 • www.bk-resources.co
m
4” Deck Mount Standard Duty Faucet
with Swing Spout
Model: BKD-G, Lead Free
1
4
5
6
Double
O-Ring
3
2
Exploded Parts Detail:
7
8
Standard Duty
9
10
11
12
13
Ceramic Valve
Integral 1/2”
1
Male Inlets
PRODUCT SPECIFICATION SHEET
Diagram # Quantity Part Number Description
1 1 BKF-SPT-NOZZLE Nozzle
2 1 BKF-SPT-AER Aerator
3 1 BKF-SPT-AER-W Washer
4 1 BKF-SPT-XX (see product detail on pg 1) Spout
5 1 BKF-SPT-SPACER Spacer
6 2 BKF-SPT-ORING Double O-Ring
7 1 BKF-SPT-NUT Spout Nut
8 2 BKF-DBH Handle
9 2 (1) BKF-W-CV-G & (1) BKF-W-HV-G Cartridge
10 1 BKD-XX-G Faucet Body
11 1 BKD-BASE Base
12 2 BKF-MN Mounting Nut
13 2 BKF-MW Spout Nut
Due to our commitment to improving our products, specications are subject to change without notice.
Optional Spouts & Parts:
Standard Duty Gooseneck Spout
BKF-SPT-3G-G, BKF-SPT-5G-G
BKF-SPT-8G-G
Standard Duty DJ Swing Spout
BKF-SPT-18-G
Standard Duty Swing Spout
BKF-SPT-6-G, BKF-SPT-8-G
BKF-SPT-10-G, BKF-SPT-12-G
BKF-SPT-14-G, BKF-SPT-16-G
BKF-C414-VR
Vandal Resistant Aerator - .5 GPM
Page 2/2
