Page 1
888-310-4393 • 120
Frontage Road, Altamont, IL 62411 • www.bk-resources.co
m
E
A
D
F
R
E
E
•
L
E
A
D
•
L
E
A
D
F
R
E
E
•
L
E
A
•
L
E
A
D
F
R
E
E

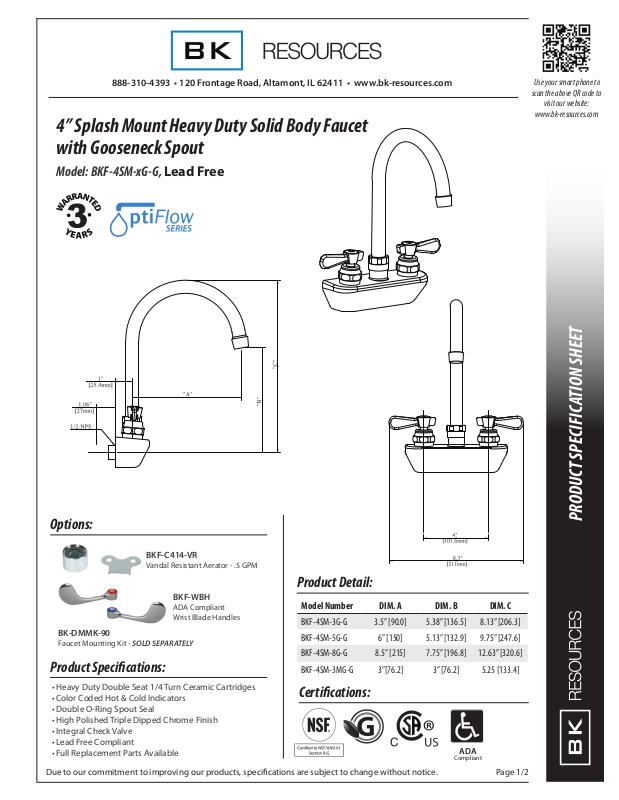

4” Splash Mount Heavy Duty Solid Body Faucet
with Gooseneck Spout
Model: BKF-4SM-xG-G, Lead Free
3
Use your smart phone to
scan the above QR code to
visit our website:
www.bk-resources.com
Options:
BK-DMMK-90
Faucet Mounting Kit - SOLD SEPARATELY
Product Specications:
• Heavy Duty Double Seat 1/4 Turn Ceramic Cartridges
• Color Coded Hot & Cold Indicators
• Double O-Ring Spout Seal
• High Polished Triple Dipped Chrome Finish
• Integral Check Valve
• Lead Free Compliant
• Full Replacement Parts Available
Due to our commitment to improving our products, specications are subject to change without notice.
BKF-C414-VR
Vandal Resistant Aerator - .5 GPM
BKF-WBH
ADA Compliant
Wrist Blade Handles
Product Detail:
Model Number DIM. A DIM. B DIM. C
BKF-4SM-3G-G 3.5” [90.0] 5.38” [136.5] 8.13” [206.3]
BKF-4SM-5G-G 6” [150] 5.13” [132.9] 9.75” [247.6]
BKF-4SM-8G-G 8.5” [215] 7.75” [196.8] 12.63” [320.6]
BKF-4SM-3MG-G 3”[76.2] 3” [76.2] 5.25 [133.4]
Certications:
F
L
R
E
•
E
E
•
E
L
R
E
F
A
D
D
A
F
E
R
E
E
D
F
E
R
L
E
•
E
E
•
E
L
R
E
F
A
D
D
A
F
E
R
L
E
•
E
ADA
Compliant
Page 1/2
L
•
E
E
R
F
D
A
E
L
•
E
E
R
F
D
A
PRODUCT SPECIFICATION SHEET
Page 2
888-310-4393 • 120
Frontage Road, Altamont, IL 62411 • www.bk-resources.co
m
4” Splash Mount Heavy Duty Solid Body Faucet
with Gooseneck Spout
Model: BKF-4SM-xG-G, Lead Free
1
5
3
2
3
4
Double O-Ring
6
7
14
13
12
Heavy Duty
Double Seat Washerless
Ceramic Valve
8
9
10
Solid Cast Body
Chrome Plated Brass
11
Exploded Parts Detail:
Diagram # Quantity Part Number Description
1 1 BKF-SPT-XX-G Gooseneck Spout
2 1 BKF-SPT-NUT Nut
3 1 BKF-SPT-SPACER Spacer
4 1 BKF-SPT-ORING Double O Ring
5 1 BKF-SPT-AER-W Aerator Washer
6 1 BKF-SPT-AERATOR Aerator
7 2 BKF-SPT-NOZZLE Nozzle
8 2 BKF-W-MN Mounting Nut
9 2 BKF-W-MW Mounting Washer
10 2 BKF-4SM-SPT-BASE Spout Base
11 1 BKF-4SM-XX-G Faucet Body
12 2 (1)BKF-CV-G & (1)BKF-HV-G Ceramic Valves
13 2 BKF-BONNET Bonnet
14 1 BKF-SBH Handle
Due to our commitment to improving our products, specications are subject to change without notice. Page 2/2
Optional Spouts & Parts:
Heavy Duty Gooseneck Spout
BKF-HSPT-3G-G, BKF-HSPT-5G-G
BKF-HSPT-8G-G
Heavy Duty DJ Swing Spout
BKF-HSPT-18-G
Heavy Duty Swing Spout
BKF-HSPT-6-G, BKF-HSPT-8-G
BKF-HSPT-10-G, BKF-HSPT-12-G
BKF-HSPT-14-G, BKF-HSPT-16-G
BKF-C414-VR
Vandal Resistant Aerator - .5 GPM
BKF-WBH
ADA Compliant
Wrist Blade Handles
BK-DMMK-90
Faucet Mounting Kit - SOLD SEPARATELY
PRODUCT SPECIFICATION SHEET
