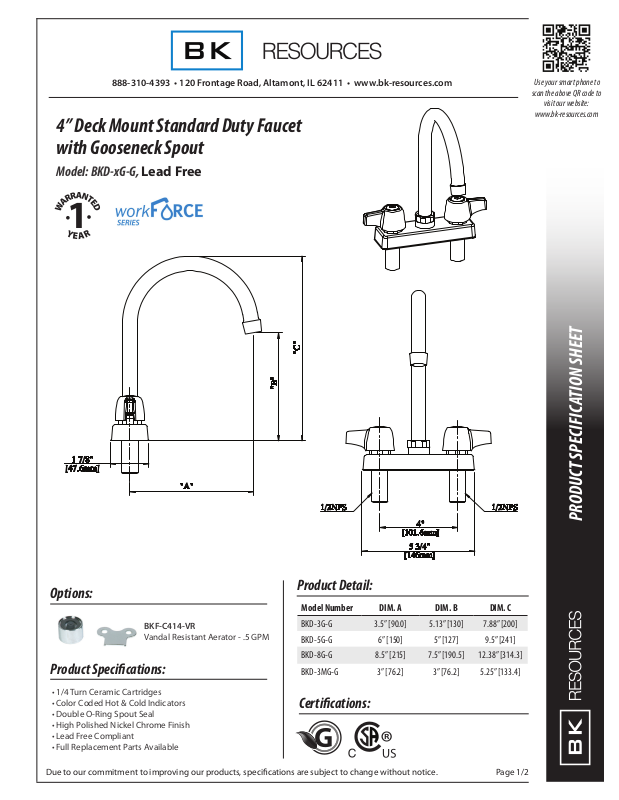

4” Deck Mount Standard Duty Faucet
with Gooseneck Spout
Model: BKD-xG-G, Lead Free
1
Use your smart phone to
scan the above QR code to
visit our website:
www.bk-resources.com
Options:
Product Specications:
• 1/4 Turn Ceramic Cartridges
• Color Coded Hot & Cold Indicators
• Double O-Ring Spout Seal
• High Polished Nickel Chrome Finish
• Lead Free Compliant
• Full Replacement Parts Available
Due to our commitment to improving our products, specications are subject to change without notice.
BKF-C414-VR
Vandal Resistant Aerator - .5 GPM
Product Detail:
Model Number DIM. A DIM. B DIM. C
BKD-3G-G 3.5” [90.0] 5.13” [130] 7.88” [200]
BKD-5G-G 6” [150] 5” [127] 9.5” [241]
BKD-8G-G 8.5” [215] 7.5” [190.5] 12.38” [314.3]
BKD-3MG-G 3” [76.2] 3” [76.2] 5.25” [133.4]
Certications:
F
L
R
E
•
E
E
•
E
L
R
E
F
A
D
D
A
F
E
L
•
E
E
R
F
D
A
E
L
•
E
E
R
F
D
A
R
E
E
•
L
E
A
D
F
E
R
L
E
•
E
E
•
E
L
R
E
F
A
D
D
A
F
E
R
L
E
•
E
Page 1/2
PRODUCT SPECIFICATION SHEET
Page 2
888-310-4393 • 120
Frontage Road, Altamont, IL 62411 • www.bk-resources.co
m
4” Deck Mount Standard Duty Faucet
with Gooseneck Spout
Model: BKD-xG-G, Lead Free
1
5
1
2
3
4
8
9
10
11
12
Double O-Ring
6
7
Standard Duty
Ceramic Valve
Integral 1/2”
Male Inlets
13
Exploded Parts Detail:
Diagram # Quantity Part Number Description
1 1 BKF-SPT-XX-G Gooseneck Spout
2 1 BKF-SPT-NUT Spout Nut
3 1 BKF-SPT-SPACER Spout Spacer
4 2 BKF-SPT-ORING O-Rings
5 1 BKF-SPT-AER-W Aerator Washer
6 1 BKF-SPT-AER Aerator
7 1 BKF-SPT-NOZZLE Nozzle
8 2 BKF-DBH Handle
9 2 (1) BKF-W-CV-G & (1)BKF-W-HV-G Cartridge
10 1 BKD-XX-G Faucet Body
11 1 BKD-BASE Base
12 2 BKD-MW Mounting Washer
13 2 BKD-MN Mounting Nut
Due to our commitment to improving our products, specications are subject to change without notice.
Optional Spouts & Parts:
Standard Duty Gooseneck Spout
BKF-SPT-3G-G, BKF-SPT-5G-G
BKF-SPT-8G-G
Standard Duty DJ Swing Spout
BKF-SPT-18-G
Standard Duty Swing Spout
BKF-SPT-6-G, BKF-SPT-8-G
BKF-SPT-10-G, BKF-SPT-12-G
BKF-SPT-14-G, BKF-SPT-16-G
BKF-C414-VR
Vandal Resistant Aerator - .5 GPM
PRODUCT SPECIFICATION SHEET
Page 2/2
