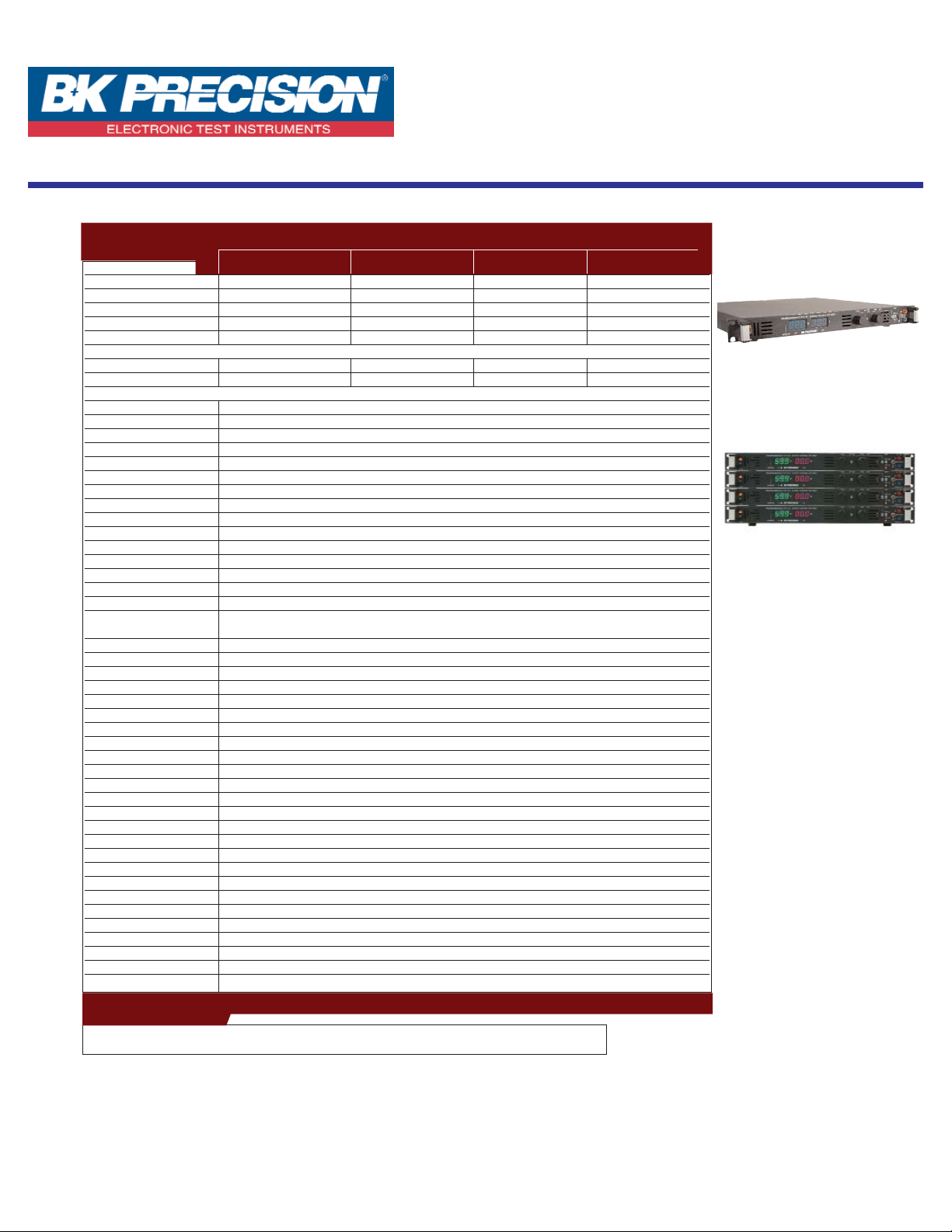

Data Sheet
Models* VSP6020,
VSP2050, VSP4030,
VSP12010
High Power Switching DC Power Supplies
Specifications
Output Specification
Power 1.2KW 1.2KW 1.2KW 1.2KW
Output Voltage 0–60V 0–20V 0–40V 0–120V
Output Current 0–20A 0–50A 0–30A 0–10A
Ripple rms. (10Hz to 1MHz) ≤ 10mV ≤ 15mV ≤ 10mV ≤ 20mV
Noise (10Hz to 20MHz) ≤ 45mVpp ≤ 45mVpp ≤ 45mVpp ≤ 45mVpp
Programming Resolution(Digital Interface), LSB (not LED displays)
Voltage 20 mV 10 mV 10 mV 100 mV
Current 10 mA 20 mA 10 mA 10 mA
Output Programming Accuracy(Analog Programming 0 To 5v & 0 To 10)
Voltage 0.5 % of F. S. ± 1 Digit (spec. for all VSP models)
Current 0.5 % of F. S. ± 1 Digit (spec. for all VSP models)
Meter Accuracy
Voltage +/- 0.2% of F.S. +/- 3 Digit. (spec. for all VSP models)
Current +/- 0.2% of F.S. +/- 3 Digit. (spec. for all VSP models)
Regulation
CV Line Regulation 0.1 % of F.S (spec. for all VSP models)
CC Line Regulation 0.1 % of F.S (spec. for all VSP models)
CV Load Regulation 0.1 % of F.S (spec. for all VSP models)
CC Load Regulation 0.1 % of F.S (spec. for all VSP models)
Output Specification
Stability 0.05%
Efficiency 80% Minimum
Transient Response 250 microseconds for load change from 40% to 90%
Mode Of Operation
Local Mode Through front panel potentiometer for voltage, current and over voltage and Push switch for Output ON/ OFF control.
Remote Mode Interface Analog programming of voltage and current.
Voltage 0 - 5 volts or 0 – 10 volts for output voltage and current, selection through DIP-switch.
Resistance 0 – 4.85k ohms from 0 to full-scale level.
Digital Interface RS-232 / GPIB
Protections
Over voltage protection Programmable through POT in local mode and through digital interface in remote mode.
Over temperature protection Through 90 °C. Thermal switch on heat sink.
VSP6020* VSP2050* VSP4030* VSP12010*
models
Input specifications
Mains Input Range 95Vac to 264Vac.
Input Frequency 47 To 63 Hz
Input Power Factor 0.99 On Full Load At Nominal Input.
Inrush Current Limited By NTC
Operating Environment
Temperature 0 - 50°C
Relative Humidity < 80% rh – non condensing
Storage Temperature - 20°C. to + 70°C.
Warm-up Time 15 minutes.
Safety Standards
EMI Filtering EN55022 Class-A
Safety Class EN60950
Mechanical Specifications
Weight (approx.) 13.7lbs. (6.2 KG.)
Dimensions (WxHxD) 19 x 1.75 x 18" (483 x 44.5 x 457mm)
Dimensions with rubber feet 19 x 2.13 x 20" (483 x 54 x 457mm)
Accessories
SUPPLIED: Instruction Manual
OPTIONAL (for all models): TL-5, TL-30
* = Specification also apply to corresponding GPIB model (Add GPIB to the model number for a GPIB interface instead of a RS232 interface. Example: VSP6020GPIB)
F.S = Full Scale. Full scale will be different for each model. Example: If you have a VSP2050 and you are measuring the voltage meter accuracy, the meter can not off more
than 0.3V (20V + 0.2% +3 digit). Note: 3 digits refers to the power supply displays least significant digit.
One Year Warranty
Specifications subject to change without notice
