Introduction
DAS240-BAT DAS220-BAT
Figure 1.1 Front View
The DAS240-BAT and DAS220-BAT programmable recorders can measure measure voltage, current, temperature (ther­mocouple, Pt100, Pt1000), resistances, and logic channels. Highlights include:
An intuitive interface on a wide capacitive and color 10” touchscreen
32GB internal memory for storing recordings
Composed of a main base frame and extension modules of 20 channels each
Programmable via Ethernet using NTP, FTP and VNC protocols
Built-in battery with capacity to run the recorder for hours
Model Channels
DAS240-BAT 20-200 using expansion blocks
DAS220-BAT 10
Table 1.1 Channel Options
1.1 Electrical Connections
Connection to the recorders uses modular connectors shown in Figure 1.2 and Figure 1.3.
1.2 DAS240-BAT Extension Module
Signals are connected to the unit via terminal blocks, see Figure 1.4. These blocks accommodate 20 connections each and may be chained together to provide more channels.
6
Item Description
1 Power Connector
2 Charging LED
3 ON/OFF Switch
4 USB Connectors
5 LAN Interface
6 Logic and Alarm Signals
7 Ground
8 Expansion Module
Figure 1.2 DAS240-BAT Electrical Connections
Item Description
1 Channel Inputs
2 Power Connector
3 Charging LED
4 ON/OFF Switch
5 USB Connectors
6 LAN Interface
7 Logic and Alarm Signals
8 Ground
Figure 1.3 DAS220-BAT Electrical Connections
7
Figure 1.4 Terminal Block and Cable
1.3 Home screen
The home screen provides access to the various functions and settings of the unit. Access this menu via the “Home” button in the top right corner of the screen.
Item Description
1 Setup Menu
2 Trigger Menu
3 Logic Channel Cong Menu
4 XY Display
5 F(t) Display
6 Numeric Display
7 Channel Setup Menu
8 Channel and Function Display Cong
9 Recording Display
10 Recording Replay Screen
11 Channel Conguration Screen
Figure 1.5 Home Screen
1.4 Recording Period
The acquisition sample rate is congurable. The unit samples one channel at a time. The sample period denes the time a sample consumes.
Note: Each channel is sampled in sequence. The effect is that the rate at which a channel is sampled depends on the number of channels and the sample period of each channel. See Section 1.4.1
The sample period is set to one of the following settings: 1, 2, 5, 10, 20, 50 and 100ms. When 3-wire thermocouple measurements (Pt100 and Pt1000) are made, the time periods are doubled. The doubled time periods are highlighted in the channel setup dialog with a “(x2)” beside the period. Also, by using a congurable low-pass lter per channel, measurements can be made ltering out higher frequency components.
8
1.4.1 Example: Recording 9 Channels
For example, if 9 channels are sampled, and the settings for each channel sample period are [50, 50, 20, 20, 20, 20, 10, 10, 5] ms each, the total time for an acquisition is 200 ms. Consequently, the minimum recording period, the time between samples of an individual channel, is 200 ms. See Figure 1.6.
50ms
Start
CH1
50ms
CH2
Total Time = 200 ms
Figure 1.6 9ch Ex.
20ms
CH3
20ms
CH4
20ms
CH5
20ms
Ch6
1.4.2 Example: Power-Line, engine noise, or other electrical noise.
For white noise or noise with lower frequency (lower than recording frequency), you can choose a software lter.
10ms
CH7
5ms
10ms
CH8
CH9
End
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
TestEquipmentDepot.com
9
Setup
2.1 Switching On
Prior to powering ON the unit, connect the extension modules1(DAS240-BAT). Turn on the recorder by pressing the button at the top. When the recorder is on, the ON/OFF button will illuminate, and displays a startup screen showing the hardware version. It then switches automatically to “F(t)” mode. This display is accessible from the “Home” menu, Figure 2.1, by pressing the “F(t)” key.
Figure 2.1 Home Screen
On power-up, the unit recalls the last settings and congurations used.
2.1.1 Switching Off
To switch off the recorder, press the ON/OFF button. A dialog box appears prompting the user to conrm powering off the unit. Select the green check mark to proceed. The dialog disappears if either the red “X” is pressed or the 10 s countdown expires. Before the unit turns off, the setup will be saved and the current le will be closed.
Figure 2.2 On Off Dialog
1
If there are no modules connected or detected, the will display “Error:Ti” in the lower right-hand corner of the startup screen
10
If the recorder does not switch off correctly, then press the ON/OFF button for 5 seconds. Congurations and setup values may not be saved in this case. This is also true if the unit loses power.
2.1.2 In Case of Error
If the unit still starts normally: reinitialize to default settings. From the main menu open the “Setup” menu, then
click on “Default setup” key. See Section 2.7.
Alternatively, the unit can be reset to factory defaults.
With the unit power off, press the power button to turn the unit on.
While the unit is booting up, quickly and repeatedly press power button until the display shows a white startup
screen. A setup_error.cnf le will be created in the root folder of the internal memory.
The unit resets to defaults and reverts to French.
To change the language back to English, press “Menu Principal”, then “Conguration”, then press the French
ag and select the British ag for English.
Note: If errors persist, please contact B&K Precision for further assistance.
2.2 Extension Modules (DAS240-BAT only)
Up to 10 extension modules may be connected at a time.
Figure 2.3 Extension Modules
To assemble multiple terminal block modules:
Screw the electrical connectors’ plate to each additional extension
Assemble the extension modules together
Screw the plates with the adjacent modules
Stick the additional adhesive buttress
Connect the cable using unlocking levers
Connect the cable on the DAS240-BAT (must be powered off rst)
Switch on the unit.
11
Figure 2.4 Breakout Cable and Module
Note: The unit is delivered with a 70 cm cable.
2.3 External Power
The DAS240-BAT and DAS220-BAT recorders are powered and charged using a 15V DC, 5A power supply. Warning: To minimize the risk of shock, the instrument chassis and cabinet must be connected to an electrical safety ground. This instrument is grounded through the ground conductor of the supplied, three-conductor AC line power cable. The power cable must be plugged into a three-conductor electrical outlet.
Warning: When the charger is connected to the unit, the chassis is connected to the power supply earth ground.
2.4 Battery
The unit is equipped with a lithium-ion battery. If the unit has remained unused for more than one month, check its charge status and recharge it if necessary. For continued safe use:
Never heat up or expose the battery pack to re
Never short the battery: there is a risk of explosion!
Do not puncture the battery.
Do not dismantle the battery pack.
Do not reverse the polarities of the battery.
This battery pack includes protection that should not be damaged or removed.
Do not store the pack in a place exposed to excessive heat.
Do not damage the protective sheath of the pack.
Do not store inside a vehicle exposed to the sun.
The battery should last at least 200 full charge-discharge cycles or 2 years.
2.4.1 To Ensure Long Battery Life
Do not store for a long time without use.
Store the battery at around 40% charge.
Do not fully charge or discharge the battery before storage.
12
When the battery is nearly discharged, the unit closes all open les, stops the software, and will shut off automatically.
2.4.2 To Charge the Battery
Connect the provided external AC adapter to the power input of the unit.
Connect the AC adapter to a electrical outlet.
The green LED will light when the battery is charging and will turn off when charging is complete.
Charging can be done with the unit turned on or off.
Note: Battery replacement and service should be performed by B&K Precision. Contact us for details.
2.5 Calibration
The recorder inputs for the voltage and thermocouple offsets can be calibrated. This will remove any offset present on different channels.
Figure 2.5 Offset Calibration Screen
1. Let the unit warm up for 20 minutes at ambient temperature 68-77F (20-25C).
2. Enter the recorder main page and then press the “Setup” key.
3. Select the “Additional Option” menu.
4. Select the “Electric Calibration” menu.
5. Press the “Calibration offset” to start calibration. This takes approximately 5 minutes.
6. Power cycle the unit.
2.5.1 Factory Default Calibration
The default factory calibration can be restored to correct any possible mistake in the calibration coecients. This restores calibration values congured at the factory. This is performed as follows:
13
1. Let the unit warm up for 20 minutes at ambient temperature 68-77F (20-25C).
2. Enter the recorder main page and then press the “Setup” key.
3. Select the “Additional Option” menu.
4. Select the “Electric Calibration” menu.
5. Press the “Recover factory calibration”.
6. Power cycle the unit.
2.6 Keypad Lock
To lock all keys:
Press the “Setup” key.
Press the “Additional Option” key.
Press the “Locking the recorder” key.
Press the green check mark to conrm and lock the unit.
The keypad lock will occur 10 seconds after conrmation. A yellow padlock appears in the upper right corner of the display when locked. To unlock the recorder, press the lock icon in the upper right corner repeatedly.
2.7 System Setup
The Setup Menu provides access to general setup of the instrument, monitoring of the alarm outputs, network address TCP/IP, calibration of the channels, and software (rmware) updating. The setup menu is shown in Figure 2.6.
Button Description
1 Language
2 Screen dimming time
3 Date and time setup
4 VNC setup
5 Additional settings
6 Update
7 Load default settings
8 Load conguration from disk
9 Save conguration to disk
10 Network status and setup
11 Alarms
12 Channels
Figure 2.6 Setup Menu
2.8 Language
The system language can be set to one of the following: French, Spanish, English, Italian, German, and Swedish. Open the language dialog by pressing the ag icon on the setup screen (Home>Setup). Then select the ag icon that correlates to the language, Figure 2.7.
14
Figure 2.7 System Languages
2.9 Screen Shut Off (Dimming)
The amount of time the screen back-light stays at full brightness may be set from 1-30 mins or (disabled). Use the arrow keys to change the screen shut off timeout.
2.10 VNC
VNC (Virtual Network Computing) allows the user to mirror the front panel using a viewer on a networked computer. This button is for setting the password. See Section 12.2 for more details.
2.11 Additional Options
Setting the screen brightness, locking the screen, calibrating the machine, setting the start-up screen image and settings for the Modbus server are available in this menu. See Section 2.5 for calibration information, and see Section 2.6 for screen lock information.
2.12 Firmware Update
See Chapter 13 for details about updating the rmware.
2.13 Instrument Conguration Loading and Saving
Settings like the F(t) time/division and channels to display may be saved and recalled by the instrument. Also, a default set of settings may also be loaded. These can be congured with the 3 buttons in the “Setup” box of the setup display window (home>setup).
2.14 Network
The current IP addresses of the network is shown within the network button. If there is no network connection, 0.0.0.0 is shown.
15
Figure 2.8 Network
Conguration Dialog
Pressing the button opens the network conguration dialog. Available options are shown in this window depending on the hardware connected. DHCP, IP Address, Subnet Mask, and Gateway IP can be congured here.
2.15 Alarms
See Chapter 9 for details.
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
TestEquipmentDepot.com
16
Channel Setup
3.1 All Channels Screen
Access the channel setup menu from the Home screen and press the “Channels” button. The screen shown in Figure 3.1 appears.
Figure 3.1 Channels Menu
The channel conguration screen provides quick access to individual channel settings. Each column lists a set of values for each channel. The parameter available is listed in the left and right most columns. Pressing the box corresponding to the channel and parameter opens a dialog box with options for conguring that parameter. The contents of the dialog change depending on the selected parameter value. For example, when the channel type parameter is opened, selecting
the Thermocouple value modies the box to give further options for thermocouples (type, temperature units, etc).
Back on the main channel table, the value in the box shows a summary version of the parameter’s congured value. In the upper right and left corners of the table are navigation arrows for showing more sets of channels. 10 channels may be shown on screen at a time.
3.2 Individual Channel Screen
The complete set of parameters, values and options are also viewable for a single channel on a single screen. To open this screen, press the box displaying the Channel ID (A1 for example). This opens a window for setting a greater number of values than available from the channels table. For example, the plot color and thickness can be set here. See Figure 3.2.
3.3 Extension Modules (DAS240-BAT only)
Up to 10 extension modules may be connected at a time. To assemble multiple terminal block modules:
Screw the electrical connectors’ plate to each additional extension
Assemble the extension modules together
Screw the plates with the adjacent modules
Stick the additional adhesive buttress
17
Figure 3.2 Channel Conguration Screen
Figure 3.3 Extension Modules
Connect the cable using unlocking levers
Connect the cable on the DAS240-BAT (must be powered off rst)
Switch on the unit.
Note: The unit is delivered with a 70 cm cable.
3.4 Measurement Connections
Using the terminal blocks provided with the unit. Figure 3.5. (Phoenix Contacts: SMSTB 2,5/3-ST5,08 - 1826296)
3.4.1 Voltage Measurement
Voltage measurement is performed between the + and - terminals of the inputs. The “GND” terminal is not used.
18
Figure 3.4 Breakout Cable and Module
Figure 3.5 Terminal Blocks
3.4.2 Temperature Measurement With a Thermocouple
The voltage resulting from thermocouple is measured between the + and - terminals of the relevant input. The “GND” terminal is not used. Errors in reading temperature can be caused by reverse connection of the thermocouple wires.
3.4.3 Temperature Measurement With Pt100/Pt1000 and RTD
The Pt100/Pt1000 probe must be connected to the + and - terminals. The current injects into the “GND” terminal. For a 4 wire Pt100/Pt1000, only 3 wires are used.
Note: the “gnd” current injection is shared by all channels.
Figure 3.6 shows 2 ways to wire the temperature sensors. Using the 2-wire method, the “-” and “GND” terminals are
connected together at the terminal block. For 3-wire, the ground connects at the measurement point.
2 Wire 3 Wire
Figure 3.6 Terminal
Block Wiring
3.4.4 Resistance Measurement
Connect the resistance to measure between the “+” and “-” terminals and connect the “-” and “GND” terminals together. For best resolution and accuracy, congure the resistance display range appropriately for the expected value. For example,
19
set the on screen range close to the expected measurement value. Based on the range chosen, the unit determines the sense current and voltage range to use for measurement.
3.4.5 Current Measurement
The recorder includes the option to convert sensed voltage across a shunt or sense resistor into a current reading. From the “Home” screen, open the “Channels” menu. The “Type” row shows the current function per channel. Press the square in the “channel” column and “Type” row to open the conguration dialog for the function type. See gure 3.7. Select the “Current” menu option. The window will change to show a button listing the current shunt value. To change the value, press the button and a dialog for setting the shunt value will open. See Figure 3.8. Set the value and unit and press the green check mark to conrm the setting and the screen will return to the previous menu. To wire the circuit for current measurement, connect the “+” and “-” terminals to the current shunt. Also, set the
current range in the “Channels” window appropriately. Use either an external resistance or a shunt (ref 902406500: 50Ω
Figure 3.9).
Figure 3.7 Channel Function Type
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
TestEquipmentDepot.com
20
Figure 3.8 Current Shunt Value Setup
Figure 3.9 50ΩShunt Module
21
F(t) Plot
This mode displays the channel signals versus time, much like an oscilloscope. The time per division is called the “Timebase” on this unit. The display is normally in a scrolling mode displaying real time data. This changes when recording data. In that case, the display shows the full record. See Chapter 7 for more information about recording data.
Item Description
1 Screen Setup, Section 4.1.
2 Congure custom pages,
Section 4.1.1
3 Freeze Screen, Section 4.2
4 Full Screen - change the view to
full screen, touch the screen anywhere to exit.
5 Timebase, Section 4.3
6 Numerical display - display the
current signal value and control which channel page is displayed.
7 F(t) plot
Figure 4.1 F(t) Screen
4.1 Screen Setup
Figure 4.2 Screen Setup Dialog
From this dialog, the type of plot, numerical values, math, grid scales, number of plots, and colors are set here. The number of plots is available when in F(t) mode, and is limited to the number of signals measured. The maximum number is 10. When in XY mode, the number of plots is replaced by the option to enable a custom grid (background image). When a custom grid is enabled, the options of directory and le are added to the dialog as in Section 4.3. Lastly, the choice of displaying points as dots or vectors is available for the XY display mode.
22
Figure 4.3 Screen Setup Dialog - XY mode
4.1.1 Custom Pages
Using this menu, set the channels to see on screen from the available channels set using the “Channels and Functions On/Off” menu. The channels are divided into banks and the shown bank is set here. For example, this allows channels 1 and 10 to be shown on the screen and turn off other channels.
4.2 Freeze Screen and Cursor Measurements
Freezes the graph at the screen to perform measurements through cursors, calculations, save or print the measurements at screen, in the F(t) mode. When frozen, horizontal and vertical cursor icons are added to the right-hand panel. Selecting the vertical cursor icon
enables time based cursors. Move the individual cursors by the touchscreen or other mouse interface to set the
cursor positions. selecting the horizontal cursor icon changes the available buttons in the right hand panel, See
Figure 4.4.
Icon Description
Undo the last cursor action completed.
Opens a dialog box for setting the signal to measure with the cursors.
Zoom the selected channel to t within the current cursor settings.
Set the vertical axis parameters for the selected channel. The range is the vertical span of the channel. The center value denes what value is the middle of the axis. The “Position” denes the vertical location of the horizontal axis (time) in percentage. The range is from -100 to 100 %. For example, -50 will place the horizontal axis at 2.5 divisions above the bottom of the display. All together, the range sets how many volts tall the vertical axis is, center sets the
23
Figure 4.4 Horizontal
Cursor Options
Figure 4.5 Time Base Setting (Time/Division)
4.3 Time Base
The trace time scale may be set to a number of values. Pressing the Timebase button on the right of the F(t) plot screen brings up the dialog as shown in Figure 4.5.
4.4 Math
Math functions may be applied to multiple channels. To enable math functions, enable the check-box for “Math” in the
“Screen Setup” window. When enabled, the icon is added to the right hand button panel. Pressing the button brings up the conguration dialog shown in Figure 4.6. Use the arrow buttons at the top to increase of decrease the number of math functions. Use the arrows at the bottom to change the channel on which the math is done, or press the channel named for each row to set the desired channel. See Figure 4.7 for the set of functions available. The values calculated for each function congured are shown on the main plot screen, colored the same as the channel they do math on. See Section 4.4.1 Calculated values are displayed in the plot window showing the following:
24
channel number (with its color)
function name
value
Figure 4.6 F(t) Channel
Math Settings Dialog
Figure 4.7 F(t) Channel Math Functions Dialog
4.4.1 Math Functions
Math function values may be moved around on the screen. To move the math values, click and drag them to a desired position on screen.
Minimum
Maximum
Peak to Peak
25
Figure 4.8 Math Dialog Box
Low The most frequent value below the median
High The most frequent value above the median
Amplitude
On positive oscillation
On negative oscillation
Average frequency
Cycle average
Rising edge T1 = 10% Amplitude T2 = 90% Amplitude Trise = T2 - T1
𝑀𝑎𝑥−𝐻𝑖𝑔ℎ
𝐴𝑚𝑝𝑙𝑖𝑡𝑢𝑑𝑒
𝐿𝑜𝑤−𝑀𝑖𝑛
𝐴𝑚𝑝𝑙𝑖𝑡𝑢𝑑𝑒
1
𝑃𝑒𝑟𝑖𝑜𝑑
Duration of N complete periods
∗100
∗100
𝑁
culated on as many periods as possible
Average duration of a complete cycle cal-
26
Falling edge T1 = 90% Amplitude T2 = 10% Amplitude Tfall = T2 - T1
Positive pulse width Measurement of the time of 1st positive pulse. It is measured at 50% of am-
plitude
Negative pulse width
Positive duty cycle
Negative duty cycle
N : total number of dots
RMS
amplitude
Measurement of the time of 1st negative pulse. It is measured at 50% of
positive pulse duration
𝑝𝑒𝑟𝑖𝑜𝑑
negative pulse duration
𝑝𝑒𝑟𝑖𝑜𝑑
𝑁
𝑁
1
𝑉
𝑖
𝑖=1
𝑁
1
(𝑉𝑖)
𝑁
𝑖=1
- Note
2
2
- Note
2
Standard Deviation
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
2
Calculated using the whole graphic range
𝑁
1
(𝑉𝑖−
𝑁
𝑖=1
𝑉)
TestEquipmentDepot.com
27
2
- Note
2
XY Plot
The XY mode is accessible via the main menu by pressing the XY key. In this mode, one of the channel represents the horizontal axis (X), and the other channel the vertical axis (Y). For example, if the channel for the horizontal axis is 1V and the channel for the vertical axis is at 95F, the recorder plots a point at (1,95). A custom background/grid may also be shown on the display. From the “Screen Setup” menu accessed by pressing the button on the XY plot screen, select the “custom grid” check-box, select the folder containing the bitmap to be used (middle button), and select the bitmap using the right most button on the line. Along with the XY plot, a numeric representation of the current signal values is shown.
Item Description
1 Screen conguration - Open the
measurement display
2 Trace - Allows to start or stop
the trace
3 Delete Allows to delete the
screen
4 X channel Selects the channel
for the horizontal axis
5 Full screen Allows to view on the
full screen, press on the reticule to come back to the normal mode
6

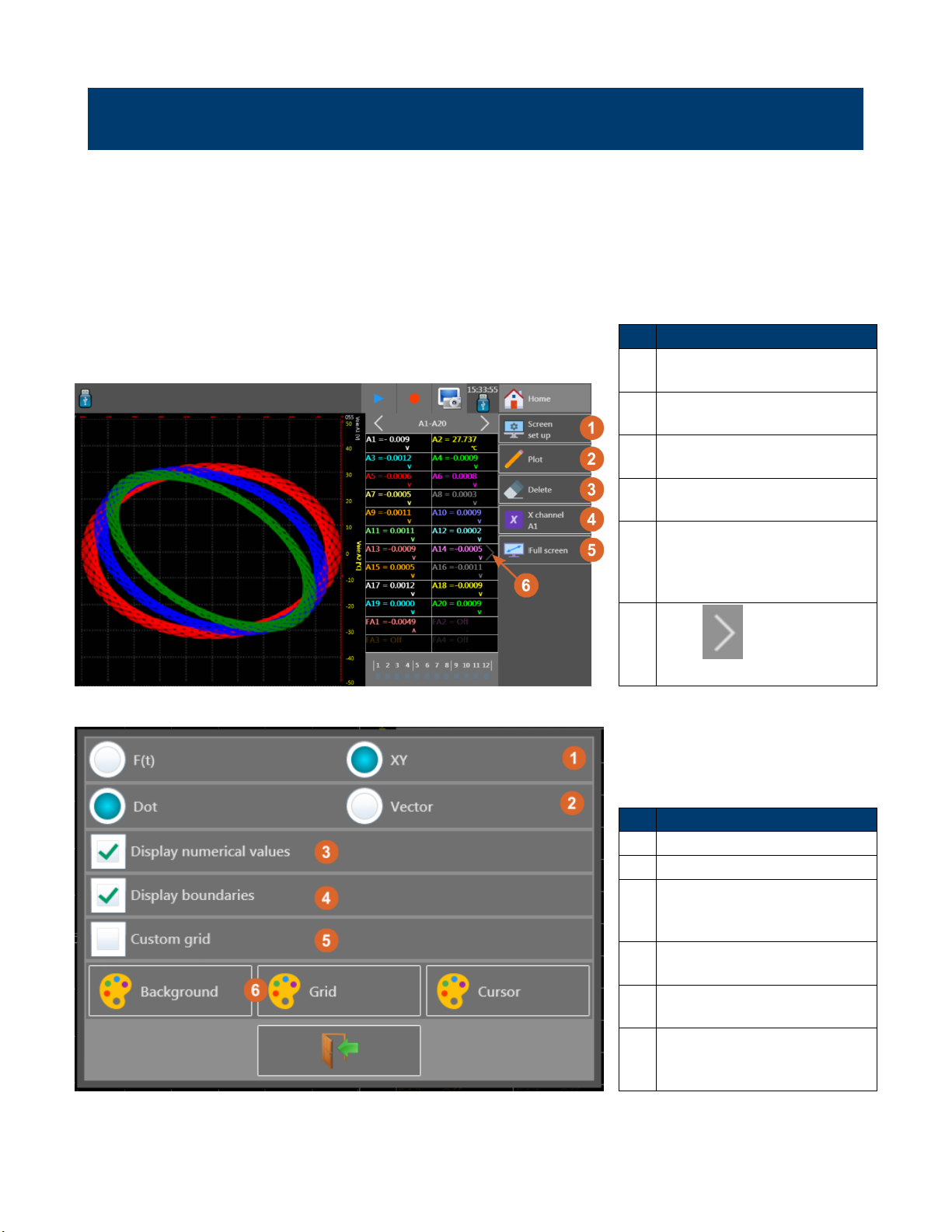

Figure 5.1 XY Display Screen
Arrow key shows or hides the numerical window
Item Description
1 Plot type - F(t) or XY
2 Point display - Dots or vectors
3 Display Numerical Values -
shows the numerical values in a table
4 Display Boundaries - shows or
hides the axes
5 Custom Grid - congures the
grid and background image
6 Colors - sets the color of the
background, grid and cursor using a color picker
Figure 5.2 XY Setup Window
28
Figure 5.3 Numerical Window
1. The or keys : selects the group to view.
2. By pressing a specic channel:
The graph terminals are bound to this channel.
In real time acquisition, the instant value will show up.
By visualizing the cursors; then the difference value between cursors as well as T1 and T2 values corresponding
to cursors T1 and T2 will be displayed.
3. Press right to hide this window, and when hidden, the icon points left.
29
Numeric Display
The numerical window allows to visualize in real time the values of each channel. See Figure 6.1. The number of channels shown per screen depends on the number of channels selected. Each display page is accessed by pressing the right and left arrows.
Item Description
1 Cycle display screens (channels, custom sets, logic functions, etc)
2 Digital channel state (shown when “Logic Channels” option is set in the “Channels and Functions” menu.
3 Reset minimum and maximum recorded values
4 Individual channels, click within each channel to open the conguration menu for that channel
Figure 6.1 Numeric Display Screen
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
TestEquipmentDepot.com
30
Recording
The DAS240-BAT and DAS220-BAT can save data to internal storage. The user can then retrieve the data and review it on the unit, save it to a USB drive, or retrieve it via the Ethernet interface.
7.1 Create a Recording
To create recordings, press the “record” button on either the “setup” screen or from the top ribbon when in any of the 3 data display modes (F(t), XY, or Numeric) to start a recording. See Figure 7.1. Recording starts when the trigger condition is met. If the trigger function is not running, stop is selected on the trigger setup page, then recording starts immediately. Figure 7.2 is waiting for a trigger, and Figure 7.3 has started recording.
Figure 7.1 Record Keys
Figure 7.2 Record screen
7.2 View Recording
Stored recordings may be recalled and analyzed. With a recording loaded, zooming into portions of the recording and making cursor measurements can be done. To open a saved recording, navigate to the “Home” screen and press the
button. Alternatively, when in either XY or F(t) screens, the blue triangle (Figure 7.4) in the top
ribbon opens the recording playback mode.
7.2.1 Loading a Recording
31
Figure 7.3 Recording started
Figure 7.4 Recording playback
1. Press the button. This will open Figure 7.5.
2. Press the “Read File” button within the new dialog.
3. Navigate and select the recording to view.
4. When a le is selected, a new button appears . Press this button to load the selected recording.
32
Figure 7.5 Load Saved Recording File Dialog
Figure 7.6 File Browser
Figure 7.7 Saved Recording Loaded
33
Triggering Recordings
Item Description
1 Record le path
2 Recording size
3 Reading storage rate (reading
period)
4 Start condition
5 Stop condition
6 Trigger arm state
Figure 8.1 Trigger Menu
The start and stop functions control the conditions that initiate data recording. Opening the “Start”, or “Stop” trigger menus open the start condition dialogs with the following recording start options:
Manual pressing a key
Trigger Based on Analog, or Digital signal conditions. See Section 8 for details
Waiting After a delay or at a specied date and hour. See Section 8.1 for details
Automatic Occurs immediately, and automatically stops when the le is full
Pre-Trigger Quantity of samples to record preceeding the trigger
8.1 Waiting Start Condition
Starting a recording at a prescribed later time or date. Figure 8.2 shows the 2 dialogs for conguring each condition. Waiting on a delay, will wait for the prescribed time and proceed with a recording. Waiting for date delays recording until a specic time and date. For each, congure the time in hours, mins and seconds, and for the date, the day, month and year is also set.
8.2 Recordings
Recording setup:
Selection the folder
Selection the le name (beginning of the le name, the end is an incremented numerically)
Length of the le (maximum or selection of the number of samples per channel)
Measurement data prior to a trigger event may be included in the data recording. The amount of data is dened
as the “Pre-trigger” samples. The amount of data is set and determines the amount of time before the trigger event to include in the recording.
Speed: The maximum speed is determined by the number of channels for acquisition.
34
Wait for a Time
Wait for a Date
Figure 8.2 “Waiting” Start Conditions
Start: Start condition of the data acquisition
Stop: Stop condition of the data acquisition
Automatic: when the le is full
Trigger: on a channel or a combination of analog or logic channels
After acquisition: action after the end of the data acquisition (only available if the Start and Stop triggers are not
set to Manual)
Stop: no action
Rearm: a new le is launched waiting for the Start trigger
View of the active channels, of the recording time, of the pre-launch
Note: A message “Impossible” shows up when the saving possibilities are exceeded. Fix this by reducing the sampling speed or the number of channels. Various conditions are available for starting and stopping acquisition recording. Analog signals, time delays, and logic inputs are trigger sources. Also, the amount of data prior to a trigger event is congurable. Access the trigger menu from the “Home” screen and the “Trigger” button. Figure 8.1 is representative of the trigger conguration window.
8.3 Triggering
Triggering is based either on a single channel edges and thresholds, combinations of analog channels, or set digital signal states.
8.3.1 Single Analog Channel Trigger
To use a single analog channel as a trigger source, the general procedure is as follows:
35
Figure 8.3 Start Condition Dialog
1. Select trigger, and “Analog Channel” from the trigger dialog.
2. Set the amount of Pre-trigger samples to record.
3. Choose the trigger source channel.
4. Select the trigger condition (Threshold, level (higher/lower), or edge)
5. Set the trigger analog signal level.
8.3.2 Single Threshold
Figure 8.4 Trigger Threshold Setup
Channel: Selection of the channel, on which the trigger threshold is applied
Threshold 1 / Threshold 2: Selection of the threshold to settle; each channel is tested with reference with 2 thresh-
olds, i.e. you can program a start condition on the channel A1 and the threshold 1, and a stop condition on this same channel A1 and the threshold 2
Higher / Lower: Trigger when the channel value is more or less than the set threshold
Threshold value: Threshold value selected in real value (taking the current unit and scale of the cong-
uration of the selected channel into account)
Edge: Selection of the active edge of the channel in reference to the threshold
36
Pre-triggering (only for start): Gives the acquisition time before the trigger appears.
8.3.3 Multiple Thresholds
After selection of a trigger on a set of logic channels, the window allows you to set the trigger under several conditions. Then, by pressing the various thresholds in front of their respective channels, you open the threshold parameter window.
Figure 8.5 Multiple Threshold Trigger Screen
One of the thresholds, or the rst achieved condition activates the trigger
All thresholds, and all conditions must be simultaneously achieved to validate the trigger
A table makes it possible to select all channels and the validity of the channels
Selecting the channel allows the selection of the thresholds:
S1 and S2
Value of the thresholds
Rising / Falling edge, or Low / High value
Figure 8.6 Trigger
Type Setup Screen
37
8.3.4 Trigger Examples
Edge trigger: you need a change of status
Example: Channel A1, rising edge, threshold = 0V: triggers only if the signal status changes from negative to positive
Level trigger: no need to pass the threshold
Example: Channel A1, high level, threshold = 0V: triggers only if the signal is positive
Alarms only have level triggers
8.4 Trigger on Logic Channels
Selecting “Logic Channels” as the trigger source changes the window to show conditions for logic channel triggering. Each of the logic channels is congured as a 1, 0 or X (don’t care). Use the arrow keys to move through the logic input bits. Triggering may be congured as either an AND condition or an OR condition. This is applied to each channel. Lastly, the trigger event is generated on either a Level or Edge condition.
Logic 1 Greater than 4.0 Volts
Logic 0 Less than 1.6 Volts
Figure 8.7 Logic Trigger Setup Screen
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
TestEquipmentDepot.com
38
Alarms
4 congurable alarm signals allow signaling from the recorder through the digital port. The alarm signals are high (5V) when the alarm condition is detected. The main display’s alarm status section indicates the status of the alarms. The main display alarm status is “sticky” in that when alarm triggers, the eld is set to active (red). See Figure 9.3. The condition may clear, and the alarm status will continue to show an alarm happened. The digital port clears the alarm when the programmed condition is not met any longer and returns to 0V. To congure the alarms, open the “setup” menu from the “home” screen. See Figure 9.1. At the bottom of the screen are the 4 alarms. Each button opens the conguration dialog for that alarm. See Figure 9.2
9.1 Alarm Status
Figure 9.1 Alarms on Setup Screen
Figure 9.2 Alarm Dialog
Figure 9.3 Alarm Status
39
The status of all 4 alarms is always visible in the top ribbon, each with its own small square. The status of each alarm is indicated 3 colors:
Transparent Alarm disabled
Blue Alarm enabled, not triggered
Red Alarm enabled and triggered
To clear an alarm, press the on screen box containing the alarm statuses.
9.2 Analog/Math/Timing Signal Alarm
An alarm based on analog signal levels, a math function, or a “logical function” is set by selecting the “trigger” function on the Alarm dialog (Figure 9.2). Signals available for Alarms must be active signals congured in the “Channels” menus on the “Home” screen. When selected, the dialog changes contents to show something similar to Figure 9.4. Select the desired signal by pressing the button listing a channel at the center of the dialog box. Depending on the signal type, 1 thresholds may be set. The selected threshold is show at the top of the dialog. To set the trigger as a window, the “channels combination” conguration must be used. See Section 9.3.
Figure 9.4 Analog Alarm Trigger
Figure 9.5 Alarm
Analog Thresholds
9.3 Analog Signal Combination Alarm
More complex triggering based on windows, and combinations of signals is available. The signals are limited to the analog channels and do not include math and timing as in the single channel alarm. The signals may have 2 thresholds.
40
The set of signals congured will trigger the alarm if 1 threshold is true, or all thresholds are true. This is set by the AND/OR condition at the top of the dialog.
Figure 9.6 Analog Combination Trigger
9.4 Logic (Digital) Signal Alarm Trigger
An alarm based on the logic state of the digital input is congured by selecting the “Logical Channels” option. Following the typical convention of a 1, 0 and X to denote true, false and “dont’t care” respectively, is used to set the digital patter to trigger on. Also, using the “AND” or “OR” conditions select when the trigger occurs. With the “AND” condition, all signals dened must be true for the Alarm to trigger. In the “OR” case, any valid signal, excluding the “X” signals will trigger an alarm.
Figure 9.7 Digital Trigger
41
9.5 Alarm on Recording Start (Trigger Acquisition)
An alarm is also available for signaling the start of a recording. Select the “Trigger Acquisition” option to enable this type of alarm.
Figure 9.8 Trigger on Alarm
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
TestEquipmentDepot.com
42
Logic Channels
Up to 12 logic channels can be recorded simultaneously with the analog channels. In addition, 4 timing channels are also available for measuring duty cycle, RPM, and pulse count.
10.1 Logic Input Connector
This is a DB-25 connector located on the top of the unit.
Pin Signal Pin Signal
13 Logic Ch 1 19 Function K2
25 Logic Ch 2 6 Function K3
12 Logic Ch 3 18 Function K4
24 Logic Ch 4 5 Ground
11 Logic Ch 5 17 Ground
23 Logic Ch 6 4 Ground
10 Logic Ch 7 16 9-15V 0.2A
22 Logic Ch 8 3 Ground
9 Logic Ch 9 15 Alarm C
21 Logic Ch 10 2 Alarm D
8 Logic Ch 11 14 Alarm A
20 Logic Ch 12 1 Alarm B
7 Function K1
Figure 10.1 Logic Connector
10.2 Logic Channel Setup
To set the logic channels, press the “logic channels” button on the “Home” screen, or from the “F(t)” screen, click within the logic signal portion of the screen when present, See Figure 10.2. The conguration screen will open and resemble
Figure 10.3.
The set of channels depends on the number of channels chosen. For a given number of channels, the signals enabled on the connector is xed. For example, if 4 channels are enabled by the up/down arrows beside the text listing the number of channels, then pins 13, 25, 12, and 24, will be active. They become channels 1-4 respectively.
Figure 10.2 Logic
Channels on the F(t) screen
43
Item Description
1 Channel number, color and arrows to
change channel
2 Channel count
3 Enable logic channels
4 Connector (red - selected channel)
5 Additional pin information
6 Channel #, pin, and state (dim -
disabled)
Figure 10.3 Logic Channel Conguration Screen
10.3 Timing
Function channels K1-4 are used for measuring the PWM duty cycle, count, or frequency of up to 4 digital signals. They are also 3.3V level signals and tolerant of 24V.
Access the setup for these functions from the “Home” screen and pressing the . Then navigate to the channels K1-4. See Figure 10.4. To congure each channel, either change the parameters on this screen by opening the menus per eld in the table, or open the conguration screen for a single channel by pressing the channel ID (i.e. K1). Conguration of a single channel is done via screens similar to Figure 10.5.
Figure 10.4 Timing Function Channels
10.4 Alarm Outputs
Finally, the “Alarm” signals are also present on the Logic connector (A, B, C and D. Pins 14, 1, 15 and 2 respectively). Their setup and use is described in Section 9. All outputs are TTL 5V. When the unit is powered off, outputs have a
5kΩresistance.
44
Figure 10.5 Single Timing Function Setup Screen
45
File Management
The recorder is capable of creating recordings, screenshots, and saving device setup congurations. All of these are stored as les, “*.rec” for recordings, “*.bmp” for screenshots, and “*.cfg” les for congurations. The le view dialog
Figure 11.1 is accessible from the “Home>Setup”, “(Waveform)>Screen Setup>Background”, “Home>View Records”,
“Home>Setup>Load/Save on Disk” screens for example. Each instance of the le dialog allow interaction between internal and external (USB) storage. Finally, folder navigation and creation is also available.
1 Note:
It is highly advisable to work in a folder and not at the root of the ash disk. When erasing a folder, all les in this directory will be erased too.
Figure 11.1 File View Screen
1. Read/write to internal ash disk or USB stick (if it was connected during unit startup)
2. Copy the selected le or folder to a USB drive
3. Create and name a new le
4. Create a new folder
5. Delete the selected folder or le
6. Close the window
7. Folder navigation and location window
8. File view and selection window
11.1 Setup Files
Setup congurations are loaded and saved from the “Home>Setup” menu. The conguration may be changed via the 3 buttons in the upper righthand corner of the screen:
46
Default Sets up the appliance in standard conguration
Load from disk Loads a conguration from a le in the internal ash disk or an USB stick
Save to disk Saves a conguration into a le in the internal ash disk or an USB stick
These commands are only available when the data recording is stopped.
11.1.1 Default
This action loads the system defaults as programmed into the unit during manufacturing.
11.1.2 Save Setup Files
To save a conguration, press the . The name of the le with the alphanumerical keyboard displayed on screen, or, if attached, a USB keyboard.
11.1.3 Load Setup Files
To load a conguration, press the . Select the directory and then the le to load, and click “Load”.
11.2 Recordings Files
Saved recordings are transferable between internal storage and USB. Recordings are saved to internal storage. See
Chapter 7 for details.
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
TestEquipmentDepot.com
47
Remote Interfaces
12.1 LAN Interface
The LAN connection to the DAS240-BAT supports ModBus, VNC, Sefram Viewer and DAS Lab. Sefram Viewer and DAS Lab are tools provided by B&K/Sefram, and are available as a single download from http://www.bkprecision
.com. The LAN connection supports 10mBit and 100mBit networks. In the case where a network is not available, using
a crossover cable is also possible.
12.1.1 LAN Setup
Setup of the LAN interface is available by clicking the “Network” button on the “Home” screen. (See Figure 12.1). Clicking the “Network” button opens the network setup dialog (See Figure 12.2). The LAN interface supports static and dynamic (DHCP) conguration. For DHCP, the DHCP checkbox is marked, and the network address will be shown on the “Network” button shown on the “Home” screen. For static IP conguration, using parameters dened for the network (see your local network administrator for details) are set in the dialog.
Figure 12.1 LAN Conguration Button
12.2 VNC
Use of the unit from another computer is available using VNC (Virtual Network Computing). This presents an interactive view of the front panel allowing nearly all functions to be used remotely. Numerous software tools are available for using VNC (ex. UltraVNC). To open a connection, the IP address of the unit is required. This is found on the “Network” button on the “Setup” screen.
12.2.1 Changing the Password
Open the “Setup” screen and press the “VNC” button. The resulting dialog box shows the current password. Press the keyboard icon in order to change the password.
12.3 Network File Transfer
Transfer your les to your computer to save them or view them with the SeframViewer software.
Using of the Windows le explorer
Filezilla: freeware (https://lezilla-project.org/)
Using an external browser (Firefox, Chrome, Edge, etc…)
48
DHCP Static
Figure 12.2 LAN Setup
12.4 Viewing with SeframViewer
You can transfer the data acquisition les to a PC computer for viewing. The SeframViewer software is provided on a CD-ROM with the appliance. You can use it to view the recorded les or convert it into xls or txt les. It works under WINDOWS with Framework 2.0. Transfer of the les from the appliance to the PC computer:
USB peripheral device
with the FTP protocol
Launch the SeframViewer software (or double-click on a le) Open a data acquisition le (sux .rec) You can select:
the channels to display
the display mode f(t) or xy
the self-calibration of the channels.
Your data acquisition le shows up on screen. The functions of SeframViewer are available. Refer to the instruction manual included in the software to discover all available functions in SeframViewer by clicking on the last icon < Help >. You can also directly create a le (.txt or .xls) by launching the command mode of Windows with the following line (see the Options sub-menu of the help):
49
Figure 12.3 Sefram Viewer
12.4.1 Example
C:\Program Files (x86)\SeframViewer\seframviewer.exe myle.rec /x will create a .xls le C:\Program Files (x86)\SeframViewer\seframviewer.exe myle.rec /t will create a .txt le Excel@export will directly launch Excel in the browser.
Figure 12.4 Excel Export
12.5 Device Control with DASLab
The DASLaB software manages congurations of your DAS240-BAT device.
Open, modify and save your congurations
Manage congurations remotly using network via Ethernet or WiFi
Download your record les using network via Ethernet or WiFi
According to your needs, click on the right button. If you want manage your DAS240-BAT or DAS220-BAT using network, enter the IP address to establish the connection. For every action, including opening, saving, sending or refreshing congurations, the left sliding menu makes you able to apply it.
50
12.6 Modbus (slave)
Figure 12.5 DASLab
Figure 12.6 DASLab
Modbus is a non-proprietary communication protocol. All Modbus frames are encapsulated into Ethernet frames: it is called Modbus over TCP/IP. That protocol is dialog based (question-answer) : the client (master) send a command, and then the server (slave), send back wanted data. The DAS240-BAT/DAS220-BAT includes a Modbus TCP Slave service.
12.6.1 Setup Modbus Slave
The Modbus protocol uses ethernet network. So you have to choose the port used for that feature, and then enable the Modbus TCP server. Default port for Modbus TCP is 502. It is possible to use Wi provided a USB Wi adapter is installed and working: for performance reasons however, the wired USB interface should be used when using Modbus.
51
In the Setup page of your instrument, then Additional option, select the “Modbus TCP Server” button. You could enable or disable the server: click on the radio button < Modbus server state >. According to your preferences, you are able to change the network port dedicated to the Modbus server. To carry out that change to a successful conclusion, you must disable the Modbus server, change the port (502 by default), and then restart the Modbus server.
12.6.2 Mapping Modbus TCP
The instrument shares acquisition data at input registers (0x04) and discrete input (0x02).
12.6.2.1 Analog Data
Acquisition data for the 200 analogs channels, and 4 logicial functions channels (K1 to K4) are located in inputs registers from the following address : 0x08.
Register Register Description
0x08 A1 High word
0x09 A1 Low word
0x0A A2 High word
0x0B A2 Low word
0x19F K4 High word (channel n* 204)
0x1A0 K4 Low word
Table 12.1 Modbus register map
An input register contains 16 bits, and each channel value is represented as a oat (32 bits). So, to read one channel, you should read two input registers. Example : Input A1 from address 0x08 to 0x09 At address 0x08 : -16460 (16 bits) At address 0x09 : 28160 (16 bits) Value in oat : -1.40961 (32 bits)
12.6.2.2 Logical Data
Logical values about the 12 logical channels are located in the discrete inputs from the address 0x08.
Register Register Data
0x08 DI1
0x14 DI12
Table 12.2 Register Mapping
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
TestEquipmentDepot.com
52
Maintenance
Unplug the unit before any cleaning or maintenance. Periodically clean the recorder while unplugged, in the following ways:
Use water and soap to clean the front and rear surfaces.
Never use any product that contains petroleum by-products, benzene or alcohol: damage the screen printings may
occur
Wipe with a soft lint-free cloth.
Use an antistatic product to clean the screen.
13.1 Updating the Internal Software
The internal software is updated regularly with the latest evolutions. These updates are available on our website. http://www.sefram.com/en/software-updates.html
To update the software, copy the le that will be provided on an USB stick. Place it on the USB connector on the
rear side of the unit.
Press the “Setup” key.
Then press the “Software update” key to enter the update.
Finally, to run the update, press the “Sofware update” key.
Then, the internal software automatically copies the necessary les to the new version.
Turn the unit off and on after the end of the updating process.
53
Specications
Note: All specications apply to the unit after:
1. A temperature stabilization time of 15 minutes over an ambient temperature range of 23
2. Short correction operation performed before making measurement.
Specications are subject to change without notice.
C ±5
C.
54
Portable 10-channel data recorder
Model DAS220-BAT
5
www.bkprecision.com
v041519
Specifications
Analog Channels
Analog Input Channels 10 integrated channels
DC Voltage
Ranges
± (0.5, 1, 2.5, 5, 10, 25, 50, 100) mV
± (0.5, 1, 2.5, 5, 10, 25, 50, 100) V
Maximum input Voltage 100 V DC
Accuracy 0.1% of the full scale ±10 µV
Temperature with Thermocouples
Sensors Range by
Type (Cold junction
compensation: ±0.5 °C)
J -210 °C to 1200 °C
K -250 °C to 1370 °C
T -200 °C to 400 °C
S -50 °C to 1760 °C
B 200 °C to 1820 °C
E -250 °C to 1000 °C
N -250 °C to 1300 °C
C 0 °C to 2320 °C
L -200 °C to 900 °C
Temperature with Pt100 and Pt1000
Current 1 mA (Pt100), 100 µA (Pt1000)
Range -200 °C to 850 °C
Measurements 2 and 3 wires
Accuracy (at 20 °C) 0.3 °C ±0.1% of reading
Compensated Resistance
2 wires 30 Ω max.
3 wires 50 Ω max.
Resistance
Ranges 1 kΩ and 10 kΩ
Accuracy 1 Ω (range 1 kΩ) and 10 Ω (range 10 kΩ)
Acquisition System
Resolution 16 bit
Acquisition System Scan, one sample per channel
Sampling Interval
V >50 mV 1 ms to 20 min
V 50 mV,
thermocouples and
Pt100 / Pt1000
2 ms to 20 min
Trigger
Date, delay, threshold, combination of
thresholds (and/or), word on logic
channels (and, or, slope, level)
Pre-trigger Variable from 0 to 100k samples
General
Internal Flash Drive Size 32 GB
Maximum File Size 2 GB
Operating Temperature 0 °C to 40 °C, 80% RH (no condensation)
Storage Temperature -20 °C to 60 °C
Display
10” TFT touchscreen LCD,
backlit, 1024 x 600 dots
Power Supply
15 V / 4 A max with main adapter
(100 / 240 VAC)
Interfaces
2 x USB host,
LAN (10/100 base-T with RJ45 socket)
Battery Non removable, Lithium-ion
Typical Battery Life
15 hours with standby mode, 10 hours without
stand-by mode
Safety Cat I 100 V, according to IEC61010-1
Weight 3.3 lbs (1.5 kg)
Dimensions (W x H x D) 2.6” x 11.7” x 6.9” (66 x 298 x 176 mm)
Warranty Two Years
Supplied Accessories
Main adapter 100 / 240 V, manual (CD-ROM),
25 pin male connector
(1)
and backshell, 10 input
connectors, shoulder strap, stylus, soft wipe,
and screwdriver
Order Information for Optional Accessories
902401050 Analog input terminal blocks 20 pack
902408000 Rugged carrying case
902407000 Logic channels patch cord
902406500 4 to 20 mA / 50 Ω shunt
902409000 19” rack-mount kit
Logic Channels
Logic Input/Output
Number of Channels 12
Maximum Permitted Voltage 24 V Cat I
Input Impedance 4.7 kΩ
Sampling Rate 1 ms max.
Timing Input
Number of Channels 4 (K1 to K4)
Maximum Permitted Voltage 24 V Cat I
Input impedance 4.7 kΩ
Sampling Rate 1 ms max.
Pulse Counter 0 to 10 Million, accuracy 1 ppm
Frequency Measurement 1 Hz to 10 kHz, accuracy 0.1%
PWM Measurement 100 Hz to 2 kHz, accuracy 0.1%
Alarm Output
Number of Channels 4 Alarms (A, B, C, D)
Output Level 0 to 5 V
Note: All specifications apply to the unit after a temperature stabilization time of 30 minutes over an ambient temperature range of 23 °C ± 5 °C.
(1) User configurable with solder cups.
Multi-channel recorder
Model DAS240-BAT
5
www.bkprecision.com
v032318
Specifications
Analog Channels
Number of Analog Input Channels
20 channels standard, expandable to 200 with optional 20-channel modules
DC Voltage
Ranges
± (0.5, 1, 2.5, 5, 10, 25, 50, 100) mV
± (0.5, 1, 2.5, 5, 10, 25, 50, 100) V
Maximum input Voltage 100 V DC
Accuracy 0.1% of the full scale ±10 µV
Temperature with Thermocouples
Sensors Range by
Type (Cold junction
compensation: ±0.5 °C)
J -210 °C to 1200 °C
K -250 °C to 1370 °C
T -200 °C to 400 °C
S -50 °C to 1760 °C
B 200 °C to 1820 °C
E -250 °C to 1000 °C
N -250 °C to 1300 °C
C 0 °C to 2320 °C
L -200 °C to 900 °C
Temperature with Pt100 and Pt1000
Current 1 mA (Pt100), 100 µA (Pt1000)
Range -200 °C to 850 °C
Measurements 2 and 3 wires
Accuracy (at 20 °C) 0.3 °C ±0.1% of reading
Compensated Resistance
2 wires 30 Ω max.
3 wires 50 Ω max.
Resistance
Ranges 1 kΩ and 10 kΩ
Accuracy 1 Ω (range 1 kΩ) and 10 Ω (range 10 kΩ)
General
Acquisition System
Resolution 16 bit
Acquisition System Scan, one sample per channel
Sampling Rate
V >50 mV 1 ms to 20 min
V 50 mV,
thermocouples and
Pt100 / Pt1000
2 ms
Trigger
Date, delay, threshold, combination of
thresholds (and/or), word on logic
channels (and, or, slope, level)
Pre-trigger Variable from 0 to 100k samples
Internal Storage
Internal Flash Drive Size 32 GB
Maximum File Size 2 GB
Environmental
Operating Temperature 0 °C to 40 °C, 80% RH (no condensation)
Storage Temperature -20 °C to 60 °C
Auxiliary
Display
10” TFT touchscreen LCD,
backlit, 1024 x 600 dots
Power Supply
15 V / 4 A max with main adapter
(100 / 240 VAC)
Interfaces
2 x USB host,
LAN (10/100 base-T with RJ45 socket)
Battery Non removable, Lithium-ion
Typical Battery Life
15 hours with standby mode, 10 hours without
stand-by mode
Safety Cat I 100 V, according to IEC61010-1
Weight 3.3 lbs (1.5 kg)
Dimensions (W x H x D) 2.6” x 11.7” x 6.9” (66 x 298 x 176 mm)
Warranty Two Years
Supplied Accessories
Main adapter 100 / 240 V, manual (CD-ROM),
1 male connector with 25 pins male and cover,
1 cable (70 cm) for measurement module
connection, 1 measurement module (20 channels) with input terminals, a stylus,
a soft wipe, a screwdriver
Order Information for Optional Accessories
902401000 20-channel module
902401050 Input terminal blocks 20 pack
902408000 Rugged carrying case
902407000 Logic channels patch cord
902406500 4 to 20 mA / 50 Ω shunt
902409000 19” rack-mount kit
Logic Channels
Logic Input/Output
Number of Channels 12
Maximum Permitted Voltage 24 V Cat I
Input Impedance 4.7 kΩ
Sampling Rate 1 ms max.
Timing Input
Number of Channels 4 (K1 to K4)
Maximum Permitted Voltage 24 V Cat I
Input impedance 4.7 kΩ
Sampling Rate 1 ms max.
Pulse Counter 0 to 10000000, accuracy 0.1%
Frequency Measurement 1 Hz to 10 kHz, accuracy 0.1%
PWM Measurement 100 Hz to 2 kHz, accuracy 0.1%
Alarm Output
Number of Channels 4 Alarms (A, B, C, D)
Output Level 0 to 5 V
Thermocouple Measurement Accuracy
The thermocouple measurements are treated as voltage measurements. For a given range of temperature measurement, the software calculates the voltage caliber the following way:
Let < T > the absolute value of the max. measurable value, in
Add 40
Search the corresponding voltage value U in the table of thermocouples
Program the caliber with U included in the range.
C to take the max. cold welding temperature into account
C
15.1 J Type Thermocouple Example
You want to program a measurement range between -50 and + 50∘C with a J thermocouple:
Max. absolute value T = 50
Add 40
Corresponding U voltage according to the tables ThJ U = 4.726 mV
Programmed caliber: 10 mV (measurement range: -5mV to +5mV)
The measurement inaccuracies below are max. values: the typical values are half to thrice as much. The temperature measurement accuracy is the sum of several possible uncertainty causes:
Pl: linearization accuracy
C T + 40 = 90∘C
C
Ps: weld welding accuracy
Pm: measurement accuracy of the equivalent voltage
The total accuracy Pt is then: 𝑃𝑡=𝑃𝑙+𝑃𝑠+𝑃𝑚
For the recorder:
Pl = + 0.25
Ps = + 0.5
Pm = 0.1% of the voltage caliber + 10𝜇V) divided by the slope of the thermocouple in 𝜇V/
C for all thermocouples
C for all thermocouples
C
15.2 Measurement Accuracy: Pm
The measurement accuracy Pm depends on the voltage caliber of the appliance (see the previous paragraph) and on the slope of the thermocouple. You shall take the slope at 0∘C while knowing that it will vary as a function of the temperature, but this variation is generally of the second order for the accuracy calculation.
15.3 Voltage of Thermocouple (mV)
Slope of the thermocouples (𝜇V)
55
At 100∘C the slope of thermocouple J is 55𝜇V
At -100∘C slope is 30𝜇V .
So the error is 2 time greater then 100
C to -100∘C.
15.3.1 Example of Accuracy Calculation
You make a welding between -50∘C and +50∘C with a J thermocouple with compensation of cold welding.
𝑃𝑡=𝑃𝑙+𝑃𝑠+𝑃𝑚 (15.1)
Linearization accuracy 𝑃𝑙=+0.25∘𝐶
Compensation of cold welding 𝑃𝑠=+0.5∘𝐶
Used caliber 10mV - (see previous example)
Accuracy for voltage measurement 0.1%∗10𝑚𝑉 +10𝜇𝑉 =20𝜇𝑉
Slope of J thermocouple 50𝜇𝑉/∘𝐶
Accuracy Pm 𝑃𝑚=20/50=0.4∘𝐶
Total accuracy 𝑃𝑡=0.25+0.5+0.4=1.15∘𝐶
15.4 Accuracy Class - Class Index
This is one of the most important concepts of the CEI recommendation; it tends to shorten the list of specications. To do so, it introduces the concept of PREDICTIVE CLASS that depends on the C CLASS INDEX. The normalized values of the class index are: C = 0.1, 0.25, 0.5 and 1. The intrinsic error (in the reference conditions) does not exceed + C% (the manufacturer may also specify this limit of
the intrinsic error as an absolute value (ex. + 5 𝜇V) for the rst calibers).
The variations (of the measured value) with the variations of one of the inuential variables in the nominal range of use do not exceed:
C % for the position for the magnetic induction with external source and parasite voltages
0.5 C% for the power supply source
0.3 C% according to the class index at ambient temperature (0.15% for the 0.25 class).
In addition, the insensitivity range should not exceed:
C% in the reference conditions
1.5C% for the maximal resistance of the external measurement circuit
2C% for parasite voltages
And the excess should not be more than 2C% (4C% within the limits of the power supply source). %
56
15.5 Grounding
If the source of the signal you have to record has low internal impedance, you shall use twisted wires. In case of high
impedance, you shall use shielded wires.
When gathering grounds from the various items on the measurement line, it is good to check that there is no voltage
difference between them, in order to prevent any shortcut. If any doubt, make a measurement with a voltmeter on a
low resistance (i.e. 1kΩ) between the terminals.
If any important noise,
When using the battery , connect the GND connection to the ground
use the sampling period for each channel >20ms
an appropriate capacity can be placed between the ground and the - wire of the signal.
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
TestEquipmentDepot.com
57
LIMITED TWO-YEAR WARRANTY
B&K Precision Corp. warrants to the original purchaser that its products and the component parts thereof, will be free from defects in workmanship and materials for a period of two years from date of purchase. B&K Precision Corp. will, without charge, repair or replace, at its option, defective product or component parts. Returned product must be accompanied by proof of the purchase date in the form of a sales receipt. To help us better serve you, please complete the warranty registration for your new instrument via our website www.bk­precision.com
Exclusions: This warranty does not apply in the event of misuse or abuse of the product or as a result of unauthorized alterations or repairs. The warranty is void if the serial number is altered, defaced or removed.
B&K Precision Corp. shall not be liable for any consequential damages, including without limitation damages resulting from loss of use. Some states do not allow limitations of incidental or consequential damages. So the above limitation or exclusion may not apply to you. This warranty gives you specic rights and you may have other rights, which vary from state-to-state.
B&K Precision Corp.
22820 Savi Ranch Parkway
Yorba Linda, CA 92887
www.bkprecision.com
714-921-9095
58
Service Information
Warranty Service: Please go to the support and service section on our website at bkprecision.com to obtain an RMA #. Return the product in the original packaging with proof of purchase to the address below. Clearly state on the RMA the performance problem and return any leads, probes, connectors and accessories that you are using with the device. Non-Warranty Service: Please go to the support and service section on our website at bkprecision.com to obtain an RMA #. Return the product in the original packaging to the address below. Clearly state on the RMA the performance problem and return any leads, probes, connectors and accessories that you are using with the device. Customers not on an open account must include payment in the form of a money order or credit card. For the most current repair charges please refer to the service and support section on our website. Return all merchandise to B&K Precision Corp. with prepaid shipping. The at-rate repair charge for Non-Warranty Service does not include return shipping. Return shipping to locations in North America is included for Warranty Service. For overnight shipments and non-North American shipping fees please contact B&K Precision Corp.
B&K Precision Corp.
: 22820 Savi Ranch Parkway
Yorba Linda, CA 92887
bkprecision.com
714-921-9095 Include with the returned instrument your complete return shipping address, contact name, phone number and description of problem.
Version: April 25, 2019
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
TestEquipmentDepot.com
59
Loading...
