Model 570ALinear IC Tester
99 Washington Street Melrose, MA 02176 Fax 781-665-0780 TestEquipmentDepot.com
MODEL 570A HANDHELD
LINEAR IC TESTER
OPERATOR’S MANUAL
Copyright 1993-2007B&KPrecisionCorp.
Model 570ALinear IC Tester
CONTENTS
1. introduction ..............................................................................2
2. DC input................................................................................... 2
3. battery eliminator..................................................................... 3
4. switching on..............................................................................3
5. operating modes.......................................................................4
6. entering test numbers............................................................... 4
7. testing the IC............................................................................ 5
8. test results.................................................................................6
9. testing further ICs......................................................................8
10. continuoustesting .................................................................8
11. search mode.......................................................................... 9
12. self test mode...................................................................... 10
13. CompactLinkmode .............................................................10
14. specifications....................................................................... 11
15. IC support list....................................................................... 12
introduction................................................................................ 12
15.2. operational amplifiers...................................................12
15.3. comparators..................................................................15
15.4. switches and multiplexers.............................................16
15.5. regulators, referencesand virtual grounds.....................16
15.6. opto couplersand isolators........................................... 17
15.7. miscellaneous...............................................................18
16. Service Information.............................................................19
17. Limited One-Year Warranty................................................. 20
Copyright 1993-2007B&KPrecisionCorp.
Model 570ALinear IC Tester
1. introduction
Thank you for purchasing the B & K Precision Model 570A Hand Held Linear IC Tester.
The basic function of the B & K Model 570A Linear IC Tester isto test a linear IC for correct logical functioning as described in the manufacturer’s IC data sheets. The B & K Model 570A applies the necessary analogue signals to the inputs of the IC, monitoring the outputsat each stage and comparing them with the expected voltages. Any discrepancy results in a FAIL indication and the faulty pins are shown on the integral display. Additional facilities are also provided, amongst them test loops that can be used for goods inwards inspection, detecting intermittent faults or simply providing a rapid method of exercising any IC for demonstration or educational purposes. Since the B & K Model 570A contains an extensive IC library, it is not necessary to program the unit yourself other than to key in the IC number. It is also capable of identifying an unknown IC using the SEARCH mode - this isa feature that many userswill find extremely valuable.
The B & K Model 570A is provided with an RS-232 interface enabling it to be connected to a companion software package called CompactLink running on a PC. CompactLink allows test programs for ICsnot included in the internal library to be developed and downloaded into the B & K Model 570A memory to enhance the library according to your wishes.
2. DC input
The B & K Model 570A is powered by four AA batteries or by the use of the battery eliminator input at the rear of the case. To insert the batteries, turn the unit upside down and remove the battery
Copyright 1993-2007B&KPrecisionCorp.
Model 570ALinear IC Tester
cover by removing the two cross head screws holding it in place. The batteries must be inserted in the correct orientation, as indicated by the drawing within the battery compartment. Incorrect insertion of batteries will not allow the unit to operate. Replace the battery cover and insert the screws. If the battery voltage falls too low, a low battery warning symbol will be displayed at the top left hand cell of the display in normal operating mode. A low battery warning will also be displayed during a result display. Test results may be inconsistent under these conditions.
3. battery eliminator
An external battery eliminator is available for prolonged use of the B & K Model 570A. Some ICs consume a significant amount of current when powered up, and battery life can be conserved by using the eliminator. There isno need to remove the batteriesprior to inserting the battery eliminator. However, please note that during prolonged periods of non-use batteries are prone to leakage and should be removed. Note that to avoid damage to the unit we strongly advise that you only use the recommended battery eliminator that is available by contacting your distributor. Note that using an incorrect battery eliminator voltage may damage the unit and invalidate the warranty.
4. switching on
To switch the unit on, simply pressthe 'ON' key. To preserve battery life, the unit powers itself off after approximately three minutes of non-use or when “Sw Off” is selected from the main menu. When the unit is switched on, it first performs a self-diagnosis test. Therefore, before switching on, checkthat the test socket isempty to prevent interference with the diagnostics. If the unit passes the self­test, a pass result will be displayed on the screen. Press a key to enter the main operating mode - the display will be as follows:
NO:
MODE:Single :RDY
Copyright 1993-2007B&KPrecisionCorp.
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
FAX 781.665.0780 - TestEquipmentDepot.com
Model 570ALinear IC Tester
When this initial display is obtained the B & K Model 570A isready for use. If, however, the message SELF-TEST FAIL: is displayed along with a fault message, this indicates that a self-test diagnostic fault has been detected. Any detected faultswill be displayed one at a time. Pressing the TEST/EXEC key will then revert to the opening menu as above, but of course operation of the unit will then be suspect. Before contacting your distributor, check that the test socket iscompletely empty.
5. operating modes
The B & K Model 570A has a number of test modes that are selected using the MODE/CLEAR key from the initial screen. The test modesare asfollows:
Single - execute a single test on the IC in the socket. Loop - execute test repeatedly, regardlessof the result. P Loop - execute test repeatedly, provided the result was PASS. F Loop - execute test repeatedly, provided the result was FAIL. Search - identify the number of the IC in the socket. Diags - execute the diagnostic self-test. CmLink - enter remote mode for CompactLinksoftware. Sw Off - turn off the unit
6. entering test numbers
Pressthe MODE/CLEAR key until the desired test mode isdisplayed. Enter the number of the IC you wish to test. Pressing the MODE/CLEAR key will clear the last digit from the display if a mistake is made.
Note: The NUMERIC information only is entered, leaving out the manufacturers prefixes and suffixes and IC family information. As an example, all the following linear ICs should be entered as 7, 4, 1 on the keypad:
e.g. uA741CP, uA741M, uA741C etc
Copyright 1993-2007B&KPrecisionCorp.
Model 570ALinear IC Tester
Some ICs are available in different pin outs or package types, and also there may be several different types of IC with the same numerical part number. In these cases the B & K Model 570A will automatically determine which test to perform. If howeverthe IC is faulty the unit may not be able to determine the correct IC type - if this happens a warning message will be displayed. A complete list of all ICs supported by the B & K Model 570A iscontained in the IC SUPPORT LIST at the end of this manual together with notes on any special requirementsfor certain ICs.
Note that if you have stored a user library using CompactLink, an IC in the user library with the same number as one in the internal library will take precedence. Thisallowsa new test to be written for an existing IC. If you wish both teststo be available, use a different number for your user test.
7. testing the IC

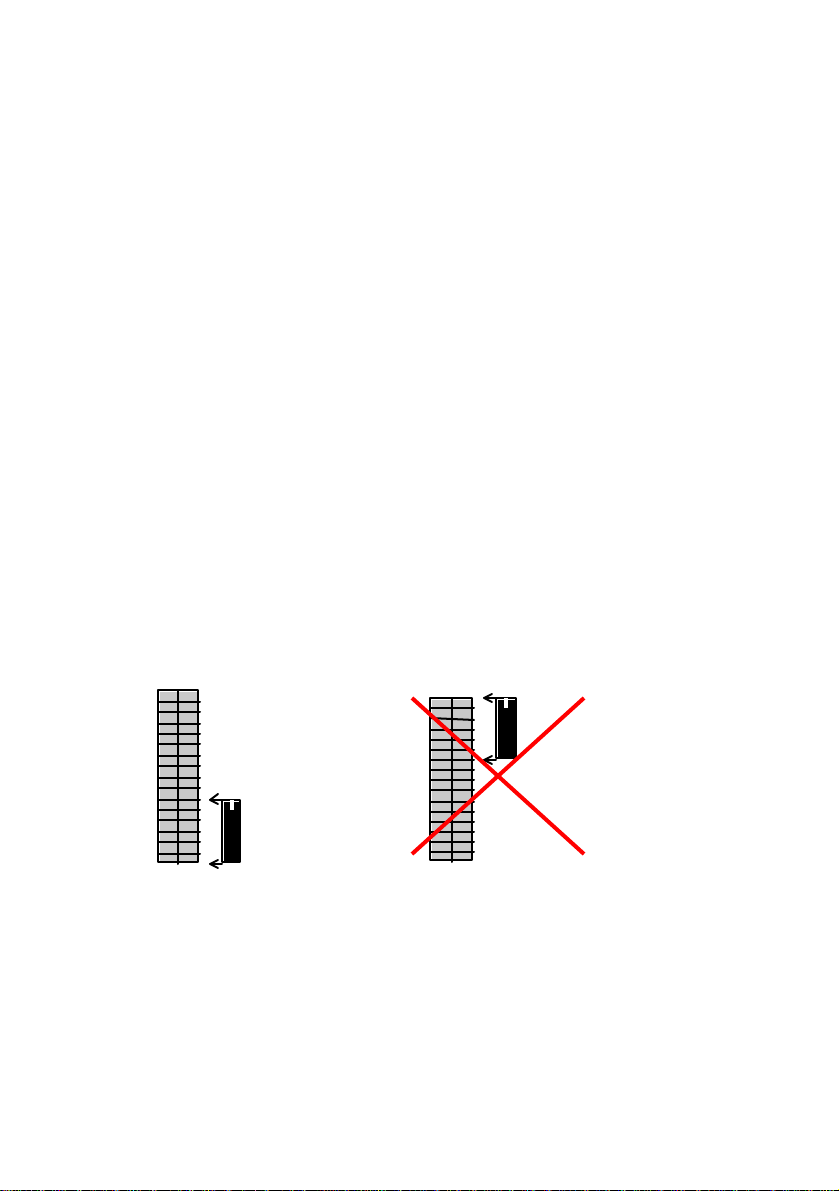

The test socket is a 24 pin shell with 16 active pins. Insert the IC to be tested in the front of the 24 pin Zero Insertion Force socket with pin 1 towards the display asshown below:
For 3 pin TO220 or TO92 packages, insert the IC in pins6, 7 and 8 (lower left) of the socket with the metal tab or flat side facing to the right.
Ensure that the operating lever on the socket isin the open (i.e. up) position before inserting the IC. Close the socket by lowering the lever, making sure that the IC is firmly seated in the socket and
Copyright 1993-2007B&KPrecisionCorp.
Model 570ALinear IC Tester
making good contact. Pressthe TEST/EXEC key to activate the test sequence for the IC. If an invalid IC type number was entered, or if the IC you have requested isnot supported the message "Unknown" will be displayed. Simply entering another IC type number will automatically clear this error message. If a valid type number was entered, the IC test will begin and the message "BUSY" will be displayed while the test proceeds. Many of the tests, however, execute so quickly that this message isnot noticeable.
8. test results
A pre-determined sequence of signalsisapplied to the inputsof the IC under test and the output voltages are measured prior to comparing with the correct values. The exact nature of the test depends on the function of the IC, but as an example the operational amplifier tests include both open and closed loop testing over a range of input voltages and gain settings. If all the outputs respond correctly, the result PASS will be displayed at the top right of the display. A scrolling message will contain the IC function and power pin information.
If a short circuit between the power pins of the IC is detected, a warning ‘SHT!' will appear on the top right of the display and, since no valid test isthen possible, the result will FAIL. If the IC under test takes an excessive amount of current when power is applied, a warning 'ICC!' will appear. Press the TEST/EXEC key to continue with the test, or MODE/CLEAR to abandon. Depending on the condition of the batteries there may also be a ‘BAT!’ warning which indicates that the batteries are incapable of supplying the current required by the IC under test. You can continue with the test by pressing the TEST/EXEC key, but the unit may malfunction because of a drop in battery voltage. To avoid this, change the batteriesor use a battery eliminator. Note that a faulty IC may demand more operating current and therefore will quickly drain the batteries.
Some ICs require external components to be fitted prior to the test ­in these cases the message EXT or CAP will be displayed at the top right of the display. Please refer to the IC lists at the end of this
Copyright 1993-2007B&KPrecisionCorp.
Model 570ALinear IC Tester
manual for details of the component(s) required. After fitting the component the test can be carried out by a further press of the TEST key. If you wish you can abandon the test by pressing the CLEAR key.
In the case of a FAIL result, the error conditions at all the non­functional pins of the IC will be scrolled on the display, and the IC function will be shown. The various failure conditions that can be displayed are asfollows:
V<< - the voltage on the pin was lower than
expected. V>> - the voltage on the pin was higher than expected. D<< - the diode drop voltage was lower than expected. D>> - the diode drop voltage was higher than expected. LOAD - the input cannot be driven.
In some cases, the scrolling test results may include one or more WARNING indications. These warningsindicate conditionsthat may result in an incorrect test result, and are asfollows:
D/F - result may be invalid because last self-test failed. BAT - battery voltage too low during test ICC - large current taken by IC under test
Some ICs are available in various packages, and also there are some ICs in the library which have the same numerical part number even though the IC functions are different. In these cases the B & K Model 570A will automatically determine the IC type prior to the test, provided that the IC is functional. If the IC is faulty, the following warning will appear after the test:
WARNING: All Part TypesFAIL
Thisindicatesthat the IC is faulty, but the pin information cannot be displayed since the exact part type cannot be identified.
Before discarding a failed IC check that the correct IC type number was entered and also check that the IC pins are clean and making good contact with the test socket. Note that there is no way of
Copyright 1993-2007B&KPrecisionCorp.
Model 570ALinear IC Tester
stopping a test once it has commenced, but see the description of loop functionslater in thismanual.
9. testing further ICs
After a test is completed, the test result will be displayed. To test another IC of the same type, simply insert the next IC and pressthe TEST/EXEC key again. To test a different IC, enter the new IC type number in the usual way, noticing that pressing the first digit of the new number automatically clears the previous number from the display. Remember that the MODE/CLEAR key can be used if an error ismade during the entry of the IC type number.
10. continuous testing
It is possible to test the same IC repeatedly to detect intermittent or temperature-related faults, or to rapidly test a batch of identical ICs. There are three typesof test loop modes:
Loop - execute a test repeatedly, regardlessof the result. P Loop - execute a test repeatedly, provided the result isPASS. F Loop - execute a test repeatedly, provided the result was
FAIL.
The B & K Model 570A is configured into one of the loop modes using the MODE/CLEAR key as described earlier. Insert the IC and press TEST/EXEC in the usual way to start the continuous test process. The result of each test isdisplayed as PASS or FAIL on the top right of the display. In LOOP mode, thisallowsa large batch of identical ICs to be tested, without any action on the part of the operator other than inserting the IC. When the IC is inserted, sufficient time must be allowed for the test to take place before the result status is updated, so if in doubt the IC should be tested in single mode so that the approximate test time can be determined. It will be found that high throughput can be obtained using this mode.
To stop any of the test loops, pressMODE/CLEAR, but note that the test in progress is completed before the command is obeyed. The
Copyright 1993-2007B&KPrecisionCorp.
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
FAX 781.665.0780 - TestEquipmentDepot.com
Model 570ALinear IC Tester
effect of this is usually unnoticeable, but where the test takes a reasonable time to execute there will be a delay before the instrument respondsto the MODE/CLEAR key.
Note: Testing high current ICs in loop mode will drain the batteries quickly, and it is recommended that a battery eliminator is used if you wish to perform loop tests.
11. search mode
This feature allows the type number of an unknown IC to be determined, provided the IC is actually contained in the B & K Model 570A library, and it isa correctly functioning IC. Thisfacility isuseful when the IC type number isillegible or hasbeen removed.
Use the MODE/CLEAR key to choose SEARCH mode, insert the unknown IC into the socket and pressthe TEST/EXEC key. You will be prompted to choose the number of pins of the IC you wish to identify - use the MODE/CLEAR key to select from 3 to 16 pins or 'QUIT' to abandon this mode. Press the TEST/EXEC key again to start the SEARCH or to quit asrequired.
During the identification process the display will indicate the number of ICs identified (IDENT:) and will show graphically how far through the library the SEARCH has progressed. At the end of the SEARCH, a list of all the similarICswill be scrolled onto the display. The list may be scrolled again by pressing the TEST/EXEC key.
If the IC cannot be identified the message "Not in Library" will be displayed. This means either that the IC is not in the library or it is non-functional. Note that if the B & K Model 570A detects excessive supply current (ICC! or BAT! warnings), the IC will not be identified during the SEARCH, but can still be tested in SINGLE mode.
If you have a user library present the search will extend to userICsin that library also. However, CompactLink contains a facility for excluding ICs from the search if required.
Copyright 1993-2007B&KPrecisionCorp.
Model 570ALinear IC Tester
12. self test mode
This feature allows you to check the integrity of the unit, including the pin drivers and receivers, power supplies and other internal hardware. The test executes automatically at switch on, but you can if you wish perform a self-test at any time by selecting Self-Test (DIAGS) mode using the MODE/CLEAR key and pressing TEST/EXEC.
If a fault isdiscovered a brief description will be displayed which will help our engineers to locate and rectify the fault. This message should be noted and quoted in any correspondence relating to a unit fault. Contact your distributor in the event of a self-test fail, but first of all ensure that the socket was empty when the diagnostics were run.
13. CompactLink mode
The B & K Model 570A is provided with an RS-232 interface to connect to a PC with a serial COM port or using a USB to RS-232 converter. A companion software package CompactLinkisavailable which provides library management, test development and debugging and user library update facilities. You can also use CompactLink to update the software of your B & K Model 570A without replacing the internal memory or opening the case.
To enter CompactLink mode, user the MODE/CLEAR key to enter CMLINK mode, then press TEST/EXEC. Press TEST/EXEC again to confirm that you wish to enter CompactLink mode, and the display will show “Not Connected”. Run the CompactLink software on your PC, connect the serial cable and follow the CompactLink manual instructionsto connect to the B & K Model 570A.
For comprehensive instructions on using CompactLink please refer to the manual and built-in help supplied with the software.
Note that in CompactLinkmode, including waiting for a connection, the normal power down timeout isdisabled and the unit will remain
Copyright 1993-2007B&KPrecisionCorp.
Model 570ALinear IC Tester
on for ever. We recommend using a battery eliminator when using CompactLinkmode to develop test programs.
14. specifications
SPECIFICATIONS
Batteries: 4X AA size DC input: 6V, 850mAmax,center positive,regulated. Power consumption: Power off 10Amax
Standby 30mAmax Testing IC dependent
Testparameters: Supplyvoltage 2Vto10VIC dependant
Opampgains openloop,1,2,11,46 Stimulus 0- 10V, 8 bits,330R source
Sense 0to10.5V, 12bit, >1M load RS-232 settings 38400 baud,8data bits, 1 stopbit,noparity Dimensions: 200mmX100mmX55mmapprox. LibraryICs: Op amps, comparators,optos, regulators, references,
switches,miscellaneous
Copyright 1993-2007B&KPrecisionCorp.
Model 570ALinear IC Tester
Software Version No.
15. IC support list
BK570A 2.03
15.1. introduction
This section is a complete list of the ICs supported by the B & K Model 570A. If there are any special requirements necessary for a particular IC, this will be indicated in the comments column in the table. Always consult this list before testing an IC you have not tested before, particularly when there isa comment present.
15.2. operational amplifiers
IC Number Comments
AD546 546 AD548 548 AD645 645 AD648 648 AD711 711 AD712 712 AD713 713 AMP03 03 CA1458 1458 CA3080 3080 CA3130 3130 CA3140 3140 CA3160 3160 CA3240 3240 CA3260 3260 CA5130 5130 CA5160 5160 CA5260 5260 HA3-2840-5 328405 ICL7611 7611 ICL7612 7612 ICL7621 7621 ICL7641 7641 ICL7642 7642 L272 1272 LF147 147 LF155 155 LF156 156
Copyright 1993-2007B&KPrecisionCorp.
Model 570ALinear IC Tester
LF157 157 LF255 255 LF256 256 LF257 257 LF347 347 LF351 351 LF353 353 LF355 355 LF356 356 LF357 357 LF411 411 LF412 412 LM101 101 LM107 107 LM108 108 LM11 11 LM118 118 Add 47nF capacitor betweenIC pins 1 and6 LM124 124 LM148 148 LM158 158 LM201 201 LM207 207 LM208 208 LM218 218 Add 47nF capacitor betweenIC pins 1 and6 LM224 224 LM248 248 LM258 258 LM2900 2900 LM2902 2902 LM2904 2904 LM2924 2924 LM301 301 LM307 307 LM308 308 LM318 318 Add 47nF capacitor betweenIC pins 1 and6 LM324 324 LM348 348 LM358 358 LM3900 3900 LM392 392 LMC6032 6032 LMC6042 6042 LMC660 660
Copyright 1993-2007B&KPrecisionCorp.
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
FAX 781.665.0780 - TestEquipmentDepot.com
LT1013 1013 LT1014 1014 MAX407 407 MAX427 427 MC3303 3303 MC33171 33171 MC33172 33172 MC33174 33174 MC3403 3403 NE531 531 NE5532 5532 NE5534 5534 OP-07 07 OP200 200 OP-27 27 OP-282 282 OP290 290 OP-37 37 OP-42 42 OP482 482 OP490 490 OP-77 77 OP-90 90 OP-97 97 OPA121 121 OPA606 606 OPA620 620 RC4458 4458 TL061 061 TL062 062 TL064 064 TL071 071 TL072 072 TL074 074 TL081 081 TL082 082 TL084 084 TLC1079 1079 TLC2272 2272 TLC271 271 TLC272 272 TLC274 274 TLC277 277
Model 570ALinear IC Tester
Copyright 1993-2007B&KPrecisionCorp.
Model 570ALinear IC Tester
TLC279 279 TLC2872 2872 TLE2061 2061 TLE2062 2062 TLE2064 2064 TLE2071 2071 TLE2072 2072 TLE2074 2074 TLE2081 2081 TLE2082 2082 TLE2084 2084 TLE2161 2161 UA709-14 709 UA709-8 709 UA741-14 741 UA741-8 741 UA747 747 UA748 748
15.3. comparators
IC Number Comments
CMP04 04 LM111 111 LM119 119 LM139 139 LM193 193 LM211 211 LM219 219 LM239 239 LM2901 2901 LM2903 2903 LM293 293 LM311 311 LM319 319 LM3302 3302 LM339 339 LM393 393 LP111 111 LP211 211 LP239 239 LP265 265 LP2901 2901 LP311 311
Copyright 1993-2007B&KPrecisionCorp.
Model 570ALinear IC Tester
LP339 339 LP365 365 LT1016 1016 TLC339 339 TLC3702 3702 TLC3704 3704 TLC372 372 TLC393 393
15.4. switches and multiplexers
IC Number Comments
4016 4016 4051 4051 4052 4052 4066 4066 4529 4529 DG201 201 DG202 202 DG211 211 DG212 212 DG308 308 DG309 309 DG411 411 DG412 412 DG413 413 DG417 417 DG418 418 DG419 419 DG508 508 LF13201 13201 LF13202 13202 LF13508 13508
15.5. regulators, references and virtual grounds
IC Number Comment
LM2930-5 29305 Add100uF betweenIC pins 2(-) and3(+) LM2931-5 29315 Add100uF betweenIC pins 2(-) and3(+) LM340T5 3405 LM7805 7805 LM7806 7806 LM7808 7808
Copyright 1993-2007B&KPrecisionCorp.
Model 570ALinear IC Tester
LM7905 7905 Mayneed10uF betweenICpins2 (-) and3 (+) MAX667 667 Mayneed10uFbetweenIC pins 4 (-) and2(+) MAX872 872 MAX874 874 REF02 02 REF03 03 REF05 05 REF43 43 TLE2425 2425 TLE2426 2426
15.6. opto couplers and isolators
IC Number Comments
4N25 425 4N26 426 4N27 427 4N28 428 4N29 429 4N30 430 4N31 431 4N32 432 4N33 433 4N35 435 4N36 436 4N37 437 6N135 6135 6N136 6136 H11A1 111 H11A2 112 H11A3 113 H11A4 114 H11A5 115 HCPL2503 2502 HCPL2530 2530 HCPL2531 2531 HCPL4502 4502 HCPL4503 4503 ILCT6 6 ILD74 74 ISD74 74 LD428 428 MCT2 2 MCT210 210
Copyright 1993-2007B&KPrecisionCorp.
Model 570ALinear IC Tester
MCT2200 2200 MCT2201 2201 MCT2202 2202 MCT271 271 MOC8030 8030 MOC8050 8050 TIL197 197 TIL198 198 TIL199 199 TLP250 250 TLP521 521 TLP521-2 5212 TLP521-4 5214 TLP559 559 TLP621 621 TLP621-2 6212 TLP621-4 6214
15.7. miscellaneous
IC Number Comment
AD7524 7524 DAC08 08 NE555 555 NE556 556 ULN2001 2001 ULN2002 2002 ULN2003 2003 ULN2004 2004 ULN2064 2064 ULN2065 2065 ULN2066 2066 ULN2067 2067 ULN2068 2068 ULN2069 2069 ULN2070 2070 ULN2071 2071 ULN2074 2074 ULN2075 2075 ULN2076 2076 ULN2077 2077
Copyright 1993-2007B&KPrecisionCorp.
