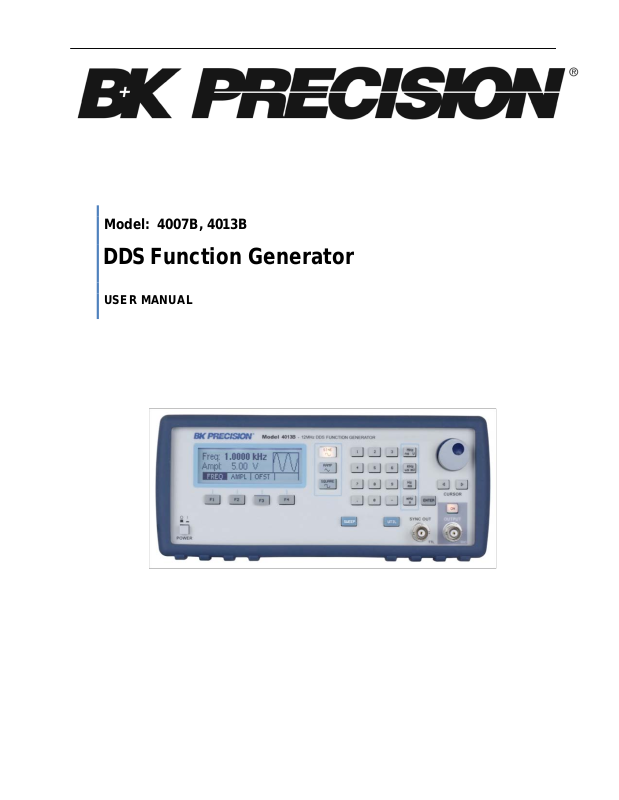

1
Model: 4007B, 4013B
DDS Function Generator
USER MANUAL
2
ground connection, all accessible
conductive parts (including control knobs) can render an electric shock. The power jack and mating
ore removing covers. Refer servicing to
Before connecting the line cord to the AC mains, check the rear panel AC line voltage indicator.
s. For continued
Safety Summary
The following safety precautions apply to both operating and maintenance personnel and must be
observed during all phases of operation, service, and repair of this instrument. Before applying
power, follow the installation instructions and become familiar with the operating instructions for this
instrument.
If this device is damaged or something is missing, contact the place of purchase immediately.
This manual contains information and warnings that must be followed to ensure safe operation as
well as maintain the meter in a safe condition.
GROUND THE INSTRUMENT
To minimize shock hazard, the instrument chassis and cabinet must be connected to an electrical
ground. This instrument is grounded through the ground conductor of the supplied, three-conductor
ac power cable. The power cable must be plugged into an approved three-conductor electrical
outlet. Do not alter the ground connection. Without the protective ground connection, all accessible
conductive parts (including control knobs) can render an electric shock. The power jack and mating
plug of the power cable must meet IEC safety standards.
DO NOT OPERATE IN AN EXPLOSIVE ATMOSPHERE
Do not operate the instrument in the presence of flammable gases or fumes. Operation of any
electrical instrument in such an environment constitutes a definite safety hazard.
KEEP AWAY FROM LIVE CIRCUITS
Instrument covers must not be removed by operating personnel. Component replacement and
internal adjustments must be made by qualified maintenance personnel. Disconnect the power
cord before removing the instrument covers and replacing components. Under certain conditions,
even with the power cable removed, dangerous voltages may exist. To avoid injuries, always
disconnect power and discharge circuits before touching them.
DO NOT SERVICE OR ADJUST ALONE
Do not attempt any internal service or adjustment unless another person, capable of rendering first
aid and resuscitation, is present.
DO NOT SUBSTITUTE PARTS OR MODIFY THE INSTRUMENT
Do not install substitute parts or perform any unauthorized modifications to this instrument. Return
the instrument to B&K Precision for service and repair to ensure that safety features are maintained.
WARNINGS AND CAUTIONS
WARNING and CAUTION statements, such as the following examples, denote a hazard and
appear throughout this manual. Follow all instructions contained in these statements.
A WARNING statement calls attention to an operating procedure, practice, or condition, which, if
not followed correctly, could result in injury or death to personnel.
A CAUTION statement calls attention to an operating procedure, practice, or condition, which, if not
followed correctly, could result in damage to or destruction of part or all of the product.
WARNING:
Do not alter the ground connection. Without the protective
plug of the power cable meet IEC safety standards.
WARNING:
CAUTION:
To avoid electrical shock hazard, disconnect power cord bef
qualified personnel.
Applying a line voltage other than the indicated voltage can destroy the AC line fuse
fire protection, replace fuses only with those of the specified voltage and current ratings.
3
static discharge (ESD). To avoid
procedures for handling, storing and transporting parts and
This product is subject to Directive 2002/96/EC of the
Refer to the user manual for warning information to
damage to instrument.
On (Supply). This is the AC mains
instrument.
CAUTION:
This product uses components which can be damaged by electrodamage, be sure to follow proper
subassemblies which contain ESD-sensitive components.
Compliance Statements
Disposal of Old Electrical & Electronic Equipment (Applicable in the Europea n
Union and other European countries with separate collection syst ems)
European
Parliament and the Council of the European Union on
waste
electrical and electronic equipment (WEEE) , and in
jurisdictions
adopting that Directive, is marked as being put on the
market after August 13, 2005, and shou ld no t be
disposed of as unsorted
municipal waste. Please utilize your local WEEE
collection
facilities in the disposition of this product and
otherwise observe all applicable requirements.
Safety Symbols
avoid hazard or personal injury and prevent
Chassis (earth ground) symbol.
On (Power). This is the In position of the power
switch when instrument is ON.
Off (Power). This is the Out position of the power
switch when instrument is OFF.
connect/disconnect switch at the back of the
Off (Supply). This is the AC mains
connect/disconnect switch at the back of the
instrument.
4
CE Declaration of Conformity
The model 4007B and 4013B meet the requirements of 2006/95/EC Low Voltage
Directive and 2004/108/EC Electromagnet Compatibility Directive with the following
standards.
Low Voltage Directive
- EN61010
Safety requirements for electrical equipment for measurement, control,
and laboratory use.
EMC Directive
- EN55011
For radiated and conducted emissions.
- EN55082
Electrical discharge immunity
1 INTRODUCTION .................................................................. 6
1.1 Introduction ............................................................................................. 6
1.2 Description ............................................................................................. 6
1.3 Specifications ......................................................................................... 6
2 INSTALLATION ................................................................... 8
2.1 Introduction ............................................................................................. 8
2.2 Package Contents .................................................................................. 8
2.4 Instrument Mounting ............................................................................... 8
2.5 Power Requirements .............................................................................. 8
2.6 Fuse Replacement.................................................................................. 9
2.7 Grounding Requirements ........................................................................ 9
2.8 Signal Connections ................................................................................. 9
3 OPERATING INSTRUCTIONS .......................................... 10
3.1 General Description .............................................................................. 10
3.2 Display Window .................................................................................... 11
3.3 Front Panel Controls ............................................................................. 11
3.4 Connectors ........................................................................................... 11
3.5 Output Connections .............................................................................. 11
3.6 MENU Keys .......................................................................................... 12
3.6.1 WAVEFORM Keys ................................................................................. 12
3.6.2 UTILITY Key ............................................................................................ 13
3.6.3 SWEEP Key ........................................................................................... 14
3.7 ON Key ................................................................................................. 14
3.8 Cursor Keys .......................................................................................... 14
3.9 Rotary Input Knob ................................................................................. 14
3.10 Power-On Settings .............................................................................. 15
3.11 Memory .............................................................................................. 15
3.12 Displaying Errors ................................................................................ 15
3.13 Quick Start .......................................................................................... 15
3.13.1 Selecting a St and ar d Waveform .......................................................... 16
3.13.2 Setting the Output ................................................................................ 16
3.13.3 Using Voltage Offset ........................................................................... 16
3.13.4 Storing and Recalling a Waveform Generator Setup ........................... 16
5
4007B/4013B – Operating Manual
Model
4007B
4013B
Frequency Characteristics
Sine
0.1 Hz – 7 MHz
0.1 Hz – 12 MHz
Square
0.1 Hz – 7 MHz
0.1 Hz – 12 MHz
Triangle
0.1 Hz – 1 MHz
Accuracy
0.01% ± 0.186 Hz
Resolution
5 digits or 100 mHz
Output Characteristics
Amplitude Range
10 mV to 10 Vp-p (into 50 Ω)
20 mV to 20 Vp-p (open circuit)
Resolution
3 digits (1000 counts)
Amplitude Accuracy
± 2 % ± 20 mV of programmed output from 1.01 V – 10 V
Flatness
± 1 dB to 12 MHz
Offset Range
± 4.5 V (into 50 Ω)*
Offset Resolution
10 mV, 3 digits
Offset Accuracy
± 2 % ± 10 mV (into 50 Ω)
Output Impedance
50 Ω
Output Protection
Protected against short circuit or accidental voltage practically
connector
Waveform Characteristics
Harmonic Distortion
DC – 100 kHz, -55 dBc
100 kHz – 1 MHz, -45 dBc
DC – 100 kHz, -55 dBc
100 kHz – 1 MHz, -45 dBc
1 Introduction
1.1 Introduction
This manual contains information requir ed to oper at e t he B&K Precision model 4007B and
4013B DDS Function Generators. This section covers the instrument’s general description,
specifications and characteristics.
1.2 Description
The 4007B and 4013B are versatile high performance function generators. Implemented
using a DDS (direct digital synthesis) architecture, these instruments generate stable and
precise sine, square, and triangle waveforms. Both models also provide linear and logarithmic
sweep for users needing sweep capability. An auxiliary TTL output at the generator’s
frequency is available to synchronize external devices. Up to 9 front panel settings can be
saved to memory storage.
1.3 Specifications
available in electronic laboratories, applied to the main output
6
1MHz – 7 MHz, -30 dBc
1MHz – 12 MHz, -30 dBc
Square Rise/Fall Time
< 20 ns (10% to 90% at full amplitude into 50 Ω)
Variable Duty Cycle
20% to 80 %, up to 1 MHz for Square waveform
Symmetry Accuracy at 50%
< 1 %
Sweep Characteristics
Sweep Shape
Linear or Logarithmic, up or down
Sweep Time
20 ms to 100 s
Input and Output
Sync Out
TTL pulse at programmed freq uency; 50 Ω source impedance
General
Memory Storage
Store up to 9 instrument settings
Power Requirements
100 V – 240 V AC ± 10% (90 V – 264 VAC)
Max. Power Consumption
25 VA
Operating Temperature
0 °C – 50 °C
Storage Temperature
-10 °C – 70 °C
Humidity
95% RH, 0 °C – 30 °C
Dimensions
213 mm x 88 mm x 210 mm (WxHxD)
Weight
Approx. 2 kg
Safety Standards
EN55011 for radiated and conducted emissions
EN61010
EN55082
*Depends on amplitude setting.
Note: All specifications apply to the unit after a temperature stabilization time of 15 minutes
over an ambient temperature range of 23 °C ± 5 °C. Specifications are subject to change
without notice.
To ensure the most current version of this manual, please download the latest version
here:
http://www.bkprecision.com/search/4013B
For current up-to-date product in for mation, please visit www.bkprecision.com
7
