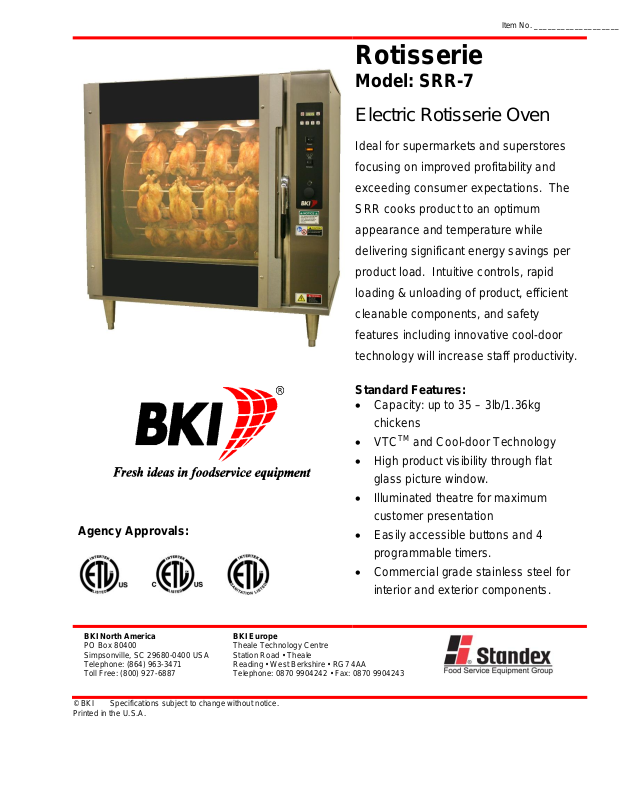

Rotisserie
Model: SRR-7
Electric Rotisserie Oven
Ideal for supermarkets and superstores
focusing on improved profitability and
exceeding consumer expectations. The
SRR cooks product to an optimum
appearance and temperature while
delivering significant energy savings per
product load. Intuitive controls, rapid
loading & unloading of product, efficient
cleanable components, and safety
Agency Approvals:
BKI North America
PO Box 80400
Simpsonville, SC 29680-0400 USA
Telephone: (864) 963-3471
Toll Free: (800) 927-6887
BKI Europe
Theale Technology Centre
Station Road • Theale
Reading • West Berkshire • RG7 4AA
Telephone: 0870 9904242 • Fax: 0870 9904243
© BKI Specifications subject to change without notice.
Printed in the U.S.A.
features including innovative cool-door
technology will increase staff productivity.
Standard Features:
Capacity: up to 35 – 3lb/1.36kg
chickens
VTCTM and Cool-door Technology
High product visibility through flat
glass picture window.
Illuminated theatre for maximum
customer presentation
Easily accessible buttons and 4
programmable timers.
Commercial grade stainless steel for
interior and exterior components.
Rotisserie (SRR-7)
Equipment Dimensions:
Mechanical Specifications:
Dimension Uncrated Crated
Height 37 1/16” (941 mm) 47” (1194 mm)
Width 40 3/4” (1035 mm) 45” (1143 mm)
Depth 30 1/8” (765 mm) 40 1/2” (1029.1 mm)
Floor Space 8.5 sq. ft. (0.8 sq. m.) 14.7 sq. ft. (1.4 sq. m.)
Weight 340 lb. (154 kg) 400 lb. (181 kg)
1
33
in.
8
[841 mm]
1
40
in.
2
[1029 mm]
3
40
in.
4
[1035 mm]
1
31
in.
16
[789 mm]
1
30
in.
8
[765 mm]
Electrical Options:
North America
Volts Amps Breaker KW Wires Phase
208 23.0 or 39.1 30 or 50 8.1 3 or 4 1 or 3
220 20.3 or 34.4 30 or 50 7.6 3 or 4 1 or 3
240 22.2 or 37.4 30 or 50 9.0 3 or 4 1 or 3
Accessories
BASKET, MEAT CHICKEN 4 GOOSERS (MB0037)
MEAT BASKET (MB0038)
MEAT FORK 27.1875 (MF0032)
VEE SPIT (MF0038)
13” insulating mitts (G0052)
Options
Pass-thru or solid back
Wood Smoker
1
37
in.
16
[941 mm]
15
42
in.
16
[1091 mm]
Europe
230 Volts, 50 Hz 3 Ph+N+E
Current (A) Power (W)
L1 119 2740
L2 11.3 2610
L3 12.6 2900
