Holding Cabinet
Models HHC, HHC-T
Installation & Operation Manual
Serial Numbers 123317 and Higher
Page 2
Warranty Information
LIMITED ONE YEAR WARRANTY
BKI (The “Company”) warrants to the original purchaser/user, that at time of shipment from the
Company factory, this equipment will be free from defect in materials and workmanship. Written
notice of a claim under this Warranty must be given within ONE YEAR AND THREE MONTHS
from date of shipment from the factory. Defective conditions caused by abnormal use or misuse,
lack of maintenance, damage by third parties, alterations by unauthorized personnel, acts of God,
failure to follow installation instructions or any other events beyond the control of the company will
NOT be covered under Warranty. The obligation of the Company under this Warranty shall be
limited to repairing or replacing (at the option of the company) any part which is defective in
reasonable opinion of the Company. The user will have the responsibility and expense of
removing and returning the defective part to the Company as well as the cost of reinstalling the
replacement or repaired part.
IN NO EVENT SHALL THE COMPANY BE LIABLE FOR LOSS OF USE, LOSS OF REVENUE
OR LOSS OF PRODUCT OR PROFIT OR FOR INDIRECT OR CONSEQUENTIAL DAMAGES
INCLUDING BUT NOT LIMITED TO, FOOD SPOILAGE OR PRODUCT LOSS . WAR RANTY
DOES NOT COVER GLASS BREAKAGE. THE ABOVE WARRANTY IS EXCLUSIVE AND ALL
OTHER WARRANTIES, EXPRESS OR IMPLIED, ARE EXCLUDED INCLUDING THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
THIS WARRANTY SHALL APPLY ONLY WITHIN THE CONTINENTAL UNITED STATES, ITS
TERRITORIES, AND POSSESSIONS AND IN CANADA.
LIMITED NINETY DAY LABOR WARRANTY
All labor necessary to repair or replace factory defective parts will be performed, without charge,
to the end user, by service personnel of a BKI Authorized Distributor during the first ninety days
after the date of installation of the new equipment.
Replacement parts: Any appliance replacement part, except lamps and fuses, which proves to
be defective in material or workmanship within 90 days from date of original installation will be
repaired or replaced without charge F.O.B. Factory, Simpsonville, S.C. or F.O.B. authorized
distributor.
Page 3
Holding Cabinet Table of Contents
Table of Contents
Table of Contents .................................................................................................................................................... 1
Introduction.............................................................................................................................................................. 2
Safety Precautions................................................................................................................................................ 2
Safety Signs and Messages ............................................................................................................................. 2
Safe Work Practices ......................................................................................................................................... 3
Safety Labels .................................................................................................................................................... 4
Operation.................................................................................................................................................................. 5
Controls and Indicators ......................................................................................................................................... 5
Unit Startup and Preheating.................................................................................................................................. 5
Temperature Adjustment....................................................................................................................................... 6
Operational Guidelines.......................................................................................................................................... 6
Unit Shutdown....................................................................................................................................................... 6
Installation................................................................................................................................................................ 7
Instructions For Shipping Damage........................................................................................................................ 7
Floor Placement.................................................................................................................................................... 7
Countertop Placement........................................................................................................................................... 7
Electrical Information............................................................................................................................................. 7
Maintenance............................................................................................................................................................. 8
Scheduled Maintenance........................................................................................................................................ 8
Cleaning............................................................................................................................................................ 8
Troubleshooting..................................................................................................................................................... 9
1
Page 4
Holding Cabinet Introduction
Introduction
Congratulations! You have chosen a Holding Cabinet that will give you many years of fine service from the
original manufacturer, BKI.
The BKI name and trademark on this unit assures you of the finest in design and engineering — that it has been
built with care and dedication — using the best materials available. Attention to the operating instructions
regarding proper installation, operation, and maintenance will result in long lasting dependability to insure the
highest profitable return on your investment.
PLEASE READ THIS ENTIRE MANUAL BEFORE OPERATING THE UNIT. If you have
any questions, please contact your BKI Distributor. If they are unable to answer your
questions, contact the BKI Technical Service Department, toll free: 1-800-927-6887.
Outside the U.S., call 1-864-963-3471.
Safety Precautions
Always follow recommended safety precautions listed in this manual. Below is the safety alert symbol. When you
see this symbol on your equipment, be alert to the potential for personal injury or property damage.
Safety Signs and Messages
The following Safety signs and messages are placed in this manual to provide instructions and identify specific
areas where potential hazards exist and special precautions should be taken. Know and un derstand the meaning
of these instructions, signs, and messages. Damage to the equipment, death or serious injury to you or other
persons may result if these messages are not followed.
This message indicates an imminently hazardous situation that, if not avoided, will result
in death or serious injury.
This message indicates a potentially hazardous situation, which, if not avoided, could
result in death or serious injury.
This message indicates a potentially hazardous situation, which, if not avoided, may
result in minor or moderate injury. It may also be used to alert against unsafe practices.
This message is used when special information, instructions or identification are required
relating to procedures, equipment, tools, capacities and other special data.
2
Page 5
Holding Cabinet Introduction

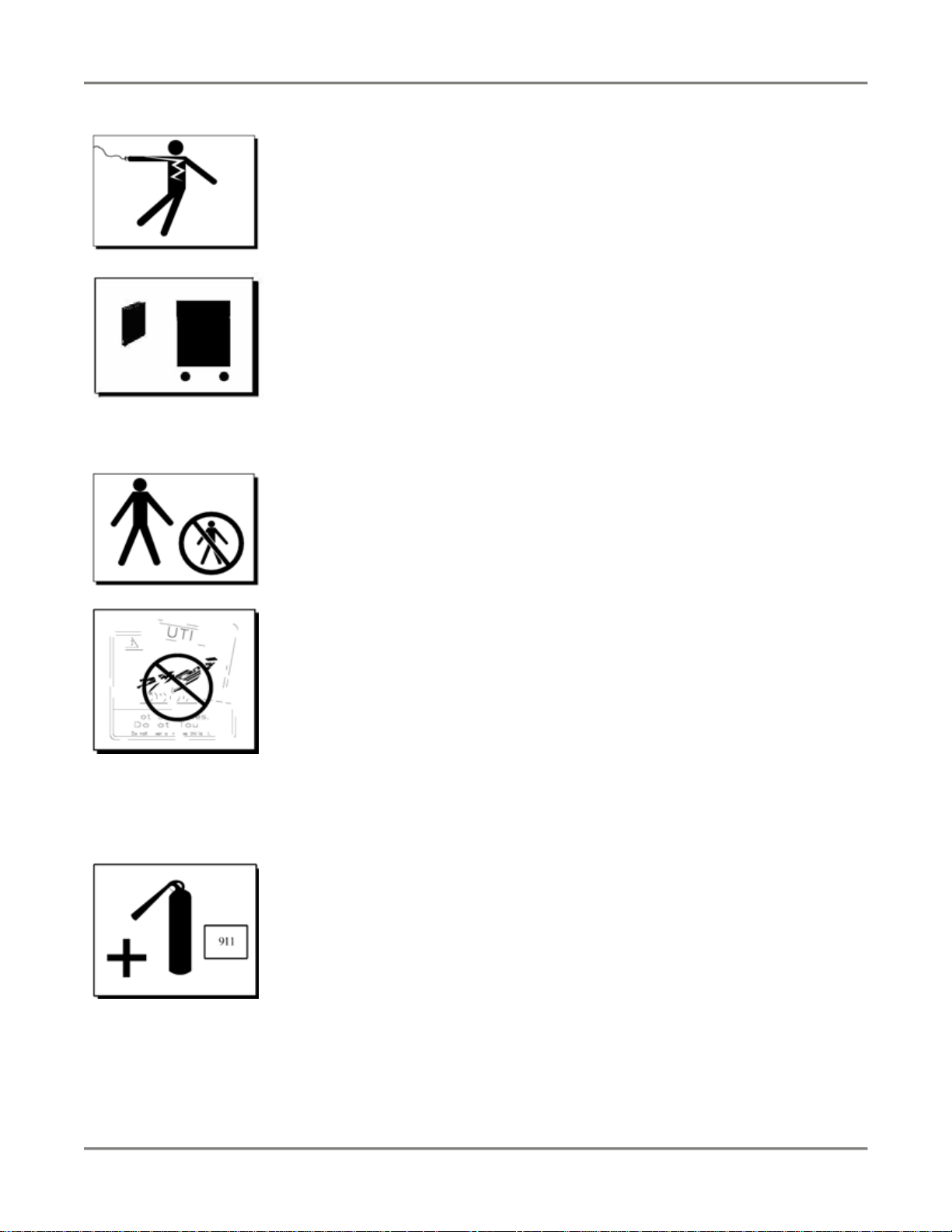

Safe Work Practices
Beware of High Voltage
This equipment uses high voltage. Serious injury can occur if you or any untrained
or unauthorized person installs, services, or repairs this equipment. Always Use an
Authorized Service agent to Service Your Equipment.
Keep this manual with the Equipment
This manual is an important part of your equipment. Always keep it near for easy
access. If you need to replace this manual, contact:
BKI
Technical Services Department
P.O. Box 80400
Simpsonville, S.C. 29680-0400
Or call toll free: 1-800-927-6887
Outside the U.S., call 864-963-3471
Protect Children
Keep children away from this equipment. Children may not understand that this
equipment is dangerous for them and others.
NEVER allow children to play near or operate your equipment.
Keep Safety Labels Clean and in Good Condition
Do not remove or cover any safety labels on your equipment. Keep all safety labels
clean and in good condition. Replace any damaged or missing safety labels. Refer
to the Safety Labels section for illustration and location of safety labels on this unit.
If you need a new safety label, obtain the number of the specific label illustrated on
page 4, then contact:
BKI
Technical Services Department
P.O. Box 80400
Simpsonville, S.C. 29680-0400
Or call toll free: 1-800-927-6887
Outside the U.S., call 864-963-3471
Be Prepared for Emergencies
Be prepared for fires, injuries, or other emergencies.
Keep a first aid kit and a fire extinguisher near the equipment. You must use a 40-
pound Type BC fire extinguisher and keep it within 25 feet of your equipment.
Keep emergency numbers for doctors, ambulance services, hospitals, and the fire
department near your telephone.
3
Page 6
Holding Cabinet Introduction
Know your responsibilities as an Employer
• Make certain your employees know how to operate the equipment.
• Make certain your employees are aware of the safety precautions on the
equipment and in this manual.
• Make certain that you have thoroughly trained your employees about operating
the equipment safely.
• Make certain the equipment is in proper working condition. If you make
unauthorized modifications to the equipment, you will reduce the function and
safety of the equipment.

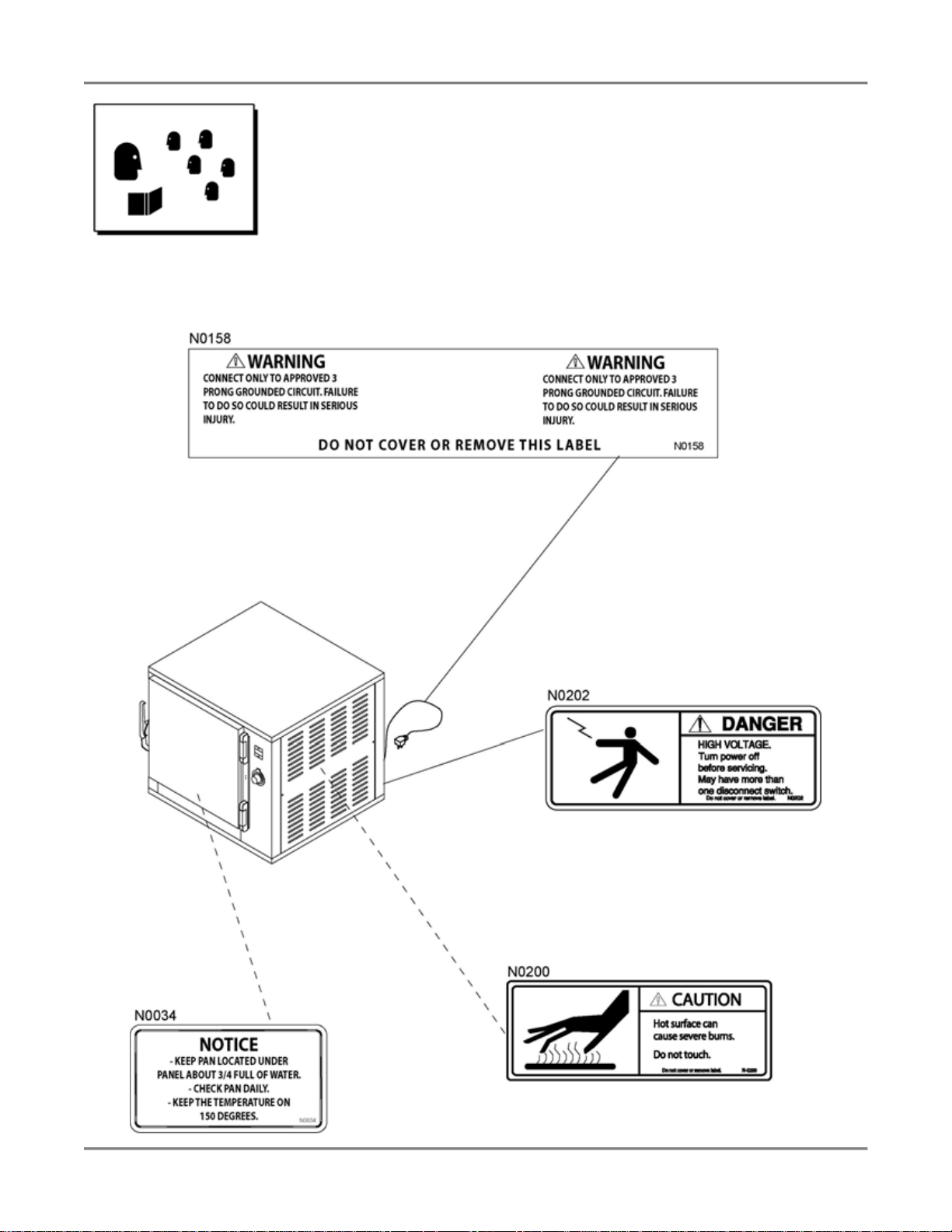

Safety Labels
4
Page 7
Holding Cabinet Operation
Operation

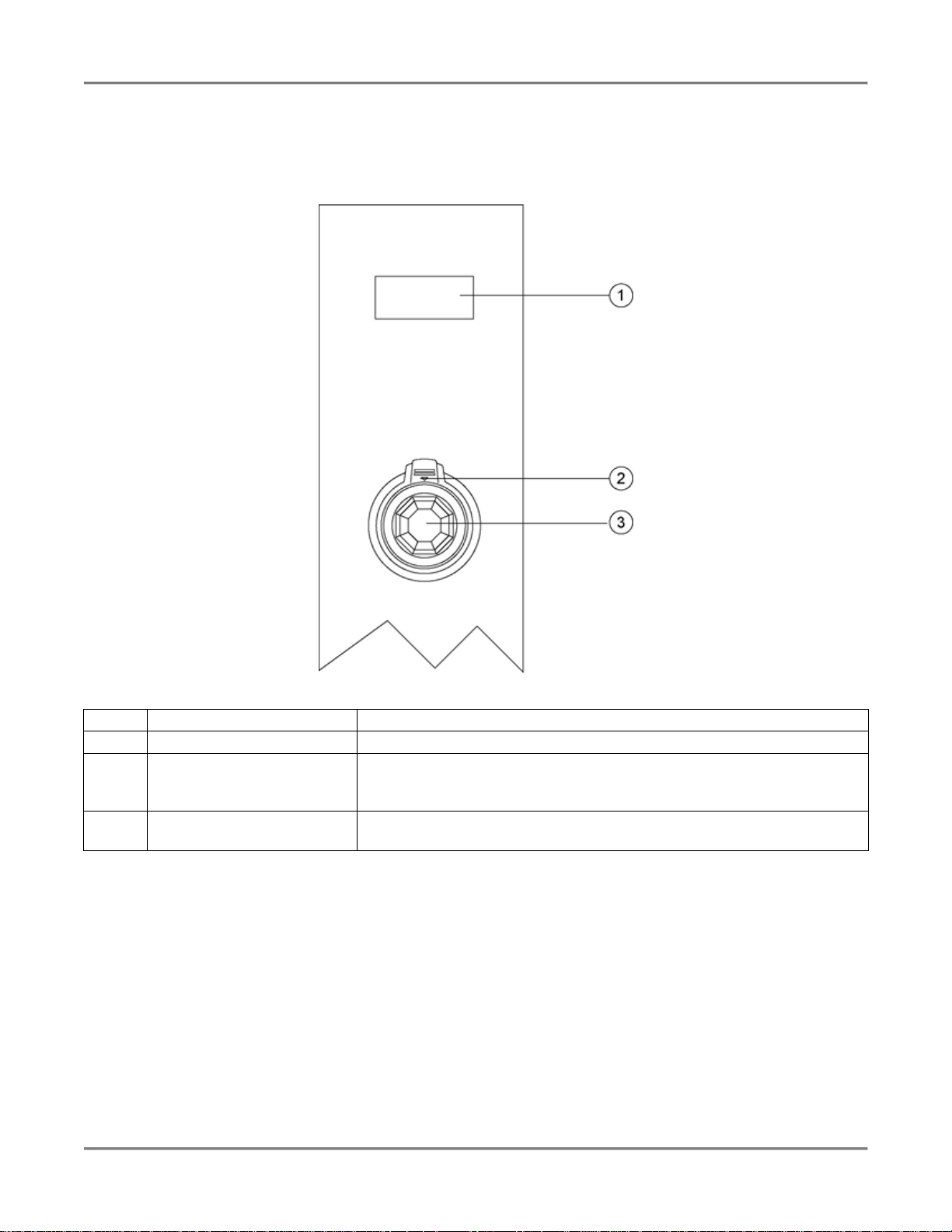

Controls and Indicators
Item # Description Function
1 Digital Thermometer Displays the temperature inside the cabinet.
2 Pilot Light The indicator is designed to turn off when the cabinet reaches set
temperature. During operation the indicator will turn off and on as the
cabinet maintains proper temperature.
3 Thermostat Knob Enables you to set and adjust the thermostat that regulates the
temperature of the heating elements.
Unit Startup and Preheating
1. Make sure the thermostat knob is in the “OFF” position.
2. Remove the inside bottom louvered cover.
3. Fill water pan inside cabinet ¾ full with water.
4. Attach the inside bottom louvered cover.
5. Place the 3 solid pans in position on the pan racks.
6. Close the door.
5
Page 8
Holding Cabinet Operation
7. Connect the plug of the power cord into a receptacle that matches the power rating specified on the rating
tag.
8. Turn the Thermostat Knob to the number 6 position and preheat for approximately 30 minutes before
loading cabinet with product. The pilot light will cycle on and off to show that the thermostat is maintaining
proper cabinet temperature.
9. Load the cabinet with product.
10. Read the digital thermometer and adjust the thermostat as needed to maintain an appropriate
temperature.
Temperature Adjustment
After loading the unit with product, it may be necessary to adjust the thermostat knob in order to maintain the
proper internal temperature for the product. The thermostat knob should be used in conjunction with the digital
thermometer to maintain the proper product temperature.
Operational Guidelines
• Foods should be a minimum of 160° F. before being placed in the unit.
• Foods loaded in first should be served first as much as is practical.
• Check Federal and State Health and Sanitation Regulations for internal temperature required for holding
cooked foods for sale. Maintaining these temperatures often tends to continue to cook certain products.
Therefore, smaller amounts of bulk foods should be displayed at non-peak periods and the warmer
refilled as needed.
This equipment is designed to hold foods for a short period of time only.
Unit Shutdown
1. Remove all food from the equipment.
2. Place the Temperature Control Knob to the 0 position.
3. Unplug the cord from the receptacle.
4. Allow the equipment to cool to room temperature.
5. Remove any residue and clean the equipment thoroughly.
6
Page 9
Holding Cabinet Installation
Installation
Serious injury, equipment damage or death could result if attempting to install this unit
yourself. Ensure that an authorized BKI service agent installs the unit.
Instructions For Shipping Damage
You are responsible for filing all freight claims with the delivering truck line. Inspect all cartons and crates for
damage when they arrive. If there is damage noted to shipping crates or cartons, or, if a shortage is found, note
this on the bill of lading (all copies) before signing.
If damage is detected when the equipment is uncrated, immediately call the delivering truck line and follow up the
call with a written report indicating concealed damage to your equipment. Ask for an immediate inspection of your
concealed damage item. Crating material MUST be retained to show the inspector from the truck line.
Floor Placement
If you plan to use the HHC with mounted casters, follow the steps below.
1. Move the unit to a permanent location allowing 2 inches of clearance on the louvered cover side of
machine for air circulation.
2. Lock the swivel casters before using.
Countertop Placement
If you plan to mount the HHC on a countertop, follow the steps below.
1. Remove the casters.
2. Place the HHC on a stainless steel shelf allowing 2 inches of clearance on the louvered cover side of
machine for air circulation.
3. Wipe any shipping dust from the machine, using a stainless steel cleaner.
4. Seal the cabinet edges to the shelf using an FDA approved silicone sealant.
Electrical Information
Electrocution, equipment failure or property damage could result if an unlicensed
electrician performs the electrical installation. Ensure that a licensed electrician perform
the electrical installation in accordance with local codes, or in the absence of local codes,
with the National Electrical Code, ANSI NFPA 70-20XX.
This unit, when installed by an authorized BKI service agent, must be wired for use in accordance with all
applicable local, state, and federal codes. For specific electrical requirements and connections refer to the wiring
diagram attached to the unit or provided in the Service Manual.
7
Page 10
Holding Cabinet Maintenance
Maintenance
Failure to comply with the maintenance below could result in a serious accident.
Electrocution, equipment failure or property damage could result if an unlicensed
electrician performs electrical repair. Ensure that a licensed electrician perform electrical
repair.
Scheduled Maintenance
Failure to remove power from this unit may cause severe electrical shock. This unit may
have more than one disconnect switch.
Never use abrasive cleaners that may damage the finish.
Never steam clean the interior.
Avoid getting excess water in the interior of the unit.
Do not leave this unit on and unattended after business hours.
Cleaning
This unit should be cleaned at the end of each working day. Use the following procedure:
1. Place the thermostat in the OFF position and unplug the power cord.
2. Allow unit to cool to room temperature.
3. Remove all products from the unit. Remove the louvered cover, water pan, all food pans and the pan
racks from the unit and place them in a large sink to soak in hot cleaning solution (BKI Cleaner).
4. Clean pan racks with warm water, a sponge and approved cleaner.
5. Clean the outside and inside of the cabinet with warm water, a sponge and approved cleaner whi ch is
authorized for use on food surface areas.
6. Wipe the unit dry with a soft cloth.
7. Finish cleaning the parts, wipe dry and reassemble the cabinet.
8
Page 11
Holding Cabinet Maintenance
Troubleshooting
Refer to the table below for troubleshooting information.
Problem Cause Possible Solution
Unit will not turn on
Unit operates for a period of
time, then, turns off.
Cabinet does not heat at all.
Cabinet has very slow heat up
or recovery.
Cabinet is not plugged in. Plug in the cabinet.
Power to unit is not on. Problem
with building power panel,
circuit breaker/fuse or
receptacle.
Power supply cord has been
damaged.
Inlet to blower motor has been
blocked, loss of power to blower
motor or defective blower
motor.
Loose wire on heater circuit. Contact an authorized BKI service agent
Defective thermostat. Contact an authorized BKI service agent
Heating elements not
functioning.
Improper power line voltage. Contact an authorized BKI service agent
Heating elements not
functioning.
Check circuit breaker or fuses at building
power panel.
Contact an authorized BKI service agent
for corrective action.
Remove blockage from around blower
motor inlet. If problem persists, contact an
authorized BKI service agent for corrective
action.
for corrective action.
for corrective action.
Contact an authorized BKI service agent
for corrective action.
for corrective action.
Contact an authorized BKI service agent
for corrective action.
Cabinet will not come up to
temperature
Product not cooked thoroughly Cabinet not preheated. Be sure to preheat the cabinet to 160
One or more heater elements
not operating.
9
Contact an authorized BKI service agent
for corrective action.
degrees before placing product in cabinet.
Page 12
P.O. Box 80400, Simpsonville, S.C. 29680-0400, USA
http://www.bkideas.com
Made and printed in the U.S.A
LI0167/1104
Loading...
