This warranty covers defects in material and workmanship under normal use, and applies only to the
original purchaser providing that:
អ The equipment has not been accidentally or intentionally damaged, altered or misused;
អ The equipment is properly installed, adjusted, operated and maintained in accordance withnational
and local codes, and in accordance with the installation and operating instructions provided with this
product.
អ The serial number rating plate affixed to the equipment has not been defaced or removed.
This
purchased
អ Warranty claims must be received in writing by BKI within one (1) year from date of
installation or within one (1) year and three (3) months from data of shipment from the
factory, whichever comes first.
អ COB Models: One (1) Year limited parts and labor.
អ COM Models: Two (2) Year limited parts and labor. COM convection ovens also have a two (2)
year door warranty.
អ CO1 Models: Two (2) Year limited parts and labor. Five (5) Year limited door warranty.
អ BevLes Products: Two (2) Year limited parts and labor.
អ Warranty period begins the date of dealer invoice to customer or ninety (90) days after
shipment date from BKI, whichever comes first.
This
warranty
authorized
performed during regular, weekday business hours.
door warranty on convection ovens years 3 through 5 is a parts only warranty and does not include
labor, travel, mileage or any other charges.
អ Thermostat calibrations
អ Air and gas
អ Light
អ Glass doors and
អ Fuses,
អ Adjustments
អ Tightening
អ Failures
អ Unauthorized
អ Damage
អ Alteration,
អ Thermostats
អ Freight –
អ Ordinary
អ Failure to follow
អ Events
appropriate installation
manufacturer.
BKI genuine
installation
Warranty
liabilities on the
consequential damages,
unit. The repair or
obligations under
warranty
for use in the U.S.A.
covers on-site labor, parts and
service
representative
Any exceptions must be pre-approved in advance and in writing by BKI. The extended
អ Negligence
adjustments,
bulbs,
caused
beyond control
Leveling, as well as
is in lieu of all
door adjustments,
to
burner
of screws or
by erratic
repair by
in
shipment,
misuse or
other than normal UPS charges,
wear and
Factory OEM parts receive a (90) day
by a BKI F
manufacturer’s
improper installation,
and safety valves with
tear,
installation and/or operating instructions,
actory Authorized
replacement
the terms of this
is
extended
or acts of
after (30) days
flames and
fasteners,
voltages
anyone other than
of the
proper installation
and use materials – is the responsibility of the
other warranties, expressed
or in any
to the original
up to (100) miles
God,
company.
part. BKI shall in no
event
of
proven defective
warranty.
reasonable
from equipment installation date,
cleaning of
or gas
broken
Service
pilot
suppliers,
a BKI F
capillary tubes,
and check out of all
Center.
for
damages
purchaser
round
burners,
actory Authorized
materials warranty
or implied, and all
event
parts shall
and applies only to
travel
time
trip and (2)
be liable for any
in excess of the
constitute a
equipment
and travel e
hours
Service Center,
new equipment -
dealer
effective from the date of
xpenses
travel time and
or installer, not the
other obligations
special, indirect
purchase
fulfillment of all
per
price of the
of the
or
or
CS-TM-009.02 Revised 01/05/2015
Table of Contents
Table of Contents ........................................................................................................................................ 1
Initial Test and Adjustment ....................................................................................................................... 9
Replacement Parts .................................................................................................................................... 10
The ALF Fryer is compact, attractive and functional in design. It is constructed of a stainless steel fryer
pot for cleaning ease. Exclusive BKI patented features and safety devices offer flexibility, efficiency and
reliability plus PERFECTION IN FRYING!
The BKI name and trademark on this unit assures you of the finest in design and engineering -- that it has
been built with care and dedication -- using the best materials available. Attention to the operating
instructions regarding proper installation, operation, and maintenance will result in long lasting
dependability to insure the highest profitable return on your investment.
PLEASE READ THIS ENTIRE MANUAL BEFORE OPERATING THE UNIT. If
you have any questions, please contact your BKI Distributor. If they are unable to
answer your questions, contact the BKI Technical Service Department, toll free:
1-800-927-6887. Outside the U.S., call 1-864-963-3471.
Safety Precautions
Always follow recommended safety precautions listed in this manual. Below is the safety alert symbol.
When you see this symbol on your equipment, be alert to the potential for personal injury or property
damage.
Safety Signs and Messages
The following Safety signs and messages are placed in this manual to provide instructions and identify
specific areas where potential hazards exist and special precautions should be taken. Know and
understand the meaning of these instructions, signs, and messages. Damage to the equipment, death or
serious injury to you or other persons may result if these messages are not followed.
This message indicates an imminently hazardous situation which, if not avoided,
will result in death or serious injury.
This message indicates a potentially hazardous situation, which, if not avoided,
could result in death or serious injury.
This message indicates a potentially hazardous situation, which, if not avoided,
may result in minor or moderate injury. It may also be used to alert against
unsafe practices.
This message is used when special information, instructions or identification are
required relating to procedures, equipment, tools, capacities and other special
data.
2
Automatic Lift Fryer Introduction
Safe Work Practices
Noncombustible Floors Only
Make sure your floor is noncombustible. Do not operate your fryer
on floors that are wood, carpeted or have rubber mats.
•Placing your fryer on a combustible floor could cause a fire.
Serious injury could result.
•Examples of noncombustible floors where you can safely
place your fryer are concrete, tile, and ceramic.
Keep The Area Around Your Fryer
Uncluttered
Make sure to keep the area around your fryer clear of any
obstacles.
Serious injury can occur if you trip or fall near the fryer. You could
be burned by hot shortening that splashes out of the fryer or by
falling against the hot metal of the fryer.
Keep The Floor Around Your Fryer Clean Of
Shortening
Make sure to keep the floor around your fryer clean of shortening
and other liquids.
Serious injury can occur if you slip near your fryer. You could be
burned by hot shortening that splashes out of the fryer or by falling
against the hot metal of the fryer.
Keep The Casters Locked
To avoid spilling shortening, keep the casters locked. If any
shortening spills near your fryer, clean it up immediately.
3
Automatic Lift Fryer Introduction
Do Not Overfill The Fryer With Shortening
Hot shortening and steam may escape and burn you if you put too
much shortening in the fryer. Fill the fryer to approximately one inch
below the fill marks that are inside the fryer pot. Heat the
shortening. If needed, carefully add more shortening to bring the
level to the fill marks.
Do Not Let Any Water Get Into The Fryer
Always remove excess moisture from food before placing it into the
fryer basket. Water will cause the hot shortening to spatter. You
could be burned.
Do Not Overload The Basket With Food
Hot shortening and steam may escape and burn you if you place
too much food in the basket.
Wear Safe Clothing Appropriate To Your Job
Always wear your insulated mitts when handling the fryer basket or
touch any hot metal surfaces. You received a pair of insulated mitts
with your fryer. If you lose or damage your mitts, you can buy new
ones at your local restaurant equipment supply store or from your
local BKI Distributor.
Always wear non-skid shoes when working around the fryer or any
other equipment that uses shortening. Never wear loose clothing
such as neckties or scarves while operating your fryer. Keep loose
hair tied back or in a hair net while operating your fryer.
Always wear appropriate personal protection equipment during the
filtering process to guard against possible injury from hot oil.
Always wear appropriate personal protection equipment during the
boil-out process to guard against possible injury from hot cleaning
solution.
4
Automatic Lift Fryer Introduction
Keep this manual with the Equipment
This manual is an important part of your equipment. Always keep it
near for easy access.
If you need to replace this manual, contact:
BKI
Technical Services Department
2812 Grandview Dr., Simpsonville, S.C. 29680
Or call toll free: 1-800-927-6887
Outside the U.S., call 864-963-3471
Protect Children
Keep children away from this equipment. Children may not
understand that this equipment is dangerous for them and others.
NEVER allow children to play near or operate your equipment.
Keep Safety Labels Clean and in Good
Condition
Do not remove or cover any safety labels on your equipment. Keep
all safety labels clean and in good condition. Replace any damaged
or missing safety labels. Refer to the Safety Labels section for
illustration and location of safety labels on this unit.
If you need a new safety label, obtain the number of the specific
label illustrated on page 7, then contact:
BKI
Technical Services Department
2812 Grandview Dr., Simpsonville, S.C. 29680
Or call toll free: 1-800-927-6887
Outside the U.S., call 864-963-3471
5
Automatic Lift Fryer Introduction
Be Prepared for Emergencies
Be prepared for fires, injuries, or other emergencies.
Keep a first aid kit and a fire extinguisher near the equipment. You
must use a 40-pound Type BC fire extinguisher and keep it within
25 feet of your equipment.
Keep emergency numbers for doctors, ambulance services,
hospitals, and the fire department near your telephone.
Know your responsibilities as an Employer
• Make certain your employees know how to operate the
equipment.
• Make certain your employees are aware of the safety
precautions on the equipment and in this manual.
• Make certain that you have thoroughly trained your employees
about operating the equipment safely.
• Make certain the equipment is in proper working condition. If you
make unauthorized modifications to the equipment, you will
reduce the function and safety of the equipment.
6
Automatic Lift Fryer Introduction
Safety Labels
7
Automatic Lift Fryer Installation
Installation
Serious injury, equipment damage or death could result if attempting to install
this fryer yourself. Ensure that an authorized BKI service agent installs the fryer.
Unpacking and Handling
It is the owners’ responsibility to file all freight claims with the delivering truck line. Inspect all cartons and
crates for damage as soon as they arrive. If damage to cartons or crates is found, or if a shortage is
found, note this on the bill of lading (all copies) prior to signing.
If damage is found when the equipment is opened, immediately call the delivering truck line and follow up
the call with a written report indicating concealed damage to your shipment. Ask for an immediate
inspection of your concealed damage item. Packaging material MUST be retained to show the inspector
from the truck line.
Assembly and Mounting
1. Remove all packing materials from the interior and exterior of the fryer.
Risk of electric shock – Fryer must be secured to building structure. Follow
restraining device instructions for proper installation.
2. Install an ANSI Z83.11/CGA 1.8 compliant restraining device (such as BKI part number FT0279)
per the instructions below:
• Mount the wall attachment according the restraining device manufacturer instructions.
• Attach the spring-loaded hook on the restraining device to the eye-bolt mounted to the fryer
then attach the other spring-loaded hook to the wall attachment.
3. Lock the casters so the fryer does not move. Every time the fryer is used, make sure the casters
are locked so the fryer cannot move.
4. Clean the fryer pot before filling with shortening.
5. Place the DRAIN handle in the CLOSED position.
Wiring
Electrocution, equipment failure or property damage could result if an unlicensed
electrician performs the electrical installation. Ensure that a licensed electrician
perform the electrical installation in accordance with local codes, or in the
absence of local codes, with the National Electrical Code, ANSI NFPA 70-20XX.
This unit, when installed by an authorized BKI service agent, must be wired for use in accordance with all
applicable local, state, and federal codes. For specific electrical requirements and connections refer to the

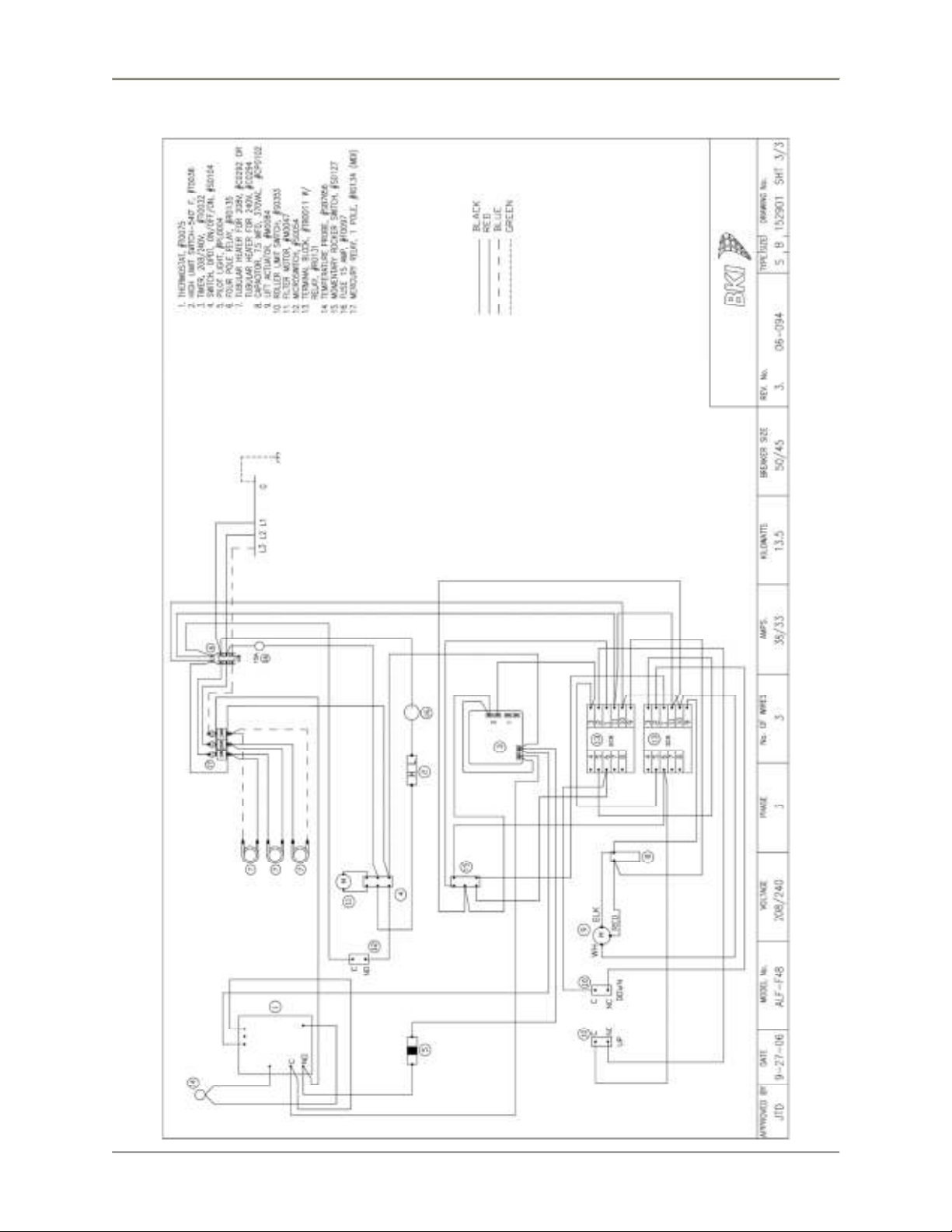

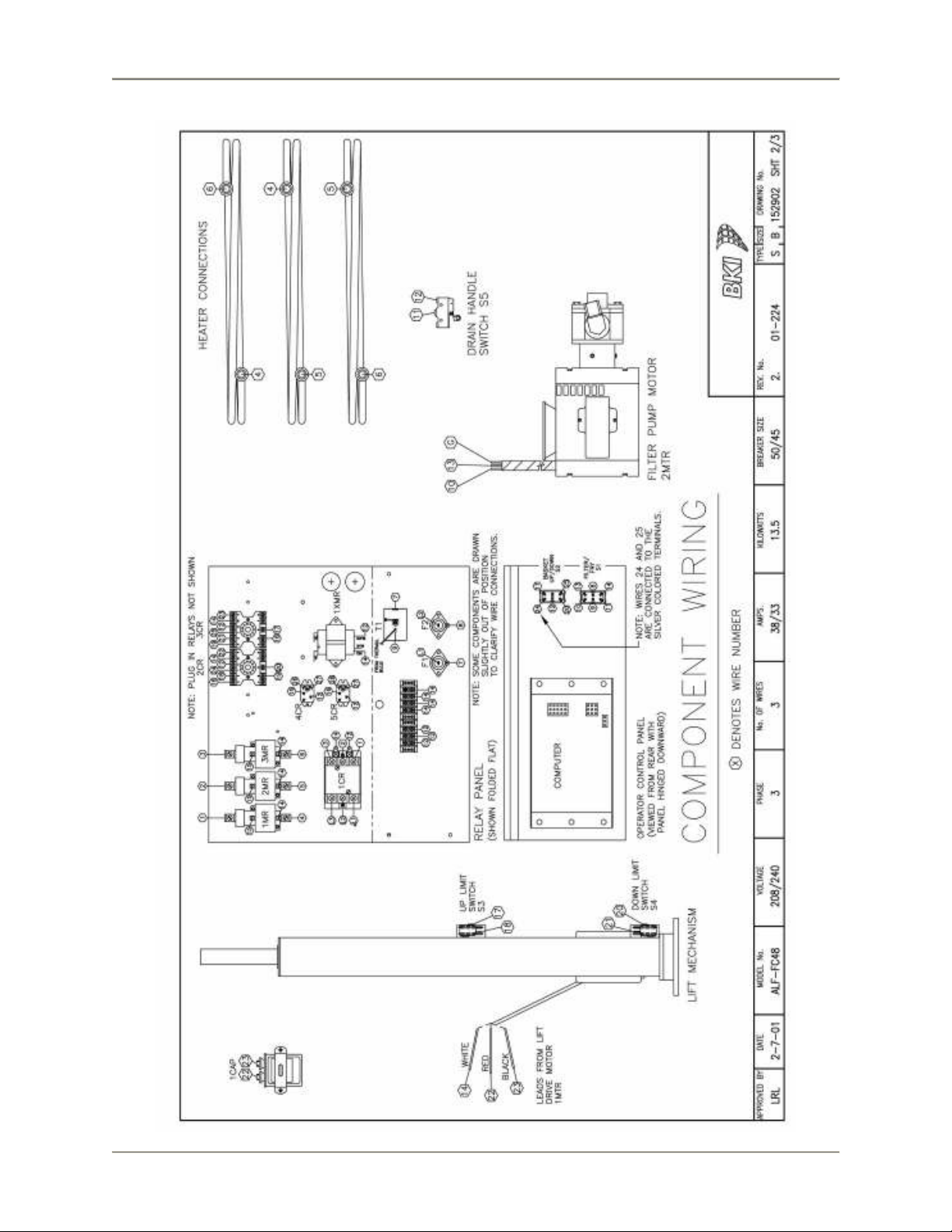

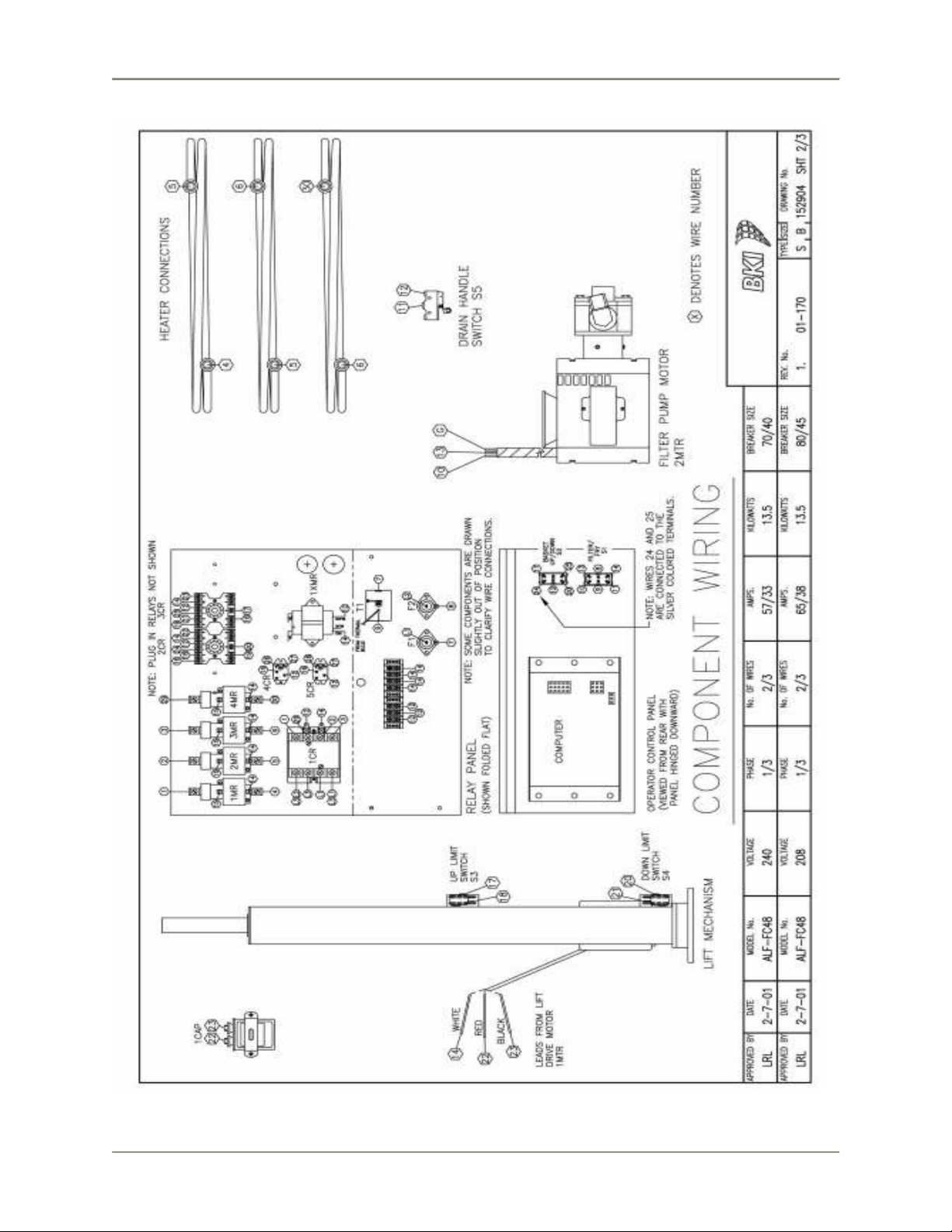

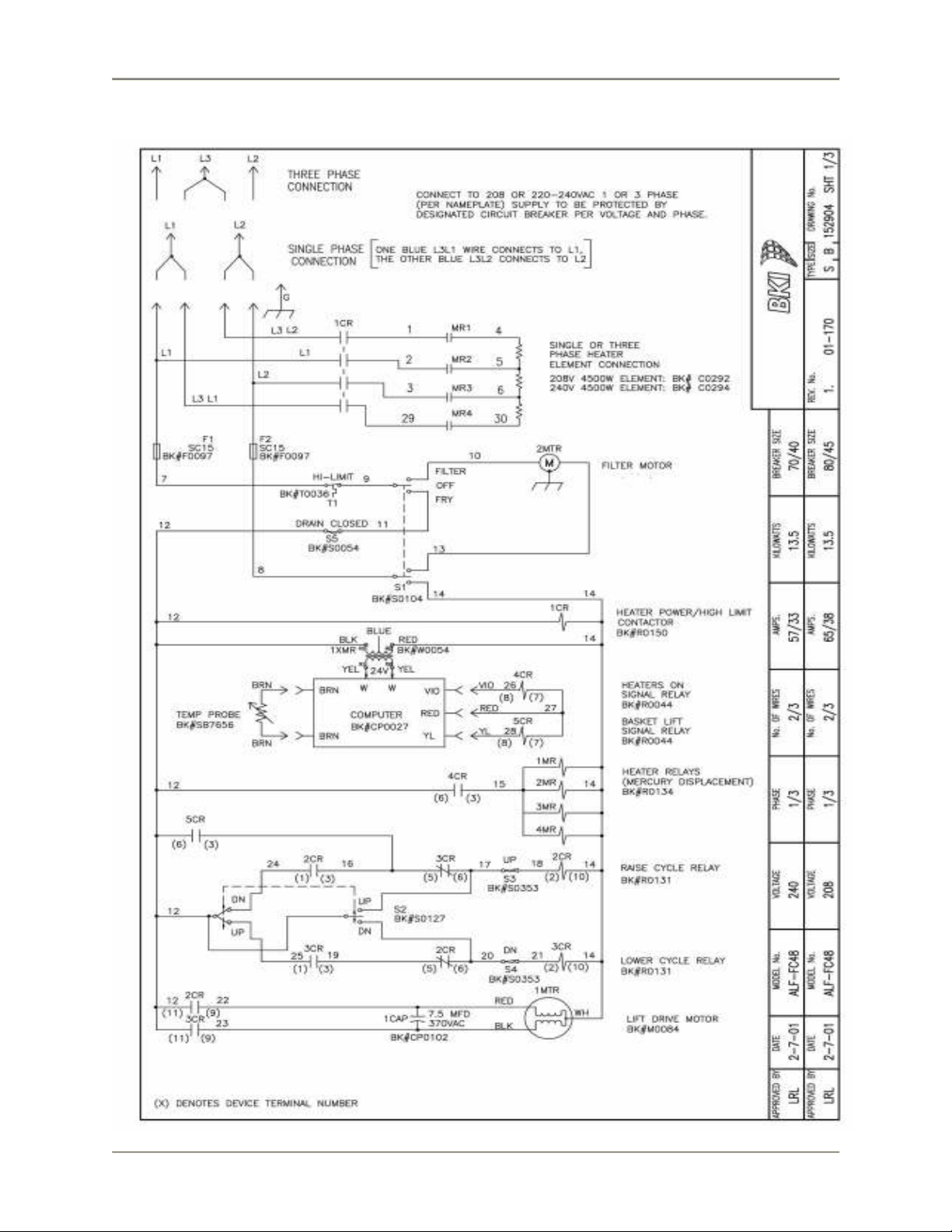

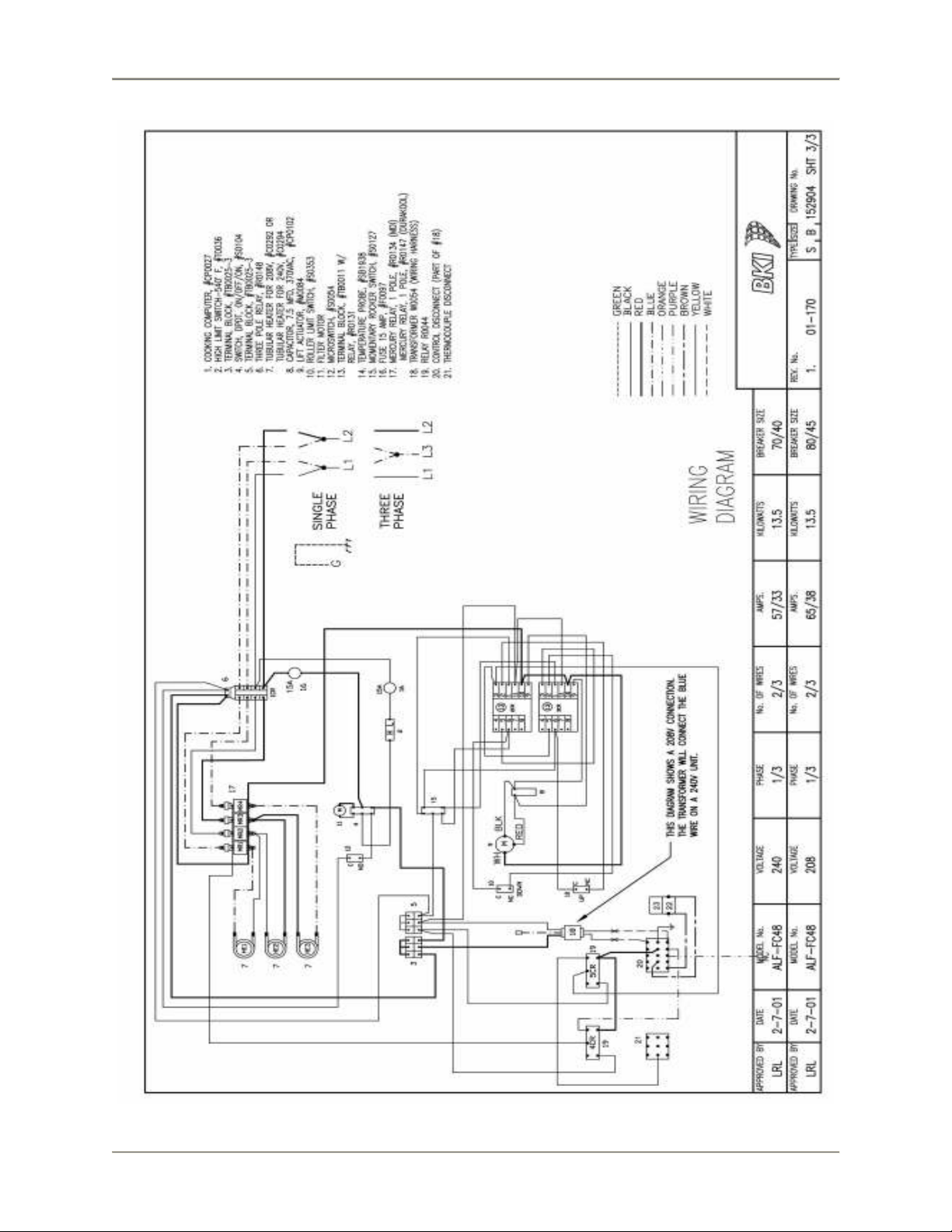

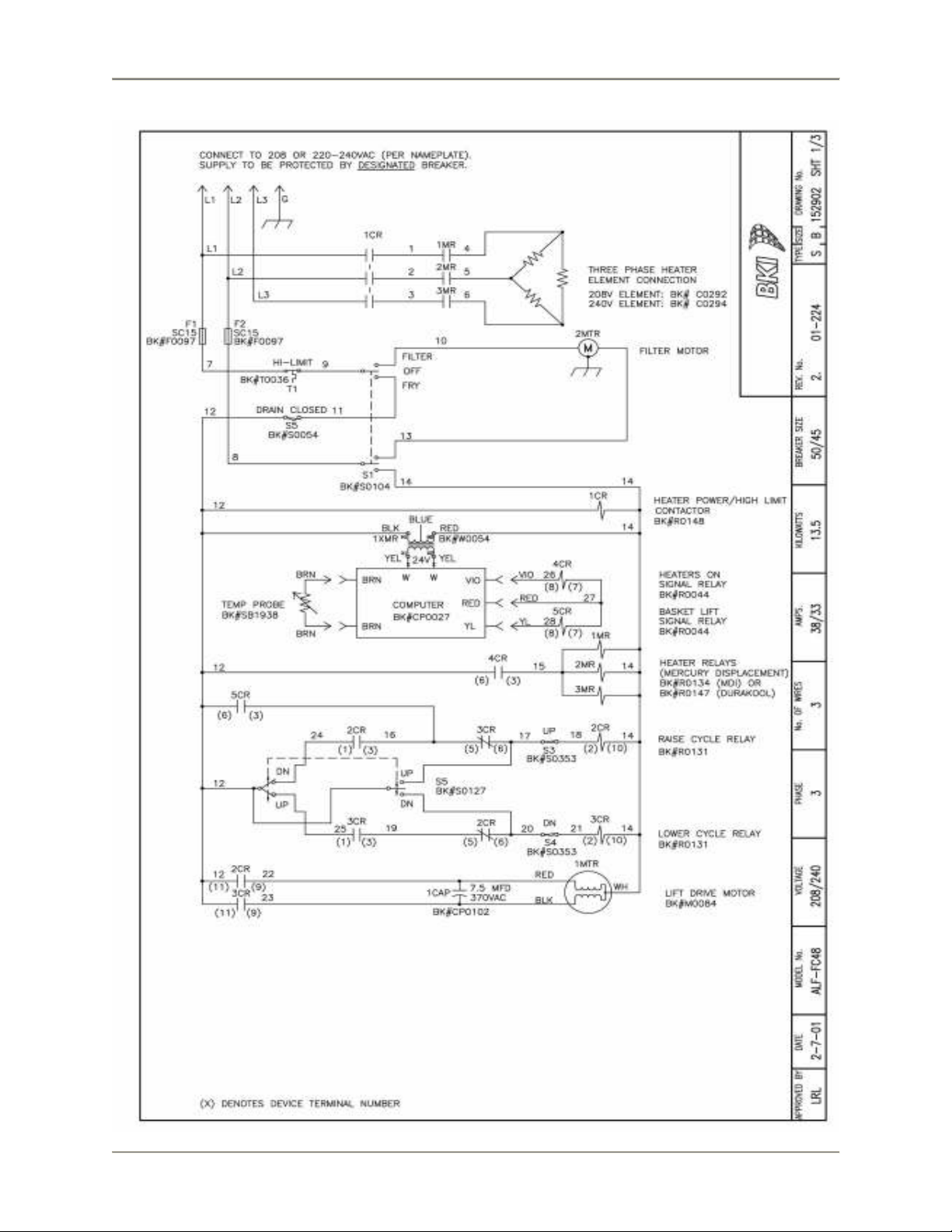

wiring diagram attached to the unit or provided in the Service Manual.
8
Automatic Lift Fryer Installation
Initial Test and Adjustment
1. Fill pot with shortening to about one inch below the mark.
Use only high-quality shortening that has low moisture content, a high smoke
point and no additives.
Overfilling the fryer pot with shortening could lead to serious injury. Ensure that
the fryer pot is filled with shortening only to the fill mark when shortening is hot.
Do not use any shortening other than what is specified in this manual and do not
overfill the fryer pot.
2. Place the FILTER/OFF/FRY switch to the FRY position. The shortening should begin to heat and
begin to reach the fill mark inside the pot. Add more shortening as required to reach the fill mark.
Refer to the troubleshooting section if this does not occur.
9
Automatic Lift Fryer Replacement Parts
Descript
ion Assembly #
Figure #
Table #
Replacement Parts
Use the information in this section to identify replacement parts. To order replacement parts, call your
local BKI sales and service representative. Before calling, please note the serial number, model number
and voltage on the rating tag affixed to the unit.
Assemblies

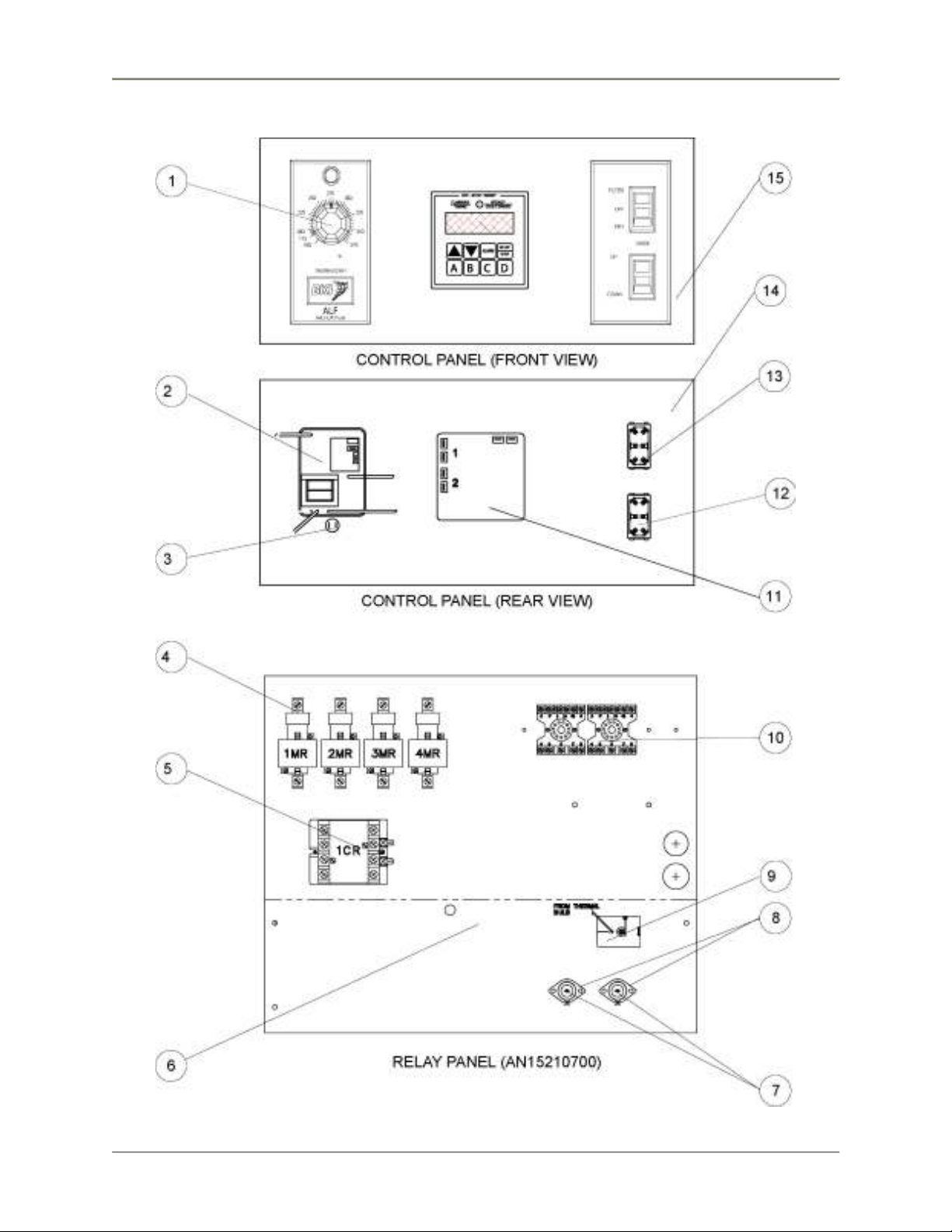

DRAIN VALVE & PLUGS SB1999SFigure 1 Table 1
DOOR ASSEMBLY
DRAIN/MOTOR/PIPING ASSEMBLY

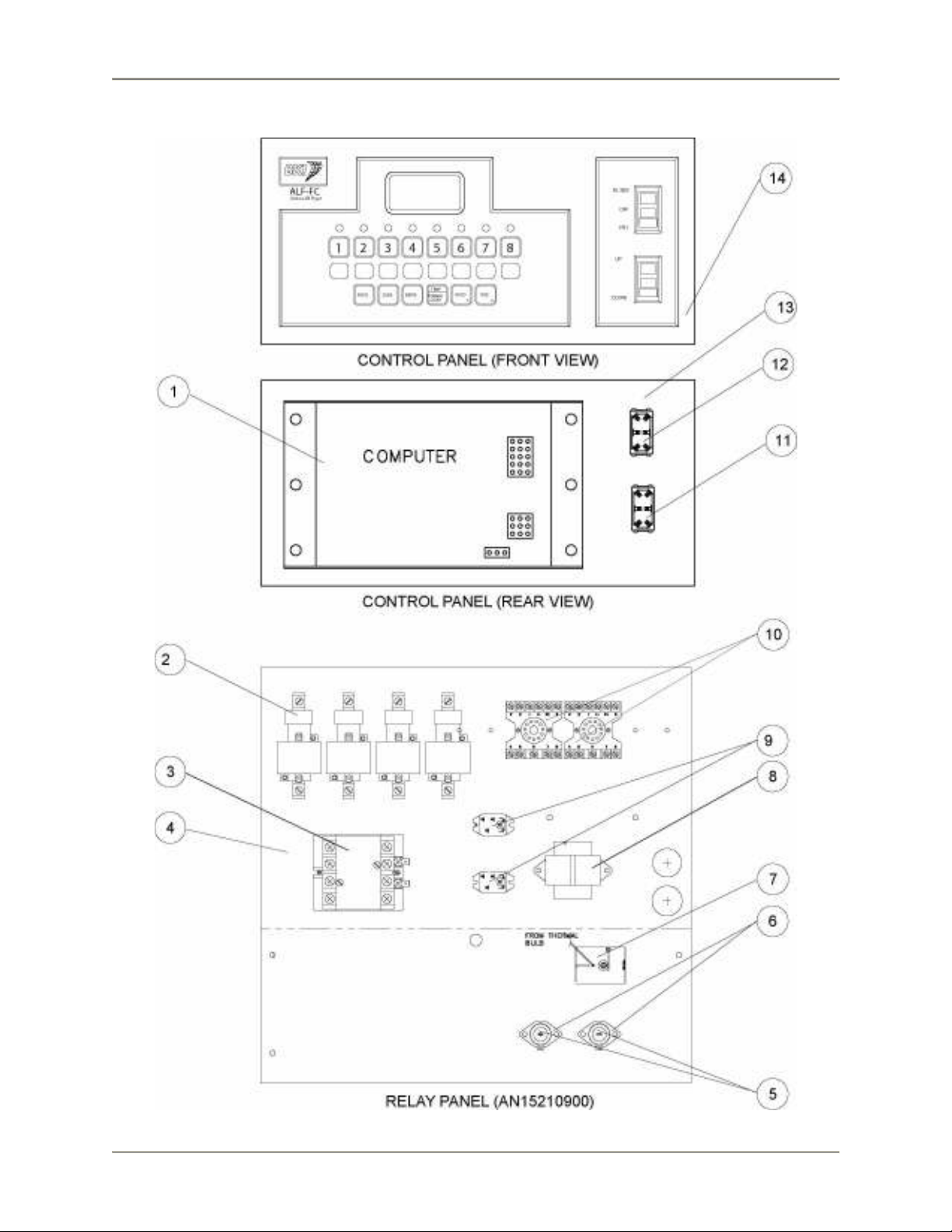

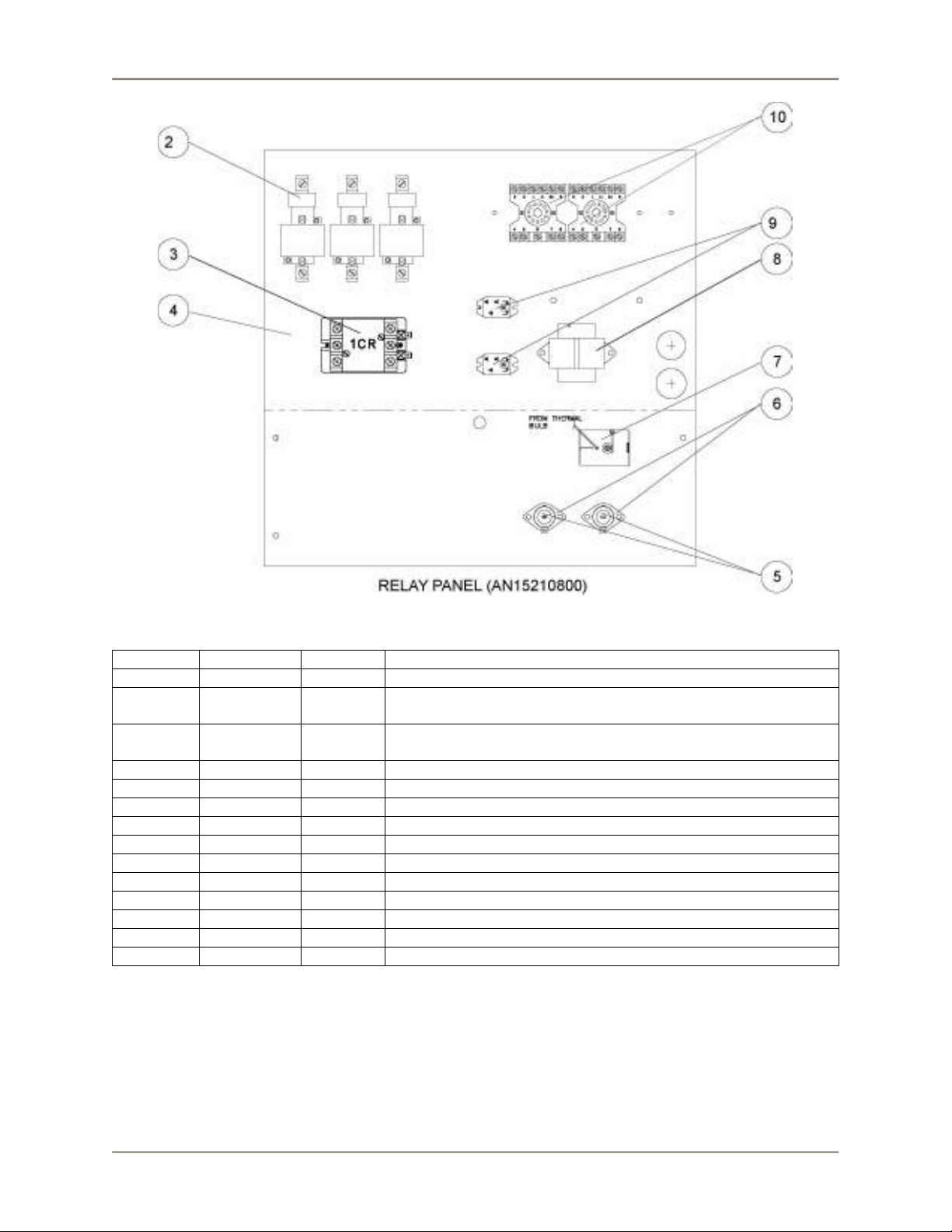

CONTROL PANEL ALF-F (1/3 Phase)
CONTROL PANEL ALF-F (3 Phase)
CONTROL PANEL ALF-FC (1/3 Phase)
CONTROL PANEL ALF-FC (3 Phase)
